WDD2210221A000004 - Mercedes-Benz EPC Parts Catalog

01 Engine Housing

010 Engine

5 5 Q0000000001Q 0000000001 Important Information Determine Engine Basic Number From Data Card

020 Cylinder Crankcase

5 5 A6420110271A 642 011 02 71 Screw For Crankcase Crankshaft Bearing Cap To Cylinder Crankcase (13×)

10 10 A6420110371A 642 011 03 71 Screw For Crankcase Crankshaft Bearing Cap To Cylinder Crankcase (3×)

15 15 N910105010011N 910105 010011 Hexagon Head Bolt Crankshaft Bearing Cap To Crankcase, Transverse M10x40 (8×)

30 30 A1129910441A 112 991 04 41 Spring Pin Transmission To Crankcase (2×)

35 35 A6019920325A 601 992 03 25 Clamping Sleeve Cylinder Head To Cylinder Crankcase (4×)

35 35 A6019920325A 601 992 03 25 Clamping Sleeve Timing Case To Cylinder Crankcase (2×)

40 40 A6019920125A 601 992 01 25 Clamping Sleeve Cover To Cylinder Crankcase (2×)

45 45 A0009908917A 000 990 89 17 Screw Plug Differential Shaft

50 50 N007603020100N 007603 020100 Sealing Ring

55 55 N000908018010N 000908 018010 Screw Plug Differential Shaft

60 60 N007603018100N 007603 018100 Sealing Ring

65 65 N000908024010N 000908 024010 Screw Plug Left Water Supply

70 70 N007603024105N 007603 024105 Sealing Ring

75 75 A6019920225A 601 992 02 25 Clamping Sleeve Turbocharger To Crankcase (2×)

80 80 N000908018010N 000908 018010 Screw Plug Oil Feed (4×)

85 85 N007603018100N 007603 018100 Sealing Ring (4×)

90 90 N000908016009N 000908 016009 Screw Plug Water Return

95 95 N007603016100N 007603 016100 Sealing Ring

~~100~~ 100 N000908012008N 000908 012008 Screw Plug Feed

~~105~~ 105 N007603012100N 007603 012100 Sealing Ring 12x16-al

~~110~~ 110 N005401307000N 005401 307000 Ball Oil Return Vacuum Pump 7 Mm

~~115~~ 115 N000908024010N 000908 024010 Screw Plug

~~120~~ 120 N007603024105N 007603 024105 Sealing Ring

~~125~~ 125 A6420100314A 642 010 03 14 Cap Steel Version

~~130~~ 130 N910143006002N 910143 006002 Hexalobular Bolt With Aluminum Cover M6x20 (10×)

~~130~~ 130 N910143006000N 910143 006000 Hexalobular Bolt With Steel Cover M6x12 (10×)

030 Timing Case

3 3 A6420100617A 642 010 06 17 Timing Case Cover Timing Case

3 3 A6420100717A 642 010 07 17 Timing Case Cover Timing Case

3 3 A6420101017A 642 010 10 17 Timing Case Cover Timing Case

6 6 A0239978447A 023 997 84 47 Sealing Ring (radial-lip-type Oil Seal)

9 9 N000000002508N 000000 002508 Hexalobular Bolt Timing Case To Cylinder Crankcase M6x20 (12×)

045 Oil Pan & Oil Level Display

3 3 A6420140202A 642 014 02 02 Oil Pan, Upper Section Upper Part

3 3 A6420141902A 642 014 19 02 Oil Pan, Upper Section Upper Part

6 6 N000000001118N 000000 001118 Hexalobular Bolt Upper Part Of Oil Pan To Crankcase M6x28 (34×)

9 9 N000000001123N 000000 001123 Hexalobular Bolt Oil Sump On Crankcase Cover, Rear M6x58 (2×)

9 9 N000000001120N 000000 001120 Hexalobular Bolt Bracket To Oil Pan M6x38 (2×)

15 15 A6420180540A 642 018 05 40 Bracket (2×)

18 18 N910143008002N 910143 008002 Hexalobular Bolt Oil Pan To Cylinder Crankcase M8x25 (2×)

21 21 A6420100628A 642 010 06 28 Oil Pan Lower Part

25 25 A0029973430A 002 997 34 30 Screw Plug Oil Drain

28 28 N007603012102N 007603 012102 Sealing Ring

30 30 N000000001113N 000000 001113 Hexalobular Bolt Upper Part To Lower Part M6x15 (13×)

33 33 A6420101366A 642 010 13 66 Oil Dipstick Tube

33 33 A6420102866A 642 010 28 66 Oil Dipstick Tube

33 33 A6420101766A 642 010 17 66 Guide Tube

35 35 A6420180240A 642 018 02 40 Bracket Oil Level Contactor

35 35 A6420182840A 642 018 28 40 Bracket Oil Level Contactor

37 37 N000000001114N 000000 001114 Hexalobular Bolt Bracket To Oil Pan M6x15 (3×)

40 40 A1120180080A 112 018 00 80 Gasket Suction Pipe To Oil Pan

40 40 A1120160000A 112 016 00 00 Gasket, Circumferential Suction Pipe To Oil Pan

42 42 A6420101672A 642 010 16 72 Oil Dipstick

42 42 A6420103172A 642 010 31 72 Oil Dipstick

45 45 A0069972645A 006 997 26 45 Sealing Ring

48 48 N000000001116N 000000 001116 Hexalobular Bolt Oil Suction Pipe To Oil Pan M6x19 (2×)

48 48 N910143006000N 910143 006000 Hexalobular Bolt Oil Suction Pipe To Oil Pan M6x12

060 Cylinder Head

3 3 A6420100621A 642 010 06 21 Cylinder Head Right

3 3 A6420100821A 642 010 08 21 Cylinder Head Right

5 5 A6420106107A 642 010 61 07 Cylinder Head Left

5 5 A6420100921A 642 010 09 21 Cylinder Head Left

5 5 A6420101121A 642 010 11 21 Cylinder Head Left

9 9 A0009910852A 000 991 08 52 Cylinder Pin Timing Case To Cylinder Crankcase (4×)

12 12 A0009908203A 000 990 82 03 Screw With Feature Cylinder Head Cover To Cylinder Head, Right M6x35 (8×)

12 12 N910143006005N 910143 006005 Hexalobular Bolt Fastening, Cylinder Head Cover To Cylinder Head, Right M6x35 (14×)

12 12 N910143006002N 910143 006002 Hexalobular Bolt Cylinder Head Cover To Cylinder Head, Right M6x20 (6×)

12 12 N910143006013N 910143 006013 Hexalobular Bolt Cylinder Head Cover To Cylinder Head M6x50

12 12 N910143006005N 910143 006005 Hexalobular Bolt Fastening, Cylinder Head Cover To Cylinder Head, Left M6x35 (15×)

12 12 A0009908203A 000 990 82 03 Screw With Feature Cylinder Head Cover To Cylinder Head, Left M6x35 (8×)

12 12 N910143006002N 910143 006002 Hexalobular Bolt Cylinder Head Cover To Cylinder Head, Left M6x20 (5×)

15 15 N005401309000N 005401 309000 Ball Valve Cooling Bore Outlet Lock (6×)

18 18 N000443022000N 000443 022000 Cap Seal, Right Core Holes (3×)

18 18 N000443022000N 000443 022000 Cap Seal, Left Core Holes (3×)

21 21 N005401307000N 005401 307000 Ball Cap, Oil Bore 7 Mm (11×)

24 24 N005401305000N 005401 305000 Ball Chain Tensioner Oil Bore Plug

27 27 N005401305000N 005401 305000 Ball Valve Cooling Bore Inlet Lock (12×)

30 30 A1119900405A 111 990 04 05 Stud Bolt Exhaust Manifold To Cylinder Head Right (6×)

30 30 A1119900405A 111 990 04 05 Stud Bolt Exhaust Manifold To Cylinder Head Left (6×)

33 33 A6420162120A 642 016 21 20 Cylinder Head Gasket Right

33 33 A6420165220A 642 016 52 20 Cylinder Head Gasket Right

36 36 A6420162220A 642 016 22 20 Cylinder Head Gasket Left

36 36 A6420165120A 642 016 51 20 Cylinder Head Gasket Left

42 42 A0039902522A 003 990 25 22 Screw Cylinder Head Cover To Cylinder Head M12x205;m12x110 (16×)

42 42 N910143008011N 910143 008011 Hexalobular Bolt Cylinder Head Cover To Cylinder Head M8x90

42 42 N910105008014N 910105 008014 Hexagon Head Bolt Cylinder Head Cover To Cylinder Head M8x35 (3×)

50 50 A0000101385A 000 010 13 85 Filler Cap Cylinder Head Cover,right

55 55 A1110180080A 111 018 00 80 Gasket

65 65 A0009976220A 000 997 62 20 Cap Camshaft 30 Mm

70 70 A0009976320A 000 997 63 20 Cap Camshaft 40 Mm (3×)

75 75 A6420160074A 642 016 00 74 Pin Attachment, Engine Cover

075 Cylinder Head Cover

5 5 A6420160624A 642 016 06 24 Cover With Insulation, Right

5 5 A6420160824A 642 016 08 24 Cover With Insulation, Right

5 5 A6420161424A 642 016 14 24 Cover Plate With Insulation, Right

10 10 A6420160524A 642 016 05 24 Cover Left

10 10 A6420160724A 642 016 07 24 Cover Plate Left

48 48 A6420180080A 642 018 00 80 Elastomer Molded Seal

48 48 A6420180180A 642 018 01 80 Elastomer Molded Seal

130 Engine Breathing

15 15 A0129974045A 012 997 40 45 Sealing Ring

20 20 A6420160381A 642 016 03 81 Molded Hose Pressure Valve To Intake Pipe

20 20 A6420160881A 642 016 08 81 Molded Hose Pressure Valve To Intake Pipe

25 25 A6420160330A 642 016 03 30 Ts Piping Parts Kit

30 30 A6420940580A 642 094 05 80 Seal For Clean Air Line

35 35 A6420100131A 642 010 01 31 Cap

40 40 A0049975748A 004 997 57 48 Sealing Ring

45 45 N910143006001N 910143 006001 Hexalobular Bolt Cover At Cylinder Head M6x16 (2×)

50 50 N000000001117N 000000 001117 Hexalobular Bolt Valve To Cylinder Head Cover M6x23 (3×)

03 Parts Of Unit Power Plant

015 Crankshaft And Flywheel

3 3 A6420300901A 642 030 09 01 Crankshaft

3 3 A6420301601A 642 030 16 01 Crankshaft

3 3 A6420301901A 642 030 19 01 Crankshaft

3 3 A6420302401A 642 030 24 01 Crankshaft

3 3 A6420302601A 642 030 26 01 Crankshaft

6 6 A6019970410A 601 997 04 10 Cylinder Pin

9 9 A6420500403A 642 050 04 03 Crankshaft Gear

9 9 A6420500803A 642 050 08 03 Crankshaft Gear

12 12 A6420331901A 642 033 19 01 Crankshaft Bearing Half Top Half, Bearing Point 1

12 12 A6420332201A 642 033 22 01 Main Bearing, Upper Half Top Half, Bearing Point 1

12 12 A6420331901A 642 033 19 01 Crankshaft Bearing Half Main Bearing 2-4, Top Half (3×)

15 15 A6420330802A 642 033 08 02 Crankshaft Bearing Half Bottom Half, Bearing Point 1-4 (4×)

18 18 A6420332462A 642 033 24 62 Ts Thrust Plate Parts Kit 2.15 Mm (2×)

18 18 A6420332562A 642 033 25 62 Ts Thrust Plate Parts Kit Normal 1;2.20 Mm (2×)

21 21 N006888005012N 006888 005012 Woodruff Key Crankshaft,front

24 24 A6420300103A 642 030 01 03 Vibration Damper Vibration Absorber

27 27 N000000005724N 000000 005724 Hexagon Head Bolt Vibration Absorber To Crankshaft M18x80

30 30 A6049900040A 604 990 00 40 Window Vibration Absorber To Crankshaft

36 36 A6420300012A 642 030 00 12 Ring Gear

36 36 A6420300312A 642 030 03 12 Starter Ring Gear

36 36 A6420300512A 642 030 05 12 Ring Gear

39 39 A1120320252A 112 032 02 52 Spacer Disk

42 42 A0019905712A 001 990 57 12 Screw Flywheel Or Starter Ring Gear On Crankshaft M10x1x20.0 (8×)

020 Differential Shaft

3 3 A6420300372A 642 030 03 72 Shaft Repair Kit; Only For Duplex Chain

3 3 A6420301472A 642 030 14 72 Balance Shaft Repair Kit; Only For Single Chain

6 6 A6420340073A 642 034 00 73 Axial Lock-down Device

9 9 N910143006001N 910143 006001 Hexalobular Bolt M6x16

12 12 A6420340104A 642 034 01 04 Cap Differential Shaft

12 12 A6420340204A 642 034 02 04 Cap, Balance Shaft Differential Shaft

15 15 N910143006000N 910143 006000 Hexalobular Bolt Cover Attachment M6x12 (3×)

20 20 N910105008019N 910105 008019 Hexagon Head Bolt M8x50

030 Conrod And Piston

3 3 A6420303420A 642 030 34 20 Connecting Rod (6×)

3 3 A6420304020A 642 030 40 20 Connecting Rod (6×)

3 3 A6420304120A 642 030 41 20 Connecting Rod (6×)

3 3 A6420305220A 642 030 52 20 Connecting Rod (6×)

9 9 A6420383571A 642 038 35 71 Connecting Rod Bolt (12×)

15 15 A6420300617A 642 030 06 17 Piston Right (3×)

15 15 A6420304517A 642 030 45 17 Piston Right (3×)

15 15 A6420302617A 642 030 26 17 Piston Right (3×)

15 15 A6420301718A 642 030 17 18 Piston Right (3×)

15 15 A6420300717A 642 030 07 17 Piston Left (3×)

15 15 A6420304617A 642 030 46 17 Piston Left (3×)

15 15 A6420302717A 642 030 27 17 Piston Left (3×)

15 15 A6420301818A 642 030 18 18 Piston Left (3×)

18 18 A6420300024A 642 030 00 24 Piston Ring Parts Kit (6×)

21 21 N000000000628N 000000 000628 Snap Ring Left And Right 30x2.0 (12×)

05 Engine Management

015 Camshaft And Chain Drive

5 5 A6420503601A 642 050 36 01 Camshaft Inlet Right

10 10 A6420502801A 642 050 28 01 Camshaft Inlet Left

15 15 A6019970010A 601 997 00 10 Cylinder Pin Inlet Right

15 15 A6119970210A 611 997 02 10 Cylinder Pin Inlet Right

20 20 A6110520501A 611 052 05 01 Camshaft Sprocket Inlet Right

20 20 A6460500149A 646 050 01 49 Sprocket Inlet Right

20 20 A6460500249A 646 050 02 49 Sprocket Inlet Right

25 25 A6420520001A 642 052 00 01 Camshaft Sprocket Exhaust; Left

25 25 A6420521701A 642 052 17 01 Camshaft Sprocket Exhaust; Left

30 30 A6119900010A 611 990 00 10 Screw M7x25 (6×)

35 35 A6420503401A 642 050 34 01 Camshaft Exhaust; Right

40 40 A6420503501A 642 050 35 01 Camshaft Exhaust; Left

45 45 A6019970010A 601 997 00 10 Cylinder Pin Exhaust; Left

45 45 A6119970210A 611 997 02 10 Cylinder Pin Exhaust; Left

50 50 A6420520074A 642 052 00 74 Pin Guide Rail To Crankcase Right

50 50 A6420520074A 642 052 00 74 Pin Clamping Rail To Cylinder Crankcase

50 50 A6420520074A 642 052 00 74 Pin Guide Rail To Crankcase, Left (2×)

55 55 A6420520374A 642 052 03 74 Pin Guide Rail To Crankcase Right

55 55 A6420520374A 642 052 03 74 Pin Guide Rail To Crankcase, Left (3×)

60 60 A6420502600A 642 050 26 00 Chain Sliding Rail Parts Kit, For Duplex Chain

60 60 A6420502700A 642 050 27 00 Chain Sliding Rail Parts Kit, For Single Chain

65 65 A6420500211A 642 050 02 11 Chain Tensioner

65 65 A6420500311A 642 050 03 11 Chain Tensioner

67 67 A6069930301A 606 993 03 01 Compression Spring

69 69 A6060520076A 606 052 00 76 Window

70 70 A6119970044A 611 997 00 44 Sealing Ring

75 75 A0009931076A 000 993 10 76 Double Sleeve-type Chain Double Sleeve-type Chain

75 75 A0009936376A 000 993 63 76 Double Sleeve-type Chain Double Sleeve-type Chain

80 80 A6420520240A 642 052 02 40 Bracket (8×)

85 85 N910142006000N 910142 006000 Hexalobular Bolt Bracket Mounting M6x12 (8×)

060 Valves

5 5 A6420530401A 642 053 04 01 Intake Valve Intake Valve (12×)

5 5 A6420500527A 642 050 05 27 Exhaust Valve Exhaust Valve (12×)

10 10 A0000535658A 000 053 56 58 Ts Valve Stem Seal (parts Kit), Valve Stem Sealing (6×)

15 15 A6680530125A 668 053 01 25 Spring Retainer Bottom (24×)

20 20 A6680530020A 668 053 00 20 Valve Spring Intake Valve Right (6×)

20 20 A6420530120A 642 053 01 20 Valve Spring Exhaust Valve Right (6×)

20 20 A6420530320A 642 053 03 20 Valve Spring Exhaust Valve Right (6×)

20 20 A6680530020A 668 053 00 20 Valve Spring Intake Valve Left (6×)

20 20 A6420530120A 642 053 01 20 Valve Spring Exhaust Valve Left (6×)

20 20 A6420530320A 642 053 03 20 Valve Spring Exhaust Valve Left (6×)

25 25 A6680530025A 668 053 00 25 Spring Retainer Top (24×)

30 30 A0000531126A 000 053 11 26 Conical Valve Keeper Right (24×)

30 30 A0000531126A 000 053 11 26 Conical Valve Keeper Left (24×)

35 35 A6420500080A 642 050 00 80 Compensating Element (24×)

40 40 A6420500133A 642 050 01 33 Rocker Arm Right (12×)

40 40 A6420500133A 642 050 01 33 Rocker Arm Left (12×)

07 Fuel Injection

013 Fuel-injection System

5 5 A6420700401A 642 070 04 01 High-pressure Pump

5 5 A6420700201A 642 070 02 01 High-pressure Pump

5 5 A6420700501A 642 070 05 01 Injection Pump

10 10 A6420780080A 642 078 00 80 Seal

15 15 A0000780231A 000 078 02 31 Connection Fitting

20 20 N007603012102N 007603 012102 Sealing Ring

25 25 A0005426218A 000 542 62 18 Temperature Sensor

25 25 A0051536328A 005 153 63 28 Temperature Sensor

30 30 A0000780480A 000 078 04 80 Seal

35 35 A6420740184A 642 074 01 84 Valve

40 40 A0000780080A 000 078 00 80 Seal

45 45 A0000780180A 000 078 01 80 Seal

50 50 N000000003941N 000000 003941 Hexalobular Bolt Valve To Housing (3×)

55 55 A0039902422A 003 990 24 22 Screw With Feature Injection Pump To Cylinder Head (3×)

55 55 A0019909303A 001 990 93 03 Screw With Feature Injection Pump To Cylinder Head M7x35 (3×)

60 60 A6420771312A 642 077 13 12 Drive Gear

65 65 N006888004002N 006888 004002 Woodruff Key Drive Gear To Injection Pump

70 70 N910112014000N 910112 014000 Hexagon Nut

~~900~~ 900 A2105402081A 210 540 20 81 Receptacle Housing Temperature Sensor Fuel 2-pin Mqs;b50

~~901~~ 901 A0005402305A 000 540 23 05 Electrical Line 0.5 Mm2 Mqs

~~901~~ 901 A0005456980A 000 545 69 80 Seal 1.4-1.9 Mm

~~905~~ 905 A1685452928A 168 545 29 28 Receptacle Housing High-pressure Pump 2-pin Slk2.8

~~906~~ 906 A0095458126A 009 545 81 26 Contact Socket 0.75-1.0 Mm2 Slk2.8

~~906~~ 906 A0005460786A 000 546 07 86 Single-wire Seal 1.2-2.1 Mm

105 Nozzle Holder,lines & Attachment Parts

3 3 A6420702695A 642 070 26 95 Fuel Distributor Right

3 3 A6420702595A 642 070 25 95 Fuel Distributor Right

6 6 A0061536528A 006 153 65 28 Pressure Sensor (pressure Sensor)

9 9 A0029900022A 002 990 00 22 Screw Fuel Distributor At Cylinder Head M7x20 (2×)

18 18 A6420700495A 642 070 04 95 Fuel Distributor Left

21 21 A0029900022A 002 990 00 22 Screw Fuel Distributor At Cylinder Head M7x20 (2×)

40 40 A6420700033A 642 070 00 33 Line (delivery Line)

40 40 A6420701333A 642 070 13 33 Pressure Line (delivery Line)

40 40 A6420700700A 642 070 07 00 Pressure Line (delivery Line)

45 45 A0009955142A 000 995 51 42 Retaining Clamp Delivery Line To Cylinder Head Cover

45 45 N000000006288N 000000 006288 Clamp Fuel Line Mounting

50 50 N000000001116N 000000 001116 Hexalobular Bolt Delivery Line To Cylinder Head Cover M6x19

55 55 A6420700133A 642 070 01 33 Line Left Fuel Distributor To Right Fuel Distributor

60 60 A6110700040A 611 070 00 40 Bracket Delivery Line To Cylinder Head Cover

63 63 A6110780086A 611 078 00 86 Shim

66 66 N910143006001N 910143 006001 Hexalobular Bolt Fuel Line To Boost Air Distributor M6x16

70 70 A6420700233A 642 070 02 33 Line From Fuel Distributor To Nozzle (6×)

70 70 A6420701533A 642 070 15 33 Pressure Line From Fuel Distributor To Nozzle (6×)

70 70 A6420700800A 642 070 08 00 Pressure Line From Fuel Distributor To Nozzle (6×)

75 75 A6420700587A 642 070 05 87 Injector For Common Rail Injection Nozzle, Right (3×)

75 75 A6420701987A 642 070 19 87 Injector Injection Nozzle, Right (3×)

75 75 A6420701387A 642 070 13 87 Injector Injection Nozzle, Right (3×)

75 75 A6420700587A 642 070 05 87 Injector For Common Rail Injection Nozzle, Left (3×)

75 75 A6420701387A 642 070 13 87 Injector Injection Nozzle, Left (3×)

75 75 A6420701987A 642 070 19 87 Injector Injection Nozzle, Left (3×)

78 78 A0000780580A 000 078 05 80 O-ring Between Injector And Leak Oil Line 2.8x1.5 Mm (6×)

80 80 A6110170060A 611 017 00 60 Seal. Ring, Special Shape 1,56mm (6×)

85 85 A6420160038A 642 016 00 38 Bracket Injection Nozzle (6×)

90 90 A0009902907A 000 990 29 07 Cap Bolt With Socket Injection Nozzle At Cylinder Head M6x79 (6×)

~~900~~ 900 A1685452528A 168 545 25 28 Receptacle Housing Fuel System Pressure Sensor 3-pin;slk2.8;b4/7;b4/6

~~900~~ 900 A0095458026A 009 545 80 26 Contact Socket 0.22-0.5 Mm2 Slk2.8

~~901~~ 901 A0005452839A 000 545 28 39 Core Bundle Sealing 0.5-1.0 Mm

~~910~~ 910 A1685452928A 168 545 29 28 Receptacle Housing Injection Valve 2-pin Slk2.8;y76/1-y76/6;y110/1-y110/6 (6×)

~~911~~ 911 A0095458126A 009 545 81 26 Contact Socket 0.75-1.0 Mm2 Slk2.8

~~911~~ 911 A0005452839A 000 545 28 39 Core Bundle Sealing 0.5-1.0 Mm

~~915~~ 915 A1685453028A 168 545 30 28 Receptacle Housing Pressure Control Valve 2-pin Cod.b;slk2.8;y74

~~916~~ 916 A0005452839A 000 545 28 39 Core Bundle Sealing 0.5-1.0 Mm

~~916~~ 916 A0095458126A 009 545 81 26 Contact Socket 0.75-1.0 Mm2 Slk2.8

110 Fuel Filter, Lines

10 10 A6420783481A 642 078 34 81 Hose Feed Line, From Connectng Point To Filter

15 15 A6420781981A 642 078 19 81 Hose Feed Line, Between Fuel Line From Tank And Line To Filter

20 20 A0049972090A 004 997 20 90 Hose Clamp To Mount Fuel Lines 14.5-15.5 Mm

25 25 A6420782081A 642 078 20 81 Hose Return Line, Between Line From High-pressure Pump And Line To Tank

30 30 A0069971890A 006 997 18 90 Hose Clamp To Mount Fuel Lines 13-14.5 Mm

35 35 A6420781481A 642 078 14 81 Fuel Hose From Valve To Fuel Tank

35 35 A6420782181A 642 078 21 81 Fuel Hose From Valve To Fuel Tank

40 40 A6420701332A 642 070 13 32 Line

45 45 A0009956665A 000 995 66 65 Spacer, Extendable Line Mounting

50 50 A6420780341A 642 078 03 41 Bracket Leak Line

60 60 N000000001117N 000000 001117 Hexalobular Bolt Leak Line To Cylinder Head M6x23 (2×)

65 65 A6420780141A 642 078 01 41 Bracket

70 70 A0009957435A 000 995 74 35 Hose Clamp Fuel Line Mounting

80 80 N910143006001N 910143 006001 Hexalobular Bolt Fuel Hose To Charge Air Cross Pipe M6x16

~~100~~ 100 A6460920501A 646 092 05 01 Fuel Filter Without Heating Element And Water Level Sensor

~~103~~ 103 A6420920201A 642 092 02 01 Fuel Expendable Filter For Outer Heating Element 180 W

~~106~~ 106 A0001593304A 000 159 33 04 Heating Element Without Water Level Probe 180w

~~109~~ 109 A0189979645A 018 997 96 45 O-ring

~~132~~ 132 N000000001116N 000000 001116 Hexalobular Bolt Heating Element Fastening M6x19

~~160~~ 160 A6420920240A 642 092 02 40 Bracket Fuel Filter

~~200~~ 200 N000000001116N 000000 001116 Hexalobular Bolt Fuel Filter On Boost Air Distribution Line M6x19 (2×)

~~210~~ 210 A6420701532A 642 070 15 32 Fuel Line From Fuel Tank To Separation Point

~~215~~ 215 N000000001114N 000000 001114 Hexalobular Bolt Fuel Line To Cylinder Head M6x15 (2×)

~~215~~ 215 N000000001114N 000000 001114 Hexalobular Bolt Fuel Line At Cylinder Head Cover M6x15

~~215~~ 215 N000000001114N 000000 001114 Hexalobular Bolt Fuel Filter On Boost Air Distribution Line M6x15

~~215~~ 215 N000000001114N 000000 001114 Hexalobular Bolt Fuel Line To Boost Air Distributor M6x15

~~220~~ 220 N910143006000N 910143 006000 Hexalobular Bolt Fuel Line At Cylinder Head Cover M6x12

~~220~~ 220 N910143006000N 910143 006000 Hexalobular Bolt Fuel Line To Boost Air Distributor M6x12

~~225~~ 225 A6420700132A 642 070 01 32 Fuel Line Separation Point For Filter

~~226~~ 226 A0019915870A 001 991 58 70 Spring Clip

~~230~~ 230 A6420701681A 642 070 16 81 Line Fuel Fileter To High-pressure Pump

~~240~~ 240 A6420782081A 642 078 20 81 Hose Return Line, Between High-pressure Pump And Fuel Line

~~240~~ 240 A6420781381A 642 078 13 81 Fuel Hose Return Line, Between High-pressure Pump And Fuel Line

~~902~~ 902 A0235455326A 023 545 53 26 Clutch Heating Element 3-pin Slk2.8;b76; To A 000593304; 3404

~~903~~ 903 A0095458126A 009 545 81 26 Contact Socket 0.75-1.0 Mm2 Slk2.8

~~903~~ 903 A0095458226A 009 545 82 26 Contact Socket 1.5-2.5 Mm2 Slk2.8

~~903~~ 903 A0005457180A 000 545 71 80 Gasket 1.1-2.1 Mm

~~903~~ 903 A0005457680A 000 545 76 80 Seal 2.2-3.0 Mm

09 Air Cleaner And Engine Charging

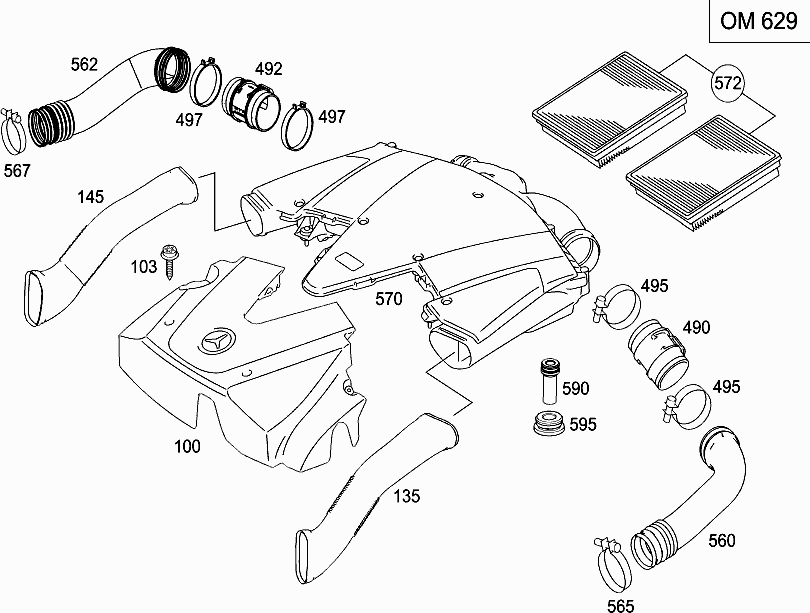

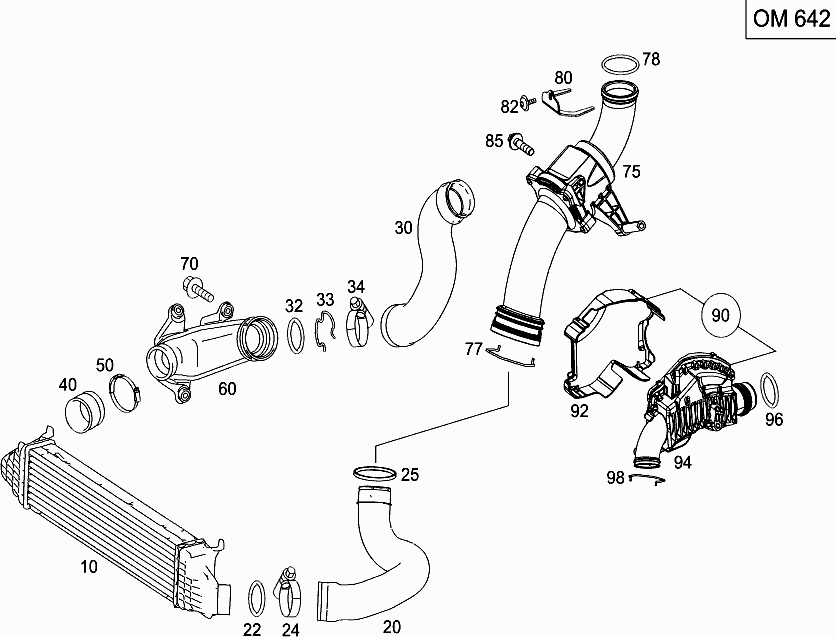

050 Air Intake

5 5 A6420943497A 642 094 34 97 Clean Air Line Clean Air Duct With Mass Air Flow Sensor

5 5 A6420946397A 642 094 63 97 Clean Air Line Clean Air Duct With Mass Air Flow Sensor

5 5 A6420907337A 642 090 73 37 Clean Air Line Clean Air Duct With Mass Air Flow Sensor

5 5 A6420907437A 642 090 74 37 Air Line Clean Air Duct With Mass Air Flow Sensor

5 5 A6420908237A 642 090 82 37 Clean Air Line Clean Air Duct With Mass Air Flow Sensor

10 10 A0179974045A 017 997 40 45 Sealing Ring Induction Line To Compressor To A 642 094 63 97, A 642 090 60 37

15 15 A0009959710A 000 995 97 10 Hose Clamp (2×)

35 35 A6420980707A 642 098 07 07 Charged Air Line

35 35 A6420982107A 642 098 21 07 Charged Air Line

35 35 A6420982307A 642 098 23 07 Charged Air Line

35 35 A6420908437A 642 090 84 37 Charged Air Line

40 40 Q0000000001Q 0000000001 Important Information See Chassis Scope, Group/technical Scope: 50/200

45 45 A0009931360A 000 993 13 60 Ball Stud

50 50 A0149976445A 014 997 64 45 O-ring

55 55 A6420960445A 642 096 04 45 Support

55 55 A6420960645A 642 096 06 45 Support

65 65 A2045840047A 204 584 00 47 Warning Label High Tension

~~902~~ 902 A0005452939A 000 545 29 39 Core Bundle Sealing 1.0-2.5 Mm

075 Turbocharger

5 5 A6420900680A 642 090 06 80 Exhaust Gas Turbocharger

5 5 A6420901980A 642 090 19 80 Exhaust Gas Turbocharger

5 5 A6420904880A 642 090 48 80 Exhaust Gas Turbocharger

5 5 A6420906180A 642 090 61 80 Exhaust Gas Turbocharger

10 10 A0109946741A 010 994 67 41 Retaining Ring (2×)

15 15 A0009906803A 000 990 68 03 Screw With Feature Turbocharger To Exhaust Manifold M8x25 (3×)

15 15 A0009906803A 000 990 68 03 Screw With Feature Bracket Mounting M8x25 (2×)

20 20 A0019900617A 001 990 06 17 Screw Plug Screw Plug For T3 Sensor Hole At Turbocharger M14x1,5

25 25 A6421421180A 642 142 11 80 Gasket Turbocharger On Support

25 25 A6421420481A 642 142 04 81 Metal, Soft-mat., Seal Turbocharger On Support

30 30 A6421400136A 642 140 01 36 Exh. Gas Collector Pipe Exhaust

30 30 A6421420109A 642 142 01 09 Exh. Gas Collector Pipe

30 30 A6421420309A 642 142 03 09 Exh. Gas Collector Pipe

35 35 A6420960545A 642 096 05 45 Support

35 35 A6420960845A 642 096 08 45 Support

40 40 A6420961745A 642 096 17 45 Carrier Turbocharger

50 50 A0019903107A 001 990 31 07 Fit Screw Turbocharger On Support (2×)

60 60 A6421420980A 642 142 09 80 Gasket Stay To Cylinder Head

60 60 A6421420781A 642 142 07 81 Metal Seal Stay To Cylinder Head

70 70 N910143008017N 910143 008017 Hexalobular Bolt Support To Cylinder Crankcase M8x55 (4×)

80 80 A6421420681A 642 142 06 81 Metal Seal

90 90 Q0000000001Q 0000000001 Important Information For Parts,see: 49/222

~~900~~ 900 A2205454628A 220 545 46 28 Plug Conn. Vnr Actuator On Turbocharger 5-pin Slk2.8;y77

~~901~~ 901 A0095458126A 009 545 81 26 Contact Socket 0.75-1.0 Mm2 Slk2.8

~~901~~ 901 A0095458026A 009 545 80 26 Contact Socket 0.22-0.5 Mm2 Slk2.8

~~901~~ 901 A0005452839A 000 545 28 39 Core Bundle Sealing 0.5-1.0 Mm

13 Power Steering Pump, Ac Compressor And

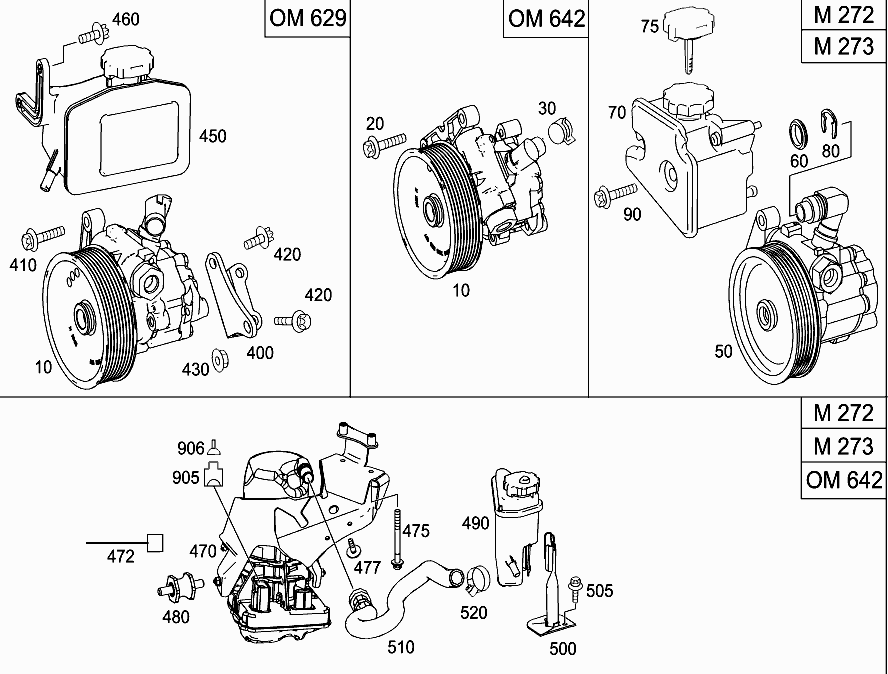

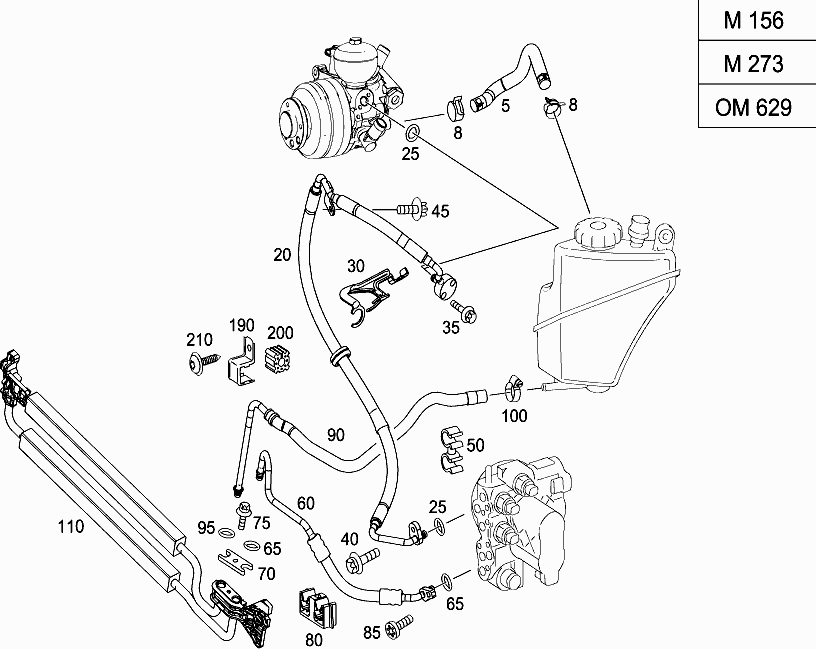

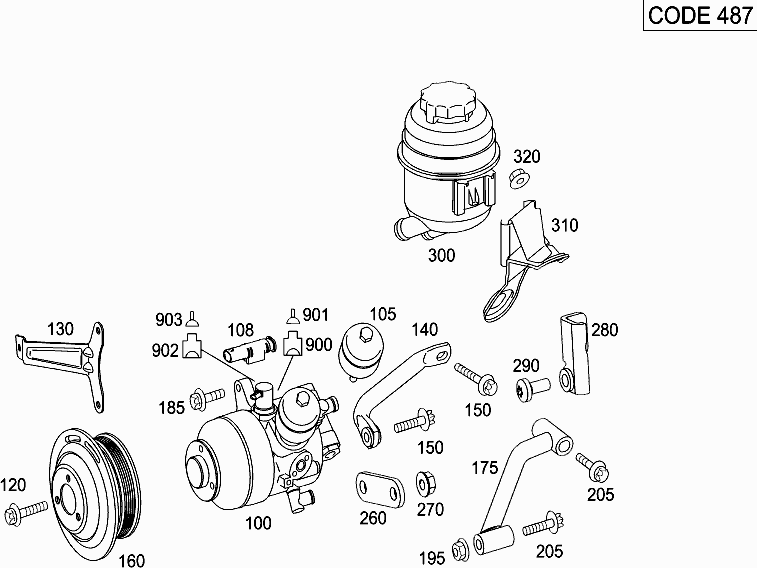

030 Tandem Pump And Power Steering Pump

5 5 A0004602283A 000 460 22 83 Oil Reservoir Power Steering Pump

15 15 A0029979652A 002 997 96 52 Hose From Oil Tank To Hydraulic Pump

090 Vacuum Pump

5 5 A6422300165A 642 230 01 65 Vacuum Pump

10 10 A6420160280A 642 016 02 80 Gasket

15 15 N910143006002N 910143 006002 Hexalobular Bolt Vacuum Pump To Cylinder Head M6x20 (4×)

14 Intake And Exhaust Manifolds

030 Intake Manifold

5 5 A6420905037A 642 090 50 37 Charge Air Distribution Charge Air Distribution Line Right

5 5 A6420907737A 642 090 77 37 Charge Air Distribution Charge Air Distribution Line Right

8 8 A0009913695A 000 991 36 95 Plug-in Fastener (3×)

10 10 A6421500194A 642 150 01 94 Actuator Motor To: A 642 090 50 37

10 10 A6421500294A 642 150 02 94 Actuator Motor To: A 642 090 50 37

10 10 A6421500394A 642 150 03 94 Actuator Motor To: A 642 090 50 37

10 10 A6421500494A 642 150 04 94 Actuator Motor To: A 642 090 50 37

12 12 N000000000426N 000000 000426 Hexalobular Bolt Actuator Motor On Boost Air Distribution Line (2×)

15 15 A0139970045A 013 997 00 45 Sealing Ring

20 20 A6421410580A 642 141 05 80 Seal

30 30 A0029900122A 002 990 01 22 Screw Charge Air Distributor Line To Cylinder Head (6×)

30 30 A0029909222A 002 990 92 22 Screw Charge Air Distributor Line To Cylinder Head M7x70 (2×)

30 30 A0029909922A 002 990 99 22 Screw Bracket Mounting M7x100

40 40 A6420980037A 642 098 00 37 Intake Connection With Sealing Rings

42 42 A6420980037A 642 098 00 37 Intake Connection With Sealing Rings

50 50 Q0000000001Q 0000000001 Important Information For Parts,see: 14/090

~~100~~ 100 A6420903337A 642 090 33 37 Charge Air Distribution Charge Air Distribution Line Left

~~100~~ 100 A6420901337A 642 090 13 37 Charge Air Distribution Charge Air Distribution Line Left

~~100~~ 100 A6420905437A 642 090 54 37 Air Line Charge Air Distribution Line Left

~~103~~ 103 A0009913695A 000 991 36 95 Plug-in Fastener (3×)

~~105~~ 105 A6420910150A 642 091 01 50 Ball Socket Link To Lever (3×)

~~107~~ 107 A6420910150A 642 091 01 50 Ball Socket Link To Lever

~~110~~ 110 A6421410580A 642 141 05 80 Seal Charge Air Distributor Line To Cylinder Head

~~115~~ 115 A0019905722A 001 990 57 22 Screw Charge Air Distributor Line To Cylinder Head M7x40 (4×)

~~115~~ 115 A0029909222A 002 990 92 22 Screw Charge Air Distributor Line To Cylinder Head M7x70 (3×)

~~140~~ 140 A6420900037A 642 090 00 37 Charge Air Pipe Transverse Tube

~~140~~ 140 A6420901037A 642 090 10 37 Charge Air Cross Pipe Transverse Tube

~~140~~ 140 A6420901637A 642 090 16 37 Charge Air Cross Pipe Transverse Tube

~~143~~ 143 A0061531528A 006 153 15 28 Pressure Sensor In The Charge Air Cross Pipe

~~143~~ 143 A0061539928A 006 153 99 28 Pressure Sensor In The Charge Air Cross Pipe

~~145~~ 145 A6420980180A 642 098 01 80 Gasket Tube At Charge Air Distributor Line

~~150~~ 150 A6420980280A 642 098 02 80 Gasket Pipe At Throttle

~~155~~ 155 A6421410080A 642 141 00 80 Seal

~~160~~ 160 N910143006002N 910143 006002 Hexalobular Bolt M6x20

~~160~~ 160 N910105006014N 910105 006014 Hexagon Head Bolt M6x55

~~160~~ 160 N910143006010N 910143 006010 Hexalobular Bolt Pipe To Bracket M6x90

~~170~~ 170 A6421410040A 642 141 00 40 Bracket Charge Air Distributor Line To Cylinder Head

~~170~~ 170 A6421410740A 642 141 07 40 Bracket Charge Air Distributor Line To Cylinder Head

~~175~~ 175 N910143006000N 910143 006000 Hexalobular Bolt Charge Air Distributor Line To Cylinder Head M6x12

~~190~~ 190 A6420900070A 642 090 00 70 Intake Air Throttle

~~190~~ 190 A6420900270A 642 090 02 70 Intake Air Throttle

~~195~~ 195 N000000000104N 000000 000104 Hexagon Head Bolt Intake Throttle To Charge Air Distribution Line M5x80 (3×)

~~195~~ 195 N000000003804N 000000 003804 Hexalobular Bolt Intake Throttle To Charge Air Distribution Line M5x90

~~200~~ 200 A6420900144A 642 090 01 44 Coupling Flange Intake Throttle

~~200~~ 200 A6420900244A 642 090 02 44 Coupling Flange Intake Throttle

~~200~~ 200 A6420900344A 642 090 03 44 Flange Intake Throttle

~~205~~ 205 A0079934201A 007 993 42 01 Catch Spring

~~210~~ 210 A6421410180A 642 141 01 80 Gasket

~~215~~ 215 A6421410340A 642 141 03 40 Bracket

~~220~~ 220 N910143006002N 910143 006002 Hexalobular Bolt M6x20 (3×)

~~225~~ 225 N910143006000N 910143 006000 Hexalobular Bolt Bracket To Cylinder Head M6x12

~~230~~ 230 A6421400087A 642 140 00 87 Damper Noise Silencer

~~235~~ 235 A0139972345A 013 997 23 45 O-ring

~~240~~ 240 A6420900241A 642 090 02 41 Bracket Noise Silencer

~~245~~ 245 N910143006002N 910143 006002 Hexalobular Bolt M6x20 (2×)

~~250~~ 250 N910143006001N 910143 006001 Hexalobular Bolt M6x16

~~903~~ 903 A2115451928A 211 545 19 28 Plug Final Position Switch Intake Channel Cutout 4-pin Mlk1.2;s99

~~903~~ 903 A0225452726A 022 545 27 26 Clutch Housing Final Position Switch Intake Channel Cutout 4-pin Mlk1.2;s99

~~904~~ 904 A0195451826A 019 545 18 26 Contact Socket 0.22-0.5 Mm2 Mlk1.2

~~904~~ 904 A0195451926A 019 545 19 26 Contact Socket 0.75-1.0 Mm2 Mlk1.2

~~904~~ 904 A0005458480A 000 545 84 80 Gasket

~~905~~ 905 A2105403681A 210 540 36 81 Clutch Intake Throttle 6-pin Mqs

~~906~~ 906 A0135454626A 013 545 46 26 Contact Socket 0.5-0.75 Mm2 Mqs

~~906~~ 906 A0005461469A 000 546 14 69 Blind Plug White

~~906~~ 906 A0005458780A 000 545 87 80 Blind Plug Blue 4.1mm

~~906~~ 906 A0005456980A 000 545 69 80 Seal 1.4-1.9 Mm

~~910~~ 910 A2115451928A 211 545 19 28 Plug Final Position Switch Intake Channel Cutout 4-pin Mlk1.2;s99

~~910~~ 910 A0225452726A 022 545 27 26 Clutch Housing Final Position Switch Intake Channel Cutout 4-pin Mlk1.2;s99

~~911~~ 911 A0195451826A 019 545 18 26 Contact Socket 0.22-0.5 Mm2 Mlk1.2

~~911~~ 911 A0195451926A 019 545 19 26 Contact Socket 0.75-1.0 Mm2 Mlk1.2

~~911~~ 911 A0005458480A 000 545 84 80 Gasket

060 Exhaust Manifold

5 5 A6421420002A 642 142 00 02 Exhaust Manifold Right

5 5 A6421400461A 642 140 04 61 Exhaust Manifold Right

5 5 A6421400861A 642 140 08 61 Exhaust Manifold Right

5 5 A6421400661A 642 140 06 61 Exhaust Manifold Right

5 5 A6421400409A 642 140 04 09 Exhaust Manifold Right

5 5 A6421400609A 642 140 06 09 Exhaust Manifold Right

5 5 A6421400809A 642 140 08 09 Exhaust Manifold Right

10 10 A1201420072A 120 142 00 72 Hexagon Nut Exhaust Manifold To Cylinder Head Right M8 (6×)

10 10 A1201420072A 120 142 00 72 Hexagon Nut Exhaust Manifold To Cylinder Head Left M8 (6×)

15 15 A6421420080A 642 142 00 80 Gasket Exhaust Manifold To Cylinder Head Right

15 15 A6421420080A 642 142 00 80 Gasket Exhaust Manifold To Cylinder Head Left

20 20 A6421421380A 642 142 13 80 Gasket Turbocharger At Exhaust Collector Pipe , Right

20 20 A6421422180A 642 142 21 80 Seal Turbocharger At Exhaust Collector Pipe , Right

20 20 A6421423280A 642 142 32 80 Multi-hole Seal Turbocharger At Exhaust Collector Pipe , Right

20 20 A6421422080A 642 142 20 80 Gasket Turbocharger At Exhaust Collector Pipe, Left

20 20 A6421423180A 642 142 31 80 Multi-hole Seal Turbocharger At Exhaust Collector Pipe, Left

30 30 A6421420102A 642 142 01 02 Exhaust Manifold Left

30 30 A6421400361A 642 140 03 61 Exhaust Manifold Left

30 30 A6421400761A 642 140 07 61 Exhaust Manifold Left

30 30 A6421400161A 642 140 01 61 Exhaust Manifold Left

30 30 A6421400509A 642 140 05 09 Exhaust Manifold Left

30 30 A6421400709A 642 140 07 09 Exhaust Manifold Left

30 30 A6421400909A 642 140 09 09 Exhaust Manifold Left

33 33 A0009906803A 000 990 68 03 Screw With Feature Turbocharger To Right Exhaust Manifold M8x25 (3×)

33 33 A0009906803A 000 990 68 03 Screw With Feature Turbocharger To Left Exhaust Manifold M8x25 (3×)

090 Exhaust Gas Recirculation

5 5 A6421400175A 642 140 01 75 Exhaust Gas Heat Exch.

5 5 A6421400775A 642 140 07 75 Exhaust Gas Heat Exch.

15 15 A0269974348A 026 997 43 48 Sealing Ring To Exhaust Gas Heat Exchanger

20 20 A0209974745A 020 997 47 45 O-ring Heat Exchanger To Charge Air Distributor Line 15x3.1

25 25 A6421420580A 642 142 05 80 Gasket Changeover Flap To Exhaust Gas Heat Exchanger

30 30 N000000001114N 000000 001114 Hexalobular Bolt M6x15 (2×)

35 35 N000000001117N 000000 001117 Hexalobular Bolt Charge Air Distribution Line Left M6x23

35 35 N910143006002N 910143 006002 Hexalobular Bolt Charge Air Distribution Line Left M6x20 (3×)

40 40 A6421400308A 642 140 03 08 Exh. Gas Recirc. Pipe Exhaust Gas Recirculation Line

40 40 A6421401308A 642 140 13 08 Exh. Gas Recirc. Pipe Exhaust Gas Recirculation Line

45 45 A6421421880A 642 142 18 80 Seal

50 50 A0009906903A 000 990 69 03 Screw With Feature M6x16 (2×)

55 55 A6421421880A 642 142 18 80 Seal

60 60 N000000001119N 000000 001119 Hexalobular Bolt M6x33 (2×)

65 65 A6421400208A 642 140 02 08 Exhaust Line Between Exhaust Gas Heat Exchanger And Charge Air Distribution Pipe

70 70 N910143006001N 910143 006001 Hexalobular Bolt M6x16 (3×)

75 75 A6421400360A 642 140 03 60 Valve Exhaust Gas Recirculation Valve

75 75 A6421400860A 642 140 08 60 Recirculation Valve Exhaust Gas Recirculation Valve

76 76 A0259973448A 025 997 34 48 Sealing Ring

85 85 N000000001117N 000000 001117 Hexalobular Bolt Exh. Gas Recir. Valve To Charge Air Distribution Line M6x23 (2×)

90 90 A6422000252A 642 200 02 52 Line

~~900~~ 900 A0001530842A 000 153 08 42 Coupling Housing, Elect. Exhaust Gas Recirculation Valve 4-pin Slk2.8;y87

~~901~~ 901 A0095458026A 009 545 80 26 Contact Socket 0.22-0.5 Mm2 Slk2.8

~~901~~ 901 A0095458126A 009 545 81 26 Contact Socket 0.75-1.0 Mm2 Slk2.8

~~901~~ 901 A0005452839A 000 545 28 39 Core Bundle Sealing 0.5-1.0 Mm

~~901~~ 901 A0005457180A 000 545 71 80 Gasket 1.1-2.1 Mm

15 Engine Electrical Equipment

105 Attachment Parts,heater Plugs,and Speed Sender Unit

5 5 A0011595001A 001 159 50 01 Pencil-type Glow Plug Steel Version (6×)

5 5 A0011597101A 001 159 71 01 Glow Plug Steel Version (6×)

10 10 A6421530379A 642 153 03 79 Control Unit Glow Time Output Stage

10 10 A6421532079A 642 153 20 79 Control Unit Glow Time Output Stage

10 10 A6429002800A 642 900 28 00 Control Unit, Complete Glow Time Output Stage

10 10 A6429005801A 642 900 58 01 Control Unit, Complete Glow Time Output Stage

10 10 A6429007801A 642 900 78 01 Control Unit, Complete Glow Time Output Stage

15 15 N910143006002N 910143 006002 Hexalobular Bolt Control Unit To Charge Air Cross Pipe M6x20

20 20 N910143006008N 910143 006008 Hexalobular Bolt Control Unit To Charge Air Cross Pipe M6x60

25 25 N910112006003N 910112 006003 Hexagon Nut M6

30 30 A0011530332A 001 153 03 32 Pressure Switch Oil Level Sender Unit

30 30 A0011531132A 001 153 11 32 Pressure Switch Oil Level Sender Unit

30 30 A0011531332A 001 153 13 32 Fill Level Switch Oil Level Sender Unit

35 35 A0129977345A 012 997 73 45 Sealing Ring

38 38 N000000001114N 000000 001114 Hexalobular Bolt Switch To Bracket M6x15 (2×)

38 38 N000000001114N 000000 001114 Hexalobular Bolt Plug To Oil Pan M6x15

40 40 A0051536328A 005 153 63 28 Temperature Sensor Oil Temperature

40 40 A0051532328A 005 153 23 28 Temperature Sensor Oil Temperature

45 45 N007603014100N 007603 014100 Sealing Ring Temperature Sensor 14x18-al

45 45 N007603014403N 007603 014403 Sealing Ring Temperature Sensor

50 50 A0031539728A 003 153 97 28 Position Sensor Hall-type Sensor Camshaft

50 50 A0051531328A 005 153 13 28 Position Sensor Hall-type Sensor Camshaft

55 55 A0239978248A 023 997 82 48 Sealing Ring To A 003 153 97 28

55 55 A0149978645A 014 997 86 45 Sealing Ring To A 005 153 13 28

60 60 N000000001116N 000000 001116 Hexalobular Bolt Camshaft Position Sender Unit To Cylinder Head Cover M6x19

65 65 A0041538728A 004 153 87 28 Position Sensor Crankshaft Position Sender Unit

65 65 A6421530728A 642 153 07 28 Angle Sensor Crankshaft Position Sender Unit

65 65 A6429050000A 642 905 00 00 Position Sensor Crankshaft Position Sender Unit

68 68 A0009907003A 000 990 70 03 Fit Scr., Ext. Hexal. Sender Unit To Cylinder Crankcase

70 70 A6420160124A 642 016 01 24 Shield Crankshaft Position Sender Unit

75 75 A0009907003A 000 990 70 03 Fit Scr., Ext. Hexal. Shield To Crankcase

80 80 A0041539728A 004 153 97 28 Temperature Sensor Cooling Water

80 80 A0009050600A 000 905 06 00 Temperature Sensor Cooling Water

80 80 A0999053700A 099 905 37 00 Temperature Sensor Cooling Water

80 80 A0009056102A 000 905 61 02 Temperature Sensor Cooling Water

82 82 A0229979848A 022 997 98 48 Sealing Ring

84 84 A0089889178A 008 988 91 78 Clamp

87 87 A0061536028A 006 153 60 28 Pressure Sensor Exhaust Back Pressure

87 87 A0071534328A 007 153 43 28 Pressure Sensor Exhaust Back Pressure

87 87 A0091535028A 009 153 50 28 Pressure Transmitter Exhaust Back Pressure

90 90 N007603012100N 007603 012100 Sealing Ring Pressure Sensor 12x16-al

95 95 A0061531528A 006 153 15 28 Pressure Sensor In The Charge Air Cross Pipe

95 95 A0061539928A 006 153 99 28 Pressure Sensor In The Charge Air Cross Pipe

~~100~~ 100 A0005422818A 000 542 28 18 Temperature Sensor Intake Air Restrictor

~~100~~ 100 A6511530028A 651 153 00 28 Temperature Sensor Intake Air Restrictor

~~102~~ 102 A6019970448A 601 997 04 48 Sealing Ring 11x2

~~105~~ 105 A0059902512A 005 990 25 12 Pan Head Screw With Isr Pressure Sensor Attachment (2×)

~~110~~ 110 A0071536628A 007 153 66 28 Temperature Sensor Exhaust Gas Temperature Measurement In Manifold

~~120~~ 120 A0061534928A 006 153 49 28 Pressure Sensor Air Cleaner Maintenance Indication

~~900~~ 900 A2105402081A 210 540 20 81 Receptacle Housing Oil Temperature 2-pin Mqs;b1

~~901~~ 901 A0005402305A 000 540 23 05 Electrical Line 0.5 Mm2 Mqs

~~905~~ 905 A2105402181A 210 540 21 81 Clutch 3-pin Mqs

~~906~~ 906 A0005402305A 000 540 23 05 Electrical Line 0.5 Mm2 Mqs

~~910~~ 910 A2035453028A 203 545 30 28 Plug Hall-type Sensor Camshaft 3-pin Slk2.8;b6/1

~~911~~ 911 A0095458026A 009 545 80 26 Contact Socket 0.22-0.5 Mm2 Slk2.8

~~911~~ 911 A0005452839A 000 545 28 39 Core Bundle Sealing 0.5-1.0 Mm

~~915~~ 915 A2105402081A 210 540 20 81 Receptacle Housing Intake Air Temperature Sensor 2-pin Mqs;b17

~~916~~ 916 A0005402305A 000 540 23 05 Electrical Line Intake Air Temperature Sensor 0.5 Mm2 Mqs;b17

~~916~~ 916 A0005456980A 000 545 69 80 Seal Intake Air Temperature Sensor 1.4-1.9 Mm;b17

~~920~~ 920 A2035453028A 203 545 30 28 Plug Crankshaft Position Sender Unit 3-pin Slk2.8;l5

~~921~~ 921 A0095458026A 009 545 80 26 Contact Socket 0.22-0.5 Mm2 Slk2.8

~~925~~ 925 A0455452928A 045 545 29 28 Clutch 12 Pin

~~926~~ 926 A0095458026A 009 545 80 26 Contact Socket 0.22-0.5 Mm2 Slk2.8

~~926~~ 926 A0095458126A 009 545 81 26 Contact Socket 0.75-1.0 Mm2 Slk2.8

~~926~~ 926 A0005452939A 000 545 29 39 Core Bundle Sealing 1.0-2.5 Mm

~~926~~ 926 A0005452839A 000 545 28 39 Core Bundle Sealing 0.5-1.0 Mm

~~927~~ 927 A0455452828A 045 545 28 28 Plug Preglow Output 1 Pin

~~928~~ 928 A0095452526A 009 545 25 26 Contact Socket 6.0-10.0 Mm2

~~930~~ 930 A0445457928A 044 545 79 28 Clutch (6×)

~~931~~ 931 A0035452626A 003 545 26 26 Contact Socket 0.35-4.0 Mm2 Rk4

~~936~~ 936 A0195451826A 019 545 18 26 Contact Socket 0.22-0.5 Mm2 Mlk1.2

~~936~~ 936 A0015455080A 001 545 50 80 Single-wire Seal 0.22-1.0 Mm2

~~936~~ 936 A0005402305A 000 540 23 05 Electrical Line 0.5 Mm2 Mqs

~~940~~ 940 A0055403981A 005 540 39 81 Clutch 3-pin;mqs

~~941~~ 941 A0005402305A 000 540 23 05 Electrical Line 0.5 Mm2 Mqs

~~941~~ 941 A0005456980A 000 545 69 80 Seal 1.4-1.9 Mm

~~942~~ 942 A2105402081A 210 540 20 81 Receptacle Housing Refrigerant Temperature Sensor 2-pin Mqs;b11/4

~~943~~ 943 A0005402305A 000 540 23 05 Electrical Line 0.5 Mm2 Mqs

~~943~~ 943 A0005456980A 000 545 69 80 Seal 1.4-1.9 Mm

18 Engine Lubrication

015 Oil Pump

3 3 A6421802101A 642 180 21 01 Oil Pump

3 3 A6421801600A 642 180 16 00 Outer Gear Oil Pump

6 6 A6421800151A 642 180 01 51 Intake Manifold

9 9 A0129978445A 012 997 84 45 Sealing Ring

18 18 N000000001117N 000000 001117 Hexalobular Bolt Suction Pipe To Oil Pump M6x23 (2×)

24 24 A0039977494A 003 997 74 94 Roller Chain

25 25 A0009973298A 000 997 32 98 Chain Link

27 27 A6421810059A 642 181 00 59 Tensioning Bracket Suction Basket To Oil Pump Housing

30 30 A0009936920A 000 993 69 20 Torsion Spring At Clamp

33 33 A0019901314A 001 990 13 14 Fit Screw Oil Pump On Crankcase (3×)

36 36 A6421810080A 642 181 00 80 Gasket Oil Pump On Crankcase

39 39 A6421810095A 642 181 00 95 Bracket At Oil Pump

42 42 N910143006000N 910143 006000 Hexalobular Bolt Bracket To Oil Pump M6x12 (2×)

45 45 N000000001116N 000000 001116 Hexalobular Bolt Bracket To Oil Pump M6x19

48 48 A6421800485A 642 180 04 85 Oil Deflector

48 48 A6421800785A 642 180 07 85 Oil Deflector

48 48 A6421800885A 642 180 08 85 Oil Deflector

51 51 N000000001116N 000000 001116 Hexalobular Bolt M6x19 (8×)

060 Oil Filter And Oil Cooler

3 3 A6421800010A 642 180 00 10 Oil Filter

3 3 A6421801410A 642 180 14 10 Oil Filter

6 6 A6421800009A 642 180 00 09 Ts Oil Filter Element

9 9 A6421800038A 642 180 00 38 Cap

12 12 A0299975448A 029 997 54 48 Sealing Ring On Cover

15 15 A0139976145A 013 997 61 45 O-ring Rod

18 18 A6421840080A 642 184 00 80 Gasket Oil Filter To Cylinder Crankcase

21 21 A0039900622A 003 990 06 22 Screw Oil Filter To Cylinder Crankcase M7x25 (4×)

21 21 N000000007812N 000000 007812 Hexalobular Bolt Oil Filter To Cylinder Crankcase M7x25 (4×)

24 24 A6421840140A 642 184 01 40 Bracket Oil Filter To Cylinder Head

33 33 N000000001114N 000000 001114 Hexalobular Bolt Bracket To Oil Filter M6x15

33 33 N000000001114N 000000 001114 Hexalobular Bolt Bracket To Cylinder Head M6x15

36 36 A6421880001A 642 188 00 01 Oil Cooler

36 36 A6421800165A 642 180 01 65 Oil Cooler

39 39 A6421880180A 642 188 01 80 Gasket Oil Cooler To Cylinder Crankcase (2×)

39 39 A6421880480A 642 188 04 80 Elastomer Molded Seal Oil Cooler To Cylinder Crankcase (2×)

42 42 N000000001159N 000000 001159 Hexalobular Bolt Oil Cooler To Cylinder Crankcase M6x19 (10×)

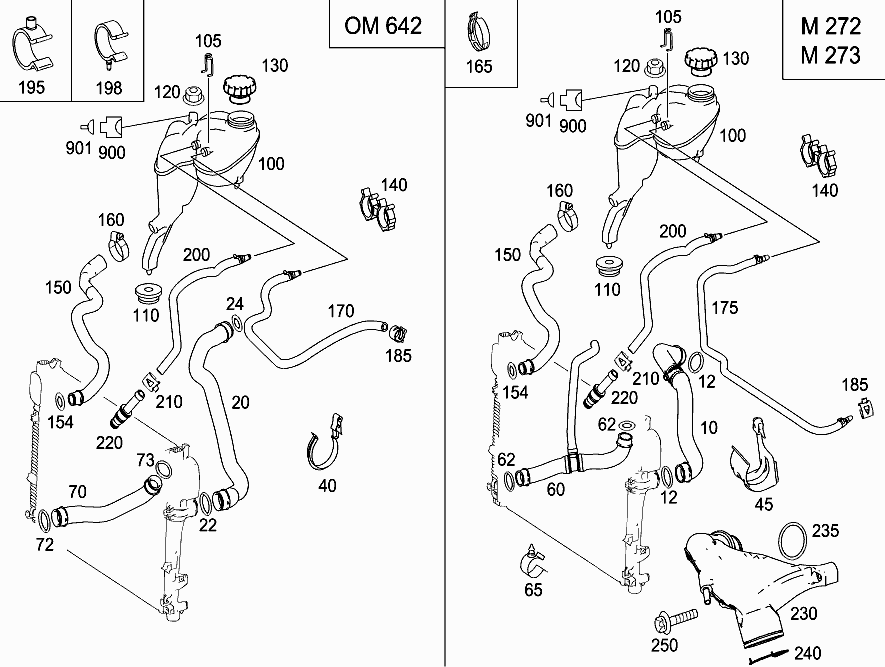

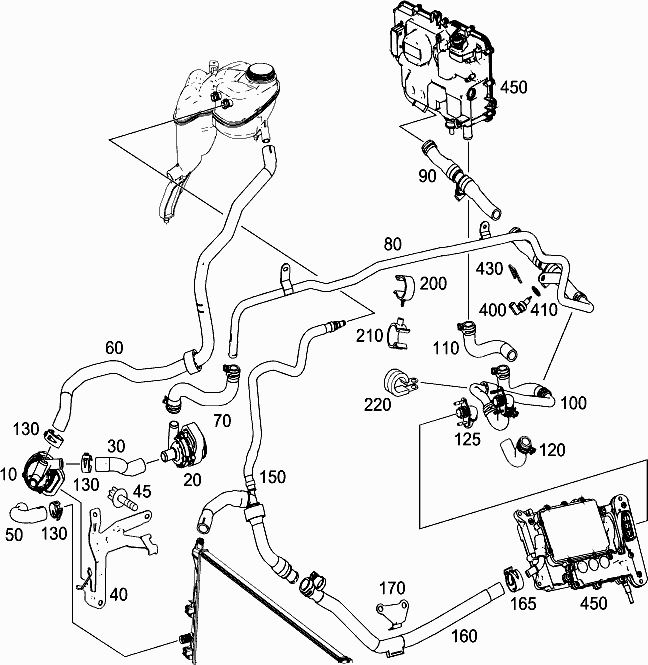

20 Engine Cooling

015 Water Pump

5 5 A6422001001A 642 200 10 01 Ts Water Pump Parts Kit, With Belt Pulley, Eight-grooved

10 10 A6422010180A 642 201 01 80 Seal Water Pump To Cylinder Crankcase

10 10 A6422010680A 642 201 06 80 Metal Seal, Single Layer Water Pump To Cylinder Crankcase

15 15 N000000003258N 000000 003258 Hexalobular Bolt Water Pump To Cylinder Crankcase M6x25 (6×)

20 20 A6422000215A 642 200 02 15 Thermostat Unheated

20 20 A6422002015A 642 200 20 15 Coolant Thermostat Without Heating Connection

20 20 A6422000415A 642 200 04 15 Thermostat With Heating Connection

25 25 A0009930802A 000 993 08 02 Catch Spring

30 30 A6422010380A 642 201 03 80 Elastomer Molded Seal

30 30 A6422010780A 642 201 07 80 Elastomer Molded Seal

35 35 N910143006002N 910143 006002 Hexalobular Bolt Thermostat To Charge Air Distribution Line M6x20 (2×)

40 40 A6422001156A 642 200 11 56 Fitting

45 45 A0009930802A 000 993 08 02 Catch Spring

50 50 A6422010080A 642 201 00 80 Gasket Pipe Socket To Cylinder Crankcase

55 55 N910143006007N 910143 006007 Hexalobular Bolt Pipe Socket To Cylinder Crankcase M6x45 (3×)

60 60 A6422000058A 642 200 00 58 Vent Line

65 65 A6422030017A 642 203 00 17 Breather Pipe

70 70 A1409950105A 140 995 01 05 Spring Bracket Clamp Attachment Of Vent Line 14.7-16.5 Mm/ 12 Mm

70 70 A1409950105A 140 995 01 05 Spring Bracket Clamp Breather Hose To Fitting 14.7-16.5 Mm/ 12 Mm

75 75 N000000001114N 000000 001114 Hexalobular Bolt Breather Line To Cylinder Head Cover M6x15

80 80 N910143006000N 910143 006000 Hexalobular Bolt Breather Line To Cylinder Head M6x12

85 85 A2045840047A 204 584 00 47 Warning Label High Tension

~~900~~ 900 A2115451328A 211 545 13 28 Housing Thermostat 2-pin Mlk1.2

~~901~~ 901 A0195451826A 019 545 18 26 Contact Socket 0.22-0.5 Mm2 Mlk1.2

~~901~~ 901 A0005458480A 000 545 84 80 Gasket

045 Belt Tightener

3 3 A6422000470A 642 200 04 70 Belt Tensioner

3 3 A6422001470A 642 200 14 70 Belt Tensioner

6 6 N910143010018N 910143 010018 Hexalobular Bolt Belt Tightener To Cylinder Crankcase M10x90

9 9 A6422000570A 642 200 05 70 Role At Cylinder Crankcase (2×)

12 12 A6119900212A 611 990 02 12 Screw M8x45 (2×)

15 15 A0019885735A 001 988 57 35 Cap Sheave Pulley (2×)

21 Major Assembly Detachable Body Comp.

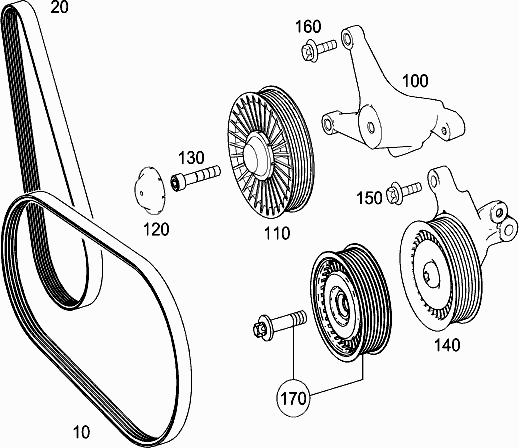

230 V-belt,belt Tightener,sheave Pulley

10 10 A0009932896A 000 993 28 96 Poly-v-belt Eight-groove 28.48 X 2035mm

10 10 A0029932996A 002 993 29 96 Poly-v-belt Eight-groove 28.48x2035

~~100~~ 100 Q0000000001Q 0000000001 Important Information For Parts,see: M20/045

~~110~~ 110 Q0000000001Q 0000000001 Important Information For Parts,see: M20/045

~~120~~ 120 Q0000000001Q 0000000001 Important Information For Parts,see: M20/045

~~130~~ 130 Q0000000001Q 0000000001 Important Information For Parts,see: M20/045

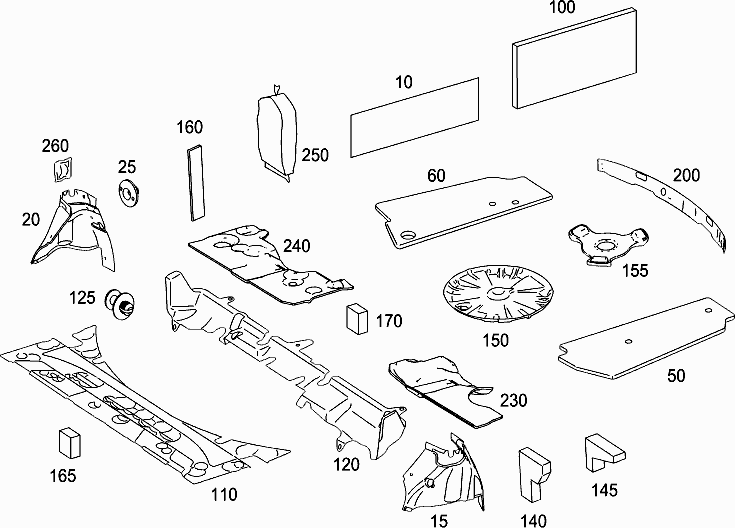

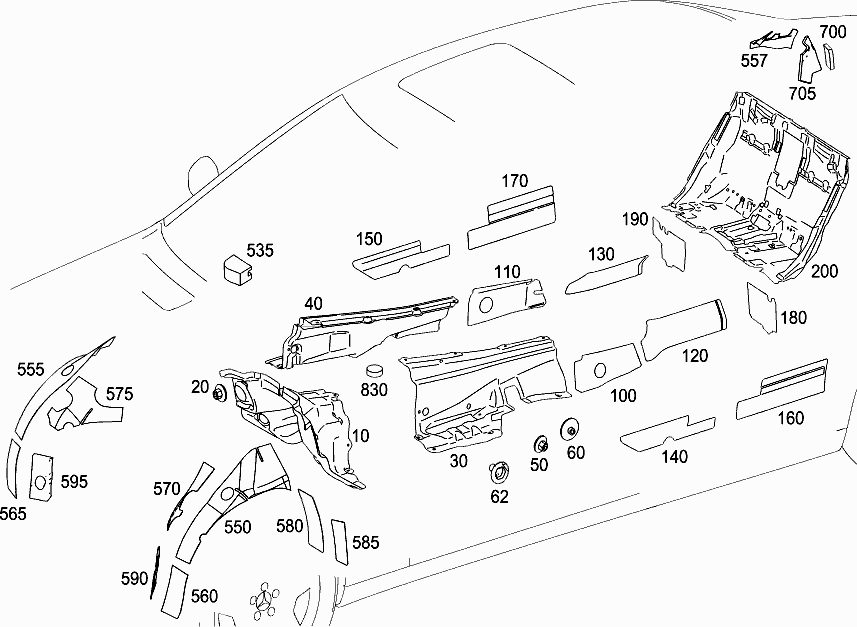

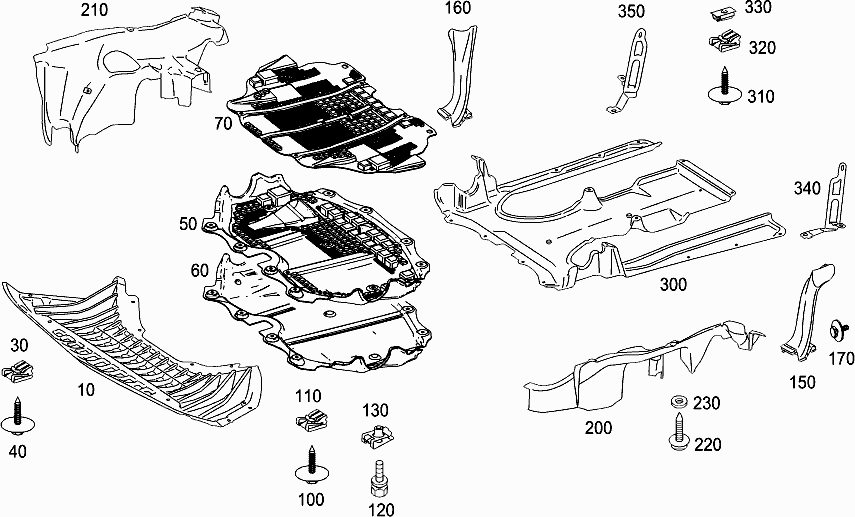

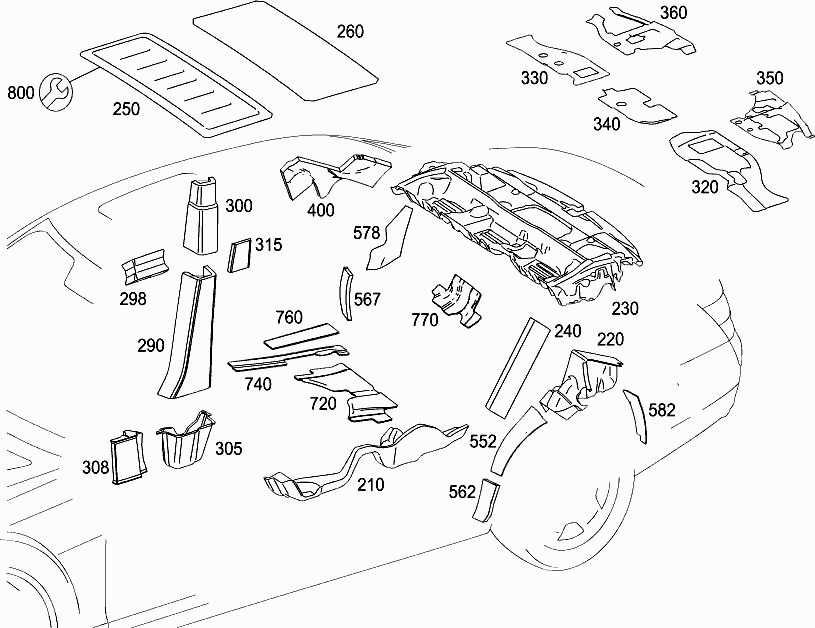

300 Shielding And Soundproofing At Engine, Transmission, Front Axle Transmission

22 Engine Suspension

010 Engine Supports And Attachment Parts

3 3 A6422230504A 642 223 05 04 Engine Carrier Right

3 3 A6422236604A 642 223 66 04 Engine Carrier Right

6 6 N910143008006N 910143 008006 Hexalobular Bolt Engine Right Support To Cylinder Crankcase M8x45 (4×)

12 12 A6422230404A 642 223 04 04 Engine Carrier Left

15 15 N910143008006N 910143 008006 Hexalobular Bolt Engine Left Support To Cylinder Crankcase M8x45 (4×)

18 18 A6422240043A 642 224 00 43 Lifting Eye Right

21 21 A0029900022A 002 990 00 22 Screw Lifting Eye Fastening M7x20 (2×)

24 24 A6422230141A 642 223 01 41 Lifting Eye Left

27 27 A0029900022A 002 990 00 22 Screw Lifting Eye Fastening M7x20 (2×)

30 30 A6422240443A 642 224 04 43 Lifting Eye Rear

30 30 A6422240543A 642 224 05 43 Lifting Eye Rear

30 30 A6422240843A 642 224 08 43 Lifting Eye Rear

30 30 A6422240943A 642 224 09 43 Lifting Eye Rear

33 33 A6420160074A 642 016 00 74 Pin Attachment, Engine Cover (2×)

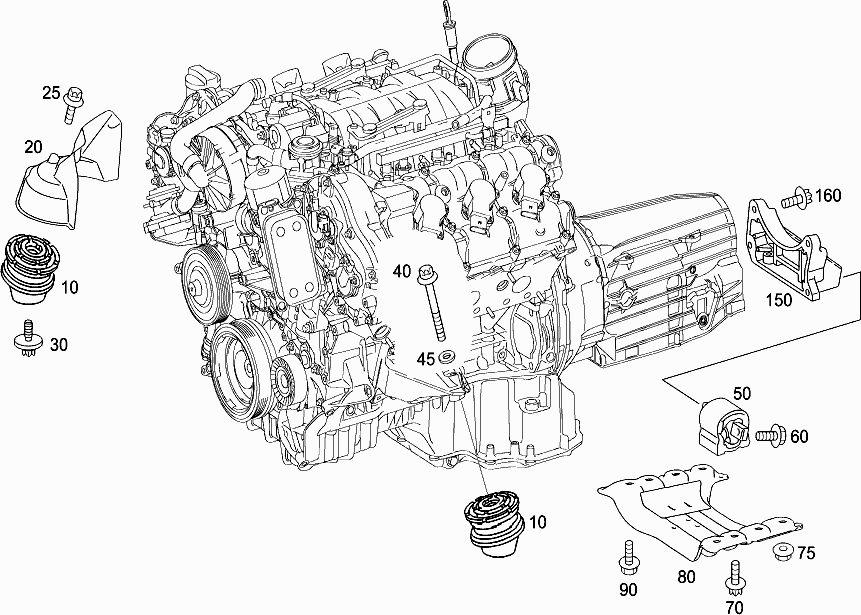

24 Engine Suspension

015 Engine Suspension

10 10 A2212401317A 221 240 13 17 Engine Mount Front (2×)

20 20 A2212410934A 221 241 09 34 Shield Front Left

20 20 A2212410934A 221 241 09 34 Shield Front Right

30 30 A2029902201A 202 990 22 01 Combi-hexagon Head Bolt Engine Support Front To Crossmember M8x21 (2×)

40 40 N914007010066N 914007 010066 Screw-and-washer Assembly Engine Front Mounting To Engine Support M10x60 (2×)

40 40 N304017010051N 304017 010051 Hexagon Head Bolt Engine Front Mounting To Engine Support M10x60 (2×)

45 45 N000125010532N 000125 010532 Washer Engine Front Mounting To Engine Support (2×)

45 45 N000000003386N 000000 003386 Washer Engine Front Mounting To Engine Support (2×)

50 50 A2212400918A 221 240 09 18 Engine Mount Rear

60 60 N000000000428N 000000 000428 Hexagon Head Bolt Engine Mount Rear To Transmission M10x35 (2×)

70 70 N000000000276N 000000 000276 Hexalobular Bolt Engine Rear Mounting To Engine Support M8x20 (3×)

80 80 A2212400002A 221 240 00 02 Engine Carrier Rear

90 90 A0009904800A 000 990 48 00 Combi-hexagon Head Bolt Engine Support To Frame (8×)

~~150~~ 150 A2112420340A 211 242 03 40 Bracket Rear

~~160~~ 160 A0049903412A 004 990 34 12 Screw Bracket To Transmission M6x30 (4×)

27 Mercedes-benz Automatic Transmission

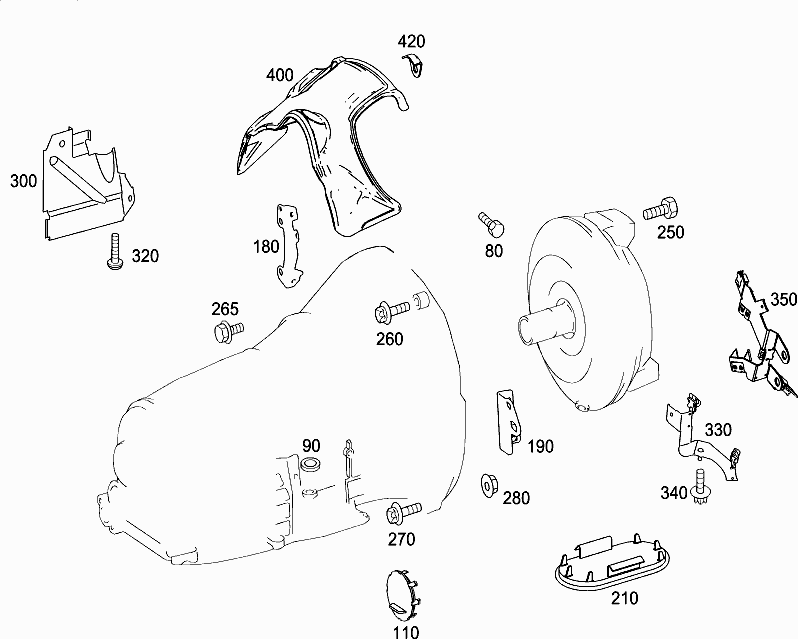

125 Attached Parts For Transmission, Oil Filler Pipe

~~210~~ 210 A0009983121A 000 998 31 21 Plug Drive Connection, Engine To Converter

~~250~~ 250 A0079908804A 007 990 88 04 Cap Bolt With Socket Drive Connection Between Engine And Transmission M10x31 (6×)

~~250~~ 250 A0109904904A 010 990 49 04 Cap Bolt With Socket Drive Connection Between Engine And Transmission M10x34 (6×)

~~260~~ 260 N910143010000N 910143 010000 Hexalobular Bolt Transmission Case To Crankcase M10x45 (8×)

~~270~~ 270 N910143010018N 910143 010018 Hexalobular Bolt Transmission To Engine M10x90 (2×)

~~280~~ 280 N910112010001N 910112 010001 Hexagon Nut Motor To Gearing M10 (2×)

~~300~~ 300 A2042710088A 204 271 00 88 Shield Screening Plate

~~320~~ 320 N000000001114N 000000 001114 Hexalobular Bolt Shield To Transmission Housing M6x15

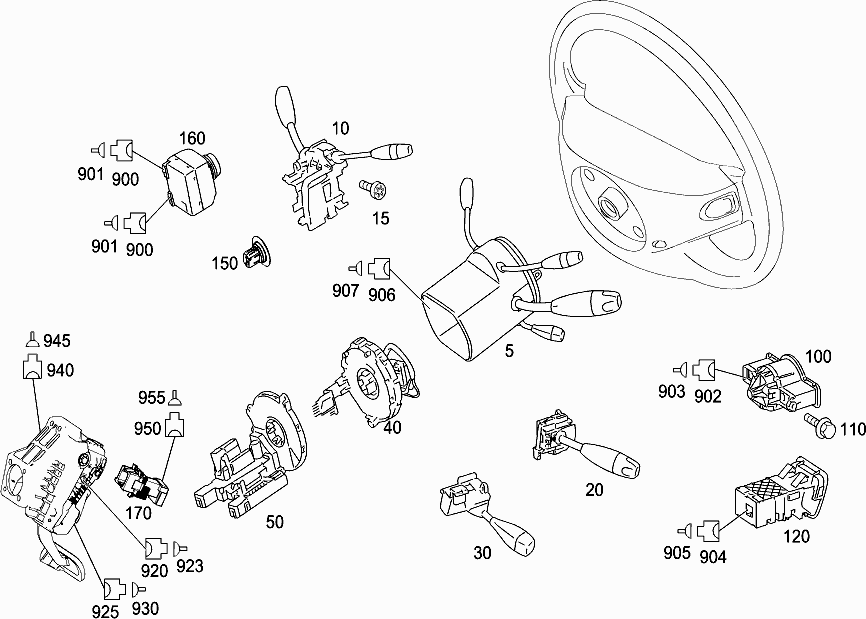

215 Column Shift

10 10 A2215403845A 221 540 38 45 Steering Column Switch Steering Column Mounted Switch

10 10 A2215404601A 221 540 46 01 Steering Column Switch Steering Column Mounted Switch

20 20 A1719970130A 171 997 01 30 Screw Fastening Switch

27 Automatic Transmission

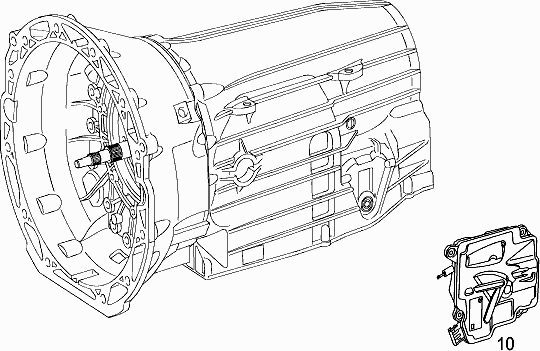

015 Transmission Assembly,torque Converter,gasket Kit

10 10 A2212500802A 221 250 08 02 Torque Converter

20 20 A0019901117A 001 990 11 17 Screw Plug With Seal Ring M8x1

35 35 Q0000000001Q 0000000001 Important Information For Parts,see: 27/125

~~100~~ 100 A2112420340A 211 242 03 40 Bracket For Engine Mount, Rear

~~110~~ 110 A0049903412A 004 990 34 12 Screw For Bracket To Transmission, Rear M6x30 (4×)

~~200~~ 200 A0002702500A 000 270 25 00 Ds Automatic Transmission Gasket Kit

020 Converter Housing,oil Pump

10 10 A1402700197A 140 270 01 97 Internal Gear Oil Pump

10 10 A7222700197A 722 270 01 97 Primary Pump

20 20 A0139970946A 013 997 09 46 Seal Ring

30 30 A0169971448A 016 997 14 48 O-ring

65 65 A2112711201A 211 271 12 01 Housing

65 65 A2112710300A 211 271 03 00 Torque Convertor Housing

65 65 A2112711501A 211 271 15 01 Housing

70 70 A2202771414A 220 277 14 14 Intermediate Panel

70 70 A2202771614A 220 277 16 14 Intermediate Plate

80 80 A1409904601A 140 990 46 01 Cylinder Screw W Flange External Plate Carrier To Torque Converter Housing M6x32 (11×)

80 80 A0029905303A 002 990 53 03 Screw With Feature External Plate Carrier To Torque Converter Housing M6x30 (11×)

90 90 A1409904501A 140 990 45 01 Screw Torque Converter Housing At Oil Pump (7×)

90 90 N000000006410N 000000 006410 Hexalobular Bolt Torque Converter Housing At Oil Pump M8x32 (7×)

~~100~~ 100 A0049902312A 004 990 23 12 Raised Head Screw Transmission Case To Converter Housing M8x45 (17×)

~~125~~ 125 A2112710180A 211 271 01 80 Elastomer Molded Seal

~~160~~ 160 A1642710140A 164 271 01 40 Bracket Right

~~170~~ 170 A2032710540A 203 271 05 40 Bracket Left

~~250~~ 250 A1712700082A 171 270 00 82 Breather

~~250~~ 250 A7252709203A 725 270 92 03 Breather

~~255~~ 255 A0059977848A 005 997 78 48 Sealing Ring

025 Laminated Brake B1

5 5 A2202701049A 220 270 10 49 External Plate Carrier

5 5 A2212700449A 221 270 04 49 External Plate Carrier

8 8 A1409948040A 140 994 80 40 Snap Ring

20 20 N000007006205N 000007 006205 Cylinder Pin

50 50 A2212722031A 221 272 20 31 Piston F Multipl. Clutch

70 70 A0029933226A 002 993 32 26 Disk Spring

80 80 A2209940340A 220 994 03 40 Snap Ring Ar27.50-p-0870w

90 90 A0019933326A 001 993 33 26 Disk Spring

~~100~~ 100 A2212722426A 221 272 24 26 External Plate Ring (4×)

~~110~~ 110 A2212720225A 221 272 02 25 Inner Plate Ring (4×)

~~120~~ 120 A2212720326A 221 272 03 26 End Disk

~~120~~ 120 A2212721100A 221 272 11 00 End Disk

~~140~~ 140 A0009948940A 000 994 89 40 Snap Ring 2,6 Mm

~~140~~ 140 A0009949040A 000 994 90 40 Snap Ring 2,9 Mm

~~140~~ 140 A0009949140A 000 994 91 40 Snap Ring 3,2 Mm

~~140~~ 140 A0009949240A 000 994 92 40 Snap Ring 3,5 Mm

~~140~~ 140 A0019940240A 001 994 02 40 Snap Ring 3,8 Mm

~~160~~ 160 A2222720455A 222 272 04 55 Oil Sealing Ring (2×)

~~160~~ 160 A2222720655A 222 272 06 55 Oil Sealing Ring (2×)

~~160~~ 160 A2202720555A 220 272 05 55 Seal Ring (2×)

~~170~~ 170 A2209811910A 220 981 19 10 Needle Bearing

~~170~~ 170 A2209813910A 220 981 39 10 Needle Bearing

035 Clutch K1, Front Planetary Gear Train

10 10 A2202709928A 220 270 99 28 External Plate Carrier

80 80 A0039941535A 003 994 15 35 Snap Ring

~~140~~ 140 A0009948440A 000 994 84 40 Snap Ring 2,6 Mm

~~140~~ 140 A0009948540A 000 994 85 40 Snap Ring 2,9 Mm

~~140~~ 140 A0009948640A 000 994 86 40 Snap Ring 3,2 Mm

~~140~~ 140 A0009948740A 000 994 87 40 Snap Ring 3,5 Mm

~~140~~ 140 A0009948840A 000 994 88 40 Snap Ring 3,8 Mm

~~158~~ 158 A2202701343A 220 270 13 43 Planet Carrier

~~158~~ 158 A2202701643A 220 270 16 43 Planet Carrier

~~158~~ 158 A2212701243A 221 270 12 43 Planet Carrier

~~161~~ 161 A2209812510A 220 981 25 10 Axial Needle Rlr. Bearing

~~161~~ 161 A2209813410A 220 981 34 10 Axial Needle Rlr. Bearing

~~164~~ 164 A2202700120A 220 270 01 20 Flange

~~170~~ 170 A0009948340A 000 994 83 40 Snap Ring Cylinder Flange

~~180~~ 180 A2202700145A 220 270 01 45 Ring Gear

~~200~~ 200 A2209812410A 220 981 24 10 Axial Needle Rlr. Bearing

~~200~~ 200 A2209810918A 220 981 09 18 Axial Needle Rlr. Bearing

050 Clutch K2, (output Shaft)

10 10 A2202701525A 220 270 15 25 Drive Shaft

10 10 A2212701025A 221 270 10 25 Drive Shaft

10 10 A2122708004A 212 270 80 04 Drive Shaft

20 20 A1402722755A 140 272 27 55 Sealing Ring

30 30 A0209813310A 020 981 33 10 Needle Bearing

30 30 A0219810910A 021 981 09 10 Needle Bearing

40 40 A2222720055A 222 272 00 55 Oil Sealing Ring (3×)

40 40 A2302720155A 230 272 01 55 Sealing Ring (3×)

45 45 A2209815410A 220 981 54 10 Needle Bearing

45 45 A2209815510A 220 981 55 10 Needle Bearing

50 50 A1409974145A 140 997 41 45 Sealing Ring

55 55 A1402720855A 140 272 08 55 Sealing Ring

60 60 A2202722831A 220 272 28 31 Piston F Multipl. Clutch Depth: 35.4 Mm

70 70 A0019934626A 001 993 46 26 Disk Spring

80 80 A2202720464A 220 272 04 64 Spring Retainer

80 80 A2212720164A 221 272 01 64 Spring Retainer

90 90 A1402721955A 140 272 19 55 Sealing Ring

~~100~~ 100 A2209941035A 220 994 10 35 Snap Ring

~~110~~ 110 A0019933126A 001 993 31 26 Disk Spring

~~150~~ 150 A0009949340A 000 994 93 40 Snap Ring 2.3 Mm

~~150~~ 150 A0009949440A 000 994 94 40 Snap Ring 2.6 Mm

~~150~~ 150 A0009949540A 000 994 95 40 Snap Ring 2.9 Mm

~~150~~ 150 A0039941235A 003 994 12 35 Snap Ring 3.2 Mm

~~150~~ 150 A0039941335A 003 994 13 35 Snap Ring 3.5 Mm

~~200~~ 200 A2209812610A 220 981 26 10 Axial Needle Rlr. Bearing

~~200~~ 200 A2209813610A 220 981 36 10 Axial Needle Rlr. Bearing

~~250~~ 250 A2202721826A 220 272 18 26 External Plate (5×)

~~270~~ 270 A2202720826A 220 272 08 26 Outer Disc

~~270~~ 270 A2212720126A 221 272 01 26 End Disk

~~270~~ 270 A2212720900A 221 272 09 00 End Disk

~~280~~ 280 A2202720825A 220 272 08 25 Inner Plate (5×)

065 Center Planetary Set, (output Shaft) Rear Planetary Set

20 20 A2202700226A 220 270 02 26 Driven Shaft

20 20 A2202700926A 220 270 09 26 Output Shaft

30 30 A2202720355A 220 272 03 55 Seal Ring (5×)

30 30 A2202720855A 220 272 08 55 Sealing Ring (5×)

40 40 A1409811210A 140 981 12 10 Needle Bearing

40 40 A2209816010A 220 981 60 10 Needle Cage

50 50 A1402721262A 140 272 12 62 Thrust Plate

50 50 A2202720962A 220 272 09 62 Thrust Plate

60 60 A0009949740A 000 994 97 40 Snap Ring

70 70 A2202720608A 220 272 06 08 Ring Gear

70 70 A2202720908A 220 272 09 08 Ring Gear

90 90 A2202701043A 220 270 10 43 Planetary Carrier

90 90 A2212700643A 221 270 06 43 Planet Carrier

90 90 A2212701043A 221 270 10 43 Planetary Carrier

90 90 A2212701643A 221 270 16 43 Planet Carrier

~~100~~ 100 A1409812210A 140 981 22 10 Needle Bearing

~~100~~ 100 A2209814610A 220 981 46 10 Needle Bearing

~~125~~ 125 A2202720507A 220 272 05 07 Sun Gear Central

~~140~~ 140 A2202700944A 220 270 09 44 Sun Gear Rear

~~140~~ 140 A2212700944A 221 270 09 44 Sun Gear Rear

~~145~~ 145 A2202720407A 220 272 04 07 Sun Gear

~~148~~ 148 A2209812810A 220 981 28 10 Needle Bearing

~~148~~ 148 A2209814110A 220 981 41 10 Needle Bearing

~~149~~ 149 A2209813110A 220 981 31 10 Axial Needle Rlr. Bearing

~~149~~ 149 A2209813810A 220 981 38 10 Axial Needle Roll. Bear.

~~190~~ 190 A1409945735A 140 994 57 35 Snap Ring

~~200~~ 200 A1409974245A 140 997 42 45 O-ring (2×)

~~210~~ 210 A2202720462A 220 272 04 62 Thrust Plate

~~210~~ 210 A2202720862A 220 272 08 62 Thrust Plate

070 Clutch K3

10 10 A2202706228A 220 270 62 28 Plate Carrier

~~100~~ 100 A1402721562A 140 272 15 62 Thrust Plate 3.1 Mm

~~100~~ 100 A1402721962A 140 272 19 62 Thrust Plate 3.4 Mm

~~100~~ 100 A1402722262A 140 272 22 62 Thrust Plate 3.7 Mm

~~140~~ 140 N000471035000N 000471 035000 Retaining Ring

085 Transmission Housing, Output Flange, Parking Lock,shift Lock,selector Leber

10 10 A2312710400A 231 271 04 00 Transmission Housing

10 10 A2212710701A 221 271 07 01 Housing

10 10 A2212710100A 221 271 01 00 Transmission Housing

10 10 A2312710300A 231 271 03 00 Transmission Housing

40 40 A1402700657A 140 270 06 57 Shift Detent Detent Plate

50 50 A1402701165A 140 270 11 65 Gearshift Linkage

60 60 A1409905701A 140 990 57 01 Screw

90 90 A0139979146A 013 997 91 46 Seal Ring

~~100~~ 100 A2222780000A 222 278 00 00 Locking Pawl

~~100~~ 100 A2212780121A 221 278 01 21 Locking Pawl

~~110~~ 110 A1409938601A 140 993 86 01 Spring

~~120~~ 120 A2202780078A 220 278 00 78 Leaf Spring

~~125~~ 125 A0049904412A 004 990 44 12 Screw Leaf Spring To Transmission Case

~~130~~ 130 A1402700198A 140 270 01 98 Filter

~~140~~ 140 A2202700050A 220 270 00 50 Bushing

~~150~~ 150 A0049906912A 004 990 69 12 Screw Plug M36x1.5

~~160~~ 160 A1409910101A 140 991 01 01 Pin

~~190~~ 190 A1402720652A 140 272 06 52 Spacer Disk 0.2 Mm

~~190~~ 190 A1402720752A 140 272 07 52 Spacer Disk 0.3 Mm

~~190~~ 190 A1402720852A 140 272 08 52 Spacer Disk 0.4 Mm

~~190~~ 190 A1402720952A 140 272 09 52 Spacer Disk 0.5 Mm

~~200~~ 200 A1409810125A 140 981 01 25 Ball Bearing

~~210~~ 210 A0039945241A 003 994 52 41 Securing

~~210~~ 210 A0039945341A 003 994 53 41 Securing

~~210~~ 210 A0039945441A 003 994 54 41 Securing

~~220~~ 220 A0159971246A 015 997 12 46 Radial Shaft Sealing Ring

~~230~~ 230 A2402720345A 240 272 03 45 Flange Dia., 120 Mm

~~240~~ 240 A1409901150A 140 990 11 50 Nut M26x1.5

~~260~~ 260 A0049907012A 004 990 70 12 Screw Plug M16x1.5

~~290~~ 290 A1644460310A 164 446 03 10 Electronics, Servo Modul

~~290~~ 290 A1644460610A 164 446 06 10 Electronics, Servo Modul Intelligent Servo Module Ism

~~290~~ 290 A1644460710A 164 446 07 10 Electronics, Servo Modul Intelligent Servo Module Ism

~~290~~ 290 A0002701752A 000 270 17 52 Switching Unit Intelligent Servo Module

~~290~~ 290 A0002701852A 000 270 18 52 Switching Unit Intelligent Servo Module

~~295~~ 295 A2202780110A 220 278 01 10 Regulating Shaft Steering Column Shift

~~300~~ 300 A0049907412A 004 990 74 12 Screw Steering Column Shift M6x25 (4×)

~~320~~ 320 A0009900465A 000 990 04 65 Hexagon Spacer Bolt Screening Plate M 6 (4×)

~~340~~ 340 A1642710088A 164 271 00 88 Cover Servo Module

~~360~~ 360 N000000001144N 000000 001144 Hexalobular Bolt Servo Module M6x10 (4×)

~~390~~ 390 A2212710085A 221 271 00 85 Hose Shift Mechanism

~~400~~ 400 A1642710140A 164 271 01 40 Bracket Shift Mechanism

~~900~~ 900 A0505453028A 050 545 30 28 Plug Housing Intelligent Servo Module 5-pin Mlk1.2,slk2.8;a80

~~900~~ 900 A0029880635A 002 988 06 35 Cap Intelligent Servo Module 5-pin;a80

~~901~~ 901 A0195451826A 019 545 18 26 Contact Socket Intelligent Servo Module 0.22-0.5 Mm2 Mlk1.2

~~901~~ 901 A0005403905A 000 540 39 05 Electrical Line Intelligent Servo Module 1.5 Mm2 Slk2.8

095 Multiple Disk Brake B2, Multiple Disk Brake B3, Paking Lock Gearwheel

10 10 A2202700268A 220 270 02 68 Guide Tube

10 10 A2122709908A 212 270 99 08 Piston Guide Ring

20 20 A1409972045A 140 997 20 45 Sealing Ring

30 30 A1402721655A 140 272 16 55 Sealing Ring

40 40 A1402721755A 140 272 17 55 Sealing Ring

50 50 A2202722431A 220 272 24 31 Piston

60 60 A2202722631A 220 272 26 31 Piston

70 70 A2212720755A 221 272 07 55 Sealing Ring

80 80 A2202720132A 220 272 01 32 Guide

80 80 A2122722500A 212 272 25 00 Piston Guide Ring

90 90 A1402722055A 140 272 20 55 Sealing Ring

90 90 A2212720655A 221 272 06 55 Sealing Ring

~~110~~ 110 A1409931626A 140 993 16 26 Disk Spring

~~120~~ 120 A2202720264A 220 272 02 64 Spring Retainer

~~130~~ 130 A1409942135A 140 994 21 35 Snap Ring

~~140~~ 140 A2202700119A 220 270 01 19 Gearwheel

~~150~~ 150 A0019933426A 001 993 34 26 Disk Spring

~~160~~ 160 A2212721526A 221 272 15 26 External Plate 1.8 Mm

~~170~~ 170 A2202721726A 220 272 17 26 External Plate Ring 1.6 Mm (6×)

~~170~~ 170 A2212722326A 221 272 23 26 External Plate Ring (6×)

~~180~~ 180 A1402720425A 140 272 04 25 Inner Plate Ring 1.8 Mm (5×)

~~180~~ 180 A2212720025A 221 272 00 25 Inner Plate 1.8 Mm (5×)

~~190~~ 190 A1402722326A 140 272 23 26 External Plate Ring 6.5 Mm

~~190~~ 190 A2202722526A 220 272 25 26 Outer Disc 6.5 Mm

~~190~~ 190 A2212721726A 221 272 17 26 End Disk 6.5 Mm

~~200~~ 200 A1409945935A 140 994 59 35 Snap Ring 4.1 Mm

~~200~~ 200 A1409946035A 140 994 60 35 Snap Ring 3.8 Mm

~~200~~ 200 A1409946135A 140 994 61 35 Snap Ring 3.5 Mm

~~200~~ 200 A1409946235A 140 994 62 35 Snap Ring 3.2 Mm

~~200~~ 200 A1409946335A 140 994 63 35 Snap Ring 2.9 Mm

~~210~~ 210 A0019933526A 001 993 35 26 Disk Spring

~~220~~ 220 A2212721126A 221 272 11 26 External Plate 1.8 Mm (4×)

~~230~~ 230 A2202720725A 220 272 07 25 Inner Plate (4×)

~~240~~ 240 A1402722426A 140 272 24 26 External Plate Ring 6,5 Mm

~~240~~ 240 A2202722426A 220 272 24 26 Outer Disc 6.5 Mm

~~240~~ 240 A2212721326A 221 272 13 26 External Plate 6.5 Mm

~~250~~ 250 A1409941535A 140 994 15 35 Snap Ring 3.2 Mm

~~250~~ 250 A1409941635A 140 994 16 35 Snap Ring 3.5 Mm

~~250~~ 250 A1409941735A 140 994 17 35 Snap Ring 3.8 Mm

~~250~~ 250 A1409944135A 140 994 41 35 Snap Ring 4.1 Mm

~~250~~ 250 A1409944235A 140 994 42 35 Snap Ring 4.4 Mm

~~250~~ 250 A1409944335A 140 994 43 35 Snap Ring 4.7 Mm

~~260~~ 260 A0049902412A 004 990 24 12 Screw M8x50 (2×)

~~280~~ 280 A2202724624A 220 272 46 24 External Plate Carrier

~~285~~ 285 A2202721631A 220 272 16 31 Piston

~~300~~ 300 A2209940340A 220 994 03 40 Snap Ring Return Spring Ar27.50-p-0890w

~~310~~ 310 A0029933226A 002 993 32 26 Disk Spring

~~320~~ 320 A0019933326A 001 993 33 26 Disk Spring Support Disks

~~330~~ 330 A2202720126A 220 272 01 26 Outer Disc (4×)

~~340~~ 340 A2202720226A 220 272 02 26 Outer Disc

~~340~~ 340 A2212720326A 221 272 03 26 End Disk

~~340~~ 340 A2212721100A 221 272 11 00 End Disk

~~350~~ 350 A2202720025A 220 272 00 25 Inner Disc (4×)

~~380~~ 380 A0009948940A 000 994 89 40 Snap Ring 2,6 Mm

~~380~~ 380 A0009949040A 000 994 90 40 Snap Ring 2,9 Mm

~~380~~ 380 A0009949140A 000 994 91 40 Snap Ring 3,2 Mm

~~380~~ 380 A0009949240A 000 994 92 40 Snap Ring 3,5 Mm

~~380~~ 380 A0019940240A 001 994 02 40 Snap Ring 3,8 Mm

100 Electronic-hydraulic Control Unit

10 10 A2202701406A 220 270 14 06 Control

10 10 A2202701306A 220 270 13 06 Control

10 10 A2202702706A 220 270 27 06 Ctrr. Unit, Electrohyd.

10 10 A2202701406A 220 270 14 06 Control

10 10 A2202702106A 220 270 21 06 Ctrr. Unit, Electrohyd.

10 10 A2202702906A 220 270 29 06 Ctrr. Unit, Electrohyd.

20 20 A2202770998A 220 277 09 98 Control Solenoid Blue Cap (4×)

30 30 A2202771098A 220 277 10 98 Control Solenoid Black Cap (4×)

80 80 A0049902612A 004 990 26 12 Combi-cylinder Screw Electrical System Set To Shift Plate M6x23 (6×)

80 80 A0099904404A 009 990 44 04 Fillister Head Screw Electrical Control Unit To Valve Body, Bottom M6x22

90 90 A2203770203A 220 377 02 03 Spring Steel Sheet (4×)

95 95 N000000004098N 000000 004098 Hexalobular Bolt Spring Sheet Steel To Valves 6x45 (4×)

~~120~~ 120 A0002701700A 000 270 17 00 Rs Ctrr. Unit, Elec.hyd.

~~120~~ 120 A0002702600A 000 270 26 00 Rs Ctrr. Unit, Elec.hyd.

~~130~~ 130 A2202770047A 220 277 00 47 Oil Guide Pipe

~~130~~ 130 A2203700093A 220 370 00 93 Oil Guide Pipe

~~140~~ 140 A0229972745A 022 997 27 45 O-ring 29x3,25 (2×)

~~160~~ 160 A0049907512A 004 990 75 12 Raised Head Screw Slider Housing To Transmission Housing M6x33 (10×)

~~900~~ 900 A0455453328A 045 545 33 28 Plug Housing Transmission Control Module 6-pin Lks1.5;n15/11

~~901~~ 901 A0085457726A 008 545 77 26 Contact Socket 0.75-1.0 Mm2 Lks1.5

~~901~~ 901 A0005458480A 000 545 84 80 Gasket Single-wire Seal

~~901~~ 901 A0005457980A 000 545 79 80 Blind Plug Blind Plug, White 4.0 Mm

~~901~~ 901 A0005457880A 000 545 78 80 Seal Blind Plug, Green 5.2 Mm

115 Oil Pan,oil Filter

10 10 A2212700912A 221 270 09 12 Oil Pan

12 12 N000908012009N 000908 012009 Screw Plug

14 14 N007603012102N 007603 012102 Sealing Ring

15 15 A0009880152A 000 988 01 52 Permanent Magnet (2×)

20 20 A2202710180A 220 271 01 80 Gasket Oil Pan To Transmission Housing

20 20 A2202710380A 220 271 03 80 Elastomer Molded Seal Oil Pan To Transmission Housing

30 30 A2212770195A 221 277 01 95 Oil Filter

40 40 A2202710068A 220 271 00 68 Sprag Oil Pan To Transmission Housing (5×)

50 50 A2202710268A 220 271 02 68 Sprag Oil Pan To Transmission Housing

60 60 A0049903512A 004 990 35 12 Screw With Feature Oil Pan To Transmission Housing M6x40 (6×)

~~100~~ 100 A2512710097A 251 271 00 97 Overflow Pipe

165 Transfer Case Interior Parts

29 Pedal Assembly

015 Pedal Assembly With Bearing

10 10 A2202901119A 220 290 11 19 Bearing Bracket Pedal Assembly

30 30 A2402900218A 240 290 02 18 Pedal Brake

50 50 A1242920050A 124 292 00 50 Bushing Brake Pedal (2×)

60 60 A2102920150A 210 292 01 50 Bushing Brake Pedal (2×)

70 70 A1232910082A 123 291 00 82 Cover Brake Pedal

80 80 A1682910374A 168 291 03 74 Pin Brake Pedal To Bearing Bracket

90 90 A1682910055A 168 291 00 55 Grommet Brake Pedal To Bearing Bracket

~~120~~ 120 A0009933411A 000 993 34 11 Draw Spring Brake Pedal Release Spring

~~130~~ 130 A2309910012A 230 991 00 12 Pin Brake Pedal To Brake Booster

~~140~~ 140 N912002008003N 912002 008003 Securing Brake Pedal To Brake Booster 8 Mm

~~150~~ 150 N000000003175N 000000 003175 Nut Pedal Assembly To Fire Wall M8 (4×)

30 Control

015 Control

10 10 A2203000104A 220 300 01 04 Accelerator Pedal Pedal Module

20 20 A0039905351A 003 990 53 51 Nut Accelerator Pedal To Fire Wall M6

30 30 A2203010036A 220 301 00 36 Cap Accelerator Pedal To Fire Wall

31 Hitching Mechanism

015 Trailer Coupling

~~130~~ 130 A0003150197A 000 315 01 97 Ts Boot Parts Kit

~~140~~ 140 A0003150929A 000 315 09 29 Cover Ball Head

540 Electrical Parts For Trailer Coupling

30 30 A0059976290A 005 997 62 90 Cable Strap Cable Harness Mounting 3.3 X 260 Mm

50 50 A0005406724A 000 540 67 24 Housing Trailer Plug Socket

32 Springs, Suspension And Hydraulic System

054 Spring Strut And Spring Strut Mounting Front

10 10 A2213204913A 221 320 49 13 Air Suspension Strut Front Left

10 10 A2213209313A 221 320 93 13 Air Suspension Strut Front Left

10 10 A2213204913A 221 320 49 13 Air Suspension Strut Front Right

10 10 A2213209313A 221 320 93 13 Air Suspension Strut Front Right

20 20 A0019903214A 001 990 32 14 Stud Bolt With Feature Damper Strut At Ball Joint (2×)

30 30 A2215400008A 221 540 00 08 Wiring Harness Damper Strut,front (2×)

40 40 A0003270369A 000 327 03 69 Connecting Panel (2×)

~~110~~ 110 N000000003175N 000000 003175 Nut Spring Strut To Body M8 (6×)

~~110~~ 110 N000000005267N 000000 005267 Nut Spring Strut To Body (6×)

060 Torsion Bar,front

10 10 A2213231765A 221 323 17 65 Torsion Bar Front

20 20 A2213230040A 221 323 00 40 Bracket Front Axle Torsion Bar (2×)

30 30 N000000004306N 000000 004306 Hexalobular Bolt Torsion Bar To Carrier 10x20 (4×)

30 30 N000000005053N 000000 005053 Hexagon Head Bolt Torsion Bar To Carrier M10x20 (4×)

40 40 A2213200189A 221 320 01 89 Torsion Bar Linkage At Torsion Bar Left

40 40 A2213200289A 221 320 02 89 Torsion Bar Linkage At Torsion Bar Right

50 50 N000000003280N 000000 003280 Hexagon Nut Torsion Bar Linkage To Torsion Bar M12x1.5 (2×)

50 50 N000000003280N 000000 003280 Hexagon Nut Stabilizer Bar Linkage To Steering Knuckle M12x1.5 (2×)

154 Spring Strut And Spring Strut Mounting Rear

5 5 A2213205513A 221 320 55 13 Air Suspension Strut Rear Left

5 5 A2213205613A 221 320 56 13 Air Suspension Strut Rear Right

7 7 A2043520027A 204 352 00 27 Ball Joint Left Suspension Strut

7 7 A2043520027A 204 352 00 27 Ball Joint Right Suspension Strut

10 10 A2215400108A 221 540 01 08 Wiring Harness Left And Right Suspension Strut (2×)

15 15 A0003270369A 000 327 03 69 Connecting Panel Left And Right Suspension Strut (2×)

20 20 A0029906350A 002 990 63 50 Nut-and-washer Assembly Suspension Strut At Body, Left (3×)

20 20 A0029906350A 002 990 63 50 Nut-and-washer Assembly Suspension Strut At Body, Right (3×)

25 25 N910105014017N 910105 014017 Hexagon Head Bolt Hydropneumatic Spring Leg To Spring Control Arm M14x1.5x80 (2×)

30 30 N000000005270N 000000 005270 Nut Hydropneumatic Spring Leg To Spring Control Arm M14 (2×)

~~110~~ 110 A2216980130A 221 698 01 30 Cover Spring Strut Tower, Left

~~110~~ 110 A2216980230A 221 698 02 30 Cover Strut Tower Right

165 Torsion Bar,rear

10 10 A2213200411A 221 320 04 11 Torsion Bar Rear

30 30 N000000004179N 000000 004179 Hexalobular Bolt Torsion Bar To Rear Axle M12x1,5x75 (2×)

40 40 N000000003276N 000000 003276 Nut Torsion Bar To Rear Axle M12x1.5 (2×)

50 50 A2213201989A 221 320 19 89 Bar At Torsion Bar Left

50 50 A2213202289A 221 320 22 89 Bar At Torsion Bar Right

60 60 N000000003275N 000000 003275 Nut Torsion Bar Linkage To Torsion Bar M10 (2×)

70 70 N000000003275N 000000 003275 Nut Stabilizer Bar Linkage To Wheel Carrier M10 (2×)

232 Compressor And Cable Specification

10 10 A2213200304A 221 320 03 04 Compressor Major Assembly Pneumatic Suspension

10 10 A2213200704A 221 320 07 04 Compressor Major Assembly Pneumatic Suspension

10 10 A2213201604A 221 320 16 04 Compressor Major Assembly Pneumatic Suspension

10 10 A2213201704A 221 320 17 04 Compressor Pneumatic Suspension

15 15 A2213280065A 221 328 00 65 Connection Fitting Compressed Air Connection

20 20 A2203270376A 220 327 03 76 Window Compressor Bearing (3×)

30 30 A2203270830A 220 327 08 30 Rubber Bumper Compressor Bearing (3×)

40 40 A2209930301A 220 993 03 01 Compression Spring Compressor Bearing (3×)

50 50 A2203270253A 220 327 02 53 Spacer Tube Compressor Bearing (3×)

60 60 N910112005000N 910112 005000 Hexagon Nut Compressor Bearing M5 (3×)

70 70 A0059976290A 005 997 62 90 Cable Strap Line Attachment 3.3 X 260 Mm

80 80 A0009959677A 000 995 96 77 Line Bracket Line Attachment

90 90 A2213200243A 221 320 02 43 Bracket Valve Unit To Compressor

~~100~~ 100 A2513200058A 251 320 00 58 Valve Block Valve Unit

~~100~~ 100 A2123200358A 212 320 03 58 Valve Block Valve Unit

~~105~~ 105 A0003270069A 000 327 00 69 Connector Compressed Air Line To The Suspensionstruts And Pressure Reservoir (5×)

~~108~~ 108 A2213280065A 221 328 00 65 Connection Fitting Compressed Air Line To Compressor

~~110~~ 110 A0059902512A 005 990 25 12 Pan Head Screw With Isr Valve Block Mounting (2×)

~~120~~ 120 A2213201443A 221 320 14 43 Bracket Valve Block

~~130~~ 130 A2213270230A 221 327 02 30 Rubber Bumper Compressor

~~140~~ 140 A2213270945A 221 327 09 45 Pressure Line Compressor To Valve Unit

~~150~~ 150 A0059976290A 005 997 62 90 Cable Strap Attachment Delivery Line 3.3 X 260 Mm

~~160~~ 160 N000000003477N 000000 003477 Nut Valve Unit To Compressor M6

~~170~~ 170 N910105008004N 910105 008004 Hexagon Head Bolt Compressor Unit To Longitudinal Member M8x20 (2×)

~~170~~ 170 N910143008002N 910143 008002 Hexalobular Bolt Compressor Unit To Longitudinal Member M8x25

~~180~~ 180 N000000003175N 000000 003175 Nut Compressor Unit To Longitudinal Member M8

~~190~~ 190 A2213200369A 221 320 03 69 Filter Air Suspension Compressor

~~200~~ 200 A2113270011A 211 327 00 11 Ring Air Cleaner

~~210~~ 210 A2203200069A 220 320 00 69 Filter Air Cleaner

~~220~~ 220 A1409950105A 140 995 01 05 Spring Bracket Clamp Hose To Air Cleaner 14.7-16.5 Mm/ 12 Mm (2×)

~~230~~ 230 N910143006001N 910143 006001 Hexalobular Bolt Air Cleaner To Cross Member M6x16

~~240~~ 240 A1409950105A 140 995 01 05 Spring Bracket Clamp Hose To Compressor 14.7-16.5 Mm/ 12 Mm

~~250~~ 250 A2213271645A 221 327 16 45 Pressure Line Compressor To Accumulator

~~260~~ 260 A2213200015A 221 320 00 15 Pressure Reservoir Air Suspension Compressor

~~265~~ 265 A0003270369A 000 327 03 69 Connecting Panel Pressure Line To Pressure Reservoir

~~270~~ 270 N000000003175N 000000 003175 Nut Fastening Pressure Reservoir M8 (2×)

~~280~~ 280 A2203271045A 220 327 10 45 Line Repair Size 1520mm

~~290~~ 290 A0003270169A 000 327 01 69 Connector Repair Size

~~900~~ 900 A1685453628A 168 545 36 28 Receptacle Housing Air Suspension Compressor 2-pin Slk2.8;a9/1 M1

~~900~~ 900 A1685452928A 168 545 29 28 Receptacle Housing Air Suspension Compressor 2-pin Slk2.8;a9/1 Y1

~~901~~ 901 A0005404105A 000 540 41 05 Electrical Line Air Suspension Compressor 4.0 Mm2 Slk Ag;a9/1 M1

~~901~~ 901 A0095458126A 009 545 81 26 Contact Socket Air Suspension Compressor 0.75-1.0 Mm2 Slk2.8;a9/1 Y1

~~901~~ 901 A0005457180A 000 545 71 80 Gasket Air Suspension Compressor 1.1-2.1 Mm;a9/1 Y1

~~910~~ 910 A0465458928A 046 545 89 28 Plug Valve Unit Self-levelling Device 10-pin Mt2;y36/6

~~911~~ 911 A0155457226A 015 545 72 26 Contact Spring Valve Unit Self-levelling Device 0.2-0.5 Mm2 Mt2;y36/6

~~911~~ 911 A0155457326A 015 545 73 26 Contact Spring Valve Unit Self-levelling Device 0.5-1.0 Mm2 Mt2;y36/6

~~911~~ 911 A0039977749A 003 997 77 49 Gasket Valve Unit Y36/6

~~911~~ 911 A0029976086A 002 997 60 86 Blind Plug Self-levelling Device Y36/6

235 Oil Tank & Valves Used For "abc" Hydraulic System

~~205~~ 205 A0049943145A 004 994 31 45 Clip Nut Bracket Mounting 4,8

~~310~~ 310 A0009981190A 000 998 11 90 Grommet Plate 6.5 Mm (3×)

290 Line Arrangement Of Hydraulic System

33 Front Axle

030 Steering Knuckle And Control Arm

10 10 A2213322901A 221 332 29 01 Steering Knuckle Left

10 10 A2213324501A 221 332 45 01 Steering Knuckle Left

10 10 A2213323001A 221 332 30 01 Steering Knuckle Right

10 10 A2213324601A 221 332 46 01 Steering Knuckle Right

20 20 A2213300225A 221 330 02 25 Front Wheel Hub Left And Right (2×)

30 30 A0259971647A 025 997 16 47 Sealing Ring Front Wheel Hub To Steering Knuckle (2×)

40 40 A0009904360A 000 990 43 60 Clamp Nut Front Wheel Hub To Steering Knuckle (2×)

50 50 N000912006176N 000912 006176 Cap Bolt Front Wheel Hub To Steering Knuckle M6x25 (2×)

50 50 N000000003358N 000000 003358 Hexalobular Bolt Front Wheel Hub To Steering Knuckle M6x25 (2×)

60 60 A1683570089A 168 357 00 89 Plug Front Wheel Hub (2×)

70 70 A2213306707A 221 330 67 07 Spring Link Left

70 70 A2213308107A 221 330 81 07 Spring Link Left

70 70 A2213306807A 221 330 68 07 Spring Link Right

70 70 A2213308207A 221 330 82 07 Spring Link Right

75 75 A2213330714A 221 333 07 14 Elastomer Bearing Left Spring Control Arm

75 75 A2213330714A 221 333 07 14 Elastomer Bearing Right Spring Control Arm

80 80 N000000003277N 000000 003277 Nut Spring Link To Steering Knuckle M14x1.5 (2×)

90 90 A2203330071A 220 333 00 71 Screw Spring Link To Frame-type Int. Supp. M14x1.5 (2×)

90 90 A2123330071A 212 333 00 71 Adjustment Screw For Adjusting Work Only M14x1,5

~~100~~ 100 A2203330076A 220 333 00 76 Spacer Disk Spring Link To Frame-type Int. Supp. (4×)

~~100~~ 100 A2023330376A 202 333 03 76 Washer For Adjusting Work Only (4×)

~~100~~ 100 A2213330177A 221 333 01 77 Rs Spacer Ring For Adjusting Work Only (4×)

~~110~~ 110 N000000003281N 000000 003281 Hexagon Nut Spring Link To Frame-type Int. Supp. M14x1,5 (2×)

~~120~~ 120 A2213300141A 221 330 01 41 Strut Rod Left

~~120~~ 120 A2213300241A 221 330 02 41 Strut Rod Right

~~125~~ 125 A2213330814A 221 333 08 14 Bearing Tension Rod Left

~~125~~ 125 A2213330814A 221 333 08 14 Bearing Tension Rod Right

~~127~~ 127 A2113330697A 211 333 06 97 Elastomeric Boot Bearing Left And Right (4×)

~~130~~ 130 N000000003277N 000000 003277 Nut Torque Strut At Steering Knuckle, Left M14x1.5

~~130~~ 130 N000000003277N 000000 003277 Nut Torque Strut At Steering Knuckle, Right M14x1.5

~~140~~ 140 A2203330071A 220 333 00 71 Screw Torque Strut To Frame-type Int. Supp. M14x1.5 (2×)

~~140~~ 140 A0003330371A 000 333 03 71 Adjustment Screw For Adjusting Work Only M14x1,5 (2×)

~~140~~ 140 A2123330071A 212 333 00 71 Adjustment Screw For Adjusting Work Only M14x1,5 (2×)

~~150~~ 150 A2203330076A 220 333 00 76 Spacer Disk Torque Strut To Frame-type Int. Supp. (4×)

~~150~~ 150 A2023330376A 202 333 03 76 Washer For Adjusting Work Only (4×)

~~150~~ 150 A2213330177A 221 333 01 77 Rs Spacer Ring For Adjusting Work Only (4×)

~~160~~ 160 N000000003281N 000000 003281 Hexagon Nut Torque Strut To Frame-type Int. Supp. M14x1,5 (2×)

~~170~~ 170 A0003330471A 000 333 04 71 Ts Adjustment Screw For Adjusting Work Only (4×)

~~170~~ 170 A0003330571A 000 333 05 71 Ts Adjustment Screw For Adjusting Work Only (4×)

~~170~~ 170 A0003330971A 000 333 09 71 Ts Bolt For Adjusting Work Only (4×)

~~180~~ 180 A2213300307A 221 330 03 07 Transv. Control Arm Top Left

~~180~~ 180 A2213308907A 221 330 89 07 Transv. Control Arm Top Left

~~180~~ 180 A2213300407A 221 330 04 07 Transv. Control Arm Top Right

~~180~~ 180 A2213309007A 221 330 90 07 Transv. Control Arm Top Right

~~190~~ 190 N000000003279N 000000 003279 Hexagon Nut Upper Transverse Control Arm To Steering Knuckle M10 (2×)

~~200~~ 200 N000000002483N 000000 002483 Hexagon Head Bolt Trans. Con. Arm To Body M10x85 (4×)

~~210~~ 210 N000000005268N 000000 005268 Nut Trans. Con. Arm To Body (4×)

035 Regulation Of Dynamic Headlamp Range Control, Front

10 10 A2213202189A 221 320 21 89 Rod At Sensor (2×)

10 10 A2213202489A 221 320 24 89 Bar At Sensor (2×)

20 20 N910113006000N 910113 006000 Hexagon Nut Rod On Sensor M6 (2×)

30 30 N000000001517N 000000 001517 Hexalobular Bolt Sensor To Bracket M5x10 (4×)

40 40 N910113006000N 910113 006000 Hexagon Nut Rod On Control Arm M6 (2×)

50 50 A2213270140A 221 327 01 40 Bracket Sensor Left

50 50 A2213270240A 221 327 02 40 Bracket Sensor Right

80 80 A0105427717A 010 542 77 17 Turning Angle Sensor Front Axle Level Sensor (2×)

~~100~~ 100 A0015466435A 001 546 64 35 Protective Cap Level Sensor Front Axle 6-pin (2×)

~~900~~ 900 A2105403681A 210 540 36 81 Clutch Sensor, Level Control 6-pin Mqs;b22/18,b22/19,b22/20,b22/21 (4×)

~~900~~ 900 A2105403681A 210 540 36 81 Clutch Sensor, Level Control 6-pin Mqs;b22/8,b22/9,b22/3 (3×)

~~901~~ 901 A0085456326A 008 545 63 26 Contact Socket Sensor, Level Control 0.5-0.75 Mm2 Mqs;b22/3,8,9,18 -21

~~901~~ 901 A0005456880A 000 545 68 80 Seal Sensor, Level Control 0.9-1.4 Mm;b22/3,8,9,18 -21

~~901~~ 901 A0005458780A 000 545 87 80 Blind Plug Sensor, Level Control 4.1mm;b22/18,b22/19,b22/20,b22/21

045 4matic Steering Knuckle & Control Arm
