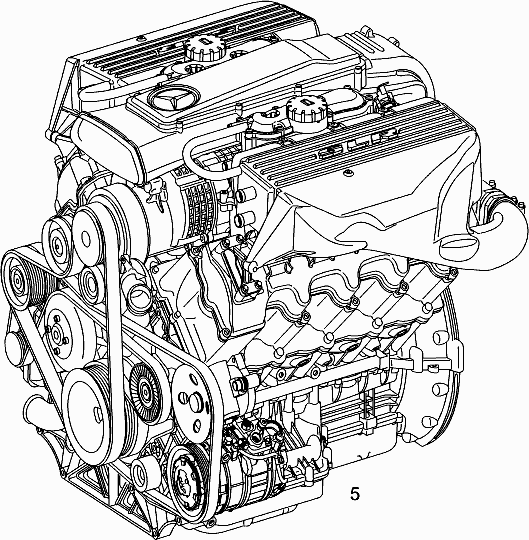

01 Engine Housing
010 Engine

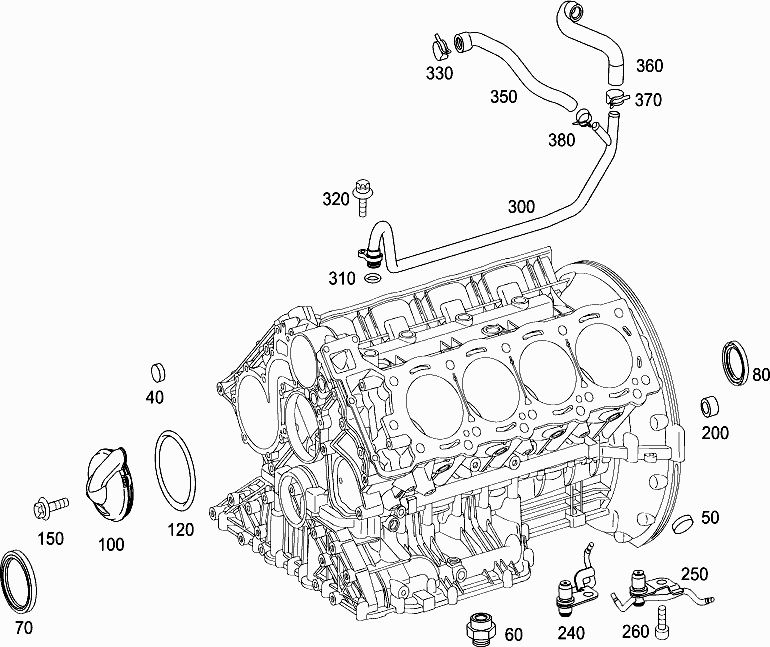

020 Cylinder Crankcase
40 40 N000443016000N 000443 016000 Cap Cylinder Crankcase,front
50 50 N000000004055N 000000 004055 Cap Cylinder Crankcase (14×)
60 60 A1550140159A 155 014 01 59 Screw-in Fitting (2×)
60 60 A1550140259A 155 014 02 59 Fitting (2×)
70 70 A0239978447A 023 997 84 47 Sealing Ring Crankshaft,front
80 80 A1129970246A 112 997 02 46 Sealing Ring Crankshaft,rear
100 100 A1550100014A 155 010 00 14 Cap Crankcase Breathing
120 120 A0129974745A 012 997 47 45 Sealing Ring
150 150 N910105005002N 910105 005002 Hexagon Head Bolt Cover To Cylinder Crankcase,front M5x16 (2×)
200 200 A1129910441A 112 991 04 41 Spring Pin Transmission To Crankcase (2×)
250 250 A1551800143A 155 180 01 43 Oil Jet (4×)
260 260 A1129900014A 112 990 00 14 Screw (12×)
300 300 A1550100170A 155 010 01 70 Breather Pipe Crankcase Breathing
310 310 A1559970848A 155 997 08 48 Sealing Ring
320 320 N910143006001N 910143 006001 Hexalobular Bolt M6x16 (2×)
330 330 A0029954201A 002 995 42 01 Clamp
350 350 A1550100070A 155 010 00 70 Vent Line
350 350 A1550180082A 155 018 00 82 Hose
360 360 A1550100270A 155 010 02 70 Vent Line
360 360 A1550180182A 155 018 01 82 Hose
370 370 A2309950005A 230 995 00 05 Spring Bracket Clamp 23/12 Mm
380 380 A2039950005A 203 995 00 05 Spring Bracket Clamp 16/12 Mm

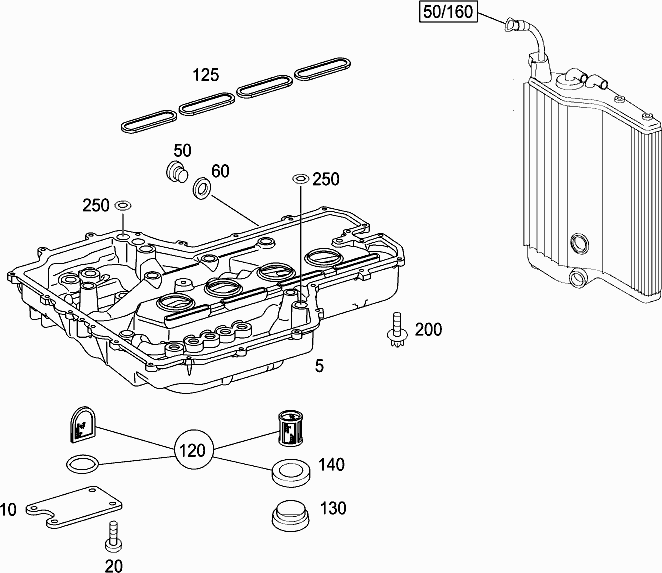

045 Oil Pan & Oil Level Display
5 5 A1550100313A 155 010 03 13 Oil Pan
5 5 A1550100413A 155 010 04 13 Oil Pan
10 10 A1550140033A 155 014 00 33 Cap Cover To Oil Pan
20 20 N000000003396N 000000 003396 Screw Cover To Oil Pan M5x14 (4×)
50 50 N000908012009N 000908 012009 Screw Plug Oil Drain
60 60 N007603012110N 007603 012110 Sealing Ring Oil Drain
120 120 A1551860601A 155 186 06 01 Ts Suction Strainer Parts Kit
125 125 A1551860301A 155 186 03 01 Sieve Insert (4×)
140 140 N007603026104N 007603 026104 Sealing Ring
200 200 N910143006002N 910143 006002 Hexalobular Bolt Oil Pan To Cylinder Crankcase M6x20 (25×)
250 250 A1559970548A 155 997 05 48 O-ring Oil Pan To Cylinder Crankcase (4×)

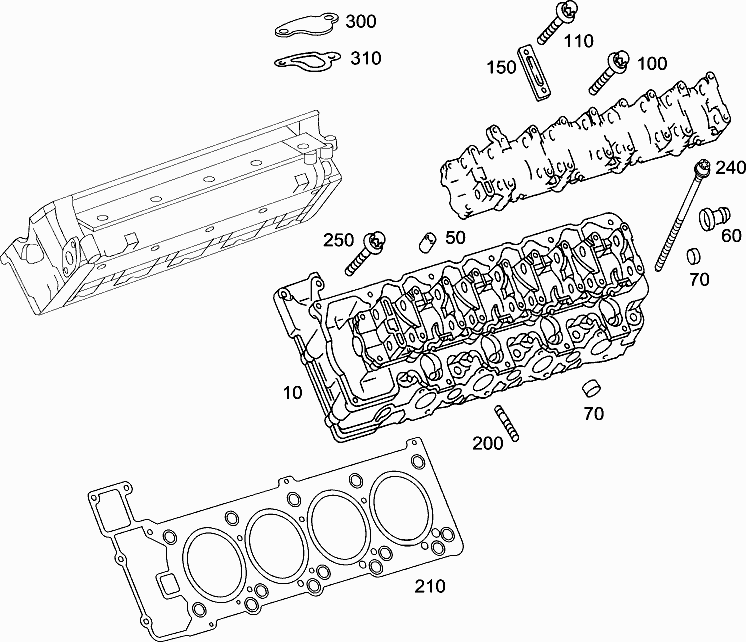

060 Cylinder Head
10 10 A1130105720A 113 010 57 20 Cylinder Head Left
10 10 A1130105620A 113 010 56 20 Cylinder Head Right
50 50 A1129910541A 112 991 05 41 Pilot Bushing Camshaft Bearing To Cylinder Head (4×)
60 60 A1129900378A 112 990 03 78 Hose Fitting Cylinder Head, Left, Heating Water Feed
70 70 A4039970620A 403 997 06 20 Cap To Plug Core Holes (7×)
70 70 A4039970620A 403 997 06 20 Cap Heater Plug, Right
70 70 A4039970620A 403 997 06 20 Cap To Plug Air-injection Bore
100 100 A1129901022A 112 990 10 22 Screw Camshaft Bearing To Cyinder Head, Left M7x1x84 (18×)
100 100 A1129901022A 112 990 10 22 Screw Camshaft Bearing To Cylinder Head, Right M7x1x84 (18×)
110 110 A0029909722A 002 990 97 22 Screw Camshaft Bearing To Cyinder Head, Left (2×)
150 150 A1120550045A 112 055 00 45 Flange To Camshaft Bearing No. 1, Left And Right (2×)
200 200 A2729900005A 272 990 00 05 Stud Bolt Exhaust Manifold To Cylinder Head (16×)
210 210 A1550160520A 155 016 05 20 Cylinder Head Gasket Left
210 210 A1550160620A 155 016 06 20 Cylinder Head Gasket Right
240 240 A1550160169A 155 016 01 69 Cylinder Head Bolt Cylinder Head To Cylinder Crankcase (20×)
250 250 N910143008003N 910143 008003 Hexalobular Bolt Cylinder Head To Cylinder Crankcase M8x30 (4×)
250 250 N910105008019N 910105 008019 Hexagon Head Bolt Cylinder Head To Cylinder Crankcase M8x50 (4×)
300 300 A1550160006A 155 016 00 06 Cap At Right Cylinder Head,rear
310 310 A1121420280A 112 142 02 80 Gasket At Right Cylinder Head,rear

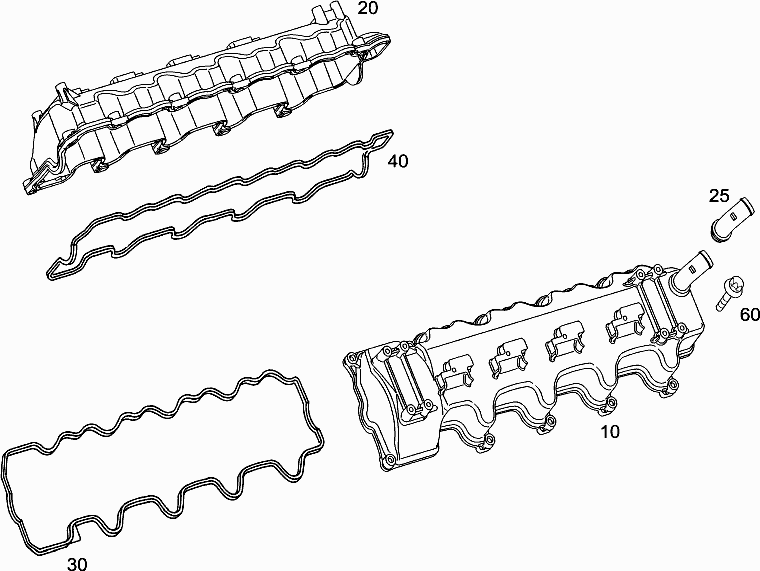

075 Cylinder Head Cover
10 10 A1550100730A 155 010 07 30 Cylinder Head Cover Left
20 20 A1550100830A 155 010 08 30 Cylinder Head Cover Right
25 25 A1551810155A 155 181 01 55 Fitting Breathing (2×)
30 30 A1130160221A 113 016 02 21 Gasket Cylinder Head Cover To Cylinder Head, Left
40 40 A1130160321A 113 016 03 21 Gasket Cylinder Head Cover To Cylinder Head, Right
60 60 A0019908322A 001 990 83 22 Screw Cylinder Head Cover To Cylinder Head, Left (11×)
60 60 A0019908322A 001 990 83 22 Screw Cylinder Head Cover To Cylinder Head, Right (11×)
03 Parts Of Unit Power Plant

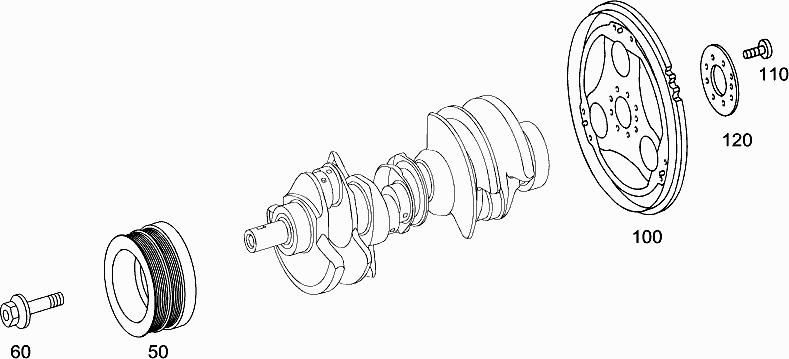

015 Crankshaft And Flywheel
50 50 A1550350100A 155 035 01 00 Vibration Damper Vibration Absorber
50 50 A1550300003A 155 030 00 03 Damper Vibration Absorber
60 60 A0009900200A 000 990 02 00 Hexagon Head Bolt Vibration Absorber To Crankshaft M16x81

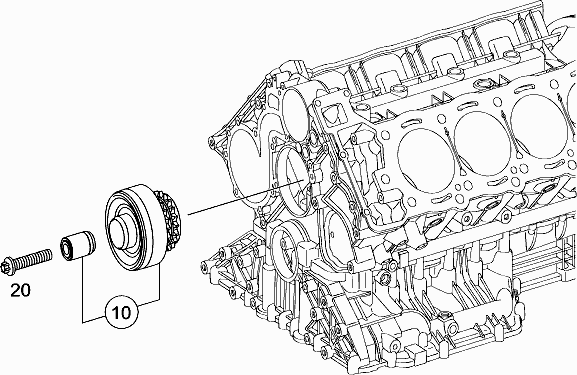

025 Guide Sprocket
10 10 A1550500005A 155 050 00 05 Intermediate Gear Guide Pocket
20 20 A0009904003A 000 990 40 03 Screw Guide Pocket M10x50 Lh
05 Engine Management

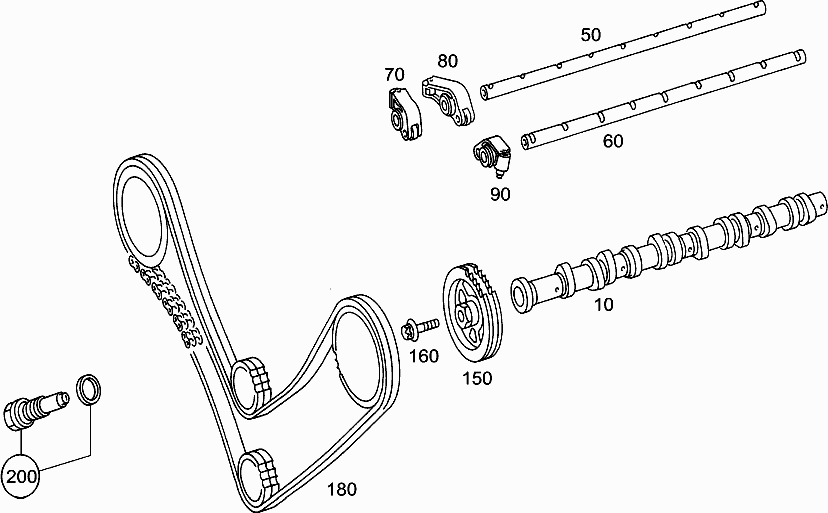

015 Camshaft And Chain Drive
10 10 A1550500901A 155 050 09 01 Camshaft Left
10 10 A1550501001A 155 050 10 01 Camshaft Right
50 50 A1130500731A 113 050 07 31 Rocker Arm Spindle Intake (2×)
60 60 A1130500631A 113 050 06 31 Rocker Arm Spindle Exhaust (2×)
70 70 A1130501433A 113 050 14 33 Rocker Arm Intake Valve 1 (8×)
80 80 A1130501633A 113 050 16 33 Rocker Arm Intake Valve 2 (8×)
90 90 A1130501034A 113 050 10 34 Rocker Arm Exhaust Valve (8×)
150 150 A1130520001A 113 052 00 01 Camshaft Sprocket (2×)
160 160 N910143012002N 910143 012002 Hexalobular Bolt Camshaft Gear To Camshaft (2×)
180 180 A0039976894A 003 997 68 94 Roller Chain Control Drive, With Lock
200 200 A1120500711A 112 050 07 11 Chain Tightener
200 200 A1120500811A 112 050 08 11 Chain Tensioner
060 Valves
10 10 A1130530601A 113 053 06 01 Intake Valve (16×)
20 20 A6120500058A 612 050 00 58 Ts Sealing Parts Kit (6×)
50 50 A1550530125A 155 053 01 25 Spring Retainer Top (24×)
60 60 A1020530226A 102 053 02 26 Conical Valve Keeper (48×)
07 Fuel Injection
085 Injection Valves,fuel Distributor
10 10 A1550700095A 155 070 00 95 Fuel Distributor
20 20 A1550780049A 155 078 00 49 Valve (8×)
30 30 A1190780641A 119 078 06 41 Bracket (8×)
40 40 A1550780089A 155 078 00 89 Pressure Regulator (2×)
45 45 A0009848161A 000 984 81 61 Clamp (2×)
50 50 N910143006001N 910143 006001 Hexalobular Bolt Induction Line To E-acc. Adj. Motor M6x16 (5×)
50 50 N000000001146N 000000 001146 Hexalobular Bolt Induction Line To E-acc. Adj. Motor M6x16 (4×)
900 900 A2035450528A 203 545 05 28 Plug Injection Valves 2-pin Slk2.8;y62 (8×)
901 901 A0095458126A 009 545 81 26 Contact Socket Injection Valves 0.75-1.0 Mm2 Slk2.8;y62
901 901 A0005452839A 000 545 28 39 Core Bundle Sealing Injection Valves 0.5-1.0 Mm;y62

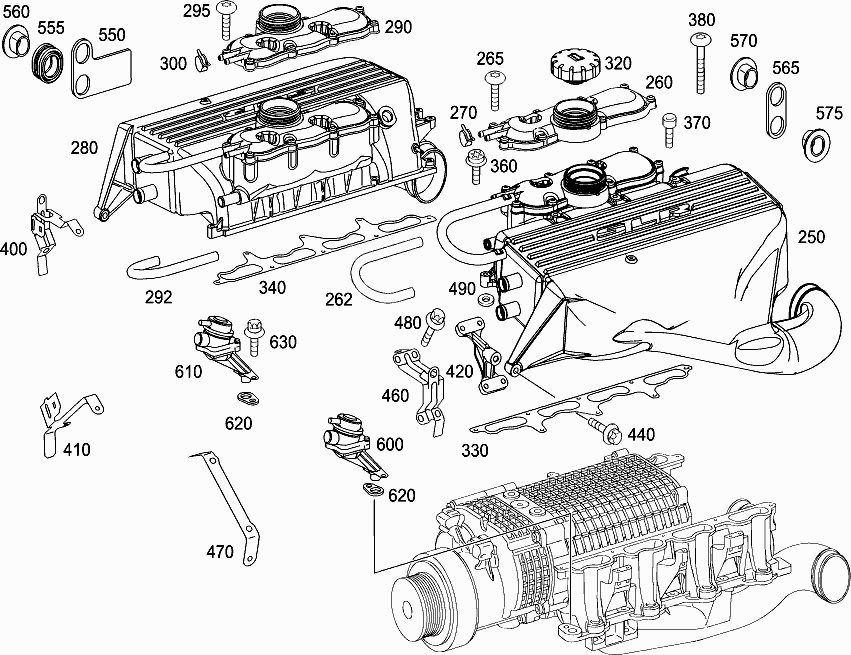

09 Air Cleaner And Engine Charging

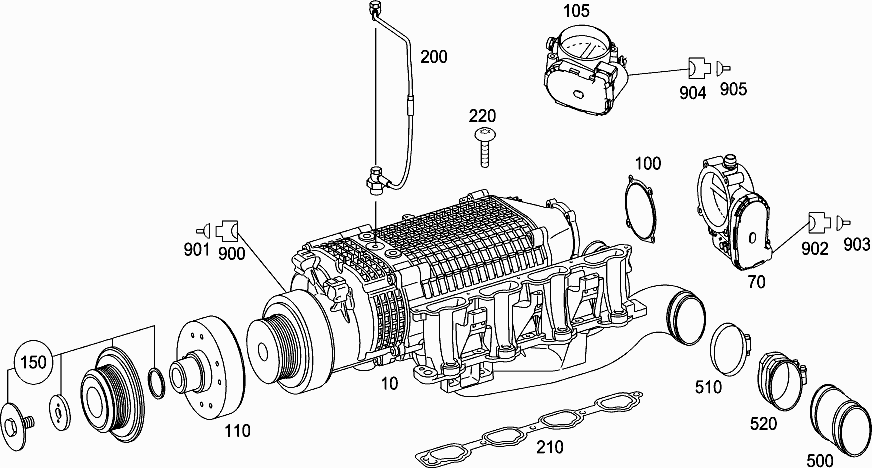

100 Compressor
10 10 A1550900380A 155 090 03 80 Supercharger Mechanical
10 10 A1550900680A 155 090 06 80 Compressor
70 70 A1371410125A 137 141 01 25 Electronic Acc. Motor
100 100 A1551410080A 155 141 00 80 Gasket E- Acc. Adj. Motor To Induction Line
105 105 A1550980150A 155 098 01 50 Ts Air Recirc. Actuator
110 110 A1130980040A 113 098 00 40 Clutch
150 150 A1130900044A 113 090 00 44 Coupling Flange Repair Kit
200 200 A1551800120A 155 180 01 20 Oil Line From Cylinder Crankcase To Turbocharger
200 200 A1551800420A 155 180 04 20 Oil Line From Cylinder Crankcase To Turbocharger
210 210 A1131410980A 113 141 09 80 Gasket Charge Air Pipe To Charge Air Distribution Line (2×)
220 220 N000000004321N 000000 004321 Hexalobular Bolt Charge Air Pipe To Charge Air Distribution Line M8x30 (10×)
250 250 A1555000900A 155 500 09 00 Radiator Left
250 250 A1555001700A 155 500 17 00 Charge Air Cooler Left
260 260 A1555010104A 155 501 01 04 Cover Plate
260 260 A1555010115A 155 501 01 15 Cap
260 260 A1555010315A 155 501 03 15 Cap
262 262 A0005019982A 000 501 99 82 Charge Air Hose At Charging Air Intercooler
265 265 N000000002439N 000000 002439 Hexalobular Bolt M6x25 (8×)
270 270 A2109970790A 210 997 07 90 Clamp 14-16 Mm (2×)
280 280 A1555001000A 155 500 10 00 Radiator Right
280 280 A1555001800A 155 500 18 00 Charge Air Cooler Right
290 290 A1555010004A 155 501 00 04 Cover Plate
290 290 A1555010015A 155 501 00 15 Cap
290 290 A1555010215A 155 501 02 15 Cap
292 292 A0005019982A 000 501 99 82 Charge Air Hose At Charging Air Intercooler
295 295 N000000002439N 000000 002439 Hexalobular Bolt M6x25 (8×)
300 300 A2109970790A 210 997 07 90 Clamp 14-16 Mm (2×)
320 320 A2105010715A 210 501 07 15 Radiator Cap (2×)
320 320 A2105010615A 210 501 06 15 Cap (2×)
330 330 A1130980180A 113 098 01 80 Gasket Left Charge-air Intercooler
340 340 A1130980080A 113 098 00 80 Gasket Right Charge-air Intercooler
360 360 N000000001422N 000000 001422 Hexalobular Bolt Charge-air Intercooler To Compressor M6x30 (6×)
370 370 N000000002049N 000000 002049 Hexalobular Bolt Charge-air Intercooler To Compressor M6x120 (6×)
380 380 N000000004068N 000000 004068 Hexalobular Bolt Charge-air Intercooler To Compressor 6x130 (4×)
400 400 A1555010570A 155 501 05 70 Bracket Right Charge-air Intercooler
410 410 A1555010870A 155 501 08 70 Bracket Right Charge-air Intercooler
420 420 A1555010470A 155 501 04 70 Bracket Right Charge-air Intercooler (2×)
440 440 N000000001428N 000000 001428 Hexalobular Bolt Charge Air Cooler To Cyl. Head Cover M8x25 (8×)
460 460 A1555010670A 155 501 06 70 Bracket Left Charge-air Intercooler
470 470 A1555010770A 155 501 07 70 Bracket Right Charge-air Intercooler
480 480 N910142006002N 910142 006002 Hexalobular Bolt Charging Air Line M6x20 (14×)
480 480 N910143006002N 910143 006002 Hexalobular Bolt Charging Air Line M6x20 (14×)
490 490 N000000003250N 000000 003250 Washer Between Charge Air Cooler And Liner (2×)
500 500 A1550980507A 155 098 05 07 Charged Air Line (2×)
510 510 N000000001468N 000000 001468 Clamp (8×)
520 520 A1550980083A 155 098 00 83 Hose (4×)
550 550 A1555010545A 155 501 05 45 Plate (2×)
555 555 A1555010181A 155 501 01 81 Elastomer Bearing (4×)
560 560 A1550940150A 155 094 01 50 Pilot Bushing (4×)
565 565 A1555010445A 155 501 04 45 Plate (2×)
570 570 A1555010181A 155 501 01 81 Elastomer Bearing (4×)
575 575 A1550940150A 155 094 01 50 Pilot Bushing (4×)
600 600 A1121400160A 112 140 01 60 Valve Combination Valve, Left
610 610 A1121400260A 112 140 02 60 Valve Right Combination Valve
620 620 A1122380080A 112 238 00 80 Gasket Combination Valve (2×)
630 630 N910143008003N 910143 008003 Hexalobular Bolt Combination Valve M8x30 (2×)
900 900 A1685452928A 168 545 29 28 Receptacle Housing Charge-control Change-over Valve 2-pin Slk2.8;y27/4
901 901 A0095458126A 009 545 81 26 Contact Socket Charge-control Change-over Valve 0.75-1.0 Mm2 Slk2.8;y27/4
901 901 A0005457180A 000 545 71 80 Gasket Charge-control Change-over Valve 1.1-2.1 Mm;y27/4
902 902 A2205400081A 220 540 00 81 Clutch Actuator Recirculation Flap 6-pin Mqs;m16/7
903 903 A0205457326A 020 545 73 26 Contact Socket Actuator Recirculation Flap M16/7
903 903 A0005456880A 000 545 68 80 Seal Actuator Recirculation Flap 0.9-1.4 Mm;m16/7
904 904 A2105403681A 210 540 36 81 Clutch Final Control Element Idling-speed Control 6-pin Mqs;m16/6
904 904 A0005453346A 000 545 33 46 Cover Final Control Element Idling-speed Control M16/6 (2×)
905 905 A0205457326A 020 545 73 26 Contact Socket Final Control Element Idling-speed Control M16/6
905 905 A0005456880A 000 545 68 80 Seal Final Control Element Idling-speed Control 0.9-1.4 Mm;m16/6
13 Power Steering Pump, Ac Compressor And
030 Tandem Pump And Power Steering Pump
10 10 A1994660301A 199 466 03 01 Hydraulic Pump
30 30 A6112300115A 611 230 01 15 Belt Pulley
40 40 N000000000274N 000000 000274 Hexalobular Bolt M8x12 (3×)
50 50 N000000004321N 000000 004321 Hexalobular Bolt Power Steering Pump M8x30 (2×)
100 100 A1551310041A 155 131 00 41 Bracket Power Steering Pump
060 Refrigerant Compressor
10 10 A0012303311A 001 230 33 11 Compressor
10 10 A1992300011A 199 230 00 11 Compressor
50 50 N000912008134N 000912 008134 Screw Refrigerant Line To Compressor M8x28
60 60 N000125008443N 000125 008443 Washer Refrigerant Line To Compressor 8 Mm
60 60 N000125008445N 000125 008445 Washer Refrigerant Line To Compressor
70 70 N007984008003N 007984 008003 Screw Refrigerant Line To Compressor M8x18
80 80 A1552410321A 155 241 03 21 Bracket
100 100 N910143008011N 910143 008011 Hexalobular Bolt Refrigerant Compressor M8x90 (2×)
100 100 N910105008024N 910105 008024 Hexagon Head Bolt Refrigerant Compressor M8x110
150 150 A0005468043A 000 546 80 43 Bracket 24x23 Mm (4×)
900 900 A2105402081A 210 540 20 81 Receptacle Housing Refrigerant Compressor 2-pin Mqs;a9
901 901 A0085456326A 008 545 63 26 Contact Socket Refrigerant Compressor 0.5-0.75 Mm2 Mqs;a9
901 901 A0005456880A 000 545 68 80 Seal Refrigerant Compressor 0.9-1.4 Mm;a9
901 901 A0005458780A 000 545 87 80 Blind Plug Refrigerant Compressor 4.1mm;a9

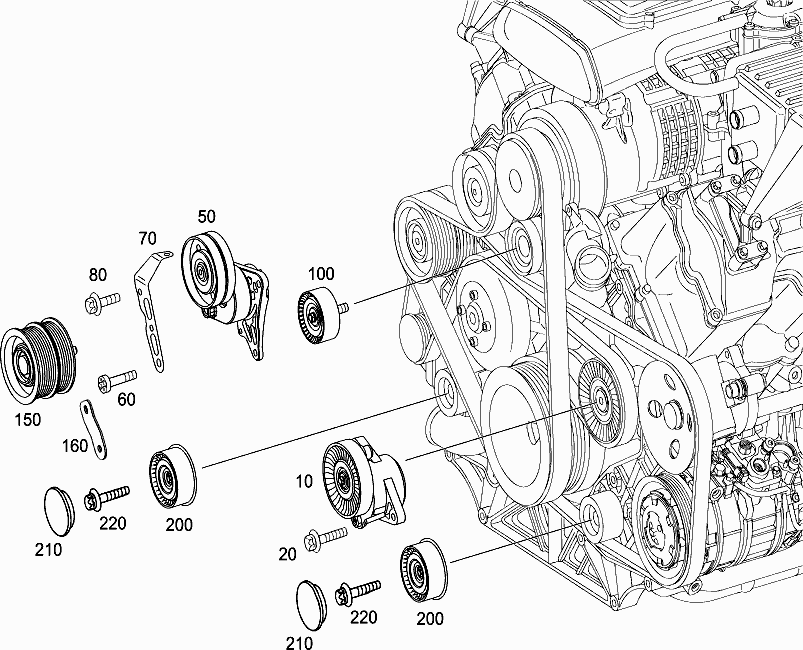

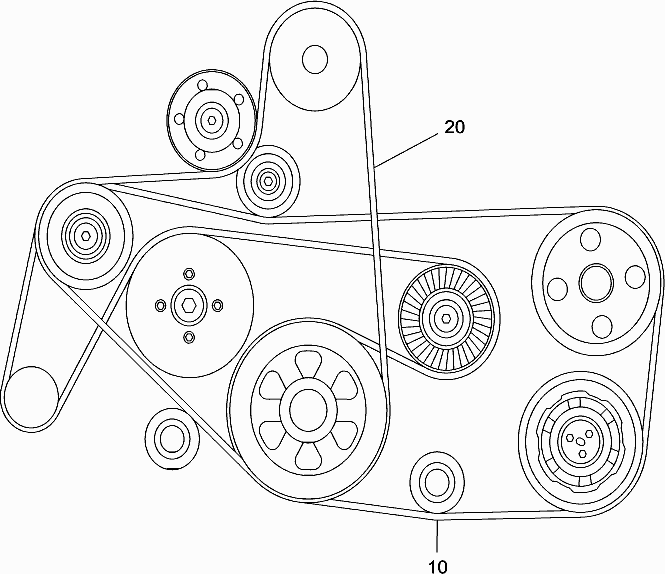

135 V-belt
10 10 A0009933896A 000 993 38 96 V-belt
20 20 A0009930496A 000 993 04 96 V-belt Mechanical Supercharger
14 Intake And Exhaust Manifolds

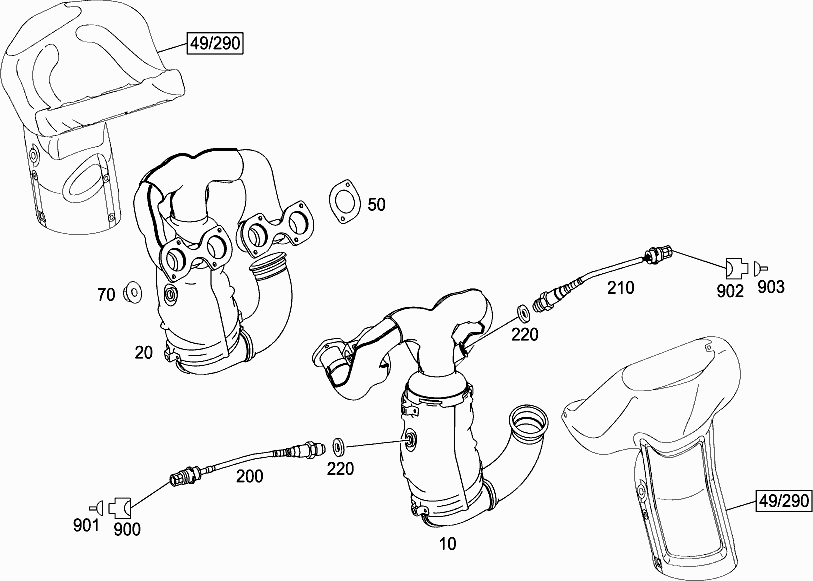

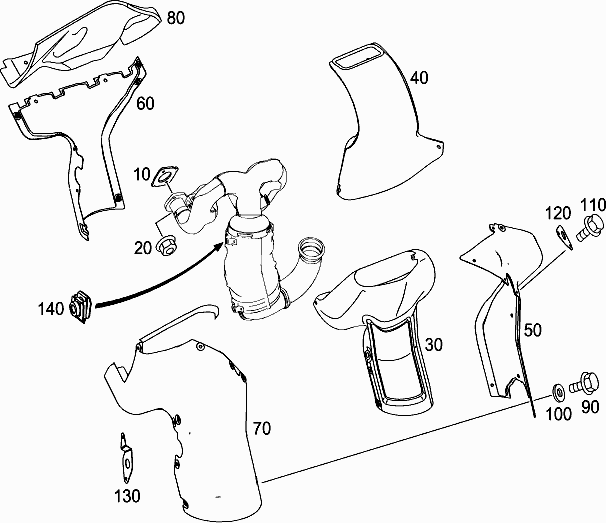

060 Exhaust Manifold
10 10 A1551400109A 155 140 01 09 Exhaust Manifold Left
10 10 A1551400309A 155 140 03 09 Exhaust Manifold Left
20 20 A1551400009A 155 140 00 09 Exhaust Manifold, One-pc. Right
20 20 A1551400409A 155 140 04 09 Exhaust Manifold Right
50 50 A1121420180A 112 142 01 80 Gasket Exhaust Manifold To Cylinder Head (8×)
70 70 A1121420072A 112 142 00 72 Hexagon Nut Exhaust Manifold To Cylinder Head M6 (16×)
200 200 A0025405617A 002 540 56 17 Lambda Sensor Lambda Probe 450 Mm (2×)
210 210 A0025405717A 002 540 57 17 Lambda Sensor Lambda Probe 480 Mm (2×)
220 220 A0005421359A 000 542 13 59 Sealing Washer Lambda Probe (4×)
900 900 A0025402881A 002 540 28 81 Socket O2 Sensor Downstream Of Twc 4-pin;g3/5,g3/6 (2×)
901 901 A0005404205A 000 540 42 05 Electrical Line O2 Sensor Downstream Of Twc 1.0 Mm2 Lks 1.5;g3/5,g3/6
901 901 A0005457180A 000 545 71 80 Gasket O2 Sensor Downstream Of Twc 1.1-2.1 Mm;g3/5,g3/6
902 902 A0015402481A 001 540 24 81 Plug 02 Sensor Upstream Of Catalytic Converter G3/3,g3/4 (2×)
903 903 A0005404205A 000 540 42 05 Electrical Line 02 Sensor Upstream Of Catalytic Converter 1.0 Mm2 Lks 1.5;g3/3,g3/4
903 903 A0005457180A 000 545 71 80 Gasket 02 Sensor Upstream Of Catalytic Converter 1.1-2.1 Mm;g3/3,g3/4

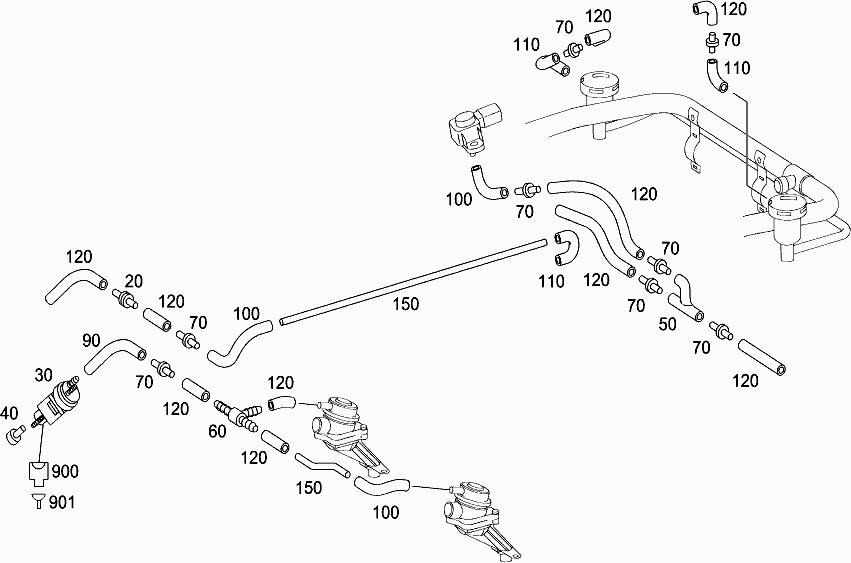

120 Vacuum System
20 20 A0011406660A 001 140 66 60 Valve Check Valve
20 20 A0021408460A 002 140 84 60 Valve Check Valve
30 30 A0025401497A 002 540 14 97 Switchover Valve Air Pump
30 30 A0025407097A 002 540 70 97 Switchover Valve Air Pump
40 40 A1170780981A 117 078 09 81 Sieve Insert Change-over Valve
50 50 A6010780245A 601 078 02 45 Branch Fitting 3.5 Mm
60 60 A0059903570A 005 990 35 70 T-piece Right Combination Valve
70 70 A1162760929A 116 276 09 29 Hose Connection Fitting 4 Mm (8×)
90 90 A1170780381A 117 078 03 81 Hose
100 100 A1170780181A 117 078 01 81 Hose
100 100 A1170780281A 117 078 02 81 Hose (3×)
110 110 A1170780581A 117 078 05 81 Hose (3×)
120 120 A1179970982A 117 997 09 82 Hose 8x3.5 Mm
150 150 A0001581435A 000 158 14 35 Piping 4x1 Mm
900 900 A2105402081A 210 540 20 81 Receptacle Housing Changeover Valve Air Pump 2-pin Mqs;y32
901 901 A0205457326A 020 545 73 26 Contact Socket Changeover Valve Air Pump Y32
901 901 A0005456880A 000 545 68 80 Seal Changeover Valve Air Pump 0.9-1.4 Mm;y32
15 Engine Electrical Equipment
015 Starting Motor
10 10 A1121510001A 112 151 00 01 Starter Bosch
50 50 N910143010018N 910143 010018 Hexalobular Bolt M10x90 (2×)

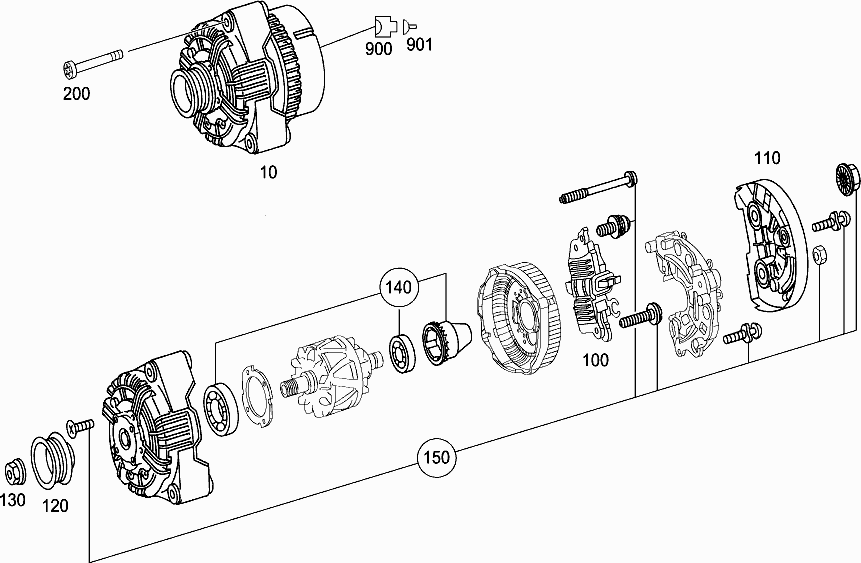

030 Alternator
10 10 A0121541302A 012 154 13 02 Alternator 14v/150a Bosch
10 10 A0131548202A 013 154 82 02 Alternator 14v/150a Bosch
10 10 A0141540102A 014 154 01 02 Alternator 14v 150a
100 100 A0031542506A 003 154 25 06 Regulator And Cut-out Bosch
100 100 A0031545406A 003 154 54 06 Regulator Switch Bosch
110 110 A0001544004A 000 154 40 04 Cap Bosch
120 120 A1121550215A 112 155 02 15 Belt Pulley
130 130 A0009902250A 000 990 22 50 Hexagon Nut With Collar M16x1.5
140 140 A0009805215A 000 980 52 15 Ts Deep-groove Ball Brg. Parts Kit Bosch
150 150 A0009900299A 000 990 02 99 Ts Attaching Parts Parts Parts Kit For Screws Bosch
200 200 A1129900712A 112 990 07 12 Screw (2×)
200 200 A0089903004A 008 990 30 04 Cap Bolt With Socket M10x100 (2×)
200 200 A0089906904A 008 990 69 04 Cap Bolt With Socket (2×)
900 900 A1685453028A 168 545 30 28 Receptacle Housing Alternator 2-pin Cod.b;slk2.8;g2
901 901 A0095458126A 009 545 81 26 Contact Socket Alternator 0.75-1.0 Mm2 Slk2.8;g2
901 901 A0005457180A 000 545 71 80 Gasket Alternator 1.1-2.1 Mm;g2
060 Ignition System
10 10 A0001587803A 000 158 78 03 Ignition Coil At Cylinder Head Cover (8×)
30 30 A1121500618A 112 150 06 18 Ignition Cable Ignition Coil 1a To Spark Plug 1a
30 30 A1121500618A 112 150 06 18 Ignition Cable Ignition Coil 1b To Spark Plug 1b
30 30 A1121500618A 112 150 06 18 Ignition Cable Ignition Coil 2a To Spark Plug 2a
30 30 A1121500618A 112 150 06 18 Ignition Cable Ignition Coil 2b To Spark Plug 2b
30 30 A1121500618A 112 150 06 18 Ignition Cable Ignition Coil 3a To Spark Plug 3a
30 30 A1121500618A 112 150 06 18 Ignition Cable Ignition Coil 3b To Spark Plug 3b
30 30 A1121500618A 112 150 06 18 Ignition Cable Ignition Coil 4a To Spark Plug 4a
30 30 A1121500718A 112 150 07 18 Ignition Cable Ignition Coil 4b To Spark Plug 4b
30 30 A1121500718A 112 150 07 18 Ignition Cable Ignition Coil 5a To Spark Plug 5a
30 30 A1121500418A 112 150 04 18 Ignition Cable Ignition Coil 5b To Spark Plug 5b
30 30 A1121500718A 112 150 07 18 Ignition Cable Ignition Coil 6a To Spark Plug 6a
30 30 A1121500418A 112 150 04 18 Ignition Cable Ignition Coil 6b To Spark Plug 6b
30 30 A1121500718A 112 150 07 18 Ignition Cable Ignition Coil 7a To Spark Plug 7a
30 30 A1121500418A 112 150 04 18 Ignition Cable Ignition Coil 7b To Spark Plug 7b
30 30 A1121500718A 112 150 07 18 Ignition Cable Ignition Coil 8a To Spark Plug 8a
30 30 A1121500418A 112 150 04 18 Ignition Cable Ignition Coil 8b To Spark Plug 8b
50 50 A0041591303A 004 159 13 03 Spark Plug (16×)
80 80 A0009972851A 000 997 28 51 Heat Protection Hose 210 Mm (12×)
80 80 A0009972951A 000 997 29 51 Heat Protection Hose 370 Mm (4×)
80 80 A0009979951A 000 997 99 51 Protective Hose 230 Mm (11×)
900 900 A2035453028A 203 545 30 28 Plug Ignition Coil 3-pin Slk2.8;t1/1-t1/8 (8×)
900 900 A0005452584A 000 545 25 84 Cover Ignition Coil T1/1-t1/8 (8×)
901 901 A0095458126A 009 545 81 26 Contact Socket Ignition Coil 0.75-1.0 Mm2 Slk2.8;t1/1-t1/8
901 901 A0005452839A 000 545 28 39 Core Bundle Sealing Ignition Coil 0.5-1.0 Mm;t1/1-t1/8

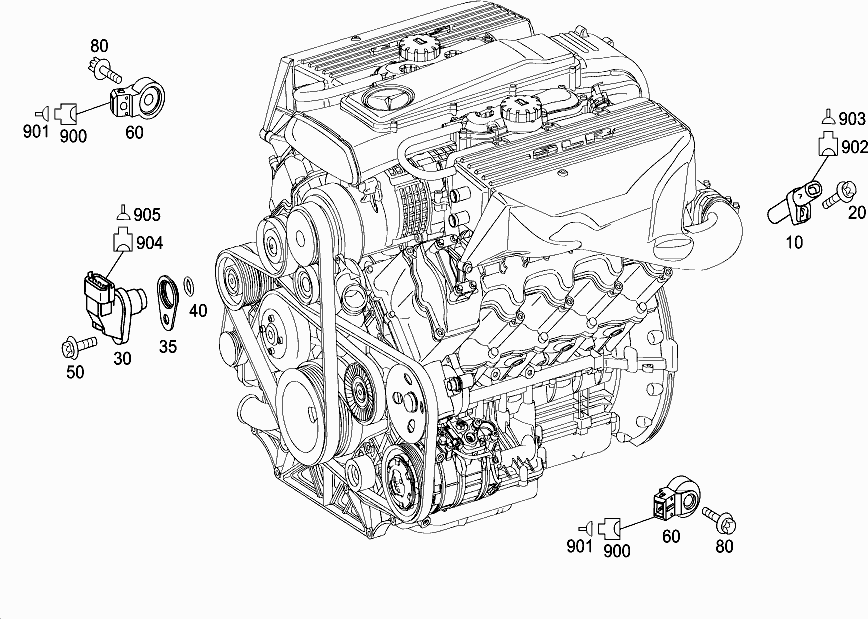

075 T.d.c. Sender Unit,position Sender Unit,knock Sensor,and Ground Strap
10 10 A0031532728A 003 153 27 28 Position Sensor Crankshaft Position Sender Unit
20 20 N910142006001N 910142 006001 Hexalobular Bolt M6x16
30 30 A2729050043A 272 905 00 43 Position Sensor Camshaft Position Sender Unit
30 30 A0041539628A 004 153 96 28 Position Sensor Camshaft Position Sender Unit
35 35 A1551530241A 155 153 02 41 Mounting Plate
40 40 A0239971245A 023 997 12 45 O-ring 17x2
40 40 A0229972548A 022 997 25 48 Sealing Ring
50 50 A0019909522A 001 990 95 22 Screw
60 60 A0031538628A 003 153 86 28 Knock Sensor (2×)
80 80 N910142008009N 910142 008009 Hexalobular Bolt (2×)
900 900 A2035450528A 203 545 05 28 Plug Knock Sensor 2-pin Slk2.8;a16 (2×)
901 901 A0135451426A 013 545 14 26 Contact Spring Knock Sensor 0.22-0.5 Mm2 Slk2.8;a16
902 902 A1685453028A 168 545 30 28 Receptacle Housing Crankshaft Position Sender Unit 2-pin Cod.b;slk2.8;l5
903 903 A0135451426A 013 545 14 26 Contact Spring Crankshaft Position Sender Unit 0.22-0.5 Mm2 Slk2.8;l5
904 904 A2035453028A 203 545 30 28 Plug Camshaft Position Sender Unit 3-pin Slk2.8;l5/1
904 904 A0005452584A 000 545 25 84 Cover Camshaft Position Sender Unit L5/1
905 905 A0095458126A 009 545 81 26 Contact Socket Camshaft Position Sender Unit 0.75-1.0 Mm2 Slk2.8;l5/1
905 905 A0005452839A 000 545 28 39 Core Bundle Sealing Camshaft Position Sender Unit 0.5-1.0 Mm;l5/1

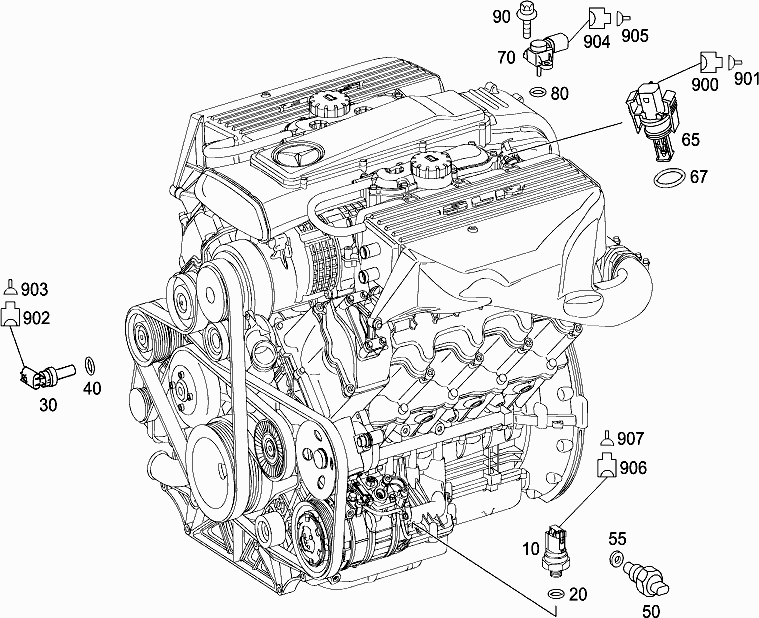

120 Switches,sender Units,sensors
10 10 A0041531428A 004 153 14 28 Pressure Sensor Oil Pressure
10 10 A0081536828A 008 153 68 28 Pressure Sensor Oil Pressure
20 20 N007603012102N 007603 012102 Sealing Ring Sender Unit To Cylinder Crankcase
30 30 A0005425118A 000 542 51 18 Temperature Sensor Cooling Water Temperature
30 30 A0009050700A 000 905 07 00 Temperature Sensor Cooling Water Temperature
40 40 A0229979848A 022 997 98 48 Sealing Ring
50 50 A0051536328A 005 153 63 28 Temperature Sensor Temperature Sensor
50 50 A0051532328A 005 153 23 28 Temperature Sensor Temperature Sensor
55 55 N007603014100N 007603 014100 Sealing Ring 14x18-al
65 65 A0005422818A 000 542 28 18 Temperature Sensor (2×)
65 65 A6511530028A 651 153 00 28 Temperature Sensor (2×)
67 67 A6019970448A 601 997 04 48 Sealing Ring 11x2 (2×)
70 70 A0041533328A 004 153 33 28 Pressure Sensor (pressure Sensor)
70 70 A0051537228A 005 153 72 28 Pressure Sensor
80 80 A0279972748A 027 997 27 48 Sealing Ring
90 90 N910142006000N 910142 006000 Hexalobular Bolt M6x12 (2×)
900 900 A2105402081A 210 540 20 81 Receptacle Housing Intake Air Temperature Sensor 2-pin Mqs;b17 (2×)
901 901 A0205457326A 020 545 73 26 Contact Socket Intake Air Temperature Sensor B17
901 901 A0005456880A 000 545 68 80 Seal Intake Air Temperature Sensor 0.9-1.4 Mm;b17
902 902 A2105402081A 210 540 20 81 Receptacle Housing Refrigerant Temperature Sensor 2-pin Mqs;b11/4
903 903 A0085456326A 008 545 63 26 Contact Socket Refrigerant Temperature Sensor 0.5-0.75 Mm2 Mqs;b11/4
903 903 A0005456880A 000 545 68 80 Seal Refrigerant Temperature Sensor 0.9-1.4 Mm;b11/4
904 904 A2105402181A 210 540 21 81 Clutch Pressure Sensor Intake Pipe 3-pin Mqs;b28
905 905 A0205457326A 020 545 73 26 Contact Socket Pressure Sensor Intake Pipe B28
905 905 A0005456880A 000 545 68 80 Seal Pressure Sensor Intake Pipe 0.9-1.4 Mm;b28
906 906 A2205400681A 220 540 06 81 Receptacle Housing Oil Sensor 3-pin Mqs;b40
907 907 A0205457326A 020 545 73 26 Contact Socket Oil Sensor B40
907 907 A0005456880A 000 545 68 80 Seal Oil Sensor 0.9-1.4 Mm;b40
18 Engine Lubrication

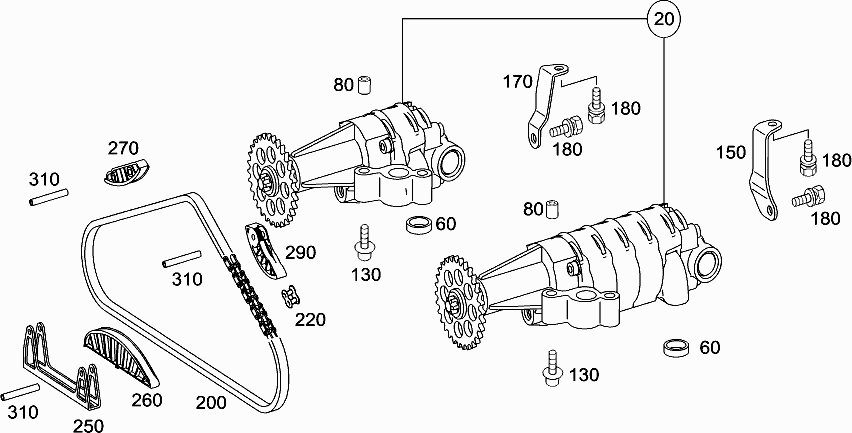

015 Oil Pump
20 20 A1551800901A 155 180 09 01 Oil Pump Long
20 20 A1551801001A 155 180 10 01 Oil Pump Short
20 20 A1551801201A 155 180 12 01 Oil Pump
60 60 A1551840061A 155 184 00 61 Sealing Ring (9×)
80 80 A1129910541A 112 991 05 41 Pilot Bushing (4×)
130 130 A6049900201A 604 990 02 01 Screw (6×)
150 150 A1551810195A 155 181 01 95 Bracket Left
170 170 A1551810295A 155 181 02 95 Bracket Right
180 180 N000000001146N 000000 001146 Hexalobular Bolt Oil Pump To Bracket M6x16 (4×)
200 200 A0009930177A 000 993 01 77 Single Roller Chain
220 220 A0009973298A 000 997 32 98 Chain Link
250 250 A1550510040A 155 051 00 40 Bracket
250 250 A1550510140A 155 051 01 40 Bracket
260 260 A1550520216A 155 052 02 16 Slide Rail
270 270 A1550520316A 155 052 03 16 Slide Rail (2×)
290 290 A1550500016A 155 050 00 16 Slide Rail
310 310 A6280520274A 628 052 02 74 Pin (5×)
310 310 A6290520274A 629 052 02 74 Pin (5×)
045 Oil Filter
10 10 A1551800034A 155 180 00 34 Thermostat Thermostat Housing
20 20 A1551850180A 155 185 01 80 Gasket
50 50 A1551800010A 155 180 00 10 Oil Filter
100 100 A1551850080A 155 185 00 80 Gasket Thermostat Housing To Crankcase Housing
110 110 N910143006006N 910143 006006 Hexalobular Bolt Thermostat Housing To Crankcase Housing M6x40 (3×)
20 Engine Cooling

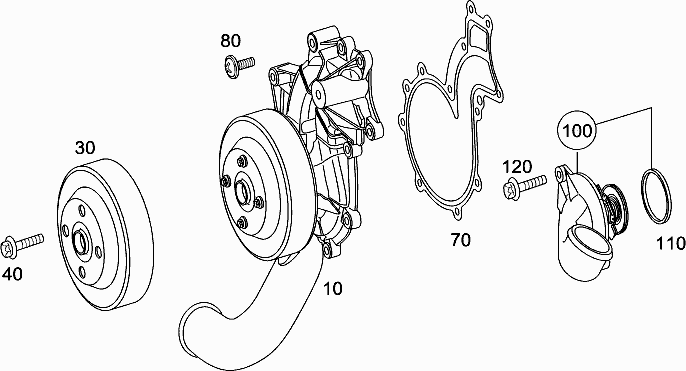

015 Water Pump
10 10 A1552000101A 155 200 01 01 Water Pump
10 10 A1552000201A 155 200 02 01 Water Pump
30 30 A1552050010A 155 205 00 10 Pulley
40 40 A1669900722A 166 990 07 22 Screw Pulley To Water Pump M6x10 (4×)
70 70 A1552010180A 155 201 01 80 Gasket
80 80 N000000002439N 000000 002439 Hexalobular Bolt Water Pump To Cylinder Crankcase M6x25 (12×)
100 100 A1552030075A 155 203 00 75 Governor Element Eighty Seven Degrees, Delivery Spec.
110 110 A1122030076A 112 203 00 76 Seal
120 120 N910143006002N 910143 006002 Hexalobular Bolt Coolant Thermostat To Crankcase M6x20 (2×)
045 Belt Tightener
10 10 A1552000070A 155 200 00 70 Belt Tensioner
20 20 N000000002191N 000000 002191 Hexalobular Bolt Belt Tightener To Cylinder Crankcase M8x35 (2×)
50 50 A1132000170A 113 200 01 70 Belt Tensioner Mechanical Supercharger
60 60 N000000004321N 000000 004321 Hexalobular Bolt Belt Tightener To Cylinder Crankcase M8x30 (2×)
70 70 A1550160038A 155 016 00 38 Bracket Tightener Pulley
80 80 N000000001114N 000000 001114 Hexalobular Bolt M6x15 (2×)
100 100 A1552020119A 155 202 01 19 Guide Pulley At Water Pump
150 150 A1552020519A 155 202 05 19 Guide Pulley On Right Cylinder Head
150 150 A1552020619A 155 202 06 19 Guide Pulley On Right Cylinder Head
160 160 A1550160138A 155 016 01 38 Bracket On Right Cylinder Head
200 200 A1372020119A 137 202 01 19 Guide Pulley At Apparatus Support (2×)
210 210 A0019885735A 001 988 57 35 Cap (3×)
220 220 A0079909304A 007 990 93 04 Pan Head Screw Sheave Pulley To Support M8x35 (2×)
22 Engine Suspension

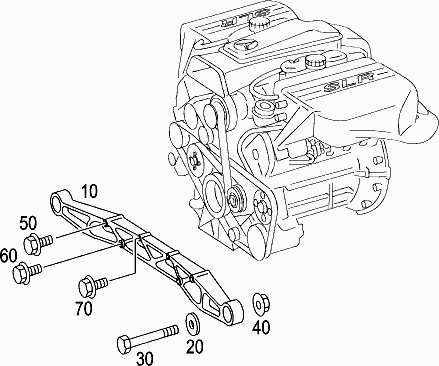

010 Engine Supports And Attachment Parts
10 10 A1552410002A 155 241 00 02 Support
10 10 A1552410102A 155 241 01 02 Carrier
20 20 A1559920020A 155 992 00 20 Sleeve
20 20 A0009929950A 000 992 99 50 Bearing Sleeve
30 30 N000000004321N 000000 004321 Hexalobular Bolt M8x30 (3×)
30 30 N000000002191N 000000 002191 Hexalobular Bolt M8x35 (7×)
30 30 N000000001153N 000000 001153 Hexalobular Bolt M8x40
50 50 A1552410021A 155 241 00 21 Bracket
50 50 A1552410421A 155 241 04 21 Bracket
60 60 A2205010020A 220 501 00 20 Bracket
70 70 N000000001427N 000000 001427 Hexalobular Bolt M8x20
80 80 N000000003201N 000000 003201 Hexalobular Bolt M8x20 (2×)
100 100 A1552230141A 155 223 01 41 Lifting Eye Left Cylinder Head
110 110 A1122230341A 112 223 03 41 Lifting Eye Right Cylinder Head
130 130 N000000001428N 000000 001428 Hexalobular Bolt Suspension Eye To Cylinder Head M8x25 (2×)
130 130 N910105008014N 910105 008014 Hexagon Head Bolt Suspension Eye To Cylinder Head M8x35
24 Engine Suspension
015 Engine Suspension
10 10 A1990010024A 199 001 00 24 Engine Suspension With Bearing Bushing
20 20 A1993230052A 199 323 00 52 Spacer Disk Motoraufhaengung Vorn (2×)
30 30 A0149908101A 014 990 81 01 Combi-hexagon Head Bolt At Bracket M12x1,5x125 (2×)
40 40 N913023012002N 913023 012002 Nut Bracket M12x1.5 (2×)
50 50 N000000001685N 000000 001685 Hexalobular Bolt Engine Suspension M8x100 (2×)
60 60 N910143008010N 910143 008010 Hexalobular Bolt Engine Suspension M8x80 (2×)
70 70 N910143008009N 910143 008009 Hexalobular Bolt Engine Suspension M8x70 (2×)
27 Mercedes-benz Automatic Transmission

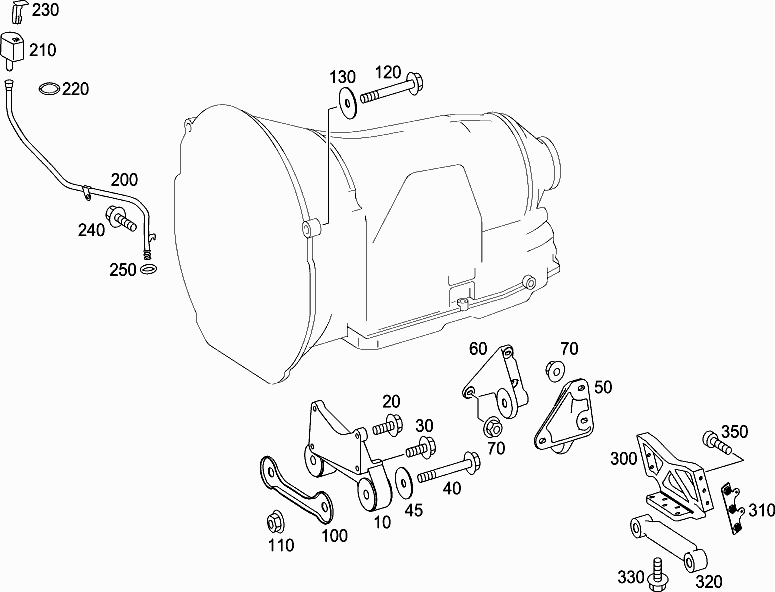

125 Attached Parts For Transmission, Oil Filler Pipe
10 10 A1990000227A 199 000 02 27 Transmission Support Rear
20 20 N910105008012N 910105 008012 Hexagon Head Bolt Bracket, Top M8x30 (2×)
30 30 N910105008019N 910105 008019 Hexagon Head Bolt Lower Bracket M8x50 (4×)
40 40 N910105016017N 910105 016017 Hexagon Head Bolt Transmission Suspension M16x1.5 (2×)
45 45 A1997951296A 199 795 12 96 Pad Transmission Suspension (12×)
50 50 A1994130129A 199 413 01 29 Bearing Bracket Left
60 60 A1994130229A 199 413 02 29 Bearing Bracket Right
70 70 N913023008003N 913023 008003 Nut At Bearing Bracket (6×)
100 100 A1992420032A 199 242 00 32 Strut At Bracket
100 100 A1992420132A 199 242 01 32 Strut At Bracket Getriebehalter*
110 110 N913023016001N 913023 016001 Nut Reinforcement To Bracket M16 (2×)
120 120 A0029902305A 002 990 23 05 Cap Bolt With Socket Transmission To Engine 10x50 (10×)
120 120 A0029902505A 002 990 25 05 Cap Bolt With Socket Transmission To Engine M10x85 (2×)
130 130 A1997951296A 199 795 12 96 Pad Transmission To Engine
200 200 A1992700184A 199 270 01 84 Oil Filler Pipe Transmission
210 210 A1402700091A 140 270 00 91 Cap Oil Filler Pipe
220 220 A0229972248A 022 997 22 48 Sealing Ring On Cover 11.5x2.5
230 230 A1409910055A 140 991 00 55 Locking Pin On Cover
240 240 N910106006004N 910106 006004 Hexagon Head Bolt Oil Filler Pipe To Transmission M6x16
250 250 A0229972248A 022 997 22 48 Sealing Ring Oil Filler Pipe To Transmission 11.5x2.5
300 300 A1996100006A 199 610 00 06 Entrance Support Transmission Mounting
310 310 A1996160108A 199 616 01 08 Plate Transmission Mounting (2×)
320 320 A1996120510A 199 612 05 10 Crossmember Transmission Mounting
330 330 N000000003765N 000000 003765 Hexalobular Bolt Transmission Mounting M6x20 (6×)
350 350 A1249902201A 124 990 22 01 Combi-hexagon Head Bolt Converter Mounting To Bracket M8x18 (6×)

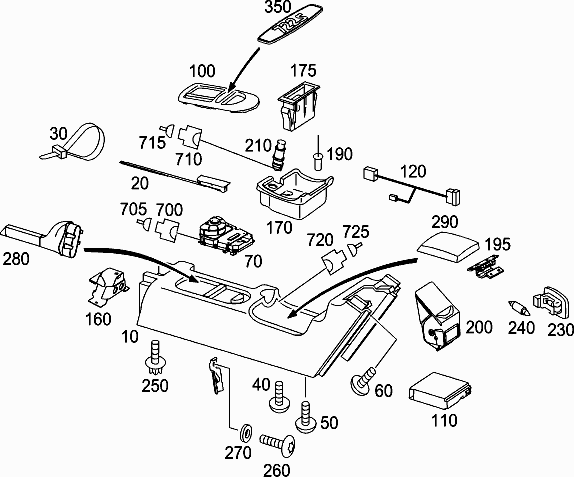

213 Center Shifter Console, Automatic Transmission
10 10 A1992670824A 199 267 08 24 Center Shifter Console
20 20 A2202770073A 220 277 00 73 Securing Pull Rod
30 30 A1992670117A 199 267 01 17 Drawbar Floor Shift
40 40 A1992670064A 199 267 00 64 Wire
50 50 A1992600133A 199 260 01 33 Shift Rod Floor Shift
60 60 A0009904077A 000 990 40 77 Grub Screw At Shifting Rod
70 70 A2109920010A 210 992 00 10 Bushing At Shifting Rod
80 80 A0009944360A 000 994 43 60 Securing At Pull Rod (2×)
90 90 N000000004470N 000000 004470 Roll Pin 3.5x18
100 100 N910143006005N 910143 006005 Hexalobular Bolt M6x35 (2×)
110 110 A1992600068A 199 260 00 68 Gear Display
120 120 A1992600040A 199 260 00 40 Selector Lever Handle
120 120 A1992600240A 199 260 02 40 Knob
700 700 A0305450228A 030 545 02 28 Receptacle Housing Shift Gate Illumination 3-pin, Cod. D Mqs;e12
705 705 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
710 710 A0015402881A 001 540 28 81 Clutch Electronic Sel. Lever Module 6-pin Mqs;n15/5
710 710 A0285458328A 028 545 83 28 Receptacle Housing Electronic Sel. Lever Module 8 Pin Mqs;n15/5
715 715 A0305452828A 030 545 28 28 Plug 2-pin Mqs;n15/5
715 715 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
715 715 A0005404605A 000 540 46 05 Electrical Line 0.75 Mm2 Mqs Sn
27 722.6 Mercedes-benz Aut.transmission
015 Transmission Assembly,torque Converter,gasket Kit
5 5 A2402500202A 240 250 02 02 Torque Converter
12 12 N000000000884N 000000 000884 Screw Plug M 10x1mm
12 12 A0019901117A 001 990 11 17 Screw Plug With Seal Ring M8x1.0mm
15 15 N007603010100N 007603 010100 Sealing Ring
25 25 A1992700600A 199 270 06 00 Automatic Transmission Touch Shift
45 45 A1402706500A 140 270 65 00 Gasket Kit Transmission
50 50 Q000000000001Q 000000000001 Important Information Important Information! For Parts, See: 27/125
020 Converter Housing,oil Pump
5 5 A1402700197A 140 270 01 97 Gear Oil Pump
5 5 A7222700197A 722 270 01 97 Primary Pump
8 8 A7222700390A 722 270 03 90 Housing
10 10 A0109974747A 010 997 47 47 Seal Ring
10 10 A0109974847A 010 997 48 47 Seal Ring
10 10 A0109974947A 010 997 49 47 Seal Ring
10 10 A0189970447A 018 997 04 47 Seal Ring
15 15 A0169971448A 016 997 14 48 Seal Ring
20 20 A2102711801A 210 271 18 01 Housing
30 30 A1402773614A 140 277 36 14 Intermediate Plate
30 30 A1402774214A 140 277 42 14 Intermediate Plate
35 35 A1409904801A 140 990 48 01 Screw
35 35 N000000001153N 000000 001153 Hexalobular Bolt (2×)
35 35 A0039909912A 003 990 99 12 Screw (15×)
40 40 A1409904601A 140 990 46 01 Screw W Flange
40 40 A0039900212A 003 990 02 12 Screw (11×)
45 45 A1409904501A 140 990 45 01 Screw (7×)
50 50 A1632710080A 163 271 00 80 Gasket Converter Housing (2×)
025 Laminated Brake B1
5 5 A1402704828A 140 270 48 28 Disc Support
15 15 A1402720455A 140 272 04 55 Seal Ring (2×)
30 30 A1402721631A 140 272 16 31 Piston
30 30 A2402720031A 240 272 00 31 Piston F Multidisk Clutch
40 40 A1409931226A 140 993 12 26 Disc Spring
40 40 A1409932026A 140 993 20 26 Disc Spring
45 45 A1409945135A 140 994 51 35 Snap Ring
48 48 A1409931826A 140 993 18 26 Disc Spring
50 50 A1402720226A 140 272 02 26 Outer Disc 1,8 Mm
55 55 A1402722826A 140 272 28 26 Outer Disc 2,8 Mm (3×)
60 60 A1402720025A 140 272 00 25 Inner Disc (4×)
65 65 A1402720426A 140 272 04 26 Outer Oil Control Ring 4,0 Mm
70 70 A1409948740A 140 994 87 40 Snap Ring 2.6 Mm
70 70 A1409948840A 140 994 88 40 Snap Ring 2.9 Mm
70 70 A1409948940A 140 994 89 40 Snap Ring 3.2 Mm
70 70 A1409942935A 140 994 29 35 Snap Ring 3.5 Mm
035 Clutch K1, Front Planetary Gear Train
5 5 A2402700228A 240 270 02 28 External Plate Carrier
7 7 A1409945435A 140 994 54 35 Snap Ring (2×)
9 9 A7222700031A 722 270 00 31 Freewheel Unit
9 9 A7222700231A 722 270 02 31 Hoop Freewheel
10 10 A1402722255A 140 272 22 55 Seal Ring
15 15 A1402720555A 140 272 05 55 Seal Ring
20 20 A1402721431A 140 272 14 31 Piston
25 25 A1409930926A 140 993 09 26 Disc Spring
30 30 A1402720264A 140 272 02 64 Spring Retainer
35 35 A1409973945A 140 997 39 45 Seal Ring
40 40 A1409941935A 140 994 19 35 Snap Ring
42 42 A1409931826A 140 993 18 26 Disc Spring
45 45 A1402720226A 140 272 02 26 Outer Disc 1,8 Mm
50 50 A1402722826A 140 272 28 26 Outer Disc 2,8 Mm (5×)
55 55 A1402720025A 140 272 00 25 Inner Disc (6×)
60 60 A1402720426A 140 272 04 26 Outer Oil Control Ring 4,0 Mm
65 65 A1409948740A 140 994 87 40 Snap Ring Internally/externally Toothed Plates 2.6 Mm
65 65 A1409948840A 140 994 88 40 Snap Ring Internally/externally Toothed Plates 2.9 Mm
65 65 A1409948940A 140 994 89 40 Snap Ring Internally/externally Toothed Plates 3.2 Mm
65 65 A1409942935A 140 994 29 35 Snap Ring Internally/externally Toothed Plates 3.5 Mm
65 65 A1409943035A 140 994 30 35 Snap Ring Internally/externally Toothed Plates 3.8 Mm
110 110 A1992700243A 199 270 02 43 Planetary Carrier
115 115 A1409810410A 140 981 04 10 Needle Bearing
115 115 A1409812110A 140 981 21 10 Needle Bearing
120 120 A1409810310A 140 981 03 10 Needle Bearing
120 120 A1409812010A 140 981 20 10 Needle Bearing
050 Clutch K2, (output Shaft)
5 5 A1992700325A 199 270 03 25 Drive Shaft
8 8 A1402722755A 140 272 27 55 Seal Ring
11 11 A0209813310A 020 981 33 10 Needle Bearing
14 14 A2202720755A 220 272 07 55 Oil Sealing Ring (3×)
17 17 A1402720855A 140 272 08 55 Seal Ring
20 20 A1402722062A 140 272 20 62 Guard Plate
25 25 A1409974145A 140 997 41 45 Seal Ring
30 30 A1402722331A 140 272 23 31 Piston
35 35 A1409931026A 140 993 10 26 Disc Spring
40 40 A2202720564A 220 272 05 64 Spring Retainer
45 45 A1409974045A 140 997 40 45 Seal Ring
50 50 A1409940935A 140 994 09 35 Snap Ring
70 70 A1402720626A 140 272 06 26 Outer Oil Control Ring 1,8 Mm
75 75 A1402722926A 140 272 29 26 Outer Oil Control Ring
75 75 A2202722226A 220 272 22 26 Outer Disc 2,8 Mm (5×)
75 75 A2202722226A 220 272 22 26 Outer Disc 2,8 Mm (5×)
80 80 A1402720125A 140 272 01 25 Inner Oil Control Ring (6×)
80 80 A2402720225A 240 272 02 25 Inner Disc (6×)
85 85 A1402720826A 140 272 08 26 Outer Oil Control Ring
85 85 A2202722126A 220 272 21 26 End Disk 4,0 Mm
90 90 A1409949240A 140 994 92 40 Snap Ring 2.3 Mm
90 90 A1409949340A 140 994 93 40 Snap Ring 2.6 Mm
90 90 A1409949440A 140 994 94 40 Snap Ring 2.9 Mm
90 90 A1409943235A 140 994 32 35 Snap Ring 3.2 Mm
90 90 A1409943335A 140 994 33 35 Snap Ring 3.5 Mm
90 90 A1409943435A 140 994 34 35 Flat Wire Snap Ring 3.8 Mm
95 95 A2402700045A 240 270 00 45 Annulus
100 100 A1409949740A 140 994 97 40 Snap Ring
105 105 A2209930026A 220 993 00 26 Disc Spring
110 110 A2209812610A 220 981 26 10 Axial Needle Rlr. Bearing
110 110 A2209813610A 220 981 36 10 Needle Bearing
065 Center Planetary Set, (output Shaft) Rear Planetary Set
5 5 A1409810510A 140 981 05 10 Needle Bearing
10 10 A1992700026A 199 270 00 26 Shaft
10 10 A1992700326A 199 270 03 26 Output Shaft
10 10 A1992700426A 199 270 04 26 Output Shaft Output Shaft
15 15 A2202720855A 220 272 08 55 Seal Ring (5×)
20 20 A1409811210A 140 981 12 10 Needle Bearing
25 25 A1402721262A 140 272 12 62 Guard Plate
30 30 A1409941835A 140 994 18 35 Snap Ring
35 35 A1402720408A 140 272 04 08 Annulus
40 40 A1409810810A 140 981 08 10 Needle Bearing
40 40 A1409812210A 140 981 22 10 Needle Bearing
45 45 A2402700343A 240 270 03 43 Planetary Carrier
45 45 A2402700543A 240 270 05 43 Planetary Carrier
50 50 A1409810910A 140 981 09 10 Needle Bearing
50 50 A1409812310A 140 981 23 10 Needle Bearing
55 55 A2402720107A 240 272 01 07 Sun Gear
60 60 A1409974245A 140 997 42 45 O-ring (2×)
65 65 A1409945335A 140 994 53 35 Snap Ring
70 70 A2402700131A 240 270 01 31 Freewheel Unit
75 75 A2402700044A 240 270 00 44 Sun Gear
80 80 A1409945735A 140 994 57 35 Snap Ring
85 85 A2102720052A 210 272 00 52 Spacer Washer
070 Clutch K3
5 5 A1402703928A 140 270 39 28 Disc Support
10 10 A1402721931A 140 272 19 31 Piston
15 15 A1402722455A 140 272 24 55 Seal Ring
20 20 A1409931126A 140 993 11 26 Disc Spring
25 25 A1409945235A 140 994 52 35 Snap Ring
27 27 A1409932126A 140 993 21 26 Disc Spring
30 30 A1402722726A 140 272 27 26 Outer Disc 2.8 Mm
30 30 A1402721026A 140 272 10 26 Outer Disc 1,8 Mm
35 35 A1402720725A 140 272 07 25 Inner Disc (5×)
40 40 A1402722726A 140 272 27 26 Outer Disc 2.8 Mm (4×)
45 45 A1402721226A 140 272 12 26 Outer Oil Control Ring 4,0 Mm
50 50 A1409949940A 140 994 99 40 Snap Ring 2.0 Mm
50 50 A1409941035A 140 994 10 35 Snap Ring 2.3 Mm
50 50 A1409941135A 140 994 11 35 Snap Ring 2.6 Mm
50 50 A1409943535A 140 994 35 35 Snap Ring 2.9 Mm
50 50 A1409943635A 140 994 36 35 Snap Ring 3.2 Mm
55 55 A1402721662A 140 272 16 62 Guard Plate
60 60 A1409811110A 140 981 11 10 Needle Bearing
65 65 A1402721562A 140 272 15 62 Guard Plate 3.1 Mm
65 65 A1402721962A 140 272 19 62 Guard Plate 3.4 Mm
65 65 A1402722262A 140 272 22 62 Guard Plate 3.7 Mm
70 70 N000471035000N 000471 035000 Retaining Ring
085 Multiple Disk Brake B2, Multiple Disk Brake B3,parking Lock Gearwheel
10 10 A1402700668A 140 270 06 68 Plunger Guide
15 15 A1409972045A 140 997 20 45 Seal Ring (2×)
20 20 A1402721655A 140 272 16 55 Seal Ring
25 25 A1402721755A 140 272 17 55 Seal Ring
30 30 A2102722031A 210 272 20 31 Piston
35 35 A1402722655A 140 272 26 55 Seal Ring
40 40 A1402722031A 140 272 20 31 Piston
45 45 A1402721955A 140 272 19 55 Seal Ring
50 50 A1402722055A 140 272 20 55 Seal Ring
55 55 A1402700568A 140 270 05 68 Piston Ring
55 55 A2212700468A 221 270 04 68 Piston Guide Ring
60 60 A1409931626A 140 993 16 26 Disc Spring
65 65 A1402720664A 140 272 06 64 Spring Retainer
70 70 A1409942135A 140 994 21 35 Snap Ring
72 72 A1402720017A 140 272 00 17 Parking Lock Gearwheel
75 75 A1409931926A 140 993 19 26 Disc Spring
80 80 A1402721426A 140 272 14 26 Outer Oil Control Ring 1,8 Mm
85 85 A1402720026A 140 272 00 26 Outer Oil Control Ring
85 85 A2202721726A 220 272 17 26 Outer Oil Control Ring (5×)
90 90 A1402720425A 140 272 04 25 Inner Oil Control Ring 1,8 Mm (4×)
90 90 A2212720025A 221 272 00 25 Inner Disc 1,8 Mm (4×)
95 95 A1402722326A 140 272 23 26 Outer Oil Control Ring 6,5 Mm
100 100 A1409946335A 140 994 63 35 Snap Ring 2.9 Mm
100 100 A1409946235A 140 994 62 35 Snap Ring 3.2 Mm
100 100 A1409946135A 140 994 61 35 Snap Ring 3.5
100 100 A1409946035A 140 994 60 35 Snap Ring 3.8 Mm
100 100 A1409945935A 140 994 59 35 Snap Ring 4.1 Mm
105 105 A1409930826A 140 993 08 26 Disc Spring
105 105 A1409932226A 140 993 22 26 Disc Spring
110 110 A1402721826A 140 272 18 26 Outer Disc 1.8 Mm (5×)
115 115 A1402720325A 140 272 03 25 Inner Disc
115 115 A1402720625A 140 272 06 25 Inner Oil Control Ring
115 115 A2202720725A 220 272 07 25 Inner Disc (5×)
120 120 A1402722426A 140 272 24 26 Outer Oil Control Ring 6,5 Mm
125 125 A1409941535A 140 994 15 35 Snap Ring 3.2 Mm
125 125 A1409941635A 140 994 16 35 Snap Ring 3.5 Mm
125 125 A1409941735A 140 994 17 35 Snap Ring 3.8 Mm
125 125 A1409944135A 140 994 41 35 Snap Ring 4.1 Mm
125 125 A1409944235A 140 994 42 35 Snap Ring 4.4 Mm
125 125 A1409944335A 140 994 43 35 Snap Ring 4.8 Mm
130 130 A1409905501A 140 990 55 01 Screw (2×)
095 Transmission Housing, Output Flange, Parking Lock,shift Lock,selector Leber
5 5 A2402710001A 240 271 00 01 Housing Floor Shift
10 10 A1402700557A 140 270 05 57 Detent
10 10 A1402700657A 140 270 06 57 Detent Detent Plate
15 15 A1402701065A 140 270 10 65 Linkage
15 15 A1402700965A 140 270 09 65 Linkage
15 15 A1402701165A 140 270 11 65 Gearshift Linkage
20 20 A1409905701A 140 990 57 01 Screw
25 25 A1402700826A 140 270 08 26 Shaft
25 25 A2202700526A 220 270 05 26 Shaft
25 25 A2202700056A 220 270 00 56 Lever Gear Selector Lever
28 28 A1409920010A 140 992 00 10 Collared Bushing
28 28 A2109920010A 210 992 00 10 Bushing Gear Selector Lever
30 30 A0069970147A 006 997 01 47 Seal Ring
30 30 A0099974847A 009 997 48 47 Seal Ring
35 35 A1402780121A 140 278 01 21 Pawl
35 35 A1402780521A 140 278 05 21 Pawl
40 40 A1409938601A 140 993 86 01 Spring
65 65 A1402700150A 140 270 01 50 Guide Bushing
70 70 A1409972345A 140 997 23 45 O-ring
75 75 A1409945535A 140 994 55 35 Retaining Ring
80 80 A1409910101A 140 991 01 01 Pin
85 85 A1409972145A 140 997 21 45 O-ring
90 90 A1409945635A 140 994 56 35 Snap Ring
95 95 A1402720652A 140 272 06 52 Spacer Washer 0,2 Mm
95 95 A1402720752A 140 272 07 52 Spacer Washer 0,3 Mm
95 95 A1402720852A 140 272 08 52 Spacer Washer 0,4 Mm
95 95 A1402720952A 140 272 09 52 Spacer Washer 0,5 Mm
100 100 A1409810125A 140 981 01 25 Ball Bearing
105 105 A0039945241A 003 994 52 41 Lock As Required 2.0 Mm
105 105 A0039945341A 003 994 53 41 Lock As Required 2.1 Mm
105 105 A0039945441A 003 994 54 41 Lock As Required 2.2 Mm
110 110 A0239978747A 023 997 87 47 Seal Ring
120 120 A1992720245A 199 272 02 45 Flange
125 125 A1409901150A 140 990 11 50 Nut
130 130 A1402700250A 140 270 02 50 Plug Adapter
130 130 A2035400053A 203 540 00 53 Spacer
130 130 A2035400153A 203 540 01 53 Pilot Bushing
130 130 A2035400253A 203 540 02 53 Pilot Bushing
135 135 A0159970545A 015 997 05 45 O-ring 36.1x3.4
140 140 A0159970645A 015 997 06 45 O-ring 31.0x2.8
145 145 A1409910501A 140 991 05 01 Pin
150 150 A1409973645A 140 997 36 45 O-ring
155 155 A1262700182A 126 270 01 82 Breather
165 165 A0059977848A 005 997 78 48 Seal Ring
195 195 A1644460710A 164 446 07 10 Electronics Servomodul Intelligent Servo Module
195 195 A0044460310A 004 446 03 10 Electro. Trs. Ctrl. Unit Intelligent Servo Module
195 195 A0002701652A 000 270 16 52 Control Unit Intelligent Servo Module
195 195 A0002701752A 000 270 17 52 Control Unit Intelligent Servo Module
195 195 A0002701852A 000 270 18 52 Control Unit Intelligent Servo Module
200 200 N000000002439N 000000 002439 Hexalobular Bolt Control Unit Fixture M6x25 (4×)
900 900 A0505453028A 050 545 30 28 Plug Housing Intelligent Servo Module A80;5-pin Mlk1.2,slk2.8
901 901 A0195451826A 019 545 18 26 Female Contact 0.22-0.5 Mm2 Mlk1.2
901 901 A0005403905A 000 540 39 05 Electrical Line 1.5 Mm2 Slk2.8
100 Electronic-hydraulic Control Unit
1 1 A2402700106A 240 270 01 06 Valve Gear Electronic-hydraulic Control Unit
5 5 A1402770075A 140 277 00 75 Pin
5 5 A1402770175A 140 277 01 75 Cylinder Pin
10 10 A1402700178A 140 270 01 78 Spring Detent-plate Leaf Spring
15 15 A1709900120A 170 990 01 20 Screw
17 17 A1402700298A 140 270 02 98 Filter (2×)
20 20 A1402700161A 140 270 01 61 Electrics Kit
20 20 A1402700361A 140 270 03 61 Electrics Kit
20 20 A1402700561A 140 270 05 61 Transmission Electric Kit
20 20 A1402700761A 140 270 07 61 Transmission Electric Kit
20 20 A1402700861A 140 270 08 61 Transmission Electric Kit
20 20 A1402701161A 140 270 11 61 Transmission Electric Kit
25 25 A1402770135A 140 277 01 35 Valve
25 25 A1402770535A 140 277 05 35 Valve
25 25 A2402700189A 240 270 01 89 Solenoid Valve Solenoid Valve (3×)
25 25 A2402700289A 240 270 02 89 Valve Solenoid Valve (3×)
28 28 A2402710182A 240 271 01 82 Cap (3×)
30 30 A2402770098A 240 277 00 98 Control Solenoid Pressure Control Valve (2×)
30 30 A2402700089A 240 270 00 89 Valve Pressure Control Valve (2×)
32 32 A2402710082A 240 271 00 82 Cap (2×)
35 35 A1402770035A 140 277 00 35 Valve
35 35 A1402770435A 140 277 04 35 Valve Solenoid Valve
40 40 A1402760003A 140 276 00 03 Spring Plate
40 40 A1402760203A 140 276 02 03 Spring Plate (3×)
42 42 A1402700498A 140 270 04 98 Filter (2×)
45 45 A1402771071A 140 277 10 71 Screw (2×)
50 50 A1402771171A 140 277 11 71 Screw
55 55 A1402770671A 140 277 06 71 Screw (10×)
70 70 A1402710782A 140 271 07 82 Cap
75 75 A1402710882A 140 271 08 82 Cap
115 Oil Pan,oil Filter
5 5 A1402700512A 140 270 05 12 Oil Pan
5 5 A1402700812A 140 270 08 12 Oil Pan
10 10 A1402710080A 140 271 00 80 Elastomer-molded Seal
15 15 A1402770095A 140 277 00 95 Gear Oil Filter
20 20 A1402710068A 140 271 00 68 Clamping Body
25 25 A1402710168A 140 271 01 68 Clamping Body
30 30 A1409904601A 140 990 46 01 Screw W Flange (6×)
35 35 A1402710060A 140 271 00 60 Sealing Ring
40 40 A0009976532A 000 997 65 32 Screw Plug M10x1x11
40 40 N000000000884N 000000 000884 Screw Plug M10x1x8mm
50 50 A2202710098A 220 271 00 98 Magnet
50 50 A1693710003A 169 371 00 03 Magnet Oil Pan To Transmission
50 50 A0009880952A 000 988 09 52 Permanent Magnet Oil Pan To Transmission
65 65 A1409930415A 140 993 04 15 Spring Leaf Spring
70 70 A1409905801A 140 990 58 01 Screw, Special Shape

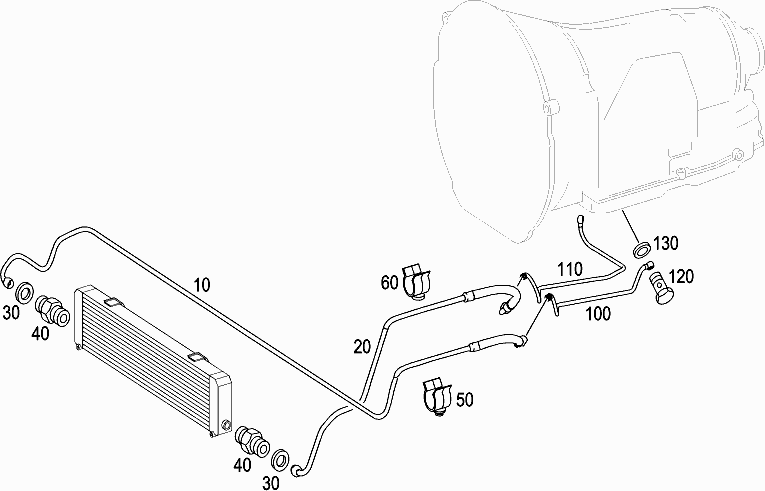

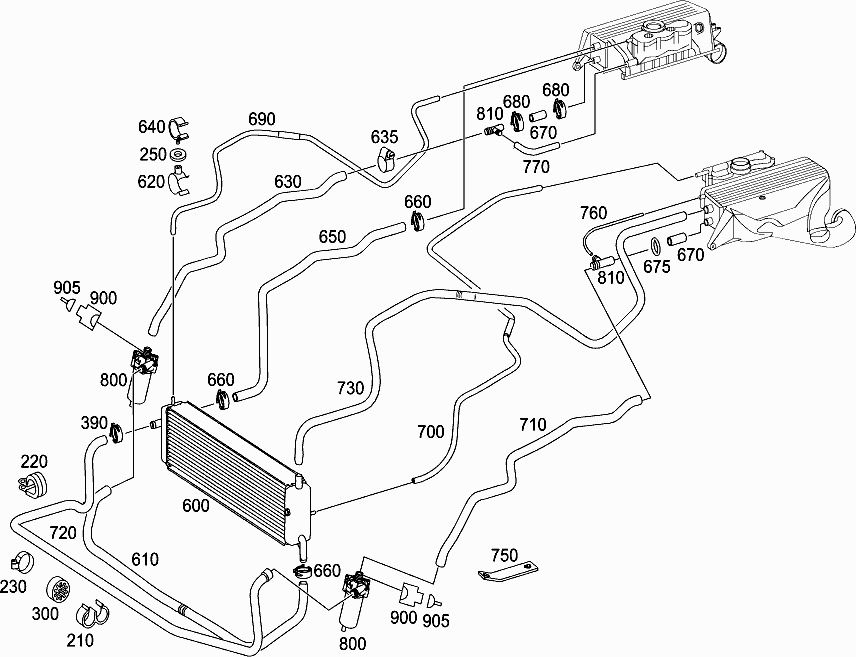

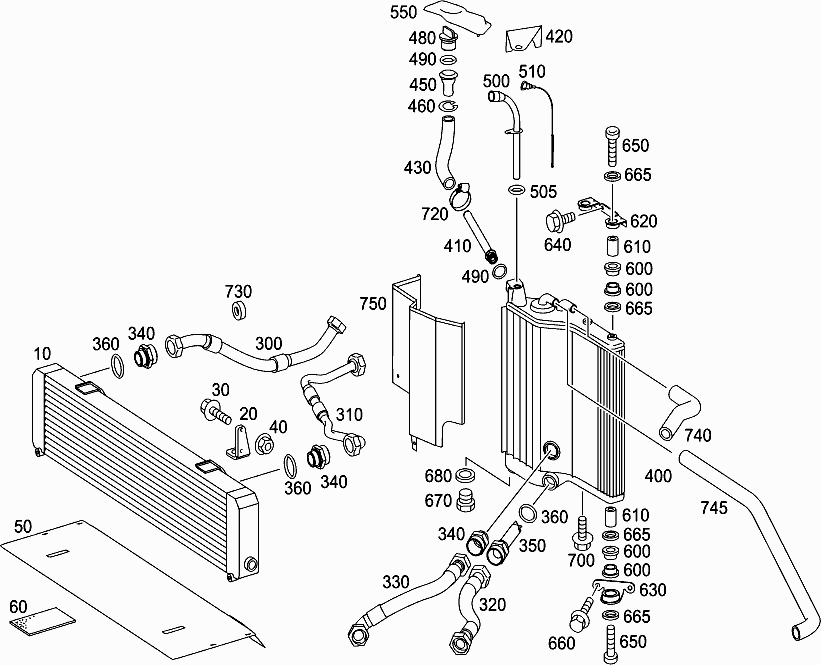

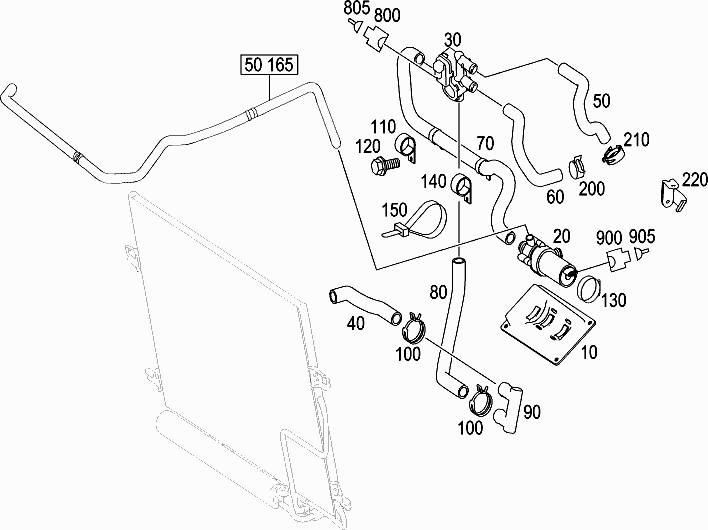

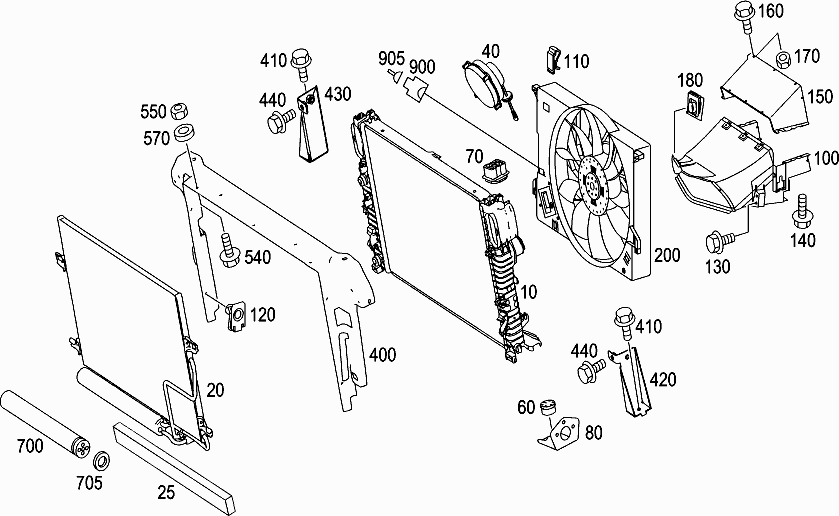

610 Transmission Cooling
29 Pedal Assembly

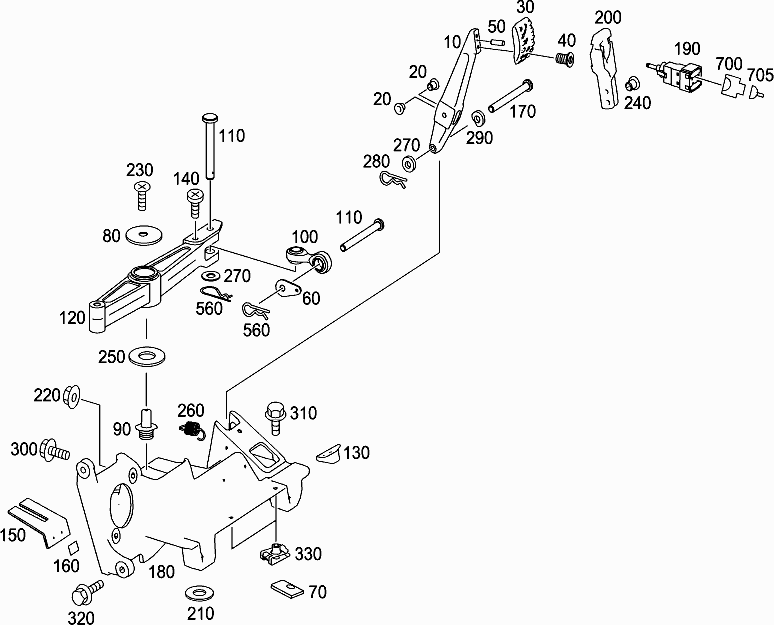

015 Pedal Assembly With Bearing
10 10 A1992920101A 199 292 01 01 Pedal Brake Pedal
20 20 A0009922110A 000 992 21 10 Collared Bushing Brake Pedal (4×)
30 30 A1994260054A 199 426 00 54 Plate Brake Pedal
40 40 A0009904802A 000 990 48 02 Bolt Attachment Plate M6x16 (2×)
50 50 A0019916760A 001 991 67 60 Spring Pin Attachment Plate
60 60 A1994260042A 199 426 00 42 Shackle Brake Pedal
70 70 A1992920145A 199 292 01 45 Plate Pedal Assembly 0,5 Mm (2×)
70 70 A1992920245A 199 292 02 45 Plate Pedal Assembly 0,75 Mm (2×)
70 70 A1992920345A 199 292 03 45 Plate Pedal Assembly 1,20 Mm
80 80 A1992920045A 199 292 00 45 Plate Brake Pedal
90 90 A1992920450A 199 292 04 50 Pilot Bushing Caliper Guide
100 100 A1992600037A 199 260 00 37 Lever
110 110 A1999970110A 199 997 01 10 Pin (2×)
120 120 A1994200112A 199 420 01 12 Brake Lever Reversing Lever
130 130 A1992920231A 199 292 02 31 Lever Brake Lever
140 140 A0029905505A 002 990 55 05 Stud Bolt Brake Pedal M4x8
150 150 A1992700086A 199 270 00 86 Cover Plate
160 160 A0019833913A 001 983 39 13 Velcro Fastener Toeboard (2×)
170 170 A1992940007A 199 294 00 07 Bearing Journal Brake Pedal
180 180 A1994310240A 199 431 02 40 Bracket
180 180 A1994310340A 199 431 03 40 Bracket
190 190 A0015452109A 001 545 21 09 Switch Stop Light Switch
200 200 A1995450047A 199 545 00 47 Bracket Stop Light Switch
210 210 A1992920845A 199 292 08 45 Adjusting Plate
220 220 N000000003175N 000000 003175 Nut Bracket M8 (2×)
230 230 N910143006001N 910143 006001 Hexalobular Bolt Bracket M6x16 (2×)
240 240 A0029906305A 002 990 63 05 Stud Bolt Bracket M4x10 (2×)
250 250 A0019900482A 001 990 04 82 Window Bracket
260 260 A0009932211A 000 993 22 11 Screw Tension Spring Bracket
260 260 A0009933111A 000 993 31 11 Draw Spring Bracket
270 270 A0019901282A 001 990 12 82 Window Bracket (2×)
280 280 A0009945360A 000 994 53 60 Spring Retaining Pin Bracket (3×)
290 290 N000000003843N 000000 003843 Spring Washer
300 300 N910143008003N 910143 008003 Hexalobular Bolt Bracket M8x30 (2×)
310 310 N000000000276N 000000 000276 Hexalobular Bolt Bracket M8x20 (4×)
320 320 N910143008002N 910143 008002 Hexalobular Bolt Bracket M8x25
330 330 A0049941645A 004 994 16 45 Spring Nut M6 (2×)
560 560 A0009945360A 000 994 53 60 Spring Retaining Pin Bracket (3×)
700 700 A2105454128A 210 545 41 28 Receptacle Housing Stop Light Switch 3-pin Jpt;s9/1
700 700 A2105456128A 210 545 61 28 Plug Stop Light Switch 3-pin Jpt
705 705 A0115458126A 011 545 81 26 Contact Spring 0.5-1.0 Mm2 Jpt
30 Control
015 Control
10 10 A2303000104A 230 300 01 04 Accelerator Pedal
20 20 A1999880027A 199 988 00 27 Retaining Grommet Pad
30 30 N910143006001N 910143 006001 Hexalobular Bolt Bracket M6x16 (2×)
700 700 A2105403681A 210 540 36 81 Clutch Pedal Value Sensor/pedal Travel Sensor 6-pin Mqs;b37; B37/1 (2×)
705 705 A0135454626A 013 545 46 26 Contact Socket 0.5-0.75 Mm2 Mqs
32 Springs, Suspension And Hydraulic System
054 Spring Strut And Spring Strut Mounting Front
10 10 A1993200013A 199 320 00 13 Hydropneumatic Spring Leg Front Left And Right (2×)
10 10 A1993200513A 199 320 05 13 Suspension Strut Front Left And Right (2×)
30 30 A0149908301A 014 990 83 01 Combi-hexagon Head Bolt Shock Absorber Mounting 10x90 (2×)
40 40 A0149909101A 014 990 91 01 Combi-hexagon Head Bolt Shock Absorber Mounting 10x78
40 40 A0019900300A 001 990 03 00 Hexagon Fit Bolt Shock Absorber Mounting
50 50 N913023010002N 913023 010002 Nut Top Left And Right M10 (8×)
060 Torsion Bar,front
10 10 A1993200011A 199 320 00 11 Torsion Bar Link (2×)
20 20 A1993230065A 199 323 00 65 Torsion Bar
40 40 A1993230011A 199 323 00 11 Lever Reversing Lever (2×)
40 40 A1993230140A 199 323 01 40 Lever Reversing Lever (2×)
50 50 A1993230050A 199 323 00 50 Bushing At Torsion Bar (2×)
50 50 A1993230250A 199 323 02 50 Bushing At Torsion Bar (2×)
60 60 A1997951296A 199 795 12 96 Pad At Torsion Bar (4×)
70 70 N913023006001N 913023 006001 Nut At Torsion Bar M6 (2×)
80 80 A0009989150A 000 998 91 50 Stop Plug At Torsion Bar (2×)
90 90 N910142006011N 910142 006011 Hexalobular Bolt At Torsion Bar M6x30 (2×)
100 100 A1993210052A 199 321 00 52 Spacer Disk Shim 1,5 Mm (2×)
100 100 A1993210152A 199 321 01 52 Spacer Disk Shim 1 Mm (2×)
100 100 A1993210252A 199 321 02 52 Spacer Disk Shim 2 Mm (2×)
110 110 N000000003624N 000000 003624 Retaining Ring At Torsion Bar (2×)
154 Spring Strut And Spring Strut Mounting Rear
10 10 A1993200113A 199 320 01 13 Hydropneumatic Spring Leg Rear Left And Right (2×)
10 10 A1993200413A 199 320 04 13 Suspension Strut Rear Left And Right (2×)
20 20 A1993200143A 199 320 01 43 Bracket Rear Left
20 20 A1993200243A 199 320 02 43 Bracket Rear Right
30 30 A0149908201A 014 990 82 01 Combi-hexagon Head Bolt Rear Shock Absorber Fastening 10x70 (2×)
30 30 A0019900200A 001 990 02 00 Hexagon Fit Bolt Rear Shock Absorber Fastening (2×)
40 40 A0149908501A 014 990 85 01 Combi-hexagon Head Bolt Rear Shock Absorber Fastening 10x125 (2×)
50 50 N913023010002N 913023 010002 Nut M10
60 60 A0009925110A 000 992 51 10 Collared Bushing Hydropneumatic Spring Leg
70 70 A0009925110A 000 992 51 10 Collared Bushing Hydropneumatic Spring Leg
80 80 N910143006001N 910143 006001 Hexalobular Bolt M6x16 (2×)
206 Connection Front And Rear At Sensor
10 10 A1993270140A 199 327 01 40 Bracket Sensor At Cross Member
20 20 A1998160032A 199 816 00 32 Connection Link
30 30 A1993510040A 199 351 00 40 Bracket Sensor
40 40 N913023005002N 913023 005002 Nut Bracket Mounting M5 (2×)
50 50 N910105005002N 910105 005002 Hexagon Head Bolt Bracket Mounting M5x16 (2×)
60 60 N910143006001N 910143 006001 Hexalobular Bolt M6x16 (2×)
70 70 N000000003765N 000000 003765 Hexalobular Bolt Bracket Mounting M6x20 (2×)
80 80 N910142005000N 910142 005000 Hexalobular Bolt Bracket Mounting M5x10 (7×)
90 90 A0069972790A 006 997 27 90 Hose Clamp W Worm Drive Rear 60-80 Mm (4×)
100 100 N913023006001N 913023 006001 Nut M6 (2×)
110 110 N913023006001N 913023 006001 Nut Rear Top M6 (2×)
33 Front Axle
030 Steering Knuckle And Control Arm
10 10 A1993300142A 199 330 01 42 Front Subframe Left Steering Knuckle
10 10 A1993300720A 199 330 07 20 Steering Knuckle Left Steering Knuckle
10 10 A1993300042A 199 330 00 42 Front Subframe Right Steering Knuckle
10 10 A1993300620A 199 330 06 20 Steering Knuckle Right Steering Knuckle
20 20 A1993500046A 199 350 00 46 Flange Outside Toothing (2×)
30 30 A1403570572A 140 357 05 72 Nut Axle Shaft At Rear Axle Shaft Flange, Right
40 40 A1993320150A 199 332 01 50 Bushing Track Rod At Steering Knuckle, Left
40 40 A1993320150A 199 332 01 50 Bushing Track Rod At Steering Knuckle, Right
50 50 A0149909301A 014 990 93 01 Combi-hexagon Head Bolt 10x35 (8×)
60 60 N000000003623N 000000 003623 Roll Pin 3x5 (2×)
70 70 A1993500408A 199 350 04 08 Wheel Carrier (2×)
80 80 A1993300507A 199 330 05 07 Transv. Control Arm Top Left
80 80 A1993301307A 199 330 13 07 Transv. Control Arm Top Left
80 80 A1993300407A 199 330 04 07 Transv. Control Arm Top Right
80 80 A1993301207A 199 330 12 07 Transv. Control Arm Top Right
90 90 A1993300707A 199 330 07 07 Transv. Control Arm Bottom Left
90 90 A1993301507A 199 330 15 07 Transv. Control Arm Bottom Left
90 90 A1993300607A 199 330 06 07 Transv. Control Arm Bottom Right
90 90 A1993301407A 199 330 14 07 Transv. Control Arm Bottom Right
100 100 A0009925110A 000 992 51 10 Collared Bushing Hydropneumatic Spring Leg (2×)
110 110 A1999920001A 199 992 00 01 Bushing Long (4×)
120 120 N913023014003N 913023 014003 Nut Bottom Left & Right M14x1.5 (4×)
130 130 N913023010002N 913023 010002 Nut Top Left And Right M10 (8×)
140 140 A0149909401A 014 990 94 01 Combi-hexagon Head Bolt Top Left And Right 10x105 (4×)
150 150 A0149909501A 014 990 95 01 Combi-hexagon Head Bolt Bottom Left & Right 14x115 (4×)
150 150 A0019900000A 001 990 00 00 Hexagon Fit Bolt Bottom Left & Right (4×)
160 160 A1997952696A 199 795 26 96 Pad (4×)
160 160 A0039905582A 003 990 55 82 Washer (4×)
170 170 A1993320050A 199 332 00 50 Bushing Left Bottom
170 170 A0009925810A 000 992 58 10 Collared Bushing Left Bottom
170 170 A1993320050A 199 332 00 50 Bushing Right Bottom
170 170 A0009925810A 000 992 58 10 Collared Bushing Bottom Right
180 180 A0019909354A 001 990 93 54 Hex. Nut W Clamping Part Bottom Left & Right M14x1.5 (2×)
180 180 A1993530850A 199 353 08 50 Bushing Top Left And Right -1+-0,50
180 180 A0019909354A 001 990 93 54 Hex. Nut W Clamping Part Bottom Left & Right M14x1.5;m14x1,5 (2×)
190 190 A1993530650A 199 353 06 50 Bushing Top Left And Right -1+-0 (2×)
190 190 A1993530750A 199 353 07 50 Bushing Top Left And Right -1+-0,25 (2×)
190 190 A1993530850A 199 353 08 50 Bushing Top Left And Right -1+-0,50
200 200 A1993330012A 199 333 00 12 Bearing Bushing Left And Right (2×)
210 210 A1993520065A 199 352 00 65 Rubber Mount Left And Right (2×)
210 210 A1993520065A 199 352 00 65 Rubber Mount Left And Right (2×)
220 220 A1993520065A 199 352 00 65 Rubber Mount Top Left And Right (3×)
230 230 A1999920101A 199 992 01 01 Bushing Top Left And Right (4×)
240 240 A0009927710A 000 992 77 10 Collared Bushing Left (-1+/-0,125°)
240 240 A0009927810A 000 992 78 10 Collared Bushing Left (-1/-0,375°)
240 240 A0009927710A 000 992 77 10 Collared Bushing Right (-1+/-0,125°)
240 240 A0009927810A 000 992 78 10 Collared Bushing Right (-1+/-0,375°)
250 250 N913023012002N 913023 012002 Nut Steering Knuckle M12x1.5 (2×)
260 260 A1999900140A 199 990 01 40 Window Steering Knuckle (2×)
270 270 A1993330059A 199 333 00 59 Protective Cap Left
270 270 A1993330059A 199 333 00 59 Protective Cap Right
280 280 A1999940035A 199 994 00 35 Snap Ring Left (2×)
280 280 A1999940035A 199 994 00 35 Snap Ring Right (2×)
290 290 A0019900300A 001 990 03 00 Hexagon Fit Bolt Shock Absorber Mounting
035 Regulation Of Dynamic Headlamp Range Control, Front
10 10 A1993310140A 199 331 01 40 Bracket Sensor Left
10 10 A1993310340A 199 331 03 40 Bracket Sensor Left
10 10 A1993310240A 199 331 02 40 Bracket Sensor Right
10 10 A1993310440A 199 331 04 40 Bracket Sensor Right
20 20 A1993270140A 199 327 01 40 Bracket At Cross Member
30 30 A1998160032A 199 816 00 32 Connection Link
40 40 A1993270040A 199 327 00 40 Bracket Light Range Adjuster
50 50 N910143006001N 910143 006001 Hexalobular Bolt At Bracket M6x16
60 60 N913023006001N 913023 006001 Nut M6 (2×)
35 Rear Axle
015 Rear Axle Housing With Differential
10 10 A1993500314A 199 350 03 14 Rear Axle Differential Rear Axle Housing With Differential Hag 210
10 10 A1993500714A 199 350 07 14 Rear Axle Differential Rear Axle Housing With Differential Hag 215
20 20 A1993510008A 199 351 00 08 Cap
30 30 A0009905817A 000 990 58 17 Screw Plug Bottom
35 35 A0009976232A 000 997 62 32 Screw Plug Left And Right M 24x1.5 (2×)
40 40 A2303500590A 230 350 05 90 Breather
50 50 A2303510268A 230 351 02 68 Cap Breather
60 60 A2103530572A 210 353 05 72 Nut Screw Fitting Joint Flange M29x1.5
70 70 A2203502445A 220 350 24 45 Flange Propeller Shaft
70 70 A2303500645A 230 350 06 45 Flange Propeller Shaft 110 Mm
80 80 A2309970246A 230 997 02 46 Sealing Ring Drive Pinion Hag215
90 90 A2209940141A 220 994 01 41 Securing Drive Pinion 3.60 Mm (2×)
100 100 A2309970346A 230 997 03 46 Sealing Ring Drive Pinion (2×)
100 100 A2309970346A 230 997 03 46 Sealing Ring Drive Pinion Hag 215 (2×)
110 110 N910143010017N 910143 010017 Hexalobular Bolt Drive Pinion M10x55 (10×)
120 120 A0009907382A 000 990 73 82 Window Oil Pump M12
130 130 A1999900240A 199 990 02 40 Washer Oil Pump
140 140 A1993510242A 199 351 02 42 Rubber Bushing Rear Axle Housing With Differential (4×)
150 150 A1995420018A 199 542 00 18 Sender Unit Temperature Sensor
160 160 A1993530062A 199 353 00 62 Pressure Disk Mounting (2×)
170 170 N913023016001N 913023 016001 Nut Rear Axle Housing With Differential (2×)
180 180 A1999900005A 199 990 00 05 Threaded Pin Rear Axle Housing With Differential (2×)
180 180 A0019908114A 001 990 81 14 Stud Bolt Rear Axle Housing With Differential Stud-differential-support* (2×)
200 200 A1993530052A 199 353 00 52 Spacer Disk On Rear Subframe (4×)
210 210 A1995010001A 199 501 00 01 Radiator Rear Axle Housing With Differential
220 220 A1995000093A 199 500 00 93 Blower Radiator
230 230 A0009980045A 000 998 00 45 Metalic Rubber Spring Fan Cowl Fastening (metallgummifeder) (3×)
240 240 A0029902450A 002 990 24 50 Nut-and-washer Assembly Fan Cowl Mounting To Radiator M5 (8×)
250 250 A1999970052A 199 997 00 52 Hose Feed To Radiator
260 260 A1999970152A 199 997 01 52 Hose Return Line To Radiator
270 270 A1999970452A 199 997 04 52 Hose On Expansion Reservoir
280 280 A0009951675A 000 995 16 75 Bracket To Hose (2×)
290 290 A0009974901A 000 997 49 01 Hollow Screw Hose Attachment M 12
290 290 A0009978001A 000 997 80 01 Hollow Screw Hose Attachment
300 300 A1998870150A 199 887 01 50 Bushing Transmission Oil Cooling Ventilator (4×)
310 310 A1995050330A 199 505 03 30 Air Duct Radiator,rear
320 320 A1993510045A 199 351 00 45 Insulation Oil Cooling (2×)
330 330 N000000004749N 000000 004749 Banjo Bolt Hose Attachment
340 340 A1993530084A 199 353 00 84 Fitting Connection M12x1,5
350 350 A1993530184A 199 353 01 84 Fitting Connection M14x1,5
360 360 A0009951675A 000 995 16 75 Bracket Feed Line To Radiator (6×)
370 370 A0059970190A 005 997 01 90 Hose Clamp To Line 14-24 Mm (2×)
030 Axle Shaft
10 10 A1993500356A 199 350 03 56 Axle Shaft Left
10 10 A1993500456A 199 350 04 56 Axle Shaft Right
20 20 A0039972548A 003 997 25 48 Sealing Ring Inner Joint (2×)
30 30 A2039942035A 203 994 20 35 Snap Ring Left And Right Inside (2×)
30 30 A2119941035A 211 994 10 35 Snap Ring Left And Right Inside (2×)
40 40 A1403570572A 140 357 05 72 Nut Axle Shaft To Rear Axle Shaft Flange Left
40 40 A1403570572A 140 357 05 72 Nut Axle Shaft At Rear Axle Shaft Flange, Right
045 Rear Subframe
10 10 A1993500141A 199 350 01 41 Axle Carrier
20 20 A1993520142A 199 352 01 42 Mounting Plate Rear Left
20 20 A1993520342A 199 352 03 42 Mounting Plate Rear Left Links / Kofferraum
30 30 A1993520242A 199 352 02 42 Mounting Plate Rear Right Rechts / Kofferraum*
30 30 A1993520442A 199 352 04 42 Mounting Plate Rear Right Rechts / Kofferraum*
35 35 N910105008008N 910105 008008 Hexagon Head Bolt At Plate M8x16 (8×)
40 40 A1999920201A 199 992 02 01 Bushing Rear Subframe (8×)
50 50 A1999920301A 199 992 03 01 Bushing Rear Subframe (8×)
60 60 A1999970410A 199 997 04 10 Dowel Pin Rear Subframe (2×)
70 70 A0039900005A 003 990 00 05 Stud Bolt Rear Subframe M10 (4×)
75 75 N913023010002N 913023 010002 Nut Rear Subframe M10 (4×)
80 80 N910105010011N 910105 010011 Hexagon Head Bolt Rear Subframe M10x40 (4×)
90 90 A1993530050A 199 353 00 50 Bushing Rear Subframe (2×)
90 90 A0009924310A 000 992 43 10 Collared Bushing Rear Axle (2×)
100 100 N000000003623N 000000 003623 Roll Pin Rear Subframe 3x5 (4×)
120 120 A0009980045A 000 998 00 45 Metalic Rubber Spring Rear Subframe (metallgummifeder) (4×)
130 130 N913023010002N 913023 010002 Nut M10
190 190 A1996820020A 199 682 00 20 Insulation Oil Pump
200 200 A1993500169A 199 350 01 69 Oil Pump Rear Axle Housing With Differential
210 210 A1993510140A 199 351 01 40 Bracket Oil Pump
220 220 A1993530040A 199 353 00 40 Bracket Oil Pump
240 240 A0009956110A 000 995 61 10 Hose Clamp W Worm Drive Oil Pump
260 260 A0139976245A 013 997 62 45 Sealing Ring Oil Pump (4×)
270 270 A0139976345A 013 997 63 45 Sealing Ring Oil Pump (4×)
300 300 A1996110149A 199 611 01 49 Duct Rear Axle Housing With Differential
350 350 A1993530054A 199 353 00 54 Spacer Disk Mounting
370 370 A1993530062A 199 353 00 62 Pressure Disk Bearing To Bracket
380 380 A1993510111A 199 351 01 11 Bearing Cap Cable Protection
390 390 A1993520042A 199 352 00 42 Mounting Plate Bracket Bearing (2×)
400 400 A1993510342A 199 351 03 42 Rubber Bushing Mounting (2×)
410 410 A0029902450A 002 990 24 50 Nut-and-washer Assembly Fan Cowl Mounting To Radiator M5 (8×)
075 Rear Axle Suspension
10 10 A1993500406A 199 350 04 06 Transv. Control Arm Rear Top, Left
10 10 A1993500006A 199 350 00 06 Strut Rear Top, Left
10 10 A1993500306A 199 350 03 06 Strut Rear Top, Left
10 10 A1993500006A 199 350 00 06 Strut Rear Top, Right
10 10 A1993500306A 199 350 03 06 Strut Rear Top, Right
10 10 A1993500406A 199 350 04 06 Transv. Control Arm Rear Top, Right
20 20 A0149909501A 014 990 95 01 Combi-hexagon Head Bolt Rear Top 14x115 (3×)
20 20 A0019900000A 001 990 00 00 Hexagon Fit Bolt Rear Top (3×)
20 20 A0149909501A 014 990 95 01 Combi-hexagon Head Bolt Rear Bottom 14x115 (3×)
20 20 A0019900000A 001 990 00 00 Hexagon Fit Bolt Rear Bottom (3×)
30 30 A1999970310A 199 997 03 10 Screw Transverse Control Arm 14x290 (2×)
40 40 A1990000126A 199 000 01 26 Rubber Bushing Rear Top Elv-legislation - Cr6-freie Umfänge* (4×)
45 45 A1993520049A 199 352 00 49 Eccentric Bush Adjusting Nut (4×)
50 50 A1993520065A 199 352 00 65 Rubber Mount Rear Bottom (4×)
50 50 A1993330012A 199 333 00 12 Bearing Bushing Rear Top (2×)
60 60 N913023014003N 913023 014003 Nut Rear Top M14x1.5 (4×)
70 70 N913023014003N 913023 014003 Nut Rear Bottom M14x1.5 (4×)
80 80 N913023010002N 913023 010002 Nut Rear Top M10 (8×)
90 90 A1999920101A 199 992 01 01 Bushing Rear Top (4×)
100 100 A0149908401A 014 990 84 01 Combi-hexagon Head Bolt Rear Top 10x110
110 110 N913023006001N 913023 006001 Nut Rear Top M6 (2×)
120 120 A0009905502A 000 990 55 02 Csk. Bolt W Hex. Socket Rear Top M5x16 (3×)
130 130 N910142005000N 910142 005000 Hexalobular Bolt Rear M5x10 (3×)
140 140 A1993500106A 199 350 01 06 Strut Rear Bottom
140 140 A1993500206A 199 350 02 06 Transv. Control Arm Rear Bottom Left
140 140 A1993500506A 199 350 05 06 Transv. Control Arm Rear Bottom Left
140 140 A1993500106A 199 350 01 06 Strut Rear Bottom Right
140 140 A1993500206A 199 350 02 06 Transv. Control Arm Rear Bottom Right
140 140 A1993500506A 199 350 05 06 Transv. Control Arm Rear Bottom Right
150 150 A1993500408A 199 350 04 08 Wheel Carrier Rear Left And Right
160 160 A1994270093A 199 427 00 93 Flange Wheel Carrier (4×)
170 170 A1993320037A 199 332 00 37 Guide Sleeve Wheel Carrier (2×)
180 180 A1994270146A 199 427 01 46 Guide Plate Mounting Plate (2×)
190 190 A1993510114A 199 351 01 14 Bearing Bracket Left Steering Knuckle
190 190 A1993500142A 199 350 01 42 Bearing Bracket Left Steering Knuckle
190 190 A1993520410A 199 352 04 10 Steering Knuckle Right Steering Knuckle
190 190 A1993500242A 199 350 02 42 Bearing Bracket Right Steering Knuckle
200 200 A0149909301A 014 990 93 01 Combi-hexagon Head Bolt 10x35 (8×)
210 210 A0039900105A 003 990 01 05 Stud Bolt M10x22 (4×)
220 220 A1997951296A 199 795 12 96 Pad Left Wheel Carrier (4×)
220 220 A1997951296A 199 795 12 96 Pad Right Wheel Carrier (4×)
240 240 N000000003623N 000000 003623 Roll Pin Rear Subframe 3x5 (2×)
250 250 A1993530150A 199 353 01 50 Bushing Plate -0,25 (4×)
250 250 A0009924410A 000 992 44 10 Collared Bushing Plate -0,25 (4×)
250 250 A1993530250A 199 353 02 50 Bushing Plate -0,50 (4×)
250 250 A0009924510A 000 992 45 10 Collared Bushing Rear Axle -0,50 (2×)
250 250 A1993530350A 199 353 03 50 Bushing Plate -0,75 (4×)
250 250 A0009924610A 000 992 46 10 Collared Bushing Plate -0,75 (4×)
250 250 A1993530450A 199 353 04 50 Bushing Plate -1,0 (4×)
250 250 A0009924710A 000 992 47 10 Collared Bushing Plate -1,0 (4×)
250 250 A0009924510A 000 992 45 10 Collared Bushing Plate -0,50 (2×)
250 250 A1993530050A 199 353 00 50 Bushing Plate -1,+-0 (2×)
250 250 A0009924310A 000 992 43 10 Collared Bushing Plate -1,+-0 (2×)
260 260 A1993530550A 199 353 05 50 Bushing Plate (8×)
260 260 A0009925010A 000 992 50 10 Collared Bushing Plate (8×)
270 270 A1993520510A 199 352 05 10 Steering Knuckle Rear Left
270 270 A1993520710A 199 352 07 10 Steering Knuckle Rear Left
270 270 A1993520910A 199 352 09 10 Steering Knuckle Rear Left
270 270 A1993520610A 199 352 06 10 Steering Knuckle Rear Right
270 270 A1993520810A 199 352 08 10 Steering Knuckle Rear Right
270 270 A1993521010A 199 352 10 10 Steering Knuckle Rear Right
280 280 A0149908401A 014 990 84 01 Combi-hexagon Head Bolt Upper Control Arm 10x110
290 290 A1403570572A 140 357 05 72 Nut Axle Shaft To Rear Axle Shaft Flange (2×)
300 300 A0009924210A 000 992 42 10 Collared Bushing Rear Subframe (8×)
300 300 A0009925210A 000 992 52 10 Collared Bushing (4×)
310 310 N000000004084N 000000 004084 Roll Pin To Secure Set Nut (2×)
320 320 A0009909900A 000 990 99 00 Hexagon Fit Bolt (2×)
330 330 A0039900005A 003 990 00 05 Stud Bolt Rear Subframe M10 (4×)
340 340 N913023010002N 913023 010002 Nut Rear Subframe M10 (2×)
350 350 A0009927910A 000 992 79 10 Collared Bushing Left (-1+/-0,125°) (2×)
350 350 A0009928010A 000 992 80 10 Collared Bushing Left (-1+/-0,375°) (2×)
350 350 A0009927910A 000 992 79 10 Collared Bushing Right (-1+/-0,125°) (2×)
350 350 A0009928010A 000 992 80 10 Collared Bushing Right (-1+/-0,375°) (2×)
360 360 A1993320037A 199 332 00 37 Guide Sleeve Steering Knuckle (2×)
40 Wheels
015 Wheels
30 30 A1994010802A 199 401 08 02 Disk Wheel 9-spoke Wheel, Front Axle, Left 9.0j X 19 H2 Et 46.5
30 30 A1994010202A 199 401 02 02 Disk Wheel 9-spoke Wheel, Front Axle, Right 9.0j X 19 H2 Et 46.5
30 30 A1994010902A 199 401 09 02 Disk Wheel 9-spoke Wheel, Rear Axle, Left 11.5j X 19 H2 Et 44
30 30 A1994010302A 199 401 03 02 Disk Wheel 9-spoke Wheel, Rear Axle, Right 11.5j X 19 H2 Et 44
150 150 A1704000125A 170 400 01 25 Wheel Trim Cover Front And Rear Axles (4×)
170 170 A0014016113A 001 401 61 13 Valve (4×)
180 180 A0004010609A 000 401 06 09 Protective Cap (4×)
200 200 A0009904907A 000 990 49 07 Spherical Collar Bolt Front And Rear M14x1,5x30,7 (16×)
210 210 A0009906107A 000 990 61 07 Anti-theft Wheel Bolt Locking Lug Bolt Package Contents
250 250 A1714010194A 171 401 01 94 Balance Weight Glued Version 5 Gramm
250 250 A1714010294A 171 401 02 94 Balance Weight Glued Version 10 Gramm
250 250 A1714010394A 171 401 03 94 Balance Weight Glued Version 15 Gramm
250 250 A1714010494A 171 401 04 94 Balance Weight Glued Version 20 Gramm
250 250 A1714010594A 171 401 05 94 Balance Weight Glued Version 25 Gramm
250 250 A1714010694A 171 401 06 94 Balance Weight Glued Version 30 Gramm
250 250 A1714010794A 171 401 07 94 Balance Weight Glued Version 35 Gramm
250 250 A1714010894A 171 401 08 94 Balance Weight Glued Version 40 Gramm
250 250 A1714010994A 171 401 09 94 Balance Weight Glued Version 45 Gramm
250 250 A1714011094A 171 401 10 94 Balance Weight Glued Version 50 Gramm
250 250 A1714011194A 171 401 11 94 Balance Weight Glued Version 55 Gramm
250 250 A1714011294A 171 401 12 94 Balance Weight Glued Version 60 Gramm
41 Propeller Shaft
015 Propeller Shaft
10 10 A1994100306A 199 410 03 06 Propeller Shaft
10 10 A1994100406A 199 410 04 06 Propeller Shaft
20 20 A0039905805A 003 990 58 05 Cap Bolt W Int. Serration Flexible Joint Disc, Front M10x1,5x75(55) (6×)
30 30 A0019909254A 001 990 92 54 Hex. Nut W Clamping Part Flexible Joint Disc, Front (6×)
40 40 A1994130142A 199 413 01 42 Bracket Rear Top
40 40 A1993530440A 199 353 04 40 Bracket Rear Top
50 50 A1993530240A 199 353 02 40 Bracket Rear Bottom
50 50 A1993530340A 199 353 03 40 Bracket Rear Bottom
60 60 N000000003853N 000000 003853 Hexalobular Bolt At Bracket M8x16 (2×)
70 70 N910143006001N 910143 006001 Hexalobular Bolt M6x16 (3×)
80 80 A1999900440A 199 990 04 40 Window Front Propeller Shaft (3×)
90 90 N000000003662N 000000 003662 Hexagon Head Bolt Flexible Joint Disc, Rear 12x1.5x60x25 (4×)
100 100 N913023012002N 913023 012002 Nut Rear Propeller Shaft M12x1.5 (4×)
110 110 A1993530052A 199 353 00 52 Spacer Disk Housing (4×)
42 Brakes
030 Front Wheel Brake
10 10 A1994200472A 199 420 04 72 Brake Disk Front (2×)
20 20 A2204210171A 220 421 01 71 Fit Screw Brake Disc To Wheel Hub M8x12 (2×)
30 30 A1994200344A 199 420 03 44 Air Deflector Shield Front Left
30 30 A1994200444A 199 420 04 44 Air Deflector Shield Front Right
40 40 N007337003104N 007337 003104 Blind Rivet Cover Plate To Steering Knuckle (3×)
40 40 N007337003104N 007337 003104 Blind Rivet (3×)
50 50 A0044209820A 004 420 98 20 Brake Lining Parts Kit, Without Wear Sensor
60 60 A1995200102A 199 520 01 02 Air Duct Brake Cooling,front Left
60 60 A1995200502A 199 520 05 02 Air Duct Brake Cooling,front Left
60 60 A1995200902A 199 520 09 02 Air Duct Brake Cooling,front Left
60 60 A1995200202A 199 520 02 02 Air Duct Brake Cooling,front Right
60 60 A1995200602A 199 520 06 02 Air Duct Brake Cooling,front Right
60 60 A1995201002A 199 520 10 02 Air Duct Brake Cooling,front Right
70 70 A1994210052A 199 421 00 52 Spacer Washer Brake Lining (4×)
80 80 N000000003770N 000000 003770 Bolt Brake Lining Fastening M12x80;m12 (4×)
90 90 A2205400717A 220 540 07 17 Sender Unit Brake Lining Wear Indicator (2×)
130 130 A1994290135A 199 429 01 35 Brake Hose Cooling 4 Zoll (2×)
130 130 A1994290035A 199 429 00 35 Hose Line Cooling 3 Zoll (2×)
130 130 A1994290335A 199 429 03 35 Hose Cooling 3 Zoll
130 130 A1994290235A 199 429 02 35 Brake Hose Cooling 2 Zoll (2×)
140 140 A0009958810A 000 995 88 10 Hose Clamp W Worm Drive (2×)
150 150 A1994290335A 199 429 03 35 Hose Cooling 3 Zoll
160 160 A0009956810A 000 995 68 10 Hose Clamp W Worm Drive To Hose (2×)
170 170 A1995200302A 199 520 03 02 Intake Box Front Left
170 170 A1995200402A 199 520 04 02 Intake Box Front Right
180 180 A1995050161A 199 505 01 61 Air Duct Front Left
180 180 A1995050261A 199 505 02 61 Air Duct Front Right
190 190 A0029903305A 002 990 33 05 Stud Bolt M5x10 (5×)
200 200 N000000001474N 000000 001474 Hexalobular Bolt To Air Duct M6x10 (4×)
210 210 A1994200183A 199 420 01 83 Caliper Front Left
210 210 A1994200383A 199 420 03 83 Caliper Front Left
210 210 A1994200283A 199 420 02 83 Caliper Front Right
210 210 A1994200483A 199 420 04 83 Caliper Front Right
220 220 A0004209155A 000 420 91 55 Ts Bleed Valve Caliper (2×)
230 230 A0004212648A 000 421 26 48 Dust Cap Boot (2×)
240 240 A0004219191A 000 421 91 91 Spreader Spring Caliper (2×)
250 250 A0004213374A 000 421 33 74 Pin Disc Brake (2×)
280 280 A1994270094A 199 427 00 94 Strut Caliper 18" (2×)
290 290 A0019902803A 001 990 28 03 Screw With Feature Strut 18" (4×)
350 350 A0039902005A 003 990 20 05 Stud Bolt Caliper To Steering Knuckle (4×)
350 350 A0039905905A 003 990 59 05 Cap Bolt W Int. Serration Caliper To Steering Knuckle M12 X 80 (4×)
045 Rear Wheel Brake
10 10 A1994200372A 199 420 03 72 Brake Disk Rear (2×)
20 20 A0044204720A 004 420 47 20 Ts Brake Pad (parts Kit),rear
30 30 A0009982305A 000 998 23 05 Grommet, Closed, Smooth
40 40 A1994230123A 199 423 01 23 Bracket Top,rear (2×)
40 40 A1994230823A 199 423 08 23 Bracket Top,rear (2×)
50 50 A1994230723A 199 423 07 23 Bracket Rear Left And Right (2×)
50 50 A1994230923A 199 423 09 23 Bracket Rear Left And Right (2×)
60 60 A0029906205A 002 990 62 05 Stud Bolt At Bracket (3×)
70 70 A0029903305A 002 990 33 05 Stud Bolt Air Duct Left And Right M5x10 (14×)
80 80 A0029903305A 002 990 33 05 Stud Bolt At Bracket M5x10
90 90 A1995280704A 199 528 07 04 Scoop Outside (2×)
100 100 A1995280804A 199 528 08 04 Scoop Inside (2×)
110 110 A1995200201A 199 520 02 01 Air Duct Right
110 110 A1995200401A 199 520 04 01 Air Suction Pipe Right
120 120 A1995200101A 199 520 01 01 Air Duct Left
120 120 A1995200301A 199 520 03 01 Air Suction Pipe Left
130 130 A1994230523A 199 423 05 23 Bracket Inside Left
130 130 A1994231123A 199 423 11 23 Bracket Inside Left
130 130 A1994230623A 199 423 06 23 Bracket Inside Right
130 130 A1994231023A 199 423 10 23 Bracket Inside Right
140 140 A1994200783A 199 420 07 83 Ts Brake Caliper Rear Left
140 140 A1994200983A 199 420 09 83 Caliper Rear Left
140 140 A1994200883A 199 420 08 83 Caliper Rear Right
140 140 A1994201083A 199 420 10 83 Caliper Rear Right
150 150 A0004211748A 000 421 17 48 Cap Dust Cap (2×)
160 160 A0004213765A 000 421 37 65 Bleed Valve Caliper (2×)
170 170 A0004202882A 000 420 28 82 Ts Pin (2×)
180 180 A0004218791A 000 421 87 91 Spring
190 190 A2114230071A 211 423 00 71 Screw Caliper M12x1.5x35 (4×)
200 200 A2204210171A 220 421 01 71 Fit Screw Brake Disc To Wheel Hub M8x12 (2×)
210 210 A1994200020A 199 420 00 20 Parking Brake Rear Left And Right
220 220 A2014230592A 201 423 05 92 Draw Spring (4×)
230 230 A2104230092A 210 423 00 92 Draw Spring (2×)
240 240 A1714230092A 171 423 00 92 Draw Spring (2×)
250 250 A2014200589A 201 420 05 89 Expansion Lock For Brake (2×)
260 260 A1244230050A 124 423 00 50 Supporting Bush (2×)
270 270 A2303570389A 230 357 03 89 Plug (2×)
280 280 A1084270074A 108 427 00 74 Cylinder Pin (2×)
290 290 A2014200373A 201 420 03 73 Brake Adjuster (4×)
350 350 A2205400717A 220 540 07 17 Sender Unit Rear Brake Lining Wear Indicator
060 Brake Booster
10 10 A1994300107A 199 430 01 07 Hydraulic Unit Brake Master Cylinder
20 20 A2309910012A 230 991 00 12 Pin
30 30 A1994280031A 199 428 00 31 Connector (2×)
50 50 A2404300102A 240 430 01 02 Container On Actuator Unit
60 60 A2024300014A 202 430 00 14 Cap Reservoir
70 70 A0039922801A 003 992 28 01 Spacer Sleeve
70 70 A0039923301A 003 992 33 01 Spacer Sleeve
80 80 A0004317034A 000 431 70 34 Sieve In Compensation Reservoir
100 100 A1999900001A 199 990 00 01 Screw Mounting, Tank
110 110 A1999880127A 199 988 01 27 Retaining Grommet Brake Fluid Reservoir (2×)
120 120 A1994210180A 199 421 01 80 Gasket At Bracket
130 130 A1994320040A 199 432 00 40 Bracket On Expansion Reservoir
900 900 A2105402081A 210 540 20 81 Receptacle Housing Brake Fluid Control 2-pin Mqs;s11
905 905 A0085456326A 008 545 63 26 Contact Socket 0.5-0.75 Mm2 Mqs
064 Hydraulic Unit
10 10 A1994300607A 199 430 06 07 Hydraulic Unit Filled
10 10 A1994300907A 199 430 09 07 Hydraulic Unit Filled
10 10 A1994301107A 199 430 11 07 Hydraulic Unit Filled
10 10 A1994301407A 199 430 14 07 Hydraulic Unit Filled
10 10 A0094314912A 009 431 49 12 Hydraulic Unit
20 20 A1994300707A 199 430 07 07 Ts Hydraulic Unit Expansion Tank
30 30 A1998200210A 199 820 02 10 Switch Brake Fluid Control
35 35 A0004302394A 000 430 23 94 Accumulator Brake Fluid
40 40 A0004317034A 000 431 70 34 Sieve
50 50 A1994210494A 199 421 04 94 Bracket Expansion Tank
60 60 A1994310040A 199 431 00 40 Bracket Hydraulic Unit
70 70 A0004310037A 000 431 00 37 Rubber Mount At Bracket (4×)
80 80 N910105010023N 910105 010023 Hexagon Head Bolt Hydraulic Unit To Bracket M10x1x30
800 800 A2105402081A 210 540 20 81 Receptacle Housing Brake Fluid Control 2-pin Mqs;s11/2
805 805 A0085456326A 008 545 63 26 Contact Socket 0.5-0.75 Mm2 Mqs
090 Brake Lines
10 10 A1994200448A 199 420 04 48 Brake Hose Brake Line Towards Caliper (2×)
15 15 A1994200548A 199 420 05 48 Brake Hose Rear Axle (2×)
20 20 A1994200526A 199 420 05 26 Line Hydraulic Unit Connection "lr" To Separation Point
20 20 A1994203126A 199 420 31 26 Brake Line Hydraulic Unit Connection "lr" To Separation Point Hinten Links*
25 25 A1994200326A 199 420 03 26 Line Front Left
25 25 A1994202126A 199 420 21 26 Brake Line Front Left
25 25 A1994201426A 199 420 14 26 Brake Line Right Brake Line
25 25 A1994202226A 199 420 22 26 Brake Line Right Brake Line
30 30 A1994200328A 199 420 03 28 Brake Line Left Caliper
30 30 A1994202526A 199 420 25 26 Brake Line Left Caliper
30 30 A1994200428A 199 420 04 28 Brake Line Right Caliper
30 30 A1994202626A 199 420 26 26 Brake Line Right Caliper
40 40 A1994200726A 199 420 07 26 Line Hydraulic Unit Connection "lf" To Left Front Wheel
40 40 A1994201326A 199 420 13 26 Brake Line Hydraulic Unit Connection "lf" To Left Front Wheel
40 40 A1994202726A 199 420 27 26 Brake Line Hydraulic Unit Connection "lf" To Left Front Wheel Vorn Links Am Tunnel*
50 50 A1994200426A 199 420 04 26 Line Hydraulic Unit Connection "rr" To Separation Point
50 50 A1994203226A 199 420 32 26 Brake Line Hydraulic Unit Connection "rr" To Separation Point Hinten Rechts*
70 70 A1994200626A 199 420 06 26 Line Hydraulic Unit Conn. "fr" To Right Front Wheel
70 70 A1994202826A 199 420 28 26 Brake Line Hydraulic Unit Conn. "fr" To Right Front Wheel
80 80 A1994200026A 199 420 00 26 Line From Hydraulic Unit To Distributor Hz1
80 80 A1994201926A 199 420 19 26 Brake Line From Hydraulic Unit To Distributor Hcu - Hz1*;hz1
90 90 A1994200126A 199 420 01 26 Line From Hydraulic Unit To Distributor Hz2
90 90 A1994202026A 199 420 20 26 Brake Line From Hydraulic Unit To Distributor Hcu - Hz2*;hz2
100 100 A1994200926A 199 420 09 26 Line Left Caliper
100 100 A1994202326A 199 420 23 26 Brake Line Left Caliper
100 100 A1994201026A 199 420 10 26 Line Right Caliper
100 100 A1994202426A 199 420 24 26 Brake Line Right Caliper
110 110 A1994280025A 199 428 00 25 Distributor Block
120 120 A1994210080A 199 421 00 80 Gasket At Distributor
130 130 A1994280035A 199 428 00 35 Brake Hose At Distributor 330 Mm
140 140 A1994280135A 199 428 01 35 Brake Hose At Distributor 360 Mm
150 150 A1997951596A 199 795 15 96 Pad (2×)
160 160 A1994280235A 199 428 02 35 Brake Hose At Distributor
170 170 A1994280335A 199 428 03 35 Brake Hose At Distributor
180 180 A1994230187A 199 423 01 87 Protective Covering To Hose
200 200 A1994310262A 199 431 02 62 Cover Heat Guard
210 210 A0009952042A 000 995 20 42 Retaining Clamp At Covering
220 220 A0009954605A 000 995 46 05 Spring Bracket Clamp Hose To Distributor (8×)
230 230 A1999900078A 199 990 00 78 Intermediate Piece At Distributor (6×)
240 240 A0009951990A 000 995 19 90 Cable Strap To Brake Line 4.8 X 300 Mm (3×)
250 250 A1999910225A 199 991 02 25 Window At Distributor (6×)
260 260 A1999910225A 199 991 02 25 Window At Intermediate Piece (2×)
270 270 A1994200128A 199 420 01 28 Brake Line From Brake Master Cylinder To Front Axle Distributor
270 270 A1994202926A 199 420 29 26 Brake Line From Brake Master Cylinder To Front Axle Distributor ( Hbz - He ) Hzi*
280 280 A1994280635A 199 428 06 35 Brake Line From Brake Master Cylinder To Front Axle Distributor
280 280 A1994203026A 199 420 30 26 Brake Line From Brake Master Cylinder To Front Axle Distributor ( Hbz - He ) Hz1
290 290 A2019900192A 201 990 01 92 Expansion Rivet
300 300 A1999950177A 199 995 01 77 Bracket Brake Line (10×)
310 310 A1996470091A 199 647 00 91 Grommet
320 320 N000000003765N 000000 003765 Hexalobular Bolt M6x20 (3×)
330 330 N910105005002N 910105 005002 Hexagon Head Bolt M5x16
340 340 A1709950165A 170 995 01 65 Bracket (2×)
350 350 A0019973971A 001 997 39 71 Angled Bulkhead Fitting (2×)
360 360 A0009950875A 000 995 08 75 Bracket Brake Line
360 360 A0009950775A 000 995 07 75 Bracket
370 370 A0009951442A 000 995 14 42 Clamp (2×)
380 380 A1267870097A 126 787 00 97 Felt Strip To Line 65x40x2mm
390 390 A1996820497A 199 682 04 97 Intermediate Layer To Line
400 400 N910142005000N 910142 005000 Hexalobular Bolt To Brake Line M5x10 (8×)
400 400 N910143008020N 910143 008020 Hexalobular Bolt To Brake Line M8x12
400 400 N910105005002N 910105 005002 Hexagon Head Bolt To Brake Line M5x16 (6×)
410 410 A1999950077A 199 995 00 77 Bracket (4×)
420 420 A0009950842A 000 995 08 42 Clamp (8×)
420 420 A0009952042A 000 995 20 42 Retaining Clamp Brake Line
430 430 N910105005002N 910105 005002 Hexagon Head Bolt Brake Line Bracket M5x16 (3×)
440 440 A1994210294A 199 421 02 94 Bracket To Line (4×)
440 440 A1994210294A 199 421 02 94 Bracket Brake Line (4×)
440 440 A1994212094A 199 421 20 94 Bracket Brake Line (4×)
450 450 N910105005000N 910105 005000 Hexagon Head Bolt M5x12
460 460 A0019975371A 001 997 53 71 Fitting (2×)
470 470 A0159973145A 015 997 31 45 Sealing Ring (4×)
130 Hand Brake
10 10 A1994200184A 199 420 01 84 Parking Brake
20 20 A0015458714A 001 545 87 14 Switch Hand Brake
30 30 A2014270071A 201 427 00 71 Screw Hand Brake To Tunnel M8
40 40 A1994270031A 199 427 00 31 Bar Hand Brake
50 50 A1994230062A 199 423 00 62 Pressure Disk At Pull Rod
60 60 A1994200089A 199 420 00 89 Shackle Brake Readjustment
70 70 A1994270841A 199 427 08 41 Bracket Spring
70 70 A1994271341A 199 427 13 41 Bracket Spring
80 80 A1994270050A 199 427 00 50 Bushing
90 90 A0029902550A 002 990 25 50 Hexagon Nut With Flange M3
100 100 A0079937701A 007 993 77 01 Spring
120 120 A1994200185A 199 420 01 85 Brake Cable Left And Right (2×)
120 120 A1994200285A 199 420 02 85 Brake Cable Left And Right (2×)
130 130 A0009955935A 000 995 59 35 Hose Clamp Brake Cable (2×)
140 140 N910143006000N 910143 006000 Hexalobular Bolt Brake Cable M6x12 (4×)
140 140 N910143006001N 910143 006001 Hexalobular Bolt Brake Cable M6x16 (4×)
150 150 A1994270041A 199 427 00 41 Bracket Hand Brake To Tunnel
150 150 A1994270941A 199 427 09 41 Bracket Hand Brake To Tunnel
160 160 A1994270641A 199 427 06 41 Bracket Hand Brake To Tunnel
160 160 A1994271041A 199 427 10 41 Bracket Hand Brake To Tunnel
170 170 A1994270741A 199 427 07 41 Bracket Hand Brake To Tunnel
170 170 A1994271141A 199 427 11 41 Bracket Hand Brake To Tunnel
180 180 A1994270020A 199 427 00 20 Handle Hand Brake
200 200 A1996801306A 199 680 13 06 Trim Hand Brake Lever
210 210 A1994270012A 199 427 00 12 Guide Hand Brake Lever
220 220 N913023006001N 913023 006001 Nut Hand Brake M6 (2×)
230 230 N000000003175N 000000 003175 Nut Hand Brake M8 (2×)
240 240 N000000000276N 000000 000276 Hexalobular Bolt Hand Brake M8x20
250 250 A0149909201A 014 990 92 01 Combi-hexagon Head Bolt Hand Brake M8x45
700 700 A0045452026A 004 545 20 26 Receptacle Housing Parking Brake Switch 1-pin;s12
705 705 A0035450226A 003 545 02 26 Contact Spring 0.5-1.5 Mm2
46 Steering
015 Steering Gear
10 10 A1994600200A 199 460 02 00 Steering Rack-and-pinion Steering
20 20 A1994600005A 199 460 00 05 Drag Link Outside Left And Right (2×)
30 30 N913023012002N 913023 012002 Nut On Tie Rod M12x1.5 (2×)
40 40 A1994660138A 199 466 01 38 Cover Plate Track Rod Left
50 50 A1994660238A 199 466 02 38 Cover Plate Right Track Rod
60 60 A1994620250A 199 462 02 50 Bushing At Steering Gear (2×)
70 70 A1994620150A 199 462 01 50 Bushing At Steering Gear (2×)
80 80 A1994610140A 199 461 01 40 Steering Support Spindle
90 90 A1994600009A 199 460 00 09 Steering Shaft Steering Shaft To Joint
100 100 A0009904407A 000 990 44 07 Fit Screw To Steering Shaft, Bottom M8x38
110 110 A0039900650A 003 990 06 50 Hexagon Nut To Steering Shaft, Bottom M8x8
120 120 A1994620078A 199 462 00 78 Coupling Socket Lower Steering Shaft To Upper Steering Shaft
140 140 A1994620001A 199 462 00 01 Steering Shaft At Steering Gear
150 150 A1994620350A 199 462 03 50 Pilot Bushing Steering Shaft
150 150 A1994620450A 199 462 04 50 Pilot Bushing Steering Shaft
160 160 N913023010002N 913023 010002 Nut Steering To Steering Bracket M10 (2×)
170 170 A0009902400A 000 990 24 00 Hexagon Head Bolt At Steering Intermediate Bracket
180 180 N009021006208N 009021 006208 Washer At Steering Intermediate Bracket 6 Mm
190 190 N913023006001N 913023 006001 Nut At Steering Intermediate Bracket M6
200 200 A0009904902A 000 990 49 02 Csk. Bolt W Hex. Socket At Steering Intermediate Bracket (2×)
220 220 N910105008008N 910105 008008 Hexagon Head Bolt At Steering M8x16
230 230 A0149909101A 014 990 91 01 Combi-hexagon Head Bolt At Steering Gear 10x78 (2×)
230 230 A0019900300A 001 990 03 00 Hexagon Fit Bolt At Steering Gear (2×)
064 Gasoline Vehicles Line Scope
10 10 A0004600183A 000 460 01 83 Oil Reservoir
20 20 A0004661880A 000 466 18 80 Seal Oil Tank
30 30 A1994380039A 199 438 00 39 Connector Oil Tank
40 40 A0039945445A 003 994 54 45 Fuse Connector
40 40 A0009941903A 000 994 19 03 Retaining Disk Connector
50 50 A1994600043A 199 460 00 43 Line To Pump
60 60 A0139970245A 013 997 02 45 O-ring Connector
70 70 A1994660109A 199 466 01 09 Line From Pump To Steering
80 80 A1994660124A 199 466 01 24 Line From Radiator To Reservoir
100 100 A1994660509A 199 466 05 09 Line At Radiator
110 110 A0289973248A 028 997 32 48 Sealing Ring To Line 7.65 X 1.63 Mm
120 120 A0009954605A 000 995 46 05 Spring Bracket Clamp Hose To Reservoir
130 130 A1994660040A 199 466 00 40 Bracket Oil Tank
140 140 A0009980901A 000 998 09 01 Guide Grommet Oil Tank
150 150 N000000003765N 000000 003765 Hexalobular Bolt Oil Tank M6x20;m6 X 20
160 160 N913023006001N 913023 006001 Nut Oil Tank M6
170 170 A1994660409A 199 466 04 09 Line Steering
180 180 A0149908901A 014 990 89 01 Combi-hexagon Head Bolt At Radiator M5x12 (3×)
190 190 A1994600035A 199 460 00 35 Bracket Delivery Line
200 200 A1994600135A 199 460 01 35 Bracket Delivery Line
200 200 A1994600235A 199 460 02 35 Bracket Delivery Line Servolenkung / Automaticgetriebe*
210 210 N916016020201N 916016 020201 Clamp Delivery Line 20/15 Mm
220 220 N910142005000N 910142 005000 Hexalobular Bolt Delivery Line M5x10 (4×)
230 230 A0009951775A 000 995 17 75 Bracket Left
240 240 A0009951875A 000 995 18 75 Bracket Right
250 250 A0059970190A 005 997 01 90 Hose Clamp Return 14-24 Mm
260 260 A2309950005A 230 995 00 05 Spring Bracket Clamp Return 23/12 Mm (2×)
070 Power Steering Pump
10 10 A1994660301A 199 466 03 01 Hydraulic Pump
20 20 A6112300115A 611 230 01 15 Belt Pulley Power Steering Pump
075 Steerg.column Jacket Tube & Steerg. Shaft
10 10 A1994600016A 199 460 00 16 Steering Column Tube
700 700 A2205453928A 220 545 39 28 Receptacle Housing Steering Column Adjustment Motor, Black 4-pin Slk2.8;m20
700 700 A2205454028A 220 545 40 28 Receptacle Housing Steering Column Adjustment Motor, Transparent 4-pin Slk2.8;m20
705 705 A0135451526A 013 545 15 26 Contact Socket 0.75-1.0 Mm2 Slk2.8
705 705 A0135451626A 013 545 16 26 Contact Socket 1.5-2.5 Mm2 Slk2.8
105 Steering Wheel And Steering Lock
10 10 A1994600103A 199 460 01 03 Steering Wheel
20 20 A1269900312A 126 990 03 12 Csk. Bolt W Hex. Socket Steering Wheel To Steering Column M16
30 30 A1998600002A 199 860 00 02 Air Bag
100 100 A2204620123A 220 462 01 23 Cap
110 110 A2154620095A 215 462 00 95 Cover
120 120 A0004640418A 000 464 04 18 Clock Spring Contact
130 130 A0025421718A 002 542 17 18 Sender Unit Lock Angle Sensor
47 Fuel System
015 Fuel Tank With Attachment Parts
5 5 A1994701301A 199 470 13 01 Fuel Tank
10 10 A1994710101A 199 471 01 01 Fuel Tank Left Fuel Tank
20 20 A1994710001A 199 471 00 01 Fuel Tank Right Fuel Tank
30 30 N000000003539N 000000 003539 Pan Head Screw Fuel Tank M5x8 A2-70 (4×)
40 40 A0009907382A 000 990 73 82 Window Fuel Tank M12 (2×)
50 50 A0069972790A 006 997 27 90 Hose Clamp W Worm Drive Fuel Tank 60-80 Mm (2×)
60 60 A0009904217A 000 990 42 17 Screw Plug Fuel Tank
70 70 A1994760475A 199 476 04 75 Hose Connection Left And Right-hand Side
80 80 A1994740140A 199 474 01 40 Bracket Left Fuel Tank
80 80 A1994740040A 199 474 00 40 Bracket Right Fuel Tank
100 100 N910143006000N 910143 006000 Hexalobular Bolt Attachment M6x12 (24×)
110 110 A1994710079A 199 471 00 79 Sealing Ring Fuel Tank (2×)
120 120 A1994760075A 199 476 00 75 Hose Breather Hose
130 130 A1405421517A 140 542 15 17 Sender Unit Contact Cover For Gasoline Pump
140 140 A1995450084A 199 545 00 84 Connector Fuel Tank (2×)
150 150 A1994700394A 199 470 03 94 Fuel Pump Left Side Mounted Tank
150 150 A1994700494A 199 470 04 94 Fuel Pump Right Side Mounted Tank
160 160 A1994700190A 199 470 01 90 Fuel Filter Fuel Tank (2×)
170 170 A1995400217A 199 540 02 17 Sensor Pressure Sensor And Fuel Level Sensor
180 180 A1994760101A 199 476 01 01 Line Fuel Return
185 185 A1994760201A 199 476 02 01 Fuel Line Feed From Filter
190 190 A1994700075A 199 470 00 75 Fuel Hose Fuel Tank
200 200 A1995420018A 199 542 00 18 Sender Unit Temperature Sensor Fuel
205 205 A1990910001A 199 091 00 01 Fuel Pump Left And Right
210 210 A0009956710A 000 995 67 10 Hose Clamp W Worm Drive Fuel Hose
210 210 A0009958735A 000 995 87 35 Hose Clamp Fuel Hose
220 220 A1994700020A 199 470 00 20 Filler Neck Fuel Tank
230 230 A1996110197A 199 611 01 97 Pad Filler Neck
240 240 N910105005003N 910105 005003 Hexagon Head Bolt Filler Neck M5x20
250 250 A0009981902A 000 998 19 02 Cable Grommet Filler Neck
260 260 A0009955835A 000 995 58 35 Hose Clamp Filler Neck
270 270 A0009956144A 000 995 61 44 Clamp Filler Neck 6.5x14.5 Mm (2×)
270 270 A0019951744A 001 995 17 44 Clamp Filler Neck 20 Mm (2×)
280 280 A0009956310A 000 995 63 10 Hose Clamp W Worm Drive Filler Neck (2×)
290 290 A0009951742A 000 995 17 42 Retaining Clamp Filler Neck
300 300 A1994760001A 199 476 00 01 Molded Hose Return Line To Fuel Tank
310 310 A1994700072A 199 470 00 72 Line From Filler Neck To Fuel Tank
320 320 A2304700305A 230 470 03 05 Fuel Filler Cap To Filler Neck Euro
320 320 A2214700605A 221 470 06 05 Filler Cap To Filler Neck
330 330 N000000001686N 000000 001686 Hexalobular Bolt Fuel Tank M6x16 (8×)
340 340 N000000003502N 000000 003502 Cap Bolt Fuel Tank M6x55 A2-70 (4×)
350 350 N304032006009N 304032 006009 Hexagon Nut Fuel Tank M6 (12×)
360 360 N000000002701N 000000 002701 Hexagon Head Bolt Fuel Tank 6x12 (8×)
370 370 N000000003376N 000000 003376 Clamp Fuel Tank Mbn 10272-a-40-55x9-sw7-w3 (2×)
380 380 N000125006449N 000125 006449 Washer Fuel Tank (24×)
390 390 A1994760701A 199 476 07 01 Bracket Inside Left
390 390 A1994760801A 199 476 08 01 Bracket Inside Right
390 390 A1994760901A 199 476 09 01 Bracket Outside Left
390 390 A1994761001A 199 476 10 01 Bracket Outside Right
400 400 A1994710241A 199 471 02 41 Bracket Bottom Inside (4×)
410 410 A1994710341A 199 471 03 41 Bracket Top Inside (2×)
420 420 A1994710050A 199 471 00 50 Bushing Tank (4×)
430 430 A1994750053A 199 475 00 53 Spacer Tube Fuel Tank (4×)
440 440 A0029902950A 002 990 29 50 Hexagon Nut Fuel Tank (4×)
450 450 A1994710150A 199 471 01 50 Pilot Bushing Fuel Tank (4×)
450 450 A1994710250A 199 471 02 50 Pilot Bushing Fuel Tank (4×)
460 460 A1994710595A 199 471 05 95 Shim Outside Top Left
460 460 A1994750120A 199 475 01 20 Protective Padding Outside Top Left (2×)
460 460 A1994710695A 199 471 06 95 Shim Outside Top Right
470 470 A1994750320A 199 475 03 20 Pad Inside Top Left
470 470 A1994750420A 199 475 04 20 Pad Interior Top Right
480 480 A1994710641A 199 471 06 41 Bracket Tank (2×)
480 480 A1994710741A 199 471 07 41 Bracket Tank (2×)
480 480 A1994710641A 199 471 06 41 Bracket Fuel Tank (2×)
490 490 A1994750127A 199 475 01 27 Bracket Top Outside Left
500 500 A1994711595A 199 471 15 95 Shim Front Left
500 500 A1994711695A 199 471 16 95 Shim Front Right
510 510 A1994710995A 199 471 09 95 Shim Rear Left
510 510 A1994711095A 199 471 10 95 Shim Rear Right
520 520 A1994711195A 199 471 11 95 Shim Outside Left
520 520 A1994711295A 199 471 12 95 Shim Outside Right
530 530 A1994711395A 199 471 13 95 Shim Inside (2×)
540 540 A1994710059A 199 471 00 59 Retaining Strap Fuel Tank (4×)
560 560 A0315453228A 031 545 32 28 Plug Housing Fuel Gauge Sender Unit To Fuel Tank 2-pin Jpt2.8;b4
570 570 A0115458126A 011 545 81 26 Contact Spring 0.5-1.0 Mm2 Jpt
580 580 A2105402181A 210 540 21 81 Clutch Pressure Sending Unit, Tank 3-pin Mqs;b4/3
590 590 A0085456326A 008 545 63 26 Contact Socket 0.5-0.75 Mm2 Mqs
035 Fuel Lines, Gasoline Vehicles
10 10 A1404760217A 140 476 02 17 Radiator Fuel Cooling
20 20 A1994740239A 199 474 02 39 Major Assembly Carrier Fuel Cooler
20 20 A1994740640A 199 474 06 40 Bracket Fuel Cooler
30 30 A1994761701A 199 476 17 01 Line Fuel Feed
40 40 A1994761801A 199 476 18 01 Line Fuel Return
50 50 A1994760375A 199 476 03 75 Hose Fuel Return
60 60 A1994750020A 199 475 00 20 Pad Fuel Line
70 70 N910143006005N 910143 006005 Hexalobular Bolt Fuel Line Mounting M6x35 (2×)
80 80 N000000003648N 000000 003648 Hexalobular Bolt Fuel Line Mounting M6x25 (2×)
90 90 N913023006001N 913023 006001 Nut Fuel Line Mounting M6 (2×)
100 100 A0009959342A 000 995 93 42 Retaining Clamp Fuel Line Mounting 12/15 W3 (6×)
110 110 A0009950442A 000 995 04 42 Clamp Fuel Line Mounting (4×)
120 120 N000000000665N 000000 000665 Clamp Fuel Line Mounting 12-22 Mm (10×)
130 130 A0009956335A 000 995 63 35 Hose Clamp Fuel Line Mounting
140 140 A0009950675A 000 995 06 75 Bracket Fuel Line Mounting (2×)
150 150 A0009956410A 000 995 64 10 Hose Clamp W Worm Drive Radiator Mounting
160 160 A0009956510A 000 995 65 10 Hose Clamp W Worm Drive Radiator Mounting
170 170 A0009981002A 000 998 10 02 Cable Grommet W But. Bead Clamp (2×)
180 180 A0009950775A 000 995 07 75 Bracket Line Spacer
190 190 A0009956835A 000 995 68 35 Clamp Bracket
200 200 A0009951375A 000 995 13 75 Bracket Line Spacer
210 210 A1994750020A 199 475 00 20 Pad Fuel Line (2×)
220 220 A0009955775A 000 995 57 75 Bracket Fastening Fuel Lines To Longitudinal Member (2×)
220 220 A0009955875A 000 995 58 75 Bracket Fuel Line Mounting (2×)
220 220 A0009951275A 000 995 12 75 Bracket Fuel Line (4×)
060 Closed Fuel-evaporation-control System
40 40 A1994761501A 199 476 15 01 Vent Line Breather Line To Activated Charcoal Filter
50 50 A1994700024A 199 470 00 24 Suction Line Breathing
60 60 A2204700559A 220 470 05 59 Activated Charcoal Filter
70 70 A1994700042A 199 470 00 42 Support Activated Charcoal Filter
70 70 A1994760336A 199 476 03 36 Bracket Activated Charcoal Filter
75 75 N910143006000N 910143 006000 Hexalobular Bolt At Bracket M6x12 (3×)
80 80 A1179870045A 117 987 00 45 Plug Activated Charcoal Filter
100 100 A0004703593A 000 470 35 93 Purge Valve
110 110 A1994760036A 199 476 00 36 Bracket Regeneration Valve
115 115 N910105005000N 910105 005000 Hexagon Head Bolt M5x12
120 120 A1994760975A 199 476 09 75 Hose Regeneration Valve To Engine
140 140 A1994760926A 199 476 09 26 Hose Regeneration Line To Regeneration Valve
150 150 A1994760726A 199 476 07 26 Hose Regeneration Line
160 160 A1994710115A 199 471 01 15 Vent Tube Regeneration Line
170 170 A1994760826A 199 476 08 26 Hose Regeneration Line
180 180 A1994761201A 199 476 12 01 Molded Hose Regeneration Line
190 190 A1994761401A 199 476 14 01 Molded Hose Act. Carbon Can. Purge Line
200 200 N000000000665N 000000 000665 Clamp Fuel Line Mounting 12-22 Mm (10×)
210 210 A1990940542A 199 094 05 42 Clamp
700 700 A2105402081A 210 540 20 81 Receptacle Housing Shutoff Valve Activated-carbon Filter 2-pin Mqs;y58/4
705 705 A0085456326A 008 545 63 26 Contact Socket 0.5-0.75 Mm2 Mqs
710 710 A1405453528A 140 545 35 28 Receptacle Housing Valve To Activated Charcoal Filter 2 Pin Jpt;y58/1
715 715 A0005402705A 000 540 27 05 Electrical Line 1.00 Mm2 Jpt
49 Exhaust System
105 Air Pump
100 100 A0001404385A 000 140 43 85 Air Pump (air Pump),electric
110 110 A0009980145A 000 998 01 45 Rubber Bumper Air Pump (3×)
115 115 A1992310245A 199 231 02 45 Bracket Air Pump
120 120 N000000003201N 000000 003201 Hexalobular Bolt At Bracket M8x20
120 120 A0149908101A 014 990 81 01 Combi-hexagon Head Bolt At Bracket M12x1,5x125 (2×)
125 125 N913023012002N 913023 012002 Nut Air Pump To Bracket M12x1.5 (2×)
128 128 A0015466135A 001 546 61 35 Protective Cap (2×)
130 130 A0029906005A 002 990 60 05 Bolt At Bracket M6x8 (3×)
135 135 A1552300082A 155 230 00 82 Hose Air Inlet
140 140 A1552380382A 155 238 03 82 Hose With Branch-off
145 145 A1552380282A 155 238 02 82 Hose Engine Right
150 150 A1552380082A 155 238 00 82 Hose Air Pump
155 155 A1552380182A 155 238 01 82 Hose Air Pump
160 160 A0009953005A 000 995 30 05 Spring Bracket Clamp 26 Mm (3×)
170 170 A2039950605A 203 995 06 05 Spring Bracket Clamp 29/12mm (2×)
212 Exhaust System Used On Eight-cylinder Gasoline Vehicles
10 10 A1994900110A 199 490 01 10 Exhaust Pipe Left
10 10 A1994900010A 199 490 00 10 Exhaust Pipe Right
20 20 A1994910180A 199 491 01 80 Gasket Catalyst To Main Muffler (2×)
25 25 A1994920171A 199 492 01 71 Screw (6×)
30 30 A1994910100A 199 491 01 00 Muffler Left
30 30 A1994910000A 199 491 00 00 Muffler Right
40 40 A1994920044A 199 492 00 44 Suspension Ring Suspension (6×)
40 40 A1994920044A 199 492 00 44 Suspension Ring Left And Right (6×)
50 50 A1994900127A 199 490 01 27 Exhaust Tailpipe Short, Left
50 50 A1994900027A 199 490 00 27 Tailpipe Short, Right
60 60 A1994900327A 199 490 03 27 Exhaust Tailpipe Long; Left
60 60 A1994900227A 199 490 02 27 Exhaust Tailpipe Long; Right
80 80 A1999940060A 199 994 00 60 Clamp Main Muffler Suspension (4×)
100 100 A1994900041A 199 490 00 41 Clamp Rear Left And Right (2×)
110 110 A1994920071A 199 492 00 71 Screw Rear Left And Right M6x30 (4×)
120 120 A1121420072A 112 142 00 72 Hexagon Nut Rear Left And Right M6 (4×)
130 130 A2034900741A 203 490 07 41 Pipe Clamp F Exhaust Sys. Left And Right Front (2×)
140 140 A1994920071A 199 492 00 71 Screw Left And Right Front M6x30 (4×)
150 150 A1121420072A 112 142 00 72 Hexagon Nut Left And Right Front M6 (4×)
160 160 A4634920071A 463 492 00 71 Screw Suspension 8x38.5 (12×)
160 160 A4634920071A 463 492 00 71 Screw Main Muffler Suspension 8x38.5 (12×)
170 170 A1999900540A 199 990 05 40 Window Suspension 12x24 (12×)
170 170 A1999900540A 199 990 05 40 Window Main Muffler Suspension 12x24 (12×)
180 180 N910105008008N 910105 008008 Hexagon Head Bolt Main Muffler Suspension M8x16 (4×)
190 190 N910105005000N 910105 005000 Hexagon Head Bolt Main Muffler Suspension M5x12 (2×)
200 200 A1997951696A 199 795 16 96 Pad Main Muffler Suspension 6 Mm (2×)
210 210 A1994910341A 199 491 03 41 Bracket Exhaust (2×)
290 Exhaust Manifold
10 10 A1121420180A 112 142 01 80 Gasket Exhaust Manifold Gasket (8×)
20 20 A1121420072A 112 142 00 72 Hexagon Nut Exhaust Manifold M6 (16×)
30 30 A1994900130A 199 490 01 30 Heat Shield Left
30 30 A1994900230A 199 490 02 30 Heat Shield Right
40 40 A1994920730A 199 492 07 30 Shield Heat Extractor For Left Exhaust Manifold
40 40 A1994920830A 199 492 08 30 Shield Heat Extractor For Right Exhaust Manifold
80 80 A1994920530A 199 492 05 30 Heat Shield Left Above Exhaust-manifold*
80 80 A1994920630A 199 492 06 30 Heat Shield Right Above Exhaust-manifold*
120 120 A1994910016A 199 491 00 16 Adapter Downstream Catalytic Converter (2×)
130 130 A1994910116A 199 491 01 16 Adapter In Front Of Catalysr,left
130 130 A1994910216A 199 491 02 16 Adapter In Front Of Catalysr,right
140 140 A0009907556A 000 990 75 56 Clip Nut Insulation Mounting (8×)
300 Screening Plates
10 10 A1994310562A 199 431 05 62 Cover Left Brake Line
10 10 A1994310662A 199 431 06 62 Cover Right Brake Line
30 30 A1991880085A 199 188 00 85 Cover Plate Oil Tank
40 40 A0009914770A 000 991 47 70 Clamp Cover Plate (2×)
50 50 A1996160190A 199 616 01 90 Spacer Cover Plate (2×)
480 480 N304032005007N 304032 005007 Hexagon Nut To Guard M5-a2-70 (5×)
490 490 A1994910330A 199 491 03 30 Shield Left Front Exhaust Muffler To Frame
490 490 A1994910430A 199 491 04 30 Shield Right Front Exhaust Muffler To Frame
510 510 A1994910730A 199 491 07 30 Shield Left
510 510 A1994910830A 199 491 08 30 Shield Right
550 550 A1996020027A 199 602 00 27 Screening Part Air Pump
560 560 A1996020227A 199 602 02 27 Screening Part Fire Wall, Left
580 580 A1996020127A 199 602 01 27 Screening Part Fuel Cooler
600 600 A1996021627A 199 602 16 27 Screening Part Side Ledge, Right
600 600 A1996021527A 199 602 15 27 Heat Shield Side Ledge, Left
610 610 A1996820071A 199 682 00 71 Shielding Transmission Tunnel
620 620 A1996160527A 199 616 05 27 Shielding Left Wheel Arch
620 620 A1996160627A 199 616 06 27 Shielding Right Wheel Arch
630 630 A1994310762A 199 431 07 62 Cover Brake Line
640 640 A1996250008A 199 625 00 08 Cover Left And Right (2×)
650 650 A1996021227A 199 602 12 27 Heat Shield To Fire Wall,rechts
660 660 A1996021127A 199 602 11 27 Heat Shield To Fire Wall,left
670 670 A1996021727A 199 602 17 27 Heat Shield Side Panel,left
670 670 A1996021827A 199 602 18 27 Heat Shield Side Panel,right
700 700 A1994910930A 199 491 09 30 Shield Left
700 700 A1994911030A 199 491 10 30 Shield Right
710 710 A1994911330A 199 491 13 30 Shield Left
710 710 A1994911430A 199 491 14 30 Shield Right
720 720 A1994911130A 199 491 11 30 Shield Left
720 720 A1994911230A 199 491 12 30 Shield Right
730 730 A1996160727A 199 616 07 27 Shielding Top Left
730 730 A1996160827A 199 616 08 27 Shielding Top Right
750 750 A1994911530A 199 491 15 30 Shield Release, Engine Hood
760 760 A1994921230A 199 492 12 30 Shield At Alternator
50 Radiator
015 Radiator,mounting,and Covering
10 10 A1995000202A 199 500 02 02 Radiator Module
10 10 A1995000302A 199 500 03 02 Radiator
10 10 A1995000002A 199 500 00 02 Radiator Valeo / Tbm
20 20 A1995000254A 199 500 02 54 Condensor Air Conditioner
40 40 A1998350004A 199 835 00 04 Blower Alternator/wiper Motor (2×)
40 40 A1998350204A 199 835 02 04 Fan Alternator/wiper Motor (2×)
60 60 A2115040212A 211 504 02 12 Rubber Bushing Left And Right Bottom (2×)
70 70 A2115040312A 211 504 03 12 Rubber Bushing Left And Right Top (2×)
80 80 A1995040340A 199 504 03 40 Bracket Radiator,left
80 80 A1995000131A 199 500 01 31 Bracket Radiator,left
80 80 A1995040040A 199 504 00 40 Bracket Radiator,right
80 80 A1995000231A 199 500 02 31 Bracket Radiator,right
100 100 A1995000116A 199 500 01 16 Air Ducting Radiator
100 100 A1995000316A 199 500 03 16 Air Ducting Radiator
100 100 A1995000416A 199 500 04 16 Air Deflector Shield Radiator
110 110 A1235040246A 123 504 02 46 Clip Nut Cover To Radiator (2×)
120 120 A0049941245A 004 994 12 45 Spring Nut Air Duct Part Mounting M5 (4×)
130 130 A0029903405A 002 990 34 05 Stud Bolt Air Baffle M5x10 (2×)
140 140 A0029906205A 002 990 62 05 Stud Bolt Air Ducting M5x12 (4×)
150 150 A1995050088A 199 505 00 88 Cover Radiator
160 160 A0029903005A 002 990 30 05 Pan Head Screw Air Baffle M5 X 20 Mm (2×)
170 170 N913023005002N 913023 005002 Nut Air Baffle M5 (3×)
180 180 A0039948545A 003 994 85 45 Spring Nut Air Baffle 4.8/0.5-2.5 Mm (2×)
200 200 A2115000493A 211 500 04 93 Blower Radiator 850 W
200 200 A2115001893A 211 500 18 93 Blower Radiator 850w
400 400 A1995040640A 199 504 06 40 Bracket In Front Radiator
400 400 A1995040740A 199 504 07 40 Air Ducting In Front Radiator
410 410 A0029903505A 002 990 35 05 Stud Bolt Air Ducting To Radiator M12x16 (2×)
420 420 A1995040141A 199 504 01 41 Bracket Air Duct,left
430 430 A1995040241A 199 504 02 41 Bracket Air Duct,right
440 440 A0029906205A 002 990 62 05 Stud Bolt Air Ducting M5x12 (12×)
540 540 N910143006000N 910143 006000 Hexalobular Bolt Air Ducting To Radiator M6x12 (5×)
550 550 A0009904856A 000 990 48 56 Clip Nut Air Ducting To Radiator M5 (5×)
550 550 A0009906856A 000 990 68 56 Clip Nut Air Ducting To Radiator M5 (5×)
570 570 A1997950396A 199 795 03 96 Washer Air Ducting To Radiator M5x12.7x1 (4×)
700 700 A2118350047A 211 835 00 47 Refrigerant Drier For Ac Air Conditioner
705 705 A1409970645A 140 997 06 45 Sealing Ring 7.5x2.0 (2×)
705 705 A0139974045A 013 997 40 45 Sealing Ring 7.5x2.0 (2×)
900 900 A2205450329A 220 545 03 29 Receptacle Housing Cooler Blower 4-pin Slk2.8, Lsk8;m4/7_a
900 900 A0155455526A 015 545 55 26 Socket Cooler Blower 2-pin Mini Mic;m4/7_b
905 905 A0095458126A 009 545 81 26 Contact Socket 0.75-1.0 Mm2 Slk2.8;m4/7_a
905 905 A0135458726A 013 545 87 26 Contact Insert 8.0-12.0 Mm2 Lsk8;m4/7_a
905 905 A0005457680A 000 545 76 80 Seal 2.2-3.0 Mm;m4/7_a
905 905 A0015454880A 001 545 48 80 Gasket 10 Mm2;m4/7_a
905 905 A0165450026A 016 545 00 26 Receptacle 0.75-1.5 Mm2 Mini Mic;m4/7_b
905 905 A0015450180A 001 545 01 80 Seal M4/7_b
160 Oil Cooler
10 10 A1991800165A 199 180 01 65 Oil Cooler
10 10 A1991800265A 199 180 02 65 Oil Cooler Elv1 - Cr6-frei*
20 20 A1991880040A 199 188 00 40 Bracket Oil Cooler (2×)
30 30 N000000003765N 000000 003765 Hexalobular Bolt Oil Cooler To Bracket,left And Right M6x20 (4×)
40 40 N913023006001N 913023 006001 Nut Oil Cooler To Bracket,left And Right M6 (4×)
50 50 A1995050530A 199 505 05 30 Air Deflector Shield Oil Cooler
60 60 A1267870097A 126 787 00 97 Felt Strip Cover 65x40x2mm (2×)
300 300 A1991800220A 199 180 02 20 Oil Line To Engine
310 310 A1991800420A 199 180 04 20 Oil Line From Engine To Connecting Piece
320 320 A1991800320A 199 180 03 20 Oil Line From Oil Tank
330 330 A1991800520A 199 180 05 20 Oil Line To Oil Tank
340 340 A1990180070A 199 018 00 70 Threaded Fitting To Oil Line (7×)
350 350 A1991840225A 199 184 02 25 Filter Element From Oil Tank
360 360 A1999900340A 199 990 03 40 Seal Oil Lines (8×)
400 400 A1992300183A 199 230 01 83 Oil Reservoir Engine
410 410 A1990100064A 199 010 00 64 Oil Filler Neck Oil Tank
420 420 A1994810040A 199 481 00 40 Bracket Filler Neck
430 430 A1998690894A 199 869 08 94 Hose To Filler Neck
450 450 A1990180170A 199 018 01 70 Threaded Fitting To Hose
460 460 A0109942441A 010 994 24 41 Retaining Ring For Shaft Pipe To Hose
480 480 A1992710008A 199 271 00 08 Cap Filler Pipe
490 490 A0139975345A 013 997 53 45 O-ring Cover
500 500 A1990180015A 199 018 00 15 Oil Dipstick Oil Tank
500 500 A1990180015A 199 018 00 15 Oil Dipstick Oil Tank
505 505 A0069972645A 006 997 26 45 Sealing Ring Guide Tube
510 510 A1551800057A 155 180 00 57 Oil Dipstick
510 510 A1551800457A 155 180 04 57 Oil Dipstick
550 550 A1998171120A 199 817 11 20 Information Label Oil Tank
600 600 A1990180050A 199 018 00 50 Bushing Oil Tank Fastening (8×)
610 610 A1996190075A 199 619 00 75 Spacer Oil Tank Fastening (4×)
620 620 A1990180040A 199 018 00 40 Bracket Oil Tank Fastening
620 620 A1990180240A 199 018 02 40 Bracket Oil Tank Fastening Oelbehaelter Oben*
630 630 A1990180140A 199 018 01 40 Bracket Oil Tank Fastening (2×)
640 640 N910143006001N 910143 006001 Hexalobular Bolt Bracket To Body M6x16 (2×)
650 650 N000000001479N 000000 001479 Hexalobular Bolt Bracket To Oil Tank M6x30 (4×)
660 660 N910143006001N 910143 006001 Hexalobular Bolt Lower Bracket M6x16 (4×)
670 670 N007604014110N 007604 014110 Screw Plug Oil Tank
680 680 A1999900240A 199 990 02 40 Washer Srrew Plug
700 700 N910105005003N 910105 005003 Hexagon Head Bolt Oil Tank M5x20 (2×)
700 700 N910142005000N 910142 005000 Hexalobular Bolt Oil Tank M5x10
700 700 N910143006000N 910143 006000 Hexalobular Bolt Oil Tank M6x12 (6×)
720 720 A0069974290A 006 997 42 90 Clamp Oil Tank 28/35 Mm (2×)
730 730 A1164661382A 116 466 13 82 Rubber Ring To Oil Line
740 740 A1990180412A 199 018 04 12 Breather Pipe At Oil Tank
745 745 A1990180312A 199 018 03 12 Breather Pipe Left Cylinder Head
750 750 A1991880085A 199 188 00 85 Cover Plate At Oil Tank
165 Expansion Tank,mounting And Hoses
10 10 A1995000049A 199 500 00 49 Container Cooling Water System
15 15 A0005018215A 000 501 82 15 Radiator Cap Radiator
20 20 A2205450024A 220 545 00 24 Switch Cooling Water Level Indicator
30 30 A1995010020A 199 501 00 20 Bracket Expansion Tank
40 40 A0149908901A 014 990 89 01 Combi-hexagon Head Bolt Mounting, Tank M5x12 (6×)
40 40 N910105005002N 910105 005002 Hexagon Head Bolt Mounting, Tank M5x16 (6×)
40 40 A0149908901A 014 990 89 01 Combi-hexagon Head Bolt Mounting, Tank M5x12 (6×)
50 50 N913023005002N 913023 005002 Nut Mounting, Tank M5 (2×)
60 60 N910105005003N 910105 005003 Hexagon Head Bolt Mounting, Tank M5x20 (2×)
70 70 A0029904205A 002 990 42 05 Pan Head Screw At Bracket M5x16 (4×)
80 80 A0019902282A 001 990 22 82 Window At Bracket (6×)
90 90 N304032005007N 304032 005007 Hexagon Nut At Bracket M5-a2-70 (2×)
100 100 A1995000075A 199 500 00 75 Coolant Hose From Radiator To Engine
100 100 A1995000575A 199 500 05 75 Coolant Hose From Radiator To Engine
105 105 A2039950605A 203 995 06 05 Spring Bracket Clamp Hose Attachment 29/12mm;29mm
110 110 A1995000175A 199 500 01 75 Coolant Hose From Engine To Radiator
110 110 A1995000675A 199 500 06 75 Coolant Hose From Engine To Radiator
120 120 A1995000275A 199 500 02 75 Hose Cooling-water-line Breathing
125 125 A0009952365A 000 995 23 65 Clamp Hose Attachment 15 Mm (6×)
130 130 A1995000375A 199 500 03 75 Hose For Pressure Relief
135 135 A0009956335A 000 995 63 35 Hose Clamp Hose Attachment 12.5-14
140 140 A1995000475A 199 500 04 75 Hose Expansion Reservoir To Recirculating Pump
145 145 A0009981001A 000 998 10 01 Guide Grommet To Hose (3×)
150 150 A1995012484A 199 501 24 84 Hose At Radiator
155 155 A0069974290A 006 997 42 90 Clamp Hose Attachment 28/35 Mm;32mm
165 165 A1164661382A 116 466 13 82 Rubber Ring To Hose (2×)
200 200 A1995012584A 199 501 25 84 Hose Heating Connection To Water Pump
210 210 A0009955875A 000 995 58 75 Bracket To Hose
220 220 N916016025201N 916016 025201 Clamp Line Attachment 25/15
230 230 N000000004257N 000000 004257 Clamp To Hose
250 250 A0009953675A 000 995 36 75 Bracket Spacer To Pipeline (4×)
300 300 A1164661382A 116 466 13 82 Rubber Ring To Hose (2×)
310 310 A0009954605A 000 995 46 05 Spring Bracket Clamp Hose Attachment
320 320 A0009958110A 000 995 81 10 Hose Clamp W Worm Drive Hose Attachment
330 330 A0009954905A 000 995 49 05 Spring Bracket Clamp Hose Attachment
340 340 N000000000665N 000000 000665 Clamp Hose Attachment 12-22 Mm (3×)
340 340 A2039950305A 203 995 03 05 Clamp Hose Attachment 12-21 Mm (4×)
340 340 A0009953005A 000 995 30 05 Spring Bracket Clamp Hose Attachment 26 Mm (12×)
340 340 A1709950005A 170 995 00 05 Spring Bracket Clamp Hose Attachment 49/12 Mm (2×)
390 390 A0009956335A 000 995 63 35 Hose Clamp Hose Attachment (2×)
400 400 A0009951275A 000 995 12 75 Bracket To Hose (3×)
405 405 A1239950265A 123 995 02 65 Clamp Hose Attachment 14 Mm (6×)
500 500 A0005840807A 000 584 08 07 Plate Expansion Tank Englisch
600 600 A1990960040A 199 096 00 40 Radiator Low Temperature
610 610 A1995010884A 199 501 08 84 Hose Low Temperature Cooler To Pump, Right
620 620 A0009952365A 000 995 23 65 Clamp Hose Attachment 15 Mm (4×)
630 630 A1995011084A 199 501 10 84 Hose Low Temperature Pump, Right, To Distributor
635 635 A1239950265A 123 995 02 65 Clamp Hose Attachment 14 Mm (6×)
640 640 A1239950265A 123 995 02 65 Clamp Hose Attachment 14 Mm (4×)
650 650 A1995011284A 199 501 12 84 Hose Low Temperature Cooler, Right To Connecting Point
660 660 A2039950605A 203 995 06 05 Spring Bracket Clamp Hose Attachment 29/12mm (4×)
670 670 A1995011584A 199 501 15 84 Hose Left And Right (2×)
675 675 A0159973145A 015 997 31 45 Sealing Ring To Hose (2×)
680 680 A0009954905A 000 995 49 05 Spring Bracket Clamp Hose Attachment (2×)
690 690 A1995012284A 199 501 22 84 Hose Ventilation, Right 1395 Mm
700 700 A1995012384A 199 501 23 84 Hose Ventilation, Left 1370 Mm
710 710 A1995012784A 199 501 27 84 Hose Low Temperature Pump, Left To Distributor
720 720 A1995012984A 199 501 29 84 Hose Low Temperature Cooler To Pump, Left
730 730 A1995013184A 199 501 31 84 Hose Expansion Tank
750 750 A1998310014A 199 831 00 14 Bracket To Coolant Hose (2×)
750 750 A1998310114A 199 831 01 14 Bracket To Coolant Hose (2×)
760 760 A1992030303A 199 203 03 03 Line At Tank (2×)
770 770 A1992031003A 199 203 10 03 Coolant Line At Tank
800 800 A0005000186A 000 500 01 86 Coolant Pump Low Temperature (2×)
800 800 A0005000386A 000 500 03 86 Coolant Pump Low Temperature (2×)
810 810 A1990180209A 199 018 02 09 Connector Left And Right (2×)
900 900 A2305400081A 230 540 00 81 Clutch Circulation Pump 2-pin Mqs;m13/4 (2×)
905 905 A0085456326A 008 545 63 26 Contact Socket 0.5-0.75 Mm2 Mqs
910 910 A1685400181A 168 540 01 81 Clutch Coolant Level 2 Pin Mqs;s41
915 915 A0085456326A 008 545 63 26 Contact Socket 0.5-0.75 Mm2 Mqs
600 Transmission Cooling
10 10 A1992710285A 199 271 02 85 Hose To Oil Cooler Right
20 20 A1992710385A 199 271 03 85 Hose To Oil Cooler Left
30 30 N007603014102N 007603 014102 Sealing Ring Left And Right 14x18-cu (4×)
40 40 N000000004846N 000000 004846 Fitting Left And Right (2×)
50 50 A0009951775A 000 995 17 75 Bracket Left (2×)
60 60 A0009951875A 000 995 18 75 Bracket Right (2×)
100 100 A1992710085A 199 271 00 85 Hose To Transmission Left
110 110 A1992710185A 199 271 01 85 Hose To Transmission Right
120 120 N000000004748N 000000 004748 Banjo Bolt On Hose Left And Right (2×)
130 130 A0009908482A 000 990 84 82 Window Hollow Screw (2×)
52 Chassis Sheet Metal / Air Intake
130 Air Intake
10 10 A1550900001A 155 090 00 01 Air Filter Filter Bowl
20 20 A6040941304A 604 094 13 04 Filter Element Make Mann & Hummel (2×)
30 30 A6040940285A 604 094 02 85 Rubber Bumper At Muffler Filter (2×)
40 40 A1550900042A 155 090 00 42 Clamp Hose To Intake Manifold
50 50 N000000001146N 000000 001146 Hexalobular Bolt Clamp Mounting M6x16 (4×)
60 60 A1550900142A 155 090 01 42 Clamp Hose To Air Cleaner
70 70 A1550900074A 155 090 00 74 Pin (2×)
100 100 A1550900029A 155 090 00 29 Air Suction Pipe
110 110 A0029971348A 002 997 13 48 Sealing Ring Air Intake Pipe
120 120 A1120940041A 112 094 00 41 Bracket Air Intake Pipe (2×)
130 130 N910112006001N 910112 006001 Hexagon Nut Bracket Mounting M6
140 140 N910142006000N 910142 006000 Hexalobular Bolt Bracket Mounting M6x12
200 200 A1550900129A 155 090 01 29 Air Suction Pipe Front Central
210 210 A1408880086A 140 888 00 86 Mercedes Star Air Intake Pipe
220 220 N000000001476N 000000 001476 Hexalobular Bolt Mercedes Star M6x16 (2×)
230 230 N000000001476N 000000 001476 Hexalobular Bolt Mercedes Star M6x16 (2×)
310 310 A1993120040A 199 312 00 40 Bracket
310 310 A1993120140A 199 312 01 40 Bracket An Quertraeger Im Motorraum*
54 Electrical Equipment And Instruments
021 Loom Ties, Cable Mounting Parts And Grommets
10 10 A0009951990A 000 995 19 90 Cable Strap 4.8 X 300 Mm
10 10 A0009951890A 000 995 18 90 Plug-in Cable Strap 3.5 X 150 Mm
10 10 A0009950990A 000 995 09 90 Cable Strap 2.5 X 200 Mm
10 10 A0009957990A 000 995 79 90 Cable Strap
20 20 A0005466943A 000 546 69 43 Bracket
70 70 A0029884578A 002 988 45 78 Clamp
80 80 A0025450840A 002 545 08 40 Bracket
400 400 A1267870097A 126 787 00 97 Felt Strip 65x40x2mm
450 450 A0049895285A 004 989 52 85 Adhesive Tape Cutting 70x70 Mm
450 450 A0059897385A 005 989 73 85 Adhesive Tape
023 Starter
10 10 A1121510001A 112 151 00 01 Starter Bosch
20 20 A0029902505A 002 990 25 05 Cap Bolt With Socket Starting Motor To Transmission Case M10x85 (2×)
026 Alternator
50 50 A1995460080A 199 546 00 80 Cable Guide
50 50 A1995050361A 199 505 03 61 Air Duct
60 60 A1995490027A 199 549 00 27 Bracket
70 70 A1995050061A 199 505 00 61 Air Duct At Alternator Zur Generatorkuehlung
80 80 A0009952232A 000 995 22 32 Clamp To Air Duct
90 90 A1992710640A 199 271 06 40 Bracket At Alternator
030 Battery,starter/alternator Cable
10 10 A2305410001A 230 541 00 01 Starter Battery Starting Motor Battery 12v/35ah;g1
20 20 A2305410201A 230 541 02 01 Battery On-board Electrical System Battery 12v/70ah;g1/4
20 20 A0019828008A 001 982 80 08 Starter Battery On-board Electrical System Battery 12v/70ah;g1/4
30 30 A1995400069A 199 540 00 69 Terminal Pos. Pole, Starter And On-board Ele. Sys. Batt. (2×)
35 35 A1995450434A 199 545 04 34 Fuse To Battery
35 35 N000000002004N 000000 002004 Fuse Link To Battery 100a
35 35 A1995450334A 199 545 03 34 Fuse To Battery 200a
40 40 A0009902162A 000 990 21 62 Plastic Nut Pos. Pole, Starter And On-board Ele. Sys. Batt. (2×)
45 45 A1995410033A 199 541 00 33 Cover Pos. Pole, Starter And On-board Ele. Sys. Batt. (2×)
50 50 A1995410312A 199 541 03 12 Rail Battery Mounting (3×)
60 60 A1995410412A 199 541 04 12 Rail Battery Mounting
70 70 A1995451340A 199 545 13 40 Bracket Battery
80 80 N304017008026N 304017 008026 Hexagon Head Bolt Battery Fastening M8x16 (4×)
85 85 N304017008026N 304017 008026 Hexagon Head Bolt Battery Fastening M8x16 (5×)
90 90 A0029972486A 002 997 24 86 Grommet On Battery,laterally 6x8 Mm
100 100 A0015410163A 001 541 01 63 Container On Battery,laterally
150 150 N000000003765N 000000 003765 Hexalobular Bolt M6x20 (3×)
150 150 A0029900905A 002 990 09 05 Stud Bolt M4x10
150 150 N910105005002N 910105 005002 Hexagon Head Bolt M5x16
150 150 N910105005000N 910105 005000 Hexagon Head Bolt M5x12 (13×)
150 150 N000000002925N 000000 002925 Hexalobular Bolt 4x12;innensechskant (2×)
160 160 A1993530052A 199 353 00 52 Spacer Disk
170 170 N006798008201N 006798 008201 Serrated Lock Washer (4×)
180 180 N913023005002N 913023 005002 Nut M5 (3×)
180 180 A0029902350A 002 990 23 50 Hexagon Nut With Flange M4 (2×)
180 180 N304035008001N 304035 008001 Hexagon Nut M8 (4×)
180 180 N910105005003N 910105 005003 Hexagon Head Bolt M5x20
180 180 N913023006001N 913023 006001 Nut M6 (3×)
200 200 A2305401045A 230 540 10 45 Control Unit Battery Control Module In Trunk
205 205 A2205453728A 220 545 37 28 Receptacle Housing On-board Elec. Supply Control Module 14-pin Slk2.8;n82/1
206 206 A0135451426A 013 545 14 26 Contact Spring 0.22-0.5 Mm2 Slk2.8
206 206 A0135451526A 013 545 15 26 Contact Socket 0.75-1.0 Mm2 Slk2.8
206 206 A0115450726A 011 545 07 26 Contact Socket 4.0 Mm2 Slk2.8
210 210 A1995450840A 199 545 08 40 Bracket Battery Control Module In Trunk
230 230 N000000003765N 000000 003765 Hexalobular Bolt Fastening Battery Control Module M6x20 (4×)
240 240 A0009907852A 000 990 78 52 Cap Nut Fastening Battery Control Module (4×)
245 245 A0009922210A 000 992 22 10 Collared Bushing Bracket Mounting (2×)
247 247 A1997952096A 199 795 20 96 Pad Bracket Mounting (4×)
260 260 A1995450001A 199 545 00 01 Fuse Box Front Prefuse Box F32
265 265 A0325451728A 032 545 17 28 Plug Front Prefuse Box 1-pin Rk2.5;f32
266 266 A0335452028A 033 545 20 28 Contact Pin 1.0-2.5 Mm2 Rk2.5
270 270 N000000006617N 000000 006617 Fuse Link 80a (2×)
280 280 A1995450540A 199 545 05 40 Bracket Front Prefuse Box
290 290 A0149908901A 014 990 89 01 Combi-hexagon Head Bolt At Bracket M5x12 (3×)
290 290 N910105005000N 910105 005000 Hexagon Head Bolt At Bracket M5x12 (3×)
300 300 A1995450201A 199 545 02 01 Fuse Box Prefuse Box Rear F33
310 310 N000000000411N 000000 000411 Fuse Link Mbn 10198 Typ Sf30 50 Ampere (2×)
310 310 N000000000432N 000000 000432 Fuse Link 150a (2×)
320 320 A1995450440A 199 545 04 40 Bracket Prefuse Box Rear
330 330 A0029904205A 002 990 42 05 Pan Head Screw At Bracket M5x16 (2×)
340 340 A1997950996A 199 795 09 96 Pad At Bracket 5 X 15 X 1 Mm (2×)
350 350 A0009982902A 000 998 29 02 Cable Grommet Electric Cable
380 380 A1995410040A 199 541 00 40 Bracket Charger Ground Terminal
470 470 A1995460643A 199 546 06 43 Bracket Starting Cable
470 470 A1995461043A 199 546 10 43 Bracket Starting Cable Cable-starter-motor*
480 480 N000000003175N 000000 003175 Nut Cable Harness Mounting M8
520 520 A0029902505A 002 990 25 05 Cap Bolt With Socket M10x85 (2×)
530 530 A1997951296A 199 795 12 96 Pad (2×)
550 550 A1998205104A 199 820 51 04 Electrical Line Battery To Generator
560 560 A1998205204A 199 820 52 04 Electrical Line Pos. Cable To Starting Motor
560 560 A1998205304A 199 820 53 04 Electrical Line Ground Cable To Starting Motor
570 570 A1998205604A 199 820 56 04 Electrical Line Ground Line Of Rear Frame To Right Firewall
590 590 A1998205504A 199 820 55 04 Electrical Line Ground Line Of Rear Frame To Left Firewall
600 600 A1998205704A 199 820 57 04 Electrical Line Left Firewall To Right Firewall
610 610 A1998205804A 199 820 58 04 Electrical Line Battery Pos. Term. To Prefuse Box
620 620 A1998205904A 199 820 59 04 Electrical Line From Battery Neg.pole To Frame
630 630 A1998206004A 199 820 60 04 Electrical Line Battery Positive Terminal To Battery Control Unit G1/4
640 640 A1998206104A 199 820 61 04 Electrical Line From Battery I To Battery Ii Negative G1 To G1/4
800 800 A1995410090A 199 541 00 90 Charger Battery
800 800 A0009820121A 000 982 01 21 Battery Charger Battery
077 Control Modules And Relay In Trunk
100 100 A2305454032A 230 545 40 32 Control Unit, Sam Signal Acquisition And Actuation Module In Rear Sam
100 100 A2305455432A 230 545 54 32 Control Unit Signal Acquisition And Actuation Module In Rear
300 300 A1998201126A 199 820 11 26 Cu, Rear Spoiler Air Brake/central Locking
300 300 A1998201526A 199 820 15 26 Cu, Rear Spoiler Air Brake/central Locking
300 300 A1998201726A 199 820 17 26 Control Unit Air Brake/central Locking
310 310 N910112005000N 910112 005000 Hexagon Nut To Control Unit M5
900 900 A2105450040A 210 545 00 40 Receptacle Housing Air Brake And Central Locking Control Unit 18-pin Jpt;n134/1
900 900 A2105450140A 210 545 01 40 Receptacle Housing Air Brake And Central Locking Control Unit 12-pin Jpt;n134/1
905 905 A0115458426A 011 545 84 26 Contact Spring 0.5-1.0 Mm2 Spt
905 905 A0045455226A 004 545 52 26 Contact Spring 1.0-2.5 Mm2 Spt
080 Apparatus Case And Control Units
10 10 A1995400250A 199 540 02 50 Fuse Box Fuse And Relay Box, Passenger-side A-pillar Sam/srb N10/10
10 10 A1995400850A 199 540 08 50 Elect. Center, Base Mod. Fuse And Relay Box, Passenger-side A-pillar Sam/srb N10/10
10 10 A1995400950A 199 540 09 50 Elect. Center, Base Mod. Fuse And Relay Box, Passenger-side A-pillar Sam/srb N10/10
10 10 A1995401350A 199 540 13 50 Elect. Center, Base Mod. Fuse And Relay Box, Passenger-side A-pillar Sam/srb N10/10
10 10 A1995401550A 199 540 15 50 Fuse Box Fuse And Relay Box, Passenger-side A-pillar Sam/srb N10/10
15 15 N910143006001N 910143 006001 Hexalobular Bolt To Fuse Box M6x16 (2×)
20 20 A1995400150A 199 540 01 50 Fuse Box Fuse And Relay Box, Front Passenger Footwell At Center Sam/srb N10/11
20 20 A1995400450A 199 540 04 50 Elect. Center, Base Mod. Fuse And Relay Box, Front Passenger Footwell At Center Sam/srb N10/11
20 20 A1995400750A 199 540 07 50 Elect. Center, Base Mod. Fuse And Relay Box, Front Passenger Footwell At Center Sam/srb N10/11
20 20 A1995401050A 199 540 10 50 Electrical Center Fuse And Relay Box, Front Passenger Footwell At Center Grundmodul Beifahrerseite;sam/srb N10/11
40 40 A0025421319A 002 542 13 19 Relay Plug Position: M, O
40 40 A0025421319A 002 542 13 19 Relay Left And Right Fuel Pump (2×)
50 50 A2305454632A 230 545 46 32 Control Unit Signal Acquisition And Actuation Module
50 50 A2305452032A 230 545 20 32 Control Unit Signal Acquisition And Actuation Module, Passenger Side Sam
50 50 A2305452432A 230 545 24 32 Control Unit Signal Acquisition And Actuation Module, Passenger Side Sam
100 100 A1551530579A 155 153 05 79 Control Unit Engine Control Module
100 100 A1551530679A 155 153 06 79 Control Unit Engine Control Module
100 100 A1551530879A 155 153 08 79 Control Unit Engine Control Module
100 100 A1551530979A 155 153 09 79 Control Unit Engine Control Module Msg
100 100 A1551531179A 155 153 11 79 Control Unit Engine Control Module Msg
110 110 A1995450640A 199 545 06 40 Bracket Engine Control Module
120 120 A0029902005A 002 990 20 05 Cap Bolt With Socket Bracket Mounting (2×)
130 130 A1998200282A 199 820 02 82 Mounting Consule
135 135 A0149908901A 014 990 89 01 Combi-hexagon Head Bolt At Console M5x12 (2×)
135 135 N910105005000N 910105 005000 Hexagon Head Bolt At Console M5x12 (2×)
140 140 A1998200382A 199 820 03 82 Mounting Consule (2×)
145 145 N910142005000N 910142 005000 Hexalobular Bolt At Console M5x10
150 150 A0025450840A 002 545 08 40 Bracket To Control Unit (2×)
200 200 A0315457732A 031 545 77 32 Control Unit Transmission Control Module
200 200 A0315457832A 031 545 78 32 Control Unit Transmission Control Module Gsg
210 210 A0029904205A 002 990 42 05 Pan Head Screw Trans. Cont. Module To Equip. Plate M5x16 (2×)
700 700 A2205455228A 220 545 52 28 Receptacle Housing Fuse And Relay Box,driver 6-pin Slk2.8;k40/2
700 700 A0355457828A 035 545 78 28 Plug Fuse And Relay Box,driver 2-pin;k40/2
705 705 A0135451626A 013 545 16 26 Contact Socket 1.5-2.5 Mm2 Slk2.8
705 705 A0005405705A 000 540 57 05 Electrical Wiring Harness 4.0 Mm2 Lsk8 Ag
710 710 A0025455901A 002 545 59 01 Fuse Box Fuse And Relay Box,driver 2-slot;k40/2
710 710 A0025455901A 002 545 59 01 Fuse Box Plug Position: 2-slot;l13/l14 K40/2 (2×)
710 710 A0025456401A 002 545 64 01 Fuse Box Fuse And Relay Box,driver 1-slot;k40/2
710 710 A0025453101A 002 545 31 01 Fuse Box Plug Position: L2 K40/2
710 710 A0025455801A 002 545 58 01 Fuse Box Plug Position: L4/l8 K40/2 (2×)
710 710 A0025453201A 002 545 32 01 Fuse Box Plug Position: L1/l10 K40/2 (2×)
710 710 A0025456501A 002 545 65 01 Fuse Box Plug Position: L5 K40/2
710 710 A0025456401A 002 545 64 01 Fuse Box Plug Position: 1-slot;l6 K40/2
715 715 A0115458426A 011 545 84 26 Contact Spring 0.5-1.0 Mm2 Spt
715 715 A0045455226A 004 545 52 26 Contact Spring 1.0-2.5 Mm2 Spt
715 715 A0045450026A 004 545 00 26 Contact Socket 2.5-4.0 Mm2 Spt
750 750 A0025450540A 002 545 05 40 Receptacle Housing Signal Acquisition And Actuation Module 32-pin Mqs;n10/6 (2×)
750 750 A0005459103A 000 545 91 03 Cap Mqs;to A 002 545 05 40 / Tyco Electroni (2×)
750 750 A0055452830A 005 545 28 30 Cover 32-pin Mqs;to A 002 545 05 40 (2×)
750 750 A0345458028A 034 545 80 28 Receptacle Housing Passenger-side Signal Acquisition And Actuation Module 8-pin, Cod. Z;n10/7
750 750 A2205451928A 220 545 19 28 Clutch Signal Acquisition And Actuation Module 20 Pin Mqs;n10/6
750 750 A2205451928A 220 545 19 28 Clutch Signal Acquisition And Actuation Module 20 Pin Mqs;n10/7
750 750 A2205457128A 220 545 71 28 Receptacle Housing Signal Acquisition And Actuation Module 6-pin Slk2.8;n10/7
755 755 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
755 755 A0005404605A 000 540 46 05 Electrical Line 0.75 Mm2 Mqs Sn
755 755 A0135451526A 013 545 15 26 Contact Socket 0.75-1.0 Mm2 Slk2.8
755 755 A0135451626A 013 545 16 26 Contact Socket 1.5-2.5 Mm2 Slk2.8
800 800 A2205453428A 220 545 34 28 Receptacle Housing Fuse And Relay Box, Front Passenger,black 10-pin
800 800 A2205456828A 220 545 68 28 Receptacle Housing Fuse And Relay Box, Front Passenger,transparent 10-pin
800 800 A0025455801A 002 545 58 01 Fuse Box Fuse And Relay Box Near Driver's Seat K40/4 L26
800 800 A0025456501A 002 545 65 01 Fuse Box Fuse And Relay Box Near Driver's Seat K40/4 L16
805 805 A0135451426A 013 545 14 26 Contact Spring 0.22-0.5 Mm2 Slk2.8
805 805 A0135451526A 013 545 15 26 Contact Socket 0.75-1.0 Mm2 Slk2.8
805 805 A0135451626A 013 545 16 26 Contact Socket 1.5-2.5 Mm2 Slk2.8
805 805 A0005405705A 000 540 57 05 Electrical Wiring Harness 4.0 Mm2 Lsk8 Ag
805 805 A0095452526A 009 545 25 26 Contact Socket 6.0-10.0 Mm2
805 805 A0115458426A 011 545 84 26 Contact Spring 0.5-1.0 Mm2 Spt
810 810 A2205455228A 220 545 52 28 Receptacle Housing Fuse And Relay Box, Front Passenger,black 6-pin Slk2.8;k40/4
810 810 A2205456928A 220 545 69 28 Receptacle Housing Fuse And Relay Box, Front Passenger,transparent 6-pin Slk2.8;k40/4
810 810 A2205454028A 220 545 40 28 Receptacle Housing Fuse And Relay Box Near Driver's Seat 4-pin Slk2.8;k40/4
810 810 A0025455901A 002 545 59 01 Fuse Box Plug Position: 2-slot;l19 K40/4
810 810 A0025453001A 002 545 30 01 Fuse Box Plug Position: L23 K40/4
810 810 A0025456501A 002 545 65 01 Fuse Box L21 K40/4
810 810 A0025456401A 002 545 64 01 Fuse Box 1-slot;l20 K40/4
810 810 A0025456801A 002 545 68 01 Fuse Box L15/l17/l18/l24 K40/4 (4×)
815 815 A0135451426A 013 545 14 26 Contact Spring 0.22-0.5 Mm2 Slk2.8
815 815 A0135451526A 013 545 15 26 Contact Socket 0.75-1.0 Mm2 Slk2.8
815 815 A0115458426A 011 545 84 26 Contact Spring 0.5-1.0 Mm2 Spt
815 815 A0135451626A 013 545 16 26 Contact Socket 1.5-2.5 Mm2 Slk2.8
815 815 A0045455226A 004 545 52 26 Contact Spring 1.0-2.5 Mm2 Spt
815 815 A0045450026A 004 545 00 26 Contact Socket 2.5-4.0 Mm2 Spt
850 850 A2105450040A 210 545 00 40 Receptacle Housing Transmission Control Module 18-pin Jpt;n15/3
850 850 A2105450140A 210 545 01 40 Receptacle Housing Transmission Control Module 12-pin Jpt;n15/3
855 855 A0115458426A 011 545 84 26 Contact Spring 0.5-1.0 Mm2 Spt
855 855 A0045455226A 004 545 52 26 Contact Spring 1.0-2.5 Mm2 Spt
900 900 N000000004202N 000000 004202 Fuse Link C-5
900 900 N000000004204N 000000 004204 Fuse Link C-10
900 900 N000000004206N 000000 004206 Fuse Link C-20
900 900 N000000004207N 000000 004207 Fuse Link C-25
900 900 N000000004208N 000000 004208 Fuse Link C-30
900 900 N000000004210N 000000 004210 Fuse Link C-40
950 950 A1685450928A 168 545 09 28 Coupling Housing, Elect. Engine Control Module 40-pin Mqs;n3/10
950 950 A2205459528A 220 545 95 28 Plug Engine Control Module 9-pin; Jpt;m3/10
950 950 Q0000000001Q 0000000001 Important Information Connector Housing On Engine Wiring Harness Side, See: M54
955 955 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
955 955 A0115458426A 011 545 84 26 Contact Spring 0.5-1.0 Mm2 Spt
955 955 A0005404605A 000 540 46 05 Electrical Line 0.75 Mm2 Mqs Sn
955 955 A0045455226A 004 545 52 26 Contact Spring 1.0-2.5 Mm2 Spt
087 Control Modules, Fuse And Relay Box In Rear
10 10 A1995400350A 199 540 03 50 Fuse Box Fuse And Relay Box, Rear Sam/srb
10 10 A1995400650A 199 540 06 50 Elect. Center, Base Mod. Fuse And Relay Box, Rear Sam/srb
10 10 A1995401150A 199 540 11 50 Elect. Center, Base Mod. Fuse And Relay Box, Rear Sam/srb
20 20 A0025421319A 002 542 13 19 Relay Plug Position: S, T, U
30 30 N072581000305N 072581 000305 Fuse Link Plug Position: 15a;52
50 50 A1995451440A 199 545 14 40 Bracket Control Module Sam/srb Rear
60 60 N910112006001N 910112 006001 Hexagon Nut Bracket Mounting M6 (4×)
60 60 N910112005000N 910112 005000 Hexagon Nut Sam Mounting, Rear M5 (2×)
70 70 N910143006000N 910143 006000 Hexalobular Bolt Fastening, Sam Bracket To Rear M6x12 (2×)
180 180 A1995460443A 199 546 04 43 Bracket Signal Acquisition And Actuation Module, Rear
190 190 N910112006001N 910112 006001 Hexagon Nut Bracket Mounting M6 (4×)
190 190 N913023005002N 913023 005002 Nut Control Module Mounting To Bracket M5 (3×)
200 200 N000000001476N 000000 001476 Hexalobular Bolt Bracket Mounting M6x16 (4×)
700 700 A1685450128A 168 545 01 28 Clutch Fuse And Relay Box, Rear 1-pin Slk8;k40/5
700 700 A2205453728A 220 545 37 28 Receptacle Housing Fuse And Relay Box, Rear 14-pin Slk2.8;k40/4
700 700 A0025450540A 002 545 05 40 Receptacle Housing Signal Acquisition And Actuation Module, Rear 32-pin Mqs;n10/8
700 700 A0005459103A 000 545 91 03 Cap Mqs;to A 002 545 05 40
700 700 A0055452830A 005 545 28 30 Cover 32-pin Mqs;to A 002 545 05 40
700 700 A0345458028A 034 545 80 28 Receptacle Housing 8-pin, Cod. Z
700 700 A2205451928A 220 545 19 28 Clutch 20 Pin Mqs
700 700 A0025455901A 002 545 59 01 Fuse Box 2-slot;l29/l41/l42 K40/5 (3×)
700 700 A0025453101A 002 545 31 01 Fuse Box L39 K40/5
700 700 A0025453301A 002 545 33 01 Fuse Box L33
700 700 A0025456501A 002 545 65 01 Fuse Box L31/l37/l40/l44 K40/5 (4×)
700 700 A0025456401A 002 545 64 01 Fuse Box 1-slot;l28/l43 K40/5 (2×)
705 705 A0135451426A 013 545 14 26 Contact Spring 0.22-0.5 Mm2 Slk2.8
705 705 A0135451526A 013 545 15 26 Contact Socket 0.75-1.0 Mm2 Slk2.8
705 705 A0135451626A 013 545 16 26 Contact Socket 1.5-2.5 Mm2 Slk2.8
705 705 A0005405705A 000 540 57 05 Electrical Wiring Harness 4.0 Mm2 Lsk8 Ag
705 705 A0115458426A 011 545 84 26 Contact Spring 0.5-1.0 Mm2 Spt
705 705 A0045455226A 004 545 52 26 Contact Spring 1.0-2.5 Mm2 Spt
705 705 A0045450026A 004 545 00 26 Contact Socket 2.5-4.0 Mm2 Spt
705 705 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
705 705 A0005404605A 000 540 46 05 Electrical Line 0.75 Mm2 Mqs Sn
740 740 A2205453928A 220 545 39 28 Receptacle Housing Fuse And Actuation Module 4-pin Slk2.8;k40/2
745 745 A0135451426A 013 545 14 26 Contact Spring 0.22-0.5 Mm2 Slk2.8
745 745 A0135451626A 013 545 16 26 Contact Socket 1.5-2.5 Mm2 Slk2.8
106 Horn And Outboard Temperature Indicator
10 10 A0055423120A 005 542 31 20 Horn Front Right 420 Hz
10 10 A0055423220A 005 542 32 20 Horn Front Left 510 Hz
20 20 A1997580443A 199 758 04 43 End Stop Left And Right M6x30;skid-block (2×)
30 30 N000125006449N 000125 006449 Washer Fastening Horn Front Left And Right (6×)
40 40 N000000003518N 000000 003518 Hexagon Nut Fastening Horn Front Left And Right (2×)
100 100 A0005428418A 000 542 84 18 Temperature Sensor Outboard Temperature Feeler
110 110 A1995450940A 199 545 09 40 Bracket Temperature Sensor To Front Bumper
110 110 A1995452240A 199 545 22 40 Bracket Temperature Sensor To Front Bumper Mounting-bracket-sensor-air-temp*
130 130 A0009907082A 000 990 70 82 Window Outboard Temperature Feeler
140 140 A0019940340A 001 994 03 40 Snap Ring Outboard Temperature Feeler
700 700 A2105402081A 210 540 20 81 Receptacle Housing Outboard Temperature Feeler 2-pin Mqs;b14
705 705 A0085456326A 008 545 63 26 Contact Socket 0.5-0.75 Mm2 Mqs
705 705 A0005456980A 000 545 69 80 Seal 1.4-1.9 Mm
710 710 A0005461445A 000 546 14 45 Insulating Sleeve Trumpet Horn Ff6.3;n2; H2/1 (4×)
715 715 A0005456626A 000 545 66 26 Receptacle 1.0 - 2.5 Mm2
121 Engine Cable Harness,body Mounted
10 10 A1998208104A 199 820 81 04 Electrical Line Engine Cable Harness,body Mounted
20 20 A0335455028A 033 545 50 28 Plug Separation Point, Upfront Sensor, Driver 4-pin Mqs;x18/38
25 25 A0415452828A 041 545 28 28 Plug 0.5-0.75 Mm2 Mqs
30 30 A2205459228A 220 545 92 28 Plug Connector, Interior/engine Black 14 Pin Slk2.8
30 30 A0365458728A 036 545 87 28 Plug Connector, Interior/engine Transparent 14-pin Slk2.8;x18/7
30 30 A0405452628A 040 545 26 28 Plug Connector, Interior/engine Black 8-pin Slk2.8;x18/7
35 35 A0375459628A 037 545 96 28 Male Spade Connector 0.22-0.5 Mm2 Slk2.8
35 35 A0355457328A 035 545 73 28 Male Spade Connector 0.5-1.0 Mm2 Slk2.8
35 35 A0355457428A 035 545 74 28 Male Spade Connector 1.5-2.5 Mm2 Slk2.8
40 40 A2105402081A 210 540 20 81 Receptacle Housing Separation Point, Engine Hood Contact Switch 2-pin Mqs;x42/30
45 45 A0085456326A 008 545 63 26 Contact Socket 0.5-0.75 Mm2 Mqs
50 50 A0315450628A 031 545 06 28 Plug Housing Front Axle Distributor Connector Left 4-pin Mqs;x62/7
55 55 A0085456326A 008 545 63 26 Contact Socket 0.5-0.75 Mm2 Mqs
200 200 A1998210014A 199 821 00 14 Bracket Engine Cable Harness Plug-connection To Frame Mounted Cable Harness
410 Cockpit Cable Harness
10 10 A1998207104A 199 820 71 04 Electrical Line Cockpit Cable Harness
412 Cable Harness For Roof
100 100 A1998206604A 199 820 66 04 Electrical Line Roof Rail
110 110 A0355454528A 035 545 45 28 Receptacle Housing Connector, Overhead Control Panel, Ffsblack 6 Pin Mqs;x25/8
110 110 A0355454628A 035 545 46 28 Plug Connector, Overhead Control Panel/ffs,transparent 6 Pin;x25/8
115 115 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
522 Piping Rear Lid
100 100 A1998206704A 199 820 67 04 Electrical Line Rear Lid
110 110 A0375450528A 037 545 05 28 Plug Separation Point Trunk Lid 4 Pin Slk2.8;x8/4
120 120 A0355457328A 035 545 73 28 Male Spade Connector 0.5-1.0 Mm2 Slk2.8
120 120 A0355457428A 035 545 74 28 Male Spade Connector 1.5-2.5 Mm2 Slk2.8
120 120 A0355457628A 035 545 76 28 Plug 2.5-4.0 Mm2 Slk2.8
130 130 A1685454328A 168 545 43 28 Plug Separation Point Trunk Lid 10 Pin Mqs;x8/4
140 140 A0415452828A 041 545 28 28 Plug 0.5-0.75 Mm2 Mqs
140 140 A0325453928A 032 545 39 28 Contact Pin 0.75 Mm2 Mqs
150 150 A0015455240A 001 545 52 40 Plug Housing Separation Point Trunk Lid 6-pin Mqs;;x8/4
160 160 A0325453928A 032 545 39 28 Contact Pin 0.75 Mm2 Mqs
170 170 A0295455528A 029 545 55 28 Receptacle Housing Separation Point Trunk Lid 3-pin Mqs;x8/4
180 180 A0135454426A 013 545 44 26 Contact Socket 0.5-0.75 Mm2 Mqs
190 190 A0305455928A 030 545 59 28 Plug Separation Point Trunk Lid 3 Pin Mqs;x8/4
200 200 A0415452828A 041 545 28 28 Plug 0.5-0.75 Mm2 Mqs
545 Main Cable Harness Frame Floor Unit
10 10 A1998208804A 199 820 88 04 Electrical Wiring Harness Inboard Cable Harness
10 10 A1998209804A 199 820 98 04 Wiring Harness Inboard Cable Harness
15 15 A0015409981A 001 540 99 81 Connector Housing Automatic Transmission 12-pin Lks1.5;a69
20 20 A0005404205A 000 540 42 05 Electrical Line 1.0 Mm2 Lks 1.5
25 25 A0075459226A 007 545 92 26 Receptacle Housing Additional Fan 9-pin Dfk4;k9
25 25 A0075459226A 007 545 92 26 Receptacle Housing Relay, Coolant Circuit Rear Axle Differential 9-pin Dfk4;k36/3
30 30 A0115458426A 011 545 84 26 Contact Spring 0.5-1.0 Mm2 Spt
30 30 A0045455226A 004 545 52 26 Contact Spring 1.0-2.5 Mm2 Spt
35 35 A0075459226A 007 545 92 26 Receptacle Housing Relay, Engine Coolant 9-pin Dfk4;k60/1
35 35 A0015402881A 001 540 28 81 Clutch Separation Point Trunk Lid 6-pin Mqs;x8/4
35 35 A0025409581A 002 540 95 81 Socket Connector, Remote Trunk Closing 14-pin Mqs;x25/8
35 35 A0305450228A 030 545 02 28 Receptacle Housing Intermediate Connector, Center Console 3-pin, Cod. D Mqs;x29/6
40 40 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
40 40 A0005404605A 000 540 46 05 Electrical Line Repair Solution 0.75 Mm2 Mqs Sn
40 40 A0085456326A 008 545 63 26 Contact Socket 0.5-0.75 Mm2 Mqs
40 40 A0115458426A 011 545 84 26 Contact Spring 0.5-1.0 Mm2 Spt
45 45 A0015455940A 001 545 59 40 Contact Carrier Separation Point Trunk Lid 10-pin Mqs;x8/4
50 50 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
50 50 A0135454426A 013 545 44 26 Contact Socket 0.5-0.75 Mm2 Mqs
55 55 A2205453928A 220 545 39 28 Receptacle Housing Separation Point Trunk Lid 4-pin Slk2.8;x8/4
60 60 A0135451526A 013 545 15 26 Contact Socket 0.75-1.0 Mm2 Slk2.8
60 60 A0135451626A 013 545 16 26 Contact Socket 1.5-2.5 Mm2 Slk2.8
65 65 A2205453728A 220 545 37 28 Receptacle Housing Connector, Cockpit/interior, Black 14-pin Slk2.8;x18
65 65 A2205459928A 220 545 99 28 Receptacle Housing Connector, Cockpit/interior, Transparent 14-pin Slk2.8;x18
65 65 A0395456128A 039 545 61 28 Plug Connector, Cockpit/interior, Blue 14-pin Slk2.8;x18
65 65 A2205453728A 220 545 37 28 Receptacle Housing Connector, Interior/engine Black 14-pin Slk2.8;x18/7
65 65 A2205459928A 220 545 99 28 Receptacle Housing Connector, Interior/engine Transparent 14-pin Slk2.8;x18/7
70 70 A0135451426A 013 545 14 26 Contact Spring 0.22-0.5 Mm2 Slk2.8
70 70 A0135451526A 013 545 15 26 Contact Socket 0.75-1.0 Mm2 Slk2.8
70 70 A0115450726A 011 545 07 26 Contact Socket 4.0 Mm2 Slk2.8
70 70 A0135451626A 013 545 16 26 Contact Socket 1.5-2.5 Mm2 Slk2.8
75 75 A0335450028A 033 545 00 28 Receptacle Housing Separation Point, Upfront Sensor, Driver 4-pin Mqs;x18/38
80 80 A0135454426A 013 545 44 26 Contact Socket 0.5-0.75 Mm2 Mqs
85 85 A0405457228A 040 545 72 28 Plug Intermediate Connector, Airbag 12-pin;x28/12
90 90 A0135454426A 013 545 44 26 Contact Socket 0.5-0.75 Mm2 Mqs
95 95 A0035461240A 003 546 12 40 Distributor Connector Distributor,wake-up Signal X30/14
100 100 A0305452828A 030 545 28 28 Plug Can Bus B 2-pin Mqs;x30/15 X30/16 X30/17 (3×)
105 105 A0375455928A 037 545 59 28 Plug Can Bus C 2-pin Mqs;x30/18
110 110 A0305456028A 030 545 60 28 Plug Door Separation Point,a-pillar, Left 3-pin Mqs;x35/1
115 115 A0325453928A 032 545 39 28 Contact Pin 0.75 Mm2 Mqs
120 120 A0375451428A 037 545 14 28 Plug Door Partition Points A-pillar Left And Right 2-pin Slk2.8;x35/1 X35/2 (2×)
125 125 A0355457428A 035 545 74 28 Male Spade Connector 1.5-2.5 Mm2 Slk2.8
130 130 A2205458528A 220 545 85 28 Plug Door Partition Points A-pillar Left And Right X35/41 X35/42 (2×)
135 135 A0005406105A 000 540 61 05 Electrical Wiring Harness 0.5 Mm2 Elo
140 140 A0365458728A 036 545 87 28 Plug Control Module Box/engine Connector 14-pin Slk2.8;x35/63
145 145 A0355457328A 035 545 73 28 Male Spade Connector 0.5-1.0 Mm2 Slk2.8
145 145 A0355457428A 035 545 74 28 Male Spade Connector 1.5-2.5 Mm2 Slk2.8
150 150 A2025405981A 202 540 59 81 Plug Cockpit/interior Plug Connector 16-pin Mt3;x35/66
155 155 A0055458526A 005 545 85 26 Contact Spring 0.35-0.5 Mm2 Mt3
155 155 A0115458226A 011 545 82 26 Contact Spring 0.5-1.0 Mm2 Mt3
160 160 A2105454128A 210 545 41 28 Receptacle Housing Central Locking Connector 3-pin Jpt;x35/71
165 165 A0115458126A 011 545 81 26 Contact Spring 0.5-1.0 Mm2 Jpt
170 170 A0285458428A 028 545 84 28 Receptacle Housing Connector For Anti-theft Alarm System 4-pin Mqs;x42/28
175 175 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
180 180 A1705450328A 170 545 03 28 Plug Separation Point 2-pin Jpt;3 X99/3
185 185 A0085456726A 008 545 67 26 Contact Spring 1.5-2.5 Mm2 Jpt
190 190 A0015458728A 001 545 87 28 Receptacle Housing Separation Point 2-pin Ff6.3;4 X99/4
195 195 A0035450326A 003 545 03 26 Contact Bushing
210 210 A2205453728A 220 545 37 28 Receptacle Housing Separation Point 14-pin Slk2.8;9 X99/9
215 215 A0135451426A 013 545 14 26 Contact Spring 0.22-0.5 Mm2 Slk2.8
215 215 A0135451526A 013 545 15 26 Contact Socket 0.75-1.0 Mm2 Slk2.8
220 220 A0025467940A 002 546 79 40 Receptacle Housing Can Bus B 22-pin;x30/15 X30/16 X30/17 (3×)
225 225 A0035464240A 003 546 42 40 Distributor Can Bus C 12x2/1x3 Pin;x30/18
230 230 A0295455528A 029 545 55 28 Receptacle Housing Separation Point 3-pin Mqs;9 X99/9
235 235 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
300 300 N000000000276N 000000 000276 Hexalobular Bolt Cable Harness Mounting M8x20
300 300 N910105005002N 910105 005002 Hexagon Head Bolt Cable Harness Mounting M5x16 (11×)
300 300 N910143008020N 910143 008020 Hexalobular Bolt Fastening Of Cable Bracket M8x12 (2×)
300 300 N000000001279N 000000 001279 Hexagon Head Bolt Cable Harness Mounting 5x16 (2×)
305 305 N916016020201N 916016 020201 Clamp Cable Harness Mounting 20/15 Mm (2×)
310 310 N000000003175N 000000 003175 Nut Cable Harness Mounting M8
350 350 A0009950742A 000 995 07 42 Clamp Cable Harness Mounting 15/12
350 350 A0009951342A 000 995 13 42 Clamp Cable Harness Mounting 5/15 (2×)
350 350 A0009951442A 000 995 14 42 Clamp Cable Harness Mounting 8/12
350 350 N916016016201N 916016 016201 Clamp Cable Harness Mounting 16/20 (4×)
350 350 N916016025201N 916016 025201 Clamp Cable Harness Mounting 25/15 (2×)
350 350 A0009951242A 000 995 12 42 Clamp Wiring Harness Fastening, Starter/ Generator To Crankcase (3×)
390 390 N910142005000N 910142 005000 Hexalobular Bolt Cable Harness Mounting M5x10 (3×)
400 400 N910112006001N 910112 006001 Hexagon Nut Cable Harness Mounting M6 (13×)
400 400 N910112008000N 910112 008000 Hexagon Nut M8 (2×)
450 450 A1998210014A 199 821 00 14 Bracket Engine Cable Harness Plug-connection To Frame Mounted Cable Harness
460 460 A0009907852A 000 990 78 52 Cap Nut Fastening Of Cable Bracket (10×)
585 Instrument Cluster
10 10 A1995400011A 199 540 00 11 Instrument Cluster
10 10 A1995400311A 199 540 03 11 Instrument Cluster
10 10 A1995400811A 199 540 08 11 Instrument Cluster
10 10 A1995400611A 199 540 06 11 Instrument Cluster
10 10 A1995401211A 199 540 12 11 Instrument Cluster
700 700 A0015454840A 001 545 48 40 Receptacle Housing Instrument Cluster 18-pin Mqs;a1
705 705 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
705 705 A0005404605A 000 540 46 05 Electrical Line 0.75 Mm2 Mqs Sn
640 Switch
10 10 A0005452410A 000 545 24 10 Switch
20 20 A0075457624A 007 545 76 24 Switch Cruise Control (tempomat)
30 30 A0005453022A 000 545 30 22 Switch Steering Column Jacket Tube Adjustment
50 50 A1995450208A 199 545 02 08 Switch Starting Ignition Switch
100 100 A0285456932A 028 545 69 32 Base Plate Jacket Tube Module
200 200 A1995450132A 199 545 01 32 Control Unit Engine Starter Button Control Unit
310 310 A1998270455A 199 827 04 55 Trim Ring Light Rotary Switch
710 710 A2085450028A 208 545 00 28 Plug Starting Ignition Switch 6-pin;n73
710 710 A2205456528A 220 545 65 28 Receptacle Housing Ignition/starter Switch Black 10-pin;n73
715 715 A0115458126A 011 545 81 26 Contact Spring 0.5-1.0 Mm2 Jpt
715 715 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
715 715 A0005405705A 000 540 57 05 Electrical Wiring Harness 4.0 Mm2 Lsk8 Ag
715 715 A0005404605A 000 540 46 05 Electrical Line 0.75 Mm2 Mqs Sn
720 720 A2205450026A 220 545 00 26 Receptacle Jacket Tube Module 14-pin Mlk1.2;n80
725 725 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
725 725 A0005404605A 000 540 46 05 Electrical Line 0.75 Mm2 Mqs Sn
730 730 A0025408681A 002 540 86 81 Plug Housing Light Rotary Switch 14-pin Mqs;s1
735 735 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
679 Front Axle Wiring
10 10 A2305400208A 230 540 02 08 Wiring Harness Front Axle Brake Lining Wear (2×)
20 20 A2305400717A 230 540 07 17 Sender Unit Engine Speed
20 20 A2305401317A 230 540 13 17 Rpm Sensor Engine Speed (2×)
20 20 A2305401517A 230 540 15 17 Rpm Sensor Engine Speed (2×)
20 20 A2305401917A 230 540 19 17 Rpm Sensor Engine Speed (2×)
30 30 A2025463243A 202 546 32 43 Bracket Cable Holder (3×)
50 50 A1995451740A 199 545 17 40 Bracket Left Axle Wiring Partition Point
50 50 A1995452340A 199 545 23 40 Bracket Left Axle Wiring Partition Point Front-interconnect-lh*
50 50 A1995451640A 199 545 16 40 Bracket Right Axle Wiring Partition Point
50 50 A1995452440A 199 545 24 40 Bracket Right Axle Wiring Partition Point Front-inner-connect-rh*
100 100 A1993320388A 199 332 03 88 Shielding Rpm Sensor 440 Mm (2×)
100 100 A1993320388A 199 332 03 88 Shielding Brake Lining Wear Indicator 440 Mm
110 110 A1689970381A 168 997 03 81 Grommet (2×)
120 120 A1998210114A 199 821 01 14 Line Bracket Rpm Sensor Line (2×)
120 120 A1998210614A 199 821 06 14 Bracket Rpm Sensor Line Cable-wheel-speed-front* (2×)
130 130 N910142005000N 910142 005000 Hexalobular Bolt At Bracket M5x10 (5×)
680 Rear Axle Wiring
60 60 A2305406006A 230 540 60 06 Wiring Harness Rear Axle Brake Lining Wear
70 70 A2305401117A 230 540 11 17 Rpm Sensor Rear Axle
70 70 A2305401217A 230 540 12 17 Rpm Sensor Rear Axle (2×)
70 70 A2305401617A 230 540 16 17 Rpm Sensor Rear Axle (2×)
70 70 A2305402017A 230 540 20 17 Rpm Sensor Rear Axle (2×)
80 80 A0009951542A 000 995 15 42 Clamp To Line
90 90 A1994210294A 199 421 02 94 Bracket Speed Sensor To Steering Knuckle (2×)
90 90 A1994212094A 199 421 20 94 Bracket Speed Sensor To Steering Knuckle (2×)
100 100 A1993320288A 199 332 02 88 Shielding Rpm Sensor 230 Mm (2×)
100 100 A1993320388A 199 332 03 88 Shielding Brake Pad Wear Indicator On Rear Axle 440 Mm
110 110 A1689970381A 168 997 03 81 Grommet
120 120 A1998210714A 199 821 07 14 Line Bracket Rear Outside
120 120 A1998211114A 199 821 11 14 Bracket Rear Outside Cable-wheel-speed-rr-outer-lh*
120 120 A1998210814A 199 821 08 14 Line Bracket Rpm Sensor Line
120 120 A1998211014A 199 821 10 14 Bracket Rpm Sensor Line Cable-wheel-speed-rear-outer-rh*
130 130 A1998210414A 199 821 04 14 Line Bracket Rpm Sensor Line (2×)
130 130 A1998210914A 199 821 09 14 Bracket Rpm Sensor Line Cable-wheel-speed-rear-inner* (2×)
140 140 N910112005000N 910112 005000 Hexagon Nut Bracket Mounting M5 (2×)
700 700 A2105402081A 210 540 20 81 Receptacle Housing Rear Rpm Sensor Connector 2-pin Mqs;x62/2
705 705 A0085456326A 008 545 63 26 Contact Socket 0.5-0.75 Mm2 Mqs
710 710 A1685400181A 168 540 01 81 Clutch Brake Lining Wear Indicator Plugconnection,rear 2 Pin Mqs;x88/15
715 715 A0085456326A 008 545 63 26 Contact Socket 0.5-0.75 Mm2 Mqs
695 Electronic Stability Program (esp)
20 20 A0025426618A 002 542 66 18 Sender Unit Turn Rate Sensor
100 100 A1995450032A 199 545 00 32 Control Unit Electronic Stability Program
100 100 A1995450332A 199 545 03 32 Control Unit Electronic Stability Program
700 700 A2105403681A 210 540 36 81 Clutch Turn Rate Sensor 6-pin Mqs;b24/9
705 705 A0085456326A 008 545 63 26 Contact Socket 0.5-0.75 Mm2 Mqs
710 710 A0295454028A 029 545 40 28 Receptacle Housing Control Module Electronic Stability Program 2-pin Mqs;n47
715 715 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
745 Tire Pressure Check
10 10 A0028208326A 002 820 83 26 Control Unit Tire Pressure Check 433 Mhz Beru
10 10 A0028209826A 002 820 98 26 Control Unit Tire Pressure Check 433 Mhz Beru
30 30 A0008223306A 000 822 33 06 Pressure Sensor Screwed To Valve In Tire, Front And Rear Axle Rdk - 433 Mhz Beru* (4×)
30 30 A0055422318A 005 542 23 18 Pressure Sensor Screwed To Valve In Tire, Front And Rear Axle 433mhz (4×)
40 40 A0018274001A 001 827 40 01 Antenna In Wheelhouse Front Left/right And Rear Left/right 433 Mhz Beru (4×)
60 60 A0008222814A 000 822 28 14 Bracket For Antenna Bracket Left/right Front And Left/right Rear (4×)
90 90 A0019901282A 001 990 12 82 Window (8×)
100 100 N000000003518N 000000 003518 Hexagon Nut Antenna Fastening (4×)
110 110 N000000003838N 000000 003838 Pan Head Screw Antenna Fastening 6x25 (4×)
120 120 A0029928701A 002 992 87 01 Detent Bushing Antenna Fastening (8×)
130 130 A0019901882A 001 990 18 82 Window Antenna Fastening (4×)
700 700 A0025450540A 002 545 05 40 Receptacle Housing Tire Pressure Monitor Control Module 32-pin Mqs;n88
700 700 A0005459103A 000 545 91 03 Cap Mqs;to A 002 545 05 40 / Tyco Electronic
700 700 A0055452830A 005 545 28 30 Cover 32-pin Mqs;to A 002 545 05 40
705 705 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
705 705 A0135454426A 013 545 44 26 Contact Socket 0.5-0.75 Mm2 Mqs
710 710 A0505457828A 050 545 78 28 Plug Antenna, Tire Pressure Check 6-pin;a2/44
710 710 A0505457828A 050 545 78 28 Plug Antenna, Tire Pressure Check 6-pin;a2/45
715 715 A0215453826A 021 545 38 26 Contact Socket 0.5-0.75 Mm2 0.64mm
54 Engine Cable Harnesses
120 Engine Cable Harness
10 10 A1551500033A 155 150 00 33 Electrical Line
90 90 A0069971790A 006 997 17 90 Cable Tie 3.6x150 Mm
90 90 A0079975690A 007 997 56 90 Cable Strap 4,6x200mm
200 200 A0015469941A 001 546 99 41 Line Connector 0.7 - 2.4 Mm2
200 200 A0025460041A 002 546 00 41 Line Connector 2.0 - 4.0 Mm2
200 200 A0025460141A 002 546 01 41 Line Connector 3.5 - 8.0 Mm2
200 200 A0025461141A 002 546 11 41 Line Connector 7.5 - 12.0 Mm2
205 205 A0025461341A 002 546 13 41 Line Connector 0.5 Mm2
205 205 A0009829510A 000 982 95 10 Line Connector 0,13mm2 - 0,5mm2
205 205 A0025461441A 002 546 14 41 Line Connector 0.8 Mm2
205 205 A0009829610A 000 982 96 10 Line Connector 0.8 Mm2
205 205 A0025461541A 002 546 15 41 Line Connector 1.3 Mm2
205 205 A0009829710A 000 982 97 10 Line Connector 1.3 Mm2
205 205 A0025461641A 002 546 16 41 Line Connector 2.0 Mm2
58 Tools And Accessories
015 Tools And Accessories
50 50 A1718900097A 171 890 00 97 Warning Triangle
70 70 A1688990032A 168 899 00 32 Bracket Towing Eye
100 100 A0005830712A 000 583 07 12 Container, Tirefit Tirefit
110 110 A0005830702A 000 583 07 02 Tire Inflation Compressor Spare Wheel
110 110 A0005831302A 000 583 13 02 Tire Inflation Compressor Spare Wheel
110 110 A0005831502A 000 583 15 02 Tire Inflation Compressor Spare Wheel
150 150 A1998990061A 199 899 00 61 Pocket License Documents
160 160 A0008603380A 000 860 33 80 Fire Extinguisher
170 170 A0008600550A 000 860 05 50 First-aid Kit
050 Type Plate,guide Signs
10 10 A1995840138A 199 584 01 38 Adhesive Label Break-in Instructions
20 20 A1998170520A 199 817 05 20 Information Label Type Plate
60 60 A2105840102A 210 584 01 02 Identification Label Identification Sign (2×)
70 70 A1408170520A 140 817 05 20 Plate Anti-theft Alarm (2×)
80 80 A2208172720A 220 817 27 20 Information Label Service 24 Hours
90 90 A1405846817A 140 584 68 17 Information Label Battery In Tail (2×)
100 100 A2048173420A 204 817 34 20 Information Label Light-xenon (2×)
110 110 A1995841113A 199 584 11 13 Plate Corrosion Protection Englisch/deutsch/franzoesisch
120 120 A1995841413A 199 584 14 13 Plate Exhaust System
130 130 A2105849017A 210 584 90 17 Fueling Label Refuelling Plate; In German
130 130 A0005845917A 000 584 59 17 Information Label Refuelling Plate; In German
190 190 A0002211101A 000 221 11 01 Engine Number Plate To Air Filter Housing
190 190 A0002211201A 000 221 12 01 Engine Number Plate To Air Filter Housing
210 210 A1995841017A 199 584 10 17 Information Label Tire Pressure Instructions
250 250 A2105840047A 210 584 00 47 Warning Sign (2×)
260 260 A1998171520A 199 817 15 20 Information Label Break-in Instructions
270 270 A1995842407A 199 584 24 07 Plate Oil Level
280 280 A1995842207A 199 584 22 07 Plate Lift Support Points
290 290 A1995842307A 199 584 23 07 Plate Lift Support Points
300 300 A1998170920A 199 817 09 20 Information Label Air Conditioning System Capacity
310 310 A0005840526A 000 584 05 26 Information Label Fan Run-on
370 370 A1995840038A 199 584 00 38 Adhesive Label Tire Pressure Instructions
380 380 A2118172021A 211 817 20 21 Sticker
410 410 A1995840107A 199 584 01 07 Plate In German
420 420 A1995843813A 199 584 38 13 Plate Front Prefuse Box F32 Deutsch
430 430 A1995844413A 199 584 44 13 Plate Prefuse Box, Rear, In German F33
440 440 A1995845013A 199 584 50 13 Plate Prefuse Box, Rear, In German F33
450 450 A1995842507A 199 584 25 07 Guide Sign Battery Charge Point
470 470 A1995842613A 199 584 26 13 Plate Control Module Sam/srb Front N10/10 Deutsch
480 480 A1995843213A 199 584 32 13 Plate Control Module Sam/srb Rear N10/8 Deutsch
510 510 A1995848313A 199 584 83 13 Information Label
520 520 A1995840313A 199 584 03 13 Plate Brake Fluid
530 530 A1995840000A 199 584 00 00 Information Label To Fuel Filler Flap And Opposite B-pillar Qr-code
60 Shell
015 Shell
10 10 A1996460114A 199 646 01 14 Bracket Left
10 10 A1996460214A 199 646 02 14 Bracket Right
030 Expansion Plugs,grommets
200 200 A1995460237A 199 546 02 37 Cable Grommet 22mm (2×)
250 250 A1995460337A 199 546 03 37 Cable Grommet 24mm
300 300 A1995460437A 199 546 04 37 Cable Grommet 29mm
490 490 A2029971281A 202 997 12 81 Grommet
530 530 A0009980202A 000 998 02 02 Cable Grommet W But. Bead In Side Member
540 540 A0009984650A 000 998 46 50 Stop Plug 40*11mm
550 550 A0009983450A 000 998 34 50 Stop Plug 6*44mm (4×)
560 560 A0009983250A 000 998 32 50 Stop Plug Jacking Socket,front And Rear (4×)
570 570 A0009982101A 000 998 21 01 Formed Grommet
580 580 A0009983201A 000 998 32 01 Feed-through Grommet
600 600 A0009872439A 000 987 24 39 Sealing Washer (2×)
61 Substructure
015 Front Floor
10 10 A1996160352A 199 616 03 52 Floor Front
15 15 A1996100119A 199 610 01 19 Bar Front Left
15 15 A1996140137A 199 614 01 37 Web Left Front Floor
15 15 A1996100219A 199 610 02 19 Bar Front Right
15 15 A1996140037A 199 614 00 37 Web Right Front Floor
18 18 A1996160233A 199 616 02 33 Cover Right
18 18 A1996160133A 199 616 01 33 Connection Left
20 20 N910143006001N 910143 006001 Hexalobular Bolt M6x16 (4×)
25 25 A1996100155A 199 610 01 55 Floor Engine Compartment Covering
30 30 A1996160053A 199 616 00 53 Floor Tunnel Center
35 35 A1996100255A 199 610 02 55 Floor Rear
45 45 A1996160252A 199 616 02 52 Bottom Rear
50 50 A1996160552A 199 616 05 52 Floor Left
50 50 A1996160652A 199 616 06 52 Floor Right
70 70 A1998800036A 199 880 00 36 Air Deflector Shield Rear
80 80 A0029903305A 002 990 33 05 Stud Bolt Rear Left And Right M5x10 (10×)
80 80 A0029903305A 002 990 33 05 Stud Bolt M5x10 (5×)
80 80 A0029903305A 002 990 33 05 Stud Bolt Rear Floor M5x10 (15×)
90 90 A0019901282A 001 990 12 82 Window On Floor (4×)
95 95 A1996160027A 199 616 00 27 Shielding Floor (2×)
100 100 A1996160190A 199 616 01 90 Spacer To Front Floor (8×)
110 110 N913023005002N 913023 005002 Nut On Floor M5 (8×)
120 120 N910105005003N 910105 005003 Hexagon Head Bolt On Floor M5x20 (8×)
130 130 N910143006001N 910143 006001 Hexalobular Bolt Engine Compartment Covering M6x16 (4×)
140 140 N910143008002N 910143 008002 Hexalobular Bolt Engine Compartment Covering M8x25 (4×)
150 150 N000000001476N 000000 001476 Hexalobular Bolt Engine Compartment Covering M6x16 (6×)
160 160 A0039948545A 003 994 85 45 Spring Nut Engine Compartment Covering 4.8/0.5-2.5 Mm (4×)
170 170 N910105010009N 910105 010009 Hexagon Head Bolt Engine Compartment Covering M10x25 (8×)
180 180 N000000000276N 000000 000276 Hexalobular Bolt Engine Compartment Covering M8x20 (7×)
200 200 A1996100101A 199 610 01 01 Substructure Left
210 210 A1996100201A 199 610 02 01 Floor Assembly Right
210 210 A1996100601A 199 610 06 01 Floor Assembly Right
220 220 A1996160752A 199 616 07 52 Floor Panel Legroom,right (2×)
240 240 A1996160452A 199 616 04 52 Floor Reinforcement
250 250 A1996160013A 199 616 00 13 Floor Assembly Stay (2×)
260 260 A1996160952A 199 616 09 52 Floor Panel Reinforcement
261 261 A0009911895A 000 991 18 95 Clamp (2×)
265 265 A1996161052A 199 616 10 52 Floor Reinforcement
270 270 N910105005002N 910105 005002 Hexagon Head Bolt Floor M5x16 (12×)
275 275 N913023005002N 913023 005002 Nut Floor M5 (12×)
280 280 N000000002193N 000000 002193 Hexalobular Bolt Floor M6x16 (4×)
290 290 A1996110511A 199 611 05 11 Plate Left
290 290 A1996110411A 199 611 04 11 Plate Right
300 300 A1995240001A 199 524 00 01 Shield At Front Underride Guard Skid-block (2×)
310 310 A1996110017A 199 611 00 17 Rs Threaded Bushing Left And Right (2×)
330 330 N910143006001N 910143 006001 Hexalobular Bolt Central Floor M6x16 (5×)
340 340 A0039948545A 003 994 85 45 Spring Nut Rear Floor 4.8/0.5-2.5 Mm (14×)
350 350 N910143006003N 910143 006003 Hexalobular Bolt Rear Floor M6x25
350 350 N000000003648N 000000 003648 Hexalobular Bolt Rear Floor M6x25
390 390 N910143006000N 910143 006000 Hexalobular Bolt Floor M6x12 (4×)
395 395 A0009904356A 000 990 43 56 Clip Nut Rear Floor (8×)
400 400 A0029909705A 002 990 97 05 Stud Bolt Floor M6x16 (3×)
410 410 N910143006001N 910143 006001 Hexalobular Bolt Floor M6x16 (4×)
420 420 A0029904505A 002 990 45 05 Pan Head Screw Floor M6x16 (18×)
430 430 A0049941645A 004 994 16 45 Spring Nut Floor M6
430 430 A0009913895A 000 991 38 95 Plug-in Fastener (12×)
440 440 A0029902905A 002 990 29 05 Bolt (2×)
450 450 A0009983605A 000 998 36 05 Grommet, Closed, Smooth Floor (2×)
500 500 A0009901516A 000 990 15 16 Threaded Pin To Underbody Shield (4×)
510 510 N913023005002N 913023 005002 Nut To Underbody Shield M5 (8×)
520 520 N910105005000N 910105 005000 Hexagon Head Bolt Covering To Covering M5x12 (6×)
530 530 A0029903405A 002 990 34 05 Stud Bolt M5x10 (6×)
540 540 A0049941245A 004 994 12 45 Spring Nut To Underbody Shield M5 (13×)
550 550 A0019909854A 001 990 98 54 Hex. Nut W Clamping Part To Underbody Shield M5 (6×)
560 560 A1997950396A 199 795 03 96 Washer To Underbody Shield M5x12.7x1 (5×)
570 570 A0009901210A 000 990 12 10 Bolt Repair Solution For Ruptured Welded Pins
580 580 A0009917632A 000 991 76 32 Blind Rivet Repair Solution 6,4 X 12mm / 1-3,5mm
610 610 A0009910039A 000 991 00 39 Rivet (4×)
620 620 A1999970219A 199 997 02 19 Grub Screw (4×)
630 630 A1996160108A 199 616 01 08 Plate On Tunnel (2×)
640 640 A1997580443A 199 758 04 43 End Stop Left And Right M6x30;skid-block (2×)
645 645 N000000003175N 000000 003175 Nut Bumper M8;skid-block (2×)
650 650 A1997580443A 199 758 04 43 End Stop Left And Right M6x30 (2×)
670 670 N000000003613N 000000 003613 Pan Head Screw To Underfloor M 6x40 (16×)
680 680 A0009983250A 000 998 32 50 Stop Plug Jacking Socket,front And Rear (4×)
690 690 N000000001476N 000000 001476 Hexalobular Bolt Covering To Front Bumper M6x16 (10×)
700 700 N000000001287N 000000 001287 Hexagon Head Bolt Front Covering (2×)
710 710 N000125006449N 000125 006449 Washer Front Covering (2×)
720 720 N304017006052N 304017 006052 Hexagon Head Bolt Front Central Inside M6 X 35 (2×)
730 730 N910143008002N 910143 008002 Hexalobular Bolt Base, Center Front M8x25 (4×)
740 740 N910143010012N 910143 010012 Hexalobular Bolt Base, Center Rear M10x30 (8×)
750 750 N000000000276N 000000 000276 Hexalobular Bolt Base, Center Front M8x20 (7×)
760 760 N000000001686N 000000 001686 Hexalobular Bolt Central Floor M6x16 (10×)
770 770 A0019901282A 001 990 12 82 Window Central Floor (10×)
780 780 N000000000461N 000000 000461 Tapping Screw Central Floor 4.8x16 (4×)
790 790 N000000000281N 000000 000281 Hexalobular Bolt Tunnel Center M6x30 (16×)
805 805 A0019901282A 001 990 12 82 Window (8×)
820 820 N000000000281N 000000 000281 Hexalobular Bolt Rear Floor M6x30 (15×)
830 830 A0009902800A 000 990 28 00 Screw Rear Floor 10x40 (10×)
840 840 N000000007435N 000000 007435 Hexagon Head Bolt Rear Floor M6x16 (5×)
850 850 A0019901282A 001 990 12 82 Window Rear Floor (5×)
860 860 N000000000461N 000000 000461 Tapping Screw Rear Floor 4.8x16 (8×)
870 870 N000000000461N 000000 000461 Tapping Screw Rear Floor And Diffusor 4.8x16 (6×)
880 880 N000000003549N 000000 003549 Hexagon Head Bolt Rear Floor 5x12 (6×)
890 890 A1997952196A 199 795 21 96 Pad Rear Floor (6×)
900 900 A0009904702A 000 990 47 02 Csk. Bolt W Hex. Socket Bumper Bottom Left And Right M6x20 (10×)
910 910 A0009904802A 000 990 48 02 Bolt Rear Bumper M6x16;diffuser (4×)
62 Front End, Front Wall
045 Fire Wall And Connection Parts
10 10 A1996251616A 199 625 16 16 Reinforcement Fire Wall (4×)
20 20 A1996210118A 199 621 01 18 Bracket (2×)
30 30 A1996111097A 199 611 10 97 Window Between Side Member And Fire Wall 0,8 Mm;0,8mm (2×)
30 30 A1996111497A 199 611 14 97 Window Between Side Member And Fire Wall 0,5 Mm (2×)
30 30 A1996110997A 199 611 09 97 Window Between Side Member And Fire Wall 0,3 Mm (2×)
40 40 A1996111697A 199 611 16 97 Window Between Side Member And Fire Wall 0,8 Mm (2×)
40 40 A1996111197A 199 611 11 97 Window Between Side Member And Fire Wall 0,5 Mm (2×)
40 40 A1996110697A 199 611 06 97 Window Between Side Member And Fire Wall 0,3 Mm (2×)
50 50 A1996111797A 199 611 17 97 Window Between Side Member And Fire Wall 0,8 Mm (2×)
50 50 A1996111297A 199 611 12 97 Window Between Side Member And Fire Wall 0,5 Mm (2×)
50 50 A1996110797A 199 611 07 97 Window Between Side Member And Fire Wall (2×)
60 60 A1996110597A 199 611 05 97 Window Between Side Member And Fire Wall 0,8 Mm (2×)
60 60 A1996111897A 199 611 18 97 Window Between Side Member And Fire Wall 0,5 Mm (2×)
70 70 A0019904082A 001 990 40 82 Washer, Plane-parallel Between Side Member And Fire Wall (8×)
80 80 A0019904182A 001 990 41 82 Washer, Plane-parallel Between Side Member And Fire Wall M10 X 0,2mm (16×)
90 90 A0059900582A 005 990 05 82 Window (4×)
100 100 A0059900682A 005 990 06 82 Window (12×)
110 110 A0059900482A 005 990 04 82 Window (8×)
120 120 N000000001686N 000000 001686 Hexalobular Bolt At Fire Wall M6x16 (15×)
130 130 N000000003759N 000000 003759 Hexagon Head Bolt Fire Wall M10x60 Mk (12×)
130 130 N000000004291N 000000 004291 Hexagon Head Bolt Fire Wall M10x60 (12×)
130 130 A0179905301A 017 990 53 01 Combi-hexagon Head Bolt Fire Wall (12×)
140 140 N000000003763N 000000 003763 Bolt Fire Wall M10x100 Mk (2×)
140 140 N000000000687N 000000 000687 Hexagon Head Bolt Fire Wall M10x100 (2×)
150 150 N000000003762N 000000 003762 Bolt Fire Wall M10x130 Mk (2×)
150 150 N000000004292N 000000 004292 Hexagon Head Bolt Fire Wall M10x130 (2×)
160 160 N000000003760N 000000 003760 Hexagon Head Bolt Fire Wall M8x60 Mk (4×)
170 170 N000000003761N 000000 003761 Hexagon Head Bolt Fire Wall M8x130 Mk (4×)
180 180 A1995451840A 199 545 18 40 Bracket Fire Wall
190 190 A0029900905A 002 990 09 05 Stud Bolt At Bracket M4x10 (3×)
500 500 A0009901210A 000 990 12 10 Bolt Repair Solution For Ruptured Welded Pins
510 510 A0009917632A 000 991 76 32 Blind Rivet Repair Solution 6,4 X 12mm / 1-3,5mm
060 Front Stiffening And Radiator Support
10 10 A1996100017A 199 610 00 17 Crossmember Crash Box
20 20 A1993320074A 199 332 00 74 Pin Cross Member To Side Members (8×)
30 30 A1999900016A 199 990 00 16 Threaded Pin Cross Member To Side Members (2×)
40 40 A1999900116A 199 990 01 16 Threaded Pin Cross Member To Side Members (4×)
45 45 A0009921029A 000 992 10 29 Pilot Bushing Cross Member To Side Members (2×)
50 50 A1996100500A 199 610 05 00 Bracket Top Rear Left F.c.s. Hinten Oben Links*
50 50 A1996100200A 199 610 02 00 Bracket Top Rear Right
60 60 A0029905205A 002 990 52 05 Cap Bolt With Socket At Left Bracket M10x16
60 60 A0029905205A 002 990 52 05 Cap Bolt With Socket At Right Bracket M10x16
70 70 A1997951896A 199 795 18 96 Shim At Right Bracket
80 80 A1995230062A 199 523 00 62 Pressure Disk Cross Member To Side Members 1,2 Mm (2×)
80 80 A1995230162A 199 523 01 62 Pressure Disk Cross Member To Side Members 2,0 Mm (2×)
80 80 A1995230262A 199 523 02 62 Pressure Disk Cross Member To Side Members 3,0 Mm (2×)
90 90 A1993320174A 199 332 01 74 Pin Cross Member (4×)
100 100 A1999920301A 199 992 03 01 Bushing Cross Member 13,8mm (8×)
100 100 A0009924210A 000 992 42 10 Collared Bushing Cross Member 13,8mm (8×)
100 100 A1993310053A 199 331 00 53 Bushing Cross Member 10.8mm (8×)
100 100 A0009924110A 000 992 41 10 Collared Bushing Cross Member 10.8mm (8×)
100 100 A1993330048A 199 333 00 48 Bushing Cross Member (8×)
100 100 A0009924810A 000 992 48 10 Collared Bushing Cross Member (8×)
110 110 A1993100009A 199 310 00 09 Bracket Tow Eye To Longitudinal Member
110 110 A1993100109A 199 310 01 09 Bracket Tow Eye To Longitudinal Member Towing-eye-front*
120 120 N304014008021N 304014 008021 Hexagon Head Bolt Tow Eye To Longitudinal Member 8x120 (2×)
130 130 A1996140197A 199 614 01 97 Pad Below Bracket (4×)
140 140 A1996140397A 199 614 03 97 Pad (2×)
160 160 A1996160033A 199 616 00 33 Connection Right
200 200 A1996100907A 199 610 09 07 Longitudinal Member
210 210 A1996101007A 199 610 10 07 Longitudinal Member Right
225 225 N913023010002N 913023 010002 Nut At Bracket M10 (4×)
230 230 A1996140114A 199 614 01 14 Bracket Left
240 240 A1996140214A 199 614 02 14 Bracket Right
250 250 A1267870097A 126 787 00 97 Felt Strip Hood Release Cable 65x40x2mm
300 300 A1996100016A 199 610 00 16 Crossmember Left And Right Side Members
310 310 A1995230362A 199 523 03 62 Pressure Disk Cross Member To Side Members 3,0 Mm
310 310 A1995230462A 199 523 04 62 Pressure Disk Cross Member To Side Members 2,0 Mm
310 310 A1995230562A 199 523 05 62 Pressure Disk Cross Member To Side Members 1,2 Mm
310 310 A1995230662A 199 523 06 62 Pressure Disk Cross Member To Side Members 0,5 Mm
320 320 N000000000276N 000000 000276 Hexalobular Bolt Cross Member To Side Member,front M8x20 (6×)
400 400 A1996120173A 199 612 01 73 Crossmember Bracing
410 410 N910105008014N 910105 008014 Hexagon Head Bolt Left And Right Outside M8x35 (6×)
420 420 A0019900300A 001 990 03 00 Hexagon Fit Bolt Front Cross Member (2×)
430 430 N913023010002N 913023 010002 Nut Front Cross Member M10 (2×)
450 450 A1996210018A 199 621 00 18 Bracket Additional Fan
460 460 A1996220006A 199 622 00 06 Ventilation Screen (2×)
470 470 A1996160110A 199 616 01 10 Bracket Front Air Duct
500 500 A0009901210A 000 990 12 10 Bolt Repair Solution For Ruptured Welded Pins
510 510 A0009917632A 000 991 76 32 Blind Rivet Repair Solution 6,4 X 12mm / 1-3,5mm
63 Side Panels
045 Rear Fender
10 10 A1996300101A 199 630 01 01 Side Wall Left
10 10 A1996300201A 199 630 02 01 Side Wall Right
20 20 A1998810114A 199 881 01 14 Bracket Rear Left
20 20 A1998810214A 199 881 02 14 Bracket Rear Right
30 30 A1996310112A 199 631 01 12 Facing C-pillar Left
30 30 A1996310212A 199 631 02 12 C-pillar C-pillar Right
40 40 A1996370011A 199 637 00 11 Plate Sede Wall, Left And Right (2×)
60 60 A1997570009A 199 757 00 09 Paneling Tank Flap
70 70 A2306390007A 230 639 00 07 Ejector Tank Flap
80 80 A2307540078A 230 754 00 78 Sealing Tank Flap
90 90 A1996400051A 199 640 00 51 Bracket Tank Flap
90 90 A1996400151A 199 640 01 51 Bracket Tank Flap Tank-stutzen
100 100 N910105005000N 910105 005000 Hexagon Head Bolt Tank Flap M5x12 (7×)
110 110 N910105005002N 910105 005002 Hexagon Head Bolt Engine Fixing M5x16 (2×)
120 120 A2038201997A 203 820 19 97 Electrical System Tank Flap
130 130 A1996390042A 199 639 00 42 Filler Neck Tank Recess
140 140 A1994760675A 199 476 06 75 Hose Overflow Line To Fuel Line
150 150 A1996300036A 199 630 00 36 Bracket Tank Filler Neck
150 150 A1996300136A 199 630 01 36 Bracket Tank Filler Neck Tank-klappen-entriegelung*
160 160 A1998840431A 199 884 04 31 Trim Rear, Right Front
160 160 A1998840531A 199 884 05 31 Trim Rear,front Left
170 170 A1998840731A 199 884 07 31 Trim Rear Left
170 170 A1998840631A 199 884 06 31 Trim Rear Right
180 180 A0139977345A 013 997 73 45 Sealing Ring To Covering (6×)
190 190 A1996020105A 199 602 01 05 Rs Carrier Repair Kit Left
190 190 A1996020205A 199 602 02 05 Rs Carrier Repair Kit Right
500 500 A0009901210A 000 990 12 10 Bolt Repair Solution For Ruptured Welded Pins
510 510 A0009917632A 000 991 76 32 Blind Rivet Repair Solution 6,4 X 12mm / 1-3,5mm
700 700 A0365451228A 036 545 12 28 Plug Housing Actuator Central Locking Tank Lid 2-pin Jpt;m14/10
705 705 A0115458126A 011 545 81 26 Contact Spring 0.5-1.0 Mm2 Jpt
64 Rear End
015 Rear End
10 10 A1996400060A 199 640 00 60 Rear Panel
20 20 A1996460330A 199 646 03 30 Cover
30 30 A1996460201A 199 646 02 01 Rs Rr-end Cr Section
40 40 A1996470106A 199 647 01 06 Rs Frame Left
40 40 A1996470206A 199 647 02 06 Rs Frame Right
60 60 A1996460001A 199 646 00 01 Cover Fuel Tank
70 70 N910143006001N 910143 006001 Hexalobular Bolt At Rear Panel M6x16 (11×)
80 80 A0009910036A 000 991 00 36 Rivet At Rear Panel 3.2x14.5 (4×)
90 90 N913023010002N 913023 010002 Nut At Rear Panel M10 (4×)
100 100 N000000000276N 000000 000276 Hexalobular Bolt At Rear Panel M8x20 (6×)
110 110 A1996400201A 199 640 02 01 Rear Panel
120 120 A2118300042A 211 830 00 42 Flap Rear Left And Right (2×)
130 130 A1996470001A 199 647 00 01 Paneling
140 140 A1996470101A 199 647 01 01 Paneling Rear
150 150 A1998310328A 199 831 03 28 Retaining Clip At Rear End (3×)
160 160 A0169976545A 016 997 65 45 Full Face Gasket At Flap (2×)
170 170 A1998400010A 199 840 00 10 Rear End
180 180 A1995280044A 199 528 00 44 Water Deflector At Rear End
210 210 N000000002701N 000000 002701 Hexagon Head Bolt On Rear Panel 6x12 (8×)
500 500 A0009901210A 000 990 12 10 Bolt Repair Solution For Ruptured Welded Pins
510 510 A0009917632A 000 991 76 32 Blind Rivet Repair Solution 6,4 X 12mm / 1-3,5mm
67 Windows
015 Windshield
10 10 A1996700001A 199 670 00 01 Windshield
20 20 A1996710020A 199 671 00 20 Sealing Windshield
100 100 A1686700093A 168 670 00 93 Repair Kit Glazing; "1-component Adhesive"
030 Rear Window Pane
10 10 A1996780010A 199 678 00 10 Rear Window
20 20 A1996780020A 199 678 00 20 Sealing Frame Rear Window Pane
700 700 A0005460845A 000 546 08 45 Insulating Sleeve Heated Rear Window X19/4 X19/5 (2×)
705 705 A0075458426A 007 545 84 26 Receptacle 1.5-2.5 Mm2 Ff6.3
045 Rear Side Window
10 10 A1996700106A 199 670 01 06 Glass Pane Left
10 10 A1996700206A 199 670 02 06 Glass Pane Right
15 15 A1998200097A 199 820 00 97 Infrared Receiver Left And Right (2×)
20 20 A1996730121A 199 673 01 21 Sealing Frame Left
20 20 A1996730221A 199 673 02 21 Sealing Frame Right
700 700 A0305455928A 030 545 59 28 Plug Infrared Remote Control Receiver 3 Pin Mqs;a26/1 ;a26/2 (2×)
705 705 A0325453928A 032 545 39 28 Contact Pin 0.75 Mm2 Mqs
68 Panelling
055 Insulation In Engine Compartment
10 10 A1996260288A 199 626 02 88 Dampening At Fire Wall, Top
20 20 A1996820009A 199 682 00 09 Insulation Between A-pillar And Instrument Panel (2×)
30 30 A1996820504A 199 682 05 04 Damping
40 40 A1996820598A 199 682 05 98 Seal
50 50 A1996820604A 199 682 06 04 Dampening
70 70 A1996820804A 199 682 08 04 Dampening
80 80 A1996820904A 199 682 09 04 Dampening Fire Wall (2×)
100 100 A1996820097A 199 682 00 97 Pad Between Front Panel & Instrument Panel Top
085 Insulation In Passenger Compartment
10 10 A1996260188A 199 626 01 88 Dampening At Fire Wall, Inside
20 20 A1996821001A 199 682 10 01 Dampening On Tunnel
30 30 A1996820031A 199 682 00 31 Damping On Tunnel (3×)
30 30 A1996820031A 199 682 00 31 Damping On Tunnel (3×)
70 70 A1996800174A 199 680 01 74 Protective Strip
70 70 A1996903925A 199 690 39 25 Trim
70 70 A1996800274A 199 680 02 74 Protective Strip A-pillar, Lower, Right
70 70 A1996903625A 199 690 36 25 Trim A-pillar, Lower, Right
80 80 A1996820730A 199 682 07 30 Dampening Left Entrance
80 80 A1996820630A 199 682 06 30 Dampening Right Entrance
90 90 A0029914170A 002 991 41 70 Spring Clip Left (2×)
90 90 A0029914170A 002 991 41 70 Spring Clip Right (2×)
100 100 A1996820140A 199 682 01 40 Dampening Rear Panel
110 110 A1996821101A 199 682 11 01 Damping On Rear Panel (4×)
150 150 A0029906205A 002 990 62 05 Stud Bolt Insulation Mounting M5x12
160 160 A1997951696A 199 795 16 96 Pad Insulation Mounting 6 Mm
170 170 A0029883281A 002 988 32 81 Push Button Insulation Mounting (10×)
150 Insulation In Luggage Compartment
10 10 A1996400057A 199 640 00 57 Cover Trunk Rear Left
20 20 A0009941011A 000 994 10 11 Pin Lock Luggage Compartment Panelling (4×)
30 30 A1998140151A 199 814 01 51 Lashing Hook At Covering (4×)
50 50 A1996950337A 199 695 03 37 Dampening (2×)
60 60 A0029906205A 002 990 62 05 Stud Bolt Mounting, Cover (9×)
193 Instrument Panel And Gloves Compartment Box With Passenger Air Bag
10 10 A1996800587A 199 680 05 87 Instrument Panel
10 10 A1996801887A 199 680 18 87 Instrument Panel
20 20 A1998300154A 199 830 01 54 Nozzle Left
30 30 A1998300254A 199 830 02 54 Nozzle Right
50 50 A1998270460A 199 827 04 60 Speaker Left And Right Outside 80mm (2×)
90 90 A1996890106A 199 689 01 06 Trim
100 100 A1996890013A 199 689 00 13 Window Instrument Cluster
140 140 A1998270060A 199 827 00 60 Loudspeaker Central
140 140 A1998270660A 199 827 06 60 Speaker Central
150 150 A2308600005A 230 860 00 05 Holding Fixture In Instrument Panel
160 160 A1998600005A 199 860 00 05 Air Bag Knee Airbag (2×)
170 170 A1998800014A 199 880 00 14 Bracket Release, Engine Hood
180 180 A1996890144A 199 689 01 44 Reinforcement Driver, Left
180 180 A1996890244A 199 689 02 44 Reinforcement Driver, Right
180 180 A1996890344A 199 689 03 44 Reinforcement Front Passenger, Left
180 180 A1996890444A 199 689 04 44 Reinforcement Front Passenger, Right
180 180 A1996890637A 199 689 06 37 Trim Front Passenger, Center
200 200 A2306800065A 230 680 00 65 Trim Ring Steering Lock
210 210 A1996890341A 199 689 03 41 Bracket Instrument Cluster Top
220 220 A1995400058A 199 540 00 58 Light Switch
230 230 A1998270455A 199 827 04 55 Trim Ring Light Rotary Switch
240 240 A1996801187A 199 680 11 87 Cover Front Passenger, Center
280 280 A1996800009A 199 680 00 09 Cover Instrument Cluster Top
290 290 A1996801506A 199 680 15 06 Trim Instrument Panel Windshield
300 300 A1996800087A 199 680 00 87 Cover Dashboard
320 320 A0009922310A 000 992 23 10 Collared Bushing Shim (3×)
340 340 A1996800687A 199 680 06 87 Instrument Panel Driver
350 350 A1997200951A 199 720 09 51 Trim Bottom
360 360 A1996800001A 199 680 00 01 Knee Guard Co-driver
400 400 A1996800906A 199 680 09 06 Paneling Instrument Panel Left
400 400 A1996800780A 199 680 07 80 Trim Instrument Panel Left
400 400 A1996800806A 199 680 08 06 Paneling Instrument Panel Right
400 400 A1996800880A 199 680 08 80 Trim Instrument Panel Right
420 420 A0009904956A 000 990 49 56 Washer Nut Paneling Mounting, Left M14 (2×)
420 420 A0009904956A 000 990 49 56 Washer Nut Paneling Mounting, Right (2×)
430 430 A0009916870A 000 991 68 70 Clamp Paneling Mounting, Left (3×)
430 430 A0009916870A 000 991 68 70 Clamp Paneling Mounting, Right (3×)
460 460 N913023005002N 913023 005002 Nut On Instrument Panel Upper Part M5 (3×)
460 460 N913023006001N 913023 006001 Nut Instrument Panel To Frame M6 (7×)
460 460 N000000003175N 000000 003175 Nut At Steering Column Bracket M8
470 470 N000000003853N 000000 003853 Hexalobular Bolt Steering Column Bracket M8x16 (3×)
470 470 N000000003618N 000000 003618 Hexagon Head Bolt Steering Column Bracket To Steering Column M8 X 80 Mm
470 470 N000000003619N 000000 003619 Hexagon Head Bolt Steering Column Jacket Tube To Instrument Panel M8 X 40 Mm (2×)
470 470 N000000003620N 000000 003620 Hexagon Head Bolt Instrument Panel To Frame M6 X 16 Mm (16×)
470 470 N000000003621N 000000 003621 Hexagon Head Bolt Instrument Panel To Frame M5 X 16 Mm (7×)
480 480 A0049941245A 004 994 12 45 Spring Nut At Frame M5 (9×)
490 490 A0029908805A 002 990 88 05 Pan Head Screw Instrument Panel To Frame M5 X 16 Mm (5×)
490 490 A0029909205A 002 990 92 05 Pan Head Screw Instrument Panel To Frame M5 X 12 Mm (2×)
490 490 A0029908905A 002 990 89 05 Stud Bolt M4 X 25 Mm (3×)
490 490 A0029909005A 002 990 90 05 Pan Head Screw To Reinforcement M4 X 20 Mm (8×)
490 490 A0029909405A 002 990 94 05 Pan Head Screw M4 X 8 Mm (4×)
490 490 A0029909105A 002 990 91 05 Stud Bolt Air Duct Fastening; Instrument Cluster Cover; Intermediate Shim To Frame M5 X 12 Mm (28×)
500 500 A0019909954A 001 990 99 54 Hex. Nut W Flange A Part At Steering Column Bracket M4 (3×)
500 500 A0009905156A 000 990 51 56 Clip Nut Instrument Panel To Frame M6 (6×)
500 500 A1409941445A 140 994 14 45 Securing To Instrument Cluster Bracket (8×)
510 510 A0009906910A 000 990 69 10 Fill. Hd. Tapping Screw Mounting, Cover 8 X 12 Mm (5×)
510 510 A0009907010A 000 990 70 10 Mushroom Head Metal Screw 8 X 10 Mm (2×)
510 510 A0029909305A 002 990 93 05 Pan Head Screw (3×)
510 510 N000000003622N 000000 003622 Hexalobular Bolt Instrument Panel To Frame M4 X 35 Mm
550 550 A0009911732A 000 991 17 32 Rivet Mounting, Loudspeaker 4 X 10 Mm (16×)
560 560 A0009910995A 000 991 09 95 Clamp Side Panelling (4×)
610 610 A2108171220A 210 817 12 20 Adhesive Label Notice For Child Restraint System
800 800 A1998207104A 199 820 71 04 Electrical Line Cockpit Cable Harness
805 805 A2205459228A 220 545 92 28 Plug Connector, Cockpit/interior, Black 14 Pin Slk2.8;x18
806 806 A0365458728A 036 545 87 28 Plug Connector, Cockpit/interior, Transparent 14-pin Slk2.8
807 807 A0415456728A 041 545 67 28 Plug Connector, Cockpit/interior, Blue
810 810 A0355459628A 035 545 96 28 Plug 3-pin
810 810 A0355457328A 035 545 73 28 Male Spade Connector 0.5-1.0 Mm2 Slk2.8
810 810 A0355457628A 035 545 76 28 Plug 2.5-4.0 Mm2 Slk2.8
815 815 A0405457428A 040 545 74 28 Plug Intermediate Connector, Airbag 12-pin;x28/12
820 820 A0415452828A 041 545 28 28 Plug 0.5-0.75 Mm2 Mqs
825 825 A0305452828A 030 545 28 28 Plug Voltage Distributor Connector Can B 2-pin Mqs;x30/15 (3×)
830 830 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
835 835 A0375456328A 037 545 63 28 Plug Voltage Distributor Connector Can C 3-pin Mqs;x30/18
835 835 A0375455928A 037 545 59 28 Plug Voltage Distributor Connector Can C 2-pin Mqs;x30/18 (2×)
840 840 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
845 845 A0005466943A 000 546 69 43 Bracket Cable Harness Mounting
900 900 A0305452828A 030 545 28 28 Plug Centerfill Speaker 2-pin Mqs;h4/27
905 905 A0005404605A 000 540 46 05 Electrical Line 0.75 Mm2 Mqs Sn
910 910 A2104400008A 210 440 00 08 Electrical Line Knee Airbag R12/24; R12/25 (2×)
915 915 A0005407905A 000 540 79 05 Electrical Line Squib 1 Airbag Passenger Side R12/4 (2×)
915 915 A0005407805A 000 540 78 05 Repair Kit Squib 2 Airbag Passenger Side R12/5 (2×)
915 915 A0005408005A 000 540 80 05 Electrical Line Squib 2 Airbag Passenger Side R12/5 (2×)
205 Detachable Components,instrument Panel
10 10 A1996800031A 199 680 00 31 Mounting Consule Dashboard
20 20 A2208300272A 220 830 02 72 Sensor Solar Sensor
30 30 A0009905156A 000 990 51 56 Clip Nut Bracket To Console M6 (2×)
40 40 A0019914270A 001 991 42 70 Spring Clamp Bracket To Console (2×)
50 50 A0009911798A 000 991 17 98 Clamp Bracket To Console (2×)
60 60 A1996801606A 199 680 16 06 Paneling Central Air Duct
60 60 A1996800980A 199 680 09 80 Trim Central Air Duct
70 70 A0019914270A 001 991 42 70 Spring Clamp (4×)
80 80 A1996801206A 199 680 12 06 Trim
90 90 A1996800706A 199 680 07 06 Trim To Covering
100 100 A1996800406A 199 680 04 06 Trim Heating Control
100 100 A1996800506A 199 680 05 06 Paneling Upper Control Panel
110 110 A0029904205A 002 990 42 05 Pan Head Screw At Console M5x16 (3×)
120 120 A1998310341A 199 831 03 41 Cover Fan
130 130 A1996800310A 199 680 03 10 Paneling Left
130 130 A1996800410A 199 680 04 10 Trim Right
140 140 A1409941445A 140 994 14 45 Securing On Trim,left (2×)
140 140 A1409941445A 140 994 14 45 Securing On Trim,right (2×)
150 150 A0009911798A 000 991 17 98 Clamp On Trim,left
150 150 A0009911798A 000 991 17 98 Clamp On Trim,right
160 160 A1996120310A 199 612 03 10 Bracket On Tunnel
170 170 A1996800717A 199 680 07 17 Cover Legroom,left
170 170 A1996801117A 199 680 11 17 Cover Legroom,left
180 180 A2038200801A 203 820 08 01 Interior Lamp Lighting, Footwell (2×)
190 190 A2208202402A 220 820 24 02 Speaker Tele Aid
200 200 A0009911832A 000 991 18 32 Rivet Mounting, Loudspeaker (2×)
210 210 A1996800417A 199 680 04 17 Cover Legroom Co-driver's Seat Side
210 210 A1996800617A 199 680 06 17 Cover Legroom Co-driver's Seat Side
220 220 A2038200801A 203 820 08 01 Interior Lamp Lighting, Footwell
230 230 N000000003765N 000000 003765 Hexalobular Bolt M6x20 (4×)
240 240 A0049941545A 004 994 15 45 Securing M6 (2×)
250 250 N913023006001N 913023 006001 Nut M6 (2×)
260 260 N910105005003N 910105 005003 Hexagon Head Bolt M5x20
260 260 N910143006001N 910143 006001 Hexalobular Bolt M6x16 (4×)
270 270 A0049941245A 004 994 12 45 Spring Nut M5 (4×)
280 280 A0009842022A 000 984 20 22 Clip Nut B4.2 S=0.75 Mm
280 280 A0049943645A 004 994 36 45 Clip Nut 4,2
290 290 A1997950996A 199 795 09 96 Pad 5 X 15 X 1 Mm (5×)
290 290 A1997951696A 199 795 16 96 Pad 6 Mm (4×)
300 300 N000000000814N 000000 000814 Tapping Screw 4.2x16 (13×)
310 310 A0009910995A 000 991 09 95 Clamp (2×)
320 320 A0029914170A 002 991 41 70 Spring Clip (6×)
330 330 N000000001476N 000000 001476 Hexalobular Bolt M6x16 (2×)
330 330 A0029903005A 002 990 30 05 Pan Head Screw M5 X 20 Mm (6×)
330 330 A0029908005A 002 990 80 05 Stud Bolt M5 X 12 Mm (2×)
340 340 A0009983605A 000 998 36 05 Grommet, Closed, Smooth (2×)
350 350 A1998270014A 199 827 00 14 Bracket On Tunnel
360 360 A1998300054A 199 830 00 54 Nozzle Instrument Panel,center
700 700 A2105402181A 210 540 21 81 Clutch Solar Position Sensor 3-pin Mqs;b32/2
705 705 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
710 710 A0295450528A 029 545 05 28 Plug 2-pin Wdf2;e17/15; E17/16
715 715 A0005403505A 000 540 35 05 Electrical Line 1.5 Mm2 Wdf2
720 720 A0325452028A 032 545 20 28 Receptacle Housing Loadspeaker For Emergency Call 2-pin Mqs;h4/46
725 725 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
250 Central Console
10 10 A1998100131A 199 810 01 31 Mounting Consule Central
10 10 A1998100531A 199 810 05 31 Mounting Consule Central
20 20 A1992600068A 199 260 00 68 Gear Display
20 20 A1995400049A 199 540 00 49 Indicator
30 30 A0009950092A 000 995 00 92 Bracket (2×)
40 40 A0029909305A 002 990 93 05 Pan Head Screw Attachment Cover (2×)
50 50 A0029909405A 002 990 94 05 Pan Head Screw Fastening For Lining M4 X 8 Mm (4×)
60 60 A0029909505A 002 990 95 05 Pan Head Screw To Hinge (2×)
70 70 A1998200010A 199 820 00 10 Switch Lower Control Panel
100 100 A1996830070A 199 683 00 70 Facing Gearshift Mechanism
160 160 A1996900014A 199 690 00 14 Bracket Console,front
170 170 A1998100004A 199 810 00 04 Stowage On Center Console
175 175 A1996800111A 199 680 01 11 Latch
190 190 A0009911732A 000 991 17 32 Rivet Pigeonhole To Console 4 X 10 Mm
190 190 A0009911832A 000 991 18 32 Rivet Bracket Mounting
195 195 A1996830059A 199 683 00 59 Hinge
200 200 A1998100028A 199 810 00 28 Ashtray In Console
200 200 A1998100128A 199 810 01 28 Ashtray In Console Ascher
210 210 A0008201853A 000 820 18 53 Cigar Lighter In Console
230 230 A2088200501A 208 820 05 01 Interior Lamp In Console (2×)
240 240 N072601012130N 072601 012130 Bulb Interior Lamp 12v-5w (2×)
240 240 N000000002723N 000000 002723 Bulb Interior Lamp 12v-5w (2×)
250 250 N910142005000N 910142 005000 Hexalobular Bolt M5x10 (8×)
250 250 N910143006001N 910143 006001 Hexalobular Bolt M6x16 (6×)
250 250 N000000003853N 000000 003853 Hexalobular Bolt M8x16
260 260 A0029902905A 002 990 29 05 Bolt (2×)
270 270 A0009951975A 000 995 19 75 Pin Left Bracket
270 270 A0009952075A 000 995 20 75 Window Right Bracket
280 280 A1996801306A 199 680 13 06 Trim Hand Brake Lever
290 290 A1996800117A 199 680 01 17 Cap
700 700 A0345457528A 034 545 75 28 Receptacle Housing Lower Control Panel 8-pin Mqs;n72
700 700 A2205456728A 220 545 67 28 Receptacle Housing Lower Control Panel 10-pin;n72
705 705 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
705 705 A0005404605A 000 540 46 05 Electrical Line 0.75 Mm2 Mqs Sn
710 710 A0375450228A 037 545 02 28 Plug Cigar Lighter 3-pin Wdf2;r3
715 715 A0005403505A 000 540 35 05 Electrical Line 1.5 Mm2 Wdf2
720 720 A0295455528A 029 545 55 28 Receptacle Housing Pigeonhole Switch,burglary Alarm System 3-pin Mqs;s62/8
725 725 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
255 Housing With Tray
10 10 A1996900134A 199 690 01 34 Mounting Consule For Telephone
15 15 A1996930052A 199 693 00 52 Hinge At Console
20 20 A1996840135A 199 684 01 35 Bracket Console
25 25 A1996900107A 199 690 01 07 Flap At Console
30 30 A1996840131A 199 684 01 31 Damper At Console
35 35 A1996930084A 199 693 00 84 Latch (2×)
38 38 A1996930284A 199 693 02 84 Locking Hook Stowage Compartment Center Console
40 40 A0009930165A 000 993 01 65 Ball Joint At Console
40 40 A0009912015A 000 991 20 15 Ball Pin At Console
50 50 A0029909405A 002 990 94 05 Pan Head Screw Shell To Reservoir M4 X 8 Mm (6×)
60 60 A0029909505A 002 990 95 05 Pan Head Screw Shell To Reservoir (2×)
70 70 A0009907110A 000 990 71 10 Mushroom Head Metal Screw Upper Shell On Support M6x9.5
80 80 N912010002000N 912010 002000 Circlip Upper Shell On Support (4×)
90 90 A0029909605A 002 990 96 05 Pan Head Screw Lower Shell On Support M4x16
100 100 A1996830010A 199 683 00 10 Cap
140 140 A2038200251A 203 820 02 51 Mount Fixed Ctel System
155 155 A0015455240A 001 545 52 40 Plug Housing Breakdown/information Button Conn. 6-pin Mqs;;x39/48
156 156 A0325453928A 032 545 39 28 Contact Pin 0.75 Mm2 Mqs
200 200 A1996830089A 199 683 00 89 End Stop Rear Console (2×)
220 220 A1996940114A 199 694 01 14 Lock At Flap
230 230 A0029909005A 002 990 90 05 Pan Head Screw Lock On Support M4 X 20 Mm (2×)
240 240 A0029929801A 002 992 98 01 Spacer Sleeve Lock On Support (2×)
250 250 A1996900192A 199 690 01 92 Tray Rear Console
250 250 A1996900692A 199 690 06 92 Stowage Rear Console
260 260 A2038200801A 203 820 08 01 Interior Lamp
270 270 A0009950092A 000 995 00 92 Bracket Interior Lamp (2×)
280 280 N913023005002N 913023 005002 Nut Rear Parcel Rack M5 (4×)
290 290 N910105005000N 910105 005000 Hexagon Head Bolt Rear Parcel Rack M5x12 (10×)
300 300 N910143006000N 910143 006000 Hexalobular Bolt Rear Parcel Rack M6x12 (2×)
310 310 A0029908005A 002 990 80 05 Stud Bolt Rear Parcel Rack M5 X 12 Mm (2×)
320 320 A1998840092A 199 884 00 92 Damping Rear Parcel Rack (2×)
710 710 A0295450528A 029 545 05 28 Plug Pigeonhole Lighting 2-pin Wdf2;e36
715 715 A0005403505A 000 540 35 05 Electrical Line 1.5 Mm2 Wdf2
800 800 A0015402881A 001 540 28 81 Clutch Breakdown/information Button Conn. 6-pin Mqs;x39/48
805 805 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
900 900 A0335450028A 033 545 00 28 Receptacle Housing E-call Pushbutton 4-pin Mqs;s93/3
905 905 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
435 Front Panel Pillar Panelling,lining On Floor And In Rear Compartment
10 10 A1996900249A 199 690 02 49 Paneling On Rear Panel
15 15 A1996400001A 199 640 00 01 Rear Panel
20 20 A1997410114A 199 741 01 14 Bracket Left Panelling
20 20 A1997410214A 199 741 02 14 Bracket Right Panelling
30 30 A1997410014A 199 741 00 14 Bracket Front Panelling (4×)
100 100 A1996900062A 199 690 00 62 Strip Rear Panel,top
110 110 A0029902905A 002 990 29 05 Bolt Rear Window Bottom (2×)
150 150 A1996900307A 199 690 03 07 Flap Hat Tray
160 160 A2024270027A 202 427 00 27 End Stop Left And Right (2×)
165 165 A0029908805A 002 990 88 05 Pan Head Screw Left And Right M5 X 16 Mm (4×)
170 170 A0049941245A 004 994 12 45 Spring Nut Left And Right M5 (2×)
175 175 A0029909005A 002 990 90 05 Pan Head Screw Left And Right M4 X 20 Mm (2×)
175 175 A0029909205A 002 990 92 05 Pan Head Screw Left And Right M5 X 12 Mm (6×)
180 180 A0019909954A 001 990 99 54 Hex. Nut W Flange A Part Left And Right M4 (4×)
185 185 A0029929801A 002 992 98 01 Spacer Sleeve Left And Right (2×)
190 190 A0009950990A 000 995 09 90 Cable Strap Bracket
210 210 A1998207404A 199 820 74 04 Electrical Line Pigeonhole Lighting
212 212 A0305456028A 030 545 60 28 Plug Center Console Connector 3-pin Mqs;x29/6
213 213 A0325453928A 032 545 39 28 Contact Pin 0.75 Mm2 Mqs
214 214 A0295450528A 029 545 05 28 Plug Rear Box Lights, Left And Right 2-pin Wdf2;e18/6 E18/7 (2×)
215 215 A0005403505A 000 540 35 05 Electrical Line 1.5 Mm2 Wdf2
220 220 A1996940137A 199 694 01 37 Grille Loudspeaker,left
220 220 A1996940037A 199 694 00 37 Grille Loudspeaker,right
230 230 A1996940038A 199 694 00 38 Support Covering (2×)
260 260 A1998140014A 199 814 00 14 Bracket Gas-operated Strut, Top (2×)
270 270 A1998140114A 199 814 01 14 Bracket Gas-operated Strut, Bottom (2×)
280 280 A2038200801A 203 820 08 01 Interior Lamp Rear Wall Stowage Compartment (2×)
290 290 A1998270098A 199 827 00 98 Seal Rear Loudspeaker (2×)
300 300 A1996930452A 199 693 04 52 Hinge Left & Right Covering (2×)
305 305 A1999880081A 199 988 00 81 Push Button (6×)
310 310 A1996800007A 199 680 00 07 Cover Legroom,front Inside Left
310 310 A1996802507A 199 680 25 07 Cover Legroom,front Inside Left
320 320 A0009842022A 000 984 20 22 Clip Nut At Covering B4.2 S=0.75 Mm
320 320 A0049943645A 004 994 36 45 Clip Nut At Covering 4,2
330 330 A0019833913A 001 983 39 13 Velcro Fastener At Covering (2×)
340 340 A1996800107A 199 680 01 07 Cover Legroom,front Right
340 340 A1996802407A 199 680 24 07 Cover Legroom,front Right
370 370 A0009842022A 000 984 20 22 Clip Nut Covering B4.2 S=0.75 Mm
370 370 A0049943645A 004 994 36 45 Clip Nut Covering 4,2
380 380 A0019833913A 001 983 39 13 Velcro Fastener Covering (2×)
390 390 A0049941545A 004 994 15 45 Securing Covering M6 (3×)
400 400 A1996801410A 199 680 14 10 Trim, Center Tunnel Tunnel,left
500 500 A1996900742A 199 690 07 42 Lining Left
505 505 A1996900842A 199 690 08 42 Lining Right
510 510 A1996900142A 199 690 01 42 Lining Side Molding Left
515 515 A1996900242A 199 690 02 42 Lining Side Molding Right
520 520 A2116840023A 211 684 00 23 Cap Lining Fastening (4×)
525 525 A1996900542A 199 690 05 42 Lining Left
525 525 A1996900642A 199 690 06 42 Lining Right
530 530 A1706840035A 170 684 00 35 Bracket Flooring (4×)
540 540 A0019833913A 001 983 39 13 Velcro Fastener (11×)
550 550 A1996802506A 199 680 25 06 Paneling A-pillar Bottom, Inner Left
550 550 A1996802606A 199 680 26 06 Paneling A-pillar Bottom, Inner Right
560 560 A1996890154A 199 689 01 54 Strip Left Entrance
560 560 A1996890254A 199 689 02 54 Strip Right Entrance
600 600 A1996800140A 199 680 01 40 Ts Lining
700 700 A0295455528A 029 545 55 28 Receptacle Housing Switch, Stowage Box Illumination, Rear Right 3-pin Mqs;s17/30
705 705 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
69 Panelling And Lining
018 Sun Visor,interior Mirror, Grab Handle
10 10 A1998100110A 199 810 01 10 Sun Visor Left
20 20 A1998100010A 199 810 00 10 Sun Visor Right
30 30 A2308110041A 230 811 00 41 Bearing Sun Visor (2×)
50 50 A2038171820A 203 817 18 20 Adhesive Label
50 50 A2038174920A 203 817 49 20 Information Label Sun Visor Outside Right
60 60 A1998100417A 199 810 04 17 Mirror, Inner With Garage Door Opener
70 70 A2158100011A 215 810 00 11 Plate Inside Rearview Mirror Mounting
80 80 N910142005002N 910142 005002 Hexalobular Bolt Plate M 5 X 16 (2×)
90 90 A1996950030A 199 695 00 30 Cover Front Mirror Base
100 100 A1996950130A 199 695 01 30 Cover Rear Mirror Base
028 Paneling For A, B And C-pillars
10 10 A1996901325A 199 690 13 25 Trim A-pillar,left
10 10 A1996900225A 199 690 02 25 Trim A-pillar,right
20 20 A1996820030A 199 682 00 30 Dampening
30 30 A1996890541A 199 689 05 41 Bracket Mounting, Paneling To A-pillar (6×)
50 50 A0009914798A 000 991 47 98 Bracket Mounting, Paneling To A-pillar (6×)
60 60 A1996901125A 199 690 11 25 Paneling Left To B-/c-pillar
60 60 A1996901925A 199 690 19 25 Trim Left To B-/c-pillar
60 60 A1996901225A 199 690 12 25 Paneling Right To B-/c-pillar
60 60 A1996902025A 199 690 20 25 Trim Right To B-/c-pillar
70 70 A1996900525A 199 690 05 25 Trim B-pillar Bottom Left
70 70 A1996900625A 199 690 06 25 Trim B-pillar Bottom Right
80 80 A0009910895A 000 991 08 95 Clamp Panelling To B-pillar (6×)
90 90 A0009911798A 000 991 17 98 Clamp Panelling To B-pillar (2×)
100 100 A0019914270A 001 991 42 70 Spring Clamp Paneling To Left B-pillar
100 100 A0019914270A 001 991 42 70 Spring Clamp Paneling To Right B-pillar
110 110 A0009910995A 000 991 09 95 Clamp Fastening For Lining (2×)
130 130 A1996020014A 199 602 00 14 Bracket Stop (2×)
150 150 A0029904105A 002 990 41 05 Cap Bolt With Socket Stop M12x25
160 160 A1996310112A 199 631 01 12 Facing C-pillar Left
160 160 A1996310212A 199 631 02 12 C-pillar C-pillar Right
170 170 A2118172720A 211 817 27 20 Information Label On B-pillar Left And Right, In German (2×)
030 Headliner
10 10 A1996950100A 199 695 01 00 Trim
100 100 A1996950116A 199 695 01 16 Reinforcement Roof Mounted Operating Unit
110 110 A1996950216A 199 695 02 16 Reinforcement At Reinforcement (2×)
120 120 A0019833913A 001 983 39 13 Velcro Fastener At Reinforcement (3×)
130 130 A1996821004A 199 682 10 04 Dampening
140 140 A1996821104A 199 682 11 04 Damping Insert Foam Block 50x20x10
150 150 A1996821204A 199 682 12 04 Damping Insert Foam Block 50x20x20
160 160 A1996821304A 199 682 13 04 Damping Insert Foam Block 50x20x25 (4×)
170 170 A0009910995A 000 991 09 95 Clamp Fastening For Lining (2×)
180 180 A1998310093A 199 831 00 93 Intermediate Layer Roof Rail Panelling
045 Luggage Compartment Covering
10 10 A1996900442A 199 690 04 42 Lining Luggage Compartment Floor
20 20 A1996900342A 199 690 03 42 Lining Tank Partition Wall
30 30 A1996940225A 199 694 02 25 Trim Loading Edge
36 36 A0009911895A 000 991 18 95 Clamp To Paneling Trunk Sill (2×)
37 37 A0009983605A 000 998 36 05 Grommet, Closed, Smooth (2×)
40 40 A1996900141A 199 690 01 41 Trim Trunk, Side, Left
50 50 A1996900241A 199 690 02 41 Trim Trunk, Side, Right
60 60 A2108150022A 210 815 00 22 Hook Load Anchorage (4×)
60 60 A1998140151A 199 814 01 51 Lashing Hook Load Anchorage (4×)
65 65 N000000004143N 000000 004143 Countersunk Bolt Luggage Net 5x30 (4×)
70 70 N913023005002N 913023 005002 Nut Luggage Compartment Panelling M5 (4×)
80 80 A0049941445A 004 994 14 45 Spring Nut Luggage Compartment Panelling M6 (2×)
90 90 N910105005000N 910105 005000 Hexagon Head Bolt Luggage Compartment Panelling M5x12 (4×)
100 100 A1998800144A 199 880 01 44 Cover Inside Wheelhouse,left
110 110 A1998800244A 199 880 02 44 Cover Inside Wheelhouse,right
120 120 A1996931017A 199 693 10 17 Cover Central Rear
130 130 A1996931117A 199 693 11 17 Cover Rear Left
140 140 A1996931217A 199 693 12 17 Cover Rear Right
150 150 A1999890385A 199 989 03 85 Adhesive Film Cutting
160 160 A0009913895A 000 991 38 95 Plug-in Fastener Seal (12×)
170 170 A0009911895A 000 991 18 95 Clamp (2×)
180 180 A2019900292A 201 990 02 92 Expansion Rivet Panelling On Rear Lid 8 Mm (28×)
200 200 A2308100049A 230 810 00 49 Luggage Net
210 210 A0009941011A 000 994 10 11 Pin Lock Luggage Compartment Panelling (4×)
220 220 A1998140151A 199 814 01 51 Lashing Hook At Covering (4×)
250 250 A0008660214A 000 866 02 14 Bracket Fire Extinguisher
270 270 A0008660571A 000 866 05 71 Tensioning Strap Fire Extinguisher To Bracket
280 280 A1998660114A 199 866 01 14 Bracket Fire Extinguisher With Bracket To Frame
285 285 N000000004310N 000000 004310 Hexagon Head Bolt Bracket Mounting M6x10 (3×)
290 290 N913023005002N 913023 005002 Nut Bracket Mounting M5 (2×)
295 295 A0019901282A 001 990 12 82 Window Bracket Mounting
310 310 A1998600051A 199 860 00 51 Mount First Aid Box
320 320 A1998630071A 199 863 00 71 Tensioning Strap First-aid Case To Mounting
330 330 A1996940614A 199 694 06 14 Bracket Take-up Device
335 335 N913023005002N 913023 005002 Nut At Bracket M5 (2×)
340 340 A1996820098A 199 682 00 98 Sealing To Mounting
350 350 A1996820197A 199 682 01 97 Pad Parcel Rack
360 360 A1996820297A 199 682 02 97 Base Parcel Rack
360 360 A1996820697A 199 682 06 97 Intermediate Layer Parcel Rack
360 360 A1996820797A 199 682 07 97 Intermediate Layer Parcel Rack
370 370 A1996820397A 199 682 03 97 Pad (2×)
380 380 A1996940108A 199 694 01 08 Mount Tyre Inflation Compressor
390 390 A1996300080A 199 630 00 80 Tensioning Strap To Mounting
430 430 A1996840801A 199 684 08 01 Mat Front Left
440 440 A1996840901A 199 684 09 01 Mat Central Left
450 450 A1996841001A 199 684 10 01 Mat Rear Left
460 460 A1996800307A 199 680 03 07 Cover Luggage Compartment Floor
460 460 A1996802607A 199 680 26 07 Cover Luggage Compartment Floor
470 470 A0029906205A 002 990 62 05 Stud Bolt Mounting, Cover M5x12 (4×)
480 480 A0009906882A 000 990 68 82 Window (4×)
490 490 A1996800507A 199 680 05 07 Cover Luggage Compartment Floor
500 500 A1996920148A 199 692 01 48 Spring U-bolt At Covering (2×)
510 510 A0039921901A 003 992 19 01 Spacer Sleeve At Covering (2×)
515 515 A0009912295A 000 991 22 95 Plug-in Fastener At Covering (2×)
518 518 A0009916340A 000 991 63 40 Expansion Rivet At Covering (6×)
520 520 A1996820398A 199 682 03 98 Sealing Covering
530 530 A1996800407A 199 680 04 07 Cover Luggage Compartment Floor,right
540 540 A1996920148A 199 692 01 48 Spring U-bolt At Covering (2×)
550 550 A0039921901A 003 992 19 01 Spacer Sleeve At Covering (2×)
555 555 A0009912295A 000 991 22 95 Plug-in Fastener At Covering (2×)
558 558 A0009916340A 000 991 63 40 Expansion Rivet At Covering (6×)
560 560 A1996820498A 199 682 04 98 Sealing Right Covering
570 570 A2308200151A 230 820 01 51 Socket In Luggage Compartment,left
580 580 A1996940008A 199 694 00 08 Mount Accessories
590 590 A1996940208A 199 694 02 08 Mount
610 610 A0009980701A 000 998 07 01 Guide Grommet
650 650 A1996830089A 199 683 00 89 End Stop Rear Console (2×)
710 710 A1995410003A 199 541 00 03 Cap Pos. Pole
720 720 A1995410103A 199 541 01 03 Cap Neg.pole
730 730 A0375450228A 037 545 02 28 Plug Plug Socket Loading Compartment 3-pin Wdf2;x58/1
735 735 A0005403505A 000 540 35 05 Electrical Line Plug Socket Loading Compartment 1.5 Mm2 Wdf2
750 750 A0009914670A 000 991 46 70 Clamp (2×)
760 760 A0009980295A 000 998 02 95 Pin (2×)
800 800 A1995840238A 199 584 02 38 Adhesive Label Im Luggage Compartment
810 810 A1995840338A 199 584 03 38 Adhesive Label Fuse Box In Luggage Compartment
810 810 A1995840438A 199 584 04 38 Adhesive Label Im Luggage Compartment
047 Folding Top Case
72 Front Doors
015 Front Doors
10 10 A1997200101A 199 720 01 01 Door Left
10 10 A1997200305A 199 720 03 05 Driver's Door Left
10 10 A1997200505A 199 720 05 05 Door, Body-in-white Left
10 10 A1997200001A 199 720 00 01 Door Right
10 10 A1997200405A 199 720 04 05 Driver's Door Right
10 10 A1997200605A 199 720 06 05 Door, Body-in-white Right
20 20 A1999890685A 199 989 06 85 Adhesive Tape Door, Left And Right
50 50 A1996820698A 199 682 06 98 Seal Left
50 50 A1997250166A 199 725 01 66 Sealing Left
50 50 A1996820698A 199 682 06 98 Seal Right
50 50 A1997250266A 199 725 02 66 Sealing Right
60 60 A1997232514A 199 723 25 14 Bracket Left Hinge
60 60 A1997232614A 199 723 26 14 Bracket Right Hinge
70 70 A1995460843A 199 546 08 43 Bracket Front Door Cable
80 80 N910143006001N 910143 006001 Hexalobular Bolt Bracket Mounting M6x16 (4×)
90 90 A0029905005A 002 990 50 05 Cap Bolt With Socket Bracket Mounting M3x6 (4×)
90 90 A0039905205A 003 990 52 05 Cap Bolt With Socket Fastening Bracket Right M3x6 (4×)
100 100 A1997510198A 199 751 01 98 Seal Left
100 100 A1997210180A 199 721 01 80 Door Sealing, Circumf. Left
100 100 A1997210380A 199 721 03 80 Door Sealing, Circumf. Left
100 100 A1997510298A 199 751 02 98 Sealing Left
100 100 A1997510098A 199 751 00 98 Seal Right
100 100 A1997210480A 199 721 04 80 Door Sealing, Circumf. Right
100 100 A1997210380A 199 721 03 80 Door Sealing, Circumf. Right
100 100 A1997510298A 199 751 02 98 Sealing Right
110 110 A1997250120A 199 725 01 20 Sealing Frame Inside Left
110 110 A1997250220A 199 725 02 20 Sealing Frame Inside Right
120 120 A1997250320A 199 725 03 20 Sealing Frame Outside Left
120 120 A1997250420A 199 725 04 20 Sealing Frame Outside Right
130 130 A1997230198A 199 723 01 98 Seal Left Door,top
130 130 A1997230798A 199 723 07 98 Seal Left
130 130 A1997230898A 199 723 08 98 Seal Right
135 135 A1997230598A 199 723 05 98 Seal Left
135 135 A1997230698A 199 723 06 98 Seal Right
140 140 A1997270130A 199 727 01 30 Sealing Left
140 140 A1997270230A 199 727 02 30 Sealing Right
150 150 A1997230105A 199 723 01 05 Shim Plate Top Left
150 150 A1997230205A 199 723 02 05 Shim Plate Bracket To Door
150 150 A1997230005A 199 723 00 05 Compensating Plate Door,top
150 150 A1997230105A 199 723 01 05 Shim Plate Top Right 0,5mm
150 150 A1997230305A 199 723 03 05 Shim Plate Left Top Front
150 150 A1997230305A 199 723 03 05 Shim Plate Right Front Door
160 160 N000000003764N 000000 003764 Pan Head Screw Attachment Plate 6x12 (4×)
170 170 A1997230003A 199 723 00 03 Lock Plate To Left Door
170 170 A1997230203A 199 723 02 03 Lock Wedge To Left Door
170 170 A1997230003A 199 723 00 03 Lock Plate At Door Right
170 170 A1997230203A 199 723 02 03 Lock Wedge At Door Right
180 180 A0019917060A 001 991 70 60 Pin Attachment Plate (12×)
200 200 A1999880001A 199 988 00 01 Pneumatic Spring Door, Left And Right (2×)
205 205 A1997630029A 199 763 00 29 Ball Joint Gas-operated Strut, Top Aufteilungsteil Aus A 199 980 01 64* (2×)
205 205 A1997630129A 199 763 01 29 Ball Joint Gas-operated Strut, Bottom Aufteilungsteil Aus A 199 980 01 64* (2×)
210 210 A2308600105A 230 860 01 05 Holding Fixture On Driver Door Inner Part, Left
210 210 A2308600205A 230 860 02 05 Holding Fixture On Driver Door Inner Part, Right
220 220 N910105005000N 910105 005000 Hexagon Head Bolt Fastening Sensor Left/right M5x12 (6×)
300 300 A1997200137A 199 720 01 37 Hinge Top Left
300 300 A1997200537A 199 720 05 37 Hinge Top Left
300 300 A1997200037A 199 720 00 37 Hinge Top Right
300 300 A1997200637A 199 720 06 37 Hinge Top Right
310 310 A1997250162A 199 725 01 62 Bolt, Special Shape To Hinges Left And Right (2×)
315 315 A0009908582A 000 990 85 82 Window Shim (4×)
320 320 A1997210227A 199 721 02 27 Bearing Moulded Part To Hinges Left And Right 10 X 9.5 X 15 (4×)
320 320 A1997210027A 199 721 00 27 Bearing Moulded Part To Hinges Left And Right (2×)
330 330 N000000002138N 000000 002138 Hexalobular Bolt Hinge, Left And Right M8x25 (4×)
330 330 A0039900305A 003 990 03 05 Pan Head Screw To Hinge Left M6x16 (2×)
330 330 A0039905305A 003 990 53 05 Stud Bolt To Hinge Left M6x16 (2×)
330 330 A0029902612A 002 990 26 12 Bolt Hinge, Left And Right M8x30 (4×)
330 330 N000000002139N 000000 002139 Hexalobular Bolt Hinge, Left And Right M8x30;m6x16 (4×)
330 330 N000000002196N 000000 002196 Hexalobular Bolt To Hinges Left And Right M6x20;m6x16 (2×)
330 330 A0039900305A 003 990 03 05 Pan Head Screw To Hinge Right M6x16 (2×)
340 340 A1995641062A 199 564 10 62 Window To Hinges Left And Right 0.5 Mm (2×)
340 340 A1995641162A 199 564 11 62 Window To Hinges Left And Right 1.0 Mm (2×)
345 345 A1995640862A 199 564 08 62 Window To Hinges Left And Right 0.5 Mm (2×)
345 345 A1995640962A 199 564 09 62 Window To Hinges Left And Right 1.0 Mm (2×)
350 350 A1997200337A 199 720 03 37 Hinge Bottom Left
350 350 A1997201137A 199 720 11 37 Hinge Bottom Left
350 350 A1997200237A 199 720 02 37 Hinge Bottom Right
350 350 A1997201037A 199 720 10 37 Hinge Bottom Right
380 380 A1997210127A 199 721 01 27 Bearing Moulded Part To Hinges Left And Right (2×)
390 390 A1997950796A 199 795 07 96 Pad To Hinges Left And Right (2×)
395 395 A0019903982A 001 990 39 82 Window To Hinges Left And Right (2×)
400 400 N000000003175N 000000 003175 Nut To Hinges Left And Right M8 (2×)
410 410 A1995640462A 199 564 04 62 Shim To Hinges Left And Right 1.0 Mm (2×)
410 410 A1996841029A 199 684 10 29 Pad To Hinges Left And Right 0,5mm
410 410 A1996841029A 199 684 10 29 Pad To Hinges Left And Right
410 410 A1995640562A 199 564 05 62 Shim To Hinges Left And Right 0.5 Mm (2×)
410 410 A1996840929A 199 684 09 29 Pad To Hinges Left And Right 1.0mm
410 410 A1996840929A 199 684 09 29 Pad To Hinges Left And Right 0,5 Mm
450 450 A1997280156A 199 728 01 56 Cover Hinge Top Left
450 450 A1997280056A 199 728 00 56 Cover Hinge Top Right
460 460 A1997280356A 199 728 03 56 Cover Hinge Bottom Left
460 460 A1997280256A 199 728 02 56 Cover Hinge Bottom Right
500 500 A1995640662A 199 564 06 62 Window To Door Bottom, Left And Right 1.0 Mm (2×)
500 500 A1995640762A 199 564 07 62 Window To Door Bottom, Left And Right 0.5 Mm (2×)
510 510 A1996840229A 199 684 02 29 Pad Top Left Pad Cover Hinge Upper (2×)
520 520 A1996840329A 199 684 03 29 Pad Bottom Left Pad Cover Hinge Lower
520 520 A1996840329A 199 684 03 29 Pad Bottom Right Pad Cover Hinge Lower
530 530 A1996840429A 199 684 04 29 Pad Bottom Left Pad Cover Hinge Lower
530 530 A1996840429A 199 684 04 29 Pad Bottom Right Pad Cover Hinge Lower
540 540 A1996840529A 199 684 05 29 Pad Bottom Left Pad Cover Hinge Lower
540 540 A1996840529A 199 684 05 29 Pad Bottom Right Pad Cover Hinge Lower
550 550 A1996840629A 199 684 06 29 Pad Pad Bodyside Finisher (2×)
700 700 A2104400008A 210 440 00 08 Electrical Line Sidebag R12/20; R12/21 (2×)
030 Closing System
10 10 A1997230101A 199 723 01 01 Lock Left
10 10 A1997230301A 199 723 03 01 Lock Left
10 10 A1997230201A 199 723 02 01 Lock Right
10 10 A1997230401A 199 723 04 01 Lock Right
15 15 A0029903905A 002 990 39 05 Pan Head Screw Door Control (3×)
15 15 A0029903905A 002 990 39 05 Pan Head Screw Door Locking Mechanism (3×)
20 20 A1997670150A 199 767 01 50 Support Left Door Lock
20 20 A1997220179A 199 722 01 79 Carrier Left Door Lock
20 20 A1997220279A 199 722 02 79 Carrier Right Door Lock
25 25 N910143006001N 910143 006001 Hexalobular Bolt Door Locking Mechanism M6x16 (4×)
26 26 N913023006001N 913023 006001 Nut Door Locking Mechanism M6 (6×)
30 30 A1997230116A 199 723 01 16 Reinforcement Left Door Lock
30 30 A1997230216A 199 723 02 16 Reinforcement Right Door Lock
40 40 A1997630014A 199 763 00 14 Bracket Door Locking Mechanism
50 50 A1999910107A 199 991 01 07 Pin Door Locking Mechanism (8×)
60 60 N000000003765N 000000 003765 Hexalobular Bolt Door Locking Mechanism M6x20 (4×)
60 60 N910143006001N 910143 006001 Hexalobular Bolt Door Locking Mechanism M6x16 (4×)
70 70 A1997200213A 199 720 02 13 Cable Left And Right (2×)
80 80 A1995460075A 199 546 00 75 Cable Clip Puller Fastening (4×)
90 90 A1997231714A 199 723 17 14 Bracket Door Handle Front, Left
90 90 A1997232014A 199 723 20 14 Bracket Door Handle Front, Right
100 100 A1997200013A 199 720 00 13 Cable Unlocking (2×)
110 110 A1995460075A 199 546 00 75 Cable Clip (4×)
150 150 A1997230104A 199 723 01 04 Lock Striker Left And Right (2×)
150 150 A1997230004A 199 723 00 04 Lock Striker Left And Right (2×)
160 160 A0009904902A 000 990 49 02 Csk. Bolt W Hex. Socket Latch Striker Fastening, Front (4×)
170 170 N913023005002N 913023 005002 Nut Latch Striker Fastening, Front M5 (4×)
200 200 A1997200175A 199 720 01 75 Door Handle Left Door
200 200 A1997200975A 199 720 09 75 Door Handle Left Door
200 200 A1997200075A 199 720 00 75 Handle Right Door
200 200 A1997200875A 199 720 08 75 Handle Right Door
210 210 A1999970010A 199 997 00 10 Pin Left And Right (2×)
220 220 A1997951396A 199 795 13 96 Pad Left And Right (4×)
240 240 A0079937601A 007 993 76 01 Spring Left And Right
240 240 A0079937601A 007 993 76 01 Spring Left And Right
250 250 A1998870150A 199 887 01 50 Bushing Left And Right (4×)
255 255 A1998900067A 199 890 00 67 Ts Locking Set
260 260 A2037500191A 203 750 01 91 Lock Cylinder (2×)
270 270 A1997660906A 199 766 09 06 Key Mechanical For Emergency Actuation (2×)
300 300 A1997660506A 199 766 05 06 Key Electronic, Not Programmed Es2: 9999 (2×)
300 300 A1997660506A 199 766 05 06 Key Electronic, Programmed (2×)
350 350 A0009050039A 000 905 00 39 Workshop Key Workshop Key
360 360 A0008280388A 000 828 03 88 Battery Unit 3v, Cr2025
400 400 A1995640262A 199 564 02 62 Pressure Disk Left And Right 1,0 Mm (2×)
400 400 A1995640362A 199 564 03 62 Pressure Disk Left And Right 0,5 Mm (2×)
500 500 A0009980502A 000 998 05 02 Cable Grommet W But. Bead Door, Left And Right (2×)
510 510 A0009982205A 000 998 22 05 Grommet, Closed, Smooth Door, Left And Right (8×)
520 520 A0009984750A 000 998 47 50 Stop Plug Door, Left And Right (2×)
530 530 A0009980602A 000 998 06 02 Cable Grommet W But. Bead Front Door
045 Window Regulator
5 5 A1997200146A 199 720 01 46 Window Lifter With Motor,left
5 5 A1997200246A 199 720 02 46 Window Lifter With Motor,right
10 10 A1997200346A 199 720 03 46 Window Regulator Left, Without Motor
10 10 A1997200446A 199 720 04 46 Window Lifter Right, Without Motor
15 15 A1997220349A 199 722 03 49 Rail Left
15 15 A1997220349A 199 722 03 49 Rail Right
20 20 A0009910732A 000 991 07 32 Rivet To Left Rail (10×)
20 20 A0009910732A 000 991 07 32 Rivet To Right Rail (10×)
30 30 A1997220149A 199 722 01 49 Rail Left Glass Channel
30 30 A1997220549A 199 722 05 49 Glass Guide Channel Left Glass Channel
30 30 A1997220749A 199 722 07 49 Rail Left Glass Channel
30 30 A1997220649A 199 722 06 49 Glass Guide Channel Right Glass Channel
30 30 A1997220849A 199 722 08 49 Rail Right Glass Channel
40 40 N913023005002N 913023 005002 Nut Latch Striker Fastening, Front M5 (4×)
50 50 N000000004310N 000000 004310 Hexagon Head Bolt To Power Window Left M6x10 (5×)
50 50 N000000004310N 000000 004310 Hexagon Head Bolt To Power Window Right M6x10 (5×)
80 80 A1997200149A 199 720 01 49 Bracket Window Lifter At Driver Door, Right (2×)
90 90 A1997200349A 199 720 03 49 Bracket Window Lifter At Driver Door, Left
700 700 A0015409181A 001 540 91 81 Plug Housing Window Lift Motor 6-pin Jpt;m10/3; M10/4 (2×)
710 710 A0005402705A 000 540 27 05 Electrical Line 1.00 Mm2 Jpt
710 710 A0005402805A 000 540 28 05 Electrical Line 2.5 Mm2 Jpt
710 710 A0005452839A 000 545 28 39 Core Bundle Sealing 0.5-1.0 Mm
710 710 A0005452939A 000 545 29 39 Core Bundle Sealing 1.0-2.5 Mm
060 Front Door Windows
10 10 A1997200120A 199 720 01 20 Glass Pane Left
10 10 A1997200220A 199 720 02 20 Glass Pane Right
60 60 A1997230398A 199 723 03 98 Seal Window Frame,left
60 60 A1997250020A 199 725 00 20 Sealing Frame Window Frame,right
70 70 A1997250008A 199 725 00 08 Cover Window Frame,left Triangular Double Sided Tape Pad
70 70 A1997250008A 199 725 00 08 Cover Window Frame Triangular Double Sided Tape Pad
200 Door Panelling
10 10 A1997201151A 199 720 11 51 Paneling Left
10 10 A1997202151A 199 720 21 51 Trim Left
10 10 A1997201251A 199 720 12 51 Paneling Right
10 10 A1997201651A 199 720 16 51 Trim Right
20 20 A2408205101A 240 820 51 01 Interior Lamp Left Exit Lights
20 20 A2408201801A 240 820 18 01 Interior Lamp Right Exit Lights
30 30 A1999880081A 199 988 00 81 Push Button Fastening For Lining (20×)
40 40 A1997270771A 199 727 07 71 Trim Left Front Door
40 40 A1997270671A 199 727 06 71 Trim Right Front Door
45 45 A1997200395A 199 720 03 95 Armrest Left Front Door
45 45 A1997200495A 199 720 04 95 Armrest Right Front Door
70 70 A1997100138A 199 710 01 38 Handle Left Grab Handle
70 70 A1997100238A 199 710 02 38 Handle Right Grab Handle
80 80 N000000003622N 000000 003622 Hexalobular Bolt Mounting, Handle M4 X 35 Mm (4×)
90 90 A0019909954A 001 990 99 54 Hex. Nut W Flange A Part Mounting, Handle M4 (12×)
110 110 A0009904956A 000 990 49 56 Washer Nut (38×)
120 120 A0009941711A 000 994 17 11 Snap Ring (10×)
140 140 A2307660067A 230 766 00 67 Axle Interior Handle Assembly To Door (2×)
170 170 A1995420034A 199 542 00 34 Console Control Unit Bracket (2×)
170 170 A1995420040A 199 542 00 40 Bracket Control Unit (2×)
175 175 A0029904205A 002 990 42 05 Pan Head Screw At Bracket M5x16 (8×)
176 176 A1997950396A 199 795 03 96 Washer At Bracket M5x12.7x1 (8×)
180 180 A1997600661A 199 760 06 61 Inside Door Handle Door Opening, Right
180 180 A1997600561A 199 760 05 61 Inside Door Handle Door Opening, Left
190 190 A1997600361A 199 760 03 61 Interior Handle Assembly Left
190 190 A1997600461A 199 760 04 61 Interior Handle Assembly Right
200 200 A2307660124A 230 766 01 24 Lever Interior Handle Assembly To Door Left
200 200 A2307660224A 230 766 02 24 Lever Interior Handle Assembly To Door Right
210 210 A0029904105A 002 990 41 05 Cap Bolt With Socket Door Control M12x25
280 280 A0009911698A 000 991 16 98 Clamp Mounting Plate Cover (4×)
300 300 A1998200112A 199 820 01 12 Cover Left Front Door Loudspeaker
300 300 A1998200212A 199 820 02 12 Cover Right Front Door Loudspeaker
310 310 A1998200312A 199 820 03 12 Cover Left Speaker Frame
310 310 A1998200712A 199 820 07 12 Cover Left Speaker Frame
310 310 A1998200412A 199 820 04 12 Cover Right Speaker Frame
310 310 A1998200012A 199 820 00 12 Cover Right Speaker Frame
400 400 A1997200375A 199 720 03 75 Handle Left
400 400 A1997200275A 199 720 02 75 Door Handle Right
405 405 A0029904505A 002 990 45 05 Pan Head Screw Handle
410 410 A1997250327A 199 725 03 27 Bracket Mirror Triangle, Left
410 410 A1997250427A 199 725 04 27 Bracket Mirror Triangle, Right
420 420 A1997200948A 199 720 09 48 Facing Mirror Triangle, Left
420 420 A1997201048A 199 720 10 48 Facing Mirror Triangle, Right
430 430 A0029914170A 002 991 41 70 Spring Clip Left (3×)
430 430 A0029914170A 002 991 41 70 Spring Clip Right (3×)
440 440 A1997200248A 199 720 02 48 Trim Srs Badge (2×)
450 450 N910143006003N 910143 006003 Hexalobular Bolt At Bracket M6x25 (2×)
450 450 N000000003648N 000000 003648 Hexalobular Bolt At Bracket M6x25 (2×)
500 500 A0029903905A 002 990 39 05 Pan Head Screw Door Control (3×)
520 520 A0009951775A 000 995 17 75 Bracket Door Control
710 710 A0305452828A 030 545 28 28 Plug Exit Lamp, Front Left And Right 2-pin Mqs;e17/3; E17/4 (2×)
715 715 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
760 760 A0039922901A 003 992 29 01 Spacer Sleeve Door,inside
770 770 N000000002925N 000000 002925 Hexalobular Bolt Door,inside 4x12
331 Left Outside Rearview Mirror
10 10 A1998102116A 199 810 21 16 Mirror, Outer Left, Without Mirror Lens
20 20 A1998200321A 199 820 03 21 Turn Signal Lamp Left
30 30 A0049909912A 004 990 99 12 Pan Head Screw With Isr Turn Signal Indicator Fastening 2.5x8
30 30 A0059908912A 005 990 89 12 Pan Head Screw With Isr Turn Signal Indicator Fastening
40 40 A1998110298A 199 811 02 98 Sealing Left Outside Rearview Mirror
50 50 A0089905704A 008 990 57 04 Pan Head Screw Mirror Mounting Spiegelfuss An Tuere* (7×)
60 60 A1993530052A 199 353 00 52 Spacer Disk Mirror Mounting (3×)
70 70 A1998110040A 199 811 00 40 Bearing Mirror Mounting (3×)
80 80 A1998100916A 199 810 09 16 Mirror, Outer Asphericalliy Curved, Left
700 700 A1685454328A 168 545 43 28 Plug Outside Rearview Mirror On Driver's Side 10 Pin Mqs;m21/1
710 710 A0005404605A 000 540 46 05 Electrical Line 0.75 Mm2 Mqs Sn
332 Right Outside Rearview Mirror
10 10 A1998102216A 199 810 22 16 Mirror, Outer Right, Without Mirror Lens
20 20 A1998200421A 199 820 04 21 Turn Signal Lamp Right
30 30 A0049909912A 004 990 99 12 Pan Head Screw With Isr Turn Signal Indicator Fastening 2.5x8
30 30 A0059908912A 005 990 89 12 Pan Head Screw With Isr Turn Signal Indicator Fastening
40 40 A1998110298A 199 811 02 98 Sealing Right Outside Rearview Mirror
50 50 A0089905704A 008 990 57 04 Pan Head Screw Mirror Mounting Spiegelfuss An Tuere* (7×)
60 60 A1993530052A 199 353 00 52 Spacer Disk Mirror Mounting (3×)
70 70 A1998110040A 199 811 00 40 Bearing (3×)
80 80 A1998101016A 199 810 10 16 Mirror, Outer Asphericalliy Curved, Right
700 700 A1685454328A 168 545 43 28 Plug Co-driver's Outside Rearview Mirror 10 Pin Mqs;m21/2
710 710 A0005404605A 000 540 46 05 Electrical Line 0.75 Mm2 Mqs Sn
75 Rear Lid
015 Rear Lid
10 10 A1997500002A 199 750 00 02 Flap
20 20 A1997500121A 199 750 01 21 Hinge Left
20 20 A1997500721A 199 750 07 21 Hinge Left
20 20 A1997500021A 199 750 00 21 Hinge Right
20 20 A1997500821A 199 750 08 21 Hinge Right
25 25 A0009922103A 000 992 21 03 Plain Bearing Bush Left And Right (8×)
30 30 A1997580005A 199 758 00 05 Pad On Rear Lid Hinge 1.0 Mm (2×)
30 30 A1997580105A 199 758 01 05 Pad On Rear Lid Hinge 0.5 Mm (2×)
40 40 A1997580243A 199 758 02 43 End Stop On Rear Lid Hinge (2×)
45 45 A1997580443A 199 758 04 43 End Stop On Rear Lid M6x30 (2×)
50 50 A1997500036A 199 750 00 36 Spring Rear Lid (2×)
60 60 A1997580011A 199 758 00 11 Plate Hinge To Trunk Lid, Right
80 80 A0009910109A 000 991 01 09 Buffer To Trunk Lid Limit Stop Hinge (2×)
85 85 N000000003842N 000000 003842 Hexagon Nut To Hinge (4×)
90 90 A1997570078A 199 757 00 78 Sealing Rear Lid Identisch Mit A 199 757 02 78*
100 100 A1996940125A 199 694 01 25 Trim To Paneling Trunk Sill
130 130 A1997570044A 199 757 00 44 End Stop Tailgate (2×)
150 150 A1997580111A 199 758 01 11 Plate To Hinge Left
150 150 A1997580211A 199 758 02 11 Plate To Hinge Right
210 210 A1997660045A 199 766 00 45 Cable Emergency Control
220 220 A0009951875A 000 995 18 75 Bracket Emergency Control
250 250 A1997570214A 199 757 02 14 Bracket Rear Lid (3×)
260 260 N910105008008N 910105 008008 Hexagon Head Bolt Trunk Lid Fastening M8x16 (10×)
270 270 A0009877945A 000 987 79 45 Plug Trunk Lid Fastening (10×)
300 300 A1997500009A 199 750 00 09 Paneling Airbrake
310 310 A1997570097A 199 757 00 97 Pad To Air Brake
330 330 A1998200242A 199 820 02 42 Drive On Rear Lid,right Airbrake
330 330 A1995400288A 199 540 02 88 Electric Motor On Rear Lid,right Airbrake
340 340 A1998290001A 199 829 00 01 Engine Air Brake Drive
340 340 A1998290301A 199 829 03 01 Actuator Motor Air Brake Drive
350 350 A1997950696A 199 795 06 96 Pad To Engine M6x20x1,6* (3×)
355 355 N910143006000N 910143 006000 Hexalobular Bolt Engine Fixing M6x12 (3×)
360 360 A1997950696A 199 795 06 96 Pad To Engine M6x20x1,6* (3×)
370 370 A1992770098A 199 277 00 98 Solenoid 30 Degree Position Airbrake
370 370 A1992770198A 199 277 01 98 Magnet 30 Degree Position Airbrake
370 370 A1992770298A 199 277 02 98 Magnet 30 Degree Position Airbrake
380 380 A0029902550A 002 990 25 50 Hexagon Nut With Flange Fastening Solonoid Switch M3 (2×)
390 390 A0029902605A 002 990 26 05 Cap Bolt With Socket Fastening Solonoid Switch M3x10 (2×)
400 400 A1995520205A 199 552 02 05 Hinge On Drive End
410 410 A1997500011A 199 750 00 11 Threaded Plate Drive Side Potentiometer
410 410 A1997500114A 199 750 01 14 Bracket Drive Side Potentiometer
410 410 A1997500314A 199 750 03 14 Bracket Drive Side Potentiometer
420 420 A1998220006A 199 822 00 06 Switch Air Brake Position Sensor
430 430 A0029902350A 002 990 23 50 Hexagon Nut With Flange Fastening Switch M4 (6×)
440 440 A0029906305A 002 990 63 05 Stud Bolt (4×)
440 440 A0029903705A 002 990 37 05 Cap Bolt With Socket Fastening Switch (2×)
445 445 A1997952196A 199 795 21 96 Pad Fastening Switch (4×)
450 450 A1992620080A 199 262 00 80 Seal Drive Side Potentiometer
460 460 A0029900905A 002 990 09 05 Stud Bolt Switch M4x10 (4×)
470 470 A0009908582A 000 990 85 82 Window Shim (8×)
500 500 A1997500090A 199 750 00 90 Lever To Left Rear Cover, Not Driven
510 510 A1992620080A 199 262 00 80 Seal To Air Brake Hinge
700 700 A0085454526A 008 545 45 26 Receptacle Housing Position Sensor, Airbrake B87
710 710 A0005402705A 000 540 27 05 Electrical Line 1.00 Mm2 Jpt
720 720 A0335456728A 033 545 67 28 Plug Magnetic Lock, Airbrake 2-pin Mqs;y112
730 730 A0325453928A 032 545 39 28 Contact Pin 0.75 Mm2 Mqs
030 Rear Lid Latch-type Lock, Rear Lid Attachment Parts
10 10 A1717500085A 171 750 00 85 Lock Rear Lid
20 20 A2037500693A 203 750 06 93 Handle On Rear Lid
30 30 A2038217451A 203 821 74 51 Switch Trunk Lid Remote Control
40 40 A1997510398A 199 751 03 98 Sealing Handle
50 50 A2037580003A 203 758 00 03 Striker To Rear End Center Assembly
60 60 A2037580011A 203 758 00 11 Plate Striker To Tail Central Part
70 70 A1998920022A 199 892 00 22 Shim Striker 0.5 Mm
70 70 A1998910098A 199 891 00 98 Shim Striker 1.0 Mm
80 80 A1996840729A 199 684 07 29 Pad Left Pad Cover
80 80 A1996840829A 199 684 08 29 Pad Right Pad Cover
90 90 A1997580002A 199 758 00 02 Handle To Grip Flap Covering
100 100 A2038211379A 203 821 13 79 Switch Luggage Compartment Interior Control
110 110 A1997580058A 199 758 00 58 Mercedes Star
120 120 A2019972281A 201 997 22 81 Retaining Grommet Cover Fastening And Mercedes Star On Trunk Lid (7×)
130 130 A1997580158A 199 758 01 58 Company Sign On Rear Lid, Adhesive Slr
150 150 A0029905905A 002 990 59 05 Stud Bolt Mounting, Grip Flap To Trunk Lid M 6x20 (2×)
160 160 A0019901282A 001 990 12 82 Window Mounting, Grip Flap To Trunk Lid (2×)
170 170 A0009904256A 000 990 42 56 Clip Nut (2×)
180 180 N000000001476N 000000 001476 Hexalobular Bolt To Lock M6x16 (2×)
180 180 A0009904802A 000 990 48 02 Bolt M6x16 (2×)
180 180 N910105008008N 910105 008008 Hexagon Head Bolt Trunk Lid Fastening M8x16 (10×)
190 190 A0049941245A 004 994 12 45 Spring Nut M5 (2×)
200 200 A0019901282A 001 990 12 82 Window (4×)
200 200 N000000003843N 000000 003843 Spring Washer (4×)
210 210 N913023005002N 913023 005002 Nut M5 (5×)
220 220 N000000003614N 000000 003614 Pan Head Screw M6x12 (4×)
230 230 A0039946135A 003 994 61 35 Snap Ring (4×)
240 240 N910142005000N 910142 005000 Hexalobular Bolt M5x10
250 250 A0019902282A 001 990 22 82 Window (8×)
260 260 N000000003615N 000000 003615 Nut M5 (8×)
270 270 A0305452828A 030 545 28 28 Plug Switch, Trunk Lid Opening 2-pin Mqs;s15
280 280 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
290 290 A0385457128A 038 545 71 28 Coupling, Electrical Central Locking Mechanism Interior Control 6-pin Mqs;s62/9
300 300 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
310 310 A0375456528A 037 545 65 28 Plug Valve, Trunk Lid, Central Locking 4-pin Mqs;y65/3
320 320 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
77 Folding Top
015 Folding Top Frame Assembly
030 Folding Top Lining
80 Vacuum System / Hydraulic System
180 Folding Top Hydraulic System
82 Electrical System
062 Switch In Instrument Panel And Center Console
10 10 A1998200910A 199 820 09 10 Switch Upper Control Panel
20 20 A1998200110A 199 820 01 10 Switch Transmission And Air Brake Operation
30 30 A1996890028A 199 689 00 28 Strut Switch
700 700 A0355454528A 035 545 45 28 Receptacle Housing Upper Control Panel 6 Pin Mqs;n72/1
705 705 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
067 Switch In Rocker Panel
10 10 A1997600561A 199 760 05 61 Inside Door Handle Door Opening, Left
10 10 A1997600661A 199 760 06 61 Inside Door Handle Door Opening, Right
20 20 A1997600361A 199 760 03 61 Interior Handle Assembly Left
20 20 A1997600461A 199 760 04 61 Interior Handle Assembly Right
30 30 A2307660124A 230 766 01 24 Lever Interior Handle Assembly To Door Left
30 30 A2307660224A 230 766 02 24 Lever Interior Handle Assembly To Door Right
50 50 A0029904105A 002 990 41 05 Cap Bolt With Socket Door Control M12x25
60 60 A0029909405A 002 990 94 05 Pan Head Screw To Mounting M4 X 8 Mm (12×)
60 60 A0029909505A 002 990 95 05 Pan Head Screw To Mounting (4×)
70 70 A0029909505A 002 990 95 05 Pan Head Screw To Mounting (8×)
80 80 A1997220314A 199 722 03 14 Bracket Left
80 80 A1997220414A 199 722 04 14 Bracket Right
90 90 A1997220114A 199 722 01 14 Bracket Cable Harness To Front Door
90 90 A1997220214A 199 722 02 14 Bracket To Right Door Wiring Harness
108 Cable Covering & Cable Ducts
120 120 A1998210036A 199 821 00 36 Cover Cable Covering
120 Windshield Wiper
10 10 A2308200242A 230 820 02 42 Electric Motor Pane Washer System
20 20 A1998200014A 199 820 00 14 Bracket Wiper Motor
30 30 N910143006000N 910143 006000 Hexalobular Bolt Mounting, Bracket, Wiper Motor M6x12 (2×)
40 40 A1998240108A 199 824 01 08 Carrier Wiper
60 60 A1998200141A 199 820 01 41 Wiper Linkage Wiper Linkage
60 60 A1998200341A 199 820 03 41 Wiper Linkage Wiper Linkage
60 60 A1998200441A 199 820 04 41 Linkage Wiper Linkage
70 70 A1998200344A 199 820 03 44 Wiper Arm Driver's Side
70 70 A1998200244A 199 820 02 44 Wiper Arm Driver's Side
80 80 A2308200645A 230 820 06 45 Wiper Blade Driver's Side
80 80 A2118201445A 211 820 14 45 Wiper Blade Driver's Side
100 100 A2308201444A 230 820 14 44 Wiper Arm Co-driver's Side
110 110 A2308240249A 230 824 02 49 Cap Nut Cover
120 120 A2308200645A 230 820 06 45 Wiper Blade Co-driver's Side
120 120 A2118201445A 211 820 14 45 Wiper Blade Co-driver's Side
130 130 A2118201345A 211 820 13 45 Ts Wiper Blade Wiper Set, Driver And Passenger-side
130 130 A2118202945A 211 820 29 45 Ts Wiper Blade
150 150 N000000001474N 000000 001474 Hexalobular Bolt Wiper Arm Fastening M6x10 (3×)
160 160 A0029907382A 002 990 73 82 Window Wiper Arm Fastening (3×)
170 170 A0019907550A 001 990 75 50 Nut Wiper Arm Fastening M10 (3×)
180 180 A2208240249A 220 824 02 49 Cap Nut Cover (3×)
200 200 A2108205710A 210 820 57 10 Rain Sensor
700 700 A0285458428A 028 545 84 28 Receptacle Housing Rain Sensor 4-pin Mqs;b38
705 705 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
900 900 A0285453928A 028 545 39 28 Receptacle Housing Wiper Motor 4-pin Spt;m6/1
905 905 A0115458426A 011 545 84 26 Contact Spring 0.5-1.0 Mm2 Spt
905 905 A0045450026A 004 545 00 26 Contact Socket 2.5-4.0 Mm2 Spt
165 Interior Lamps
10 10 A1998200201A 199 820 02 01 Interior Lamp
20 20 N072601012120N 072601 012120 Bulb 12v-10w (2×)
100 100 A2088200501A 208 820 05 01 Interior Lamp Sun Visor (2×)
800 800 A0295455328A 029 545 53 28 Receptacle Housing Vanity Mirror Illumination 2 Pin Jpt;e14/6 E14/7 (2×)
805 805 A0115458126A 011 545 81 26 Contact Spring 0.5-1.0 Mm2 Jpt
175 Front Lighting
10 10 A1998200159A 199 820 01 59 Lamp Unit Left
10 10 A1998200259A 199 820 02 59 Lamp Unit Right
20 20 A2038201685A 203 820 16 85 Control Unit Light Range Regulator (2×)
30 30 A1998200026A 199 820 00 26 Control Unit Ignition Module For Xenon Burner (2×)
40 40 N910139000001N 910139 000001 Gas Discharge Lamp Low Beam D2s 12v-35w (2×)
50 50 A1998200020A 199 820 00 20 Blinker Lamp Left
50 50 A1998200020A 199 820 00 20 Blinker Lamp Right
60 60 A1995400254A 199 540 02 54 Housing Standing Lamp, Left
70 70 N000000003599N 000000 003599 Bulb High Beam Headlamp,left Hb3 12v-60w
70 70 N000000003599N 000000 003599 Bulb Main Beam Right Hb3 12v-60w
80 80 N000000002824N 000000 002824 Bulb Left Blinker Lamp 12v-21w
80 80 N000000002824N 000000 002824 Bulb Right Blinker Lamp 12v-21w
90 90 N000000000853N 000000 000853 Bulb Standing Lamp, Left 12v-5w
90 90 N000000000853N 000000 000853 Bulb Standing Lamp, Right 12v-5w
100 100 A0029905805A 002 990 58 05 Pan Head Screw Rear Covering M6x16 (6×)
110 110 A0019901282A 001 990 12 82 Window Rear Covering (6×)
120 120 A1998260177A 199 826 01 77 Facing Left
120 120 A1998260277A 199 826 02 77 Facing Right
130 130 A0029904405A 002 990 44 05 Pan Head Screw M6x12 (2×)
150 150 A0009904656A 000 990 46 56 Clip Nut 12.7x11.5 (2×)
160 160 A2208203326A 220 820 33 26 Trigger Device Driving Light Sensor
200 200 A0009980921A 000 998 09 21 Cap At Bracket (8×)
210 210 A0029905805A 002 990 58 05 Pan Head Screw At Bracket M6x16 (8×)
220 220 A0009906383A 000 990 63 83 Window At Bracket (8×)
230 230 A0019901882A 001 990 18 82 Window At Bracket (4×)
240 240 A1998260314A 199 826 03 14 Bracket Left Headlamp
240 240 A1998260714A 199 826 07 14 Bracket Left Headlamp Scheinwerfer Links - Elv2 - Cr6-frei*
240 240 A1998260414A 199 826 04 14 Bracket Right Headlamp
240 240 A1998260814A 199 826 08 14 Bracket Right Headlamp Scheinwerfer Rechts - Elv2 - Cr6-frei*
270 270 A0019900110A 001 990 01 10 Fill. Hd. Tapping Screw At Headlamp Rim 4,2x6,5 (4×)
270 270 A0059905212A 005 990 52 12 Raised Screw F Plastic At Headlamp Rim (4×)
300 300 A1998201456A 199 820 14 56 Front Fog Lamp Left And Right (2×)
310 310 A1998260258A 199 826 02 58 Seal Foglamp
320 320 A0009971742A 000 997 17 42 Window Foglamp
330 330 N072601012290N 072601 012290 Bulb Foglamp H3 12v-55w
350 350 A1998200512A 199 820 05 12 Cover Foglamp (2×)
360 360 A0009972742A 000 997 27 42 Gasket (2×)
380 380 A0009900208A 000 990 02 08 Screw For T-groove At Bracket 8x20 (2×)
380 380 A0019907421A 001 990 74 21 Screw W Rectangular Head At Bracket (2×)
390 390 N913023008003N 913023 008003 Nut Attachment Fog Lamp (2×)
390 390 N000000003175N 000000 003175 Nut Attachment Fog Lamp M8 (2×)
400 400 A1998260097A 199 826 00 97 Pad Foglamp (6×)
500 500 A1998200456A 199 820 04 56 Position Lamp Side Marker Lamp,left
500 500 A1998200856A 199 820 08 56 Position Lamp Side Marker Lamp,right
510 510 N000000003598N 000000 003598 Bulb Side Marker Lamp,left 12v-5w
510 510 N000000003598N 000000 003598 Bulb Side Marker Lamp,right 12v-5w
700 700 A2105402181A 210 540 21 81 Clutch Blinker,left And Right 3-pin Mqs;e6/1; E6/2 (2×)
705 705 A0085456326A 008 545 63 26 Contact Socket 0.5-0.75 Mm2 Mqs
705 705 A0005456980A 000 545 69 80 Seal 1.4-1.9 Mm
705 705 A0005458780A 000 545 87 80 Blind Plug 4.1mm
710 710 A0335450028A 033 545 00 28 Receptacle Housing Daylight Sensor 4-pin Mqs;b32/1
715 715 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
215 Light Range Adjuster Electric
20 20 A0025428818A 002 542 88 18 Sender Unit Level Sensor For Bi-xenon Front Axle
20 20 A0025428818A 002 542 88 18 Sender Unit Level Sensor For Bi-xenon Rear Axle
900 900 A2105403681A 210 540 36 81 Clutch Left Front Level Sensor 6-pin Mqs;b22/8
900 900 A0005452646A 000 545 26 46 Cover
905 905 A0005456980A 000 545 69 80 Seal 1.4-1.9 Mm
905 905 A0005461469A 000 546 14 69 Blind Plug
910 910 A2105403681A 210 540 36 81 Clutch Level Sensor Left Rear 6-pin Mqs;b22/7
915 915 A0085456326A 008 545 63 26 Contact Socket 0.5-0.75 Mm2 Mqs
220 Rear Lighting
10 10 A1998200564A 199 820 05 64 Rear Lamp Left
10 10 A1998200764A 199 820 07 64 Tail Lamp Left
10 10 A1998200664A 199 820 06 64 Rear Lamp Right
10 10 A1998200864A 199 820 08 64 Tail Lamp Right
30 30 A1998201556A 199 820 15 56 Rear Fog Lamp Left Rear Foglamp
30 30 A1998201656A 199 820 16 56 Rear Fog Lamp Right Rear Fog Lamp
40 40 N072601012191N 072601 012191 Bulb 12v-21w (4×)
40 40 N000000006373N 000000 006373 Bulb 12v-21w (4×)
40 40 N000000008156N 000000 008156 Bulb 12v-21w (4×)
50 50 A1997950396A 199 795 03 96 Washer Fastening For Rear And Fog Lamps M5x12.7x1 (28×)
50 50 A1997950396A 199 795 03 96 Washer Rear Foglamp To Bracket M5x12.7x1 (7×)
60 60 N910112005000N 910112 005000 Hexagon Nut Fastening For Rear And Fog Lamps M5 (12×)
70 70 A1995440238A 199 544 02 38 Bracket Rear Foglamp (2×)
80 80 A0019908258A 001 990 82 58 Nut At Bracket (4×)
80 80 A0029904205A 002 990 42 05 Pan Head Screw At Bracket M5x16 (4×)
100 100 A1998200756A 199 820 07 56 Additional Brake Lamp Additional Stop Light
110 110 A1993530052A 199 353 00 52 Spacer Disk Fastening Auxiliary Stop Lamp (3×)
120 120 A0029902350A 002 990 23 50 Hexagon Nut With Flange Fastening Auxiliary Stop Lamp M4 (3×)
150 150 A2308200256A 230 820 02 56 License Plate Lamp License Plate Lamp (2×)
160 160 N072601012130N 072601 012130 Bulb License Plate Lamp 12v-5w (4×)
160 160 N000000002723N 000000 002723 Bulb License Plate Lamp 12v-5w (4×)
180 180 A0009983450A 000 998 34 50 Stop Plug 6*44mm (4×)
190 190 A0019901182A 001 990 11 82 Window (8×)
700 700 A2105456528A 210 545 65 28 Plug License Plate Lamp 6-pin;e19/1; E19/2 (2×)
710 710 A0115458126A 011 545 81 26 Contact Spring 0.5-1.0 Mm2 Jpt
720 720 A0305452828A 030 545 28 28 Plug 3rd Stop Lamp 2-pin Mqs;e21
725 725 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
730 730 A0285458428A 028 545 84 28 Receptacle Housing Left And Right Taillamps 4-pin Mqs;e3; E4 (2×)
735 735 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
735 735 A0005404605A 000 540 46 05 Electrical Line 0.75 Mm2 Mqs Sn
287 Belt Locking Retractor, Airbag And Sidebag
10 10 A2208203085A 220 820 30 85 Control Unit Airbag Bosch
10 10 A2208206385A 220 820 63 85 Control Unit Airbag
10 10 A2308207126A 230 820 71 26 Trigger Device Airbag Bosch
10 10 A2308209026A 230 820 90 26 Control Unit, Airbag Airbag
10 10 A2308209326A 230 820 93 26 Control Unit, Airbag Airbag
10 10 A2308200985A 230 820 09 85 Control Unit Airbag
30 30 A0018209126A 001 820 91 26 Trigger Device Airbag Trigger Unit Bosch (2×)
50 50 A0019905582A 001 990 55 82 Window Sensor, Airbag And Side Airbag On Crossmember In Rear, Left/right (4×)
70 70 A0028201326A 002 820 13 26 Trigger Unit Driver/front Passenger Upfront Sensor Bosch (2×)
100 100 A1995451840A 199 545 18 40 Bracket Belt Locking Retractor Plug-connection (5×)
100 100 A1995451840A 199 545 18 40 Bracket Right Seat Emergency Tensioning Retractor Connector
700 700 A1685452928A 168 545 29 28 Receptacle Housing Driver/front Passenger Upfront Sensor 2-pin Slk2.8;b48/1; B48/2 (2×)
705 705 A0095458126A 009 545 81 26 Contact Socket 0.75-1.0 Mm2 Slk2.8
705 705 A0005457180A 000 545 71 80 Gasket 1.1-2.1 Mm
710 710 A0305457628A 030 545 76 28 Plug Sensor Side Airbag Right 3 Pin;a54
715 715 A0135454426A 013 545 44 26 Contact Socket 0.5-0.75 Mm2 Mqs
305 Radio Set, Remote Control, Amplifier, Cd-player, Loudspeaker
10 10 A1998200285A 199 820 02 85 Operating Unit Audio 30 Aps
100 100 A1998200089A 199 820 00 89 Amplifier Sound
110 110 A1998270062A 199 827 00 62 Amplifier Bass Box
120 120 A1638203889A 163 820 38 89 Cd-changer
130 130 A0028206289A 002 820 62 89 Cd Holder
140 140 A1998200082A 199 820 00 82 Mounting Consule Cd Changer Bracket To Paneling
150 150 A1995451540A 199 545 15 40 Bracket Cd Changer
200 200 A2208200335A 220 820 03 35 Microphone Sound System
390 390 A1997270530A 199 727 05 30 Sealing Left Front Door Loudspeaker
390 390 A1997270330A 199 727 03 30 Sealing Right Front Door Loudspeaker
400 400 A1998270360A 199 827 03 60 Speaker Door (2×)
400 400 A1998270560A 199 827 05 60 Speaker Door (2×)
410 410 A1998270060A 199 827 00 60 Loudspeaker Tweeter (2×)
410 410 A1998270660A 199 827 06 60 Speaker Tweeter (2×)
500 500 N910112005000N 910112 005000 Hexagon Nut Speaker Fastening, Front Door M5 (4×)
510 510 N910142005000N 910142 005000 Hexalobular Bolt Speaker Fastening, Front Door M5x10 (4×)
700 700 A0029906305A 002 990 63 05 Stud Bolt Mounting, Loudspeaker (8×)
705 705 A1993530052A 199 353 00 52 Spacer Disk Mounting, Loudspeaker (8×)
710 710 A0049941245A 004 994 12 45 Spring Nut Mounting, Loudspeaker M5 (2×)
720 720 A0029904205A 002 990 42 05 Pan Head Screw Cd Changer Bracket To Paneling M5x16 (2×)
730 730 A0029905405A 002 990 54 05 Pan Head Screw Cd Changer Bracket To Paneling M4x6 (8×)
740 740 A0029908405A 002 990 84 05 Pan Head Screw Cd Changer Bracket To Paneling M3x16 (4×)
750 750 A0009920407A 000 992 04 07 Threaded Bushing Cd Changer Bracket To Paneling M4x5x8 (4×)
800 800 A0305452828A 030 545 28 28 Plug Left And Right Front Tweeter 2-pin Mqs;h4/33; H4/34 (2×)
800 800 A0305452828A 030 545 28 28 Plug Loudspeaker Rear Left And Right 2-pin Mqs;h4/7; H4/8 (2×)
805 805 A0005404605A 000 540 46 05 Electrical Line 0.75 Mm2 Mqs Sn
810 810 A2025453728A 202 545 37 28 Receptacle Housing Operating Unit 10-pin Jpt;a2
810 810 A0305453428A 030 545 34 28 Clutch Operating Unit 8-pin Jpt;a2
815 815 A0115458126A 011 545 81 26 Contact Spring 0.5-1.0 Mm2 Jpt
815 815 A0045455326A 004 545 53 26 Contact Spring 1.5-2.5 Mm2 Jpt
820 820 A0295455528A 029 545 55 28 Receptacle Housing Cd Changer 3-pin Mqs;a2/6
825 825 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
830 830 A0355458928A 035 545 89 28 Receptacle Housing Microphone Sound System 2-pin Mqs;b25/6
835 835 A0325453928A 032 545 39 28 Contact Pin 0.75 Mm2 Mqs
840 840 A0305452828A 030 545 28 28 Plug Microphone Hands-free System 2-pin Mqs;b25
845 845 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
336 Car Phone, Voice Control System And Emergency Call
10 10 A2038202235A 203 820 22 35 Telephone Fixed Installation Nokia D-net
20 20 A2038200251A 203 820 02 51 Mount Fixed Ctel System
170 170 A1685454328A 168 545 43 28 Plug Connector, Telephone, Armrest, Black 10 Pin Mqs;x39/47
170 170 A1685456928A 168 545 69 28 Housing Connector, Telephone, Armrest, Blue 10-pin Mqs;x39/47
175 175 A0375452128A 037 545 21 28 Plug 0.25-0.35 Mm2 Mqs
175 175 A0415452828A 041 545 28 28 Plug 0.5-0.75 Mm2 Mqs
270 270 A1998200114A 199 820 01 14 Bracket Line
400 400 A2308203026A 230 820 30 26 Control Unit Fixed Ctel Or Tele Aid
410 410 A2038280188A 203 828 01 88 Battery To Control Unit
500 500 A2038207026A 203 820 70 26 Control Unit Fixed Ctel System
510 510 A1995460943A 199 546 09 43 Bracket Legroom,left
520 520 N910143006001N 910143 006001 Hexalobular Bolt Bracket Mounting M6x16 (3×)
800 800 A0025451340A 002 545 13 40 Receptacle Housing Emergency Call System Control Module 26-pin Elo;n123/4
800 800 A0005455330A 000 545 53 30 Housing Emergency Call System Control Module 26-pin;n123/4
800 800 A0055453030A 005 545 30 30 Housing 26-pin
800 800 A0015451903A 001 545 19 03 Cap To A 002 545 13 40/ A 000 545 53 30
805 805 A0005406405A 000 540 64 05 Line 0.75 Mm2 Elo
338 Cable Harness Automobile Telephone
10 10 A1998207004A 199 820 70 04 Electrical Line Fixed Installation Telephone Tele Aid
12 12 A2029973281A 202 997 32 81 Grommet Thru Hole
15 15 A0005466943A 000 546 69 43 Bracket Cable Harness Mounting
20 20 A0325451928A 032 545 19 28 Receptacle Housing Can Bus B, Left 2-pin Mqs;x30/15
25 25 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
30 30 A0325451928A 032 545 19 28 Receptacle Housing Microphone Separation Point 2-pin Mqs;x58/3
35 35 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
40 40 A2205459228A 220 545 92 28 Plug Separation Point 9 14 Pin Slk2.8;x99/9
45 45 A0355457328A 035 545 73 28 Male Spade Connector 0.5-1.0 Mm2 Slk2.8;to A 220 545 92 28
50 50 A0305455928A 030 545 59 28 Plug Separation Point 9 3 Pin Mqs;x99/9
55 55 A0325453928A 032 545 39 28 Contact Pin 0.75 Mm2 Mqs
345 Antenna
10 10 A2038200289A 203 820 02 89 Wave Trap At Rear Window
20 20 A2158200375A 215 820 03 75 Antenna Gps (global Positioning System)
30 30 A1998280082A 199 828 00 82 Antenna E-call
40 40 A2108202489A 210 820 24 89 Duplexer Telephone
50 50 A1998280085A 199 828 00 85 Antenna Splitter Radio Set Antenna
60 60 A1998280185A 199 828 01 85 Antenna Splitter Central Locking With Radio Remote 433 Mhz
70 70 A2158201975A 215 820 19 75 Antenna Telephone
80 80 A1999890185A 199 989 01 85 Adhesive Foil Left, Ground Antenna
80 80 A1999890285A 199 989 02 85 Adhesive Foil Right, Ground Antenna
200 200 N910142005000N 910142 005000 Hexalobular Bolt Telephone Antenna M5x10
200 200 N910105005002N 910105 005002 Hexagon Head Bolt Antenna Amplifier M5x16;am/fm
210 210 A0029906305A 002 990 63 05 Stud Bolt Antenna Fastening M4x10 (2×)
500 500 A0009982405A 000 998 24 05 Feed-through Grommet
700 700 A0045452026A 004 545 20 26 Receptacle Housing Antenna Amplifier 1-pin;a2/18
705 705 A0035450226A 003 545 02 26 Contact Spring 0.5-1.5 Mm2
810 810 A0285458428A 028 545 84 28 Receptacle Housing Hf Relay 4-pin Mqs;n96
815 815 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
347 Fiber Optical Cable Wiring Harness (d2b And Most)
10 10 A1998206204A 199 820 62 04 Electrical Line Sound Cd Changer E-call Operating Module
500 500 A0005403808A 000 540 38 08 Wiring Harness Repair Size D2b
510 510 A0005453384A 000 545 33 84 Adapter D2b Optical Waveguide To Connection For Individual Interfaces D2b
426 Folding Top Control
530 Anti-theft Warning System,tow-away Protection,passenger Comp.protection
10 10 A1718202526A 171 820 25 26 Alarm Equipment Anti-theft Alarm
20 20 A2118209126A 211 820 91 26 Alarm Equipment Towing Protection
30 30 A1998220314A 199 822 03 14 Bracket Towing Sensor
30 30 A1998220514A 199 822 05 14 Bracket Towing Sensor
60 60 A2208220078A 220 822 00 78 Cap Interior Motion Sensor
70 70 A1998110498A 199 811 04 98 Sealing At Sensor (2×)
70 70 A1998110498A 199 811 04 98 Sealing Interior Motion Sensor (2×)
80 80 A2208215551A 220 821 55 51 Sensor Interior Sensor
400 400 A1998207504A 199 820 75 04 Electrical Line Interior Motion Sensor Nur Fuer Coupé*
410 410 A0285457028A 028 545 70 28 Receptacle Housing Interior Motion Sensor N26/3
420 420 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
430 430 A0325457028A 032 545 70 28 Plug Connector For Anti-theft Alarm System 4-pin Mqs;x42/28
440 440 A0325453928A 032 545 39 28 Contact Pin 0.75 Mm2 Mqs
500 500 A1995405505A 199 540 55 05 Wiring Harness Engine Hood Switch Anti-theft Alarm System (2×)
510 510 A2105404781A 210 540 47 81 Plug Separation Point, Engine Hood Contact Switch 2-pin Mqs;x42/30
515 515 A0005402305A 000 540 23 05 Electrical Line 0.5 Mm2 Mqs
520 520 A0025450840A 002 545 08 40 Bracket Pin Bushing Housing
700 700 A2105402181A 210 540 21 81 Clutch Alarm Horn 3-pin Mqs;h3
705 705 A0085456326A 008 545 63 26 Contact Socket 0.5-0.75 Mm2 Mqs
710 710 A0015402881A 001 540 28 81 Clutch Control Unit Towing Protection 6-pin Mqs;n27
715 715 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
720 720 A0285458428A 028 545 84 28 Receptacle Housing Connector For Anti-theft Alarm System 4-pin Mqs;x42/28
725 725 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
607 Door Wiring Harness And Door Cont.unit
10 10 A1998208904A 199 820 89 04 Electrical Line Left Door
10 10 A1998209004A 199 820 90 04 Electrical Line Right Door
20 20 A0285458428A 028 545 84 28 Receptacle Housing Door Partition Points A-pillar Left And Right 4-pin Mqs;x35/41; X35/42 (2×)
20 20 A0015455940A 001 545 59 40 Contact Carrier Door Partition Points A-pillar Left And Right 10-pin Mqs;x35/41; X35/42 (2×)
20 20 A0005459303A 000 545 93 03 Cap To A 001 545 59 40 (2×)
20 20 A0005454630A 000 545 46 30 Housing 10-pin Mqs;to A 001 545 59 40 (2×)
25 25 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
30 30 A0375451128A 037 545 11 28 Plug Door Partition Points A-pillar Left And Right 2-pin Slk2.8;x35/41; X35/42 (2×)
35 35 A0115450726A 011 545 07 26 Contact Socket 4.0 Mm2 Slk2.8
40 40 A0305450228A 030 545 02 28 Receptacle Housing Door Separation Point 3-pin, Cod. D Mqs;x35/1
45 45 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
50 50 A2205455528A 220 545 55 28 Receptacle Housing Door Separation Point 2-pin Slk2.8;x35/1; X35/2 (2×)
55 55 A0135451526A 013 545 15 26 Contact Socket 0.75-1.0 Mm2 Slk2.8
55 55 A0135451626A 013 545 16 26 Contact Socket 1.5-2.5 Mm2 Slk2.8
60 60 A2205458628A 220 545 86 28 Receptacle Housing Door Separation Point 2-pin;x35/41; X35/42 (2×)
65 65 A0365456428A 036 545 64 28 Contact Pin 0.35-0.5 Mm2 Elo
70 70 A2029973281A 202 997 32 81 Grommet Thru Hole
75 75 A0005466943A 000 546 69 43 Bracket Cable Harness Mounting
100 100 A2308204726A 230 820 47 26 Control Unit Door Control Unit To Left Door Sill
100 100 A2308205726A 230 820 57 26 Control Unit, Door Door Control Unit To Left Door Sill
100 100 A2308208526A 230 820 85 26 Control Unit Door Control Unit To Left Door Sill
100 100 A2308204826A 230 820 48 26 Control Unit Door Control Unit To Right Door Sill
100 100 A2308205826A 230 820 58 26 Control Unit, Door Door Control Unit To Right Door Sill
100 100 A2308208626A 230 820 86 26 Control Unit, Door Door Control Unit To Right Door Sill
200 200 A0385451328A 038 545 13 28 Plug Door Control Unit At Driver Door, Left And Right 7-pin Mqs, Mcp2.8;n69/1 (2×)
205 205 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
205 205 A0135457826A 013 545 78 26 Contact Socket 1.5-2.5 Mm2 Mcp2.8
210 210 A0025405981A 002 540 59 81 Socket Door Control Unit At Driver Door, Left And Right 10-pin Mqs;n69/1; N69/2 (2×)
210 210 A0025407781A 002 540 77 81 Plug Housing 8-pin Mqs;n69/1; N69/2 (2×)
215 215 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
215 215 A0005404605A 000 540 46 05 Electrical Line 0.75 Mm2 Mqs Sn
700 700 A0375456728A 037 545 67 28 Clutch Door Control Unit At Driver Door, Left And Right 7-pin Mqs/mcp2.8;n69/1 N69/2 (2×)
705 705 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
705 705 A0135457826A 013 545 78 26 Contact Socket 1.5-2.5 Mm2 Mcp2.8
710 710 A0025407581A 002 540 75 81 Socket Door Control Unit At Driver Door, Left And Right 8-pin Mqs;n69/1 N69/2 (2×)
715 715 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
870 Central Gateway/system Diagnosis
100 100 A2115403545A 211 540 35 45 Cu, Central Gateway Central Gateway (cgw) Zgw
100 100 A2115407245A 211 540 72 45 Cu, Central Gateway Central Gateway (cgw) Zgw
100 100 A1695406945A 169 540 69 45 Control Unit Central Gateway (cgw) Zgw
300 300 A1995451940A 199 545 19 40 Bracket Central Gateway (cgw) (2×)
700 700 A0025405981A 002 540 59 81 Socket Central Gateway Control Module 10-pin Mqs;n93
705 705 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
705 705 A0005404605A 000 540 46 05 Electrical Line 0.75 Mm2 Mqs Sn
83 Heating And Ventilation
035 Heater And Evaporator Housing With Blower And Wiring Harness
10 10 A1998300060A 199 830 00 60 Evaporator Housing
10 10 A1998300160A 199 830 01 60 Air Conditioner Housing
20 20 A2308300184A 230 830 01 84 Expansion Valve Expansion Valve
30 30 A2308300418A 230 830 04 18 Ts Filter Air Conditioner Case
40 40 A2308300258A 230 830 02 58 Evaporator Air Conditioner Case
50 50 A1409970745A 140 997 07 45 O-ring Expansion Valve To Evaporator 10.6x2
50 50 A0139974145A 013 997 41 45 Sealing Ring Expansion Valve To Evaporator 10.6x2 Mm
60 60 A1409970945A 140 997 09 45 Round-sect. Sealing Ring Expansion Valve To Evaporator 17x2 Mm
70 70 A2038300161A 203 830 01 61 Heat Exchanger
80 80 A2308301915A 230 830 19 15 Ts Piping
110 110 A2308216351A 230 821 63 51 Blower Regulator
120 120 A2308200214A 230 820 02 14 Electric Motor
130 130 A2308301403A 230 830 14 03 Ts Housing
140 140 A2308303503A 230 830 35 03 Housing With Insert
150 150 A2308301903A 230 830 19 03 Housing With Flap / Kinematics
155 155 A2038201642A 203 820 16 42 Electric Motor (12×)
160 160 A2208300772A 220 830 07 72 Temperature Sensor
170 170 A0008351834A 000 835 18 34 Spring (2×)
180 180 A2308302903A 230 830 29 03 Housing Pan With Cover
190 190 A2308350198A 230 835 01 98 Seal With Pipe Left
200 200 A2308350298A 230 835 02 98 Seal Without Pipes Right
230 230 A2308303103A 230 830 31 03 Housing
240 240 A2308300733A 230 830 07 33 Actuation Blending Kinematics Left
240 240 A2308300033A 230 830 00 33 Actuation Blending Kinematics Right
250 250 A2308302303A 230 830 23 03 Housing Left Legroom Duct
250 250 A2308302403A 230 830 24 03 Housing Right Legroom Duct
260 260 A2308302703A 230 830 27 03 Housing Center Nozzle Fitting
270 270 A2308300333A 230 830 03 33 Actuation Kinematics Center Nozzle Left
270 270 A2308300433A 230 830 04 33 Actuation Kinematics Center Nozzle Right
280 280 A2308300533A 230 830 05 33 Control Lever
290 290 A2038350093A 203 835 00 93 Intermediate Layer For Firewall Bolt (2×)
300 300 A2308200215A 230 820 02 15 Wiring Harness
320 320 A2308350698A 230 835 06 98 Sealing Housing To Center Nozzle
330 330 A2308350398A 230 835 03 98 Sealing Left & Right Defrosters To Instrument Panel,top
340 340 A2308303303A 230 830 33 03 Housing Flow Housing And Pressure Plate
350 350 A1998310141A 199 831 01 41 Seal Fresh-air Intake
360 360 A1998350098A 199 835 00 98 Seal
370 370 A1998300023A 199 830 00 23 Air Duct Legroom,left
500 500 A1998320090A 199 832 00 90 Piping Air Conditioner Case,bottom (2×)
700 700 A0325451928A 032 545 19 28 Receptacle Housing Evaporator Temperature Sensor 2-pin Mqs;b10/6
705 705 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
710 710 A2205453928A 220 545 39 28 Receptacle Housing Blower Motor 4-pin Slk2.8;m2
715 715 A0135451426A 013 545 14 26 Contact Spring 0.22-0.5 Mm2 Slk2.8
715 715 A0115450726A 011 545 07 26 Contact Socket 4.0 Mm2 Slk2.8
720 720 A0085450828A 008 545 08 28 Receptacle Housing Circulating Air Flap 2-pin Rk4;m62
720 720 A0085451128A 008 545 11 28 Cap 2-pin Rk4.;to A 008 545 08 28
725 725 A0015454426A 001 545 44 26 Contact Socket 0.35-6.0 Mm2 Rk4.0
110 Water Baffle With Intake Shell
100 100 A2118300472A 211 830 04 72 Gaseous Pollutant Sensor
110 110 A0029905605A 002 990 56 05 Pan Head Screw Gaseous Pollutant Sensor
110 110 A0039905605A 003 990 56 05 Pan Head Screw Gaseous Pollutant Sensor Elv2 - Cr6-frei*
120 120 A1997950296A 199 795 02 96 Pad Gaseous Pollutant Sensor (2×)
700 700 A2205400681A 220 540 06 81 Receptacle Housing Gaseous Pollutant Sensor 3-pin Mqs;b31
705 705 A0085456326A 008 545 63 26 Contact Socket 0.5-0.75 Mm2 Mqs
705 705 A0005456980A 000 545 69 80 Seal 1.4-1.9 Mm
135 Operating Unit
10 10 A1998300085A 199 830 00 85 Operating Unit Heating Control
700 700 A0015454740A 001 545 47 40 Housing Air Conditioner Operating Unit 12-pin Mqs;n18/2
700 700 A0005459103A 000 545 91 03 Cap Mqs
700 700 A0005453930A 000 545 39 30 Cover To A 001 545 47 40
705 705 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
710 710 A0025405581A 002 540 55 81 Housing Air Conditioner Operating Unit 16-pin Mqs, Jpt;n22
715 715 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
715 715 A0115458426A 011 545 84 26 Contact Spring 0.5-1.0 Mm2 Spt
715 715 A0045455226A 004 545 52 26 Contact Spring 1.0-2.5 Mm2 Spt
165 Air Guide
10 10 A1998310003A 199 831 00 03 Scoop Front Air Inlet
200 200 A0009982205A 000 998 22 05 Grommet, Closed, Smooth (2×)
210 210 A0009985950A 000 998 59 50 Stop Plug (7×)
220 220 A1267870097A 126 787 00 97 Felt Strip 65x40x2mm
180 Heating Water Connection
10 10 A1998350014A 199 835 00 14 Bracket Circulation Pump
20 20 A2308350364A 230 835 03 64 Pump
30 30 A2308300084A 230 830 00 84 Valve
40 40 A1995010024A 199 501 00 24 Coolant Pipe From Valve To Engine
50 50 A1998350000A 199 835 00 00 Line At Air Conditioner Case
60 60 A1998350100A 199 835 01 00 Line To Valve
70 70 A1998350300A 199 835 03 00 Line From Valve To Pump
80 80 A1995010124A 199 501 01 24 Coolant Pipe At Valve
90 90 A1995010207A 199 501 02 07 Filler Neck
100 100 A1990940042A 199 094 00 42 Clamp Cooling Water Pipe Mounting (2×)
110 110 A0009951777A 000 995 17 77 Bracket Cooling Water Hose (2×)
120 120 A0149908901A 014 990 89 01 Combi-hexagon Head Bolt Fastening Of Cable Bracket M5x12 (2×)
130 130 A0009956310A 000 995 63 10 Hose Clamp W Worm Drive At Bracket (2×)
130 130 A0009958810A 000 995 88 10 Hose Clamp W Worm Drive At Bracket (2×)
140 140 A0009951777A 000 995 17 77 Bracket From Hose To Pump (2×)
150 150 A3459977590A 345 997 75 90 Binder Bracket (3×)
200 200 A0009953005A 000 995 30 05 Spring Bracket Clamp Hose Line To Engine 26 Mm (8×)
210 210 A2039950605A 203 995 06 05 Spring Bracket Clamp Hose Attachment 29/12mm;29mm
220 220 A1998330014A 199 833 00 14 Bracket
800 800 A2105402081A 210 540 20 81 Receptacle Housing Heater System Shutoff Valve 2-pin Mqs;y16/2
805 805 A0085456326A 008 545 63 26 Contact Socket 0.5-0.75 Mm2 Mqs
900 900 A2105402081A 210 540 20 81 Receptacle Housing Circulation Pump 2-pin Mqs;m13
905 905 A0085456326A 008 545 63 26 Contact Socket 0.5-0.75 Mm2 Mqs
190 A/c Compressor
10 10 A0012303311A 001 230 33 11 Compressor Refrigerant Compressor
10 10 A1992300011A 199 230 00 11 Compressor Refrigerant Compressor
195 Refrigerant Line Arrangement
10 10 A1998300015A 199 830 00 15 Piping Expansion Valve
20 20 A1409970845A 140 997 08 45 Sealing Ring Pipe Line 14x2 Mm
20 20 A0139974245A 013 997 42 45 Sealing Ring Pipe Line 14.0x2.0
30 30 A1998300415A 199 830 04 15 Piping Expansion Valve
40 40 A1409970745A 140 997 07 45 O-ring Pipe Line 10.6x2
40 40 A0139974145A 013 997 41 45 Sealing Ring Pipe Line 10.6x2 Mm
50 50 A1998300215A 199 830 02 15 Piping At Condenser,right
60 60 A2209970245A 220 997 02 45 Sealing Ring Pipe Line 9.5x2.5
70 70 A1409970745A 140 997 07 45 O-ring Pipe Line 10.6x2
70 70 A0139974145A 013 997 41 45 Sealing Ring Pipe Line 10.6x2 Mm
80 80 A2208320109A 220 832 01 09 Guide Pipe Line
90 90 A1998300315A 199 830 03 15 Piping At Condenser,left
100 100 A2209970245A 220 997 02 45 Sealing Ring Pipe Line 9.5x2.5 (2×)
110 110 A2208320109A 220 832 01 09 Guide Pipe Line
150 150 A1998300115A 199 830 01 15 Piping Fuel Pump
160 160 A1409970945A 140 997 09 45 Round-sect. Sealing Ring Pipe Line 17x2 Mm
170 170 A2109970345A 210 997 03 45 Sealing Ring Pipe Line 23.8x2.4 Mm
200 200 A1998320014A 199 832 00 14 Bracket Pipe Line (2×)
200 200 A1998320114A 199 832 01 14 Bracket Pipe Line (2×)
200 200 A0029951177A 002 995 11 77 Line Bracket Pipe Line (2×)
210 210 A0049941445A 004 994 14 45 Spring Nut Bracket Mounting M6 (2×)
220 220 A0009950275A 000 995 02 75 Bracket Pipe Line (2×)
230 230 A0009950375A 000 995 03 75 Bracket Pipe Line (2×)
250 250 N913023006001N 913023 006001 Nut Bracket M6 (3×)
260 260 N000000003648N 000000 003648 Hexalobular Bolt Bracket M6x25
270 270 N000000003533N 000000 003533 Screw Bracket M8x30 (2×)
280 280 A0029903105A 002 990 31 05 Pan Head Screw Mounting Pipe Line M5x25 (3×)
300 300 A2038300472A 203 830 04 72 Temperature Sensor On Liquid Reservoir
400 400 A2208300372A 220 830 03 72 Temperature Sensor
450 450 A1998320098A 199 832 00 98 Sealing In Partition Wall For A/c Lines
500 500 A1998360033A 199 836 00 33 Heat Shield Ac Wiring
500 500 A1998360533A 199 836 05 33 Shielding Ac Wiring
510 510 N910143006000N 910143 006000 Hexalobular Bolt Mounting Shielding M6x12 (2×)
520 520 A0009950375A 000 995 03 75 Bracket To Line (2×)
700 700 A2105404381A 210 540 43 81 Receptacle Housing Coolant Pressure/temperature Sensor 4-pin Mqs;b12/2
705 705 A0085456326A 008 545 63 26 Contact Socket 0.5-0.75 Mm2 Mqs
705 705 A0005456980A 000 545 69 80 Seal 1.4-1.9 Mm
86 Washer System
030 Pane Washer,headlamp Wiper/washer
10 10 A1998600060A 199 860 00 60 Container Wipe/wash System
20 20 A2108690821A 210 869 08 21 Pump Pane Washer System
30 30 A1239973681A 123 997 36 81 Grommet Headlamp Cleaning System Pump In Reservoir
40 40 A2205400045A 220 540 00 45 Switch Windshield Washer Water Level
50 50 A2209971981A 220 997 19 81 Grommet Switch In Reservoir
60 60 A2108691121A 210 869 11 21 Pump Headlamp Cleaning System
70 70 A0109971181A 010 997 11 81 Grommet Windshield Washer Pump In Container
100 100 A1998690072A 199 869 00 72 Latch Reservoir
110 110 A2308690198A 230 869 01 98 Sealing Cover
-- A0009980302A 000 998 03 02 Cable Grommet W But. Bead At Covering (2×)
170 170 A0009980801A 000 998 08 01 Guide Grommet In Longitudinal Member
310 310 A2038600547A 203 860 05 47 Telescopic Nozzle Left
315 315 A1708601747A 170 860 17 47 Nozzle
320 320 A2038600647A 203 860 06 47 Telescopic Nozzle Right
325 325 A1708601847A 170 860 18 47 Nozzle
400 400 A1998600010A 199 860 00 10 Fixture Pipe Lines (5×)
400 400 A1998600110A 199 860 01 10 Bracket Pipe Lines (5×)
410 410 A1995510056A 199 551 00 56 Piping Headlamp Cleaning System
420 420 A1998691194A 199 869 11 94 Hose Pipe Line Connection
470 470 A1998600392A 199 860 03 92 Hose Connection Zb Schlauchleitung
490 490 A1998690694A 199 869 06 94 Hose From Hose To Tank
500 500 A2088690024A 208 869 00 24 Connector Clutch
510 510 A1998310428A 199 831 04 28 Connecting Piece Pump To Nozzle (2×)
520 520 A1998691394A 199 869 13 94 Hose Line Left Nozzle
530 530 A1998691494A 199 869 14 94 Hose Line Right Nozzle
540 540 A1998320056A 199 832 00 56 Pipe Junction, Y-fitting Y-shape
550 550 A1998691594A 199 869 15 94 Hose Line From Hose To Tank
600 600 A1998690097A 199 869 00 97 Pad Headlamp Cleaning System (2×)
650 650 N000000003765N 000000 003765 Hexalobular Bolt Headlamp Cleaning System M6x20 (2×)
650 650 N910105005003N 910105 005003 Hexagon Head Bolt Headlamp Cleaning System M5x20 (10×)
650 650 N910143006001N 910143 006001 Hexalobular Bolt Headlamp Cleaning System M6x16 (2×)
650 650 N910105005000N 910105 005000 Hexagon Head Bolt Headlamp Cleaning System M5x12 (2×)
650 650 N304017008038N 304017 008038 Hexagon Head Bolt Headlamp Cleaning System 8x20 (2×)
650 650 N000000004660N 000000 004660 Hexalobular Bolt Center And Rear Floor
660 660 N913023005002N 913023 005002 Nut Headlamp Cleaning System M5 (10×)
680 680 A0009956577A 000 995 65 77 Line Holder Headlamp Cleaning System
690 690 A0009950442A 000 995 04 42 Clamp Headlamp Cleaning System
710 710 A0009951990A 000 995 19 90 Cable Strap Headlamp Cleaning System 4.8 X 300 Mm
720 720 A1994210294A 199 421 02 94 Bracket Headlamp Cleaning System (2×)
720 720 A1994212094A 199 421 20 94 Bracket Headlamp Cleaning System (2×)
730 730 A1999970652A 199 997 06 52 Hose Headlamp Cleaning System (2×)
740 740 A0009980802A 000 998 08 02 Cable Grommet W But. Bead Headlamp Cleaning System 22 Mm (3×)
740 740 A0009980902A 000 998 09 02 Cable Grommet W But. Bead Headlamp Cleaning System 11 Mm (2×)
760 760 A0019901382A 001 990 13 82 Washer, Plane-parallel Headlamp Cleaning System (2×)
770 770 A0029928701A 002 992 87 01 Detent Bushing
790 790 A0019901882A 001 990 18 82 Window (2×)
790 790 A0019901282A 001 990 12 82 Window (2×)
800 800 A1998600392A 199 860 03 92 Hose Zb Schlauchleitung
900 900 A0165454626A 016 545 46 26 Receptacle Housing Windshield Washing Pump 2-pin Mcp2.8;m5/1
900 900 A0185450026A 018 545 00 26 Receptacle Housing Headlamp-washer Pump 2-pin Mcp2.8;m5/2
905 905 A0145458326A 014 545 83 26 Contact Socket 0.5-1.0 Mm2 Mcp2.8
910 910 A2105402081A 210 540 20 81 Receptacle Housing Washer Fluid Level Switch 2-pin Mqs;s42
915 915 A0085456326A 008 545 63 26 Contact Socket 0.5-0.75 Mm2 Mqs
950 950 A0125458628A 012 545 86 28 Receptacle Housing Heated Washer Nozzle 2-pin Rk2.5;r2/1
955 955 A0025455226A 002 545 52 26 Contact Bushing 2.5 Mm2
88 Attachment Parts
015 Front Fender
10 10 A1998810301A 199 881 03 01 Fender Front Inside Left
10 10 A1998810201A 199 881 02 01 Fender Front Inside Right
20 20 A0029902350A 002 990 23 50 Hexagon Nut With Flange M4 (8×)
30 30 A1998840931A 199 884 09 31 Paneling Front Left
30 30 A1998840522A 199 884 05 22 Cover Front Left
30 30 A1998840831A 199 884 08 31 Paneling Front Right
30 30 A1998840622A 199 884 06 22 Cover Front Right
40 40 A1998260324A 199 826 03 24 Cover Front Left
40 40 A1998260424A 199 826 04 24 Cover Front Right
50 50 A1998841131A 199 884 11 31 Cover Rear Left
50 50 A1998840322A 199 884 03 22 Cover Rear Left
50 50 A1998841031A 199 884 10 31 Cover Rear Right
50 50 A1998840422A 199 884 04 22 Cover Rear Right
52 52 N913023006001N 913023 006001 Nut Fastening For Lining M6 (2×)
55 55 N910112005000N 910112 005000 Hexagon Nut Fastening For Lining M5 (6×)
58 58 N910142005000N 910142 005000 Hexalobular Bolt Fastening For Lining M5x10 (4×)
59 59 N910105005000N 910105 005000 Hexagon Head Bolt Covering To Covering M5x12 (6×)
59 59 N910143006000N 910143 006000 Hexalobular Bolt Fastening For Lining M6x12 (4×)
60 60 N910105005003N 910105 005003 Hexagon Head Bolt Fastening For Lining M5x20 (28×)
62 62 N910143006001N 910143 006001 Hexalobular Bolt Fastening For Lining M6x16
63 63 A0019902282A 001 990 22 82 Window Wiring Fastening (8×)
65 65 N000000001476N 000000 001476 Hexalobular Bolt Fastening For Lining M6x16 (6×)
70 70 N000000000815N 000000 000815 Tapping Screw Fastening For Lining 4,8x16 (12×)
70 70 N000000000461N 000000 000461 Tapping Screw Fastening For Lining 4.8x16 (26×)
75 75 A0039948545A 003 994 85 45 Spring Nut Fastening For Lining 4.8/0.5-2.5 Mm (8×)
80 80 A0049941645A 004 994 16 45 Spring Nut Fastening For Lining M6 (8×)
81 81 A0149908901A 014 990 89 01 Combi-hexagon Head Bolt Fastening For Lining M5x12 (2×)
81 81 N000000002701N 000000 002701 Hexagon Head Bolt Wiring Fastening 6x12
82 82 A0009904356A 000 990 43 56 Clip Nut Fastening For Lining (10×)
83 83 A0029903405A 002 990 34 05 Stud Bolt Fastening For Lining M5x10 (6×)
90 90 A0029904205A 002 990 42 05 Pan Head Screw Fastening For Lining M5x16 (22×)
91 91 N009021006208N 009021 006208 Washer Fastening For Lining 6 Mm (6×)
95 95 N000000001686N 000000 001686 Hexalobular Bolt Fastening For Lining M6x16 (9×)
95 95 N304032006009N 304032 006009 Hexagon Nut Fastening For Lining (4×)
96 96 A0019902282A 001 990 22 82 Window Fastening For Lining (3×)
97 97 A0009904356A 000 990 43 56 Clip Nut Wiring Fastening (2×)
100 100 A1998840115A 199 884 01 15 Bracket Front Left
100 100 A1998840315A 199 884 03 15 Bracket Left
100 100 A1998840015A 199 884 00 15 Bracket Front Right
100 100 A1998840415A 199 884 04 15 Bracket Right
105 105 A0009915740A 000 991 57 40 Expansion Rivet Fastening For Lining (6×)
110 110 A1997950396A 199 795 03 96 Washer Side Panel M5x12.7x1 (7×)
120 120 A0019902582A 001 990 25 82 Window Side Panel (16×)
130 130 A0019902682A 001 990 26 82 Window Side Panel (15×)
140 140 A0019901882A 001 990 18 82 Window Side Panel (6×)
145 145 A0029903405A 002 990 34 05 Stud Bolt At Covering M5x10 (6×)
160 160 A0029905805A 002 990 58 05 Pan Head Screw Side Panel M6x16 (8×)
170 170 A0019909654A 001 990 96 54 Nut Side Panel M6 (6×)
190 190 A0019902282A 001 990 22 82 Window Fastening For Lining (8×)
200 200 A1996300901A 199 630 09 01 Side Wall Front Left
200 200 A1996301001A 199 630 10 01 Side Wall Front Right
220 220 A1996310097A 199 631 00 97 Base Sede Wall, Left And Right (2×)
230 230 A1996370098A 199 637 00 98 Sealing Sede Wall, Left And Right (2×)
250 250 A1996180184A 199 618 01 84 Grille Left Air Inlet
250 250 A1996180284A 199 618 02 84 Grille Right Air Inlet
260 260 A1996300708A 199 630 07 08 Cover Left Top And Bottom
260 260 A1996370340A 199 637 03 40 Cover Bottom Left Side Blade Lwr Left
260 260 A1996370440A 199 637 04 40 Cover Bottom Right Side Bladelwr Right
260 260 A1996300808A 199 630 08 08 Cover Right Top And Bottom
290 290 A1997951896A 199 795 18 96 Shim
300 300 A1996820271A 199 682 02 71 Heat Shield Left
300 300 A1996821371A 199 682 13 71 Shielding Left Hvac
300 300 A1996821471A 199 682 14 71 Shielding Right Hvac
400 400 A1996310714A 199 631 07 14 Bracket Side Panel,left
400 400 A1996310814A 199 631 08 14 Bracket Side Panel,right
410 410 N910105005002N 910105 005002 Hexagon Head Bolt Bracket To Body M5x16 (4×)
420 420 A1997950996A 199 795 09 96 Pad Bracket To Body 5 X 15 X 1 Mm (4×)
450 450 A0009908702A 000 990 87 02 Csk. Bolt W Hexal. Socket Side Wall To Bracket M4x12 (6×)
460 460 A0009906783A 000 990 67 83 Window Side Wall To Bracket (6×)
500 500 A1996890154A 199 689 01 54 Strip Left Entrance
500 500 A1996890254A 199 689 02 54 Strip Right Entrance
540 540 A1996220108A 199 622 01 08 Cover Exhaust System, Left
540 540 A1996220308A 199 622 03 08 Cover Exhaust System, Left
540 540 A1996220208A 199 622 02 08 Cover Exhaust System, Right
540 540 A1996220408A 199 622 04 08 Cover Exhaust System, Right
550 550 A1996270107A 199 627 01 07 Grille Left Bottom
550 550 A1996270207A 199 627 02 07 Grille Right Bottom
560 560 A1996270307A 199 627 03 07 Grille Left Front
560 560 A1996270407A 199 627 04 07 Grille Right Front
570 570 A1996270507A 199 627 05 07 Grille Left Central
570 570 A1996270607A 199 627 06 07 Grille Right Central
580 580 A1996270707A 199 627 07 07 Grille Left Rear
580 580 A1996270807A 199 627 08 07 Grille Right Rear
590 590 A0029902350A 002 990 23 50 Hexagon Nut With Flange At Covering M4 (2×)
600 600 A1990090098A 199 009 00 98 Adhesive Film Cutting Side Panel
700 700 A1996820371A 199 682 03 71 Shielding Left
700 700 A1996820471A 199 682 04 71 Shielding Right
710 710 A1996820571A 199 682 05 71 Shielding Left Ventilation, 1st Gill
710 710 A1996820671A 199 682 06 71 Shielding Right Ventilation, 1st Gill
720 720 A1996820771A 199 682 07 71 Shielding Left Ventilation, 2nd Gill
720 720 A1996820871A 199 682 08 71 Shielding Right Ventilation, 2nd Gill
730 730 A1996820971A 199 682 09 71 Shielding Left Ventilation, 3rd Gill
730 730 A1996821071A 199 682 10 71 Shielding Right Ventilation, 3rd Gill
740 740 A1996821171A 199 682 11 71 Shielding Left Ventilation, 4th Gill
740 740 A1996821271A 199 682 12 71 Shielding Right Ventilation, 4th Gill
750 750 A1997951896A 199 795 18 96 Shim Attachment
760 760 A0009910308A 000 991 03 08 Pin At Covering M5x61 (10×)
770 770 A0009910108A 000 991 01 08 Pin At Covering M5x25 (12×)
780 780 A0009910208A 000 991 02 08 Pin At Covering M5x46 (6×)
790 790 A0009910008A 000 991 00 08 Pin At Covering M5x18 (4×)
800 800 A1996370198A 199 637 01 98 Sealing Top Left
800 800 A1996370298A 199 637 02 98 Sealing Top Right
810 810 A1996370398A 199 637 03 98 Sealing Top Left
810 810 A1996370498A 199 637 04 98 Sealing Top Right
820 820 A1996370598A 199 637 05 98 Sealing Top Left
820 820 A1996370698A 199 637 06 98 Sealing Top Right
830 830 A1996370798A 199 637 07 98 Sealing Top Left
830 830 A1996370898A 199 637 08 98 Sealing Top Right
840 840 A1996370998A 199 637 09 98 Sealing Top Left
840 840 A1996371098A 199 637 10 98 Sealing Top Right
850 850 A1996371198A 199 637 11 98 Sealing Bottom Left
850 850 A1996371298A 199 637 12 98 Sealing Bottom Right
860 860 A1996371398A 199 637 13 98 Sealing Bottom Left
860 860 A1996371498A 199 637 14 98 Sealing Bottom Right
870 870 A1996371598A 199 637 15 98 Sealing Bottom Left
870 870 A1996371698A 199 637 16 98 Sealing Bottom Right
880 880 A1996371798A 199 637 17 98 Sealing Bottom Left
880 880 A1996371898A 199 637 18 98 Sealing Bottom Right
890 890 A1996371998A 199 637 19 98 Sealing Bottom Left
890 890 A1996372098A 199 637 20 98 Sealing Bottom Right
900 900 A0009904856A 000 990 48 56 Clip Nut
920 920 A0019901882A 001 990 18 82 Window (4×)
930 930 A0009915740A 000 991 57 40 Expansion Rivet (6×)
960 960 A0009852262A 000 985 22 62 Edge Guard 95mm Laenge*
030 Front Bumper
10 10 A1998800070A 199 880 00 70 Front Bumper Front
10 10 A1998800170A 199 880 01 70 Bumper, Front Front
10 10 A1998800270A 199 880 02 70 Bumper, Front Front
20 20 A1998630108A 199 863 01 08 Cover Headlamp Wiper,left
20 20 A1998630308A 199 863 03 08 Cover Headlamp Wiper,left
20 20 A1998630208A 199 863 02 08 Cover Headlamp Wiper,right
20 20 A1998630408A 199 863 04 08 Cover Headlamp Wiper,right
30 30 A1998680151A 199 868 01 51 Hinge Headlamp Wiper,left
30 30 A1998680251A 199 868 02 51 Hinge Headlamp Wiper,right
40 40 A1998900118A 199 890 01 18 Cap Headlamp Wiper,left
40 40 A1998680130A 199 868 01 30 Cap Headlamp Wiper,left
40 40 A1998900218A 199 890 02 18 Cap Headlamp Wiper,right
40 40 A1998680230A 199 868 02 30 Cap Headlamp Wiper,right
50 50 A1995440180A 199 544 01 80 Profile Seal Headlamp Wiper,left
50 50 A1995440280A 199 544 02 80 Profile Seal Headlamp Wiper,right
60 60 A2038850035A 203 885 00 35 Spring Left And Right (2×)
70 70 A2038850015A 203 885 00 15 Pin Left And Right (2×)
80 80 A1998610014A 199 861 00 14 Bracket Headlamp Cleaning System (2×)
85 85 N000000003549N 000000 003549 Hexagon Head Bolt Headlamp Cleaning System 5x12 (4×)
90 90 A1998310093A 199 831 00 93 Intermediate Layer Headlamp Cleaning System (2×)
100 100 N910105005000N 910105 005000 Hexagon Head Bolt Bracket, Headlamp Cleaning System M5x12 (7×)
105 105 A1997950396A 199 795 03 96 Washer Headlamp Cleaning System M5x12.7x1 (4×)
110 110 A1999890085A 199 989 00 85 Adhesive Film Cutting Bumpers Left And Right
120 120 A1998850021A 199 885 00 21 Protective Strip Protective Rail To Front Bumper (2×)
150 150 A1998850025A 199 885 00 25 Trim Front Spoiler
180 180 A0009981002A 000 998 10 02 Cable Grommet W But. Bead Grille Center
190 190 A0009988550A 000 998 85 50 Stop Plug Grille Center
200 200 A1998880023A 199 888 00 23 Grille Central
210 210 A1998880323A 199 888 03 23 Grille Left
220 220 A1998880223A 199 888 02 23 Grille Right
230 230 A0029904405A 002 990 44 05 Pan Head Screw M6x12 (10×)
240 240 A0009904856A 000 990 48 56 Clip Nut Grille M5 (9×)
240 240 A0009906856A 000 990 68 56 Clip Nut Grille M5 (9×)
250 250 A1998850022A 199 885 00 22 Cap Front
260 260 A1995240092A 199 524 00 92 Sealing Licence Plate Trim
270 270 A0029903405A 002 990 34 05 Stud Bolt License Plate Moulding Mounting M5x10 (6×)
280 280 A0009981885A 000 998 18 85 Dowel License Plate Moulding Mounting (3×)
300 300 A1998800168A 199 880 01 68 Reinforcement Left Front Bumper
300 300 A1998800068A 199 880 00 68 Reinforcement Right Front Bumper
350 350 A1998800035A 199 880 00 35 Impact Absorber Front
360 360 A1998890314A 199 889 03 14 Bracket Front Left
360 360 A1998890414A 199 889 04 14 Bracket Front Right
370 370 A1998890814A 199 889 08 14 Bracket Support (4×)
390 390 A1996140114A 199 614 01 14 Bracket Left
390 390 A1996140214A 199 614 02 14 Bracket Right
400 400 A1995450940A 199 545 09 40 Bracket Temperature Sensor To Front Bumper
400 400 A1995452240A 199 545 22 40 Bracket Temperature Sensor To Front Bumper Mounting-bracket-sensor-air-temp*
410 410 A1998870111A 199 887 01 11 Plate (2×)
412 412 A1998870111A 199 887 01 11 Plate (2×)
412 412 A1998871211A 199 887 12 11 Retaining Plate Elv2 - Cr6-frei* (2×)
415 415 N000000003175N 000000 003175 Nut Bumper M8;skid-block (2×)
420 420 N000000001476N 000000 001476 Hexalobular Bolt Covering To Front Bumper M6x16 (10×)
430 430 A0049941445A 004 994 14 45 Spring Nut Bumper M6 (8×)
435 435 A0049941645A 004 994 16 45 Spring Nut Mounting Bumper M6 (10×)
450 450 N910143006001N 910143 006001 Hexalobular Bolt Bumper M6x16 (12×)
460 460 N000000001479N 000000 001479 Hexalobular Bolt Bumper M6x30 (2×)
480 480 A0029903405A 002 990 34 05 Stud Bolt Mounting Bumper M5x10;innensechskant (2×)
490 490 N910143006003N 910143 006003 Hexalobular Bolt Mounting Bumper M6x25 (2×)
490 490 N000000003648N 000000 003648 Hexalobular Bolt Mounting Bumper M6x25 (2×)
500 500 N000000002925N 000000 002925 Hexalobular Bolt Front Bumper 4x12 (4×)
520 520 A0029908205A 002 990 82 05 Pan Head Screw Front Bumper M4x30 (8×)
540 540 N000000002701N 000000 002701 Hexagon Head Bolt Front Bumper 6x12 (4×)
550 550 A0009904356A 000 990 43 56 Clip Nut Front Bumper (12×)
560 560 A0009904756A 000 990 47 56 Clip Nut Front Bumper (4×)
570 570 A0019909854A 001 990 98 54 Hex. Nut W Clamping Part Front Bumper M5 (8×)
580 580 A0009904000A 000 990 40 00 Hexagon Head Bolt Front Bumper M5x12 (4×)
600 600 N000000003549N 000000 003549 Hexagon Head Bolt Front Bumper 5x12 (10×)
610 610 A0019902282A 001 990 22 82 Window Front Bumper (6×)
620 620 A0019906482A 001 990 64 82 Washer At Bumper (4×)
660 660 A0009912598A 000 991 25 98 Clamp At Covering (2×)
860 860 A1999890085A 199 989 00 85 Adhesive Film Cutting Bumper
870 870 A1990090098A 199 009 00 98 Adhesive Film Cutting Bumper
880 880 A1990090098A 199 009 00 98 Adhesive Film Cutting Bumper
890 890 A1998170041A 199 817 00 41 Adhesive Foil Bumper
075 Rear Bumper
10 10 A1998850201A 199 885 02 01 Bumper, Rear Rear
20 20 A1998800135A 199 880 01 35 Impact Absorber Rear
80 80 A1998850114A 199 885 01 14 Bracket Left
80 80 A1998850314A 199 885 03 14 Bracket Left Elv2 - Vr6-frei*
80 80 A1998850214A 199 885 02 14 Bracket Right
80 80 A1998850014A 199 885 00 14 Bracket Right Elv1 - Cr6-frei*
90 90 A1998880214A 199 888 02 14 Bracket Left
90 90 A1998880114A 199 888 01 14 Bracket Right
100 100 A1998880523A 199 888 05 23 Grille In Rear Bumper
110 110 A0029904405A 002 990 44 05 Pan Head Screw Attachment, Grid M6x12 (8×)
130 130 A0009910036A 000 991 00 36 Rivet Shock Absorber Mounting 3.2x14.5 (4×)
250 250 N000000001476N 000000 001476 Hexalobular Bolt Rear Bumper M6x16 (6×)
260 260 N000000000815N 000000 000815 Tapping Screw Rear Bumper 4,8x16 (38×)
260 260 N000000000461N 000000 000461 Tapping Screw Rear Bumper 4.8x16 (38×)
270 270 A0049941445A 004 994 14 45 Spring Nut Rear Bumper M6 (14×)
280 280 A0039948545A 003 994 85 45 Spring Nut Rear Bumper 4.8/0.5-2.5 Mm (24×)
310 310 A0009904802A 000 990 48 02 Bolt Rear Bumper M6x16;diffuser (4×)
320 320 N000000002701N 000000 002701 Hexagon Head Bolt Rear Bumper 6x12 (2×)
330 330 A0009904356A 000 990 43 56 Clip Nut Rear Bumper (5×)
340 340 A0009981503A 000 998 15 03 Closing Grommet Left Rear Bumper (2×)
340 340 A0009981603A 000 998 16 03 Closing Grommet Right Rear Bumper (2×)
350 350 A1997951696A 199 795 16 96 Pad Anti-chafe Protection Betw. Fender And Bumper 6 Mm (16×)
350 350 A0019902682A 001 990 26 82 Window (4×)
350 350 A1997951696A 199 795 16 96 Pad 6 Mm (12×)
350 350 A1997950696A 199 795 06 96 Pad Rear Bumper M6x20x1,6* (4×)
360 360 N910143006000N 910143 006000 Hexalobular Bolt Rear Bumper M6x12 (16×)
360 360 N910143006001N 910143 006001 Hexalobular Bolt Rear Bumper M6x16 (10×)
370 370 A0009904702A 000 990 47 02 Csk. Bolt W Hex. Socket Bumper Bottom Left And Right M6x20 (10×)
390 390 N000000001279N 000000 001279 Hexagon Head Bolt Rear Bumper 5x16 (4×)
400 400 A0029905805A 002 990 58 05 Pan Head Screw Rear Bumper M6x16 (2×)
410 410 A1997950396A 199 795 03 96 Washer Rear Bumper M5x12.7x1 (4×)
420 420 A0009910036A 000 991 00 36 Rivet In Rear Bumper 3.2x14.5 (4×)
510 510 A1999890085A 199 989 00 85 Adhesive Film Cutting Bumper
520 520 A1990090098A 199 009 00 98 Adhesive Film Cutting Bumper
530 530 A1990090098A 199 009 00 98 Adhesive Film Cutting Bumper
540 540 A1998170041A 199 817 00 41 Adhesive Foil Bumper
120 Engine Hood
10 10 A1998800057A 199 880 00 57 Hood
15 15 N000000003765N 000000 003765 Hexalobular Bolt Mounting Engine Hood Hinge M6x20 (4×)
20 20 N009021006208N 009021 006208 Washer Mounting Engine Hood Hinge 6 Mm (8×)
20 20 A0019905582A 001 990 55 82 Window Mounting Engine Hood Hinge M6 (10×)
25 25 N000000001305N 000000 001305 Hexagon Nut Mounting Engine Hood Hinge (6×)
30 30 A0019904882A 001 990 48 82 Window Mounting Engine Hood Hinge (6×)
35 35 A0009981321A 000 998 13 21 Cover, Hexagonal Engine Hood Bracket,front Left (12×)
35 35 A0009981221A 000 998 12 21 Cover Engine Hood Bracket,front Right (4×)
40 40 A1998870130A 199 887 01 30 Rail Engine Hood, Left
40 40 A1998870530A 199 887 05 30 Guide Rail Engine Hood, Left Fuehrungsschiene Motohaube Links
40 40 A1998870230A 199 887 02 30 Rail Engine Hood,right Motorhaube*
45 45 A0089897385A 008 989 73 85 Adhesive Foil Engine Hood Centering,left
45 45 A0089897485A 008 989 74 85 Adhesive Foil Engine Hood Centering,right
50 50 A1998800560A 199 880 05 60 Engine Hood Lock Front Left
50 50 A1998800328A 199 880 03 28 Hinge Engine Hood, Left
50 50 A1998800428A 199 880 04 28 Hinge Engine Hood,right
50 50 A1998800660A 199 880 06 60 Engine Hood Lock Front Right
55 55 A1998870068A 199 887 00 68 Shock Absorber Engine Hood Catch
55 55 A1999880104A 199 988 01 04 Pneumatic Spring Engine Hood Catch Topshell * (2×)
60 60 A0029907705A 002 990 77 05 Cyl. Fit Bolt With Socket Damper Fastening Left And Right
65 65 A0029907605A 002 990 76 05 Cyl. Fit Bolt With Socket Damper Fastening Left And Right (2×)
70 70 A1998870150A 199 887 01 50 Bushing Damper Fastening Left And Right (8×)
75 75 A1997952196A 199 795 21 96 Pad Damper Fastening Left And Right (6×)
80 80 A2038219251A 203 821 92 51 Switch Engine Hood Catch (2×)
85 85 A1998850059A 199 885 00 59 Band Hood Release Cable (2×)
90 90 A1267870097A 126 787 00 97 Felt Strip Hood Release Cable 65x40x2mm
100 100 A1998800760A 199 880 07 60 Hood Lock Engine Hood, Left
100 100 A1998801360A 199 880 13 60 Unlocking Engine Hood, Left Elv2 - Cr6-frei*
100 100 A1998800860A 199 880 08 60 Hood Lock Engine Hood,right
100 100 A1998801260A 199 880 12 60 Unlocking Engine Hood,right Elv2 - Cr6-frei*
105 105 A0029902605A 002 990 26 05 Cap Bolt With Socket Unlocking (2×)
110 110 A1998800175A 199 880 01 75 Console Engine Hood, Left
110 110 A1997500180A 199 750 01 80 Support Roller Engine Hood, Left
110 110 A1998800275A 199 880 02 75 Console Engine Hood,right
110 110 A1997500280A 199 750 02 80 Support Roller Engine Hood,right
115 115 A1992920645A 199 292 06 45 Plate (2×)
120 120 A1998870656A 199 887 06 56 Pad (4×)
125 125 A0009923803A 000 992 38 03 Bushing (2×)
130 130 A1998800114A 199 880 01 14 Bracket Engine Hood
130 130 A1998800214A 199 880 02 14 Bracket Engine Hood Zentrierung Motorhaube Hinten*
130 130 A1998800114A 199 880 01 14 Bracket Engine Hood
135 135 A0089897385A 008 989 73 85 Adhesive Foil Engine Hood Centering,left
135 135 A0089897485A 008 989 74 85 Adhesive Foil Engine Hood Centering,right
150 150 N000933004030N 000933 004030 Screw Bracket Mounting M4x10 (2×)
150 150 N000933004030N 000933 004030 Screw At Bracket M4x10 (2×)
160 160 A1998870032A 199 887 00 32 Bracket Left
160 160 A1998870232A 199 887 02 32 Mounting Bar Right
165 165 A0019901282A 001 990 12 82 Window At Bracket (14×)
170 170 A1267870097A 126 787 00 97 Felt Strip At Clamp 65x40x2mm (8×)
175 175 A1998800960A 199 880 09 60 Unlocking Engine Hood
175 175 A1998801160A 199 880 11 60 Hood Lock Engine Hood
180 180 A1248800320A 124 880 03 20 Handle Release, Engine Hood
185 185 A1998800359A 199 880 03 59 Hood Release Cable Release, Engine Hood
185 185 A1998800559A 199 880 05 59 Engine Hood Cable Release, Engine Hood Mono - Seitig*
190 190 A1997580258A 199 758 02 58 Company Sign Mclaren (2×)
205 205 A1998800260A 199 880 02 60 Hood Lock Engine Hood (4×)
210 210 A1998980032A 199 898 00 32 Window Attachment Cover (2×)
215 215 N913023006001N 913023 006001 Nut Attachment Cover M6 (2×)
220 220 N000000003765N 000000 003765 Hexalobular Bolt Attachment Cover M6x20 (8×)
220 220 N000000003648N 000000 003648 Hexalobular Bolt Attachment Cover M6x25 (8×)
225 225 A0029900905A 002 990 09 05 Stud Bolt At Plate M4x10 (4×)
230 230 A1998870211A 199 887 02 11 Plate 0,5 (2×)
230 230 A1998870311A 199 887 03 11 Plate 1,0 (2×)
235 235 A1998870119A 199 887 01 19 Mounting Plate Locator Pin Topshell (2×)
240 240 N000000000276N 000000 000276 Hexalobular Bolt Bracket Mounting M8x20 (4×)
240 240 A0029907705A 002 990 77 05 Cyl. Fit Bolt With Socket Damper Fastening Left And Right
240 240 A0009905502A 000 990 55 02 Csk. Bolt W Hex. Socket Bracket Mounting M5x16 (4×)
245 245 A0009981321A 000 998 13 21 Cover, Hexagonal M6 (12×)
245 245 A0009981221A 000 998 12 21 Cover M5 (4×)
255 255 A1998310044A 199 831 00 44 Cover Air Duct
260 260 A1998310303A 199 831 03 03 Scoop Air Duct
265 265 A0029903005A 002 990 30 05 Pan Head Screw M5 X 20 Mm
270 270 A1998310098A 199 831 00 98 Sealing Air Duct
280 280 N910112005000N 910112 005000 Hexagon Nut To Hinge M5 (2×)
285 285 A0019902682A 001 990 26 82 Window (2×)
300 300 A1998870545A 199 887 05 45 Baffle Engine Hood, Left
305 305 A1997951696A 199 795 16 96 Pad At Covering 6 Mm (4×)
310 310 A1998870845A 199 887 08 45 Heat Shield Engine Hood,right
310 310 A1998872445A 199 887 24 45 Baffle Engine Hood,right
320 320 A1998870945A 199 887 09 45 Heat Shield Engine Hood, Left
325 325 A1998871045A 199 887 10 45 Heat Shield Engine Hood,right
330 330 A1998871145A 199 887 11 45 Heat Shield Engine Hood, Left
335 335 A1998871245A 199 887 12 45 Heat Shield Engine Hood,right
340 340 A0009912095A 000 991 20 95 Plug-in Fastener, Round Shielding (22×)
345 345 A0009984705A 000 998 47 05 Grommet, Closed, Smooth Shielding (22×)
350 350 A1998871545A 199 887 15 45 Heat Shield Engine Hood, Left
355 355 A1998871645A 199 887 16 45 Heat Shield Engine Hood,right
360 360 A1998871845A 199 887 18 45 Heat Shield Rear Outside Right (2×)
360 360 A1998871745A 199 887 17 45 Heat Shield Rear Outside Left (2×)
365 365 A1998872145A 199 887 21 45 Heat Shield Engine Hood, Left
375 375 A1998872745A 199 887 27 45 Heat Shield Engine Hood, Left
375 375 A1998872845A 199 887 28 45 Heat Shield Engine Hood,right
380 380 A1998890098A 199 889 00 98 Sealing Engine Hood, Rear Inside
390 390 A1990003188A 199 000 31 88 Ventilation Screen Engine Hood, Left
390 390 A1998800336A 199 880 03 36 Guide Screen Engine Hood, Left Lüftungsgitter
390 390 A1998801136A 199 880 11 36 Air Deflection Slat Engine Hood, Left
390 390 A1998801536A 199 880 15 36 Guide Screen Engine Hood, Left Motorhaube Links - Elv2 - Cr6-frei*
400 400 A1990003088A 199 000 30 88 Ventilation Screen Engine Hood,right
400 400 A1998800436A 199 880 04 36 Air Deflection Slat Engine Hood,right
400 400 A1998800636A 199 880 06 36 Air Deflection Slat Engine Hood,right
400 400 A1998801236A 199 880 12 36 Air Deflection Slat Right
400 400 A1998801036A 199 880 10 36 Guide Screen Right
410 410 A1998871345A 199 887 13 45 Heat Shield Ventilation Screen,left
410 410 A1998871945A 199 887 19 45 Heat Shield Ventilation Screen,left (2×)
415 415 A0029906405A 002 990 64 05 Pan Head Screw Air Grille Fastening M4x10 (6×)
420 420 A1998871445A 199 887 14 45 Heat Shield Ventilation Screen,right
420 420 A1998872045A 199 887 20 45 Heat Shield Ventilation Screen,right (2×)
420 420 A1998872045A 199 887 20 45 Heat Shield Ventilation Screen,right M4x25
425 425 A0029906405A 002 990 64 05 Pan Head Screw Air Grille Fastening M4x10 (2×)
425 425 N000933004030N 000933 004030 Screw Air Grille Fastening (3×)
430 430 A0029908105A 002 990 81 05 Pan Head Screw Air Grille Fastening M4x25 (9×)
430 430 A0029908105A 002 990 81 05 Pan Head Screw Air Grille Fastening (6×)
440 440 N304017004006N 304017 004006 Hexagon Head Bolt Air Grille Fastening M4x16 (2×)
440 440 A1993530052A 199 353 00 52 Spacer Disk Air Grille Fastening (2×)
450 450 A0059906051A 005 990 60 51 Thread Insert Air Grille Fastening (14×)
460 460 A0029908305A 002 990 83 05 Bolt Air Grille Fastening M4x20 (15×)
460 460 A0029908305A 002 990 83 05 Bolt Air Grille Fastening (8×)
470 470 A1998870198A 199 887 01 98 Sealing Front Left (4×)
470 470 A1998870298A 199 887 02 98 Sealing Front Right (8×)
480 480 A1998870398A 199 887 03 98 Sealing Rear Left (2×)
480 480 A1998870498A 199 887 04 98 Sealing Rear Right (6×)
485 485 A0029906405A 002 990 64 05 Pan Head Screw Rear Left (5×)
485 485 A0029906405A 002 990 64 05 Pan Head Screw Air Grille Fastening (5×)
490 490 A1998870098A 199 887 00 98 Sealing Ventilation Screen
490 490 A1998870098A 199 887 00 98 Sealing
490 490 A1998870598A 199 887 05 98 Sealing Outside
490 490 A1998870598A 199 887 05 98 Sealing Engine Hood, Left
490 490 A1998870598A 199 887 05 98 Sealing Ventilation Screen Gasket-louvre To Blade Topshell-o/b (2×)
495 495 A0029908105A 002 990 81 05 Pan Head Screw Ventilation Screen (6×)
495 495 A0029908105A 002 990 81 05 Pan Head Screw (9×)
500 500 A1993530052A 199 353 00 52 Spacer Disk Ventilation Screen (6×)
510 510 A1998870108A 199 887 01 08 Air Deflection Slat Left
520 520 A1998870208A 199 887 02 08 Air Deflection Slat Right
530 530 A2309970581A 230 997 05 81 Grommet (2×)
540 540 A0039922901A 003 992 29 01 Spacer Sleeve Ventilation Screen (2×)
540 540 A0039923001A 003 992 30 01 Spacer Sleeve Engine Hood, Rear Inside (2×)
540 540 A0039923001A 003 992 30 01 Spacer Sleeve Spacer Ring (2×)
540 540 A0039922901A 003 992 29 01 Spacer Sleeve (2×)
91 Driver's Seat
065 Left Seat
10 10 A1999100053A 199 910 00 53 Seat Shell Left
30 30 A1999100306A 199 910 03 06 Driver Seat Cushion Left
40 40 A1999100108A 199 910 01 08 Intermediate Layer Bottom
50 50 A1999100208A 199 910 02 08 Intermediate Layer Central
60 60 A1999100008A 199 910 00 08 Upholstery Top
60 60 A1999100708A 199 910 07 08 Intermediate Padding Top
70 70 A1999700050A 199 970 00 50 Head Restraint Left Seat
80 80 A1999100034A 199 910 00 34 Seat Backrest Frame Left Seat
90 90 A1999140017A 199 914 00 17 Insert Backrest Frame To Seat Framework
100 100 A0009915340A 000 991 53 40 Expansion Rivet Backrest Frame To Seat Framework
110 110 A0009910133A 000 991 01 33 Rivet Seat Cushion (18×)
120 120 A1999101370A 199 910 13 70 Frame Segment Lateral Left Rahmenteil Xl Re
120 120 A1999101470A 199 910 14 70 Frame Segment Lateral Right
070 Right Seat
10 10 A1999100053A 199 910 00 53 Seat Shell Right
20 20 A1999100006A 199 910 00 06 Seat Cushion Right
30 30 A1998201410A 199 820 14 10 Switch Seat Occupation Recognition
40 40 A1999100108A 199 910 01 08 Intermediate Layer Bottom
50 50 A1999100208A 199 910 02 08 Intermediate Layer Central
60 60 A1999100008A 199 910 00 08 Upholstery Top
60 60 A1999100808A 199 910 08 08 Intermediate Padding Top
70 70 A1999700050A 199 970 00 50 Head Restraint Right Seat
80 80 A1999100034A 199 910 00 34 Seat Backrest Frame Right Seat
90 90 A1999140017A 199 914 00 17 Insert Backrest Frame To Seat Framework
100 100 A0009915340A 000 991 53 40 Expansion Rivet Backrest Frame To Seat Framework (2×)
110 110 A0009910133A 000 991 01 33 Rivet Seat Cushion (18×)
120 120 A1999101370A 199 910 13 70 Frame Segment Lateral Left Rahmenteil Xl Re
120 120 A1999101470A 199 910 14 70 Frame Segment Lateral Right
200 200 A1998209604A 199 820 96 04 Electrical Line Weight, Sensotronic
250 250 A1998201426A 199 820 14 26 Control Unit Weight, Sensotronic Passenger
105 Seat Adjuster,safety Belt,child's Seat Mounting
10 10 A1999100036A 199 910 00 36 Seat Adjuster Left And Right
10 10 A1999100036A 199 910 00 36 Seat Adjuster Left And Right
20 20 A1708202042A 170 820 20 42 Electric Motor Left Seat Adjustment
20 20 A1708202042A 170 820 20 42 Electric Motor Seat Adjustment, Right
30 30 A0009906433A 000 990 64 33 Screw (2×)
40 40 N913023005002N 913023 005002 Nut M5 (2×)
50 50 A0149909901A 014 990 99 01 Combi-hexagon Head Bolt Seat Framework (8×)
60 60 A1999110114A 199 911 01 14 Bracket Central (2×)
70 70 A1997952496A 199 795 24 96 Pad (8×)
80 80 A1999110014A 199 911 00 14 Bracket Front And Rear (8×)
90 90 A0009914415A 000 991 44 15 Pin Left Seat Adjustment (4×)
90 90 A0009914415A 000 991 44 15 Pin Seat Adjustment, Right (4×)
100 100 A0019849829A 001 984 98 29 Screw Fastening Seatbelt Buckle Left 7/16" X 22 Mm
100 100 A0019849829A 001 984 98 29 Screw Fastening Seatbelt Buckle Right 7/16" X 22 Mm
110 110 N913023006001N 913023 006001 Nut Left Seat Adjustment M6
110 110 N913023006001N 913023 006001 Nut Seat Adjustment, Right M6
120 120 N910143006001N 910143 006001 Hexalobular Bolt Left Seat Adjustment M6x16 (8×)
120 120 N910143006001N 910143 006001 Hexalobular Bolt Seat Adjustment, Right M6x16 (8×)
130 130 A0009914315A 000 991 43 15 Pin Left Seat Adjustment
130 130 A0009914315A 000 991 43 15 Pin Seat Adjustment, Right
140 140 A0009904802A 000 990 48 02 Bolt Left Seat Adjustment M6x16 (2×)
140 140 A0009904802A 000 990 48 02 Bolt Seat Adjustment, Right M6x16 (2×)
150 150 A1999190022A 199 919 00 22 Support Ring Left Seat Adjustment (4×)
150 150 A1999190022A 199 919 00 22 Support Ring Seat Adjustment, Right (4×)
160 160 A0029928601A 002 992 86 01 Spacer Sleeve Left Seat Adjustment 8.2idx12odx4 (2×)
160 160 A0029928601A 002 992 86 01 Spacer Sleeve Seat Adjustment, Right 8.2idx12odx4 (2×)
160 160 A0029928501A 002 992 85 01 Spacer Sleeve Left Seat Adjustment 8.2idx12odx16
160 160 A0029928501A 002 992 85 01 Spacer Sleeve Seat Adjustment, Right 8.2idx12odx16
170 170 A0009915340A 000 991 53 40 Expansion Rivet (28×)
170 170 A0009915340A 000 991 53 40 Expansion Rivet Seat Adjustment, Right (34×)
180 180 A1999110614A 199 911 06 14 Bracket Left Seat Adjustment
180 180 A1999111114A 199 911 11 14 Bracket Left Seat Adjustment
180 180 A1999110614A 199 911 06 14 Bracket Seat Adjustment, Right
180 180 A1999111114A 199 911 11 14 Bracket Seat Adjustment, Right
190 190 A1999110514A 199 911 05 14 Bracket Electric Motor,left
190 190 A1999111014A 199 911 10 14 Bracket Electric Motor,left
190 190 A1999110514A 199 911 05 14 Bracket Electric Motor,right
190 190 A1999111014A 199 911 10 14 Bracket Electric Motor,right
200 200 A1998220214A 199 822 02 14 Bracket Sensor Right
220 220 A1997600361A 199 760 03 61 Interior Handle Assembly Left
220 220 A1997600461A 199 760 04 61 Interior Handle Assembly Right
230 230 A1998600185A 199 860 01 85 Seat Belt Left
230 230 A1998600285A 199 860 02 85 Seat Belt Right
240 240 A1998600169A 199 860 01 69 Latch Left
240 240 A1998600269A 199 860 02 69 Latch Right
250 250 A1999910025A 199 991 00 25 Washer Left And Right (2×)
260 260 N910105005000N 910105 005000 Hexagon Head Bolt Left And Right M5x12 (8×)
260 260 A0009903306A 000 990 33 06 Pan Head Fit Bolt Left And Right
310 310 A1998690497A 199 869 04 97 Intermediate Layer Seat Belt Buckle Spacer-buckle Seatbelt-extreme* (2×)
700 700 A2205459628A 220 545 96 28 Plug Seat Adjuster Plug-connection 4-pin Jpt, Mt3;x54
700 700 A2205458528A 220 545 85 28 Plug Front Right Belt Tens. R12/2
705 705 A0005406105A 000 540 61 05 Electrical Wiring Harness 0.5 Mm2 Elo
705 705 A0045455326A 004 545 53 26 Contact Spring 1.5-2.5 Mm2 Jpt
710 710 A2205455528A 220 545 55 28 Receptacle Housing Seat Adjuster Plug-connection 2-pin Slk2.8;x54, 3878 114
710 710 A0375451128A 037 545 11 28 Plug Seat Adjuster Plug-connection 2-pin Slk2.8;x54, 3897 114
710 710 A0375455528A 037 545 55 28 Plug Contact Strip, Seat, Left And Right 8-pin Slk2.8;x55/3 X55/4 (2×)
715 715 A0135451626A 013 545 16 26 Contact Socket 1.5-2.5 Mm2 Slk2.8
720 720 A0385455528A 038 545 55 28 Clutch Contact Strip, Seat, Left And Right 2 Pin Mqs;x55/3 X55/4 (2×)
725 725 A0165454126A 016 545 41 26 Contact Socket 0.25-0.5 Mm2 Mqs
730 730 A0305450228A 030 545 02 28 Receptacle Housing Multi-point Plug Front Pass. Side 3-pin, Cod. D Mqs;x55/4
735 735 A0135454426A 013 545 44 26 Contact Socket 0.5-0.75 Mm2 Mqs
740 740 A0305450228A 030 545 02 28 Receptacle Housing Multi-point Plug Front Pass. Side 3-pin, Cod. D Mqs;x55/4
745 745 A0135454426A 013 545 44 26 Contact Socket 0.5-0.75 Mm2 Mqs
92 Rear Seat Bench
160 Roll Bar, Draft Stop
98 Accessories
018 Tarpaulin
10 10 A1998990086A 199 899 00 86 Tarp
10 10 A1998990186A 199 899 01 86 Tarp
10 10 A1998990286A 199 899 02 86 Tarp Indoor Car Cover Coupe Und Sportspack
