WDB1240081F251061 - Mercedes-Benz EPC Parts Catalog

01 Engine Housing

005 Design Group Orientation Table

-- Q000000000001Q 000000000001 Important Information (99×)

010 Engine

5 5 A1040103402A 104 010 34 02 Engine Less Air Pump

5 5 A1040107744A 104 010 77 44 Engine Less Air Pump

5 5 A1040103647A 104 010 36 47 Engine Less Air Pump

5 5 A1040103502A 104 010 35 02 Engine Less Air Pump; With Tempomat

5 5 A1040107844A 104 010 78 44 Engine Less Air Pump; With Tempomat

5 5 A1040103747A 104 010 37 47 Engine Less Air Pump; With Tempomat

5 5 A1040103602A 104 010 36 02 Engine Less Air Pump; With Asr

5 5 A1040107944A 104 010 79 44 Engine Less Air Pump; With Asr

5 5 A1040103847A 104 010 38 47 Engine Less Air Pump; With Asr

5 5 A1040103702A 104 010 37 02 Engine With Air Pump

5 5 A1040108044A 104 010 80 44 Engine Less Air Pump

5 5 A1040103947A 104 010 39 47 Engine Less Air Pump

5 5 A1040103802A 104 010 38 02 Engine W/air Pump & Tempomat (cruise Control)

5 5 A1040108144A 104 010 81 44 Engine Less Air Pump; With Tempomat

5 5 A1040104047A 104 010 40 47 Engine Less Air Pump; With Tempomat

5 5 A1040103902A 104 010 39 02 Engine With Air Pump And A S R

5 5 A1040108244A 104 010 82 44 Engine Less Air Pump; With Asr

5 5 A1040104147A 104 010 41 47 Engine Less Air Pump; With Asr

012 Basic Engine

3 3 A1040103046A 104 010 30 46 Long Block

3 3 A1040102747A 104 010 27 47 Long Block

3 3 A1040103146A 104 010 31 46 Long Block

3 3 A1040102847A 104 010 28 47 Long Block

5 5 A1040100550A 104 010 05 50 Short-block

5 5 A1040101450A 104 010 14 50 Short-block

5 5 A1040100450A 104 010 04 50 Short-block

5 5 A1040101350A 104 010 13 50 Short-block

015 Cylinder Crankcase,cover,gasket Kit

5 5 A1040102508A 104 010 25 08 Crankcase

5 5 A1040102808A 104 010 28 08 Crankcase

8 8 A1020110411A 102 011 04 11 Crankshaft Bearing Cap Nr.1-4,6,7 (6×)

8 8 A1020110613A 102 011 06 13 Crankshaft Bearing Cap Lapped Bearing Nr.5

11 11 A6010110371A 601 011 03 71 Screw Crankshaft Bearing Cap (2×)

14 14 A6030110571A 603 011 05 71 Screw

14 14 A6110110171A 611 011 01 71 Screw Crankshaft Bearing Cap (12×)

14 14 A6030110571A 603 011 05 71 Screw Crankshaft Bearing Cap (12×)

17 17 N000443034002N 000443 034002 Cap To Plug Lateral Core Holes (7×)

17 17 N000000004057N 000000 004057 Cap To Plug Lateral Core Holes (7×)

20 20 A1179970230A 117 997 02 30 Screw Plug To Plug Core Hole,rear Right

23 23 A0069977548A 006 997 75 48 Sealing Ring To Plug Core Hole,rear Right

26 26 N005401515001N 005401 515001 Ball To Plug Oil Passage,rear

26 26 N005401306000N 005401 306000 Ball To Plug Oil Passage,front Left

29 29 N000443017000N 000443 017000 Cap Oil Passage,front (2×)

38 38 A6019970430A 601 997 04 30 Drain Screw Cylinder Crankcase Water Drain

41 41 N007604018109N 007604 018109 Screw Plug Cylinder Crankcase Water Drain; Repair Of Leaking Screw Plug: 601 997 03 30/04 30

44 44 N007603018100N 007603 018100 Sealing Ring Cylinder Crankcase Water Drain To 007604 018101

47 47 A6019920325A 601 992 03 25 Clamping Sleeve Timing Case Cover To Cylinder Crankcase (2×)

47 47 A6019920325A 601 992 03 25 Clamping Sleeve Cylinder Head To Cylinder Crankcase (2×)

50 50 A6019920125A 601 992 01 25 Clamping Sleeve Rear Crankshaft Sealing Cover To Cylinder Crankcase (2×)

53 53 A1041800132A 104 180 01 32 Check Valve

53 53 A1041800432A 104 180 04 32 Valve Cylinder Crankcase,front

56 56 A0179972248A 017 997 22 48 Sealing Ring Check Valve

59 59 A1041800143A 104 180 01 43 Oil Jet Piston Cooling (6×)

62 62 N914005006029N 914005 006029 Screw-and-washer Assembly Oil Spray Nozzle To Cylinder Crankcase (6×)

63 63 A1041870036A 104 187 00 36 Oil Jet Chain Lubrication

64 64 N007604022102N 007604 022102 Screw Plug To Lock Cooling Water Connection

66 66 N007603022100N 007603 022100 Sealing Ring

67 67 A1049970372A 104 997 03 72 Fitting Connection To Water-cooled Oil Cooler

67 67 A1049970372A 104 997 03 72 Fitting

67 67 A1039970072A 103 997 00 72 Fitting Connection To Water-cooled Oil Cooler

68 68 A1040140377A 104 014 03 77 Pipeline Cylinder Crankcase Breathing Unten Vorne Links

71 71 A6010110108A 601 011 01 08 Cap

71 71 A6040100014A 604 010 00 14 Cover

71 71 A6010110108A 601 011 01 08 Cap Crankshaft Sealing,rear

74 74 A0179977447A 017 997 74 47 Sealing Ring Crankshaft Sealing,rear

74 74 A0119970647A 011 997 06 47 Sealing Ring Crankshaft Sealing,rear;repair Size

74 74 A0109979047A 010 997 90 47 Seal Ring Crankshaft Sealing,rear;repair Size

77 77 N000933006121N 000933 006121 Screw

77 77 N304017006020N 304017 006020 Hexagon Head Bolt Rear Crankshaft Sealing Cover To Cylinder Crankcase (6×)

80 80 N000137006204N 000137 006204 Spring Washer Rear Crankshaft Sealing Cover To Cylinder Crankcase (6×)

83 83 A1040101408A 104 010 14 08 Seal Set Cylinder Crankcase

030 Timing Case

5 5 A1040150502A 104 015 05 02 Timing Case

5 5 A1040150702A 104 015 07 02 Timing Case Timing Case Cover

8 8 A1209970346A 120 997 03 46 Sealing Ring Crankshaft,front

8 8 A0109978947A 010 997 89 47 Shaft Seal Crankshaft,front;repair Size

8 8 A0109973447A 010 997 34 47 Seal Ring Crankshaft,front;repair Size

8 8 A0139976847A 013 997 68 47 Seal Ring Crankshaft,front;repair Size

11 11 N000007006233N 000007 006233 Cylinder Pin T.d.c. Sender Unit

20 20 N914007008017N 914007 008017 Screw-and-washer Assembly Timing Case Cover To Cylinder Crankcase

29 29 N006325008104N 006325 008104 Cylindrical Pin

29 29 A1209970510A 120 997 05 10 Cylinder Pin Sliding Rail To Cylinder Crankcase

045 Oil Pan & Oil Level Display

5 5 A1040140502A 104 014 05 02 Oil Pan

5 5 A1040141202A 104 014 12 02 Oil Pan

5 5 A1040141302A 104 014 13 02 Oil Pan

5 5 A1040141402A 104 014 14 02 Oil Sump

8 8 A6019970230A 601 997 02 30 Screw Plug

8 8 A1119970330A 111 997 03 30 Screw Plug, Filling Oil Drain

11 11 N007603014106N 007603 014106 Sealing Ring

14 14 A1020140033A 102 014 00 33 Closing Cover To Lock Assembly Hole

17 17 A6030140822A 603 014 08 22 Gasket

17 17 A6060140022A 606 014 00 22 Sealing Shim Oil Pan To Cylinder Crankcase

20 20 N910143006002N 910143 006002 Hexalobular Bolt Oil Pan To Cylinder Crankcase M6x20 (22×)

23 23 N914005006005N 914005 006005 Screw-and-washer Assembly

23 23 N914005006044N 914005 006044 Screw-and-washer Assembly

23 23 N304017006020N 304017 006020 Hexagon Head Bolt Oil Pan To Cylinder Crankcase Front Cover M6x20 (6×)

26 26 N910143006005N 910143 006005 Hexalobular Bolt Oil Pan To Cylinder Crankcase M6x35 (3×)

26 26 N914010006012N 914010 006012 Screw-and-washer Assembly

26 26 A0019908622A 001 990 86 22 Screw Oil Pan To Cylinder Crankcase M6x85

26 26 N914010006012N 914010 006012 Screw-and-washer Assembly

26 26 A0019908622A 001 990 86 22 Screw Oil Pan,rear M6x85 (2×)

29 29 N914005008029N 914005 008029 Screw-and-washer Assembly

29 29 N910143008005N 910143 008005 Hexalobular Bolt Oil Pan To Cylinder Crankcase M8x40 (4×)

32 32 N000137006204N 000137 006204 Spring Washer Oil Pan To Cylinder Crankcase (22×)

35 35 N000137008204N 000137 008204 Spring Washer

35 35 N000137008212N 000137 008212 Spring Washer Oil Pan To Cylinder Crankcase (4×)

50 50 A1111590740A 111 159 07 40 Bracket Oil Pan To Cylinder Crankcase

53 53 A1040100966A 104 010 09 66 Guide Tube Oil Dipstick

59 59 A0179971648A 017 997 16 48 O-ring Guide Tube To Cylinder Crankcase

62 62 N910143006000N 910143 006000 Hexalobular Bolt

86 86 A1040100772A 104 010 07 72 Oil Dipstick Red

89 89 A0069972645A 006 997 26 45 Sealing Ring

92 92 A1245420017A 124 542 00 17 Sender Unit Oil Level Contactor

94 94 A0179975848A 017 997 58 48 Sealing Ring

95 95 A0159973948A 015 997 39 48 Sealing Ring Oil Level Contactor To Oil Pan

98 98 A6069900104A 606 990 01 04 Screw Oil Level Contactor To Oil Pan (2×)

~~101~~ 101 A1021592640A 102 159 26 40 Bracket Wooden Cover At Top Next To Differential Lock Switches,lower Right (2×)

~~107~~ 107 A0009955444A 000 995 54 44 Clamp

~~107~~ 107 A0009956044A 000 995 60 44 Clamp Wooden Cover At Top Next To Differential Lock Switches,lower Right (2×)

065 Cylinder Head & Gasket Kit

5 5 A1040103020A 104 010 30 20 Cylinder Head

8 8 A1040530331A 104 053 03 31 Valve Seat Ring Intake;standard 36.10 Mm (12×)

8 8 A1040530531A 104 053 05 31 Valve Seat Ring Intake;standard 36.10 Mm (12×)

8 8 A1040530231A 104 053 02 31 Valve Seat Ring Intake,repair Size 37.30 Mm (12×)

8 8 A1040530631A 104 053 06 31 Valve Seat Ring Intake,repair Size 37.30 Mm (12×)

8 8 A1040530232A 104 053 02 32 Valve Seat Ring Exhaust,standard 32.10 Mm (12×)

8 8 A1040530132A 104 053 01 32 Valve Seat Ring Exhaust,repair Size 33.30 Mm (12×)

11 11 A0000500224A 000 050 02 24 Valve Guide

11 11 A1110501224A 111 050 12 24 Valve Guide

11 11 A1110531029A 111 053 10 29 Valve Guide Intake And Exhaust; Standard I 12,5 Mm Aussen, 7 Mm Innen (24×)

11 11 A0000500324A 000 050 03 24 Valve Guide

11 11 A1110501324A 111 050 13 24 Valve Guide

11 11 A1110531129A 111 053 11 29 Valve Guide Intake And Exhaust; Repair Size I 12,7 Mm Aussen, 7 Mm Innen (24×)

-- A0000500424A 000 050 04 24 Valve Guide

-- A1110501424A 111 050 14 24 Valve Guide Intake And Exhaust; Repair Size Ii 12.90 Mm Aussen, 7 Mm Innen (24×)

-- A1119940735A 111 994 07 35 Snap Ring (24×)

26 26 A1040513503A 104 051 35 03 Camshaft Bearing Cap

26 26 A1040514803A 104 051 48 03 Camshaft Bearing Cap Standard; Front Right

26 26 A1040513603A 104 051 36 03 Camshaft Bearing Cap

26 26 A1040514903A 104 051 49 03 Camshaft Bearing Cap Repair Size I; Front Right

26 26 A1040513703A 104 051 37 03 Camshaft Bearing Cap

26 26 A1040515003A 104 051 50 03 Camshaft Bearing Cap Standard; Front Left

26 26 A1040513803A 104 051 38 03 Camshaft Bearing Cap

26 26 A1040515103A 104 051 51 03 Camshaft Bearing Cap Repair Size I; Front Left

26 26 A1040512303A 104 051 23 03 Camshaft Bearing Cap

26 26 A1040514603A 104 051 46 03 Camshaft Bearing Cap Standard; Central Nr 4 (2×)

26 26 A1040512403A 104 051 24 03 Camshaft Bearing Cap

26 26 A1040514703A 104 051 47 03 Camshaft Bearing Cap Repair Size I; Central Nr 4 (2×)

26 26 A1040514403A 104 051 44 03 Cover Standard Nr 2,3,5-7 (10×)

-- A1040514503A 104 051 45 03 Cover Repair Size I Nr 2,3,5-7 (10×)

29 29 A1029910341A 102 991 03 41 Pilot Bushing Camshaft Bearing To Cylinder Head (28×)

32 32 N914021008010N 914021 008010 Screw-and-washer Assembly

32 32 A1209900221A 120 990 02 21 Screw Camshaft Bearing To Cylinder Head (28×)

35 35 A4039970620A 403 997 06 20 Closing Cover Core Holes (12×)

35 35 N000443012001N 000443 012001 Cap Rear Oil Bore

35 35 N000443012001N 000443 012001 Cap To Plug Air-injection Bore

38 38 N000007008241N 000007 008241 Cylindrical Pin Front Cover To Cylinder Head (2×)

41 41 A1209920025A 120 992 00 25 Sleeve

41 41 A6019920425A 601 992 04 25 Clamping Sleeve Intake Manifold To Cylinder Head (2×)

44 44 A1049900105A 104 990 01 05 Stud

44 44 A1119900405A 111 990 04 05 Stud Bolt Exhaust Manifold To Cylinder Head (23×)

47 47 N000908010003N 000908 010003 Screw Plug Oil Passage,front (2×)

50 50 N007603010103N 007603 010103 Sealing Ring

50 50 N007603010110N 007603 010110 Sealing Ring To Plug Oil Passage, Front (2×)

53 53 N005401306000N 005401 306000 Ball To Lock Cooling Water Bores (6×)

53 53 N005401308000N 005401 308000 Ball To Plug The Oil Passages (6×)

55 55 A1040160025A 104 016 00 25 Nozzle Cylinder Head,rear

59 59 A1040160033A 104 016 00 33 Closing Cover To Plug Air-injection Bore

71 71 A1040161720A 104 016 17 20 Cylinder Head Gasket

71 71 A1040162420A 104 016 24 20 Cylinder Head Gasket

71 71 A1040162520A 104 016 25 20 Cylinder Head Gasket

71 71 A1040162220A 104 016 22 20 Cylinder Head Gasket

71 71 A1040162320A 104 016 23 20 Cylinder Head Gasket

71 71 A1040162820A 104 016 28 20 Cylinder Head Gasket Fa.elring

74 74 A1049900012A 104 990 00 12 Screw Cylinder Head To Cylinder Crankcase (14×)

77 77 A1020160376A 102 016 03 76 Disk Cylinder Head To Cylinder Crankcase (14×)

~~104~~ 104 A1040103220A 104 010 32 20 Gasket Kit

~~104~~ 104 A1040103720A 104 010 37 20 Seal Set Cylinder Head

075 Cylinder Head Cover

5 5 A1040161206A 104 016 12 06 Cover

5 5 A1040162406A 104 016 24 06 Cap Cylinder Head,front

17 17 A1040150120A 104 015 01 20 Gasket

17 17 A1040150220A 104 015 02 20 Sealing Shim Cover To Timing Case

20 20 A0179972148A 017 997 21 48 Sealing Ring Front Cover To Cylinder Head

23 23 A1040160238A 104 016 02 38 Bracket Front Cover To Cylinder Head

26 26 N910143008010N 910143 008010 Hexalobular Bolt Cover And Suspension Eye To Cylinder Head (3×)

26 26 N910143008019N 910143 008019 Hexalobular Bolt Cover And Suspension Eye To Cylinder Head (3×)

29 29 N000137008204N 000137 008204 Spring Washer

29 29 N000137008212N 000137 008212 Spring Washer Cover And Suspension Eye To Cylinder Head (6×)

38 38 N006325008103N 006325 008103 Cylindrical Pin Roller Chain Bearing (2×)

44 44 N000908010004N 000908 010004 Screw Plug

44 44 N000000000648N 000000 000648 Screw Plug Roller Chain Bearing

47 47 N007603010101N 007603 010101 Sealing Ring

47 47 N007603010100N 007603 010100 Sealing Ring Roller Chain Bearing

53 53 A1040101830A 104 010 18 30 Cylinder Head Cover

65 65 A1040160980A 104 016 09 80 Sealing Shim (2×)

66 66 N000551004017N 000551 004017 Grub Screw Ignition Coil On Cylinder Head Cover (3×)

68 68 A1020180302A 102 018 03 02 Cap

68 68 A1020180402A 102 018 04 02 Cap

68 68 A1020180802A 102 018 08 02 Cap

68 68 A1110180302A 111 018 03 02 Filler Cap Filler Cap

71 71 A1020180380A 102 018 03 80 Sealing Shim 38.5x59 Mm; To 102 018 08 02

71 71 A1110180080A 111 018 00 80 Sealing Shim 47.5x59 Mm; To 111 018 03 02

77 77 A1040102130A 104 010 21 30 Seal Set Cylinder Head Cover To Cylinder Head

80 80 A1049920920A 104 992 09 20 Sleeve

80 80 A1049921820A 104 992 18 20 Sleeve Cylinder Head Cover To Cylinder Head (8×)

80 80 A1049921120A 104 992 11 20 Sleeve

80 80 A1049921020A 104 992 10 20 Sleeve

80 80 A1049921920A 104 992 19 20 Sleeve Cylinder Head Cover To Cylinder Head (4×)

80 80 A1049921220A 104 992 12 20 Sleeve

83 83 A1040160364A 104 016 03 64 Thrust Pad Cylinder Head Cover To Cylinder Head (12×)

86 86 N000931006225N 000931 006225 Screw Cylinder Head Cover To Cylinder Head (4×)

86 86 N000931006226N 000931 006226 Screw

86 86 N304014006004N 304014 006004 Hexagon Head Bolt Cylinder Head Cover To Cylinder Head (8×)

03 Moving Parts

015 Crankshaft And Flywheel

5 5 A1040300601A 104 030 06 01 Crankshaft

5 5 A1040300701A 104 030 07 01 Crankshaft

5 5 A1040301001A 104 030 10 01 Crankshaft

8 8 A6019970410A 601 997 04 10 Cylinder Pin

11 11 A1089910067A 108 991 00 67 Woodruff Key Crankshaft Gear And Hub On Crankshaft

14 14 A1040520903A 104 052 09 03 Crankshaft Gear

17 17 A1040300008A 104 030 00 08 Hub

20 20 N000007008202N 000007 008202 Cylinder Pin

23 23 A1279930026A 127 993 00 26 Disc Spring

23 23 A6049900040A 604 990 00 40 Disk Vibration Absorber And Hub To Crankshaft

26 26 A0069903701A 006 990 37 01 Screw Vibration Absorber And Hub To Crankshaft

29 29 A1040320004A 104 032 00 04 Belt Pulley

-- A1040301303A 104 030 13 03 Vibration Absorber

32 32 A1040301403A 104 030 14 03 Damper Vibration Absorber

35 35 A1040301703A 104 030 17 03 Damper Vibration Absorber

35 35 A1040301603A 104 030 16 03 Vibration Absorber Vibration Absorber

38 38 N914011008033N 914011 008033 Screw-and-washer Assembly

38 38 N000931008311N 000931 008311 Screw

38 38 N304017008030N 304017 008030 Hexagon Head Bolt Vibration Absorber And Pulley To Hub (6×)

47 47 A1030320176A 103 032 01 76 Washer

47 47 A1110320176A 111 032 01 76 Disk

50 50 A1040300112A 104 030 01 12 Ring Gear

53 53 A1020320071A 102 032 00 71 Screw

53 53 A1119900312A 111 990 03 12 Screw

53 53 A0019909112A 001 990 91 12 Screw Follower Disc,washer And Flywheel To Crankshaft (8×)

65 65 A6030301040A 603 030 10 40 Crankshaft Bearing

65 65 A6010300540A 601 030 05 40 Crankshaft Bearing Parts Kit,standard 58.00 Mm (7×)

65 65 A6030301140A 603 030 11 40 Crankshaft Bearing

65 65 A6010300640A 601 030 06 40 Crankshaft Bearing Parts Kit,repair Size I 57.75 Mm (7×)

65 65 A6030301240A 603 030 12 40 Crankshaft Bearing

65 65 A6010300740A 601 030 07 40 Crankshaft Bearing Parts Kit,repair Size Ii 57.50 Mm (7×)

65 65 A6030301340A 603 030 13 40 Crankshaft Bearing

65 65 A6010300840A 601 030 08 40 Crankshaft Bearing Parts Kit,repair Size Iii 57.25 Mm (7×)

65 65 A6030301440A 603 030 14 40 Crankshaft Bearing

65 65 A6010300940A 601 030 09 40 Crankshaft Bearing Parts Kit,repair Size Iv 57.00 Mm (7×)

66 66 A6010332202A 601 033 22 02 Crankshaft Bearing Lower;standard (7×)

68 68 A6010300062A 601 030 00 62 Guard Plate Parts Kit 2.15 Mm (2×)

68 68 A6010300162A 601 030 01 62 Guard Plate Parts Kit 2.20 Mm (2×)

68 68 A6010300262A 601 030 02 62 Guard Plate Parts Kit 2.25 Mm (2×)

68 68 A6010300362A 601 030 03 62 Guard Plate Parts Kit 2.35 Mm (2×)

68 68 A6010300462A 601 030 04 62 Guard Plate Parts Kit 2.40 Mm (2×)

030 Connecting Rod And Pistons

5 5 A1040300420A 104 030 04 20 Connecting Rod

5 5 A1040300120A 104 030 01 20 Connecting Rod

5 5 A1040300620A 104 030 06 20 Connecting Rod (6×)

8 8 A1020381050A 102 038 10 50 Piston Pin Bushing

8 8 A1110380150A 111 038 01 50 Connecting Rod Bush (6×)

8 8 A1020381150A 102 038 11 50 Piston Pin Bushing

10 10 A1029910341A 102 991 03 41 Pilot Bushing (12×)

11 11 A1020380271A 102 038 02 71 Screw

11 11 A1110380071A 111 038 00 71 Screw (12×)

18 18 A1020384210A 102 038 42 10 Connecting Rod Bearing

18 18 A1110380910A 111 038 09 10 Connecting Rod Brg. Shell Standard 48,00 Mm (12×)

18 18 A1020384510A 102 038 45 10 Connecting Rod Bearing

18 18 A1110381010A 111 038 10 10 Connecting Rod Bearing Repair Size I 47,75 Mm (12×)

18 18 A1020384610A 102 038 46 10 Connecting Rod Bearing

18 18 A1110381110A 111 038 11 10 Connecting Rod Bearing Repair Size Ii 47,50 Mm (12×)

18 18 A1020384710A 102 038 47 10 Connecting Rod Bearing

18 18 A1110381210A 111 038 12 10 Connecting Rod Bearing Repair Size Iii 47,25 Mm (12×)

18 18 A1020384810A 102 038 48 10 Connecting Rod Bearing

18 18 A1110381310A 111 038 13 10 Connecting Rod Bearing Repair Size Iv 47,00 Mm (12×)

26 26 A1040303917A 104 030 39 17 Piston Standard 89.90 Mm (6×)

26 26 A1040308617A 104 030 86 17 Piston Standard 89.90 Mm (6×)

26 26 A1040309417A 104 030 94 17 Piston

26 26 A1040301618A 104 030 16 18 Piston Standard 89.90 Mm (6×)

26 26 A1040304417A 104 030 44 17 Piston Standard 89.90 Mm (6×)

26 26 A1040307417A 104 030 74 17 Piston

26 26 A1040300418A 104 030 04 18 Piston Standard 89.90 Mm (6×)

26 26 A1040307817A 104 030 78 17 Piston

26 26 A1040300818A 104 030 08 18 Piston Standard 89.90 Mm (6×)

26 26 A1040304017A 104 030 40 17 Piston Repair Size 1 Repair Size I 90.15 Mm (6×)

26 26 A1040308717A 104 030 87 17 Piston Repair Size 1 Repair Size I 90.15 Mm (6×)

26 26 A1040309617A 104 030 96 17 Piston

26 26 A1040301718A 104 030 17 18 Piston Repair Size I 90.15 Mm (6×)

26 26 A1040304517A 104 030 45 17 Piston Repair Size I 90.15 Mm (6×)

26 26 A1040307517A 104 030 75 17 Piston Repair Size 1

26 26 A1040300518A 104 030 05 18 Piston Repair Size I 90.15 Mm (6×)

26 26 A1040307917A 104 030 79 17 Piston

26 26 A1040300918A 104 030 09 18 Piston Repair Size I 90.15 Mm (6×)

26 26 A1040304117A 104 030 41 17 Piston Repair Size Ii 90.40 Mm (6×)

26 26 A1040308817A 104 030 88 17 Piston Repair Size Ii 90.40 Mm (6×)

26 26 A1040309517A 104 030 95 17 Piston

26 26 A1040301818A 104 030 18 18 Piston Repair Size Ii 90.40 Mm (6×)

26 26 A1040304617A 104 030 46 17 Piston Repair Size Ii 90.40 Mm (6×)

26 26 A1040307617A 104 030 76 17 Piston

26 26 A1040300618A 104 030 06 18 Piston Repair Size Ii 90.40 Mm (6×)

26 26 A1040308017A 104 030 80 17 Piston

26 26 A1040301018A 104 030 10 18 Piston Repair Size Ii 90.40 Mm (6×)

29 29 A0030300524A 003 030 05 24 Piston Ring

29 29 A0030302824A 003 030 28 24 Piston Ring

29 29 A0020309324A 002 030 93 24 Ts Piston Ring Parts Kit,standard (6×)

29 29 A0030300824A 003 030 08 24 Piston Ring

29 29 A0030302524A 003 030 25 24 Piston Ring

29 29 A0030303124A 003 030 31 24 Piston Ring Parts Kit,standard (6×)

29 29 A0030300624A 003 030 06 24 Piston Ring

29 29 A0030302924A 003 030 29 24 Piston Ring

29 29 A0020309424A 002 030 94 24 Ts Piston Ring Parts Kit,repair Size I (6×)

29 29 A0030300924A 003 030 09 24 Piston Ring

29 29 A0030302624A 003 030 26 24 Piston Ring

29 29 A0030303224A 003 030 32 24 Piston Ring Parts Kit,repair Size I (6×)

29 29 A0030306624A 003 030 66 24 Piston Ring Parts Kit,repair Size I (6×)

29 29 A0030306924A 003 030 69 24 Piston Ring Parts Kit,repair Size I (6×)

29 29 A0030300724A 003 030 07 24 Piston Ring

29 29 A0030303024A 003 030 30 24 Piston Ring

29 29 A0020309524A 002 030 95 24 Ts Piston Ring Parts Kit,repair Size Ii (6×)

29 29 A0030301024A 003 030 10 24 Piston Ring

29 29 A0030302724A 003 030 27 24 Piston Ring

29 29 A0030303324A 003 030 33 24 Piston Ring Parts Kit,repair Size Ii (6×)

29 29 A0030306724A 003 030 67 24 Piston Ring Parts Kit,repair Size Ii (6×)

29 29 A0030307024A 003 030 70 24 Piston Ring Parts Kit,repair Size Ii (6×)

47 47 A1029940135A 102 994 01 35 Snap Ring (12×)

05 Timing

015 Camshaft And Camshaft Adjuster

5 5 A1040507401A 104 050 74 01 Camshaft Intake;standard

5 5 A1040507501A 104 050 75 01 Camshaft Intake,repair Size I

5 5 A1040508501A 104 050 85 01 Camshaft Exhaust,standard

5 5 A1040508601A 104 050 86 01 Camshaft Exhaust,repair Size I

14 14 A6019970010A 601 997 00 10 Cylinder Pin Intake And Exhaust (2×)

20 20 N000443014001N 000443 014001 Cap Intake And Exhaust (4×)

29 29 A1110520001A 111 052 00 01 Camshaft Gear

29 29 A1200520401A 120 052 04 01 Camshaft Gear Exhaust

35 35 A1209900204A 120 990 02 04 Capscrew W Hexal. Drive Camshaft Gear To Camshaft (3×)

38 38 A1040500947A 104 050 09 47 Adjuster Camshaft Adjuster

44 44 A1049930701A 104 993 07 01 Pressure Spring

47 47 N000472018000N 000472 018000 Retaining Ring

50 50 A1209900204A 120 990 02 04 Capscrew W Hexal. Drive Flanged Shaft To Camshaft (3×)

62 62 A1040510272A 104 051 02 72 Nut Sprocket And Cover To Flanged Shaft

65 65 A1040500175A 104 050 01 75 Armature

65 65 A1040500275A 104 050 02 75 Armature

65 65 A1040510443A 104 051 04 43 Armature

65 65 A1190510043A 119 051 00 43 Armature

65 65 A1110510043A 111 051 00 43 Armature

71 71 A1049920025A 104 992 00 25 Sleeve

71 71 N001481003031N 001481 003031 Roll Pin

74 74 N914008005000N 914008 005000 Screw-and-washer Assembly

74 74 A1049901004A 104 990 10 04 Screw Armature To Control Piston

77 77 A1040500177A 104 050 01 77 Magnet

77 77 A1190510077A 119 051 00 77 Magnet Camshaft Adjuster

80 80 N914141006502N 914141 006502 Cap Bolt

80 80 N914141006505N 914141 006505 Screw Solenoid To Cover (3×)

95 95 A0029977394A 002 997 73 94 Roller Chain

95 95 A0039971794A 003 997 17 94 Roller Chain Double Iwis

95 95 A0029977994A 002 997 79 94 Roller Chain

95 95 A0029979994A 002 997 99 94 Roller Chain Double Renold

98 98 A0009971998A 000 997 19 98 Chain Lock Link

98 98 A0009972298A 000 997 22 98 Chain Link Iwis

98 98 A0009971898A 000 997 18 98 Chain Lock Link

98 98 A0009972198A 000 997 21 98 Chain Lock Link Renold

~~101~~ 101 A1040501316A 104 050 13 16 Sliding Rail

~~104~~ 104 A1040520483A 104 052 04 83 Rubber Lining

~~105~~ 105 A1040501416A 104 050 14 16 Tensioning Rail (clamping Rail)

~~111~~ 111 A1040500816A 104 050 08 16 Sliding Rail

~~111~~ 111 A1040501516A 104 050 15 16 Rubbing Block

~~112~~ 112 A1040520383A 104 052 03 83 Rubber Lining

~~113~~ 113 A1040520816A 104 052 08 16 Sliding Rail

~~113~~ 113 A1040521416A 104 052 14 16 Rubbing Block Cylinder Head

~~116~~ 116 A1040520774A 104 052 07 74 Pin Sliding Rail To Cylinder Head

~~119~~ 119 N000007008103N 000007 008103 Cylinder Pin Clamping Rail To Cylinder Crankcase

~~122~~ 122 A1200500211A 120 050 02 11 Chain Tensioner Range Of Delivery

-- A1200500111A 120 050 01 11 Chain Tightener

~~125~~ 125 A1030520193A 103 052 01 93 Spring

~~128~~ 128 N007603027101N 007603 027101 Sealing Ring Chain Tightener To Timing Case Cover

~~131~~ 131 A1049930601A 104 993 06 01 Pressure Spring End Piece To Chain Tightener

~~134~~ 134 A6019910001A 601 991 00 01 Pin End Piece To Chain Tightener

~~137~~ 137 N007603020100N 007603 020100 Sealing Ring End Piece To Chain Tightener

~~140~~ 140 A1040500166A 104 050 01 66 Final Control Unit Chain Tightener

060 Valves

5 5 A1110530201A 111 053 02 01 Intake Valve

5 5 A1110530101A 111 053 01 01 Intake Valve 7 Mm (12×)

5 5 A1110531101A 111 053 11 01 Intake Valve 7 Mm (12×)

5 5 A1110500527A 111 050 05 27 Exhaust Valve 7 Mm (12×)

5 5 A1110501227A 111 050 12 27 Exhaust Valve 7 Mm (12×)

11 11 A1110530225A 111 053 02 25 Spring Plate Bottom (24×)

11 11 A1110530625A 111 053 06 25 Valve Spring Bottom (24×)

14 14 A1040530320A 104 053 03 20 Valve Spring

14 14 A1040530520A 104 053 05 20 Valve Spring Outside (24×)

17 17 A1040530122A 104 053 01 22 Valve Spring Inside (24×)

17 17 A1110530020A 111 053 00 20 Valve Spring Conical Spiral Spring (24×)

20 20 A1110530025A 111 053 00 25 Spring Plate Top (24×)

20 20 A1190530525A 119 053 05 25 Spring Plate Top (24×)

20 20 A6030530325A 603 053 03 25 Spring Plate Top (24×)

26 26 A1020530226A 102 053 02 26 Valve Lock (48×)

26 26 A1110530026A 111 053 00 26 Valve Lock (48×)

29 29 A1040500258A 104 050 02 58 Seal

29 29 A6120500058A 612 050 00 58 Ts Seal Parts Kit,valve Stem Sealing (6×)

35 35 A1190500325A 119 050 03 25 Valve Tappet

35 35 A1040501025A 104 050 10 25 Cam Follower

35 35 A1040501225A 104 050 12 25 Cam Follower (24×)

35 35 A1190500825A 119 050 08 25 Cam Follower (24×)

07 Injection

015 Ke-jetronic

030 Air-mass Sensor,throttle Valve Actuator; Used With Lh-jetronic

040 Air-mass Sensor,throttle Valve Actuator; Used With Motronic

5 5 A0000940548A 000 094 05 48 Mass Air Flow Sensor

14 14 A1040940191A 104 094 01 91 Boot

20 20 A1041412204A 104 141 22 04 Pipe

20 20 A1041412704A 104 141 27 04 Pipe

20 20 A1041413304A 104 141 33 04 Pipeline Intake Line

32 32 A1041410890A 104 141 08 90 Intake Pipe Housing

32 32 A1041410990A 104 141 09 90 Intake Manifold Housing Air Duct

35 35 A1041411190A 104 141 11 90 Intake Manifold Housing Air Duct

41 41 A1049900077A 104 990 00 77 Screw Intake Line To Cylinder Head Cover (3×)

44 44 N006331006000N 006331 006000 Hexagon Nut Intake Line To Cylinder Head Cover (3×)

50 50 N916026070000N 916026 070000 Clamp

50 50 A0069974490A 006 997 44 90 Binder

50 50 A0069976090A 006 997 60 90 Clamp W Drive A Washer (4×)

65 65 A0001416525A 000 141 65 25 Slide Valve Idle Speed Actuator

65 65 A0001414925A 000 141 49 25 Slide Valve (gas Actuator) Electronic,used With Asr

74 74 A1041410780A 104 141 07 80 Sealing Shim At Intake Manifold

77 77 N914021006013N 914021 006013 Screw-and-washer Assembly At Intake Manifold (4×)

80 80 N914007006007N 914007 006007 Screw-and-washer Assembly

80 80 N910143006001N 910143 006001 Hexalobular Bolt Cable Run Lower Part To Oil Dipstick

075 Inject.nozzles,lines,cold Startg.valve & Pressure Regulator, With Ke-jetronic

090 Injection Valves,fuel Distributor; Used With Lh-jetronic

-- XXXXXXXXXXXXXX XXXXXXXXXXXX Part Name Missing For Insulating Sleeve, See Group: 14

095 Injection Valves,fuel Distributor; Used With Motronic

5 5 A1040701295A 104 070 12 95 Fuel Distributor

5 5 A1040701395A 104 070 13 95 Fuel Distributor

8 8 A0000746086A 000 074 60 86 Screw Fitting Fuel Feed

11 11 N007603012110N 007603 012110 Sealing Ring Fuel Feed

14 14 A0000700195A 000 070 01 95 Screw Fitting Fuel Pressure Test Connection

17 17 N007603012111N 007603 012111 Sealing Ring Fuel Pressure Test Connection

20 20 A0000784349A 000 078 43 49 Valve Fuel Pressure Test Connection

23 23 A0000700195A 000 070 01 95 Screw Fitting Fuel Pressure Test Connection

24 24 N007603012110N 007603 012110 Sealing Ring Fuel Pressure Test Connection

26 26 A0000787323A 000 078 73 23 Injection Valve

26 26 A0000788523A 000 078 85 23 Injection Nozzle Injection Valve (6×)

29 29 A0199971348A 019 997 13 48 O-ring Injection Valve (12×)

32 32 A1190780641A 119 078 06 41 Bracket Injection Valve To Fuel Distributor (6×)

35 35 A0000781489A 000 078 14 89 Pressure Regulator

35 35 A0000781889A 000 078 18 89 Control Unit Diaphragm Type Pressure Regulator

38 38 A0199971148A 019 997 11 48 Sealing Ring Diaphragm Type Pressure Regulator 20 Mm

41 41 A0199971248A 019 997 12 48 Sealing Ring Diaphragm Type Pressure Regulator 5 Mm

44 44 N000472036002N 000472 036002 Retaining Ring

44 44 N000472036000N 000472 036000 Retaining Ring Pressure Regulator To Fuel Distributor

135 Ke-jetronic Control

150 Lh-jetronic Control

160 Motronic Control

5 5 A1040701424A 104 070 14 24 Bearing Bracket Slotted Gate Lever & Control Lever

5 5 A1040701924A 104 070 19 24 Bearing Bracket Slotted Gate Lever & Control Lever

8 8 N000933006183N 000933 006183 Screw

8 8 N910143006001N 910143 006001 Hexalobular Bolt Bearing Bracket To Intake Manifold (3×)

11 11 A1040702221A 104 070 22 21 Lever Control Lever

14 14 A1040720093A 104 072 00 93 Roller

14 14 A1110720093A 111 072 00 93 Roller

17 17 N006799005009N 006799 005009 Circlip Roller To Control Lever

20 20 A1040702421A 104 070 24 21 Lever Slotted Gate Lever

20 20 A1040702721A 104 070 27 21 Lever Slotted Gate Lever

20 20 A1040702521A 104 070 25 21 Lever Slotted Gate Lever

26 26 A1040701122A 104 070 11 22 Lever Reversing Lever

29 29 A1040702321A 104 070 23 21 Lever (drag Link)

32 32 A1040720143A 104 072 01 43 Spring Drag Link

35 35 N006799005009N 006799 005009 Circlip (3×)

38 38 A1199930710A 119 993 07 10 Spring

38 38 A1049930410A 104 993 04 10 Spring Between Slotted Gate Lever And Bearing Bracket

38 38 A1109931710A 110 993 17 10 Spring Between Slotted Gate Lever And Bearing Bracket

38 38 A1039930310A 103 993 03 10 Spring Between Slotted Gate Lever And Bearing Bracket

41 41 A0010706575A 001 070 65 75 Rod From Control Lever To Reversing Lever

44 44 A1039930010A 103 993 00 10 Spring Between Bearing Bracket And Throttle Valve Lever

44 44 A1039930310A 103 993 03 10 Spring Between Bearing Bracket And Throttle Valve Lever

47 47 A1040700175A 104 070 01 75 Rod From Reversing Lever To Throttle Housing

50 50 N000934005008N 000934 005008 Nut (2×)

53 53 A0009918922A 000 991 89 22 Ball Socket (2×)

53 53 A0009930461A 000 993 04 61 Ball Socket (2×)

-- A0009955444A 000 995 54 44 Clamp

-- A0009956044A 000 995 60 44 Clamp

190 Control Used W/acceleration Skid Control

09 Air Cleaner

015 Air Cleaner

83 83 A1040900201A 104 090 02 01 Air Filter Make Knecht

-- Q000000000001Q 000000000001 Important Information For Air Cleaner With Cyclone Prefilter See Sa 12454/43/44 (99×)

98 98 A0030947104A 003 094 71 04 Filter Element Make Knecht

95 95 A1040940204A 104 094 02 04 Filter Insert Make Mann & Hummel

~~110~~ 110 A0000922560A 000 092 25 60 Sealing Ring Air-mass Sensor

~~113~~ 113 A0000921080A 000 092 10 80 Sealing Shim Between Cold Air Scoop & Muffler Filter

~~122~~ 122 A0000944055A 000 094 40 55 Closure (4×)

~~128~~ 128 A0000941025A 000 094 10 25 U-bolt (2×)

~~131~~ 131 A6040940085A 604 094 00 85 Elastomer Bearing At Muffler Filter (2×)

~~137~~ 137 A1110940041A 111 094 00 41 Bracket Muffler Filter To Right Wheel Arch (2×)

~~143~~ 143 N913023006000N 913023 006000 Nut

~~143~~ 143 N913023006001N 913023 006001 Nut (4×)

~~146~~ 146 A1110900041A 111 090 00 41 Bracket Muffler Filter To Right Wheel Arch

~~155~~ 155 N913017006000N 913017 006000 Nut

~~155~~ 155 N910112006001N 910112 006001 Hexagon Nut

~~155~~ 155 N913023006001N 913023 006001 Nut Muffler Filter To Right Wheel Arch

~~173~~ 173 A1245200204A 124 520 02 04 Scoop

~~173~~ 173 A1245200304A 124 520 03 04 Air Scoop Cold Air Intake

~~176~~ 176 A1245280410A 124 528 04 10 Cover

~~176~~ 176 A1245280610A 124 528 06 10 Cap

~~177~~ 177 A1245280073A 124 528 00 73 Securing

~~179~~ 179 N914031004303N 914031 004303 Tapping Screw Scoop To Body (3×)

~~182~~ 182 A1245280980A 124 528 09 80 Gasket

~~185~~ 185 A1245052486A 124 505 24 86 Boot

~~185~~ 185 A2015051786A 201 505 17 86 Boot 290 Mm

~~188~~ 188 A1869970681A 186 997 06 81 Grommet Vacuum Line

~~191~~ 191 A1299971881A 129 997 18 81 Grommet Water Drain

~~200~~ 200 A0105425717A 010 542 57 17 Sender Unit Intake Air Temperature Sensor

~~200~~ 200 A0005422818A 000 542 28 18 Temperature Sensor

~~200~~ 200 A0061532028A 006 153 20 28 Temperature Sensor Intake Air Temperature Sensor

030 Cross-country Vehicle Air Cleaner

060 Idle Air System

13 Power Steerg.pump,refrig.compressor

030 Tandem Pump And Power Steering Pump

8 8 A2104660401A 210 466 04 01 Hydraulic Pump

8 8 A2104660501A 210 466 05 01 Hydraulic Pump

8 8 A2104662001A 210 466 20 01 Hydraulic Pump Used Without Self-levelling Device / Automatic Locking Differential (asd) Zf

8 8 A2104661901A 210 466 19 01 Hydraulic Pump Used Without Self-levelling Device / Automatic Locking Differential (asd) Zf

8 8 A2104660201A 210 466 02 01 Power Steering Pump Used Without Self-levelling Device / Automatic Locking Differential (asd) Luk

14 14 A2104661001A 210 466 10 01 Hydraulic Pump Self-levelling Device And/or Automa. Locking Differential (asd/ets) Luk

14 14 A2104661101A 210 466 11 01 Hydraulic Pump Self-levelling Device And/or Automa. Locking Differential (asd/ets) Zf

14 14 A2104662201A 210 466 22 01 Hydraulic Pump Self-levelling Device And/or Automa. Locking Differential (asd/ets) Zf

23 23 A0004663720A 000 466 37 20 Drive Shaft To 140 466 50 01,210 466 04 01

23 23 A0004663720A 000 466 37 20 Drive Shaft To 460 466 00 01,210 466 02 01

23 23 A0004664620A 000 466 46 20 Drive Shaft To 210 466 05 01,210 466 19 01

23 23 A0004664620A 000 466 46 20 Drive Shaft To 210 466 20 01,460 466 01 01

26 26 A0004663820A 000 466 38 20 Drive Shaft To 140 466 52 01,210 466 10 01

26 26 A0004664720A 000 466 47 20 Drive Shaft To 210 466 11 01,210 466 21 01

26 26 A0004664720A 000 466 47 20 Drive Shaft To 210 466 22 01

32 32 A0219977747A 021 997 77 47 Sealing Ring To 210 466 05 01,210 466 19 01

32 32 A0219977747A 021 997 77 47 Sealing Ring To 210 466 20 01,460 466 01 01

35 35 A0189979747A 018 997 97 47 Seal Ring To 210 466 11 01,210 466 21 01

35 35 A0189979747A 018 997 97 47 Seal Ring To 210 466 22 01

38 38 A0014660005A 001 466 00 05 Cap To 210 466 11 01,210 466 21 01

38 38 A0014660005A 001 466 00 05 Cap To 210 466 22 01

41 41 A0009972034A 000 997 20 34 Screw To 210 466 11 01,210 466 21 01 (8×)

41 41 A0009972034A 000 997 20 34 Screw To 210 466 22 01 (8×)

44 44 A0229971948A 022 997 19 48 Sealing Ring To 210 466 11 01,210 466 21 01

44 44 A0229971948A 022 997 19 48 Sealing Ring To 210 466 22 01

46 46 A0229971848A 022 997 18 48 Sealing Ring To 210 466 11 01,210 466 21 01

46 46 A0229971848A 022 997 18 48 Sealing Ring To 210 466 22 01

47 47 A0199974148A 019 997 41 48 Sealing Ring To 210 466 11 01,210 466 21 01

47 47 A0199974148A 019 997 41 48 Sealing Ring To 210 466 22 01

50 50 A0024663301A 002 466 33 01 Oil Pump To 210 466 11 01,210 466 21 01

50 50 A0024663301A 002 466 33 01 Oil Pump To 210 466 22 01

50 50 A0014669501A 001 466 95 01 Oil Pump To 140 466 52 01,210 466 10 01

53 53 A0004661786A 000 466 17 86 Guide To 210 466 11 01,210 466 21 01

53 53 A0004661786A 000 466 17 86 Guide To 210 466 22 01

56 56 A0029942835A 002 994 28 35 Snap Ring Radial Piston Pump To 210 466 04 01, 210 466 10 01

59 59 A0004663175A 000 466 31 75 Disk To 210 466 11 01,210 466 21 01

59 59 A0004663175A 000 466 31 75 Disk To 210 466 22 01

62 62 A0189979847A 018 997 98 47 Seal Ring To 210 466 11 01,210 466 21 01

62 62 A0189979847A 018 997 98 47 Seal Ring To 210 466 22 01

65 65 A0179972448A 017 997 24 48 Sealing Ring To 210 466 05 01,210 466 11 01

65 65 A0179972448A 017 997 24 48 Sealing Ring To 210 466 19 01,210 466 20 01

65 65 A0179972448A 017 997 24 48 Sealing Ring To 210 466 21 01,210 466 22 01

68 68 A0004664021A 000 466 40 21 Rotor Set

68 68 A0004665621A 000 466 56 21 Rotor Set To 210 466 04 01,210 466 10 01

68 68 A0004665621A 000 466 56 21 Rotor Set To 210 466 02 01

68 68 A0004663121A 000 466 31 21 Rotor Set To 210 466 05 01,210 466 11 01

68 68 A0004665521A 000 466 55 21 Rotor Set To 210 466 19 01,210 466 20 01

68 68 A0004665521A 000 466 55 21 Rotor Set To 210 466 21 01,210 466 22 01

71 71 A0029942635A 002 994 26 35 Snap Ring At Shaft To 210 466 05 01,210 466 11 01

71 71 A0029942635A 002 994 26 35 Snap Ring At Shaft To 210 466 19 01,210 466 20 01

71 71 A0029942635A 002 994 26 35 Snap Ring At Shaft To 210 466 21 01,210 466 22 01

71 71 A0009945540A 000 994 55 40 Snap Ring To 210 466 04 01,210 466 10 01

71 71 A0009945540A 000 994 55 40 Snap Ring To 460 466 00 01,210 466 02 01

74 74 A0004660751A 000 466 07 51 Spacer Ring To 210 466 05 01,210 466 11 01

74 74 A0004660751A 000 466 07 51 Spacer Ring To 210 466 19 01,210 466 20 01

74 74 A0004660751A 000 466 07 51 Spacer Ring To 210 466 21 01,210 466 22 01

77 77 A0004668705A 000 466 87 05 Cap To 210 466 05 01,210 466 11 01

77 77 A0004668705A 000 466 87 05 Cap To 210 466 19 01,210 466 20 01

77 77 A0004668705A 000 466 87 05 Cap To 210 466 21 01,210 466 22 01

80 80 A0004662660A 000 466 26 60 Sealing Ring To 210 466 05 01,210 466 11 01

80 80 A0004662660A 000 466 26 60 Sealing Ring To 210 466 19 01,210 466 20 01

80 80 A0004662660A 000 466 26 60 Sealing Ring To 210 466 21 01,210 466 22 01

89 89 A0009938826A 000 993 88 26 Disc Spring To 210 466 05 01,210 466 11 01

89 89 A0009938826A 000 993 88 26 Disc Spring To 210 466 19 01,210 466 20 01

89 89 A0009938826A 000 993 88 26 Disc Spring To 210 466 21 01,210 466 22 01

92 92 A0004665691A 000 466 56 91 Valve To 210 466 04 01,210 466 10 01

92 92 A0004665691A 000 466 56 91 Valve To 210 466 02 01

92 92 A0004664691A 000 466 46 91 Valve

92 92 A0004667091A 000 466 70 91 Valve To 124 460 11 80,210 466 11 01

92 92 A0004667891A 000 466 78 91 Valve To 210 466 20 01

92 92 A0004667091A 000 466 70 91 Valve To 210 466 05 01,210 466 19 01

92 92 A0004667091A 000 466 70 91 Valve To 210 466 21 01,210 460 22 01

95 95 A0059937301A 005 993 73 01 Spring To 210 466 05 01,210 466 11 01

95 95 A0059937301A 005 993 73 01 Spring To 210 466 19 01,210 466 20 01

95 95 A0059937301A 005 993 73 01 Spring To 210 466 21 01,210 466 22 01

95 95 A0049939001A 004 993 90 01 Spring To 210 466 04 01,210 466 10 01

95 95 A0049939001A 004 993 90 01 Spring To 460 466 00 01,210 466 02 01

~~128~~ 128 A0229971948A 022 997 19 48 Sealing Ring To 210 466 05 01,210 466 11 01

~~128~~ 128 A0229971948A 022 997 19 48 Sealing Ring To 210 466 19 01,210 466 20 01

~~128~~ 128 A0229971948A 022 997 19 48 Sealing Ring To 210 466 21 01,210 466 22 01

~~137~~ 137 A0004661604A 000 466 16 04 Filter

~~137~~ 137 A0004662104A 000 466 21 04 Filter Insert

~~143~~ 143 A0059937401A 005 993 74 01 Spring To 210 466 05 01,210 466 11 01

~~143~~ 143 A0059937401A 005 993 74 01 Spring To 210 466 19 01,210 466 20 01

~~143~~ 143 A0059937401A 005 993 74 01 Spring To 210 466 21 01,210 466 22 01

~~143~~ 143 A0059935701A 005 993 57 01 Spring To 210 466 04 01,210 466 10 01

~~143~~ 143 A0059935701A 005 993 57 01 Spring To 460 466 00 01,210 466 02 01

~~146~~ 146 A0004661053A 000 466 10 53 Spacer Tube To 210 466 10 01

~~146~~ 146 A0004661053A 000 466 10 53 Spacer Tube To 210 466 05 01,210 466 11 01

~~146~~ 146 A0004661053A 000 466 10 53 Spacer Tube To 210 466 19 01,210 466 20 01

~~146~~ 146 A0004661053A 000 466 10 53 Spacer Tube To 210 466 21 01,210 466 22 01

~~146~~ 146 A0004660753A 000 466 07 53 Spacer Tube To 140 466 50 01,210 466 04 01

~~146~~ 146 A0004660753A 000 466 07 53 Spacer Tube To 460 466 00 01,210 466 02 01

~~149~~ 149 N304035006001N 304035 006001 Hexagon Nut To 210 466 05 01,210 466 11 01

~~149~~ 149 N304035006001N 304035 006001 Hexagon Nut To 210 466 19 01,210 466 20 01

~~149~~ 149 N304035006001N 304035 006001 Hexagon Nut To 210 466 21 01,210 466 22 01

~~155~~ 155 A0004661680A 000 466 16 80 Sealing Shim To 210 466 05 01,210 466 11 01

~~155~~ 155 A0004661680A 000 466 16 80 Sealing Shim To 210 466 19 01,210 466 20 01

~~155~~ 155 A0004661680A 000 466 16 80 Sealing Shim To 210 466 21 01,210 466 22 01

~~158~~ 158 A0004667705A 000 466 77 05 Cap To 210 466 04 01,210 466 10 01

~~158~~ 158 A0004667705A 000 466 77 05 Cap To 210 466 05 01,210 466 11 01

~~158~~ 158 A0004667705A 000 466 77 05 Cap To 210 466 20 01,210 466 21 01

~~158~~ 158 A0004667705A 000 466 77 05 Cap To 210 466 22 01,210 466 02 01

~~158~~ 158 A0004667705A 000 466 77 05 Cap To 140 466 51 01,210 466 19 01

~~160~~ 160 A0004660368A 000 466 03 68 Screw Cap To 210 466 19 01

~~160~~ 160 A0004660368A 000 466 03 68 Screw Cap To 210 466 04 01,210 466 10 01

~~160~~ 160 A0004660368A 000 466 03 68 Screw Cap To 210 466 05 01,210 466 11 01

~~160~~ 160 A0004660368A 000 466 03 68 Screw Cap To 210 466 20 01,210 466 21 01

~~160~~ 160 A0004660368A 000 466 03 68 Screw Cap To 210 466 22 01,210 466 02 01

~~164~~ 164 A0009971834A 000 997 18 34 Screw To 210 466 05 01,210 466 11 01 (4×)

~~164~~ 164 A0009971834A 000 997 18 34 Screw To 210 466 19 01,210 466 20 01 (4×)

~~164~~ 164 A0009971834A 000 997 18 34 Screw To 210 466 21 01,210 466 22 01 (4×)

~~167~~ 167 A0009972134A 000 997 21 34 Screw To 210 466 05 01,210 466 19 01 (4×)

~~167~~ 167 A0009972134A 000 997 21 34 Screw To 210 466 20 01 (4×)

~~170~~ 170 A0009971634A 000 997 16 34 Screw To 210 466 11 01 (4×)

~~170~~ 170 A0009971634A 000 997 16 34 Screw To 210 466 21 01,210 460 22 01 (4×)

~~173~~ 173 A0039909640A 003 990 96 40 Washer To 210 466 05 01,210 466 19 01 (4×)

~~173~~ 173 A0039909640A 003 990 96 40 Washer To 210 466 20 01 (4×)

~~179~~ 179 A0004661271A 000 466 12 71 Screw To 460 466 01 01,210 466 21 01 (2×)

~~185~~ 185 A0004604480A 000 460 44 80 Seal Set To 140 466 50 01,210 466 04 01

~~185~~ 185 A0004604480A 000 460 44 80 Seal Set To 460 466 00 01,210 466 02 01

~~185~~ 185 A0004604780A 000 460 47 80 Seal Set Hydraulic Pump To 210 466 05 01,210 466 19 01

~~185~~ 185 A0004604780A 000 460 47 80 Seal Set Hydraulic Pump To 210 466 20 01,460 466 01 01

~~188~~ 188 A0004604580A 000 460 45 80 Seal Set To 140 466 52 01,210 466 10 01

~~188~~ 188 A0004603980A 000 460 39 80 Seal Set Hydraulic Pump To 210 466 11 01,210 466 21 01

~~188~~ 188 A0004603980A 000 460 39 80 Seal Set Hydraulic Pump To 210 466 22 01

045 Power Steering Pump Attachment Parts

5 5 A1042300015A 104 230 00 15 Pulley

5 5 A1042300115A 104 230 01 15 Belt Pulley

8 8 N914008008006N 914008 008006 Screw-and-washer Assembly Pulley To Power Steering Pump (3×)

10 10 A1041310041A 104 131 00 41 Bracket Bracket To Cylinder Crankcase

12 12 A1042361140A 104 236 11 40 Bracket Bracket To Cylinder Crankcase

14 14 N914007008017N 914007 008017 Screw-and-washer Assembly Bracket To Cylinder Crankcase (3×)

16 16 A1041300635A 104 130 06 35 Support Power Steering Pump And Refrigerant Compressor

18 18 A1042300142A 104 230 01 42 Console Power Steering Pump And Refrigerant Compressor

20 20 A6019920425A 601 992 04 25 Clamping Sleeve (2×)

24 24 N910143008011N 910143 008011 Hexalobular Bolt Power Steering Pump To Support (2×)

29 29 N000934008010N 000934 008010 Nut

29 29 N304032008006N 304032 008006 Hexagon Nut Power Steering Pump To Support (2×)

35 35 N910143008005N 910143 008005 Hexalobular Bolt Power Steering Pump With Support To Crankcase (3×)

35 35 N000912008056N 000912 008056 Screw

35 35 A0019907322A 001 990 73 22 Screw Power Steering Pump With Support To Crankcase (2×)

38 38 N000137008204N 000137 008204 Spring Washer

38 38 N000137008212N 000137 008212 Spring Washer Power Steering Pump With Support To Crankcase (5×)

41 41 A1041310080A 104 131 00 80 Gasket

41 41 A1041310180A 104 131 01 80 Gasket

41 41 A1041310280A 104 131 02 80 Gasket Power Steering Pump With Support To Crankcase

44 44 N914007008029N 914007 008029 Screw-and-washer Assembly

44 44 N910105008010N 910105 008010 Hexagon Head Bolt

44 44 N910143008005N 910143 008005 Hexalobular Bolt Support To Bracket

44 44 N910143008001N 910143 008001 Hexalobular Bolt Support To Bracket M8x20

59 59 A1243203654A 124 320 36 54 High-prs. Expansion Hose Self-levelling Device And/or Automa. Locking Differential (asd/ets)

65 65 N915036008100N 915036 008100 Banjo Bolt

~~116~~ 116 A1029910240A 102 991 02 40 Spacer Tube

060 Refrigerant Compressor

11 11 A0002300511A 000 230 05 11 Compressor

29 29 A0002300056A 000 230 00 56 Seal Set (delivery And Suction Line)

44 44 A0001500525A 000 150 05 25 Sender Unit Speed Sender Unit To 000 230 05 11

53 53 A0145452228A 014 545 22 28 Plug Range Of Delivery

-- A0002300528A 000 230 05 28 Coupling

68 68 A0002301528A 000 230 15 28 Coupling

68 68 A0002301928A 000 230 19 28 Ts Clutch Coupler With Solenoid To 000 230 05 11,000 230 17 11

74 74 A0002300188A 000 230 01 88 Magnet

83 83 N000912008134N 000912 008134 Screw Refrigerant Line To Compressor M 8x28

86 86 N007984008003N 007984 008003 Screw Refrigerant Line To Compressor M 8x18

89 89 N000125008443N 000125 008443 Washer (2×)

075 Refrigerant Compressor Attachment Parts

5 5 N910143008011N 910143 008011 Hexalobular Bolt Refrigerant Compressor To Support (4×)

8 8 N000125008418N 000125 008418 Washer

8 8 N000125008443N 000125 008443 Washer Refrigerant Compressor To Support (4×)

11 11 A6019920425A 601 992 04 25 Clamping Sleeve Refrigerant Compressor To Support (2×)

29 29 A1042300856A 104 230 08 56 Suction Line

44 44 A1409970845A 140 997 08 45 Sealing Ring

53 53 A1409970945A 140 997 09 45 O-ring

59 59 A0018302884A 001 830 28 84 Valve Suction Line

62 62 A0018302784A 001 830 27 84 Valve Delivery Line

68 68 A1409880035A 140 988 00 35 Cap

71 71 A1409880135A 140 988 01 35 Sealing Cap

135 V-belt

5 5 A0119974792A 011 997 47 92 V-belt Used With Air Conditioner 21.36x2415

5 5 A0109978992A 010 997 89 92 V-belt Used With Air Conditioner 21.36x2475

5 5 A0119970692A 011 997 06 92 V-belt Used With Air Conditioner 21.36x2445

5 5 A0109975792A 010 997 57 92 V-belt

5 5 A0109977292A 010 997 72 92 V-belt

14 Intake And Exhaust Manifolds

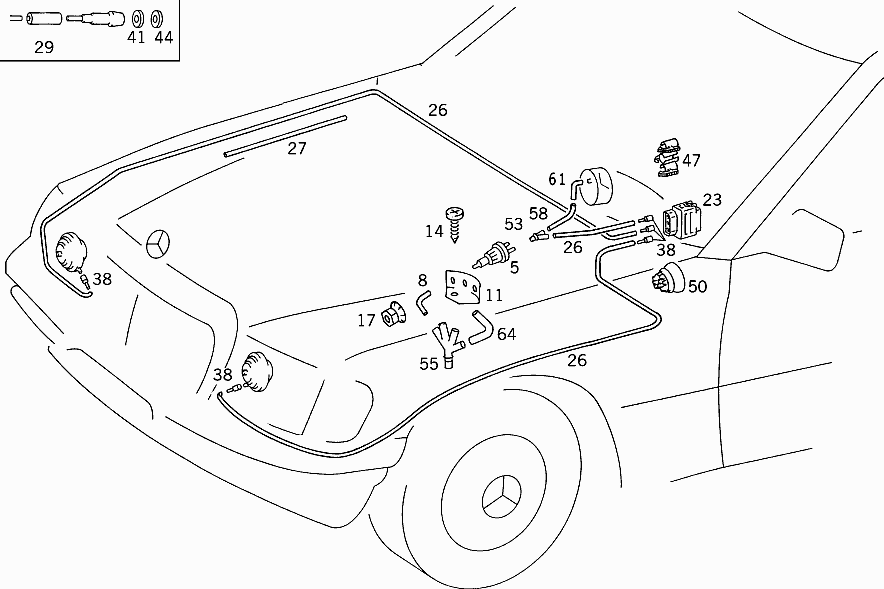

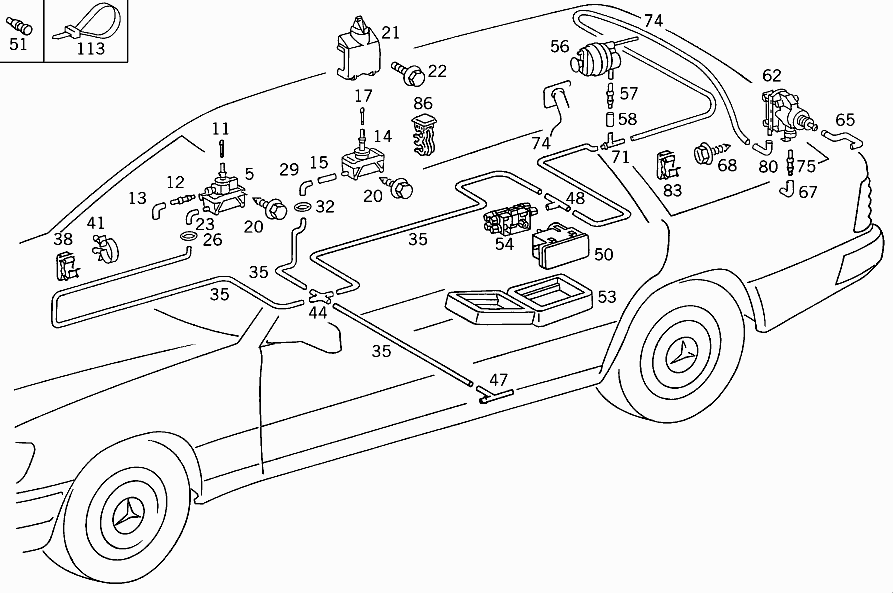

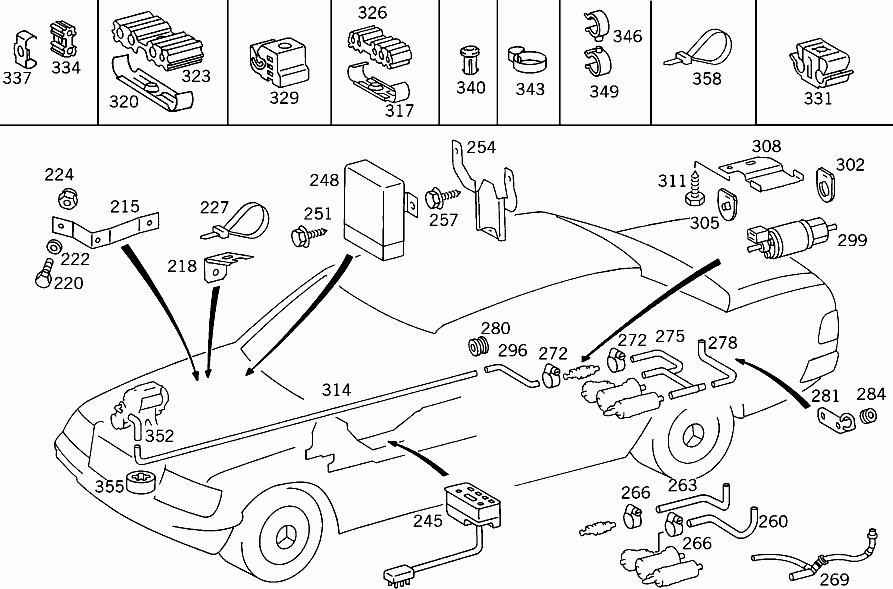

015 Collective Illustration Vacuum System Connecting Parts

5 5 A0001581435A 000 158 14 35 Pipeline Transparent 4x1 Mm

5 5 A0001588935A 000 158 89 35 Pipe Line Transparent/red 4x1 Mm

5 5 A0001589135A 000 158 91 35 Vacuum Line Transparent/blue 4x1 Mm

5 5 A0001589335A 000 158 93 35 Pipe Line Transparent/black 4x1 Mm

5 5 A0001589935A 000 158 99 35 Vacuum Line Transparent/violet/blue 4x1 Mm

5 5 A0011580135A 001 158 01 35 Pipeline Transparent/violet/black 4x1 Mm

5 5 A0002760030A 000 276 00 30 Line Withe 4x1 Mm

5 5 A0002760130A 000 276 01 30 Line Red 4x1 Mm

5 5 A0002760230A 000 276 02 30 Line Green 4x1 Mm

-- A1162760630A 116 276 06 30 Line

5 5 A1232761630A 123 276 16 30 Line Black/red 4x1 Mm

5 5 A1232761930A 123 276 19 30 Line Black-green 4x1 Mm

8 8 A0019978152A 001 997 81 52 Line Black 4x0.75 Mm

11 11 A0179975482A 017 997 54 82 Hose 6x1 Mm

14 14 A0089979082A 008 997 90 82 Hose Black 8x1 Mm

17 17 A1179970982A 117 997 09 82 Hose Black 3.5x8 Mm

-- A2019975082A 201 997 50 82 Hose

20 20 A1179970582A 117 997 05 82 Hose Red-brown 3.2x8 Mm

-- A6179970882A 617 997 08 82 Hose

26 26 A0079976182A 007 997 61 82 Hose 3.5x9 Mm

-- A0089976082A 008 997 60 82 Hose

-- A0009872627A 000 987 26 27 Plastic Tube

32 32 N040621005200N 040621 005200 Insulating Tubing 5x0.6 Mm

32 32 N040621008200N 040621 008200 Insulating Tubing 8x0.7 Mm

35 35 A1170780281A 117 078 02 81 Hose

35 35 A6170780981A 617 078 09 81 Hose

38 38 A1170780581A 117 078 05 81 Hose

41 41 A1170780681A 117 078 06 81 Hose 3.5 Mm/7.2 Mm

41 41 A1170780781A 117 078 07 81 Hose 3.5 Mm/5.5 Mm

44 44 A1170780881A 117 078 08 81 Hose

47 47 A1170780481A 117 078 04 81 Hose

50 50 A1170780381A 117 078 03 81 Hose

52 52 A1200780381A 120 078 03 81 Hose 7.5 Mm/9 Mm

54 54 A1200780181A 120 078 01 81 Hose

54 54 A1404761526A 140 476 15 26 Molded Hose

54 54 A1200780181A 120 078 01 81 Hose 7.5 Mm/7.5 Mm

56 56 A1170780145A 117 078 01 45 Branch Fitting

59 59 A6010780245A 601 078 02 45 Branch Fitting

62 62 A6010780645A 601 078 06 45 Branch Fitting

65 65 A1162760929A 116 276 09 29 Hose Connection Fitting (connector),yellow 4 Mm/4 Mm

68 68 A0009873745A 000 987 37 45 Locking Cap

68 68 A0009872945A 000 987 29 45 Locking Cap

68 68 A0009980723A 000 998 07 23 Locking Cap

68 68 A0009871145A 000 987 11 45 Cap

030 Intake Manifold

38 38 A1041414001A 104 141 40 01 Intake Manifold

38 38 A1041403601A 104 140 36 01 Intake Manifold

38 38 A1041403801A 104 140 38 01 Intake Manifold

38 38 A1041404001A 104 140 40 01 Intake Manifold

38 38 A1041404501A 104 140 45 01 Intake Manifold Intake Manifold Upper Part

41 41 A0001400331A 000 140 03 31 Flap

41 41 A0001400431A 000 140 04 31 Hinged Door Resonance Valve

47 47 A1041411180A 104 141 11 80 Sealing Shim Resonance Valve To Intake Manifold

50 50 N914020006027N 914020 006027 Screw-and-washer Assembly Resonance Valve To Intake Manifold (4×)

53 53 A1049970035A 104 997 00 35 Plug Resonance Valve (2×)

56 56 A1041403001A 104 140 30 01 Intake Manifold

56 56 A1041404101A 104 140 41 01 Intake Manifold Intake Manifold Lower Part

59 59 A1049900278A 104 990 02 78 Connector

62 62 A1179900278A 117 990 02 78 Fitting (3×)

65 65 N915013008002N 915013 008002 Fitting From Vacuum Connection To Brake Power Booster

68 68 N007603014104N 007603 014104 Sealing Ring From Vacuum Connection To Brake Power Booster

74 74 A1041411783A 104 141 17 83 Hose Intake Manifold Upper Part To Intake Manifold Lower Part (2×)

77 77 N916002075100N 916002 075100 Clamp

77 77 A0069972790A 006 997 27 90 Clamp W Drive A Washer Intake Manifold Upper Part To Intake Manifold Lower Part (4×)

89 89 A1041411080A 104 141 10 80 Sealing Shim Intake Manifold To Cylinder Head (6×)

95 95 N914020008013N 914020 008013 Screw-and-washer Assembly

95 95 A0029901122A 002 990 11 22 Screw Intake Manifold To Cylinder Head (9×)

~~110~~ 110 N910143008005N 910143 008005 Hexalobular Bolt Intake Manifold To Cylinder Crankcase (4×)

~~152~~ 152 A1040100140A 104 010 01 40 Bracket

~~152~~ 152 A1040100240A 104 010 02 40 Bracket Cable Mounting

~~161~~ 161 A1040943582A 104 094 35 82 Hose Partial Load Breathing Towards Intake Manifold

~~164~~ 164 A1169970390A 116 997 03 90 Hose Clamp Hose To Bracket

~~167~~ 167 A1049970190A 104 997 01 90 Binder Hose To Intake Manifold

~~176~~ 176 A1040943682A 104 094 36 82 Hose Intake Manifold Upper Part To Intake Manifold Lower Part

~~179~~ 179 A1049970290A 104 997 02 90 Loom Tie

~~179~~ 179 A1269970690A 126 997 06 90 Binder Hose To Intake Manifold

060 Exhaust Manifold

5 5 A1041402614A 104 140 26 14 Exhaust Manifold

5 5 A1041404114A 104 140 41 14 Exhaust Elbow Cylinders Nos.1-3

5 5 A1041425901A 104 142 59 01 Exhaust Elbow

8 8 A1041402914A 104 140 29 14 Exhaust Manifold

8 8 A1041404314A 104 140 43 14 Exhaust Elbow Cylinders Nos.4-6

8 8 A1041426301A 104 142 63 01 Exhaust Elbow Cylinders Nos.4-6

11 11 A0009902552A 000 990 25 52 Nut (4×)

14 14 A1041420380A 104 142 03 80 Gasket

14 14 A1041420280A 104 142 02 80 Sealing Shim

14 14 A1041420780A 104 142 07 80 Gasket Exhaust Manifold To Cylinder Head (2×)

23 23 A1201420072A 120 142 00 72 Hexagon Nut Exhaust Manifold To Cylinder Head (23×)

23 23 A1041420072A 104 142 00 72 Nut

23 23 A1201420072A 120 142 00 72 Hexagon Nut Exhaust Manifold To Cylinder Head (23×)

26 26 A1041421020A 104 142 10 20 Screening Plate Bottom

29 29 A1041420920A 104 142 09 20 Screening Plate

29 29 A1041421220A 104 142 12 20 Screening Plate Top

32 32 N000933006122N 000933 006122 Screw

32 32 N304017006034N 304017 006034 Hexagon Head Bolt Screening Plate To Exhaust Manifold (9×)

35 35 N000125006421N 000125 006421 Washer Screening Plate To Exhaust Manifold (9×)

35 35 N000125006449N 000125 006449 Washer Screening Plate To Exhaust Manifold (9×)

090 Exhaust Gas Recirculation

105 Air Pump

5 5 A1041401485A 104 140 14 85 Pump Air Pump

11 11 A0135457928A 013 545 79 28 Plug Pin (2×)

14 14 A0085450928A 008 545 09 28 Plug Housing

17 17 A0085451128A 008 545 11 28 Cover

20 20 A1199940241A 119 994 02 41 Securing Coupling To Pump

23 23 A1041400886A 104 140 08 86 Ts Belt Pulley Parts Kit

26 26 A1161400484A 116 140 04 84 Follower

26 26 A1191400484A 119 140 04 84 Connecting Drum

29 29 A1199940141A 119 994 01 41 Securing Pulley To Air Pump

32 32 N000439014206N 000439 014206 Nut Coupling To Pump

71 71 N914005008008N 914005 008008 Screw-and-washer Assembly Air Pump To Support

74 74 N000931008220N 000931 008220 Screw

74 74 N304017008067N 304017 008067 Hexagon Head Bolt Air Pump Support To Crankcase

77 77 N000137008204N 000137 008204 Spring Washer

77 77 N000137008212N 000137 008212 Spring Washer Air Pump Support To Crankcase

~~116~~ 116 A1041401412A 104 140 14 12 Pipe Line

~~116~~ 116 A1041402712A 104 140 27 12 Pipeline

~~125~~ 125 A1201410080A 120 141 00 80 Sealing Shim Air Injection Line To Cylinder Head

~~128~~ 128 N910142006001N 910142 006001 Hexalobular Bolt

~~134~~ 134 A1041410340A 104 141 03 40 Bracket Bracket To Cylinder Crankcase

~~146~~ 146 N000934006007N 000934 006007 Nut Air Injection Line To Bracket

~~149~~ 149 A1041412583A 104 141 25 83 Hose

~~149~~ 149 A1041400081A 104 140 00 81 Cap Air Pump

~~152~~ 152 A0001407860A 000 140 78 60 Valve Check Valve

~~155~~ 155 N007603022100N 007603 022100 Sealing Ring Check Valve

~~158~~ 158 A1041411283A 104 141 12 83 Hose From Shut-off Valve To Check Valve

~~161~~ 161 A1179970190A 117 997 01 90 Hose Clamp Check Valve

~~161~~ 161 A1179970190A 117 997 01 90 Hose Clamp Shut-off Valve (2×)

~~161~~ 161 A1179970190A 117 997 01 90 Hose Clamp Air Pump

~~167~~ 167 A0001407760A 000 140 77 60 Valve Shut-off Valve

~~179~~ 179 A1041411383A 104 141 13 83 Hose From Shut-off Valve To Air Pump

123 Vacuum System 202

125 Vacuum System 124

~~140~~ 140 A0011408060A 001 140 80 60 Valve

~~140~~ 140 A0004702193A 000 470 21 93 Valve Regeneration Valve

~~143~~ 143 A1200780181A 120 078 01 81 Hose

~~143~~ 143 A1404761526A 140 476 15 26 Molded Hose

~~143~~ 143 A1200780181A 120 078 01 81 Hose

~~146~~ 146 A1201411240A 120 141 12 40 Bracket

~~152~~ 152 A0089979082A 008 997 90 82 Hose

~~152~~ 152 A0009872727A 000 987 27 27 Plastic Tube From Throttle Valve Actuator To Regeneration Valve 760 Mm

~~158~~ 158 A1170780481A 117 078 04 81 Hose Electronic Gas Actuator

~~161~~ 161 N916002010100N 916002 010100 Clamp Electronic Gas Actuator

~~164~~ 164 A1179970982A 117 997 09 82 Hose Connector 40 Mm

~~164~~ 164 A1179970982A 117 997 09 82 Hose Selector Program Vacuum Line To Cable 125 Mm

~~167~~ 167 A0019978152A 001 997 81 52 Line From Intake Manifold To Fuel Pressure Regulator 270 Mm

~~167~~ 167 A0019978152A 001 997 81 52 Line From Intake Manifold To Automatic Transmission 970 Mm

~~170~~ 170 A6010780245A 601 078 02 45 Branch Fitting From Intake Manifold To Electric Change-over Valve

~~173~~ 173 A0011401760A 001 140 17 60 Valve Check Valve

~~173~~ 173 A0011406660A 001 140 66 60 Valve Check Valve

~~179~~ 179 A0001581435A 000 158 14 35 Pipeline From Check Valve To Electric Changeover Valve 520 Mm

~~179~~ 179 A0001581435A 000 158 14 35 Pipeline From Electric Change-over Valve To Shut-off Valve 170 Mm

~~188~~ 188 A1170780281A 117 078 02 81 Hose Connector

~~197~~ 197 A1179970582A 117 997 05 82 Hose Air Blow-in Electric Change-over Valve 210 Mm

~~200~~ 200 A0009871145A 000 987 11 45 Cap

~~206~~ 206 A1170780681A 117 078 06 81 Hose From Intake Manifold To Automatic Transmission

~~212~~ 212 A0002760130A 000 276 01 30 Line Selector Program Vacuum Line Towards Electric Change-over Valve 780 Mm

-- A0039977290A 003 997 72 90 Clamp

~~221~~ 221 A0019978390A 001 997 83 90 Loom Tie 280 Mm

~~230~~ 230 A0009955644A 000 995 56 44 Jaw Clamp

~~230~~ 230 A0009955244A 000 995 52 44 Jaw Clamp

~~230~~ 230 A0009955444A 000 995 54 44 Clamp

~~230~~ 230 A0009956044A 000 995 60 44 Clamp

128 Vacuum System 129

130 Vacuum System 140

140 Vacuum System Cross-country Vehicles

170 Vacuum System 210

15 Electrical Equipment

015 Starting Motor

5 5 A0041516501A 004 151 65 01 Starting Motor

5 5 A0041517001A 004 151 70 01 Starter Motor

8 8 A0001519813A 000 151 98 13 Pinion To 004 151 45 01/ 65 01

8 8 A0011511413A 001 151 14 13 Pinion To 004 151 70 01

17 17 A0001516450A 000 151 64 50 Bushing Starter Pinion (2×)

32 32 A0001513750A 000 151 37 50 Bushing Drive End Bearing To 004 151 45 01/ 65 01

32 32 A0129812810A 012 981 28 10 Needle Bearing

32 32 A0009812110A 000 981 21 10 Needle Roller Bearing Drive End Bearing To 004 151 70 01

81 81 A0001518050A 000 151 80 50 Bushing Commutator End Shield To 004 151 45 01/ 65 01

81 81 A0001516850A 000 151 68 50 Sintered Bush Commutator End Shield To 004 151 70 01

96 96 A0001519214A 000 151 92 14 Carbon Brush Set

96 96 A0011511714A 001 151 17 14 Carbon Brush Set To 004 151 45 01/ 65 01

96 96 A0011510114A 001 151 01 14 Carbon Brush Set To 004 151 70 01

96 96 A0011514314A 001 151 43 14 Carbon Brush Set To 004 151 70 01

~~105~~ 105 A0009909405A 000 990 94 05 Stud

~~105~~ 105 A0019905805A 001 990 58 05 Stud Bolt (2×)

~~108~~ 108 A0001529810A 000 152 98 10 Solenoid Switch

~~108~~ 108 A0011522210A 001 152 22 10 Solenoid Switch To 004 151 45 01/ 65 01

~~108~~ 108 A0011520910A 001 152 09 10 Solenoid Switch

~~108~~ 108 A0011522710A 001 152 27 10 Solenoid Switch To 004 151 70 01

~~123~~ 123 A0009907630A 000 990 76 30 Screw

~~123~~ 123 A0049902712A 004 990 27 12 Screw Solenoid Switch To Housing To 004 151 45 01/ 65 01 (3×)

~~123~~ 123 A0009909330A 000 990 93 30 Screw Solenoid Switch To Housing To 004 151 70 01 (3×)

~~145~~ 145 A0001513615A 000 151 36 15 Ts Armature (parts Kt),drive End Bearing

~~151~~ 151 N000931010274N 000931 010274 Screw

~~151~~ 151 N304014010009N 304014 010009 Hexagon Head Bolt Starting Motor To Crankcase M 10x90 (2×)

~~157~~ 157 N000137010201N 000137 010201 Spring Washer Starting Motor To Crankcase (2×)

030 Alternator

~~400~~ 400 A0091540202A 009 154 02 02 Alternator 12v/90a;bosch

~~400~~ 400 A0091545902A 009 154 59 02 Alternator 12v/90a;valeo

~~405~~ 405 A0009909121A 000 990 91 21 Screw

~~405~~ 405 A0019901421A 001 990 14 21 Screw Housing (4×)

~~410~~ 410 A0019902920A 001 990 29 20 Screw Cover Plate To Drive Bearing (4×)

~~415~~ 415 A0079812425A 007 981 24 25 Ball Bearing

~~415~~ 415 A0079818925A 007 981 89 25 Ball Bearing Drive End Bearing

~~420~~ 420 A0079812525A 007 981 25 25 Ball Bearing

~~420~~ 420 A0079817325A 007 981 73 25 Annular Ball Bearing Slip Ring Side

~~425~~ 425 A0001540657A 000 154 06 57 Ring Slip Ring Side

~~450~~ 450 A0001542704A 000 154 27 04 Cover

~~450~~ 450 A0001543404A 000 154 34 04 Cap For Alternator: 90a

~~450~~ 450 A0001542804A 000 154 28 04 Cap For Alternator: 110a/120a

~~450~~ 450 A0001542904A 000 154 29 04 Cap For Alternator: 115a

~~455~~ 455 A0069903201A 006 990 32 01 Screw Suppressor Housing (3×)

~~460~~ 460 A0021548506A 002 154 85 06 Control Unit To 009 154 01 02/ 02 02

~~460~~ 460 A0021548506A 002 154 85 06 Control Unit To 009 154 43 02/ 93 02; 010 154 40 02

~~465~~ 465 N914026004105N 914026 004105 Screw-and-washer Assembly Regulator And Cut-out M4x25 (2×)

~~500~~ 500 A1111550115A 111 155 01 15 Pulley

~~500~~ 500 A0011551315A 001 155 13 15 Pulley

~~500~~ 500 A1111550415A 111 155 04 15 Belt Pulley For Flat Belt

~~510~~ 510 A0009902250A 000 990 22 50 Hexagon Nut W Collar

~~610~~ 610 A0069905501A 006 990 55 01 Screw Housing (4×)

~~615~~ 615 A0079810125A 007 981 01 25 Ball Bearing

~~615~~ 615 A0079817025A 007 981 70 25 Ball Bearing Drive End Bearing 52 Mm; To 009 154 59 02, 010 154 55 02

~~615~~ 615 A0079818025A 007 981 80 25 Ball Bearing Drive End Bearing 47 Mm; To 009 154 59 02, 010 154 55 02

~~620~~ 620 A0079810225A 007 981 02 25 Ball Bearing Slip Ring Side 40 Mm; To 009 154 59 02, 010 154 55 02

~~620~~ 620 A0079817525A 007 981 75 25 Ball Bearing Slip Ring Side 35 Mm; To 009 154 59 02

~~630~~ 630 A0001541440A 000 154 14 40 Cover Plate

~~640~~ 640 A0011569001A 001 156 90 01 Capacitor

~~650~~ 650 A0021549106A 002 154 91 06 Regulator And Cut-out

~~650~~ 650 A0031540306A 003 154 03 06 Regulator Switch To 009 154 59 02

~~690~~ 690 A0001500050A 000 150 00 50 Ts Alternator Alternator

~~700~~ 700 A0011551315A 001 155 13 15 Pulley

~~700~~ 700 A1111550415A 111 155 04 15 Belt Pulley For Flat Belt

~~710~~ 710 A0009905150A 000 990 51 50 Nut

~~710~~ 710 A0009902250A 000 990 22 50 Hexagon Nut W Collar Pulley And Fan To Alternator

~~805~~ 805 A1041500170A 104 150 01 70 Support

~~805~~ 805 A1041550135A 104 155 01 35 Beam Alternator And Air Pump

~~820~~ 820 A6019920425A 601 992 04 25 Clamping Sleeve (2×)

~~830~~ 830 N910105010027N 910105 010027 Hexagon Head Bolt Alternator To Support M10x100 (2×)

~~835~~ 835 N000912008019N 000912 008019 Screw

~~835~~ 835 A0029901322A 002 990 13 22 Screw Support To Cylinder Crankcase M 8x30 (2×)

~~840~~ 840 N914005008029N 914005 008029 Screw-and-washer Assembly

~~840~~ 840 N914005008049N 914005 008049 Screw-and-washer Assembly

~~840~~ 840 A0029901222A 002 990 12 22 Screw Support To Cylinder Crankcase M 8x40

~~845~~ 845 N910143008019N 910143 008019 Hexalobular Bolt Support To Cylinder Crankcase M 8x60

~~850~~ 850 N914131008205N 914131 008205 Screw Support To Cylinder Crankcase M 8x40

~~855~~ 855 N910143008009N 910143 008009 Hexalobular Bolt Support To Cylinder Crankcase M8x70 (2×)

~~860~~ 860 N304032008006N 304032 008006 Hexagon Nut Support To Cylinder Crankcase

~~865~~ 865 N000137008204N 000137 008204 Spring Washer

~~865~~ 865 N000137008212N 000137 008212 Spring Washer Support To Cylinder Crankcase

060 Ignition System

5 5 A0001587103A 000 158 71 03 Ignition Coil

5 5 A0001587003A 000 158 70 03 Ignition Coil (3×)

5 5 A0001587503A 000 158 75 03 Ignition Coil (3×)

8 8 A0001593542A 000 159 35 42 Cable Plug Cylinders Nos.: 2, 4, 6 (3×)

8 8 A0001593642A 000 159 36 42 Cable Connector Cylinders Nos.: 2, 4, 6 (3×)

35 35 A1041500066A 104 150 00 66 Protective Cowl Upper Part

41 41 A1040160138A 104 016 01 38 Bracket

41 41 A1040160338A 104 016 03 38 Bracket Suppressor Housing

47 47 A1041500475A 104 150 04 75 Screening Plate

47 47 A1041500675A 104 150 06 75 Cover

53 53 N914035006006N 914035 006006 Screw-and-washer Assembly M 6x70 (6×)

53 53 N914035006011N 914035 006011 Screw-and-washer Assembly M 6x60 (7×)

59 59 A1041590225A 104 159 02 25 Cable Run

59 59 A1041590325A 104 159 03 25 Cable Guide Upper Part

59 59 A1041590425A 104 159 04 25 Cable Guide Upper Part

60 60 A1041590746A 104 159 07 46 Protective Cover Ignition Cables

62 62 A1245840147A 124 584 01 47 Warning Strip

62 62 A1235849321A 123 584 93 21 Information Label

62 62 A2105840047A 210 584 00 47 Warning Sign "danger!high Tension!"; In German,english,and French (2×)

68 68 A1101591818A 110 159 18 18 Ignition Circuit Cylinder No.1 490 Mm

68 68 A1101591818A 110 159 18 18 Ignition Circuit Cylinder No.1 550 Mm

68 68 A1101591818A 110 159 18 18 Ignition Circuit Cylinder No.3 240 Mm

68 68 A1101591818A 110 159 18 18 Ignition Circuit Cylinder No.3 350 Mm

68 68 A1101591818A 110 159 18 18 Ignition Circuit Cylinder No.5 430 Mm

68 68 A1101591818A 110 159 18 18 Ignition Circuit Cylinder No.5 550 Mm

74 74 A1161590137A 116 159 01 37 Sleeve Cylinder No.1

74 74 A1161590337A 116 159 03 37 Sleeve Cylinder No.3

74 74 A1161590537A 116 159 05 37 Sleeve Cylinder No.5

80 80 A0001591438A 000 159 14 38 Cable Sleeve Ignition Cable (6×)

86 86 A0001593442A 000 159 34 42 Cable Connector Ignition Coil (3×)

86 86 A0001593842A 000 159 38 42 Cable Connector Ignition Coil (3×)

89 89 A0001566810A 000 156 68 10 Suppressor Plug

89 89 A0001567210A 000 156 72 10 Spark Plug Connector (3×)

89 89 A0001566710A 000 156 67 10 Suppressor Plug

89 89 A0001567110A 000 156 71 10 Suppressor Plug

89 89 A0001567510A 000 156 75 10 Suppressor Plug (3×)

92 92 A1041591440A 104 159 14 40 Bracket

92 92 A1041592640A 104 159 26 40 Bracket Ignition Cables (2×)

~~161~~ 161 A0031596703A 003 159 67 03 Spark Plug Bosch F8 Dc4 (6×)

~~161~~ 161 A0031596803A 003 159 68 03 Spark Plug Beru 14f-8 Du4 (6×)

~~161~~ 161 A0031597103A 003 159 71 03 Spark Plug Champion C11ycc (6×)

075 T.d.c. Sender Unit,position Sender Unit,knock Sensor,and Ground Strap

8 8 A1031500473A 103 150 04 73 Bracket (setting Slide),t.d.c.sender Unit

14 14 N000933006121N 000933 006121 Screw

14 14 N304017006020N 304017 006020 Hexagon Head Bolt Bracket To Timing Case Cover M 6x20

17 17 N000137006204N 000137 006204 Spring Washer Bracket To Timing Case Cover

22 22 A0031530128A 003 153 01 28 Sender Unit Position Sender Unit, E Z L

22 22 A0031537328A 003 153 73 28 Sender Unit Position Sender Unit, E Z L

22 22 A0031537528A 003 153 75 28 Position Sensor Position Sender Unit, E Z L

26 26 A1049970048A 104 997 00 48 Sealing Ring

28 28 N000912006107N 000912 006107 Screw

28 28 N000912006066N 000912 006066 Screw Position Sender Unit To Cylinder Crankcase,rear M6x14

28 28 N910142006001N 910142 006001 Hexalobular Bolt Crankshaft Position Sender Unit M6x16

47 47 A0021539528A 002 153 95 28 Position Sensor Camshaft Position Sender Unit

50 50 A1049970048A 104 997 00 48 Sealing Ring

53 53 A1049970148A 104 997 01 48 Sealing Ring

56 56 N000912006097N 000912 006097 Screw

56 56 N000912006066N 000912 006066 Screw Camshaft Position Sender Unit M 6x16 (2×)

59 59 N000125006416N 000125 006416 Washer Camshaft Position Sender Unit (2×)

62 62 A1191531152A 119 153 11 52 Spacer Disk Position Sender Unit 0.1 Mm

62 62 A1191531252A 119 153 12 52 Spacer Disk Position Sender Unit 0.2 Mm

62 62 A1191531352A 119 153 13 52 Spacer Disk Position Sender Unit 0.3 Mm

62 62 A1191531452A 119 153 14 52 Spacer Disk Position Sender Unit 0.4 Mm

62 62 A1191531552A 119 153 15 52 Spacer Disk Position Sender Unit 0.5 Mm

62 62 A1191531652A 119 153 16 52 Spacer Washer Position Sender Unit 0.6 Mm

62 62 A1191531752A 119 153 17 52 Spacer Washer Position Sender Unit 0.7 Mm

62 62 A1191531852A 119 153 18 52 Spacer Washer Position Sender Unit 0.8 Mm

62 62 A1191531952A 119 153 19 52 Spacer Washer Position Sender Unit 0.9 Mm

62 62 A1191532052A 119 153 20 52 Spacer Washer Position Sender Unit 1.0 Mm

68 68 A0031537828A 003 153 78 28 Knock Sensor

68 68 A0031537728A 003 153 77 28 Knock Sensor

68 68 A0031538928A 003 153 89 28 Knock Sensor (2×)

77 77 A0099900101A 009 990 01 01 Screw (knock Sensor),on Cylinder Crankcase M 8x28 (2×)

80 80 A1041500173A 104 150 01 73 Bracket Knock Sensor Plug Connection To Intake Manifold

83 83 N304017006016N 304017 006016 Hexagon Head Bolt Bracket To Intake Manifold M 6x16

83 83 N304017008016N 304017 008016 Hexagon Head Bolt Bracket To Intake Manifold M 8x16

86 86 N913017006000N 913017 006000 Nut Asr Plug Connect.,idle Speed Actuator & Tempomat To Intake Manifold Bracket (2×)

86 86 N913017005000N 913017 005000 Nut Knock Sensor Plug To Bracket (2×)

92 92 A0009955244A 000 995 52 44 Jaw Clamp Position Sender Unit Cable

~~113~~ 113 A1245400041A 124 540 00 41 Ground Strap

~~119~~ 119 N304017006018N 304017 006018 Hexagon Head Bolt M 6x12

~~122~~ 122 N912004006102N 912004 006102 Spring Lock Washer

~~128~~ 128 A1041591840A 104 159 18 40 Bracket Cable Harness To Power Steering Pump

~~131~~ 131 N304017008016N 304017 008016 Hexagon Head Bolt Bracket To Power Steering Pump M 8x16

18 Engine Lubrication

015 Oil Pump

5 5 A1041800201A 104 180 02 01 Oil Pump

5 5 A6031801201A 603 180 12 01 Oil Pump

5 5 A1041800701A 104 180 07 01 Oil Pump

8 8 A6019920425A 601 992 04 25 Clamping Sleeve (2×)

11 11 A6031800107A 603 180 01 07 Drive Shaft Gear Width, 34 Mm

11 11 A6031800207A 603 180 02 07 Drive Shaft Gear Width, 30 Mm

14 14 A6031800008A 603 180 00 08 Shaft Gear Width, 34 Mm

14 14 A1161800208A 116 180 02 08 Oil Pump Axle Gear Width, 30 Mm

16 16 A6031810320A 603 181 03 20 Cover

16 16 A6031811320A 603 181 13 20 Cover

17 17 N000933006121N 000933 006121 Screw

17 17 N304017006020N 304017 006020 Hexagon Head Bolt Oil Pump Cover To Oil Pump Housing M 6x20 (4×)

20 20 N000137006204N 000137 006204 Spring Washer Oil Pump Cover To Oil Pump Housing (4×)

23 23 A6011810042A 601 181 00 42 Piston Pressure Relief Valve

23 23 A6011810142A 601 181 01 42 Piston Pressure Relief Valve

26 26 A6039930201A 603 993 02 01 Spring Pressure Relief Valve

29 29 A6011810174A 601 181 01 74 Pin Pressure Relief Valve

32 32 A6031810056A 603 181 00 56 Screw Plug Pressure Relief Valve

33 33 A6011800155A 601 180 01 55 Sieve

34 34 A6011860114A 601 186 01 14 End Ring Strainer To Oil Pump Cover

35 35 A6031810012A 603 181 00 12 Drive Gear

35 35 A6031810112A 603 181 01 12 Drive Gear Oil Pump

38 38 N000933008148N 000933 008148 Screw

38 38 N304017008023N 304017 008023 Hexagon Head Bolt Drive Gear To Drive Shaft M8x20

41 41 A6019900940A 601 990 09 40 Disk Drive Gear To Drive Shaft

44 44 N000912008098N 000912 008098 Cap Bolt

44 44 N000912008204N 000912 008204 Cap Bolt Oil Pump And Oil Baffle To Cylinder Crankcase M8x35 (3×)

47 47 N000137008204N 000137 008204 Spring Washer

47 47 N000137008212N 000137 008212 Spring Washer Oil Pump And Oil Baffle To Cylinder Crankcase (3×)

50 50 N000933006127N 000933 006127 Screw Reinforcement To Oil Pump M6x25

53 53 N000137006204N 000137 006204 Spring Washer Reinforcement To Oil Pump

56 56 N910142006000N 910142 006000 Hexalobular Bolt Oil Baffle To Crankshaft Bearing Cap M6x12 (12×)

59 59 A1040100761A 104 010 07 61 Oil Baffle

59 59 A1040140266A 104 014 02 66 Oil Baffle

62 62 A0019975294A 001 997 52 94 Roller Chain

62 62 A0039970094A 003 997 00 94 Roller Chain

62 62 A0039977494A 003 997 74 94 Roller Chain Single

63 63 A0009971498A 000 997 14 98 Chain Lock Link

63 63 A0009973298A 000 997 32 98 Chain Link

65 65 A1041810259A 104 181 02 59 Tensioning Bracket Oil Pump Chain Tightener

68 68 A1049930020A 104 993 00 20 Spring Oil Pump Chain Tightener

71 71 A6011810150A 601 181 01 50 Bushing Oil Pump Chain Tightener

74 74 N000007008106N 000007 008106 Cylinder Pin Oil Pump Clamping Bracket Bearing

045 Oil Filter

5 5 A1041803710A 104 180 37 10 Oil Filter Less Integrated Water Cooled Oil Cooler To 124.028,032,052,088,092

5 5 A1041803710A 104 180 37 10 Oil Filter Less Integrated Water Cooled Oil Cooler To 124.008,029

5 5 A1041806210A 104 180 62 10 Oil Filter Less Integrated Water Cooled Oil Cooler

11 11 A1041804510A 104 180 45 10 Oil Filter

11 11 A1041807210A 104 180 72 10 Oil Filter W/integrated Water Cooled Oil Cooler

11 11 A1041805610A 104 180 56 10 Oil Filter

11 11 A1041806910A 104 180 69 10 Oil Filter

11 11 A1041806410A 104 180 64 10 Oil Filter

11 11 A1041807210A 104 180 72 10 Oil Filter W/integrated Water Cooled Oil Cooler

17 17 A1041840608A 104 184 06 08 Cap Filter Housing,top

20 20 A0179973148A 017 997 31 48 Seal Ring

20 20 A0259976648A 025 997 66 48 Sealing Ring Cover To Filter Housing

26 26 A6011840132A 601 184 01 32 Valve By-pass Valve

29 29 A1029930701A 102 993 07 01 Spring By-pass Valve

32 32 A1021840031A 102 184 00 31 Spring Plate By-pass Valve

35 35 N000472024000N 000472 024000 Retaining Ring By-pass Valve

41 41 A1041840425A 104 184 04 25 Filter Element

47 47 A1041800109A 104 180 01 09 Ts Oil Filter Element

53 53 A1041800409A 104 180 04 09 Heat Exchanger Water Cooled Oil Cooler

53 53 A1041800309A 104 180 03 09 Heat Exchanger Water Cooled Oil Cooler To 104 180 54 10,56 10,59 10

53 53 A1041800309A 104 180 03 09 Heat Exchanger Water Cooled Oil Cooler To 104 180 54 10, 59 10

57 57 A1041840980A 104 184 09 80 Sealing Shim Cover With Heat Exchanger To Filter Housing To 104 180 54 10,59 10

57 57 A1041840980A 104 184 09 80 Sealing Shim Cover With Heat Exchanger To Filter Housing To 104 180 28 10,41 10,45 10,54 10

59 59 A1041840880A 104 184 08 80 Sealing Shim Cover With Heat Exchanger To Filter Housing To 104 180 56 10

59 59 A1041840880A 104 184 08 80 Sealing Shim Cover With Heat Exchanger To Filter Housing To 104 180 28 10,41 10,45 10,59 10

60 60 A1041841080A 104 184 10 80 Sealing Shim Cover With Heat Exchanger To Filter Housing

74 74 A1041840780A 104 184 07 80 Sealing Shim Cover With Heat Exchanger To Filter Housing To 104 180 54 10,56 10,59 10

74 74 A1041840780A 104 184 07 80 Sealing Shim Cover With Heat Exchanger To Filter Housing To 104 180 54 10, 59 10

86 86 A1041840095A 104 184 00 95 Reinforcement Filter Housing,bottom

92 92 N000933006184N 000933 006184 Screw

92 92 N304017006037N 304017 006037 Hexagon Head Bolt Reinforcement With Heat Exchanger To Filter Bowl M6x25 (8×)

95 95 N000137006204N 000137 006204 Spring Washer Reinforcement With Heat Exchanger To Filter Bowl (8×)

~~101~~ 101 N000908012003N 000908 012003 Screw Plug

~~101~~ 101 N000908012009N 000908 012009 Screw Plug Oil Filter Bottom

~~104~~ 104 N007603012113N 007603 012113 Sealing Ring Oil Filter Bottom

~~110~~ 110 A6011840580A 601 184 05 80 Sealing Shim Oil Filter To Cylinder Crankcase

~~110~~ 110 A6011840780A 601 184 07 80 Gasket

~~110~~ 110 A6011840580A 601 184 05 80 Sealing Shim Oil Filter To Cylinder Crankcase

~~116~~ 116 N000912008130N 000912 008130 Cap Bolt Oil Filter To Cylinder Crankcase To 104 180 37 10 (3×)

~~116~~ 116 N000912008130N 000912 008130 Cap Bolt Oil Filter To Cylinder Crankcase To 104 180 54 10,56 10,59 10

~~116~~ 116 N000912008130N 000912 008130 Cap Bolt Oil Filter To Cylinder Crankcase M 8x50

~~116~~ 116 N000912008130N 000912 008130 Cap Bolt Oil Filter To Cylinder Crankcase M 8x50 (3×)

~~116~~ 116 N000912008203N 000912 008203 Cap Bolt Oil Filter To Cylinder Crankcase M 8x30

~~116~~ 116 N000912008038N 000912 008038 Screw Oil Filter To Cylinder Crankcase To 104 180 56 10,64 10,69 10,72 10

~~116~~ 116 N000912008038N 000912 008038 Screw Oil Filter To Cylinder Crankcase M 8x75

~~116~~ 116 N000912008119N 000912 008119 Screw Oil Filter To Cylinder Crankcase To 104 180 56 10,64 10,69 10,72 10

~~116~~ 116 N000912008119N 000912 008119 Screw Oil Filter To Cylinder Crankcase M 8x125

~~119~~ 119 N000137008204N 000137 008204 Spring Washer

~~119~~ 119 N000137008212N 000137 008212 Spring Washer Oil Filter To Cylinder Crankcase (4×)

~~134~~ 134 A0065429417A 006 542 94 17 Sender Unit Oil Pressure Gauge

~~137~~ 137 N007603012113N 007603 012113 Sealing Ring Sender Unit To Oil Filter

075 Oil Lines

11 11 A1041805630A 104 180 56 30 Oil Line Feed To,and Return From,oil Filter To 104 180 37 10

14 14 A1171870185A 117 187 01 85 Rubber Bushing Oil Lines

17 17 A1049950040A 104 995 00 40 Clamp Oil Line To Oil Pan

17 17 A1049950040A 104 995 00 40 Clamp Oil Line To Suction Pipe Lower Part

17 17 A1029950132A 102 995 01 32 Clamp

17 17 A6179950432A 617 995 04 32 Clamp Oil Line To Oil Pan

17 17 A6179950432A 617 995 04 32 Clamp Oil Line To Suction Pipe Lower Part

20 20 N000912006136N 000912 006136 Screw Oil Line To Oil Pan

20 20 N000912006136N 000912 006136 Screw Oil Line To Suction Pipe Lower Part

47 47 A0169976148A 016 997 61 48 Sealing Ring Oil Line To Oil Filter (2×)

50 50 N000912008009N 000912 008009 Screw

50 50 N000912008200N 000912 008200 Cap Bolt

50 50 N000912008219N 000912 008219 Cap Bolt Oil Line To Oil Filter

20 Engine Cooling System

015 Water Pump

5 5 A1042003301A 104 200 33 01 Water Pump Range Of Delivery To 124.028,088

5 5 A1042003301A 104 200 33 01 Water Pump Range Of Delivery

5 5 A1042002801A 104 200 28 01 Water Pump

5 5 A1042003301A 104 200 33 01 Water Pump Range Of Delivery To 124.028,088

5 5 A1042003301A 104 200 33 01 Water Pump Range Of Delivery To 124.028,029

5 5 A1042004501A 104 200 45 01 Ts Water Pump

5 5 A1042004701A 104 200 47 01 Ts Water Pump Range Of Delivery

11 11 A0002019819A 000 201 98 19 Gasket

14 14 A1032010139A 103 201 01 39 Flange

17 17 A1032010007A 103 201 00 07 Fan Rotor

20 20 A1032010101A 103 201 01 01 Housing

23 23 A0119973748A 011 997 37 48 Sealing Ring

26 26 N910143006003N 910143 006003 Hexalobular Bolt M6x20 (3×)

29 29 N000137006204N 000137 006204 Spring Washer (3×)

32 32 A6019920425A 601 992 04 25 Clamping Sleeve Water Pump Housing (2×)

35 35 A0159972348A 015 997 23 48 Sealing Ring Cover To Water Pump Housing

41 41 A1102000515A 110 200 05 15 Thermostat 87 Degrees;range Of Delivery

44 44 A1032030774A 103 203 07 74 Cap Thermostat

50 50 A1041591540A 104 159 15 40 Bracket From Ignition Distributor To Ignition Coil

50 50 A1041591540A 104 159 15 40 Bracket

50 50 A1041592740A 104 159 27 40 Bracket From Ignition Distributor To Ignition Coil

53 53 N000933006127N 000933 006127 Screw Cover To Water Pump Housing M6x25 (3×)

56 56 N000137006204N 000137 006204 Spring Washer Cover To Water Pump Housing To 103 203 02 74,05 74,07 74 (3×)

59 59 N000125006421N 000125 006421 Washer Cover To Water Pump Housing To 103 200 01 17,104 200 00 17 (3×)

59 59 N000125006449N 000125 006449 Washer Cover To Water Pump Housing To 103 200 01 17,104 200 00 17 (3×)

64 64 N007604008200N 007604 008200 Screw Plug Thermostat Housing Cover To 103 203 07 74

65 65 N007603008106N 007603 008106 Sealing Ring Thermostat Housing Cover To 103 203 07 74

71 71 A0055421017A 005 542 10 17 Sender Unit Cooling Water Temperature Gauge

71 71 A0055422617A 005 542 26 17 Sender Unit Cooling Water Temperature Gauge

74 74 A0095423517A 009 542 35 17 Temperature Sensor Injection System Motronic

77 77 N007604014102N 007604 014102 Screw Plug

77 77 N007604014110N 007604 014110 Screw Plug

80 80 A0085424517A 008 542 45 17 Temperature Sensor Automatic Heating & Air Conditioner

81 81 A0115425117A 011 542 51 17 Sender Unit Motronic And Coolant Temperature Indicator

87 87 N007603014100N 007603 014100 Sealing Ring

89 89 A0119972448A 011 997 24 48 Sealing Ring Water Pump To Cylinder Crankcase

92 92 N000912008203N 000912 008203 Cap Bolt Water Pump To Cylinder Crankcase M8x30 (4×)

95 95 N000137008204N 000137 008204 Spring Washer

95 95 N000137008212N 000137 008212 Spring Washer Water Pump To Cylinder Crankcase (4×)

98 98 A1264600379A 126 460 03 79 Belt Pulley

98 98 A1042300015A 104 230 00 15 Pulley

98 98 A1042300115A 104 230 01 15 Belt Pulley

~~101~~ 101 N914008008009N 914008 008009 Screw-and-washer Assembly

~~101~~ 101 A0079900801A 007 990 08 01 Screw Pulley To Water Pump M 8x14 (3×)

~~110~~ 110 A1042030431A 104 203 04 31 Fitting Outlet

~~113~~ 113 A0179972348A 017 997 23 48 Sealing Ring Outlet To Cylinder Head Front Cover

~~116~~ 116 N910143008012N 910143 008012 Hexalobular Bolt Outlet And Front Cover To Cylinder Head M8x100 (2×)

~~122~~ 122 A1042030482A 104 203 04 82 Hose From Outlet To Water Pump

~~128~~ 128 A1042001052A 104 200 10 52 Line Heating Water Return

~~134~~ 134 A0129975148A 012 997 51 48 Sealing Ring Cooling Water Line

~~137~~ 137 N914021006014N 914021 006014 Screw-and-washer Assembly Line To Water Pump M 6x14

~~140~~ 140 N914021006002N 914021 006002 Screw-and-washer Assembly

~~140~~ 140 N000000001147N 000000 001147 Hexalobular Bolt Heating Water Line To Fan Bracket M 6x20

~~146~~ 146 N900271015144N 900271 015144 Hose Feed; From Cylinder Crankcase To Oil Filter 15x22x140

~~146~~ 146 N900271015037N 900271 015037 Hose Feed; From Cylinder Crankcase To Oil Filter 15x22x140

~~146~~ 146 N900271015037N 900271 015037 Hose Feed; From Cylinder Crankcase To Oil Filter 110 Mm; To 104 200 33 01

~~146~~ 146 N900271015037N 900271 015037 Hose Feed; From Cylinder Crankcase To Oil Filter 110 Mm

~~149~~ 149 A0059970190A 005 997 01 90 Hose Clamp Hose To Cylinder Crankcase And To Oil Filter To 104 200 33 01

~~149~~ 149 A0059970190A 005 997 01 90 Hose Clamp Hose To Cylinder Crankcase And To Oil Filter

~~152~~ 152 A0049975190A 004 997 51 90 Binder Hose To Cylinder Crankcase And To Oil Filter To 104 200 33 01

~~152~~ 152 A0049975190A 004 997 51 90 Binder Hose To Cylinder Crankcase And To Oil Filter

~~155~~ 155 A1042000952A 104 200 09 52 Line Return; From Oil Filter To Water Pump To 104 200 33 01

~~158~~ 158 N000933006123N 000933 006123 Screw Cooling Water Line To Water Pump M 6x22 (2×)

~~164~~ 164 A0179978248A 017 997 82 48 Sealing Ring Cooling Water Line To Water Pump To 104 200 33 01

~~164~~ 164 A0179978248A 017 997 82 48 Sealing Ring Cooling Water Line To Water Pump

~~167~~ 167 A0219974948A 021 997 49 48 Sealing Ring Cooling Water Line To Oil Filter To 104 200 33 01

~~167~~ 167 A0219974948A 021 997 49 48 Sealing Ring Cooling Water Line To Oil Filter

~~173~~ 173 N000912006066N 000912 006066 Screw Cooling Water Line To Intake Pipe M 6x15

~~173~~ 173 N000912006066N 000912 006066 Screw Cooling Water Line To Intake Pipe M 6x14

~~176~~ 176 N000125006421N 000125 006421 Washer Cooling Water Line To Intake Pipe

~~176~~ 176 N000125006449N 000125 006449 Washer Cooling Water Line To Intake Pipe

~~179~~ 179 A1029910440A 102 991 04 40 Bearing Sleeve Cooling Water Line To Intake Pipe

~~185~~ 185 N916016015202N 916016 015202 Clamp Cooling Water Line To Intake Pipe

~~185~~ 185 A4259950001A 425 995 00 01 Clamp Cooling Water Line To Intake Pipe

030 Fan

5 5 A1032000423A 103 200 04 23 Fan

8 8 N914020006017N 914020 006017 Screw-and-washer Assembly Fan To Fan Coupling M6x14 (3×)

8 8 N000000004776N 000000 004776 Screw-and-washer Assembly Fan To Fan Coupling M6x14 (3×)

11 11 A1032000422A 103 200 04 22 Fan Drive

14 14 N000912010078N 000912 010078 Screw Fan Coupling To Fan Bracket M10x45

17 17 A1042050210A 104 205 02 10 Belt Pulley

20 20 N304017006021N 304017 006021 Hexagon Head Bolt Pulley To Fan Bracket M6x12 (4×)

23 23 A1032060076A 103 206 00 76 Disk Pulley To Fan Bracket

26 26 A1042020240A 104 202 02 40 Bracket

26 26 A1042020340A 104 202 03 40 Bracket Sheave Pulley

26 26 A1042020340A 104 202 03 40 Bracket On Sheave Pulley Bracket

29 29 A1042020053A 104 202 00 53 Spacer Tube Bracket To Fan Bearing Bracket

29 29 A1042020053A 104 202 00 53 Spacer Tube Spacer Tube To Bearing Bracket

32 32 N000912008075N 000912 008075 Screw Bracket To Fan Bearing Bracket M8x115

32 32 N000912008075N 000912 008075 Screw Fan Bracket To Timing Case Cover M 8x115

35 35 N304017008027N 304017 008027 Hexagon Head Bolt Bracket To Fan Bearing Bracket M8x30

35 35 N914007008010N 914007 008010 Screw-and-washer Assembly Fan Bracket To Timing Case Cover M 8x30

38 38 N000125008443N 000125 008443 Washer Bracket To Fan Bearing Bracket

44 44 A6012001070A 601 200 10 70 Belt Tensioner Pulley (sheave Pulley)

47 47 N000912008025N 000912 008025 Cap Bolt Sheave Pulley To Fan Bracket M8x40

50 50 A6012020522A 601 202 05 22 Closing Cover Sheave Pulley

53 53 A1042001328A 104 200 13 28 Bearing Bracket

59 59 N000931008254N 000931 008254 Screw

59 59 N304014008002N 304014 008002 Hexagon Head Bolt Fan Bracket To Timing Case Cover M8x65 (2×)

59 59 N000933008134N 000933 008134 Screw Fan Bracket To Timing Case Cover M8x80 (2×)

62 62 N000137008212N 000137 008212 Spring Washer Fan Bracket To Timing Case Cover (4×)

045 Belt Tightener

5 5 A1032000870A 103 200 08 70 Belt Tensioner

8 8 A1032000570A 103 200 05 70 Belt Tensioner Pulley Belt Tightener Pulley

11 11 N006912008014N 006912 008014 Screw Tightener Pulley To Lever M 8x40

12 12 A6012020522A 601 202 05 22 Closing Cover Tightener Pulley

17 17 A1032000114A 103 200 01 14 Shock Absorber

20 20 N000933007037N 000933 007037 Screw Shock Absorber To Belt Tightener M7x35

20 20 N304017008018N 304017 008018 Hexagon Head Bolt Shock Absorber To Front Cover M 8x35

23 23 N009021008213N 009021 008213 Washer Shock Absorber To Belt Tightener

26 26 N009021008213N 009021 008213 Washer Shock Absorber To Front Cover

32 32 A1032000236A 103 200 02 36 Tension Rod

35 35 A1022020174A 102 202 01 74 Pin

38 38 N006799005002N 006799 005002 Circlip

38 38 N006799005004N 006799 005004 Circlip

41 41 A1032020172A 103 202 01 72 Nut (clamping Piece) Belt Tightener Pulley To Support

44 44 A1022020192A 102 202 01 92 Adjustment Pointer

50 50 A1032021440A 103 202 14 40 Bracket Belt Tightener

51 51 A1032020353A 103 202 03 53 Spacer Tube Belt Tightener

53 53 A1042020040A 104 202 00 40 Bracket Belt Tightener

56 56 N000912012116N 000912 012116 Screw Belt Tightener To Power Steering Pump Support M 12x120

59 59 A1039900040A 103 990 00 40 Disk Belt Tightener To Power Steering Pump Support

60 60 N914007008017N 914007 008017 Screw-and-washer Assembly Bracket And Timing Case Cover To Cylinder Crankcase M 8x60

~~100~~ 100 A1042000870A 104 200 08 70 Belt Tensioner

~~103~~ 103 N910143008003N 910143 008003 Hexalobular Bolt Belt Tightener To Support M 8x30 (3×)

~~106~~ 106 A1192001470A 119 200 14 70 Belt Tensioner Pulley 92 Mm

~~109~~ 109 A1119900053A 111 990 00 53 Nut Belt Tightener Pulley To Belt Tightener

~~109~~ 109 A0039900750A 003 990 07 50 Hexagon Nut W Flange Belt Tightener Pulley To Belt Tightener

-- XXXXXXXXXXXXXX XXXXXXXXXXXX Part Name Missing For V-belt,see Group 13

22 Engine Suspension

010 Engine Supports And Attachment Parts

5 5 A6032233904A 603 223 39 04 Engine Support

5 5 A6032232604A 603 223 26 04 Engine Mount

5 5 A6032236004A 603 223 60 04 Engine Support Left

5 5 A6032236104A 603 223 61 04 Engine Support Left

5 5 A6032234604A 603 223 46 04 Engine Support

5 5 A6032236204A 603 223 62 04 Engine Mount Right

17 17 N910143008003N 910143 008003 Hexalobular Bolt Engine Support To Cylinder Crankcase (8×)

20 20 A1042231441A 104 223 14 41 Suspension Eye Front

26 26 A1042201041A 104 220 10 41 Lifting Device Left Rear Suspension Eye And Heating Feed

35 35 A0129975148A 012 997 51 48 Sealing Ring Line To Cylinder Head

38 38 N000912008009N 000912 008009 Screw

38 38 N000912008200N 000912 008200 Cap Bolt

38 38 N000912008219N 000912 008219 Cap Bolt Rear Suspension Eye To Cylinder Head (2×)

24 Engine Suspension

015 Engine Suspension

5 5 A1242402217A 124 240 22 17 Engine Support Front Left; Only Used With Air Conditioner

5 5 A2012404317A 201 240 43 17 Engine Mounting

5 5 A1242401917A 124 240 19 17 Engine Support Front (2×)

14 14 A1242411534A 124 241 15 34 Screening Plate Right Front Rubber Mounting

20 20 N914007010014N 914007 010014 Screw-and-washer Assembly Engine Front Mounting To Engine Support (2×)

26 26 A2019900912A 201 990 09 12 Screw Engine Front Mounting To Front Subframe (2×)

30 30 N304017006020N 304017 006020 Hexagon Head Bolt Screening Plate To Engine Support, Front Right

31 31 N000125006421N 000125 006421 Washer

31 31 N000125006449N 000125 006449 Washer Abschirmblech An Motortraeger Vorn Rechts

32 32 A1242420501A 124 242 05 01 Engine Mount Rear

38 38 A1242400618A 124 240 06 18 Engine Support Engine Rear Support

62 62 A1242420026A 124 242 00 26 Shim Engine Mounting To Transmission

71 71 A1249900401A 124 990 04 01 Screw Engine Mounting To Engine Support (2×)

74 74 N007349010007N 007349 010007 Washer Engine Rear Support To Floor

77 77 N000933010164N 000933 010164 Screw Engine Rear Support To Floor

25 Clutch

015 Clutch

20 20 N914007010071N 914007 010071 Screw-and-washer Assembly

20 20 N914007010063N 914007 010063 Screw-and-washer Assembly Transmission To Crankcase (6×)

23 23 N304017010035N 304017 010035 Hexagon Head Bolt Transmission To Engine Oil Pan M10x45 (2×)

25 Clutch

015 Clutch

20 20 N914007010071N 914007 010071 Screw-and-washer Assembly

20 20 N914007010063N 914007 010063 Screw-and-washer Assembly Transmission To Crankcase (6×)

23 23 N914007010016N 914007 010016 Screw-and-washer Assembly

23 23 N304017010035N 304017 010035 Hexagon Head Bolt Transmission To Engine Oil Pan M10x45 (2×)

26 Gearshift Mechanism

030 Floor Shift Used With Manual Fivespeed Transmission

-- Q000000000001Q 000000000001 Important Information For Transmission,see Microfiche No.: Mech.359 Autom.406 (99×)

075 Floor Shift Used With Automatic Fourspeed Transmission

5 5 A1292670637A 129 267 06 37 Bearing Bracket

8 8 A1242600738A 124 260 07 38 Shaft

17 17 A1159920310A 115 992 03 10 Bushing

30 30 A1242606737A 124 260 67 37 Lever (lock-out Lever),brake

32 32 N001444006106N 001444 006106 Pin (lock-out Lever),brake

35 35 N000137006204N 000137 006204 Spring Washer (lock-out Lever),brake

38 38 A1242606937A 124 260 69 37 Lever (lock-out Lever),steering Lock

41 41 A1292670274A 129 267 02 74 Eccentric Bolt (lock-out Lever),steering Lock

44 44 N913001006003N 913001 006003 Nut

47 47 A1242670740A 124 267 07 40 Bracket

48 48 A1249930915A 124 993 09 15 Spring

50 50 N914128004300N 914128 004300 Tapping Screw

53 53 A1242670676A 124 267 06 76 Disk (cam Plate)

56 56 A1249945241A 124 994 52 41 Securing

59 59 A1242671040A 124 267 10 40 Bracket

62 62 A1262670123A 126 267 01 23 Yoke

65 65 A1152670174A 115 267 01 74 Pin Shift Lever Bearing

68 68 A1152670950A 115 267 09 50 Bushing (2×)

71 71 A1299930020A 129 993 00 20 Retracting Spring

74 74 N006799005002N 006799 005002 Circlip (2×)

74 74 N006799005004N 006799 005004 Circlip (2×)

83 83 A1292671047A 129 267 10 47 Gear Shifting Gate Economy Drive Program

83 83 A2012671547A 201 267 15 47 Gate

95 95 A1295400349A 129 540 03 49 Illumination Slotted Gate Lighting

98 98 A2015450042A 201 545 00 42 Connecting Drum

~~101~~ 101 A1245450237A 124 545 02 37 Knob

~~107~~ 107 A1292670097A 129 267 00 97 Bellow

~~110~~ 110 A1295450011A 129 545 00 11 Switch

~~116~~ 116 N072601012230N 072601 012230 Bulb W5/1,2-12v 1,2w

~~119~~ 119 A1242670288A 124 267 02 88 Cover

~~122~~ 122 A1242671310A 124 267 13 10 Handle Range Selector Lever

~~122~~ 122 B66268117B6 6 26 8117 Handle Gearshift Lever With Leather Cover

~~125~~ 125 N070616010003N 070616 010003 Nut Range Selector Lever

~~128~~ 128 A2012671676A 201 267 16 76 Sealing Washer

~~131~~ 131 A2012670380A 201 267 03 80 Sealing Shim Bearing Bracket To Tunnel

~~137~~ 137 A1245844638A 124 584 46 38 Gummed Label In German

~~137~~ 137 A1245844738A 124 584 47 38 Sticker In English

~~137~~ 137 A1245844838A 124 584 48 38 Gummed Label In French

~~137~~ 137 A1245844938A 124 584 49 38 Gummed Label In Spanish

~~137~~ 137 A1245845038A 124 584 50 38 Gummed Label In Portuguese

~~137~~ 137 A1245845238A 124 584 52 38 Gummed Label In Dutch

~~137~~ 137 A1245845338A 124 584 53 38 Gummed Label In Danish

~~137~~ 137 A1245845438A 124 584 54 38 Sticker In Swedish

~~137~~ 137 A1245845538A 124 584 55 38 Gummed Label In Finnish

~~137~~ 137 A1245845638A 124 584 56 38 Gummed Label In Serbo-croatian

~~137~~ 137 A1245845738A 124 584 57 38 Sticker In Arabian

~~137~~ 137 A1245845838A 124 584 58 38 Sticker In Italian

~~140~~ 140 A1242600251A 124 260 02 51 Wire Cable

~~140~~ 140 A1242600451A 124 260 04 51 Wire Pull Pedal Assembly To Lock-out Lever

~~143~~ 143 A1242670264A 124 267 02 64 Wire Pull Steering Lock To Locking Lever

~~146~~ 146 A1242670840A 124 267 08 40 Bracket (2×)

~~149~~ 149 A0019974390A 001 997 43 90 Loom Tie

~~152~~ 152 N916016005100N 916016 005100 Clamp Wire Cable To Floor Shift Mechanism

~~155~~ 155 N007976004211N 007976 004211 Tapping Screw Wire Cable To Floor Shift Mechanism

~~161~~ 161 A1242670206A 124 267 02 06 Cap

~~170~~ 170 N914130006106N 914130 006106 Screw Bearing Bracket To Tunnel (4×)

~~173~~ 173 A1242602933A 124 260 29 33 Shifting Rod

~~179~~ 179 N070616010004N 070616 010004 Nut

~~188~~ 188 A1159920310A 115 992 03 10 Bushing Range Selector Lever

~~194~~ 194 A0009944160A 000 994 41 60 Pin Lock Shifting Rod (2×)

090 Floor Shift Used With Automatic Fivespeed Transmission

27 722.4 Mercedes-benz Aut.transmission

015 Transmission Assembly & Torque Converter

1 1 A2022500002A 202 250 00 02 Converter

1 1 A2022500802A 202 250 08 02 Converter 270 Mm

10 10 N007603010100N 007603 010100 Seal Ring

20 20 N000908010004N 000908 010004 Screw Plug

20 20 N000000000648N 000000 000648 Screw Plug, Filling

30 30 A1249902201A 124 990 22 01 Screw Driven Disc To Converter M 8x18 (6×)

40 40 A1262570040A 126 257 00 40 Bracket Converter Housing

50 50 N914007010007N 914007 010007 Combination Bolt

50 50 N914007010071N 914007 010071 Combination Bolt

50 50 N914007010063N 914007 010063 Combination Bolt Transmission To Crankcase (6×)

50 50 N914007010012N 914007 010012 Combination Bolt

50 50 N914007010058N 914007 010058 Combination Bolt

50 50 N304017010035N 304017 010035 Hexagon Head Bolt Transmission To Engine Oil Pan M10x45 (2×)

60 60 A1242703302A 124 270 33 02 Automatic Transmission

60 60 A1242704202A 124 270 42 02 Automatic Transmission

70 70 A2012704801A 201 270 48 01 Gasket Kit Transmission

030 Interior Transmission Parts

1 1 A1232700097A 123 270 00 97 Oil Pump Primary Pump

5 5 A1232770166A 123 277 01 66 Washer

10 10 A1232770066A 123 277 00 66 Washer

10 10 A0079817201A 007 981 72 01 Cylindr. Roller Bearing

15 15 A0129817410A 012 981 74 10 Needle Bearing

15 15 A0079817201A 007 981 72 01 Cylindr. Roller Bearing

20 20 A0109974347A 010 997 43 47 Seal Ring

20 20 A0109974447A 010 997 44 47 Seal Ring

20 20 A0109974647A 010 997 46 47 Seal Ring

20 20 A0189970347A 018 997 03 47 Seal Ring

20 20 A0109974547A 010 997 45 47 Seal Ring

20 20 A0099978247A 009 997 82 47 Seal Ring

25 25 A0079978848A 007 997 88 48 Seal Ring

25 25 A0169971348A 016 997 13 48 Seal Ring

30 30 A2012700205A 201 270 02 05 Cover Front

35 35 N000933008168N 000933 008168 Screw Pump Housing To Cover (5×)

40 40 N000137008204N 000137 008204 Spring Washer

40 40 N000137008212N 000137 008212 Spring Washer Pump Housing To Cover (5×)

50 50 N914005008029N 914005 008029 Combination Bolt

50 50 N914005008049N 914005 008049 Combination Bolt

50 50 N304017008040N 304017 008040 Screw

50 50 N910105008010N 910105 008010 Screw

50 50 N910143008005N 910143 008005 Screw Cover To Transmission Case (9×)

55 55 A1232710080A 123 271 00 80 Gasket

55 55 A2012710480A 201 271 04 80 Gasket Front Cover

55 55 A2022710080A 202 271 00 80 Gasket Front Cover

60 60 A2012720531A 201 272 05 31 Piston Reverse Speed

65 65 A1232720192A 123 272 01 92 Boot Outside

70 70 A1232720292A 123 272 02 92 Boot Inside

75 75 A1239934401A 123 993 44 01 Spring Reverse Speed (20×)

80 80 A1232720264A 123 272 02 64 Spring Retainer Reverse Speed

85 85 A1239941235A 123 994 12 35 Snap Ring Reverse Speed

90 90 A2012720155A 201 272 01 55 Seal Ring Front Cover (2×)

95 95 A2012700025A 201 270 00 25 Drive Shaft

~~100~~ 100 A1232720655A 123 272 06 55 Seal Ring Drive Shaft

~~105~~ 105 A0109812110A 010 981 21 10 Needle Bearing Axial

~~110~~ 110 A2022700343A 202 270 03 43 Planetary Carrier

~~110~~ 110 A2022700243A 202 270 02 43 Planetary Carrier Front

~~115~~ 115 A0109812110A 010 981 21 10 Needle Bearing Axial

~~120~~ 120 A2012720025A 201 272 00 25 Inner Disc Reverse Speed 2.1 Mm (4×)

~~125~~ 125 A2012721226A 201 272 12 26 Outer Disc

~~125~~ 125 A2012722126A 201 272 21 26 Outer Disc As Required 3.0 Mm (3×)

~~125~~ 125 A2012722526A 201 272 25 26 Outer Disc As Required 2.5 Mm (3×)

~~125~~ 125 A2012722326A 201 272 23 26 Outer Disc End Disc Lb 3

~~125~~ 125 A2012722126A 201 272 21 26 Outer Disc As Required 3.0 Mm

~~125~~ 125 A2012722226A 201 272 22 26 Outer Disc As Required 3.5 Mm

~~125~~ 125 A2012722626A 201 272 26 26 Outer Disc As Required 4.0 Mm

~~130~~ 130 A2019930926A 201 993 09 26 Disc Spring Reverse Speed

~~132~~ 132 A2012720084A 201 272 00 84 Shim Conical Spring Washer Lb 3

~~135~~ 135 A1239930415A 123 993 04 15 Spring

~~135~~ 135 A1239930515A 123 993 05 15 Spring Reverse Speed

~~140~~ 140 A2012704328A 201 270 43 28 Disc Support Clutch K1

~~145~~ 145 A1232720550A 123 272 05 50 Bushing Sun Gear

~~150~~ 150 A0099816110A 009 981 61 10 Needle Bearing

~~160~~ 160 A2012720031A 201 272 00 31 Piston Clutch K1

~~165~~ 165 A1232720092A 123 272 00 92 Boot Inside

~~170~~ 170 A1092720892A 109 272 08 92 Boot Outside

~~175~~ 175 A2019932101A 201 993 21 01 Spring Clutch K1 (24×)

~~180~~ 180 A2012720064A 201 272 00 64 Spring Retainer Clutch K1

~~185~~ 185 A1239941235A 123 994 12 35 Snap Ring Clutch K1

~~190~~ 190 A1239930826A 123 993 08 26 Disc Spring

~~190~~ 190 A2019930726A 201 993 07 26 Disc Spring Clutch K1

~~200~~ 200 A1232720225A 123 272 02 25 Inner Disc Clutch K1 2.14 Mm (5×)

~~210~~ 210 A2012720726A 201 272 07 26 Outer Disc Clutch K1 2.0 Mm

~~210~~ 210 A2012720926A 201 272 09 26 Outer Disc As Required 3.5 Mm (4×)

~~210~~ 210 A2012720826A 201 272 08 26 Outer Disc As Required 3.0 Mm (4×)

~~210~~ 210 A2012721126A 201 272 11 26 Outer Disc Clutch K1 4.5 Mm

~~215~~ 215 A1249940234A 124 994 02 34 Snap Ring As Required 2,0 Mm

~~215~~ 215 A1249940334A 124 994 03 34 Snap Ring As Required 2.5 Mm

~~215~~ 215 A1249940434A 124 994 04 34 Snap Ring As Required 3.0 Mm

~~220~~ 220 A1232720552A 123 272 05 52 Spacer Washer As Required 0.1 Mm

~~220~~ 220 A1232720652A 123 272 06 52 Spacer Washer As Required 0.2 Mm

~~220~~ 220 A1232720752A 123 272 07 52 Spacer Washer As Required 0.5 Mm

~~225~~ 225 A1232720462A 123 272 04 62 Guard Plate

~~226~~ 226 A0109812110A 010 981 21 10 Needle Bearing Axial

~~230~~ 230 A2012700343A 201 270 03 43 Planetary Carrier

~~230~~ 230 A2022700143A 202 270 01 43 Planetary Carrier Rear

~~235~~ 235 A0089810010A 008 981 00 10 Needle Bearing

~~240~~ 240 A0079819910A 007 981 99 10 Needle Bearing Axial (2×)

~~245~~ 245 A1232720207A 123 272 02 07 Sun Gear

~~250~~ 250 A0109812010A 010 981 20 10 Needle Bearing

~~255~~ 255 A1232701131A 123 270 11 31 Freewheel Unit

~~255~~ 255 A1232701531A 123 270 15 31 Freewheel Unit

~~260~~ 260 A0099976348A 009 997 63 48 Seal Ring Outside Ring,freewheel Unit

~~265~~ 265 A1232700076A 123 270 00 76 Washer

~~270~~ 270 A1232720362A 123 272 03 62 Guard Plate Cylindrical Roller

~~275~~ 275 A1232720062A 123 272 00 62 Guard Plate

~~275~~ 275 A2012720162A 201 272 01 62 Guard Plate Freewheel

~~280~~ 280 A0099976248A 009 997 62 48 Seal Ring Outside Ring,freewheel Unit

~~285~~ 285 A1232700628A 123 270 06 28 Disc Support Inside K 2

~~290~~ 290 A1232720908A 123 272 09 08 Connection Support

~~295~~ 295 A1232720152A 123 272 01 52 Spacer Washer As Required 0.1 Mm

~~295~~ 295 A1232720252A 123 272 02 52 Spacer Washer As Required 0.2 Mm

~~295~~ 295 A1232720352A 123 272 03 52 Spacer Washer As Required 0.5 Mm

~~300~~ 300 A1239940140A 123 994 01 40 Snap Ring Freewheel Unit To Annulus

~~300~~ 300 A1239940140A 123 994 01 40 Snap Ring Front Planetary Carrier To Annulus

~~310~~ 310 A2012703328A 201 270 33 28 Disc Support

~~310~~ 310 A2022701428A 202 270 14 28 Disc Support Clutch K2

~~312~~ 312 A0129815810A 012 981 58 10 Needle Bearing Clutch K2

~~315~~ 315 A0099816110A 009 981 61 10 Needle Bearing Clutch K2

~~320~~ 320 A1232720531A 123 272 05 31 Piston Clutch K2

~~325~~ 325 A2012720055A 201 272 00 55 Seal Ring Clutch K2

~~330~~ 330 A1232720092A 123 272 00 92 Boot Clutch K2

~~335~~ 335 A1239934301A 123 993 43 01 Spring Clutch K2 (20×)

~~340~~ 340 A1232720164A 123 272 01 64 Spring Retainer Clutch K2

~~345~~ 345 A1269940435A 126 994 04 35 Snap Ring Clutch K2

~~350~~ 350 A1232720125A 123 272 01 25 Inner Disc Clutch K2 2.14 Mm (5×)

~~355~~ 355 A2012720126A 201 272 01 26 Outer Disc Clutch K2 2.0 Mm

~~355~~ 355 A2012720226A 201 272 02 26 Outer Disc As Required 3.0 Mm (4×)

~~355~~ 355 A2012720326A 201 272 03 26 Outer Disc As Required 3.5 Mm (4×)

~~355~~ 355 A2012720526A 201 272 05 26 Outer Disc Clutch K2 4.5 Mm

~~360~~ 360 A1239940340A 123 994 03 40 Snap Ring As Required 2.0 Mm

~~360~~ 360 A1239940840A 123 994 08 40 Snap Ring As Required 2.5 Mm

~~360~~ 360 A1239940940A 123 994 09 40 Snap Ring As Required . Mm

~~365~~ 365 A1232720645A 123 272 06 45 Flange

~~365~~ 365 A2022720245A 202 272 02 45 Flange

~~365~~ 365 A2022720545A 202 272 05 45 Flange

~~370~~ 370 A0069977548A 006 997 75 48 Seal Ring

~~370~~ 370 A0209970448A 020 997 04 48 Seal Ring Clutch K2

~~375~~ 375 A1262720955A 126 272 09 55 Seal Ring Clutch K2 (2×)

~~380~~ 380 N000933006123N 000933 006123 Screw Flange To Transmission Case (5×)

~~385~~ 385 N000125006421N 000125 006421 Washer Flange To Transmission Case (5×)

~~385~~ 385 N000125006449N 000125 006449 Washer Flange To Transmission Case (5×)

~~390~~ 390 A1232720162A 123 272 01 62 Guard Plate Flange K2

045 Transmission Case,vacuum Box, Solenoid Valve,control Pressure Cable

1 1 A2012700311A 201 270 03 11 Transmission Case

1 1 A2012700611A 201 270 06 11 Transmission Case

1 1 A2012700711A 201 270 07 11 Transmission Case

5 5 A1269910001A 126 991 00 01 Pin Pawl

10 10 N000007010201N 000007 010201 Cylindrical Pin

15 15 N000007010102N 000007 010102 Cylindrical Pin (2×)

20 20 A0069970147A 006 997 01 47 Seal Ring Range Selector

20 20 A0099974847A 009 997 48 47 Seal Ring Range Selector

25 25 A1262770850A 126 277 08 50 Bushing Brake Band B2

30 30 A0069977347A 006 997 73 47 Seal Ring Brake Band B2

35 35 N005401310000N 005401 310000 Ball

55 55 A1159970630A 115 997 06 30 Screw Plug (3×)

60 60 N007603008105N 007603 008105 Seal Ring (3×)

65 65 A2012710384A 201 271 03 84 Oil Pipe Speedometer Drive

70 70 A0119971448A 011 997 14 48 Seal Ring Oil Pipe

75 75 A1262701050A 126 270 10 50 Bushing (temperature Throttle Bushing) Rot

77 77 A1262770042A 126 277 00 42 Oil Deflector

77 77 A1402770042A 140 277 00 42 Oil Deflector Transmission Case

90 90 A1262702579A 126 270 25 79 Vacuum Box

90 90 A1262704379A 126 270 43 79 Vacuum Box Schwarz

95 95 A1262770081A 126 277 00 81 Covering

~~100~~ 100 A1262770440A 126 277 04 40 Bracket

~~105~~ 105 A0149971148A 014 997 11 48 Seal Ring

~~110~~ 110 A1262772075A 126 277 20 75 Pin Vacuum Box

~~110~~ 110 A1262779375A 126 277 93 75 Pin Vacuum Box

~~111~~ 111 A1262709079A 126 270 90 79 Vacuum Box

~~111~~ 111 A1262709179A 126 270 91 79 Vacuum Box Parts Kit Schwarz

~~112~~ 112 A0139972348A 013 997 23 48 Seal Ring

~~113~~ 113 A1262777540A 126 277 75 40 Bracket

~~114~~ 114 A1269870745A 126 987 07 45 Locking Cap

~~115~~ 115 A0149971148A 014 997 11 48 Seal Ring

~~116~~ 116 A1262778675A 126 277 86 75 Pin Vacuum Box

~~117~~ 117 A1232771031A 123 277 10 31 Piston Modulation Pressure

~~120~~ 120 A1262772140A 126 277 21 40 Bracket Vacuum Box

~~125~~ 125 N914020006000N 914020 006000 Combination Bolt

~~125~~ 125 A0019909312A 001 990 93 12 Screw (2×)

~~130~~ 130 A0003042390A 000 304 23 90 Solenoid (magnet Coil)

~~130~~ 130 A0003042790A 000 304 27 90 Solenoid (magnet Coil)

~~135~~ 135 A0003042290A 000 304 22 90 Solenoid (magnet Frame)

~~135~~ 135 A0003042890A 000 304 28 90 Solenoid (magnet Frame)

~~140~~ 140 A0089973148A 008 997 31 48 Seal Ring

~~145~~ 145 A0089973048A 008 997 30 48 Seal Ring

~~150~~ 150 A0019973548A 001 997 35 48 Seal Ring

~~155~~ 155 A1153040160A 115 304 01 60 Seal Ring

~~160~~ 160 A1262700182A 126 270 01 82 Breather

~~165~~ 165 A0059977848A 005 997 78 48 Seal Ring

~~235~~ 235 A2013000325A 201 300 03 25 Lever Control Pressure

~~235~~ 235 A1242700259A 124 270 02 59 Lever Control Pressure

~~245~~ 245 A1232780174A 123 278 01 74 Pin Control Pressure

~~250~~ 250 A0059977748A 005 997 77 48 Seal Ring

~~250~~ 250 A0179977348A 017 997 73 48 Seal Ring Control Pressure

~~255~~ 255 A0169970448A 016 997 04 48 Seal Ring Cable

~~260~~ 260 A1242701973A 124 270 19 73 Cable With Control Pressure Limit Valve

~~260~~ 260 A1242701673A 124 270 16 73 Cable With Cable Actuator & Selection Program

~~265~~ 265 A1409970020A 140 997 00 20 Expansion Plug Cable

~~270~~ 270 A1409930015A 140 993 00 15 Spring Cable Actuator To Transmission Case

~~275~~ 275 A1402770471A 140 277 04 71 Screw Cable To Transmission Case

~~280~~ 280 N912001012000N 912001 012000 Lock Cable

~~285~~ 285 A0009871145A 000 987 11 45 Locking Cap

060 Brake Band,brake Band Piston, Transmission Overload Protector Switch

5 5 A2012701062A 201 270 10 62 Brake Band B2

10 10 A0059978148A 005 997 81 48 Seal Ring

10 10 A0169973648A 016 997 36 48 Seal Ring Reaction Valve,brake Band B2

15 15 A1262703389A 126 270 33 89 Valve (reaction Valve) B2

20 20 A1262775175A 126 277 51 75 Pin Reaction Valve,brake Band B2

25 25 A1262771158A 126 277 11 58 Seal Holder

25 25 A1402770151A 140 277 01 51 Spacer Ring Reaction Valve,brake Band B2

30 30 A1232772475A 123 277 24 75 Pin As Required B2; 41.7 Mm

30 30 A1232772575A 123 277 25 75 Pin As Required B2; 42.5 Mm

30 30 A1232772675A 123 277 26 75 Pin As Required B2; 43.3 Mm

30 30 A1232772775A 123 277 27 75 Pin As Required B2; 44.10 Mm

30 30 A1232772875A 123 277 28 75 Pin As Required B2; 44.9 Mm

30 30 A1232773975A 123 277 39 75 Pin As Required B2; 46.0 Mm

35 35 A2012700232A 201 270 02 32 Piston Brake Band B2

40 40 A1262770955A 126 277 09 55 Seal Ring

45 45 N000472025000N 000472 025000 Lock Ring

50 50 A2012770155A 201 277 01 55 Seal Ring

50 50 A2022770055A 202 277 00 55 Seal Ring

50 50 A2022770155A 202 277 01 55 Seal Ring

55 55 N912009037100N 912009 037100 Snap Ring

60 60 A1232770103A 123 277 01 03 Cover Brake Band B2

65 65 A0089976648A 008 997 66 48 Seal Ring

70 70 A1239941535A 123 994 15 35 Snap Ring

75 75 A2012770240A 201 277 02 40 Bracket Brake Band B2

80 80 A1242700062A 124 270 00 62 Brake Band B1

85 85 A2022700013A 202 270 00 13 Valve (reaction Valve) B1

90 90 A1262770975A 126 277 09 75 Pin

95 95 A1262771158A 126 277 11 58 Seal Holder

95 95 A1402770151A 140 277 01 51 Spacer Ring

~~100~~ 100 A0059978048A 005 997 80 48 Seal Ring

~~105~~ 105 A0109970845A 010 997 08 45 Seal Ring

~~105~~ 105 A0169973448A 016 997 34 48 O-ring

~~113~~ 113 A0025454514A 002 545 45 14 Switch Transmission Overload Protector

~~116~~ 116 A0169973548A 016 997 35 48 Seal Ring

~~120~~ 120 A1232770840A 123 277 08 40 Bracket Brake Band B1

~~125~~ 125 A1239934901A 123 993 49 01 Spring Brake Band Piston B1, 124.7 Mm

~~130~~ 130 A1239935001A 123 993 50 01 Spring Brake Band Piston B1, 113.1 Mm

~~135~~ 135 A2012700332A 201 270 03 32 Piston Brake Band B1

~~136~~ 136 A0009970248A 000 997 02 48 Seal Ring

~~138~~ 138 A1262778975A 126 277 89 75 Pin

~~140~~ 140 N000988008026N 000988 008026 Fitted Washer 0,2 Mm

~~140~~ 140 N000988008028N 000988 008028 Fitted Washer 0,3 Mm

~~140~~ 140 N000988008015N 000988 008015 Fitted Washer 0,5 Mm

~~140~~ 140 N000988008006N 000988 008006 Fitted Washer 1,0 Mm

~~140~~ 140 N000988008024N 000988 008024 Fitted Washer 1,5 Mm

~~150~~ 150 A1232770092A 123 277 00 92 Boot

~~155~~ 155 A1232770203A 123 277 02 03 Cover Brake Band Piston B1

~~160~~ 160 A1239970345A 123 997 03 45 Seal Ring Brake Band Piston B1

~~170~~ 170 A1239941435A 123 994 14 35 Snap Ring Brake Band Piston B1

075 Declutching-start/back-up-light Switches,centrifugal Governor

5 5 A2012700051A 201 270 00 51 Shaft Range Selector

10 10 N914020006002N 914020 006002 Combination Bolt Detent Plate To Range Selector Shaft

15 15 A1262700278A 126 270 02 78 Spring Detent-plate Leaf Spring

20 20 A1262780340A 126 278 03 40 Bracket Detent-plate Leaf Spring

25 25 A1269910310A 126 991 03 10 Pin Detent-plate Leaf Spring

30 30 N000137006204N 000137 006204 Spring Washer Leaf Spring To Transmission Case

35 35 N000933006158N 000933 006158 Screw Leaf Spring To Transmission Case

40 40 A1235404445A 123 540 44 45 Switch

40 40 A0005404745A 000 540 47 45 Switch Starter Non-repeat And Back-up Light Switch

45 45 A1235451044A 123 545 10 44 Lever Starter Non-repeat And Back-up Light Switch To 000 540 47 45

50 50 N000137006204N 000137 006204 Spring Washer Switch To Transmission Case (2×)

55 55 N000933006102N 000933 006102 Screw

55 55 N304017006016N 304017 006016 Screw Switch To Transmission Case (2×)

60 60 N000125006421N 000125 006421 Washer Switch To Transmission Case (2×)

60 60 N000125006449N 000125 006449 Washer Switch To Transmission Case (2×)

65 65 A1262700457A 126 270 04 57 Detent Range Selector

70 70 A1262780017A 126 278 00 17 Roller Parking Interlock

75 75 A1262776077A 126 277 60 77 Guide Parking Interlock

80 80 A1262710494A 126 271 04 94 Shim Parking Interlock

~~130~~ 130 A2022770003A 202 277 00 03 Cover

~~135~~ 135 A2022770180A 202 277 01 80 Gasket

~~140~~ 140 N000912006040N 000912 006040 Screw (4×)

~~145~~ 145 A2012740015A 201 274 00 15 Helical Gear Driving

~~150~~ 150 A1242700374A 124 270 03 74 Governor

~~150~~ 150 A1242700174A 124 270 01 74 Governor Centrifugal Governor

~~155~~ 155 N001481003509N 001481 003509 Clamping Sleeve

~~160~~ 160 A2012740315A 201 274 03 15 Helical Gear Centrifugal Governor

~~165~~ 165 N912009020100N 912009 020100 Snap Ring

~~170~~ 170 A1232770173A 123 277 01 73 Lock

~~175~~ 175 A1262700008A 126 270 00 08 Cover Centrifugal Governor

~~180~~ 180 A0059978748A 005 997 87 48 Seal Ring

~~180~~ 180 A0169973948A 016 997 39 48 Seal Ring Centrifugal Governor Cover

~~185~~ 185 A1269940235A 126 994 02 35 Snap Ring Centrifugal Governor Cover

~~190~~ 190 A1269940335A 126 994 03 35 Snap Ring Output Shaft (2×)

090 Rear Transmission Case

5 5 A1262722952A 126 272 29 52 Spacer Washer As Required 0.1 Mm

5 5 A1262723052A 126 272 30 52 Spacer Washer As Required 0.2 Mm

5 5 A1262723152A 126 272 31 52 Spacer Washer As Required 0.5 Mm

10 10 A1232720017A 123 272 00 17 Gear Parking Interlock

15 15 A2012780121A 201 278 01 21 Pawl Parking Interlock

20 20 A2019930220A 201 993 02 20 Spring Pawl

25 25 A1262720253A 126 272 02 53 Spacer Tube

30 30 A2012740230A 201 274 02 30 Drive Gear Speedometer Drive

35 35 A2012700011A 201 270 00 11 Transmission Case Rear

40 40 N000625900201N 000625 900201 Grooved Ball Bearing

45 45 A0039945241A 003 994 52 41 Lock As Required 2.0 Mm

45 45 A0039945341A 003 994 53 41 Lock As Required 2.1 Mm

45 45 A0039945441A 003 994 54 41 Lock As Required 2.2 Mm

50 50 A0129978747A 012 997 87 47 Seal Ring

55 55 A2012740031A 201 274 00 31 Driven Gear Speedometer Drive

60 60 A1232700027A 123 270 00 27 Speedometer Drive

65 65 A0089979047A 008 997 90 47 Seal Ring

80 80 A1239941135A 123 994 11 35 Snap Ring

85 85 A1262710880A 126 271 08 80 Gasket

85 85 A2012710180A 201 271 01 80 Gasket Rear Transmission Case

90 90 N000933008150N 000933 008150 Screw

90 90 N304017008018N 304017 008018 Screw Rear Transmission Case (6×)

95 95 N000933008134N 000933 008134 Screw Rear Transmission Case (3×)

~~100~~ 100 N000137008204N 000137 008204 Spring Washer

~~100~~ 100 N000137008212N 000137 008212 Spring Washer Rear Transmission Case (9×)

~~105~~ 105 A1162720076A 116 272 00 76 Washer Output Shaft

~~110~~ 110 A1242721345A 124 272 13 45 Flange

~~110~~ 110 A1242721445A 124 272 14 45 Flange Joint Flange 100 Mm

~~115~~ 115 A0099976548A 009 997 65 48 Seal Ring

~~115~~ 115 A0189971948A 018 997 19 48 Seal Ring Joint Flange

~~120~~ 120 A1239900060A 123 990 00 60 Nut Output Shaft

120 Valve Body Assembly,oil Pan,gasket Kit

5 5 A1242702205A 124 270 22 05 Cover Bottom

20 20 A1232770694A 123 277 06 94 Reinforcement Bottom Cover

25 25 N007985005505N 007985 005505 Screw (4×)

30 30 A1242770480A 124 277 04 80 Gasket (oil Separator Plate)

35 35 A1242773614A 124 277 36 14 Intermediate Plate

40 40 A1262700229A 126 270 02 29 Oil Guide

45 45 A1262700198A 126 270 01 98 Filter

45 45 A1402700298A 140 270 02 98 Filter (2×)

50 50 N000933006124N 000933 006124 Screw

50 50 N304017006012N 304017 006012 Screw Cover To Transmission Case (10×)

55 55 N000137006204N 000137 006204 Spring Washer Cover To Transmission Case (10×)

60 60 A1232770047A 123 277 00 47 Tube Bottom Cover

70 70 A1402706207A 140 270 62 07 Valve Body Assembly

70 70 A1402707807A 140 270 78 07 Valve Body Assembly

75 75 A1262700570A 126 270 05 70 Regulator Valve

80 80 A1262770073A 126 277 00 73 Lock Governor-pressure Relay Valve 24 Mm

80 80 A1262770073A 126 277 00 73 Lock Regulator Valve B 1; 24 Mm

80 80 A1262770073A 126 277 00 73 Lock Governor Pressure Booster Valve 24 Mm

80 80 A1262770073A 126 277 00 73 Lock Shifting Pressure Regulator Valve 24 Mm

80 80 A1262770073A 126 277 00 73 Lock Piston Regulator Valve K 2; 24 Mm

80 80 A1262770073A 126 277 00 73 Lock Piston Regulator Valve K 1; 24 Mm

80 80 A1152770673A 115 277 06 73 Lock Lock-out Valve 19 Mm

80 80 A1152770673A 115 277 06 73 Lock Piston Regulator Valve 19 Mm

80 80 A1262771073A 126 277 10 73 Lock Kick-down Piston 16 Mm

85 85 N000084004438N 000084 004438 Screw End Plate To Valve Body Assembly (33×)

90 90 A1262700072A 126 270 00 72 Screw Regulator Valve

95 95 A1269970986A 126 997 09 86 Plug Governor Pressure Booster Valve

~~100~~ 100 A1262700470A 126 270 04 70 Regulator Valve Lubrication Pressure

~~105~~ 105 A1159931505A 115 993 15 05 Spring Disc Valve

~~110~~ 110 A1169910029A 116 991 00 29 Ball Plastic (18×)

~~115~~ 115 A1262700598A 126 270 05 98 Filter

~~130~~ 130 A1262701989A 126 270 19 89 Valve Throttle Check Valve

~~135~~ 135 A1159932804A 115 993 28 04 Spring

~~135~~ 135 A1409938201A 140 993 82 01 Spring Throttle Check Valve

~~140~~ 140 A1262772236A 126 277 22 36 Valve Part Check Valve A 2-4

~~145~~ 145 A1269936903A 126 993 69 03 Spring Check Valve A 2-4

~~150~~ 150 A1262774836A 126 277 48 36 Valve Part Check Valve K 2

~~155~~ 155 A1262703889A 126 270 38 89 Valve

~~157~~ 157 A1262704289A 126 270 42 89 Valve Pressure Relief Valve Schwarz

~~160~~ 160 A1262702789A 126 270 27 89 Valve Disc Valve Schwarz

~~165~~ 165 A1262702589A 126 270 25 89 Valve Disc Valve Naturfarben

~~170~~ 170 A1262775829A 126 277 58 29 Shift Valve Lock-out Valve K 1

~~175~~ 175 A1262771840A 126 277 18 40 Bracket Lock-out Valve K 1

~~180~~ 180 A1262700080A 126 270 00 80 Seal Ring Control Pressure

~~190~~ 190 A1242770075A 124 277 00 75 Pin Piston Regulator Valve B1

~~195~~ 195 A1262701889A 126 270 18 89 Valve Lubrication Pressure

~~200~~ 200 A1262700989A 126 270 09 89 Valve Modulation Pressure

~~205~~ 205 A1262772336A 126 277 23 36 Valve Part Check Valve K 1

~~210~~ 210 A1269936503A 126 993 65 03 Spring Check Valve K 1

~~215~~ 215 N000084005174N 000084 005174 Screw Piston Body To Valve Body Assembly (2×)

~~230~~ 230 N914005006014N 914005 006014 Combination Bolt

~~230~~ 230 N304017006029N 304017 006029 Screw Valve Body Assembly To Transmission (12×)

~~230~~ 230 N914005006022N 914005 006022 Combination Bolt Valve Body Assembly To Transmission (3×)

~~240~~ 240 A1262770295A 126 277 02 95 Oil Filter

~~245~~ 245 N914026005109N 914026 005109 Combination Bolt

~~245~~ 245 N007985005541N 007985 005541 Screw

~~245~~ 245 N007985005504N 007985 005504 Screw (3×)

~~250~~ 250 A1232710280A 123 271 02 80 Gasket

~~250~~ 250 A2012710380A 201 271 03 80 Gasket

~~250~~ 250 A1242710480A 124 271 04 80 Gasket

~~250~~ 250 A2012710380A 201 271 03 80 Gasket Oil Pan

~~260~~ 260 A1232700412A 123 270 04 12 Oil Pan With Screw Plug

~~265~~ 265 N000908010004N 000908 010004 Screw Plug

~~265~~ 265 N000000000648N 000000 000648 Screw Plug, Filling Oil Drain

~~270~~ 270 N007603010113N 007603 010113 Seal Ring

~~270~~ 270 N007603010112N 007603 010112 Seal Ring Oil Drain

~~275~~ 275 N000933008152N 000933 008152 Screw

~~275~~ 275 N304017008027N 304017 008027 Screw Oil Pan To Transmission (6×)

~~280~~ 280 N000125008418N 000125 008418 Washer

~~280~~ 280 N000125008443N 000125 008443 Washer Oil Pan To Transmission (6×)

~~290~~ 290 A1242700080A 124 270 00 80 Gasket Kit Valve Body Assembly

180 Transmission Attachment Parts

5 5 A1242705996A 124 270 59 96 Line From Transmission To Oil Cooler,left

10 10 A1242706196A 124 270 61 96 Line From Transmission To Oil Cooler,right

15 15 A0199978282A 019 997 82 82 Hose From Transmission To Oil Cooler,left

15 15 A0189975682A 018 997 56 82 Hose

15 15 A0199978182A 019 997 81 82 Hose From Transmission To Oil Cooler,left

20 20 A0199978582A 019 997 85 82 Hose From Transmission To Oil Cooler,right

20 20 A0199978382A 019 997 83 82 Hose

20 20 A2209971652A 220 997 16 52 Hose From Transmission To Oil Cooler,right

30 30 A1242704096A 124 270 40 96 Line Oil Cooler Line To Radiator

30 30 A1242704196A 124 270 41 96 Line Oil Cooler Line To Radiator

40 40 N915036008104N 915036 008104 Hollow Screw Oil Line To Transmission Case (2×)

45 45 N007603012104N 007603 012104 Seal Ring Oil Line To Transmission Case (4×)

80 80 A1209950005A 120 995 00 05 Clamp Oil Line To Oil Pan

85 85 A1129970281A 112 997 02 81 Grommet Oil Line To Oil Pan

95 95 N000912006097N 000912 006097 Screw

95 95 N000912006066N 000912 006066 Screw Oil Line To Transmission Case M 6x16 (2×)

95 95 N910143006002N 910143 006002 Screw Oil Line To Engine,left M 6x22

95 95 N000912006097N 000912 006097 Screw

95 95 N000912006066N 000912 006066 Screw Oil Line To Engine,left M 6x16

95 95 N910143006000N 910143 006000 Screw Oil Line To Engine,right M 6x12

95 95 N910143006006N 910143 006006 Screw Oil Line To Engine,right M 6x40

~~100~~ 100 N000137006204N 000137 006204 Spring Washer Oil Line To Transmission Case (2×)

~~100~~ 100 N000137006204N 000137 006204 Spring Washer Oil Line To Engine,left

~~105~~ 105 N000125006421N 000125 006421 Washer Oil Line To Engine,right

~~105~~ 105 N000125006449N 000125 006449 Washer Oil Line To Engine,right

~~110~~ 110 A1271550150A 127 155 01 50 Spacer Tube Oil Line To Engine,right

~~110~~ 110 A1271550150A 127 155 01 50 Spacer Tube Oil Cooler Line To Oil Pan

~~110~~ 110 A1039910540A 103 991 05 40 Spacer Tube

~~110~~ 110 A1369913740A 136 991 37 40 Spacer Tube Oil Cooler Line To Oil Pan

~~115~~ 115 N000835006067N 000835 006067 Stud Oil Cooler Line To Oil Pan

~~120~~ 120 N000934006007N 000934 006007 Nut Oil Cooler Line To Oil Pan

~~120~~ 120 N000934006007N 000934 006007 Nut Oil Line To Oil Pan

~~125~~ 125 N916016010201N 916016 010201 Clamp

~~125~~ 125 N916016010211N 916016 010211 Clamp

~~125~~ 125 N000000001045N 000000 001045 Clamp Oil Line To Transmission Case (2×)

~~125~~ 125 N916016010201N 916016 010201 Clamp

~~125~~ 125 N916016010211N 916016 010211 Clamp

~~125~~ 125 N000000001045N 000000 001045 Clamp Oil Line To Engine,left

~~125~~ 125 N916016010201N 916016 010201 Clamp

~~125~~ 125 N916016010211N 916016 010211 Clamp

~~125~~ 125 N000000001045N 000000 001045 Clamp Oil Line To Engine,right

~~125~~ 125 N916016010201N 916016 010201 Clamp

~~125~~ 125 N916016010211N 916016 010211 Clamp

~~125~~ 125 N000000001045N 000000 001045 Clamp Oil Line To Oil Pan

~~125~~ 125 N916016010201N 916016 010201 Clamp

~~125~~ 125 N916016010211N 916016 010211 Clamp

~~125~~ 125 N000000001045N 000000 001045 Clamp Oil Cooler Line To Radiator

~~130~~ 130 N000933006183N 000933 006183 Screw

~~130~~ 130 N304017006016N 304017 006016 Screw Oil Cooler Line To Radiator M 6x16

~~135~~ 135 N000934006007N 000934 006007 Nut Oil Cooler Line To Radiator

~~185~~ 185 A1242701584A 124 270 15 84 Oil Filler Pipe

~~190~~ 190 A0169972948A 016 997 29 48 Seal Ring Oil Filler Neck

~~195~~ 195 A1262700083A 126 270 00 83 Oil Dipstick

~~195~~ 195 A1402700383A 140 270 03 83 Oil Dipstick

~~195~~ 195 A1402700683A 140 270 06 83 Oil Dipstick

~~200~~ 200 A1269970083A 126 997 00 83 Sleeve

~~205~~ 205 A1249910155A 124 991 01 55 Pin

~~225~~ 225 N000912008143N 000912 008143 Screw Oil Filler Pipe To Transmission M 8x16

~~240~~ 240 N000912006097N 000912 006097 Screw

~~240~~ 240 N000912006066N 000912 006066 Screw Oil Filler Pipe To Transmission M 6x16

195 Vacuum System

5 5 A1179970982A 117 997 09 82 Hose Vacuum Line To Vacuum Box 40 Mm

10 10 A0019978152A 001 997 81 52 Line Intake Manifold And Vacuum Box 1120 Mm

15 15 A1170780681A 117 078 06 81 Hose Vacuum Line To Intake Manifold

25 25 A1179970982A 117 997 09 82 Hose Selector Program Vacuum Line To Cable 125 Mm

30 30 A0002760130A 000 276 01 30 Line Selector Program Vacuum Line Towards Electric Change-over Valve 780 Mm

40 40 A1179970982A 117 997 09 82 Hose Selector Program Vacuum Line To Electric Change-over Valve 40 Mm

50 50 A1170780581A 117 078 05 81 Hose Shift Point Control Vacuum Line To Cable

60 60 A0002760230A 000 276 02 30 Line Shift Point Control Vacuum Line Towards Electric Change-over Valve 1100 Mm

~~100~~ 100 A2012710140A 201 271 01 40 Bracket Transmission Case To Crankcase

~~110~~ 110 A0009955644A 000 995 56 44 Clamp

~~110~~ 110 A0009955244A 000 995 52 44 Clamp Vacuum Line & Cable To Bracket

~~112~~ 112 A0039977290A 003 997 72 90 Clamp Vacuum Line & Cable To Bracket

29 Pedal Assembly

015 Pedal Assembly With Bearing

8 8 A1242901019A 124 290 10 19 Bearing Bracket

11 11 A1402921031A 140 292 10 31 Lever Parking Interlock Mechanism Depending On Brake Pedal

14 14 A1242920235A 124 292 02 35 Roller Parking Interlock Mechanism Depending On Brake Pedal

17 17 N006799005002N 006799 005002 Circlip Parking Interlock Mechanism Depending On Brake Pedal (2×)

17 17 N006799005004N 006799 005004 Circlip Parking Interlock Mechanism Depending On Brake Pedal (2×)

26 26 A1109931710A 110 993 17 10 Spring Parking Interlock Mechanism Depending On Brake Pedal

32 32 A1242901818A 124 290 18 18 Brake Pedal

35 35 A1242920050A 124 292 00 50 Bushing (2×)

38 38 A1262920050A 126 292 00 50 Bushing

50 50 A1232910082A 123 291 00 82 Cover Brake Pedal

53 53 A0005459909A 000 545 99 09 Switch

53 53 A0015450109A 001 545 01 09 Brake Light Switch Stop Light Switch

80 80 A1152910076A 115 291 00 76 Disk Pedal To Bearing Bracket

83 83 A0079942041A 007 994 20 41 Retaining Ring Pedal To Bearing Bracket

92 92 A1242920074A 124 292 00 74 Pin Brake Pedal To Brake Booster

95 95 N912011008000N 912011 008000 Securing Brake Pedal To Brake Booster

~~101~~ 101 N913023008003N 913023 008003 Nut Pedal Assembly To Fire Wall (4×)

~~104~~ 104 A2019900204A 201 990 02 04 Screw Pedal Assembly To Fire Wall

~~107~~ 107 A1249931310A 124 993 13 10 Spring Brake Pedal Release Spring

~~113~~ 113 A0009973620A 000 997 36 20 Closing Cover Pipe Line Thru Fire Wall

030 Pedal Assembly Hydraulics

30 Control

015 Control

5 5 A1263000504A 126 300 05 04 Accelerator Pedal

8 8 A1249888678A 124 988 86 78 Clamp Accelerator Pedal To Bracket

14 14 A1243011420A 124 301 14 20 Lever Used Without W/acceleration Skid Control (asr)

14 14 A1243011220A 124 301 12 20 Lever Only Used W/acceleration Skid Control (asr)

27 27 A0165459828A 016 545 98 28 Plug Only Used W/acceleration Skid Control (asr)

28 28 A1405450114A 140 545 01 14 Switch Only Used W/acceleration Skid Control (asr)

29 29 A0165451428A 016 545 14 28 Contact Pin Only Used W/acceleration Skid Control (asr) (2×)

30 30 A0003010071A 000 301 00 71 Screw

30 30 A0049906112A 004 990 61 12 Screw Only Used W/acceleration Skid Control (asr) (2×)

31 31 A0165459828A 016 545 98 28 Plug Only Used W/acceleration Skid Control (asr)

36 36 A1403000213A 140 300 02 13 Bearing Accelerator Pedal Bearing

42 42 N912007006001N 912007 006001 Clip Pedal Lever To Bearing

48 48 N914005006046N 914005 006046 Screw-and-washer Assembly Bearing To Fire Wall (2×)

53 53 A1243010080A 124 301 00 80 Sealing Shim Bearing To Fire Wall

56 56 A0019906791A 001 990 67 91 Nut Holder Bearing To Fire Wall (2×)

59 59 A1243001625A 124 300 16 25 Lever Wire Cable To Lever

60 60 N040621005200N 040621 005200 Insulating Tubing Only Used W/acceleration Skid Control (asr)

62 62 A1109931710A 110 993 17 10 Spring Accelerator Pedal

71 71 A0025452214A 002 545 22 14 Switch (kick-down Switch)

74 74 A1243007130A 124 300 71 30 Wire Cable

74 74 A1243007230A 124 300 72 30 Wire Pull

75 75 A2023010093A 202 301 00 93 Guide

77 77 A2013010285A 201 301 02 85 Rubber Buffer Wire Cable To Fire Wall

83 83 A0004760436A 000 476 04 36 Hose Bracket Wire Cable To Fuel Hose

86 86 A0009951765A 000 995 17 65 Clamp Wire Cable To Fuel Hose

31 Hitching Mechanism

015 Trailer Coupling

8 8 A1243150383A 124 315 03 83 Cover

9 9 A1409970890A 140 997 08 90 Loom Tie

11 11 A1243100491A 124 310 04 91 Stiffening Left

11 11 A1243100591A 124 310 05 91 Stiffening Right

47 47 A1245843917A 124 584 39 17 Information Label Fifth-wheel Load And Trailed Load

50 50 A0003151171A 000 315 11 71 Screw (parts Kit)

53 53 N910113010000N 910113 010000 Hexagon Nut (4×)

56 56 A1409900014A 140 990 00 14 Screw (4×)

59 59 N304017010002N 304017 010002 Hexagon Head Bolt (4×)

62 62 N007349010007N 007349 010007 Washer (8×)

68 68 A1243100556A 124 310 05 56 Coupling Ball Neck

71 71 A0003150629A 000 315 06 29 Cover Cap

74 74 A2015830095A 201 583 00 95 Padlock

77 77 A1245850103A 124 585 01 03 Protective Covering

80 80 A1245847321A 124 584 73 21 Information Label

540 Electrical Parts Used For Trailer Coupling

5 5 A1244400708A 124 440 07 08 Cable Harness

8 8 A0135458928A 013 545 89 28 Attachment Plug From Stop Light Switch Plug-connection

11 11 A0145450428A 014 545 04 28 Attachment Plug To 013 545 89 28

14 14 A0125454628A 012 545 46 28 Attachment Plug From Cable Harness Plug-connection To Tail Lamp Plug-connection (2×)

17 17 A0105455228A 010 545 52 28 Socket 0,75 Mm2 (4×)

20 20 A0065457828A 006 545 78 28 Plug Housing Plug Connection

23 23 A0095453028A 009 545 30 28 Housing Upper Part To 006 545 78 26

26 26 A0015453826A 001 545 38 26 Contact Pin 4 Mm (4×)

27 27 A0095451628A 009 545 16 28 Receptacle Housing

28 28 A0095451728A 009 545 17 28 Cap

29 29 A0025459926A 002 545 99 26 Female Contact

30 30 A2012950383A 201 295 03 83 Cup Seal

32 32 A1245406535A 124 540 65 35 Line Feed-in

35 35 A0115455028A 011 545 50 28 Receptacle Housing Plug Connection

41 41 A0035452626A 003 545 26 26 Female Contact

44 44 A0085452028A 008 545 20 28 Housing Lower Part

47 47 A0095451428A 009 545 14 28 Housing Upper Part

50 50 A0015454426A 001 545 44 26 Female Contact 4 Mm

53 53 A2018200205A 201 820 02 05 Recording Equipment Trailer Blinker Control

56 56 A2018210247A 201 821 02 47 Relay (time Relay)

59 59 A1248200549A 124 820 05 49 Protective Cap Blinker Sender Unit

62 62 N007981004243N 007981 004243 Tapping Screw

62 62 N000000002062N 000000 002062 Tapping Screw Blinker Sender Unit To Bracket

62 62 N000125004319N 000125 004319 Washer Blinker Sender Unit To Bracket

65 65 A1245455840A 124 545 58 40 Bracket

68 68 N304017008039N 304017 008039 Hexagon Head Bolt Bracket To Wheelhouse

71 71 N913013008000N 913013 008000 Nut Bracket To Wheelhouse

74 74 A2015400350A 201 540 03 50 Fuse Box Bipolar

75 75 A0015457534A 001 545 75 34 Securing

77 77 A1235450446A 123 545 04 46 Cover

80 80 A0015407581A 001 540 75 81 Socket-outlet 13-pole

81 81 A0035454126A 003 545 41 26 Female Contact Long Version; Screw-type (9×)

81 81 A0035454226A 003 545 42 26 Female Contact Short Version; Screwable (4×)

81 81 A0045455126A 004 545 51 26 Female Contact Capable Of Being Soldered (13×)

83 83 A0005455480A 000 545 54 80 Grommet Plug Socket To Bracket

86 86 N007981004357N 007981 004357 Tapping Screw Plug Socket To Bracket (3×)

89 89 A0039977090A 003 997 70 90 Cable Strap Plug-socket Cable To Frame (3×)

92 92 A0049885778A 004 988 57 78 Clamp Plug-socket Cable To Frame

~~101~~ 101 A1245455940A 124 545 59 40 Bracket

~~104~~ 104 N007985005127N 007985 005127 Screw

~~104~~ 104 N007985005504N 007985 005504 Screw Bracket To Wheelhouse

~~107~~ 107 N000137005203N 000137 005203 Spring Washer Bracket To Wheelhouse

~~110~~ 110 N000125005312N 000125 005312 Washer Bracket To Wheelhouse

~~113~~ 113 N913017005000N 913017 005000 Nut Bracket To Wheelhouse

~~116~~ 116 A1245409035A 124 540 90 35 Adapter Cable Adapter Cable

~~119~~ 119 A0255451728A 025 545 17 28 Plug 13-pole

~~122~~ 122 A0015401381A 001 540 13 81 Socket-outlet 7-pole

~~125~~ 125 A0005452840A 000 545 28 40 Bracket

~~128~~ 128 A0019974390A 001 997 43 90 Loom Tie (2×)

~~131~~ 131 A0005401074A 000 540 10 74 Connector Adapter From 13-pin To 7-pin

32 Springs,suspension And Hydraulics

015 Springs And Suspension,front

5 5 A1243212104A 124 321 21 04 Front Spring Front Axle Pressure 731-820 Kg (2×)

5 5 A1243212204A 124 321 22 04 Front Spring Front Axle Pressure 821-900 Kg (2×)

5 5 A1243212304A 124 321 23 04 Front Spring Front Axle Pressure 901 Kg - (2×)

11 11 A2013210984A 201 321 09 84 Shim As Required; Number Of Burls: 1 (8 Mm) (2×)

11 11 A2013211084A 201 321 10 84 Shim As Required; Number Of Burls: 2 (13 Mm) (2×)

11 11 A2013211184A 201 321 11 84 Shim As Required; Number Of Burls: 3 (18 Mm) (2×)

11 11 A2013211284A 201 321 12 84 Shim As Required; Number Of Burls: 4 (23 Mm) (2×)

16 16 A1243210036A 124 321 00 36 Spacer (2×)

-- XXXXXXXXXXXXXX XXXXXXXXXXXX Part Name Missing Damper Strut,front

17 17 A1243207030A 124 320 70 30 Damper Strut

17 17 A1243206230A 124 320 62 30 Shock Absorber (2×)

23 23 A2013232044A 201 323 20 44 Rubber Buffer Stop Buffer (2×)

26 26 A1243230192A 124 323 01 92 Boot (2×)

29 29 A2013236240A 201 323 62 40 Retaining Strap (2×)

32 32 N914125012426N 914125 012426 Screw Damper Strut To Steering Knuckle, Bottom (4×)

35 35 A2019901540A 201 990 15 40 Disk Damper Strut To Steering Knuckle, Bottom (4×)

47 47 N000912014077N 000912 014077 Screw Damper Strut To Steering Knuckle,top M 14x45 (2×)

53 53 A1249903740A 124 990 37 40 Disk Damper Strut To Steering Knuckle,top (4×)

59 59 N913004014010N 913004 014010 Nut M 14 (2×)

65 65 A1243201444A 124 320 14 44 Rubber Bushing Front Damper Strut To Frame (2×)

71 71 N000125008443N 000125 008443 Washer Rubber Mounting To Frame (6×)

74 74 N913004008001N 913004 008001 Nut Rubber Mounting To Frame (6×)

74 74 N910113008003N 910113 008003 Hexagon Nut Rubber Mounting To Frame (6×)

77 77 A1243230032A 124 323 00 32 End Stop (rebound Stop) (2×)

83 83 N000433015005N 000433 015005 Washer Damper Strut To Rubber Mounting (2×)

89 89 N910113014001N 910113 014001 Hexagon Nut Damper Strut To Rubber Mounting (2×)

92 92 A1243200656A 124 320 06 56 Repair Kit

92 92 A1249900199A 124 990 01 99 Ts Fastener Parts Damper Strut Mounting,front (2×)

060 Torsion Bar,front

5 5 A1243237765A 124 323 77 65 Torsion Bar Front

11 11 A1243235085A 124 323 50 85 Rubber Bushing Torsion Bar To Control Arm (2×)

14 14 A2013232340A 201 323 23 40 Bracket Torsion Bar To Control Arm (2×)

20 20 N913023008003N 913023 008003 Nut Torsion Bar To Control Arm (4×)

35 35 A1243230426A 124 323 04 26 Bracket Torsion Bar To Frame,left

35 35 A1243230526A 124 323 05 26 Bracket Torsion Bar To Frame,right

38 38 A1243230025A 124 323 00 25 Plate Bracket To Side Member (2×)

41 41 N914125010319N 914125 010319 Screw Bracket To Side Member (2×)

44 44 N000125010532N 000125 010532 Washer Bracket To Side Member (2×)

47 47 A1243234685A 124 323 46 85 Rubber Bushing Torsion Bar To Frame (2×)

50 50 A1243231140A 124 323 11 40 Bracket (2×)

53 53 N304017008021N 304017 008021 Hexagon Head Bolt (4×)

59 59 N913023008003N 913023 008003 Nut (4×)

135 Rear Springs And Suspension Used With Self-levelling Device

5 5 A1243241204A 124 324 12 04 Rear Spring Rear Axle Pressure 746 Kg - 825 Kg (2×)

5 5 A1243242104A 124 324 21 04 Rear Spring Rear Axle Pressure 826 Kg - (2×)

8 8 A2013250944A 201 325 09 44 Rubber Buffer As Required; Number Of Burls: 1 (8 Mm) (2×)

8 8 A2013251044A 201 325 10 44 Rubber Buffer As Required; Number Of Burls: 2 (13 Mm) (2×)

8 8 A2013251144A 201 325 11 44 Rubber Buffer As Required; Number Of Burls: 3 (18 Mm) (2×)

12 12 A1243203713A 124 320 37 13 Hydropn. Spring Leg

12 12 A1243201313A 124 320 13 13 Spring Strut (2×)

14 14 N000960010042N 000960 010042 Screw Hydropneumatic Spring Leg To Spring Control Arm (4×)

17 17 N000125010532N 000125 010532 Washer Hydropneumatic Spring Leg To Spring Control Arm (8×)

20 20 N910113010003N 910113 010003 Hexagon Nut Hydropneumatic Spring Leg To Spring Control Arm (4×)

24 24 A1233288381A 123 328 83 81 Buffer Hydropneumatic Spring Leg To Frame (2×)

27 27 A1243260367A 124 326 03 67 Plate Hydropneumatic Spring Leg To Frame (2×)

30 30 A1243260568A 124 326 05 68 Rubber Buffer Hydropneumatic Spring Leg To Frame (2×)

38 38 N914125008401N 914125 008401 Screw Hydropneumatic Spring Leg To Frame (2×)

44 44 A1243200456A 124 320 04 56 Repair Kit Hydropneumatic Spring Leg Mounting (2×)

195 Rear Torsion Bar & Height Control Valve Used Self-levellingdevice

5 5 A1243261965A 124 326 19 65 Torsion Bar Rear

8 8 A1243260181A 124 326 01 81 Rubber Bushing Torsion Bar To Frame (2×)

11 11 A1233260926A 123 326 09 26 Bracket Torsion Bar To Frame (2×)

14 14 N910106008006N 910106 008006 Hexagon Head Bolt Torsion Bar To Frame (4×)

20 20 A1243200489A 124 320 04 89 Rod From Torsion Bar To Spring Control Arm (2×)

23 23 A2109900251A 210 990 02 51 Nut Rod To Torsion Bar (2×)

23 23 N913021010001N 913021 010001 Nut Rod To Torsion Bar (2×)

26 26 N304014008002N 304014 008002 Hexagon Head Bolt Rod To Spring Control Arm (2×)

29 29 N913004008001N 913004 008001 Nut Rod To Spring Control Arm (2×)

29 29 N910113008003N 910113 008003 Hexagon Nut Rod To Spring Control Arm (2×)

32 32 A1243280327A 124 328 03 27 Lever At Torsion Bar

35 35 A2013280426A 201 328 04 26 Mounting Bracket Lever To Torsion Bar

38 38 N913023005002N 913023 005002 Nut Lever To Torsion Bar (2×)

41 41 A1233201489A 123 320 14 89 Towbar From Torsion Bar To Self-levelling Unit

44 44 A1233280063A 123 328 00 63 Angle Joint R.h. Thread

47 47 N000934006007N 000934 006007 Nut R.h. Thread

50 50 A1233280163A 123 328 01 63 Angle Joint L.h. Thread

53 53 N000934006012N 000934 006012 Nut L.h. Thread

56 56 N913004006001N 913004 006001 Nut

56 56 N910113006000N 910113 006000 Hexagon Nut Rod To Torsion Bar And To Selflevelling Unit (2×)

-- XXXXXXXXXXXXXX XXXXXXXXXXXX Part Name Missing Rear Height Control Valve

59 59 A2023200058A 202 320 00 58 Valve

59 59 A2023200258A 202 320 02 58 Valve Height Control Valve

62 62 A1233280065A 123 328 00 65 Pipe Socket Oil Drain

65 65 A0004217187A 000 421 71 87 Protective Cap

68 68 A1243281340A 124 328 13 40 Bracket Height Control Valve To Frame

74 74 N913004006001N 913004 006001 Nut

74 74 N910113006000N 910113 006000 Hexagon Nut Bracket To Frame (3×)

75 75 A2013280073A 201 328 00 73 Securing Bracket To Frame (2×)

77 77 N000000002270N 000000 002270 Hexalobular Bolt Height Control Valve To Bracket (2×)

220 Oil Tank & Valves Of Hydraulic System

8 8 A1243200714A 124 320 07 14 Reservoir

11 11 A2013270221A 201 327 02 21 Cap Self-levelling Device Oil Reservoir

17 17 A1293270091A 129 327 00 91 Filter

20 20 A2013270060A 201 327 00 60 Sealing Ring

23 23 A2013270072A 201 327 00 72 Nut

26 26 A2013200259A 201 320 02 59 Oil Dipstick Oil Dipstick

29 29 A1299971681A 129 997 16 81 Grommet Under Oil Reservoir

32 32 A1243281140A 124 328 11 40 Bracket Oil Reservoir To Left Front Wheelhouse Panel

35 35 N913023006001N 913023 006001 Nut (2×)

38 38 A1243505057A 124 350 50 57 Valve

38 38 A2023500057A 202 350 00 57 Valve Limited-slip Differential Control Valve

47 47 A1869970681A 186 997 06 81 Grommet

50 50 A0115451628A 011 545 16 28 Plug Pin (2×)

53 53 A0125458428A 012 545 84 28 Plug Housing Double

59 59 A1245500240A 124 550 02 40 Bracket Limited-slip Differential Control Valve

62 62 A1249870540A 124 987 05 40 Button Grommet (3×)

65 65 A1245510050A 124 551 00 50 Bushing (3×)

68 68 N000933006127N 000933 006127 Screw Control Valve To Bracket (3×)

71 71 A0039900251A 003 990 02 51 Screwed Insert Bracket To Body (4×)

~~119~~ 119 A1243200315A 124 320 03 15 Air Cell

~~119~~ 119 A1403280215A 140 328 02 15 Air Reservoir

~~119~~ 119 A1403280515A 140 328 05 15 Air Reservoir (spring Load Accumulator) (2×)

~~122~~ 122 N913004006001N 913004 006001 Nut

~~122~~ 122 N910113006000N 910113 006000 Hexagon Nut Spring Load Accumulator To Frame (6×)

~~125~~ 125 A1249970940A 124 997 09 40 Sealing Ring Spring Load Accumulator To Frame (2×)

285 Line Arrangement In Case Of Self-levelling Device & A S D

5 5 A1149970482A 114 997 04 82 Hose From Oil Reservoir To Oil Pipe At Oil Pump 580 Mm

8 8 N040621016200N 040621 016200 Insulating Tubing 400 Mm

11 11 A0059970190A 005 997 01 90 Hose Clamp Oil Connection Hose (high Pressure Expansion Hose) Self-levelling Device/ A S D (2×)

-- XXXXXXXXXXXXXX XXXXXXXXXXXX Part Name Missing See Engine Standard Version

-- XXXXXXXXXXXXXX XXXXXXXXXXXX Part Name Missing Line Arrangement In Case Of Automatic Locking Differential (asd)

32 32 A1243202754A 124 320 27 54 Line

32 32 A1243205172A 124 320 51 72 Line From High Pressure Expansion Hose To A S D Control Valve

33 33 A1269970034A 126 997 00 34 Retaining Screw

36 36 A1243501280A 124 350 12 80 Line From Control Valve To Ring Cylinder

36 36 A1243502380A 124 350 23 80 Line From Control Valve To Ring Cylinder

37 37 A1243502280A 124 350 22 80 Line From Control Valve To Ring Cylinder

38 38 A1293500080A 129 350 00 80 Line From Left Ring Cylinder To Right Ring Cylinder

53 53 A1243205354A 124 320 53 54 Line Connection "t", From Control Valve To Coupling Piece

56 56 A1263270088A 126 327 00 88 Coupling Piece

59 59 A1243204153A 124 320 41 53 Line

59 59 A1243203772A 124 320 37 72 Line (return Line) From Coupling Piece To Oil Reservoir

-- XXXXXXXXXXXXXX XXXXXXXXXXXX Part Name Missing Line Arrangement In Case Of Self-levelling Device & A S D

60 60 A1243202354A 124 320 23 54 Line

60 60 A1243205472A 124 320 54 72 Line From High Pressure Expansion Hose To Height Control Valve

61 61 A1269970034A 126 997 00 34 Retaining Screw

62 62 A1243204353A 124 320 43 53 Line From Control Valve To Self-levelling Unit

62 62 A1243202572A 124 320 25 72 Oil Line From Control Valve To Self-levelling Unit

65 65 A1243204853A 124 320 48 53 Line From Height Control Valve To Left Spring-load Accumulator

68 68 A1243204953A 124 320 49 53 Line From Height Control Valve To Right Spring-loaded Brake Unit

69 69 A1243201972A 124 320 19 72 Line From Spring Load Accumulator To Left Hydropneumatic Spring Leg

70 70 A1243202072A 124 320 20 72 Line From Spring Load Accumulator To Right Hydropneumatic Spring Leg

75 75 A1249970582A 124 997 05 82 Hose From Spring Load Accumulator To Hydropneumatic Spring Leg (2×)

78 78 A1249900063A 124 990 00 63 Hollow Screw Connecting Hose To Hydropneumatic Spring Leg (2×)

80 80 N007603016103N 007603 016103 Sealing Ring Connecting Hose To Spring Load Accumulator (2×)

83 83 A1243200554A 124 320 05 54 Line (return Line),from Self-levelling Unit To Coupling Piece

86 86 A1233270088A 123 327 00 88 Coupling Piece

88 88 A1243203953A 124 320 39 53 Line

88 88 A1243202572A 124 320 25 72 Oil Line (return Line) From Coupling Piece To Oil Reservoir

355 4-matic Line Arrangement, With Self-levelling Device

400 Hydraulic Line Mounting Parts

5 5 A1079971982A 107 997 19 82 Hose 60 Mm

5 5 A2019979582A 201 997 95 82 Hose 40 Mm

5 5 A1263280181A 126 328 01 81 Rubber Bushing 20 Mm

7 7 A1233288981A 123 328 89 81 Rubber Ring

8 8 N073379006101N 073379 006101 Hose 30 Mm

8 8 N073379008100N 073379 008100 Hose 30 Mm

8 8 A0009978682A 000 997 86 82 Hose 18 Mm

11 11 A1244761484A 124 476 14 84 Damping Strip

14 14 A1243280288A 124 328 02 88 Damping Strip

14 14 A1244760484A 124 476 04 84 Damping Strip

17 17 A2013280788A 201 328 07 88 Rubber Guide

17 17 A2013280888A 201 328 08 88 Rubber Guide

23 23 A1244760784A 124 476 07 84 Damping Strip

29 29 A1243280540A 124 328 05 40 Bracket

29 29 A2014760740A 201 476 07 40 Clamp

29 29 A1244760140A 124 476 01 40 Clamp

32 32 A1109950022A 110 995 00 22 Clamp

32 32 A1239950222A 123 995 02 22 Clamp

32 32 A1099950022A 109 995 00 22 Clamp

32 32 A1249950022A 124 995 00 22 Clamp

32 32 A1249950520A 124 995 05 20 Clamp (2×)

44 44 A1249950122A 124 995 01 22 Clamp

47 47 A1239950265A 123 995 02 65 Clamp

50 50 A1109950165A 110 995 01 65 Clamp

53 53 A0004760436A 000 476 04 36 Hose Bracket

56 56 A0009956665A 000 995 66 65 Extendable Spacer

56 56 A0079973890A 007 997 38 90 Clamp

62 62 A1104760084A 110 476 00 84 Rubber Guide

62 62 A1124760584A 112 476 05 84 Damping Strip

65 65 A1244761784A 124 476 17 84 Rubber Guide

68 68 A1244761984A 124 476 19 84 Rubber Guide

68 68 A1243280188A 124 328 01 88 Rubber Guide

68 68 A2014760484A 201 476 04 84 Damping Strip

68 68 A1244761284A 124 476 12 84 Damping Strip

74 74 A2013280688A 201 328 06 88 Rubber Guide

80 80 A1244761384A 124 476 13 84 Damping Strip

83 83 A1244761084A 124 476 10 84 Damping Strip

86 86 A1244762084A 124 476 20 84 Damping Strip

89 89 A1244760984A 124 476 09 84 Damping Strip

98 98 A1244760240A 124 476 02 40 Clamp

~~101~~ 101 A1089950520A 108 995 05 20 Clamp

~~107~~ 107 A2019950165A 201 995 01 65 Bracket

~~107~~ 107 A6674280840A 667 428 08 40 Bracket

~~110~~ 110 A1243530140A 124 353 01 40 Bracket

~~113~~ 113 A1245510140A 124 551 01 40 Bracket

~~114~~ 114 A6171870190A 617 187 01 90 Spacer

~~116~~ 116 A2019920030A 201 992 00 30 Clamping Element

~~119~~ 119 A0019974390A 001 997 43 90 Loom Tie

~~122~~ 122 A1169970890A 116 997 08 90 Loom Tie

~~125~~ 125 N000934008020N 000934 008020 Nut

~~128~~ 128 A0039900251A 003 990 02 51 Screwed Insert

~~131~~ 131 N007976004205N 007976 004205 Tapping Screw B 4.8x13

~~131~~ 131 N007976006203N 007976 006203 Tapping Screw B 6.3x13

~~131~~ 131 N007976006204N 007976 006204 Tapping Screw B 6.3x16

~~134~~ 134 N914128006200N 914128 006200 Tapping Screw B 6.3x13

~~137~~ 137 N916016015202N 916016 015202 Clamp Oil Connection Hose To A B S Bracket

~~137~~ 137 A1249950222A 124 995 02 22 Clamp Oil Line To Transfer Case

~~140~~ 140 N914126006002N 914126 006002 Screw

~~140~~ 140 N910105006023N 910105 006023 Hexagon Head Bolt Oil Connection Hose To A B S Bracket

~~140~~ 140 N914126005001N 914126 005001 Screw Oil Line To Transfer Case

~~143~~ 143 A0009955244A 000 995 52 44 Jaw Clamp

~~146~~ 146 A0005011020A 000 501 10 20 Bracket Oil Connection Hose To Fan Shroud

~~149~~ 149 A1249900892A 124 990 08 92 Expansion Rivet

33 Front Axle

030 Steering Knuckle And Control Arm

5 5 A1293300220A 129 330 02 20 Steering Knuckle Left

5 5 A1293300320A 129 330 03 20 Steering Knuckle Right

8 8 A2013320174A 201 332 01 74 Pin (centering Pin) (2×)

8 8 A1293320074A 129 332 00 74 Pin (centering Pin) (2×)

8 8 A2013320274A 201 332 02 74 Pin (centering Pin) (2×)

11 11 A2013300080A 201 330 00 80 Pin Steering Stop (2×)

14 14 A1243321220A 124 332 12 20 Cross Steering Lever Left

14 14 A1243321320A 124 332 13 20 Cross Steering Lever Right

17 17 A1299901401A 129 990 14 01 Screw Steering Arm To Steering Knuckle (2×)

20 20 N914125012430N 914125 012430 Screw

20 20 A1244210571A 124 421 05 71 Hexagon Head Bolt Steering Arm To Steering Knuckle (2×)

23 23 A1293300425A 129 330 04 25 Front Wheel Hub (2×)

26 26 A1299910041A 129 991 00 41 Clamping Pin

26 26 N001481012018N 001481 012018 Roll Pin Brake Disc To Wheel Hub (4×)

29 29 A0029801902A 002 980 19 02 Bearing Inside (2×)

32 32 A0199978847A 019 997 88 47 Sealing Ring (2×)

35 35 A0029802002A 002 980 20 02 Tapered Roller Bearing Outside (2×)

41 41 A1163340372A 116 334 03 72 Clamp Nut Front Wheel Hub To Steering Knuckle (2×)

44 44 N000912006176N 000912 006176 Cap Bolt (2×)

47 47 A2015470085A 201 547 00 85 Contact Spring Front Wheel Hub To Steering Knuckle (2×)

50 50 A1683570089A 168 357 00 89 Locking Cap Front Wheel Hub To Steering Knuckle (2×)

53 53 A1293300151A 129 330 01 51 Repair Kit

53 53 A1293300351A 129 330 03 51 Repair Kit Front Wheel Bearing (2×)

-- XXXXXXXXXXXXXX XXXXXXXXXXXX Part Name Missing Transverse Control Arm

56 56 A1243303407A 124 330 34 07 Control Arm Bottom Left

56 56 A1243303507A 124 330 35 07 Control Arm Bottom Right

59 59 A2013330043A 201 333 00 43 Clamping Piece (4×)

65 65 A2019901601A 201 990 16 01 Screw

65 65 A1299901001A 129 990 10 01 Screw Lower Control Arm To Steering Knuckle (2×)

68 68 N910113012003N 910113 012003 Hexagon Nut Lower Control Arm To Steering Knuckle (2×)

71 71 A2013330072A 201 333 00 72 Screwed Insert Lower Control Arm To Frame (4×)

74 74 A1243300675A 124 330 06 75 Repair Kit Lower Control Arm To Frame (2×)

77 77 A2013300085A 201 330 00 85 Repair Kit Lower Control Arm Joint Boot (2×)

80 80 A2013300018A 201 330 00 18 Repair Kit Eccentric Pin (4×)

045 4matic Steering Knuckle & Control Arm

-- XXXXXXXXXXXXXX XXXXXXXXXXXX Part Name Missing Transverse Control Arm

075 4matic Front Axle Drive

-- XXXXXXXXXXXXXX XXXXXXXXXXXX Part Name Missing Differential Gear

090 4matic Front Axle Shaft

35 Rear Axle

015 Rear Axle Housing With Differential

5 5 A1243508014A 124 350 80 14 Axle Housing Rear Axle Housing With Differential, Automatic Four-speed Transmission Abs 1:3.46

5 5 A1243508414A 124 350 84 14 Axle Housing Rear Axle Housing With Differential, Automatic Four-speed Transmission Asd 1:3.46

5 5 A1243508714A 124 350 87 14 Axle Housing Rear Axle Housing With Differential, Automatic Four-speed Transmission Asr 1:3.46

8 8 A1293510405A 129 351 04 05 Housing Used Without W/acceleration Skid Control (asr)

8 8 A1293510505A 129 351 05 05 Housing Only Used W/acceleration Skid Control (asr)

11 11 A1869970032A 186 997 00 32 Screw Plug (2×)

-- Q000000000001Q 000000000001 Important Information Differential Gear (99×)

14 14 A1403502723A 140 350 27 23 Differential Gear Less Ring Gear And Pinion

14 14 A1403502923A 140 350 29 23 Differential Gear Less Ring Gear And Pinion

-- Q000000000001Q 000000000001 Important Information Break-down Of Differential Gear (99×)

17 17 A1843530062A 184 353 00 62 Thrust Plate As Required 1.30 Mm (2×)

17 17 A1083530162A 108 353 01 62 Thrust Plate As Required 1.35 Mm (2×)

17 17 A1843530162A 184 353 01 62 Thrust Plate As Required 1.40 Mm (2×)

17 17 A1083530262A 108 353 02 62 Thrust Plate As Required 1.45 Mm (2×)

17 17 A1843530262A 184 353 02 62 Thrust Plate As Required 1.50 Mm (2×)

17 17 A1083530362A 108 353 03 62 Thrust Plate As Required 1.55 Mm (2×)

17 17 A1843530362A 184 353 03 62 Thrust Plate As Required 1.60 Mm (2×)

17 17 A1083530462A 108 353 04 62 Thrust Plate As Required 1.65 Mm (2×)

17 17 A1843530462A 184 353 04 62 Thrust Plate As Required 1.70 Mm (2×)

17 17 A1293531062A 129 353 10 62 Pressure Disk As Required 2.8 Mm (2×)

17 17 A1293530962A 129 353 09 62 Pressure Disk As Required 2.9 Mm (2×)

17 17 A1293530862A 129 353 08 62 Pressure Disk As Required 3.0 Mm (2×)

17 17 A1293530762A 129 353 07 62 Pressure Disk As Required 3.1 Mm (2×)

17 17 A1293530662A 129 353 06 62 Pressure Disk As Required 3.2 Mm (2×)

17 17 A1293530562A 129 353 05 62 Pressure Disk As Required 3.3 Mm (2×)

17 17 A1293530462A 129 353 04 62 Pressure Disk As Required 3.4 Mm (2×)

17 17 A1293530362A 129 353 03 62 Pressure Disk As Required 3.5 Mm (2×)

17 17 A1293530262A 129 353 02 62 Pressure Disk As Required 3.6 Mm (2×)

17 17 A1293530162A 129 353 01 62 Pressure Disk As Required 4.0 Mm (2×)

20 20 A1403530715A 140 353 07 15 Differential Side Gear Used Without Automatic Locking Differential (asd) (2×)

20 20 A1403530815A 140 353 08 15 Side Gear Only Used With Asd (2×)

23 23 A1403530514A 140 353 05 14 Differential Pinion (2×)

26 26 A1403530124A 140 353 01 24 Spherical Washer (2×)

29 29 A1263530821A 126 353 08 21 Pin

32 32 N001481006008N 001481 006008 Roll Pin

35 35 A1123530662A 112 353 06 62 Friction Disk Less Lining; With 5 Shackles (10×)

38 38 A1293531162A 129 353 11 62 Pressure Disk With Lining On Both Sides (8×)

44 44 A1403502239A 140 350 22 39 Gear Set 1:3.46

47 47 A1233530585A 123 353 05 85 Gear 28 Teeth

50 50 A1409902101A 140 990 21 01 Screw Ring Gear To Differential Case (10×)

-- Q000000000001Q 000000000001 Important Information Differential Gear Bearing Hag 210 (99×)

80 80 A0009801902A 000 980 19 02 Tapered Roller Bearing Ring Gear Bearing (2×)

83 83 A1163531452A 116 353 14 52 Spacer Washer As Required 0.90 Mm (2×)

83 83 A1163531652A 116 353 16 52 Spacer Washer As Required 1.00 Mm (2×)

83 83 A1163531752A 116 353 17 52 Spacer Washer As Required 1.05 Mm (2×)

83 83 A1163531852A 116 353 18 52 Compensating Disc As Required 1.10 Mm (2×)

83 83 A1163531952A 116 353 19 52 Spacer Washer As Required 1.15 Mm (2×)

83 83 A1163533852A 116 353 38 52 Spacer Washer As Required 1.20 Mm (2×)

83 83 A1163533952A 116 353 39 52 Spacer Washer As Required 1.30 Mm (2×)

83 83 A1163534052A 116 353 40 52 Compensating Disc As Required 1.40 Mm (2×)

83 83 A1163534152A 116 353 41 52 Spacer Washer As Required 1.45 Mm (2×)

83 83 A1163534252A 116 353 42 52 Compensating Disc As Required 1.50 (2×)

83 83 A1163534352A 116 353 43 52 Spacer Washer As Required 1.55 Mm (2×)

83 83 A1163534452A 116 353 44 52 Spacer Disk As Required 1.60 Mm (2×)

83 83 A1163534552A 116 353 45 52 Spacer Washer As Required 1.70 Mm (2×)

83 83 A1163534652A 116 353 46 52 Spacer Disk As Required 1.80 Mm (2×)

83 83 A1163534752A 116 353 47 52 Spacer Washer As Required 1.90 Mm (2×)

83 83 A1163534852A 116 353 48 52 Spacer Disk As Required 2.00 Mm (2×)

83 83 A1163534952A 116 353 49 52 Spacer Washer As Required 2.10 Mm (2×)

83 83 A1163535052A 116 353 50 52 Spacer Disk As Required 2.20 Mm (2×)

83 83 A1163535152A 116 353 51 52 Spacer Washer As Required 2.30 Mm (2×)

83 83 A1163535252A 116 353 52 52 Spacer Washer As Required 2.40 Mm (2×)

83 83 A1163535352A 116 353 53 52 Spacer Disk As Required 2.50 Mm (2×)

83 83 A1163535452A 116 353 54 52 Spacer Washer As Required 2.60 Mm (2×)

86 86 A1263530106A 126 353 01 06 Cover Bearing Cover (2×)

86 86 A1263530406A 126 353 04 06 Cover Bearing Cover (2×)

86 86 A1293500502A 129 350 05 02 Cap Bearing Cover,left

86 86 A1293500602A 129 350 06 02 Cap Bearing Cover,right

89 89 A1243530089A 124 353 00 89 Boot Bearing Cover (2×)

92 92 A0039972548A 003 997 25 48 Sealing Ring Bearing Cover To Axle Housing (2×)

95 95 N000912008012N 000912 008012 Screw Bearing Cover To Axle Housing (16×)

98 98 A0003530956A 000 353 09 56 Breather Bleeder Valve

~~101~~ 101 A0004217187A 000 421 71 87 Protective Cap Only Used With Asd

~~104~~ 104 A0209972547A 020 997 25 47 Sealing Ring Interior Flange (2×)

~~104~~ 104 A0149975747A 014 997 57 47 Sealing Ring Interior Flange (2×)

~~104~~ 104 A0149977247A 014 997 72 47 Sealing Ring Interior Flange (2×)

~~105~~ 105 A1243505398A 124 350 53 98 Repair Kit Mounting Parts

~~107~~ 107 A1293500845A 129 350 08 45 Flange Inside (2×)

~~107~~ 107 A1243505845A 124 350 58 45 Flange Inside (2×)

~~107~~ 107 A1293500945A 129 350 09 45 Flange Inside (2×)

~~113~~ 113 A0049817125A 004 981 71 25 Ball Bearing Only Used With Asd (2×)

~~116~~ 116 A1153577652A 115 357 76 52 Spacer Washer As Required 2.60 Mm (2×)

~~116~~ 116 A1243572152A 124 357 21 52 Spacer Disk As Required 2.65 Mm (2×)

~~116~~ 116 A1153577552A 115 357 75 52 Spacer Washer As Required 2.70 Mm (2×)

~~116~~ 116 A1243572252A 124 357 22 52 Spacer Disk As Required 2.75 Mm (2×)

~~116~~ 116 A1153577452A 115 357 74 52 Spacer Washer As Required 2.80 Mm (2×)

~~116~~ 116 A1243572352A 124 357 23 52 Spacer Disk As Required 2.85 Mm (2×)

~~116~~ 116 A1153576452A 115 357 64 52 Spacer Washer As Required 2.90 Mm (2×)

~~116~~ 116 A1153576352A 115 357 63 52 Spacer Washer As Required 2.95 Mm (2×)

~~116~~ 116 A1153576252A 115 357 62 52 Spacer Washer As Required 3.00 Mm (2×)

~~116~~ 116 A1153576152A 115 357 61 52 Spacer Washer As Required 3.05 Mm (2×)

~~116~~ 116 A1153576052A 115 357 60 52 Disk As Required 3.10 Mm (2×)

~~116~~ 116 A1153575952A 115 357 59 52 Spacer Washer As Required 3.15 Mm (2×)

~~116~~ 116 A1153575852A 115 357 58 52 Disk As Required 3.20 Mm (2×)

~~116~~ 116 A1153575752A 115 357 57 52 Spacer Washer As Required 3.25 Mm (2×)

~~116~~ 116 A1153575652A 115 357 56 52 Disk As Required 3.30 Mm (2×)

~~116~~ 116 A1153575552A 115 357 55 52 Spacer Washer As Required 3.35 Mm (2×)

~~116~~ 116 A1153575452A 115 357 54 52 Disk As Required 3.40 Mm (2×)

~~119~~ 119 A1159940434A 115 994 04 34 Snap Ring (2×)

-- Q000000000001Q 000000000001 Important Information (shim) Asr Sensor To Rear Axle Housing (99×)

~~122~~ 122 A1263510276A 126 351 02 76 Compensating Disc As Required 1.0 Mm (2×)

~~122~~ 122 A1263510376A 126 351 03 76 Shim As Required 1.1 Mm (2×)

~~122~~ 122 A1263510476A 126 351 04 76 Shim As Required 1.2 Mm (2×)

~~122~~ 122 A1263510576A 126 351 05 76 Shim As Required 1.3 Mm (2×)

~~122~~ 122 A1263510676A 126 351 06 76 Shim As Required 1.4 Mm (2×)

~~122~~ 122 A1263510776A 126 351 07 76 Shim As Required 1.5 Mm (2×)

~~122~~ 122 A1263510876A 126 351 08 76 Shim As Required 1.6 Mm (2×)

~~122~~ 122 A1263510976A 126 351 09 76 Disk As Required 1.7 Mm (2×)

~~122~~ 122 A1263511076A 126 351 10 76 Disk As Required 1.8 Mm (2×)

~~122~~ 122 A1263511176A 126 351 11 76 Disk As Required 1.9 Mm (2×)

~~122~~ 122 A1263511276A 126 351 12 76 Disk As Required 2.0 Mm (2×)

~~122~~ 122 A1263511376A 126 351 13 76 Shim As Required 2,1 Mm (2×)

~~122~~ 122 A1263511476A 126 351 14 76 Shim As Required 2,2 Mm (2×)

~~122~~ 122 A1263511576A 126 351 15 76 Shim As Required 2,3 Mm (2×)

~~125~~ 125 A1269890185A 126 989 01 85 Adhesive Film Cutting (2×)

-- Q000000000001Q 000000000001 Important Information Drive Pinion Bearing (99×)

~~128~~ 128 A1163531152A 116 353 11 52 Spacer Washer As Required 1.50 Mm

~~128~~ 128 A1163532052A 116 353 20 52 Spacer Washer As Required 1.55 Mm

~~128~~ 128 A1163532152A 116 353 21 52 Compensating Disc As Required 1.60 Mm

~~128~~ 128 A1163532252A 116 353 22 52 Spacer Washer As Required 1.65 Mm

~~128~~ 128 A1163532352A 116 353 23 52 Compensating Disc As Required 1.70 Mm

~~128~~ 128 A1163532452A 116 353 24 52 Spacer Washer As Required 1.75 Mm

~~128~~ 128 A1163532552A 116 353 25 52 Compensating Disc As Required 1.80 Mm

~~128~~ 128 A1163532652A 116 353 26 52 Spacer Washer As Required 1.85 Mm

~~128~~ 128 A1163532752A 116 353 27 52 Compensating Disc As Required 1.90 Mm

~~128~~ 128 A1163532852A 116 353 28 52 Spacer Washer As Required 1.95 Mm

~~128~~ 128 A1163532952A 116 353 29 52 Compensating Disc As Required 2.00 Mm

~~128~~ 128 A1163533052A 116 353 30 52 Spacer Disk As Required 2.05 Mm

~~128~~ 128 A1163533152A 116 353 31 52 Spacer Washer As Required 2.10 Mm

~~128~~ 128 A1163533252A 116 353 32 52 Spacer Disk As Required 2.15 Mm

~~128~~ 128 A1163533352A 116 353 33 52 Compensating Disc As Required 2.20 Mm

~~128~~ 128 A1163533452A 116 353 34 52 Spacer Washer As Required 2.25 Mm

~~128~~ 128 A1163533552A 116 353 35 52 Spacer Washer As Required 2.30 Mm

~~128~~ 128 A1163533652A 116 353 36 52 Spacer Washer As Required 2.35 Mm

~~128~~ 128 A1163533752A 116 353 37 52 Compensating Disc As Required 2.40 Mm

~~131~~ 131 A0009808402A 000 980 84 02 Cone Bearing Drive Pinion

~~134~~ 134 A1083530042A 108 353 00 42 Spacer Bush

~~137~~ 137 A1093531062A 109 353 10 62 Friction Disk (2×)

~~140~~ 140 A0029801102A 002 980 11 02 Tapered Roller Bearing Drive Pinion

~~143~~ 143 A1263530762A 126 353 07 62 Pressure Disk

~~146~~ 146 A0229979947A 022 997 99 47 Sealing Ring

~~146~~ 146 A0259970047A 025 997 00 47 Sealing Ring Drive Pinion

~~146~~ 146 A0249974247A 024 997 42 47 Seal Ring

~~146~~ 146 A0259970047A 025 997 00 47 Sealing Ring Drive Pinion

~~149~~ 149 A2113500145A 211 350 01 45 Flange

~~149~~ 149 A2113500245A 211 350 02 45 Joint Flange Propeller Shaft 100 Mm

~~149~~ 149 A2123500045A 212 350 00 45 Joint Flange Propeller Shaft 100 Mm

~~152~~ 152 A1233530072A 123 353 00 72 Nut

~~152~~ 152 A2213530272A 221 353 02 72 Collar Nut F Ra Diff.

~~155~~ 155 A1243513408A 124 351 34 08 Cap End Cover

~~158~~ 158 A0009903204A 000 990 32 04 Screw

~~158~~ 158 N910143010009N 910143 010009 Hexalobular Bolt End Cover M10x45 (8×)

~~161~~ 161 N000137010205N 000137 010205 Spring Washer (8×)

~~164~~ 164 A1245845817A 124 584 58 17 Information Label Limited-slip Differential

~~167~~ 167 A1263500090A 126 350 00 90 Breather

~~173~~ 173 A1293500184A 129 350 01 84 Gasket Kit O-rings (2×)

~~176~~ 176 A1243500374A 124 350 03 74 Repair Kit Rear Axle Housing With Differential

~~176~~ 176 A1243500774A 124 350 07 74 Repair Kit Rear Axle Housing With Differential

030 Axle Shaft

5 5 A1293503810A 129 350 38 10 Axle Shaft Used Without Asd & Asr (2×)

5 5 A1293504110A 129 350 41 10 Axle Shaft Only Used With Asd Or Asr (2×)

8 8 A1243570191A 124 357 01 91 Boot Axle Shaft,outside Boot (2×)

8 8 A1243570291A 124 357 02 91 Boot

8 8 A1243570191A 124 357 01 91 Boot Axle Shaft,outside Boot (2×)

8 8 A2023570091A 202 357 00 91 Boot

11 11 A1249973090A 124 997 30 90 Binder Major (4×)

14 14 A1249973490A 124 997 34 90 Binder Minor (4×)

17 17 A1403500813A 140 350 08 13 Ball Joint Annular Joint,inside (2×)

20 20 N000983026000N 000983 026000 Retaining Ring Annular Joint On Axle Shaft (2×)

23 23 A1243570389A 124 357 03 89 Locking Cap

23 23 A1243570289A 124 357 02 89 Locking Cap (2×)

26 26 A2013501137A 201 350 11 37 Repair Kit Axle Shaft,inside Boot (2×)

29 29 A1243570175A 124 357 01 75 Washer Axle Shaft To Interior Flange (4×)

32 32 A0019907112A 001 990 71 12 Screw Axle Shaft To Interior Flange (12×)

35 35 A2103570172A 210 357 01 72 Nut

35 35 A0019903850A 001 990 38 50 Collar Nut F Shaft Axle Shaft To Rear Axle Shaft Flange (2×)

045 Rear Subframe

5 5 A1243507508A 124 350 75 08 Axle Carrier

8 8 A1243527765A 124 352 77 65 Rubber Bushing Axle Housing To Rear Subframe,rear (2×)

11 11 A2023500270A 202 350 02 70 Screw Axle Housing To Rear Subframe,rear (2×)

23 23 N000912010194N 000912 010194 Screw Axle Housing To Rear Subframe,front

26 26 A1243571852A 124 357 18 52 Spacer Washer (2×)

32 32 A1243511342A 124 351 13 42 Rubber Bushing Axle Housing To Rear Subframe,front (2×)

35 35 N910113010002N 910113 010002 Hexagon Nut Axle Housing To Rear Subframe,front

38 38 A1243508608A 124 350 86 08 Repair Kit

38 38 A1243500441A 124 350 04 41 Repair Kit Rear Subframe To Frame Floor Unit, Front

41 41 N910106012020N 910106 012020 Hexagon Head Bolt Rear Subframe To Frame Floor Unit, Front (2×)

44 44 A1293520146A 129 352 01 46 End Stop Front (2×)

47 47 A1293511442A 129 351 14 42 Rubber Mounting Rear Subframe To Frame Floor Unit,rear (2×)

50 50 A1243506708A 124 350 67 08 Repair Kit Mounting Parts

53 53 A2019900304A 201 990 03 04 Screw Rear Subframe To Frame Floor Unit,rear (2×)

56 56 A2013521246A 201 352 12 46 End Stop Rear (2×)

075 Rear Axle Suspension

5 5 A1243501032A 124 350 10 32 Wheel Carrier With Lower Control Arm Joint And Wheel Mounting,left

5 5 A1243501132A 124 350 11 32 Wheel Carrier With Lower Control Arm Joint And Wheel Mounting,right

8 8 A2013520027A 201 352 00 27 Joint

8 8 A2203520227A 220 352 02 27 Supporting Joint (2×)

8 8 A2303520027A 230 352 00 27 Supporting Joint (2×)

8 8 A2213520027A 221 352 00 27 Supporting Joint (2×)

8 8 A2043520027A 204 352 00 27 Ball Joint (2×)

9 9 A1249971240A 124 997 12 40 Sealing Ring (2×)

11 11 A1243500846A 124 350 08 46 Flange (2×)

14 14 A2019970010A 201 997 00 10 Cylinder Pin (2×)

17 17 A1249800416A 124 980 04 16 Repair Kit

17 17 A1249800516A 124 980 05 16 Repair Kit Rear Wheel Bearing (2×)

20 20 A2019941641A 201 994 16 41 Retaining Ring (2×)

23 23 A1243505306A 124 350 53 06 Spring Link Spring Control Arm (2×)

24 24 A2023520165A 202 352 01 65 Rubber Bushing (2×)

26 26 A1243506706A 124 350 67 06 Repair Kit Mounting Parts (2×)

29 29 A2109900504A 210 990 05 04 Screw Spring Control Arm To Wheel Bearing (2×)

32 32 N910113014001N 910113 014001 Hexagon Nut Spring Control Arm To Wheel Bearing (2×)

35 35 N308765012023N 308765 012023 Hexagon Head Bolt Spring Control Arm To Rear Subframe (2×)

38 38 A1243520076A 124 352 00 76 Washer

38 38 A1243520276A 124 352 02 76 Disk Spring Control Arm To Rear Subframe (2×)

41 41 A2013570275A 201 357 02 75 Washer

41 41 A2103570275A 210 357 02 75 Disk Spring Control Arm To Rear Subframe (2×)

44 44 N910113012003N 910113 012003 Hexagon Nut Spring Control Arm To Rear Subframe (2×)

47 47 A1243520188A 124 352 01 88 Cover Spring Control Arm (2×)

50 50 A2109900336A 210 990 03 36 Screw Protective Plate To Spring Control Arm (4×)

56 56 A2103503406A 210 350 34 06 Strut Left And Right (2×)

59 59 A1243506506A 124 350 65 06 Repair Kit Mounting Parts (2×)

59 59 A2103504506A 210 350 45 06 Ts Strut Rod Mounting Parts (2×)

60 60 A2103520043A 210 352 00 43 Clamping Sleeve (2×)

62 62 A2109901101A 210 990 11 01 Screw Camber Struts To Wheel Bearing (2×)

62 62 A0029902812A 002 990 28 12 Screw Camber Struts To Wheel Bearing (2×)

65 65 A2103570475A 210 357 04 75 Disk Camber Struts To Wheel Bearing (2×)

65 65 A2103570675A 210 357 06 75 Disk Camber Struts To Wheel Bearing (2×)

68 68 N000125010532N 000125 010532 Washer Camber Struts To Wheel Bearing (2×)

68 68 N000433013010N 000433 013010 Washer Camber Struts To Wheel Bearing (2×)

71 71 N910113010000N 910113 010000 Hexagon Nut Camber Struts To Wheel Bearing (2×)

71 71 N910113012003N 910113 012003 Hexagon Nut Camber Struts To Wheel Bearing (2×)

74 74 A0099902001A 009 990 20 01 Screw Camber Struts To Rear Subframe (2×)

77 77 N910113012003N 910113 012003 Hexagon Nut Camber Struts To Rear Subframe (2×)

80 80 A2103503306A 210 350 33 06 Strut (2×)

83 83 A1243506806A 124 350 68 06 Repair Kit Mounting Parts (2×)

83 83 A2103504506A 210 350 45 06 Ts Strut Rod Mounting Parts (2×)

84 84 A2103520043A 210 352 00 43 Clamping Sleeve (2×)

86 86 A2103520371A 210 352 03 71 Screw Strut To Wheel Bearing (2×)

86 86 A0029902812A 002 990 28 12 Screw Strut To Wheel Bearing (2×)

89 89 A2103570175A 210 357 01 75 Disk Strut To Wheel Bearing (2×)

89 89 A2103570675A 210 357 06 75 Disk Strut To Wheel Bearing (2×)

92 92 N000433013010N 000433 013010 Washer Strut To Wheel Bearing (2×)

95 95 N910113012003N 910113 012003 Hexagon Nut Strut To Wheel Bearing (2×)

98 98 A0099902001A 009 990 20 01 Screw Strut To Rear Subframe (2×)

~~101~~ 101 N910113012003N 910113 012003 Hexagon Nut Strut To Rear Subframe (2×)

~~104~~ 104 A2103502153A 210 350 21 53 Ts Tie Rod Parts Kit (2×)

~~107~~ 107 A2013528865A 201 352 88 65 Rubber Bushing (2×)

~~107~~ 107 A1243524365A 124 352 43 65 Rubber Bushing Repair Size; With Eccentric Interior Bushing (2×)

~~110~~ 110 N910113010002N 910113 010002 Hexagon Nut Tie Rod To Wheel Bearing M10x1 (2×)

~~110~~ 110 N910113010000N 910113 010000 Hexagon Nut Tie Rod To Wheel Bearing M 10 (2×)

~~113~~ 113 A1403501170A 140 350 11 70 Repair Kit Tie Rod To Rear Subframe (2×)

~~116~~ 116 N910113012002N 910113 012002 Hexagon Nut Tie Rod To Rear Subframe (2×)

~~119~~ 119 A2103500029A 210 350 00 29 Thrust Arm

~~119~~ 119 A2103503806A 210 350 38 06 Strut (2×)

~~122~~ 122 A1243506506A 124 350 65 06 Repair Kit Mounting Parts (2×)

~~122~~ 122 A2103504506A 210 350 45 06 Ts Strut Rod Mounting Parts (2×)

~~123~~ 123 A2103520043A 210 352 00 43 Clamping Sleeve (2×)

~~125~~ 125 A2109901101A 210 990 11 01 Screw Thrust Arm To Wheel Bearing (2×)

~~125~~ 125 A0029902812A 002 990 28 12 Screw Thrust Arm To Wheel Bearing (2×)

~~128~~ 128 A2103570475A 210 357 04 75 Disk Thrust Arm To Wheel Bearing (2×)

~~128~~ 128 A2103570675A 210 357 06 75 Disk Thrust Arm To Wheel Bearing (2×)

~~131~~ 131 N000125010532N 000125 010532 Washer Thrust Arm To Wheel Bearing (2×)

~~131~~ 131 N000433013010N 000433 013010 Washer Thrust Arm To Wheel Bearing (2×)

~~134~~ 134 N910113010000N 910113 010000 Hexagon Nut Thrust Arm To Wheel Bearing (2×)

~~134~~ 134 N910113012003N 910113 012003 Hexagon Nut Thrust Arm To Wheel Bearing (2×)

~~137~~ 137 A0099902001A 009 990 20 01 Screw Thrust Arm To Rear Subframe (2×)

~~140~~ 140 N910113012003N 910113 012003 Hexagon Nut Thrust Arm To Rear Subframe (2×)

~~143~~ 143 A2013520988A 201 352 09 88 Protective Cover Thrust Arm (2×)

40 Wheels

015 Wheels

-- Q000000000001Q 000000000001 Important Information Aluminum Disc Wheel (99×)

50 50 B66470019B6 6 47 0019 Disc Wheel 15-hole Disc Wheel 6 1/2 J X 15 H 2

55 55 B66470014B6 6 47 0014 Disc Wheel 8-hole Disc Wheel 6 1/2 J X 15 H 2

60 60 B66470105B6 6 47 0105 Hub Cap Parts Kit (4×)

65 65 A1244000470A 124 400 04 70 Clamping Screw (20×)

70 70 A2014000425A 201 400 04 25 Hub Cap (4×)

70 70 B66470203B6 6 47 0203 Hub Cap (4×)

75 75 A0004000313A 000 400 03 13 Tire Valve

75 75 A0004004013A 000 400 40 13 Valve (5×)

80 80 N007757008600N 007757 008600 Valve Cap (5×)

95 95 B66408236B6 6 40 8236 Clamping Screw Parts Kit

~~100~~ 100 A1244010670A 124 401 06 70 Lock Screw (4×)

~~120~~ 120 A1264030074A 126 403 00 74 Centering Bolt Wheel Mounting

-- Q000000000001Q 000000000001 Important Information Balancing Weight (99×)

~~130~~ 130 A1714012794A 171 401 27 94 Balancing Weight 5 G

~~130~~ 130 A1714012894A 171 401 28 94 Balancing Weight 10 G

~~130~~ 130 A1714012994A 171 401 29 94 Balancing Weight 15 G

~~130~~ 130 A1714011494A 171 401 14 94 Balancing Weight 20g

~~130~~ 130 A1714011594A 171 401 15 94 Balancing Weight 25 G

~~130~~ 130 A1714011694A 171 401 16 94 Balancing Weight 30 G

~~130~~ 130 A1714011794A 171 401 17 94 Balancing Weight 35 G

~~130~~ 130 A1714011894A 171 401 18 94 Balancing Weight 40 G

~~130~~ 130 A1714011994A 171 401 19 94 Balancing Weight 45 G

~~130~~ 130 A1714012094A 171 401 20 94 Balancing Weight 50 G

~~130~~ 130 A1714012194A 171 401 21 94 Balancing Weight 55 G

~~130~~ 130 A1714012294A 171 401 22 94 Balancing Weight 60 G

~~135~~ 135 A0004010328A 000 401 03 28 Bracket Aluminum Disc Wheel

41 Propeller Shaft

015 Propeller Shaft

-- XXXXXXXXXXXXXX XXXXXXXXXXXX Part Name Missing Three-part Propeller Shaft

-- XXXXXXXXXXXXXX XXXXXXXXXXXX Part Name Missing From Propeller Shaft To Rear Axle

5 5 A1244109719A 124 410 97 19 Propeller Shaft

8 8 A1244103817A 124 410 38 17 Propeller Shaft Front

14 14 A1244100732A 124 410 07 32 Centering Sleeve Front

17 17 A1409903301A 140 990 33 01 Bolt W Flange Flexible Disc To Propeller Shaft M12x1.5x57.5 (3×)

20 20 A1409900840A 140 990 08 40 Disk Flexible Disc To Propeller Shaft (3×)

23 23 A1409900551A 140 990 05 51 Hexagon Nut Flexible Disc To Propeller Shaft (3×)

26 26 A1244100705A 124 410 07 05 Intermediate Shaft

29 29 A1104110172A 110 411 01 72 Nut (2×)

32 32 A1244100781A 124 410 07 81 Rubber Bushing

35 35 A0039812325A 003 981 23 25 Ball Bearing

38 38 A1234110096A 123 411 00 96 Protective Cap

41 41 A1074110296A 107 411 02 96 Protective Cap

47 47 A1244100732A 124 410 07 32 Centering Sleeve Rear

50 50 A1244100781A 124 410 07 81 Rubber Bushing

53 53 A0039812325A 003 981 23 25 Ball Bearing

56 56 A1074110296A 107 411 02 96 Protective Cap

59 59 A1234110096A 123 411 00 96 Protective Cap

62 62 A1409903301A 140 990 33 01 Bolt W Flange Flexible Disc To Propeller Shaft M12x1.5x57.5 (3×)

65 65 A1409900840A 140 990 08 40 Disk Flexible Disc To Propeller Shaft (3×)

68 68 A1409900551A 140 990 05 51 Hexagon Nut Flexible Disc To Propeller Shaft (3×)

71 71 A2024110497A 202 411 04 97 Boot (2×)

80 80 A1409903301A 140 990 33 01 Bolt W Flange Propeller Shaft To Transmission M12x1.5x57.5 (3×)

80 80 A1409903301A 140 990 33 01 Bolt W Flange Propeller Shaft To Rear Axle M12x1.5x57.5 (3×)

83 83 A1409900840A 140 990 08 40 Disk Propeller Shaft To Transmission And To Rear Axle (6×)

86 86 A1409900551A 140 990 05 51 Hexagon Nut Propeller Shaft To Transmission And To Rear Axle (6×)

89 89 A2014130317A 201 413 03 17 Threaded Union Intermediate Bearing To Frame (4×)

92 92 N000933008154N 000933 008154 Screw

92 92 N304017008021N 304017 008021 Hexagon Head Bolt Intermediate Bearing To Frame (4×)

95 95 N912004008102N 912004 008102 Spring Lock Washer Intermediate Bearing To Frame (4×)

98 98 A1249900440A 124 990 04 40 Disk Intermediate Bearing To Frame (4×)

-- XXXXXXXXXXXXXX XXXXXXXXXXXX Part Name Missing Two-part Propeller Shaft

-- XXXXXXXXXXXXXX XXXXXXXXXXXX Part Name Missing From Propeller Shaft To Rear Axle

~~173~~ 173 A1244100110A 124 410 01 10 Intermediate Bearing Repair Kit (2×)

~~179~~ 179 A2104100815A 210 410 08 15 Flexible Joint Disc

~~179~~ 179 A1704100015A 170 410 00 15 Flexible Joint Disc Parts Kit,front

~~179~~ 179 A2104100815A 210 410 08 15 Flexible Joint Disc

~~179~~ 179 A1704100015A 170 410 00 15 Flexible Joint Disc Parts Kit,rear

-- XXXXXXXXXXXXXX XXXXXXXXXXXX Part Name Missing From Propeller Shaft To Front Axle

42 Brakes

030 Front Wheel Brake

32 32 A0014200483A 001 420 04 83 Ts Brake Caliper Left,less Lining

32 32 A0014200583A 001 420 05 83 Ts Brake Caliper Right,less Lining

35 35 A0004216691A 000 421 66 91 Spring (2×)

38 38 A0009919860A 000 991 98 60 Pin (4×)

41 41 A0004212765A 000 421 27 65 Bleeder Valve (2×)

44 44 A0004217187A 000 421 71 87 Protective Cap (2×)

47 47 A0004211620A 000 421 16 20 Protective Cover Minor (4×)

50 50 A0004211720A 000 421 17 20 Protective Cover Major (4×)

53 53 A1244210471A 124 421 04 71 Hexagon Head Bolt (4×)

62 62 A0004217186A 000 421 71 86 Repair Kit (2×)

68 68 A0024203720A 002 420 37 20 Ts Brake Pad Parts Kit

74 74 A1265402017A 126 540 20 17 Sender Unit Brake Lining Wear Indicator (4×)

77 77 A1244202744A 124 420 27 44 Protective Plate Left

77 77 A1244202844A 124 420 28 44 Protective Plate Right

80 80 N914125006501N 914125 006501 Screw Cover Plate To Steering Knuckle (6×)

83 83 A1244212412A 124 421 24 12 Brake Disk (2×)

86 86 A2014210171A 201 421 01 71 Hexagon Socket Screw Brake Disc To Wheel Hub (2×)

045 Rear Wheel Brake

5 5 A0004207483A 000 420 74 83 Ts Brake Caliper Left,less Lining

5 5 A0004207583A 000 420 75 83 Ts Brake Caliper Right,less Lining

8 8 A0019910060A 001 991 00 60 Pin (4×)

11 11 A0004214591A 000 421 45 91 Spring (2×)

14 14 A0004212765A 000 421 27 65 Bleeder Valve (2×)

17 17 A0004217187A 000 421 71 87 Protective Cap (2×)

20 20 A0004231771A 000 423 17 71 Hexagon Head Bolt Caliper To Wheel Bearing (4×)

23 23 A0004207683A 000 420 76 83 Repair Kit Caliper (2×)

26 26 A0014209520A 001 420 95 20 Ts Brake Pad Parts Kit

26 26 A0054201720A 005 420 17 20 Ts Disk Brake Pad Parts Kit

26 26 A0024204620A 002 420 46 20 Ts Brake Pad

29 29 A1265402017A 126 540 20 17 Sender Unit Brake Lining Wear Indicator (4×)

32 32 A1244231012A 124 423 10 12 Brake Disk With Ventilation (2×)

35 35 A2014210171A 201 421 01 71 Hexagon Socket Screw Brake Disc To Wheel Hub (2×)

38 38 A1244200720A 124 420 07 20 Ts Brake Shoe Range Of Delivery

41 41 A2014230592A 201 423 05 92 Extension Spring Brake Shoes To Cover Plates (4×)

44 44 A2014230692A 201 423 06 92 Spring Brake Shoe Pull-back (2×)

47 47 A2104230092A 210 423 00 92 Extension Spring Brake Shoe Pull-back (2×)

50 50 A2014200373A 201 420 03 73 Brake Adjuster Brake Shoe Adjustment (2×)

53 53 A1244230050A 124 423 00 50 Supporting Bush (2×)

56 56 A2014230080A 201 423 00 80 Sealing Shim Cover Plate To Wheel Bearing (2×)

59 59 A2014200589A 201 420 05 89 Expansion Lock F Brake (2×)

62 62 A1084270074A 108 427 00 74 Cylinder Pin (2×)

65 65 A2104201444A 210 420 14 44 Protective Cover Left

65 65 A2104201544A 210 420 15 44 Protective Cover Right

68 68 N914125006501N 914125 006501 Screw Cover Plate To Wheel Bearing (6×)

060 Brake Booster

5 5 A0044300030A 004 430 00 30 Ts Brake Booster

6 6 A0004312380A 000 431 23 80 Sealing Shim Brake Booster Assembly To Fire Wall

8 8 A0054302401A 005 430 24 01 Master Cylinder

8 8 A0044303901A 004 430 39 01 Master Cylinder

8 8 A0054302401A 005 430 24 01 Master Cylinder

11 11 A0014313360A 001 431 33 60 Sealing Ring

11 11 A0014313160A 001 431 31 60 Sealing Ring

14 14 A1269970232A 126 997 02 32 Screw

17 17 A0014305160A 001 430 51 60 Repair Kit Brake Master Cylinder

17 17 A0014304660A 001 430 46 60 Repair Kit Brake Master Cylinder

20 20 N000934008010N 000934 008010 Nut

20 20 N304032008006N 304032 008006 Hexagon Nut Master Cylinder To Brake Booster (2×)

23 23 N000125008443N 000125 008443 Washer Master Cylinder To Brake Booster (2×)

26 26 A0004300202A 000 430 02 02 Reservoir

26 26 A0024310802A 002 431 08 02 Reservoir

29 29 A0014312687A 001 431 26 87 Protective Cap Girling (2×)

29 29 A0004319087A 000 431 90 87 Protective Cap Teves (2×)

32 32 A0004307514A 000 430 75 14 Cover

32 32 A2024300014A 202 430 00 14 Cap

35 35 A0004314334A 000 431 43 34 Sieve

38 38 A0004311550A 000 431 15 50 Bushing (2×)

44 44 A1244310540A 124 431 05 40 Bracket

50 50 A0004300432A 000 430 04 32 Pump

59 59 A1264310640A 126 431 06 40 Bracket Top

62 62 N000912006095N 000912 006095 Screw

65 65 A0019879340A 001 987 93 40 Rubber Buffer

68 68 A0099973882A 009 997 38 82 Hose 125 Mm

71 71 A0004301094A 000 430 10 94 Accumulator

74 74 N913023006001N 913023 006001 Nut

77 77 A1244300110A 124 430 01 10 Bracket

-- XXXXXXXXXXXXXX XXXXXXXXXXXX Part Name Missing Vacuum Line

83 83 A1244305429A 124 430 54 29 Line From Intake Manifold To Brake Booster Assembly

89 89 A1269971781A 126 997 17 81 Grommet

-- XXXXXXXXXXXXXX XXXXXXXXXXXX Part Name Missing Hydraulic Unit

~~110~~ 110 A0014318012A 001 431 80 12 Hydraulic Unit (hydraulic Unit) Abs

~~113~~ 113 A0024314512A 002 431 45 12 Hydraulic Unit (hydraulic Unit) Asr

~~114~~ 114 A0004204955A 000 420 49 55 Bleeder Valve

~~115~~ 115 A0004217187A 000 421 71 87 Protective Cap

~~115~~ 115 A0004210887A 000 421 08 87 Protective Cap

~~116~~ 116 A0015426519A 001 542 65 19 Relay (engine Relay)

~~116~~ 116 A0015427019A 001 542 70 19 Relay Solenoid Valve

~~119~~ 119 A0014311987A 001 431 19 87 Protective Cap

~~120~~ 120 A0014313987A 001 431 39 87 Protective Cap

~~122~~ 122 A0014313187A 001 431 31 87 Protective Cap

~~125~~ 125 A0015426719A 001 542 67 19 Relay Solenoid Valve

~~128~~ 128 A0005461375A 000 546 13 75 Clamp

~~131~~ 131 A1246200012A 124 620 00 12 Angle

~~134~~ 134 N914007006013N 914007 006013 Screw-and-washer Assembly Hydraulic Unit To Bracket

~~140~~ 140 A1239870039A 123 987 00 39 Rubber Buffer Hydraulic Unit To Bracket (3×)

~~143~~ 143 A2024310075A 202 431 00 75 Threaded Union Hydraulic Unit To Bracket (3×)

090 Brake Lines

-- Q000000000001Q 000000000001 Important Information Line Attaching Parts See Also Group: 47 045

5 5 A1244206828A 124 420 68 28 Line From Master Cylinder To Front Hydraulic Unit

11 11 A1244206628A 124 420 66 28 Line From Master Cylinder To Rear Hydraulic Unit

17 17 A1234206728A 123 420 67 28 Line From Hydraulic Unit To Left Front Wheel

23 23 A1234207528A 123 420 75 28 Line From Hydraulic Unit To Right Front Wheel

32 32 A1234207128A 123 420 71 28 Line From Hydraulic Unit To Adapter Fitting

35 35 A1214290134A 121 429 01 34 Hexagon Spacer Element

38 38 A1244201828A 124 420 18 28 Line From Adapter Fitting To Distributor

41 41 A0004284224A 000 428 42 24 Distributor

44 44 N007976006204N 007976 006204 Tapping Screw

47 47 A1244201428A 124 420 14 28 Line From Distributor To Rear Left Brake Hose

50 50 A1234206428A 123 420 64 28 Line From Distributor To Rear Right Brake Hose

53 53 A1294280035A 129 428 00 35 Brake Hose Front (2×)

59 59 A1264280335A 126 428 03 35 Brake Hose Rear (2×)

62 62 A0004280673A 000 428 06 73 Retaining Spring (4×)

65 65 A2019950165A 201 995 01 65 Bracket

65 65 A6674280840A 667 428 08 40 Bracket Right Front Brake Line To Fire Wall (2×)

65 65 A6674280840A 667 428 08 40 Bracket Master-cylinder-to-left-distributor Brake Line

65 65 A6674280840A 667 428 08 40 Bracket Brake Line From Master Cylinder To Distributor Above Rear Axle

65 65 A6674280840A 667 428 08 40 Bracket Distributor-to-right-rear-wheel Brake Line

65 65 A6674280840A 667 428 08 40 Bracket Brake Line To Fire Wall

68 68 A0009952465A 000 995 24 65 Clamp Master-cylinder-to-distributor Brake Line To Fire Wall,bottom

71 71 A1263280181A 126 328 01 81 Rubber Bushing Brake Line Below Fuel Tank

71 71 A1263280181A 126 328 01 81 Rubber Bushing Brake Line To Rear End Floor

74 74 A1074280085A 107 428 00 85 Damping Strip Brake Line To Left Front Wheelhouse Panel

77 77 A2023280084A 202 328 00 84 Shim Brake Line To Left Front Wheelhouse Panel

80 80 A0019974390A 001 997 43 90 Loom Tie Brake Line To Left Front Wheelhouse Panel (4×)

83 83 A0009953165A 000 995 31 65 Clamp Brake Line To Left Front Wheelhouse Panel (2×)

89 89 A1249972282A 124 997 22 82 Hose Brake Line To Fire Wall (2×)

105 Brake Lines Used For Acceleration Skid Control (asr)

-- Q000000000001Q 000000000001 Important Information Line Attaching Parts See Also Group: 47 045

5 5 A1244280735A 124 428 07 35 Brake Hose From Asr Charging Pump To Hydraulic Unit

8 8 A1244205128A 124 420 51 28 Line From Hydraulic Unit,connection "p",to Adapter Fitting

11 11 A1244205328A 124 420 53 28 Line From Adapter Fitting To Accumulator, Connection: "p"

14 14 A1234206228A 123 420 62 28 Line From Accumulator,connection "e",to Adapter Fitting

17 17 A1234209428A 123 420 94 28 Line From Adapter Fitting To Hydraulic Unit,connection: "e"

19 19 A1214290134A 121 429 01 34 Hexagon Spacer Element (4×)

23 23 A1244207428A 124 420 74 28 Line From Rear Master Cylinder To Hydraulic Unit,connection: "v"

26 26 A1234209428A 123 420 94 28 Line From Front Master Cylinder To Hydraulic Unit,connection: "h"

29 29 A1244204328A 124 420 43 28 Line From Hydraulic Unit To Left Front Wheel

32 32 A1244200229A 124 420 02 29 Line From Hydraulic Unit To Right Front Wheel

38 38 A1244206228A 124 420 62 28 Line From Adapter Fitting To Brake Hose, Rear Left

44 44 A1234209028A 123 420 90 28 Line From Adapter Fitting To Brake Hose, Rear Right

47 47 A0009953165A 000 995 31 65 Clamp (2×)

50 50 A2014761126A 201 476 11 26 Hose Spacing Of Brake Lines (3×)

53 53 A1244280085A 124 428 00 85 Damping Strip Spacing Of Brake Lines (2×)

56 56 A0019974390A 001 997 43 90 Loom Tie (2×)

59 59 A1249975882A 124 997 58 82 Hose Spacing Of Brake Lines

62 62 A1239950222A 123 995 02 22 Clamp

65 65 A1234280085A 123 428 00 85 Damping Strip

68 68 A0039900251A 003 990 02 51 Screwed Insert

71 71 A1269975881A 126 997 58 81 Grommet

74 74 A2019950165A 201 995 01 65 Bracket

74 74 A6674280840A 667 428 08 40 Bracket (3×)

77 77 A0009953065A 000 995 30 65 Clamp Brake Line To Fire Wall

120 Parking Brake

5 5 A2024200284A 202 420 02 84 Parking Brake

11 11 A1249932810A 124 993 28 10 Spring

14 14 N913002006009N 913002 006009 Nut

17 17 A1244270386A 124 427 03 86 Damping Ring

20 20 A1244270276A 124 427 02 76 Disk

29 29 N000931006094N 000931 006094 Screw

32 32 A1244270382A 124 427 03 82 Cover Pedal

35 35 N914130008104N 914130 008104 Screw Foot Operated Parking Brake To Fire Wall (2×)

50 50 A1244270320A 124 427 03 20 Handle

53 53 A1244200777A 124 420 07 77 Guide

59 59 N914151005004N 914151 005004 Screw (3×)

62 62 A1244204285A 124 420 42 85 Brake Cable

65 65 A1249881278A 124 988 12 78 Clamp

68 68 A1244202485A 124 420 24 85 Brake Cable Front

69 69 A1244270092A 124 427 00 92 Clamping Piece (2×)

71 71 A0009870232A 000 987 02 32 Hose Front Brake Cable To Parking Brake 12 Mm

74 74 A0009955020A 000 995 50 20 Fastening Clamp

77 77 A1244200289A 124 420 02 89 Shackle Brake Readjustment

80 80 N304017008027N 304017 008027 Hexagon Head Bolt

83 83 A2014270071A 201 427 00 71 Screw Front Brake Cable To Brake Readjustment

86 86 A1269930210A 126 993 02 10 Spring

89 89 A1244201185A 124 420 11 85 Brake Cable Rear (2×)

92 92 N914125008511N 914125 008511 Screw Brake Cable To Rear Axle (2×)

95 95 A1159970681A 115 997 06 81 Grommet Brake Cable To Rear Axle (2×)

98 98 A1159930325A 115 993 03 25 Spring (2×)

46 Steering

015 Steering Gear

5 5 A1244606201A 124 460 62 01 Steering With Pitman Arm

8 8 N000960010027N 000960 010027 Screw

8 8 N308676010017N 308676 010017 Hexagon Head Bolt Pitman Arm To Steering Box Assembly

11 11 N913004010010N 913004 010010 Nut

11 11 N910113010002N 910113 010002 Hexagon Nut Pitman Arm To Steering Box Assembly

14 14 A1249943241A 124 994 32 41 Securing Pitman Arm To Steering Box Assembly

17 17 A1249934601A 124 993 46 01 Spring Control Valve (2×)

20 20 A1169970145A 116 997 01 45 Sealing Ring Control Valve

23 23 A0049943641A 004 994 36 41 Securing Control Valve

26 26 A0119976746A 011 997 67 46 Seal Ring

26 26 A0199975147A 019 997 51 47 Seal Ring

29 29 A0029974745A 002 997 47 45 Sealing Ring

32 32 A2014610262A 201 461 02 62 Pressure Disk

35 35 A2014600186A 201 460 01 86 Threaded Chuck

38 38 A0039903940A 003 990 39 40 Disk

41 41 A1164660160A 116 466 01 60 Sealing Ring

44 44 A2014610060A 201 461 00 60 Sealing Ring

47 47 A0119970848A 011 997 08 48 Sealing Ring

50 50 A0099974245A 009 997 42 45 Sealing Ring Bearing Cover To Steering Box (2×)

53 53 N000912008096N 000912 008096 Screw

53 53 N000912008202N 000912 008202 Cap Bolt M8x25 (8×)

56 56 N000433008407N 000433 008407 Washer (8×)

59 59 A0139973648A 013 997 36 48 Seal Ring

62 62 A1234620071A 123 462 00 71 Screw

65 65 A1074620862A 107 462 08 62 Thrust Washer As Required 2.65 Mm

65 65 A1074620962A 107 462 09 62 Pressure Disk As Required 2.70 Mm

65 65 A1074621062A 107 462 10 62 Pressure Disk As Required 2.75 Mm

65 65 A1074621162A 107 462 11 62 Thrust Washer As Required 2.80 Mm

65 65 A1074620262A 107 462 02 62 Pressure Disk As Required 2.80 Mm

65 65 A1074620162A 107 462 01 62 Pressure Disk As Required 2.85 Mm

65 65 A1074620262A 107 462 02 62 Pressure Disk As Required 2.90 Mm

65 65 A1074620362A 107 462 03 62 Pressure Disk As Required 2.95 Mm

65 65 A1074620462A 107 462 04 62 Pressure Disk As Required 3.00 Mm

65 65 A1074620562A 107 462 05 62 Pressure Disk As Required 3.05 Mm

65 65 A1074620662A 107 462 06 62 Pressure Disk As Required 3.10 Mm

68 68 A0049949241A 004 994 92 41 Securing

71 71 A1074620762A 107 462 07 62 Thrust Washer

74 74 N000471012001N 000471 012001 Retaining Ring

77 77 A0019907051A 001 990 70 51 Nut

77 77 A0009904050A 000 990 40 50 Nut

80 80 A1244600215A 124 460 02 15 Cap

83 83 A0139973748A 013 997 37 48 Seal Ring

86 86 A0119976846A 011 997 68 46 Seal Ring

86 86 A0199975047A 019 997 50 47 Sealing Ring

89 89 A0009949841A 000 994 98 41 Retaining Ring

92 92 A0089976048A 008 997 60 48 Sealing Ring

95 95 A0099974245A 009 997 42 45 Sealing Ring

98 98 A1249900912A 124 990 09 12 Screw (4×)

~~101~~ 101 A2019970030A 201 997 00 30 Screw Mid-position Bore

~~104~~ 104 N007603010103N 007603 010103 Sealing Ring

~~104~~ 104 N007603010110N 007603 010110 Sealing Ring

~~107~~ 107 A2014660050A 201 466 00 50 Bushing

~~110~~ 110 A2014660174A 201 466 01 74 Pin

~~113~~ 113 A1299930201A 129 993 02 01 Spring

~~116~~ 116 A2019970330A 201 997 03 30 Screw Plug

~~119~~ 119 N915023008001N 915023 008001 Fitting High Pressure

~~122~~ 122 N007603012110N 007603 012110 Sealing Ring

~~125~~ 125 A2019970372A 201 997 03 72 Fitting Low Pressure

~~128~~ 128 N007603014106N 007603 014106 Sealing Ring

~~131~~ 131 A1234600210A 123 460 02 10 Steering Coupling

~~137~~ 137 N912006008000N 912006 008000 Spring Lock Washer

~~137~~ 137 A1239900720A 123 990 07 20 Screw

~~137~~ 137 A2029902101A 202 990 21 01 Screw Steering Coupling To Steering Gear

~~140~~ 140 A1244600161A 124 460 01 61 Seal Set

~~143~~ 143 A1169900601A 116 990 06 01 Screw

~~143~~ 143 A1299901101A 129 990 11 01 Screw Steering To Frame (3×)

060 Steering Gear, Range Of Lines

8 8 A1244665081A 124 466 50 81 Hose (delivery Line),from Pump To Steering

17 17 A1244603724A 124 460 37 24 Line Pipe Line To Steering

23 23 N007976005206N 007976 005206 Tapping Screw (2×)

29 29 A2019970382A 201 997 03 82 Hose Low Pressure Hose

29 29 A2019970382A 201 997 03 82 Hose From Steering To Cooling Pipe 150 Mm

29 29 A2019970382A 201 997 03 82 Hose From Cooling Pipe To Pump 280 Mm

32 32 A0059972790A 005 997 27 90 Hose Clamp

32 32 N916026016001N 916026 016001 Clamp

32 32 A0059970190A 005 997 01 90 Hose Clamp (4×)

35 35 A1244604024A 124 460 40 24 Line

35 35 A1244604524A 124 460 45 24 Line Cooling Pipe

35 35 A1244604124A 124 460 41 24 Line

35 35 A1244604424A 124 460 44 24 Line Cooling Pipe

47 47 A1244603224A 124 460 32 24 Line Return

47 47 A1244603924A 124 460 39 24 Line Return

075 Steerg.column Jacket Tube & Steerg. Shaft

5 5 A1244602216A 124 460 22 16 Steering Column Tube

5 5 A1244607716A 124 460 77 16 Steering Column Tube

8 8 N000934006007N 000934 006007 Nut Steering Column Jacket Tube To Body (2×)

11 11 A2019900204A 201 990 02 04 Screw Steering Column Jacket Tube To Body (2×)

14 14 A1244601509A 124 460 15 09 Steering Shaft Top

14 14 A1244602009A 124 460 20 09 Steering Shaft Top

16 16 A0009946540A 000 994 65 40 Snap Ring

17 17 A1269810025A 126 981 00 25 Ball Bearing (2×)

20 20 N912009025100N 912009 025100 Snap Ring

23 23 A1264620051A 126 462 00 51 Adjusting Ring

23 23 A1404620751A 140 462 07 51 Ring

26 26 A1234620417A 123 462 04 17 Support Ring

29 29 A1239930226A 123 993 02 26 Disc Spring

32 32 N900055025401N 900055 025401 Retaining Ring

35 35 N000912008098N 000912 008098 Cap Bolt

35 35 N000912008204N 000912 008204 Cap Bolt Lower Steering Shaft To Upper Steering Shaft

38 38 N007980008003N 007980 008003 Spring Lock Washer

38 38 N912006008000N 912006 008000 Spring Lock Washer Lower Steering Shaft To Upper Steering Shaft

41 41 A1244600709A 124 460 07 09 Steering Shaft Bottom

44 44 A1234620460A 123 462 04 60 Sealing Ring

47 47 A1244620396A 124 462 03 96 Boot

47 47 A1244621396A 124 462 13 96 Boot

50 50 A1239900720A 123 990 07 20 Screw

50 50 N912006008000N 912006 008000 Spring Lock Washer

50 50 A2029902101A 202 990 21 01 Screw Steering Coupling To Steering Shaft

090 Steering Column Jacket Tube And Steering Shaft,electrically Adjustable

5 5 A1244602716A 124 460 27 16 Steering Column Tube Outside

8 8 N000912006097N 000912 006097 Screw

8 8 N000912006066N 000912 006066 Screw (4×)

11 11 N000433006405N 000433 006405 Washer (4×)

14 14 A1264621620A 126 462 16 20 Steer.column Jacket Tube

14 14 A1244621220A 124 462 12 20 Steering Column Tube Inside

17 17 N000933006103N 000933 006103 Screw

17 17 N304017006018N 304017 006018 Hexagon Head Bolt Steering Column Jacket Tube To Console

20 20 A1244622539A 124 462 25 39 Bracket

23 23 N007985006139N 007985 006139 Screw

26 26 N000433006405N 000433 006405 Washer

35 35 A1244601609A 124 460 16 09 Steering Shaft Top

35 35 A1244601909A 124 460 19 09 Steering Shaft Top

36 36 A0009946540A 000 994 65 40 Snap Ring

38 38 A1264620117A 126 462 01 17 Taper Sleeve

41 41 A1269931426A 126 993 14 26 Disc Spring

44 44 A1269940054A 126 994 00 54 Lock Ring

47 47 A1264620273A 126 462 02 73 Securing

50 50 A1264620772A 126 462 07 72 Nut

53 53 A1264620034A 126 462 00 34 Threaded Ring

56 56 N000471021000N 000471 021000 Retaining Ring

62 62 A1264620362A 126 462 03 62 Thrust Washer

62 62 A1269931226A 126 993 12 26 Disc Spring

62 62 A1244600422A 124 460 04 22 Clamping Piece (2×)

68 68 N000472021000N 000472 021000 Retaining Ring (2×)

71 71 A1264620571A 126 462 05 71 Screw

74 74 A1264600325A 126 460 03 25 Gearing

77 77 A1264622274A 126 462 22 74 Pin

80 80 N912001008000N 912001 008000 Securing

83 83 A6210710152A 621 071 01 52 Spacer Washer

83 83 N000125008418N 000125 008418 Washer

83 83 N000125008443N 000125 008443 Washer

86 86 N000912008111N 000912 008111 Cap Bolt

86 86 N000000000190N 000000 000190 Cap Bolt

89 89 A1244601109A 124 460 11 09 Steering Shaft

89 89 A1244602109A 124 460 21 09 Steering Shaft Bottom

92 92 A1264620060A 126 462 00 60 Sealing Ring

95 95 A1264620872A 126 462 08 72 Nut

98 98 A1294620011A 129 462 00 11 Spring

~~101~~ 101 A0009944241A 000 994 42 41 Retaining Ring

~~104~~ 104 N000912006025N 000912 006025 Screw

~~104~~ 104 N000912006175N 000912 006175 Cap Bolt

~~104~~ 104 A0019907212A 001 990 72 12 Screw Steering Lock To Steering Column Jacket Tube

105 Steering Wheel And Steering Lock

5 5 A1244623530A 124 462 35 30 Steering Column Lock

8 8 A1244600175A 124 460 01 75 Park Pawl

11 11 A1244620393A 124 462 03 93 Ignition Switch

11 11 A2025450104A 202 545 01 04 Ignition Switch Starting Switch

17 17 A1244621475A 124 462 14 75 Disk Blue

20 20 A1249900132A 124 990 01 32 Screw Ignition Switch To Steering Lock (3×)

26 26 A1264600204A 126 460 02 04 Ts Lock Cylinder Less Key

29 29 A1264600304A 126 460 03 04 Tumbler

29 29 A1264600604A 126 460 06 04 Ts Lock Cylinder Without Specific Lock,main Key, See Gr Oup 72

32 32 A1244622823A 124 462 28 23 Cap

35 35 A1234600222A 123 460 02 22 Clamp

38 38 N914011006008N 914011 006008 Combination Bolt

56 56 A1404601103A 140 460 11 03 Steering Wheel

56 56 A1404604503A 140 460 45 03 Steering Wheel 400 Mm

56 56 A1404602303A 140 460 23 03 Steering Wheel

56 56 A1404604603A 140 460 46 03 Steering Wheel Leather Cover 400 Mm

56 56 A1294601303A 129 460 13 03 Steering Wheel

56 56 A1294601903A 129 460 19 03 Steering Wheel Leather Cover 390 Mm

59 59 A1404642928A 140 464 29 28 Contact Ring

62 62 A0004600049A 000 460 00 49 Ts Contact Ring

65 65 A1409900120A 140 990 01 20 Screw (4×)

68 68 A1409900121A 140 990 01 21 Screw (5×)

72 72 A1404601041A 140 460 10 41 Contact Plate To 140 460 11 03,12 03,23 03

72 72 A1294600541A 129 460 05 41 Contact Plate To 129 460 13 03

74 74 A1409931401A 140 993 14 01 Pressure Spring (3×)

74 74 A1409931501A 140 993 15 01 Spring (3×)

80 80 A1249900520A 124 990 05 20 Screw Airbag To Steering Wheel (2×)

92 92 A1244640123A 124 464 01 23 Disk (5×)

~~101~~ 101 A1404600398A 140 460 03 98 Air Bag

~~101~~ 101 A1404601298A 140 460 12 98 Air Bag

~~101~~ 101 A1404602798A 140 460 27 98 Air Bag To 140 460 12 03,23 03,45 03

~~101~~ 101 A1294600398A 129 460 03 98 Air Bag

~~101~~ 101 A1294600698A 129 460 06 98 Air Bag To 129 460 13 03

~~104~~ 104 A1269900312A 126 990 03 12 Screw W Hexagon Socket Steering Wheel To Steering Column

~~104~~ 104 A0019907802A 001 990 78 02 Hexal. Socket Csk. Bolt Steering Wheel To Steering Column

~~108~~ 108 A1404640534A 140 464 05 34 Bracket Steer. Column Jacket Tube

~~109~~ 109 N007985004518N 007985 004518 Screw (2×)

~~109~~ 109 N000000001553N 000000 001553 Hexalobular Bolt (2×)

~~109~~ 109 N007985004235N 007985 004235 Screw

~~110~~ 110 A1244600261A 124 460 02 61 Gasket Steer. Column Jacket Tube

~~113~~ 113 A1249900320A 124 990 03 20 Screw (3×)

~~116~~ 116 A1245401045A 124 540 10 45 Switch Blinker Switch

~~116~~ 116 A1245402044A 124 540 20 44 Switch Blinker Switch

~~119~~ 119 A0125450328A 012 545 03 28 Plug Housing

~~119~~ 119 A0095455628A 009 545 56 28 Plug Housing 14-pole

~~120~~ 120 A0095455728A 009 545 57 28 Cap To 009 545 56 28

~~122~~ 122 A0015453826A 001 545 38 26 Contact Pin To 012 545 03 28 (14×)

~~125~~ 125 A1264641043A 126 464 10 43 Contact Piece (2×)

~~128~~ 128 A1264640943A 126 464 09 43 Contact Piece (airbag)

~~129~~ 129 A1404600049A 140 460 00 49 Contact Piece

~~129~~ 129 A1704600049A 170 460 00 49 Contact Piece

~~129~~ 129 A1704600149A 170 460 01 49 Contact Spiral Contact Spiral

~~131~~ 131 A1245400444A 124 540 04 44 Switch (tempomat Switch);in German

~~131~~ 131 A1245402844A 124 540 28 44 Switch (tempomat Switch);in German

~~131~~ 131 A1245400544A 124 540 05 44 Switch (tempomat Switch);in English

~~131~~ 131 A1245403244A 124 540 32 44 Switch (tempomat Switch);in English

~~134~~ 134 A0065457828A 006 545 78 28 Plug Housing Tempomat Switch; 6-pole

~~137~~ 137 A0095453028A 009 545 30 28 Housing Upper Part To 006 545 78 28

~~140~~ 140 A0015453826A 001 545 38 26 Contact Pin To 006 545 78 28

~~143~~ 143 N007985004130N 007985 004130 Screw Blinker Switch To Steering Column Jacket Tube (3×)

~~146~~ 146 N007985004168N 007985 004168 Screw Blinker & Tempomat Switches To Steering Column Jacket Tube

~~149~~ 149 N912004004102N 912004 004102 Spring Lock Washer Blinker & Tempomat Switches To Steering Column Jacket Tube (3×)

~~152~~ 152 A1245460943A 124 546 09 43 Bracket Tempomat Cable To Blinker Switch

~~155~~ 155 A0005462843A 000 546 28 43 Bracket

~~155~~ 155 A0005465843A 000 546 58 43 Bracket Electric Cable To Steering Column Bracket

~~158~~ 158 N913017006000N 913017 006000 Nut

~~158~~ 158 N910112006001N 910112 006001 Hexagon Nut

~~158~~ 158 N913023006001N 913023 006001 Nut Electric Cable To Steering Column Bracket (2×)

~~161~~ 161 A1264620496A 126 462 04 96 Boot Tempomat Switch

~~161~~ 161 A1244620496A 124 462 04 96 Boot Tempomat Switch

~~164~~ 164 A1244623023A 124 462 30 23 Cap Used Without Tempomat (cruise Control)

~~164~~ 164 A1244624123A 124 462 41 23 Cap Used Without Tempomat (cruise Control)

~~164~~ 164 A1244623223A 124 462 32 23 Cap Only Used W/tempomat (cruise Control)

~~164~~ 164 A1244624223A 124 462 42 23 Cap Only Used W/tempomat (cruise Control)

~~164~~ 164 A1244623523A 124 462 35 23 Cap Used Without Tempomat (cruise Control)

~~164~~ 164 A1244624423A 124 462 44 23 Cap Used Without Tempomat (cruise Control)

~~164~~ 164 A1244623623A 124 462 36 23 Cap Only Used W/tempomat (cruise Control)

~~164~~ 164 A1244624523A 124 462 45 23 Cap Only Used W/tempomat (cruise Control)

~~167~~ 167 A0025454607A 002 545 46 07 Switch Adjustable Steering Column

~~167~~ 167 A0025455907A 002 545 59 07 Switch Adjustable Steering Column

~~170~~ 170 A1245403508A 124 540 35 08 Line Adjustable Steering Column

120 Steering Linkage

8 8 A1244631210A 124 463 12 10 Intermediate Lever

14 14 A1244600119A 124 460 01 19 Repair Kit Repair Kit

17 17 N000960016287N 000960 016287 Screw Intermediate Lever To Pivot Bearing

20 20 A1114631056A 111 463 10 56 Dust Cap Intermediate Lever To Pivot Bearing

23 23 N913004016004N 913004 016004 Nut

23 23 N910113016002N 910113 016002 Hexagon Nut Intermediate Lever To Pivot Bearing

26 26 A1244630077A 124 463 00 77 Disk Intermediate Lever To Pivot Bearing

29 29 N000125017014N 000125 017014 Washer Intermediate Lever To Pivot Bearing

32 32 A1244630090A 124 463 00 90 Protective Cover

35 35 A1244601095A 124 460 10 95 Cover

38 38 A2019900450A 201 990 04 50 Nut

38 38 A2019900250A 201 990 02 50 Nut

38 38 N913023006001N 913023 006001 Nut

40 40 N914128006200N 914128 006200 Tapping Screw

41 41 A2014630540A 201 463 05 40 Bracket

44 44 N914128006301N 914128 006301 Tapping Screw

44 44 N000000000543N 000000 000543 Tapping Screw

53 53 A1243300803A 124 330 08 03 Tie Rod Left

59 59 A1243300903A 124 330 09 03 Tie Rod Right

65 65 A0003385110A 000 338 51 10 Ball Joint R.h. Thread To 124 330 08 03

65 65 A0003385410A 000 338 54 10 Ball Joint R.h. Thread To 124 330 09 03

71 71 A0003385610A 000 338 56 10 Ball Joint L.h. Thread To 124 330 08 03

71 71 A0003385910A 000 338 59 10 Ball Joint L.h. Thread To 124 330 09 03

77 77 A0003384245A 000 338 42 45 Clamp Joint To Tie Rod (2×)

80 80 N000933008152N 000933 008152 Screw

80 80 N304017008027N 304017 008027 Hexagon Head Bolt Clamp To Tie Rod (2×)

83 83 N913004008004N 913004 008004 Nut

83 83 N913004008001N 913004 008001 Nut Clamp To Tie Rod (2×)

83 83 N910113008003N 910113 008003 Hexagon Nut Clamp To Tie Rod (2×)

86 86 A0003380044A 000 338 00 44 Valve Lock Joint To Tie Rod (2×)

89 89 N000439014206N 000439 014206 Nut (2×)

92 92 A1244601205A 124 460 12 05 Drag Link

95 95 A0003300485A 000 330 04 85 Repair Kit Tie Rod Boot (4×)

98 98 N913002010010N 913002 010010 Nut Tie Rod To Steering Arm (4×)

~~101~~ 101 N913002012002N 913002 012002 Nut Drag Link To Pitman Arm And To Steering Intermediate Arm (2×)

~~113~~ 113 A0004635332A 000 463 53 32 Shock Absorber

~~113~~ 113 A1244630432A 124 463 04 32 Shock Absorber (steering Shock Absorber)

~~116~~ 116 N000960010026N 000960 010026 Screw

~~116~~ 116 N000961010031N 000961 010031 Screw Steering Shock Absorber To Frame

~~119~~ 119 N913004010010N 913004 010010 Nut

~~119~~ 119 N910113010002N 910113 010002 Hexagon Nut Steering Shock Absorber To Frame

~~122~~ 122 A1249900004A 124 990 00 04 Screw Steering Shock Absorber To Drag Link

47 Fuel System

015 Fuel Tank With Attachment Parts

5 5 A1244701104A 124 470 11 04 Fuel Tank 70 Liter

5 5 A1244700804A 124 470 08 04 Fuel Tank 70 Liter

8 8 A1164700129A 116 470 01 29 Guide Funnel F Neck

8 8 A1694700029A 169 470 00 29 Filler Neck

11 11 A1245420104A 124 542 01 04 Gauge Sender Unit

14 14 A1079971345A 107 997 13 45 Sealing Ring

17 17 A1114700686A 111 470 06 86 Tank Filter Parts Kit

20 20 A1109970145A 110 997 01 45 Seal Ring

23 23 A1244701381A 124 470 13 81 Bracket Left

23 23 A1244700881A 124 470 08 81 Bracket Right

26 26 A1244710722A 124 471 07 22 Reinforcement (2×)

29 29 A1244700033A 124 470 00 33 Reinforcement (2×)

32 32 A1244710622A 124 471 06 22 Reinforcement (2×)

35 35 A1244750101A 124 475 01 01 Beam

38 38 A1089900340A 108 990 03 40 Disk Fuel Tank To Console (2×)

38 38 N001440008002N 001440 008002 Washer Fuel Tank To Console (4×)

41 41 N913004008004N 913004 008004 Nut

41 41 N913004008001N 913004 008001 Nut Fuel Tank To Console (6×)

41 41 N910113008003N 910113 008003 Hexagon Nut Fuel Tank To Console (6×)

56 56 A1249972581A 124 997 25 81 Grommet

59 59 A1239973581A 123 997 35 81 Grommet Filler Neck

62 62 A1244763826A 124 476 38 26 Hose From Fuel Tank To Filler Neck 515 Mm

65 65 N916026016001N 916026 016001 Clamp

65 65 A0059970190A 005 997 01 90 Hose Clamp (2×)

74 74 A1404700005A 140 470 00 05 Tank Filler Cap Central Locking Mechanism

77 77 A1154710079A 115 471 00 79 Seal Ring

80 80 A2019971381A 201 997 13 81 Grommet

83 83 A1244780637A 124 478 06 37 Protective Cowl

83 83 A1244780537A 124 478 05 37 Protective Cowl

86 86 A0039900251A 003 990 02 51 Screwed Insert (4×)

89 89 A0009978682A 000 997 86 82 Hose 18 Mm (2×)

030 Fuel Pump Package

8 8 A0020918801A 002 091 88 01 Fuel Pump

8 8 A0030915301A 003 091 53 01 Fuel Pump (2×)

11 11 A0000900310A 000 090 03 10 Ts Valve (2×)

14 14 N007603010112N 007603 010112 Sealing Ring (2×)

17 17 A0000910282A 000 091 02 82 Insulation

19 19 A1244780353A 124 478 03 53 Spacer Tube

23 23 A1244781240A 124 478 12 40 Bracket

26 26 N914128006200N 914128 006200 Tapping Screw (2×)

29 29 A1244780237A 124 478 02 37 Protective Case

32 32 A1244780282A 124 478 02 82 Rubber Ring (2×)

38 38 A0024770601A 002 477 06 01 Fuel Filter

38 38 A0024774501A 002 477 45 01 Fuel Filter

38 38 A0024771901A 002 477 19 01 Fuel Filter

38 38 A0024774501A 002 477 45 01 Fuel Filter

44 44 A1244780453A 124 478 04 53 Spacer Tube

50 50 A1244702681A 124 470 26 81 Bracket

59 59 N000934005008N 000934 005008 Nut (2×)

62 62 N007985005125N 007985 005125 Screw

62 62 N007985005157N 007985 005157 Screw

65 65 N007985005151N 007985 005151 Screw

71 71 A1244780082A 124 478 00 82 Rubber Ring (4×)

74 74 A1244780240A 124 478 02 40 Bracket (2×)

77 77 A0039900251A 003 990 02 51 Screwed Insert Bracket To Car Floor (4×)

80 80 A1244701664A 124 470 16 64 Line From Fuel Pump To Accumulator

83 83 A1244704864A 124 470 48 64 Line From Fuel Pump To Filter

86 86 N916033021100N 916033 021100 Clamp

89 89 A1244702875A 124 470 28 75 Line

92 92 A1109970481A 110 997 04 81 Grommet

92 92 A0009972781A 000 997 27 81 Feed-through Grommet

92 92 A0009972981A 000 997 29 81 Feed-through Grommet

95 95 A0009976544A 000 997 65 44 Seal Ring

95 95 N007603012110N 007603 012110 Sealing Ring (4×)

98 98 A1239900053A 123 990 00 53 Nut (2×)

~~101~~ 101 A0009976544A 000 997 65 44 Seal Ring

~~101~~ 101 N007603012110N 007603 012110 Sealing Ring (2×)

~~104~~ 104 N915036008202N 915036 008202 Banjo Bolt

~~113~~ 113 N000934004006N 000934 004006 Nut Electric Cables To Fuel Pump (2×)

~~113~~ 113 N000934005008N 000934 005008 Nut Electric Cables To Fuel Pump (2×)

~~116~~ 116 N006797004132N 006797 004132 Tooth Lock Washer Electric Cables To Fuel Pump (2×)

~~116~~ 116 N006797005231N 006797 005231 Tooth Lock Washer Electric Cables To Fuel Pump (2×)

~~119~~ 119 A1244702281A 124 470 22 81 Bracket

~~122~~ 122 N913002006005N 913002 006005 Nut

~~122~~ 122 N913002006009N 913002 006009 Nut

045 Fuel Lines

62 62 A1244760026A 124 476 00 26 Hose From Tank Filter To Fuel Pump

65 65 N916033021100N 916033 021100 Clamp (2×)

68 68 A1244700575A 124 470 05 75 Fuel Hose From Fuel Filter To Feed Line

71 71 A1244707864A 124 470 78 64 Line Feed Line

74 74 A1244706775A 124 470 67 75 Fuel Hose From Feed Line To Engine

77 77 A1244706875A 124 470 68 75 Fuel Hose From Engine To Return Line

80 80 A1244707964A 124 470 79 64 Line Return

83 83 A2019970852A 201 997 08 52 Hose From Return Line To Fuel Tank 240 Mm

86 86 N916033014100N 916033 014100 Clamp (2×)

98 98 A1244760640A 124 476 06 40 Clamp Leak And Breather Lines To Floor Above Rear Axle

~~101~~ 101 A2014760184A 201 476 01 84 Damping Strip Brake And Fuel Lines To Vehicle Floor

~~104~~ 104 A2014760484A 201 476 04 84 Damping Strip Brake And Fuel Lines To Vehicle Floor

~~107~~ 107 A2014760740A 201 476 07 40 Clamp Brake And Fuel Lines To Vehicle Floor

~~110~~ 110 A2014760840A 201 476 08 40 Clamp Fuel Lines To Vehicle Floor

~~110~~ 110 A2014760740A 201 476 07 40 Clamp Fuel Lines On Floor Under Rear Seat

~~113~~ 113 A2019920030A 201 992 00 30 Clamping Element Brake And Fuel Lines To Vehicle Floor

~~113~~ 113 A2019920030A 201 992 00 30 Clamping Element Fuel Lines On Floor Under Rear Seat

~~122~~ 122 A2014760884A 201 476 08 84 Damping Strip Fuel Lines To Cowl

~~128~~ 128 A1109950022A 110 995 00 22 Clamp Fuel Lines To Cowl

~~134~~ 134 N007976006203N 007976 006203 Tapping Screw

~~137~~ 137 A2014760784A 201 476 07 84 Damping Strip Fuel Lines Under Steering (2×)

~~140~~ 140 A1244760340A 124 476 03 40 Clamp Breather Line Under Rear Floor

~~142~~ 142 A1244760484A 124 476 04 84 Damping Strip Leak And Breather Lines To Floor Above Rear Axle

~~143~~ 143 A1243280540A 124 328 05 40 Bracket Leak And Breather Lines To Floor Above Rear Axle

~~146~~ 146 A2019920030A 201 992 00 30 Clamping Element Leak And Breather Lines To Floor Above Rear Axle

~~149~~ 149 A1244760940A 124 476 09 40 Clamp

~~152~~ 152 A1244760584A 124 476 05 84 Damping Strip Fuel Lines On Floor Under Rear Seat (2×)

~~155~~ 155 A0009877770A 000 987 77 70 Rubber Guide 20 Mm

~~158~~ 158 A1409950422A 140 995 04 22 Clamp Fuel Line To Partition Panel

~~161~~ 161 N073379008100N 073379 008100 Hose Fuel Line To Partition Panel 30 Mm (2×)

060 Closed Fuel-evaporation-control System

14 14 A2019970852A 201 997 08 52 Hose 50 Mm

17 17 A1249972090A 124 997 20 90 Binder (2×)

20 20 A2014760132A 201 476 01 32 Valve Aeration

20 20 A1244760432A 124 476 04 32 Valve Aeration

23 23 A1149971882A 114 997 18 82 Hose

23 23 N916030000527N 916030 000527 Hose Front Breather Line To Rear Breather Line 55 Mm

23 23 A2304768726A 230 476 87 26 Hose Front Breather Line To Rear Breather Line 55 Mm

23 23 A1149971882A 114 997 18 82 Hose

23 23 N916030000527N 916030 000527 Hose Breather Line To Breather Valve 270 Mm

23 23 A2304768726A 230 476 87 26 Hose Breather Line To Breather Valve 270 Mm

26 26 A1244710882A 124 471 08 82 Ventilation Pipe From Activated Charcoal Filter To Breather Line

32 32 A1249971990A 124 997 19 90 Binder

38 38 A1244712515A 124 471 25 15 Ventilation Pipe Rear

41 41 A1244714615A 124 471 46 15 Ventilation Pipe Front

44 44 A1244700359A 124 470 03 59 Activated Charcoal

53 53 A2019970852A 201 997 08 52 Hose (vent Line) From Activated Charcoal Filter To Boot 710 Mm

62 62 A1170780481A 117 078 04 81 Hose From Activated Charcoal Filter To Regeneration Valve

62 62 A1404761526A 140 476 15 26 Molded Hose

62 62 A1200780181A 120 078 01 81 Hose From Activated Charcoal Filter To Regeneration Valve

62 62 A0089979082A 008 997 90 82 Plastic Pipe

62 62 A0009872727A 000 987 27 27 Plastic Tube From Activated Charcoal Filter To Regeneration Valve 720 Mm

65 65 A2014710741A 201 471 07 41 Bracket (2×)

68 68 A1244711081A 124 471 10 81 Cap

71 71 N073379008100N 073379 008100 Hose Breather Line 30 Mm

74 74 A1089950520A 108 995 05 20 Clamp Breather Line

77 77 N007976006203N 007976 006203 Tapping Screw Breather Line

80 80 A1149970590A 114 997 05 90 Binder

83 83 A1244760636A 124 476 06 36 Bracket Regeneration Valve

86 86 N913017006000N 913017 006000 Nut

86 86 N910112006001N 910112 006001 Hexagon Nut

86 86 N913023006001N 913023 006001 Nut Regeneration Valve (2×)

~~101~~ 101 A1244715915A 124 471 59 15 Ventilation Pipe (vent Line) From Activated Charcoal Filter To Boot

~~104~~ 104 A1244767626A 124 476 76 26 Hose

~~104~~ 104 A1294760426A 129 476 04 26 Hose (vent Line) From Activated Charcoal Filter To Boot

~~107~~ 107 A0049977290A 004 997 72 90 Loom Tie

~~107~~ 107 A0039979090A 003 997 90 90 Binder

~~107~~ 107 A1249972090A 124 997 20 90 Binder (vent Line) From Activated Charcoal Filter To Boot (2×)

~~110~~ 110 A1244760340A 124 476 03 40 Clamp (vent Line) From Activated Charcoal Filter To Boot

~~116~~ 116 A1299973482A 129 997 34 82 Hose (vent Line) From Activated Charcoal Filter To Boot

~~119~~ 119 A0009972681A 000 997 26 81 Grommet

~~119~~ 119 A1249870540A 124 987 05 40 Button Grommet (vent Line) From Activated Charcoal Filter To Boot

49 Exhaust System

030 Exhaust System On Gasoline Vehicles

14 14 A1244908619A 124 490 86 19 Exhaust Pipe Front

20 20 A1244906820A 124 490 68 20 Exhaust Pipe Front

44 44 A1244908021A 124 490 80 21 Exhaust Pipe

44 44 A1244911400A 124 491 14 00 Exhaust Pipe Central

58 58 A1244901721A 124 490 17 21 Exhaust Pipe

58 58 A1244910300A 124 491 03 00 Exhaust Pipe Rear

62 62 A1244900141A 124 490 01 41 Clamp

68 68 N000931008327N 000931 008327 Screw

68 68 N304017008043N 304017 008043 Hexagon Head Bolt

71 71 N000433008406N 000433 008406 Washer (2×)

74 74 N304032008005N 304032 008005 Hexagon Nut

77 77 A1244900029A 124 490 00 29 Ts Flange Parts Kit (2×)

80 80 A1244921245A 124 492 12 45 Flange (2×)

83 83 A1244920681A 124 492 06 81 Pressure Bush (4×)

86 86 A1299900310A 129 990 03 10 Screw (4×)

89 89 A0009902552A 000 990 25 52 Nut (4×)

92 92 A1299900310A 129 990 03 10 Screw Front Exhaust Pipe To Exhaust Manifold (4×)

95 95 N000931008327N 000931 008327 Screw

95 95 N304017008043N 304017 008043 Hexagon Head Bolt Front Exhaust Pipe To Tight Fit,center (2×)

95 95 N000931008248N 000931 008248 Screw

95 95 N304017008053N 304017 008053 Hexagon Head Bolt Front Exhaust Pipe To Sliding Fit, Center (2×)

~~101~~ 101 N999901008005N 999901 008005 Nut

~~101~~ 101 A0009903250A 000 990 32 50 Nut Front Exhaust Pipe To Central Exhaust Pipe (4×)

~~101~~ 101 A0009903250A 000 990 32 50 Nut Front Exhaust Pipe To Bracket (2×)

~~104~~ 104 A1264920245A 126 492 02 45 Flange Front Exhaust Pipe To Central Exhaust Pipe

~~107~~ 107 A1264920381A 126 492 03 81 Seal Ring

~~107~~ 107 A2024920381A 202 492 03 81 Sealing Ring Front Exhaust Pipe To Central Exhaust Pipe

~~110~~ 110 A1269970141A 126 997 01 41 Sealing Ring Front Exhaust Pipe To Central Exhaust Pipe

~~113~~ 113 A1244920441A 124 492 04 41 Bracket Front Exhaust Pipe To Transmission

~~137~~ 137 A2014920127A 201 492 01 27 Tensioning Bracket Front Exhaust Pipe To Bracket

~~137~~ 137 A1244920327A 124 492 03 27 Tensioning Bracket Front Exhaust Pipe To Bracket

~~146~~ 146 N002093016101N 002093 016101 Disk Spring Front Exhaust Pipe To Bracket (8×)

~~149~~ 149 N000440009103N 000440 009103 Washer Bracket To Mounting Plate Or To Transmission (4×)

~~152~~ 152 N000933008147N 000933 008147 Screw

~~152~~ 152 N304017008021N 304017 008021 Hexagon Head Bolt Bracket To Mounting Plate Or To Transmission (2×)

~~155~~ 155 A1211550181A 121 155 01 81 Elastomer Washer Bracket To Mounting Plate Or To Transmission (4×)

~~158~~ 158 A1264920172A 126 492 01 72 Nut Bracket To Mounting Plate Or To Transmission (2×)

~~164~~ 164 A2014900037A 201 490 00 37 Rs Suspension F Exhaust L Front Exhaust Pipe Suspension

~~164~~ 164 A2014900037A 201 490 00 37 Rs Suspension F Exhaust L Front Exhaust Pipe Suspension (2×)

~~164~~ 164 A1244900137A 124 490 01 37 Suspension Front Exhaust Pipe Suspension

~~167~~ 167 A1244900340A 124 490 03 40 Bracket Propeller Shaft Bearing

~~170~~ 170 A1264920182A 126 492 01 82 Damping Insert Propeller Shaft Bearing

~~173~~ 173 A1164920082A 116 492 00 82 Rubber Ring Front Exhaust Pipe To Bracket

~~177~~ 177 A1244920118A 124 492 01 18 Suspension Ring Main Muffler Suspension

~~180~~ 180 A2014920026A 201 492 00 26 Plate Main Muffler Suspension

~~183~~ 183 N000933008212N 000933 008212 Screw

~~183~~ 183 N304017008016N 304017 008016 Hexagon Head Bolt Main Muffler Suspension (2×)

~~186~~ 186 N000125008418N 000125 008418 Washer

~~186~~ 186 N000125008443N 000125 008443 Washer Main Muffler Suspension (2×)

~~189~~ 189 A1244920044A 124 492 00 44 Rubber Ring Rear Muffler Suspension (2×)

~~192~~ 192 A1139870240A 113 987 02 40 Rubber Buffer Stop Above Posterior Muffler

~~195~~ 195 A0005403817A 000 540 38 17 Lambda Probe Oxygen Sensor

285 Exhaust System On Diesel Vehicles

300 Screening Plates

8 8 A1246820071A 124 682 00 71 Shielding Fire Wall

38 38 A1246822871A 124 682 28 71 Shielding Main Floor,front Right

41 41 A1246821871A 124 682 18 71 Shielding Main Floor Above Catalyst

49 49 A1246821271A 124 682 12 71 Shielding Above Posterior Muffler

52 52 A1236821171A 123 682 11 71 Shielding Filler Neck, On Right Rear Wheelhouse

59 59 A1269901036A 126 990 10 36 Sheet Metal Screw

59 59 A2039900036A 203 990 00 36 Hex. Hd. Bolt W Flange Instrument Panel Screening To Support (2×)

59 59 A2039900036A 203 990 00 36 Hex. Hd. Bolt W Flange Main Floor,front Right (3×)

59 59 A2039900036A 203 990 00 36 Hex. Hd. Bolt W Flange Central Main Floor,in Front Of Central Muffler (3×)

59 59 A2039900036A 203 990 00 36 Hex. Hd. Bolt W Flange Screening Above Rear Muffler (5×)

65 65 N007976004205N 007976 004205 Tapping Screw (2×)

68 68 N000125005310N 000125 005310 Washer (2×)

50 Radiator

015 Radiator,mounting,and Covering

5 5 A1245009003A 124 500 90 03 Radiator

5 5 A1245002402A 124 500 24 02 Radiator Only For Use With Air Conditioner

8 8 A0005000185A 000 500 01 85 Drain Screw Water Drain

10 10 A0005010176A 000 501 01 76 Spacer Disk Water Drain

17 17 A0005000894A 000 500 08 94 Fitting

20 20 A1235000012A 123 500 00 12 Elastomer Buffer Radiator Mounting

23 23 A1235040412A 123 504 04 12 Rubber Bushing Radiator To Support (2×)

41 41 A2015018201A 201 501 82 01 Oil Cooler Engine

47 47 A1265040212A 126 504 02 12 Rubber Bushing Oil Cooler (2×)

50 50 N912002006002N 912002 006002 Securing Oil Cooler

53 53 A0009909491A 000 990 94 91 Nut Holder Oil Cooler

56 56 N914112006008N 914112 006008 Screw Oil Cooler

59 59 A1245003531A 124 500 35 31 Bracket Oil Cooler

62 62 N914128004200N 914128 004200 Tapping Screw Oil Cooler (2×)

65 65 A1245040412A 124 504 04 12 Rubber Bushing Oil Cooler

~~182~~ 182 A1245050388A 124 505 03 88 Cover Bottom; Used Without Air Conditioner

~~185~~ 185 A1245053488A 124 505 34 88 Cover Lateral Left; Used Without Air Conditioner

~~185~~ 185 A1245052888A 124 505 28 88 Cover Lateral Left; Only Used With Air Conditioner

~~188~~ 188 A1245050888A 124 505 08 88 Cover Lateral Right; Used Without Air Conditioner

~~188~~ 188 A1245052688A 124 505 26 88 Cover Lateral Right; Only Used With Air Conditioner

~~191~~ 191 A1078840198A 107 884 01 98 Seal Lateral Right; Only Used With Air Conditioner 450 Mm

~~197~~ 197 A0009904492A 000 990 44 92 Expansion Rivet Covering

~~200~~ 200 A1245040046A 124 504 00 46 Clamp Covering (4×)

~~203~~ 203 A2015051786A 201 505 17 86 Boot Only For Use With Air Conditioner

~~206~~ 206 A2015050386A 201 505 03 86 Rubber Profile Bottom Covering

~~206~~ 206 A1245240392A 124 524 03 92 Seal Only For Use With Air Conditioner 105 + 140 Mm

~~209~~ 209 A2015050986A 201 505 09 86 Rubber Profile Right Covering

~~209~~ 209 A2015050986A 201 505 09 86 Rubber Profile Left Covering

~~212~~ 212 A1245000655A 124 500 06 55 Fan Shroud Not For Use With Air Conditioner

~~212~~ 212 A1245000755A 124 500 07 55 Fan Shroud Only For Use With Air Conditioner

~~218~~ 218 A2015050073A 201 505 00 73 Securing

~~233~~ 233 A0005008593A 000 500 85 93 Blower Only For Use With Air Conditioner (2×)

~~236~~ 236 A1245050040A 124 505 00 40 Bracket Only For Use With Air Conditioner (2×)

~~239~~ 239 N007985005125N 007985 005125 Screw

~~239~~ 239 N007985005157N 007985 005157 Screw Only For Use With Air Conditioner (2×)

~~248~~ 248 A1245053555A 124 505 35 55 Fan Shroud Only For Use With Air Conditioner

~~254~~ 254 A1239900092A 123 990 00 92 Expansion Rivet Only For Use With Air Conditioner (6×)

165 Expansion Tank,mounting And Hoses

5 5 A1245012382A 124 501 23 82 Hose

5 5 A1245019382A 124 501 93 82 Hose Top; Used Without Air Conditioner

5 5 A1245012482A 124 501 24 82 Hose

5 5 A1245019482A 124 501 94 82 Hose Top; Only Used With Air Conditioner

8 8 N916026036000N 916026 036000 Clamp

8 8 A0069970590A 006 997 05 90 Hose Clamp Cooling Water Hose To Radiator (2×)

11 11 A1245014382A 124 501 43 82 Hose Bottom

20 20 N916026036000N 916026 036000 Clamp

20 20 A0069970590A 006 997 05 90 Hose Clamp Cooling Water Hose To Water Pump And To Thermostat,resp.

20 20 N916026040000N 916026 040000 Clamp

20 20 A0069974390A 006 997 43 90 Hose Clamp Cooling Water Hose To Water Pump And To Thermostat,resp.

23 23 N916026025000N 916026 025000 Clamp

23 23 A0069970490A 006 997 04 90 Clamp

23 23 N000000000668N 000000 000668 Clamp Cooling Water Hose To Expansion Tank

26 26 N916026023001N 916026 023001 Clamp Filling Hose To Radiator

29 29 A1245002875A 124 500 28 75 Hose Not For Use With Air Conditioner

29 29 A1245002975A 124 500 29 75 Hose Only For Use With Air Conditioner

38 38 A1269971581A 126 997 15 81 Grommet Filling Hose To Expansion Tank

41 41 A1245001349A 124 500 13 49 Reservoir Expansion Tank

44 44 A1245400244A 124 540 02 44 Switch Cooling Water Level Indicator

47 47 A0129970348A 012 997 03 48 Sealing Ring

50 50 N000471030002N 000471 030002 Retaining Ring

53 53 A1245000406A 124 500 04 06 Closing Cover Radiator

56 56 A2015040112A 201 504 01 12 Elastomer Fitting Expansion Tank To Wheelhouse

59 59 A0039905351A 003 990 53 51 Nut Expansion Tank To Wheelhouse (2×)

68 68 N900271008019N 900271 008019 Hose

68 68 N000000000734N 000000 000734 Hose From Expansion Tank To Engine 1200 Mm

77 77 N040621016200N 040621 016200 Insulating Tubing From Expansion Tank To Engine 300 Mm

80 80 A1409950036A 140 995 00 36 Clamp

80 80 A0059970190A 005 997 01 90 Hose Clamp From Expansion Tank To Engine (2×)

86 86 A1164661282A 116 466 12 82 Rubber Ring From Expansion Tank To Engine

95 95 A1245000449A 124 500 04 49 Reservoir Overflow

98 98 A1149971882A 114 997 18 82 Hose

98 98 N916030000527N 916030 000527 Hose From Expansion Tank To Overflow Reservoir 900 Mm

98 98 A2304768726A 230 476 87 26 Hose From Expansion Tank To Overflow Reservoir 900 Mm

~~104~~ 104 A1169971581A 116 997 15 81 Rubber Ring

~~107~~ 107 N000934008010N 000934 008010 Nut

~~107~~ 107 N304032008006N 304032 008006 Hexagon Nut

~~110~~ 110 N000125008418N 000125 008418 Washer

~~110~~ 110 N000125008443N 000125 008443 Washer

~~113~~ 113 N914031004300N 914031 004300 Tapping Screw

~~113~~ 113 N000000000548N 000000 000548 Tapping Screw (2×)

~~116~~ 116 A0019974390A 001 997 43 90 Loom Tie

315 Synoptic Table - Auxiliary Heater

-- YYYYYYYYYYYYYYYYYYYYYYYYYY Part Name Missing For Auxiliary Heater,see Subgroup: 50/345, 50/360

-- YYYYYYYYYYYYYYYYYYYYYYYYYY Part Name Missing For Cable Harness,see Subgroup: Sa 11154

-- YYYYYYYYYYYYYYYYYYYYYYYYYY Part Name Missing For Additional Parts,see Subgroup: 83/180

-- YYYYYYYYYYYYYYYYYYYYYYYYYY Part Name Missing For Additional Parts,see Subgroup: 47/030

345 Auxiliary Heater Used On Gasoline And Diesel Vehicles Less Turbodiesel

5 5 A1245002698A 124 500 26 98 Heater Unit Range Of Delivery

6 6 A0005844138A 000 584 41 38 Gummed Label (type Plate) Webasto Additional Heater

11 11 A1245004831A 124 500 48 31 Bracket Heater Unit

14 14 N916017070000N 916017 070000 Clamp

14 14 N000000000674N 000000 000674 Clamp Bracket To Heater Unit (2×)

35 35 A0034917901A 003 491 79 01 Muffler Intake Muffler

41 41 A0008351026A 000 835 10 26 Glow Plug

44 44 A0038207715A 003 820 77 15 Line

50 50 A0005420573A 000 542 05 73 Lock (flame Detection Photocell)

53 53 A0119974148A 011 997 41 48 Sealing Ring

56 56 A0008300872A 000 830 08 72 Temperature Sensor

59 59 A0004400026A 000 440 00 26 Fuse Link

62 62 A0119974248A 011 997 42 48 Sealing Ring

65 65 A0005008893A 000 500 88 93 Blower

68 68 A0119974348A 011 997 43 48 Sealing Ring

77 77 A0015453618A 001 545 36 18 Resistor

80 80 A2015454140A 201 545 41 40 Bracket Resistor

83 83 A0125456728A 012 545 67 28 Plug (plug Connection)

86 86 A0125457328A 012 545 73 28 Plug Pin 2.5 Mm (12×)

89 89 A1248850223A 124 885 02 23 Cover

95 95 A1245004431A 124 500 44 31 Bracket Heater Unit

~~110~~ 110 A1404760326A 140 476 03 26 Hose

~~113~~ 113 N916033010100N 916033 010100 Clamp

~~155~~ 155 A0054910801A 005 491 08 01 Muffler

~~158~~ 158 N914126006005N 914126 006005 Screw

~~158~~ 158 N914126006000N 914126 006000 Screw Muffler To Bracket

~~161~~ 161 A1245060156A 124 506 01 56 Pipe

~~164~~ 164 A1244920914A 124 492 09 14 End Piece (tail Pipe)

~~167~~ 167 A1244900327A 124 490 03 27 End Piece (tail Pipe)

~~170~~ 170 A0049976890A 004 997 68 90 Clamp Exhaust Muffler (3×)

~~173~~ 173 A0005060129A 000 506 01 29 Repair Kit

~~176~~ 176 A0009949645A 000 994 96 45 Securing (4×)

~~179~~ 179 N913017006000N 913017 006000 Nut

~~179~~ 179 N910112006001N 910112 006001 Hexagon Nut

~~179~~ 179 N913023006001N 913023 006001 Nut Heater Unit

~~182~~ 182 A1245060062A 124 506 00 62 Reinforcement Plate Heater Unit (3×)

~~185~~ 185 N000931006114N 000931 006114 Screw

~~185~~ 185 N304017006012N 304017 006012 Hexagon Head Bolt Heater Unit (2×)

~~188~~ 188 A0029942145A 002 994 21 45 Nut Heater Unit

~~245~~ 245 A0005424111A 000 542 41 11 Clock

~~248~~ 248 A0025455132A 002 545 51 32 Control Unit Electronic Control Box

~~251~~ 251 N914031004203N 914031 004203 Tapping Screw Additional Heater Control Unit

~~260~~ 260 A1244711323A 124 471 13 23 Line From Fuel Accumulator To Fuel Tank

~~263~~ 263 A1074763726A 107 476 37 26 Hose 220 Mm (leckleitung Zum Tank)

~~266~~ 266 N916033011100N 916033 011100 Clamp Leckleitung Z.tank Bzw. Kraftst.pumpe (3×)

~~272~~ 272 N916033010100N 916033 010100 Clamp Fuel-oil Pump (2×)

~~296~~ 296 A1244767726A 124 476 77 26 Hose Brennstoffpumpe Zur Rohrleitung

~~311~~ 311 A1269901036A 126 990 10 36 Sheet Metal Screw

~~311~~ 311 A2039900036A 203 990 00 36 Hex. Hd. Bolt W Flange (2×)

~~314~~ 314 A1244767301A 124 476 73 01 Line Fuel Line To Floor,right

~~320~~ 320 A2014760840A 201 476 08 40 Clamp Fuel Line To Floor,right (5×)

~~323~~ 323 A1244762384A 124 476 23 84 Damping Strip Fuel Line To Floor,right (5×)

~~329~~ 329 A1299950065A 129 995 00 65 Clamp Fuel Line To Side Member (5×)

~~331~~ 331 A1244760640A 124 476 06 40 Clamp Leckleitung An Schraege Unt.fondsitz

~~334~~ 334 A1244760484A 124 476 04 84 Damping Strip Leak And Breather Lines To Floor Above Rear Axle

~~337~~ 337 A1243280540A 124 328 05 40 Bracket Leak And Breather Lines To Floor Above Rear Axle

~~340~~ 340 A2019920030A 201 992 00 30 Clamping Element Fuel Line To Floor,right (5×)

~~340~~ 340 A2019920030A 201 992 00 30 Clamping Element Leak And Breather Lines To Floor Above Rear Axle

~~343~~ 343 A0049973090A 004 997 30 90 Clamp (2×)

~~360~~ 360 A1245069635A 124 506 96 35 Hose From Engine Feed To Piping

~~361~~ 361 A1245069535A 124 506 95 35 Hose From Engine Feed To Piping

~~362~~ 362 A1245066935A 124 506 69 35 Hose From Engine Feed To Piping

~~366~~ 366 A0069900201A 006 990 02 01 Screw From Engine Feed To Piping

~~382~~ 382 A1245060538A 124 506 05 38 Hose From Heater Unit To Pipe Line

~~385~~ 385 A1164660882A 116 466 08 82 Rubber Ring From Expansion Tank To Radiator

~~388~~ 388 N916026016001N 916026 016001 Clamp

~~388~~ 388 A0059970190A 005 997 01 90 Hose Clamp

~~388~~ 388 N916026020001N 916026 020001 Clamp

~~388~~ 388 N000000000667N 000000 000667 Clamp

~~391~~ 391 A1245060938A 124 506 09 38 Hose From Pipe Line To Heat Exchanger

~~394~~ 394 A1245060438A 124 506 04 38 Hose From Pipe Line To Heater Unit

~~430~~ 430 A1245002772A 124 500 27 72 Line At Frame

~~430~~ 430 A1245002672A 124 500 26 72 Line At Engine

~~433~~ 433 A1245060946A 124 506 09 46 Bracket

~~433~~ 433 A1245004731A 124 500 47 31 Bracket

~~436~~ 436 N007984006029N 007984 006029 Screw

~~445~~ 445 N914128006200N 914128 006200 Tapping Screw At Frame (2×)

360 Auxiliary Heater Used Only On Turbodiesel Vehicles

52 Chassis Sheet Metal

030 Engine Compartment Panelling, Gasoline Vehicles

5 5 A1245241530A 124 524 15 30 Trim Front

14 14 A0019949845A 001 994 98 45 Clip-type Nut (6×)

17 17 A2019900536A 201 990 05 36 Sheet Metal Screw (6×)

20 20 A1245240047A 124 524 00 47 Strut Front Left

20 20 A1245240147A 124 524 01 47 Strut Front Right

23 23 A2015054186A 201 505 41 86 Rubber Profile Engine Compartment Front Panelling 100 Mm (2×)

23 23 A2015054186A 201 505 41 86 Rubber Profile Front Antinoise Capsule 710 Mm

26 26 N000933008147N 000933 008147 Screw

26 26 N304017008021N 304017 008021 Hexagon Head Bolt Strut To Side Member (2×)

29 29 N913004008004N 913004 008004 Nut

29 29 N913004008001N 913004 008001 Nut Strut To Side Member (2×)

29 29 N910113008003N 910113 008003 Hexagon Nut Strut To Side Member (2×)

37 37 A1245241830A 124 524 18 30 Trim Front Left; Only Used With Air Conditioner

40 40 A1245241730A 124 524 17 30 Trim Front Right; Only Used W/air Conditioner

47 47 A1109870944A 110 987 09 44 Disk (2×)

56 56 A2019901136A 201 990 11 36 Screw (6×)

74 74 A1245242540A 124 524 25 40 Bracket At Left Side Member

77 77 A1245242640A 124 524 26 40 Bracket At Right Side Member

80 80 N000933008145N 000933 008145 Screw Bracket To Side Member (2×)

83 83 N913004008004N 913004 008004 Nut

83 83 N913004008001N 913004 008001 Nut Bracket To Side Member (2×)

83 83 N910113008003N 910113 008003 Hexagon Nut Bracket To Side Member (2×)

045 Antinoise Capsule, Diesel Vehicles

060 Oil Pan Undershield

5 5 A1245203142A 124 520 31 42 Protective Cover Oil Pan

8 8 A1249870740A 124 987 07 40 Rubber Buffer (2×)

23 23 N000933008147N 000933 008147 Screw

23 23 N304017008021N 304017 008021 Hexagon Head Bolt Oil Pan Protective Plate To Front Cross Member (2×)

23 23 N304017008021N 304017 008021 Hexagon Head Bolt Protective Plate To Side Member (2×)

26 26 A2019900991A 201 990 09 91 Nut Retainer Protective Plate (2×)

26 26 A0049941845A 004 994 18 45 Spring Nut Protective Plate (2×)

29 29 N913004008004N 913004 008004 Nut

29 29 N913004008001N 913004 008001 Nut Protective Plate To Side Member (2×)

29 29 N910113008003N 910113 008003 Hexagon Nut Protective Plate To Side Member (2×)

32 32 A1164660882A 116 466 08 82 Rubber Ring Hose To Radiator And To Expansion Tank

35 35 A2015054186A 201 505 41 86 Rubber Profile Oil Pan Undershield (2×)

075 Engine Compartment Panelling With Protection Against Marten

-- XXXXXXXXXXXXXX XXXXXXXXXXXX Part Name Missing Engine Compartment Panelling With Protection Against Marten

5 5 A0001591438A 000 159 14 38 Cable Sleeve

8 8 A1245405935A 124 540 59 35 Electric Cable Subsequent Installation

8 8 A2015409734A 201 540 97 34 Cable Harness

11 11 A2015400350A 201 540 03 50 Fuse Box

14 14 A1245450514A 124 545 05 14 Switch

17 17 A0185453928A 018 545 39 28 Plug

20 20 A0075453432A 007 545 34 32 Control Unit

20 20 A0115459232A 011 545 92 32 Control Unit

23 23 A0005458234A 000 545 82 34 Securing

23 23 N072581008101N 072581 008101 Fuse Link

26 26 A2015457840A 201 545 78 40 Bracket Control Unit

29 29 A2015458040A 201 545 80 40 Bracket Additional Fuse Box

32 32 A1235450446A 123 545 04 46 Cover

35 35 A2015462143A 201 546 21 43 Bracket (21×)

38 38 A2015840247A 201 584 02 47 Warning Strip

41 41 A2019900536A 201 990 05 36 Sheet Metal Screw (2×)

44 44 A0019949845A 001 994 98 45 Clip-type Nut (2×)

47 47 N007976004217N 007976 004217 Tapping Screw

47 47 N914128004303N 914128 004303 Tapping Screw (2×)

47 47 N914031006300N 914031 006300 Tapping Screw (2×)

50 50 N913002008004N 913002 008004 Nut

53 53 N914129005010N 914129 005010 Screw (21×)

56 56 A0019974390A 001 997 43 90 Loom Tie

59 59 A1248220214A 124 822 02 14 Bracket

62 62 A1245400538A 124 540 05 38 Electric Cable

54 Electrical Equipment And Instruments

020 Loom Ties And Cable Mounting Parts

5 5 A1169970890A 116 997 08 90 Loom Tie 140 Mm

5 5 A0039977090A 003 997 70 90 Cable Strap 170 Mm

8 8 A1149970190A 114 997 01 90 Cable Strap 80 Mm

8 8 A1149970590A 114 997 05 90 Binder 160 Mm

11 11 A0019974190A 001 997 41 90 Cable Strap 100 Mm

11 11 A0019974390A 001 997 43 90 Loom Tie 250 Mm

14 14 A0019978390A 001 997 83 90 Loom Tie 280 Mm

17 17 A0009956244A 000 995 62 44 Clamp

20 20 A0009956844A 000 995 68 44 Clamp 7.8 Mm

20 20 A0009956044A 000 995 60 44 Clamp 10.8 Mm

20 20 A0009956044A 000 995 60 44 Clamp 12.8 Mm

20 20 A0009955244A 000 995 52 44 Jaw Clamp 18 Mm

20 20 A0009955844A 000 995 58 44 Clamp 22.2 Mm

23 23 A1159950365A 115 995 03 65 Clamp 8 Mm

23 23 A0009956665A 000 995 66 65 Extendable Spacer

23 23 A0079973890A 007 997 38 90 Clamp 10 Mm

23 23 A1239950265A 123 995 02 65 Clamp 15 Mm

23 23 A0009951765A 000 995 17 65 Clamp 6 Mm

23 23 A1239950065A 123 995 00 65 Clamp 8 Mm

23 23 A0009952365A 000 995 23 65 Clamp

26 26 A0004760436A 000 476 04 36 Hose Bracket 11 Mm

29 29 A0009952965A 000 995 29 65 Clamp

32 32 A0009957744A 000 995 77 44 Clamping Collar

35 35 A0009957444A 000 995 74 44 Clamp

35 35 A0009958044A 000 995 80 44 Clamp

38 38 A0069885278A 006 988 52 78 Clamp Electric Cable To Suspension Eye

44 44 A0019951001A 001 995 10 01 Clamp Electric Cable To Rear Panel (2×)

47 47 N007981004318N 007981 004318 Tapping Screw Electric Cable To Rear Panel (2×)

50 50 A0059889078A 005 988 90 78 Clamp Cable Harness To Bracket (2×)

50 50 A0029884878A 002 988 48 78 Clamp Additional Fan Plug-connection To Lighting Unit

50 50 A0079880278A 007 988 02 78 Clamp Flexible Shaft To Covering

50 50 A0019889878A 001 988 98 78 Clamp Cable Harness To Front Panel Pillar And To Roof Rail (3×)

030 Battery,starter/alternator Cable

8 8 A0035416601A 003 541 66 01 Battery Filled 12v/62 Ah

8 8 A0009823008A 000 982 30 08 Starter Battery Filled 12v/62 Ah

8 8 A0045414601A 004 541 46 01 Battery 100 Ah

8 8 A0055412501A 005 541 25 01 Battery Filled 12v/100 Ah

8 8 A0009823308A 000 982 33 08 Starter Battery Filled 12v/100 Ah

11 11 A0009891215A 000 989 12 15 Battery Acid To 62 Ah

11 11 A0009891415A 000 989 14 15 Battery Acid To 100 Ah

14 14 A0015460835A 001 546 08 35 Protective Cap Battery Pos. Pole

38 38 A1245404230A 124 540 42 30 Positive Cable From Battery To Starting Motor

53 53 A0135451228A 013 545 12 28 Plug Housing Inboard Cable Harness Plug-connection

54 54 A0015453826A 001 545 38 26 Contact Pin 4 Mm

57 57 A0115458528A 011 545 85 28 Female Connector, Eletr. Oil Pressure Gauge Sender Unit

60 60 A0145450728A 014 545 07 28 Receptacle Housing Oil Level Indication

60 60 A0089970781A 008 997 07 81 Grommet To 014 545 07 28

63 63 A0035452626A 003 545 26 26 Female Contact 4 Mm

65 65 A0079977081A 007 997 70 81 Grommet Cable To Starting Motor

74 74 A1245404073A 124 540 40 73 Bracket Starting Motor Cable Harness Plugconnection

77 77 N913017005000N 913017 005000 Nut Plug Connection To Bracket (2×)

80 80 N000000000459N 000000 000459 Tapping Screw Bracket To Unit Partition Panel (2×)

89 89 N000137008204N 000137 008204 Spring Washer

89 89 N000137008212N 000137 008212 Spring Washer Cable To Starting Motor,terminal 30

89 89 N000137006204N 000137 006204 Spring Washer Cable To Starting Motor,terminal 50

92 92 N000934008010N 000934 008010 Nut

92 92 N304032008006N 304032 008006 Hexagon Nut Cable To Starting Motor,terminal 30

92 92 N000934006007N 000934 006007 Nut Cable To Starting Motor,terminal 50

~~102~~ 102 A0005461381A 000 546 13 81 Cover Cable To Starting Motor,terminal 50

~~116~~ 116 A1245400269A 124 540 02 69 Luster Terminal Spring Dome

~~131~~ 131 A0029943045A 002 994 30 45 Securing Cable Connector To Spring Dome (2×)

~~143~~ 143 N304017006034N 304017 006034 Hexagon Head Bolt Cable Harness To Cable Connector (2×)

~~146~~ 146 N007985004125N 007985 004125 Screw

~~146~~ 146 N007985004107N 007985 004107 Screw Cable Harness To Cable Connector

~~149~~ 149 N912004006102N 912004 006102 Spring Lock Washer Cable Harness To Cable Connector (2×)

~~155~~ 155 N000934006007N 000934 006007 Nut Cable Harness To Cable Connector (2×)

~~158~~ 158 A2015400031A 201 540 00 31 Neg. Cable From Battery Neg. Pole To Ground

~~164~~ 164 N304017008016N 304017 008016 Hexagon Head Bolt Ground Cable To Damper Strut Dome

~~167~~ 167 N000137008204N 000137 008204 Spring Washer

~~167~~ 167 N000137008212N 000137 008212 Spring Washer Ground Cable To Damper Strut Dome

~~170~~ 170 A1245400031A 124 540 00 31 Line

~~170~~ 170 A9015400741A 901 540 07 41 Ground Strap From Engine To Frame

~~176~~ 176 N304017008039N 304017 008039 Hexagon Head Bolt Ground Cable To Frame Side Member

~~179~~ 179 N000137008204N 000137 008204 Spring Washer

~~179~~ 179 N000137008212N 000137 008212 Spring Washer Ground Cable To Frame Side Member

~~182~~ 182 A1244403908A 124 440 39 08 Cable Harness From Alternator To Cable Connector

~~182~~ 182 A1244406409A 124 440 64 09 Cable Harness From Alternator To Cable Connector 120 A

~~193~~ 193 A0001592381A 000 159 23 81 Grommet Alternator Cable Harness

~~198~~ 198 N007976004205N 007976 004205 Tapping Screw Bracket To Wheel Arch Panel

~~202~~ 202 N000934008010N 000934 008010 Nut

~~202~~ 202 N304032008006N 304032 008006 Hexagon Nut Cable To Alternator

~~202~~ 202 N000934005008N 000934 005008 Nut Cable To Alternator

~~205~~ 205 N912004008102N 912004 008102 Spring Lock Washer Cable To Alternator

~~205~~ 205 N912004005100N 912004 005100 Spring Lock Washer Cable To Alternator

~~207~~ 207 N913018013201N 913018 013201 Protective Cap

~~207~~ 207 A0008310929A 000 831 09 29 Cap Alternator,terminal B+

~~209~~ 209 A0015427519A 001 542 75 19 Relay Cut-off Relay Battery

040 Fuse Cabinet,fuse Box And Relay Unit

5 5 A1245401750A 124 540 17 50 Fuse Box Relay And Fuse Box

8 8 A1245450094A 124 545 00 94 Gasket Fuse Box To Fire Wall

11 11 A0005451150A 000 545 11 50 Bushing Rear Fuse Box (2×)

14 14 A1245460044A 124 546 00 44 Luster Terminal At Fuse Box

14 14 A1245401869A 124 540 18 69 Socket-terminal Strip At Fuse Box

17 17 N913023006001N 913023 006001 Nut Fuse Box To Fire Wall (4×)

20 20 A1245460037A 124 546 00 37 Grommet Relay And Fuse Box

23 23 N000934006007N 000934 006007 Nut Electric Cable To Connector

26 26 A1245450140A 124 545 01 40 Bracket Relay

29 29 A1245400082A 124 540 00 82 Cap Fuse Box

32 32 A1245450294A 124 545 02 94 Rubber Insert Fuse Box Cover

35 35 N007985004151N 007985 004151 Screw Central & Rear Covers

38 38 A1245400182A 124 540 01 82 Cap Fuse Box

41 41 A1245450194A 124 545 01 94 Rubber Insert Fuse Box Cover

44 44 A1245452100A 124 545 21 00 Designation Strip

50 50 A1245401450A 124 540 14 50 Fuse Box Left

50 50 A1245401550A 124 540 15 50 Fuse Box Left

56 56 N007985004125N 007985 004125 Screw

56 56 N007985004107N 007985 004107 Screw Electric Cable And Contact Rail To Fuse Box

59 59 N912004004102N 912004 004102 Spring Lock Washer Electric Cable And Contact Rail To Fuse Box

62 62 A0005458234A 000 545 82 34 Securing

62 62 N072581008101N 072581 008101 Fuse Link 8 A

62 62 A0005458334A 000 545 83 34 Securing 16 A

62 62 A0015457534A 001 545 75 34 Securing 25 A

65 65 A1245455840A 124 545 58 40 Bracket Additional Fuse Box

68 68 A2015400350A 201 540 03 50 Fuse Box Bipolar

69 69 A1235450446A 123 545 04 46 Cover Fuse Box

70 70 A1235400450A 123 540 04 50 Fuse Box

71 71 A0005452034A 000 545 20 34 Securing 30 A

74 74 A1245402050A 124 540 20 50 Fuse Box

75 75 N007985004179N 007985 004179 Screw

76 76 A1245455340A 124 545 53 40 Bracket Fuse Box

77 77 N007981004318N 007981 004318 Tapping Screw Fuse Box To Bracket (2×)

78 78 A2018210247A 201 821 02 47 Relay Blinker/hazard-warng.-l.sender Units, Heated Rear Pane,wiper,trailer Coupl.

81 81 A2015401181A 201 540 11 81 Socket-outlet Contact Bridge With Diode,bipolar; Used With Window Regulator

82 82 A0005421881A 000 542 18 81 Cover Fuel Pump Relay

89 89 A0015420219A 001 542 02 19 Relay Burglary Alarm System

89 89 A0015422219A 001 542 22 19 Relay Burglary Alarm System

89 89 A0015420219A 001 542 02 19 Relay Burglary Alarm System

89 89 A1268202026A 126 820 20 26 Control Unit Headlamp Wiper/washer

89 89 A0015427819A 001 542 78 19 Relay Electric Window Regulator

89 89 A0015427819A 001 542 78 19 Relay Steering Column Jacket Tube Adjustment

89 89 A0015427819A 001 542 78 19 Relay Electric Sliding Roof

89 89 A0015427819A 001 542 78 19 Relay Comfort Switching

89 89 A0015427819A 001 542 78 19 Relay Seat Adjuster

89 89 A0015429919A 001 542 99 19 Relay Trumpet Horn

92 92 A1245455347A 124 545 53 47 Bracket Fanfare Horn Relay On Cross Member

95 95 N914128004203N 914128 004203 Tapping Screw Bracket To Cross Member

99 99 A0015429619A 001 542 96 19 Relay Fuel Pump 30 A

99 99 A0025420119A 002 542 01 19 Relay Auxiliary Fan, Stage I 15 A

99 99 A0015429719A 001 542 97 19 Relay Auxiliary Fan, Stage Ii 40 A

~~100~~ 100 A0025451034A 002 545 10 34 Securing

~~100~~ 100 N072581000305N 072581 000305 Fuse Link 15 A

~~100~~ 100 A0025451334A 002 545 13 34 Securing

~~100~~ 100 N072581000308N 072581 000308 Fuse Link 30 A

~~100~~ 100 N000000004208N 000000 004208 Fuse Link 30 A

~~100~~ 100 N000000007654N 000000 007654 Fuse Link 30 A

~~100~~ 100 A0025454234A 002 545 42 34 Securing 40 A

~~101~~ 101 A1265420332A 126 542 03 32 Control Device Lamp Control

~~110~~ 110 A0035455605A 003 545 56 05 Control Unit Refrigerant Compressor And Kick-down Cut-off

~~119~~ 119 A0005406745A 000 540 67 45 Relay Overload Protector

~~119~~ 119 A0005405245A 000 540 52 45 Relay Overload Protector

~~122~~ 122 A0025451034A 002 545 10 34 Securing

~~122~~ 122 N072581000305N 072581 000305 Fuse Link 15 A

~~128~~ 128 N000933005058N 000933 005058 Screw Overload Protector To Bracket

~~129~~ 129 N000934005008N 000934 005008 Nut Overload Protector To Bracket

~~134~~ 134 N007976004302N 007976 004302 Tapping Screw Bracket To Pillar

~~137~~ 137 A1245459140A 124 545 91 40 Bracket Test Plug

~~141~~ 141 A1245454047A 124 545 40 47 Bracket Bracket To Fire Wall

~~147~~ 147 A1269901036A 126 990 10 36 Sheet Metal Screw

~~147~~ 147 A2039900036A 203 990 00 36 Hex. Hd. Bolt W Flange Bracket To Fire Wall (2×)

~~155~~ 155 A1295455540A 129 545 55 40 Bracket Diagnosis Box

~~158~~ 158 A1295450003A 129 545 00 03 Cap To 129 545 55 40

~~161~~ 161 N007981004325N 007981 004325 Tapping Screw Test Plug To Bracket

~~164~~ 164 A1245400069A 124 540 00 69 Coupler Strip 9-pole

~~167~~ 167 A1245450083A 124 545 00 83 Cap Multiway Connector To 124 540 00 69,124 540 06 69

~~170~~ 170 N914127004203N 914127 004203 Tapping Screw

~~170~~ 170 N000000000529N 000000 000529 Tapping Screw Multiway Connector To Fire Wall (2×)

~~173~~ 173 A1245456440A 124 545 64 40 Bracket Relay

~~179~~ 179 N914129005000N 914129 005000 Screw Bracket To Bracket (3×)

075 Control Units

9 9 A1245404873A 124 540 48 73 Bracket Electronic Control Box

23 23 N007976004205N 007976 004205 Tapping Screw Bracket To Fire Wall (4×)

26 26 N000433005304N 000433 005304 Washer Bracket To Fire Wall (4×)

28 28 A1159971040A 115 997 10 40 Seal Ring

28 28 A2019870241A 201 987 02 41 Rubber Ring Bracket To Fire Wall

33 33 A1245404773A 124 540 47 73 Bracket Anti-lock Braking System Control Unit

34 34 N007991006012N 007991 006012 Screw Bracket To Bracket (2×)

38 38 A1245452647A 124 545 26 47 Bracket Kick-down

38 38 A1245452647A 124 545 26 47 Bracket Compressor Cut-off

39 39 A1265463043A 126 546 30 43 Bracket Compressor Cut-off

40 40 A1245452747A 124 545 27 47 Bracket A S D Control Unit

59 59 N914126006000N 914126 006000 Screw Bracket To Bracket (2×)

59 59 N914126006000N 914126 006000 Screw Bracket To Fire Wall (2×)

59 59 N914126006000N 914126 006000 Screw Bracket To Bracket (2×)

59 59 N914126006000N 914126 006000 Screw Bracket To Bracket (3×)

65 65 N000965006046N 000965 006046 Screw Bracket To Bracket

90 90 A0155452432A 015 545 24 32 Msg Control Unit

90 90 A0155452232A 015 545 22 32 Control Unit

91 91 N913023006001N 913023 006001 Nut Control Unit To Bracket Abs (2×)

92 92 N304017006034N 304017 006034 Hexagon Head Bolt Control Unit To Bracket Hfm (2×)

93 93 A0055455132A 005 545 51 32 Control Unit Abs

98 98 A0135458632A 013 545 86 32 Control Unit Asr

~~101~~ 101 A0145451232A 014 545 12 32 Asd Control Unit

~~104~~ 104 A1245456432A 124 545 64 32 Control Unit Electronic Accelerator

090 Headlamp Cable Harness And Horn

5 5 A1244402305A 124 440 23 05 Wiring Harness Headlamp

8 8 A0085453728A 008 545 37 28 Clutch Windshield Washer Pump;2-pole

8 8 A0085453728A 008 545 37 28 Clutch Additional Water Pump; Bipolar

8 8 A0085453828A 008 545 38 28 Housing Upper Part To 008 545 37 28

12 12 A0115450128A 011 545 01 28 Female Connector, Eletr. Blinker Lamp (2×)

14 14 A0155454928A 015 545 49 28 Pin Bushing Housing Headlamp Washer Motor,4-pole (2×)

14 14 A0145458528A 014 545 85 28 Pin Bushing Housing Headlamp Washer Motor,4-pole (2×)

21 21 A0115455028A 011 545 50 28 Receptacle Housing Headlamp (2×)

23 23 A1265450128A 126 545 01 28 Receptacle Housing Headlamp Wiper/washer Relay;6-pole

24 24 A0035452626A 003 545 26 26 Female Contact 4 Mm

25 25 A0065457828A 006 545 78 28 Plug Housing Inboard Cable Plug Connection, 6-pole

25 25 A0095453028A 009 545 30 28 Housing Upper Part To 006 545 78 28

27 27 A0015453826A 001 545 38 26 Contact Pin 4 Mm

28 28 A0125450428A 012 545 04 28 Female Connector, Eletr. Windshield Washer Water Level

30 30 A0015454426A 001 545 44 26 Female Contact 4 Mm

33 33 A0135451328A 013 545 13 28 Pin Bushing Housing Lamp Control Device;8-pole

34 34 A0025459926A 002 545 99 26 Female Contact 2.5 Mm

37 37 A0008212425A 000 821 24 25 Attachment Plug Windshield Washer Pump;2-pole

37 37 A0008211926A 000 821 19 26 Plug To 000 821 24 25

39 39 A0105455228A 010 545 52 28 Socket 4 Mm

47 47 A0005468340A 000 546 83 40 Socket Cable To Signal Horn

47 47 A0005461145A 000 546 11 45 Insulating Sleeve To 000 546 83 40

51 51 A1245460137A 124 546 01 37 Grommet Electric Cable Thru Fuse Box And Relay Case

60 60 N000933004028N 000933 004028 Screw Ground Cable To Cab (2×)

63 63 N912004004102N 912004 004102 Spring Lock Washer Ground Cable To Cab (2×)

66 66 N000934004006N 000934 004006 Nut Ground Cable To Cab (2×)

-- XXXXXXXXXXXXXX XXXXXXXXXXXX Part Name Missing Two-tone Horn

93 93 A0045423920A 004 542 39 20 Horn Hella,400 Hz

93 93 A0045423620A 004 542 36 20 Horn Hella,500 Hz

93 93 A0045423920A 004 542 39 20 Horn Fiamm,405 Hz Es1 67

93 93 A0045423620A 004 542 36 20 Horn Fiamm,485 Hz Es1 67

97 97 A1245405773A 124 540 57 73 Bracket Trumpet Horn In Front Of Radiator

~~111~~ 111 N913017008000N 913017 008000 Nut Horn To Bracket

~~115~~ 115 A1239970181A 123 997 01 81 Grommet Horn To Bracket

120 Engine Cable Harness

23 23 A0015454426A 001 545 44 26 Female Contact 4mm

65 65 A2025460980A 202 546 09 80 Wiring At Engine

68 68 A1245460980A 124 546 09 80 Wiring

77 77 A0005466743A 000 546 67 43 Bracket Engine Cable Harness To Fire Wall

86 86 A1245462643A 124 546 26 43 Bracket At Left Wheel Arch Panel

89 89 N000934006007N 000934 006007 Nut Bracket To Wheel Arch Panel (2×)

92 92 A1245460241A 124 546 02 41 Cable Connector At Bracket

95 95 N007981004322N 007981 004322 Tapping Screw

95 95 N007981004233N 007981 004233 Tapping Screw

95 95 N000000000460N 000000 000460 Tapping Screw Cable Connector To Bracket

98 98 A1245460881A 124 546 08 81 Cover To 124 546 26 43

~~104~~ 104 A1244405609A 124 440 56 09 Electrical Cable (addit. Cable Harness) For Air Conditioner;only W/subsequent Installation

121 Engine Cable Harness,body Mounted

5 5 A1245434933A 124 543 49 33 Cable Harness Engine Cable Harness,body Mounted

5 5 A1244407805A 124 440 78 05 Cable Harness Engine Cable Harness,body Mounted

5 5 A1244406405A 124 440 64 05 Wiring Harness Engine Cable Harness,body Mounted

5 5 A1244408605A 124 440 86 05 Wiring Harness Engine Cable Harness,body Mounted

5 5 A1245435133A 124 543 51 33 Cable Harness Engine Cable Harness,body Mounted; Used With Air Conditioner

5 5 A1244408005A 124 440 80 05 Cable Harness Engine Cable Harness,body Mounted; Used With Air Conditioner

5 5 A1244403805A 124 440 38 05 Cable Harness Engine Cable Harness,body Mounted; Used With Air Conditioner

5 5 A1244404005A 124 440 40 05 Wiring Harness Engine Cable Harness,body Mounted; Used With Air Conditioner

11 11 A0145450128A 014 545 01 28 Receptacle Housing Heated Washer Nozzle

14 14 A1245401381A 124 540 13 81 Receptacle Housing Air Cleaner Intake Pipe

14 14 A1245450080A 124 545 00 80 Gasket To 124 540 13 81

17 17 A0135454728A 013 545 47 28 Receptacle Housing Trimmer Plug (2×)

17 17 A0225458828A 022 545 88 28 Cap To 013 545 47 28 (2×)

20 20 A0025459926A 002 545 99 26 Female Contact 2.5 Mm

23 23 A0125458628A 012 545 86 28 Receptacle Housing Oxygen Sensor Heating;bipolar

26 26 A0035450626A 003 545 06 26 Female Contact 2.5 Mm (2×)

29 29 A0115457128A 011 545 71 28 Receptacle Housing Solenoid Valve,bipolar

29 29 A0115457128A 011 545 71 28 Receptacle Housing Electro-hydraulic Final Control Elemnt;bipolar

29 29 A0115457128A 011 545 71 28 Receptacle Housing Idle Speed Actuator

32 32 A0125452428A 012 545 24 28 Female Connector, Eletr. Refrigerant Compressor

32 32 A0125452428A 012 545 24 28 Female Connector, Eletr. Idle Speed Actuator

32 32 A0125452428A 012 545 24 28 Female Connector, Eletr. Throttle Body 2.5 Mm

35 35 A0155453028A 015 545 30 28 Receptacle Housing Overload Protector

41 41 A0085453728A 008 545 37 28 Clutch Bipolar; Additional Fan

41 41 A0085453828A 008 545 38 28 Housing Upper Part To 008 545 37 28

44 44 A0035452626A 003 545 26 26 Female Contact 4 Mm

47 47 A0095455428A 009 545 54 28 Clutch Inboard Cable Plug Connection, 12-pole

47 47 A0095452428A 009 545 24 28 Clutch To 009 545 54 28

50 50 A0015453826A 001 545 38 26 Contact Pin 4 Mm

53 53 A0115459628A 011 545 96 28 Socket Oxygen Sensor

56 56 A0005467940A 000 546 79 40 Socket Low Pressure Switch (2×)

56 56 A0005460445A 000 546 04 45 Insulating Sleeve To 000 546 79 40 (2×)

74 74 A1245460137A 124 546 01 37 Grommet Electric Cable Thru Fuse Box And Relay Case

77 77 A0079975881A 007 997 58 81 Grommet

80 80 A0005464643A 000 546 46 43 Bracket Engine Cable Harness To Battery Frame (2×)

83 83 N304017006034N 304017 006034 Hexagon Head Bolt Ground Cable To Engine

89 89 N000137006204N 000137 006204 Spring Washer Electric Cable To Oil Filter

~~104~~ 104 A0005425125A 000 542 51 25 Potentiometer Co Adjustment

~~107~~ 107 N007981004233N 007981 004233 Tapping Screw

~~107~~ 107 N000000000460N 000000 000460 Tapping Screw Switch To Bracket

~~110~~ 110 A0029971686A 002 997 16 86 Plug Protection Against Mishandling

~~113~~ 113 A0255455028A 025 545 50 28 Adapter Plug Hfm-ms

~~116~~ 116 A0009880970A 000 988 09 70 Lead Seal Trimmer Plug

~~119~~ 119 N001367000015N 001367 000015 Seal Wire Trimmer Plug Ke, 180 Mm

~~122~~ 122 A2019884178A 201 988 41 78 Clamp Oxygen Sensor Plug Connection To Main Floor

~~128~~ 128 A0001583245A 000 158 32 45 Resistor Auxiliary Fan

~~131~~ 131 A1265450947A 126 545 09 47 Bracket Series Resistor

~~134~~ 134 N914128004303N 914128 004303 Tapping Screw Resistor With Bracket To Side Member (2×)

~~143~~ 143 N000933005058N 000933 005058 Screw Resistor To Bracket (2×)

~~146~~ 146 N912004005100N 912004 005100 Spring Lock Washer Electric Cable To Resistor (2×)

~~149~~ 149 N000934005008N 000934 005008 Nut Electric Cable To Resistor (2×)

~~161~~ 161 A1245409913A 124 540 99 13 Line Twin Fan Additional Cable Harness

195 Ignition System

330 Pre-glow System

345 Electrical Parts Used For Automatic Transmission And Back-up Light Switch

5 5 A0015408697A 001 540 86 97 Solenoid Valve Economy Drive Program

5 5 A0015408697A 001 540 86 97 Solenoid Valve Increase In Shift Point, Automatic Transmission

8 8 A1170780981A 117 078 09 81 Sieve Insert Solenoid Valve

11 11 N007981004318N 007981 004318 Tapping Screw Electric Change-over Valve To Unit Partition Panel (2×)

14 14 A1245405213A 124 540 52 13 Cable Harness Kick-down Switch Additional Cable

22 22 A0145450128A 014 545 01 28 Receptacle Housing Economy Drive Program Switch

23 23 A0025459926A 002 545 99 26 Female Contact 2.5 Mm

24 24 A0025456326A 002 545 63 26 Pin Bushing Housing Kick-down Switch

28 28 A0035450626A 003 545 06 26 Female Contact 2.5 Mm

40 40 A0115451028A 011 545 10 28 Plug Housing Declutching-start/back-up-light Switch Plug Connection

40 40 A0095451428A 009 545 14 28 Housing Upper Part To 011 545 10 28

42 42 A0115451228A 011 545 12 28 Plug Pin 4 Mm

45 45 A0115457128A 011 545 71 28 Receptacle Housing Solenoid Valve,bipolar

45 45 A0125453528A 012 545 35 28 Receptacle Housing Kick-down Solenoid Valve

46 46 A0035452626A 003 545 26 26 Female Contact 4 Mm

46 46 A0025454226A 002 545 42 26 Female Contact 4 Mm

54 54 A0005453319A 000 545 33 19 Lamp Holder Lighting Of Gear Indicator

57 57 A1109971281A 110 997 12 81 Rubber Grommet Electric Cable Thru Fire Wall

57 57 A0089970581A 008 997 05 81 Grommet Electric Cable Thru Tunnel

57 57 A0089970581A 008 997 05 81 Grommet Electric Cable Thru Fire Wall

60 60 N072601012230N 072601 012230 Bulb Lighting Of Gear Indicator W5/1,2-12v 1,2w

63 63 A1244406108A 124 440 61 08 Line Starter Non-repeat And Back-up Light Switch

64 64 A0085452028A 008 545 20 28 Housing Lower Part Unipolar

64 64 A0095451428A 009 545 14 28 Housing Upper Part To 008 545 20 28

66 66 A1235400481A 123 540 04 81 Plug Declutching Start Switch

69 69 A0015454426A 001 545 44 26 Female Contact 4 Mm

72 72 A0095455228A 009 545 52 28 Plug Housing Inboard Cable Plug Connection, 4-pole

72 72 A0095452128A 009 545 21 28 Cap To 009 545 52 28

75 75 A0015453826A 001 545 38 26 Contact Pin 4 Mm

81 81 A2012950183A 201 295 01 83 Boot Declutching-start/back-up-light Switch Used With Asr

390 Inboard Cable Harness

5 5 A1245431633A 124 543 16 33 Wiring Harness Inboard; With Heating Automatics

5 5 A1245431733A 124 543 17 33 Wiring Harness Inboard;with Tempmatik

5 5 A1245431833A 124 543 18 33 Cable Harness Inboard;with Air Conditioning Automatics

5 5 A1244400310A 124 440 03 10 Cable Harness (addit. Cable Harness) For Air Conditioner;only W/subsequent Installation

8 8 A0085452028A 008 545 20 28 Housing Lower Part Belt Locking Retractor Feed-in; Unipolar

8 8 A0095451428A 009 545 14 28 Housing Upper Part To 008 545 20 28

14 14 A0125450428A 012 545 04 28 Female Connector, Eletr. Brake Fluid Control,brake Lining Wear Indication;bipolar (3×)

14 14 A0125450428A 012 545 04 28 Female Connector, Eletr. Evaporator Temperature Sensor

14 14 A0125450428A 012 545 04 28 Female Connector, Eletr. Windshield Washer Water Level

14 14 A0125450428A 012 545 04 28 Female Connector, Eletr. On-board Computer

16 16 A0015454426A 001 545 44 26 Female Contact 4 Mm

20 20 A0105451028A 010 545 10 28 Housing Lower Part Inboard Temperature Feeler

20 20 A0105451028A 010 545 10 28 Housing Lower Part Heat Exchanger Temperature Sensor (2×)

20 20 A0105451028A 010 545 10 28 Housing Lower Part Warning Buzzer,2-pole

20 20 A0105451028A 010 545 10 28 Housing Lower Part Inboard Feeler Blower

20 20 A0105450928A 010 545 09 28 Clutch To 010 545 10 28

23 23 A0105451128A 010 545 11 28 Clutch Tempmatik Control Box; 6-pole

23 23 A0105451128A 010 545 11 28 Clutch Dome Lighting

23 23 A0105451228A 010 545 12 28 Clutch To 010 545 11 28

29 29 A0125458828A 012 545 88 28 Receptacle Housing Instrument Cluster;4-pole

32 32 A0105450428A 010 545 04 28 Receptacle Housing Instrument Cluster;15-pole

32 32 A0105450528A 010 545 05 28 Cap To 010 545 04 28

36 36 A0145456528A 014 545 65 28 Receptacle Housing Light Switch

36 36 A0145456428A 014 545 64 28 Cap To 014 545 65 28

40 40 A0135458228A 013 545 82 28 Receptacle Housing Circulating Air Switch; 7-pole

43 43 A0105450028A 010 545 00 28 Receptacle Housing Tempmatik Control Box; 12-pole

43 43 A0105450128A 010 545 01 28 Cap To 010 545 00 28

47 47 A0195452928A 019 545 29 28 Receptacle Housing Automatic Air Conditioner Control Unit ;14-pole (2×)

47 47 A0195453128A 019 545 31 28 Clutch To 019 545 29 28

49 49 A2015453928A 201 545 39 28 Receptacle Housing Valve Strip;8-pole

50 50 A0135452728A 013 545 27 28 Receptacle Housing Hazard Warning Light; 8-pole

53 53 A0135453028A 013 545 30 28 Receptacle Housing Heated Rear Pane Switch

56 56 A0008210565A 000 821 05 65 Receptacle Housing Radio Set

59 59 A0155454828A 015 545 48 28 Receptacle Housing Relay Cluster

62 62 A0135451528A 013 545 15 28 Receptacle Housing Lamp Control

69 69 A0135452428A 013 545 24 28 Receptacle Housing

70 70 A0025459926A 002 545 99 26 Female Contact 2.5 Mm

72 72 A0125458328A 012 545 83 28 Receptacle Housing Solenoid Valve

72 72 A0125458328A 012 545 83 28 Receptacle Housing Cigar Lighter

72 72 A0125458328A 012 545 83 28 Receptacle Housing Engine Cable Harness Plug-connection

72 72 A0175451928A 017 545 19 28 Receptacle Housing Solenoid Valve

75 75 A2015454128A 201 545 41 28 Pin Bushing Housing Automatic Heating Operating Unit; 12-pole

75 75 A2015454128A 201 545 41 28 Pin Bushing Housing Tempmatik Operating Unit;12-pole

76 76 A0035450626A 003 545 06 26 Female Contact 2.5 Mm

78 78 A0165454528A 016 545 45 28 Clutch Tempmatik Operating Unit;21-pole

78 78 A0005455983A 000 545 59 83 Cover To 016 545 45 28

80 80 A0115458126A 011 545 81 26 Contact Spring To 016 545 45 28

83 83 A0095458328A 009 545 83 28 Receptacle Housing Air Mixing Flap Control Lighting

83 83 A0095458228A 009 545 82 28 Cap To 009 545 83 28

85 85 A0045456628A 004 545 66 28 Female Contact To 009 545 83 28

88 88 A0015458728A 001 545 87 28 Receptacle Housing Glove Compartment Lamp

88 88 A0075458426A 007 545 84 26 Socket To 001 545 87 28

92 92 A0095452328A 009 545 23 28 Receptacle Housing Steering Column Mounted Cable Harness, 14-pole

92 92 A0095452228A 009 545 22 28 Cap To 009 545 23 28

96 96 A0095457328A 009 545 73 28 Receptacle Housing Ignition/starting Switch;7-pole

96 96 A0095457228A 009 545 72 28 Cap To 009 545 73 28

~~100~~ 100 A0115455028A 011 545 50 28 Receptacle Housing Wiper Motor; 6-pole

~~101~~ 101 A0085453728A 008 545 37 28 Clutch (2×)

~~101~~ 101 A0085453828A 008 545 38 28 Housing Upper Part To 009 545 73 28 (2×)

~~103~~ 103 A0115457128A 011 545 71 28 Receptacle Housing Cooling Water Level;bipolar

~~103~~ 103 A0115457128A 011 545 71 28 Receptacle Housing Stop Light Switch;bipolar

~~106~~ 106 A0115450128A 011 545 01 28 Female Connector, Eletr. Air Mixing Flap Control Lighting

~~109~~ 109 A0155454928A 015 545 49 28 Pin Bushing Housing Declutching-start/back-up-light Switch Plug Connection

~~109~~ 109 A0145458528A 014 545 85 28 Pin Bushing Housing Declutching-start/back-up-light Switch Plug Connection

~~113~~ 113 A0065458028A 006 545 80 28 Contact Support Headlamp Cable Harness Plugconnection,6-pole

~~113~~ 113 A0065458028A 006 545 80 28 Contact Support Blower Resistor

~~113~~ 113 A0095453028A 009 545 30 28 Housing Upper Part To 006 545 80 28

~~117~~ 117 A0065458128A 006 545 81 28 Clutch Blower Switch;8-pole

~~117~~ 117 A0065458128A 006 545 81 28 Clutch Plug Connection To Tail Lamp Cable Harness

~~117~~ 117 A0095452028A 009 545 20 28 Clutch To 006 545 81 28

~~121~~ 121 A0095452628A 009 545 26 28 Clutch Engine Cable Harness Plug-connection

~~121~~ 121 A0095452528A 009 545 25 28 Cap To 009 545 26 28

~~125~~ 125 A0125452428A 012 545 24 28 Female Connector, Eletr. Heating Water Valve

~~125~~ 125 A0125452428A 012 545 24 28 Female Connector, Eletr. Blower Regulator;3-pole

~~127~~ 127 A0035452626A 003 545 26 26 Female Contact 4 Mm

~~130~~ 130 A2015452828A 201 545 28 28 Receptacle Housing Diagnosis Box

~~131~~ 131 A0025453026A 002 545 30 26 Female Contact 2.5 Mm

~~136~~ 136 A0145452728A 014 545 27 28 Receptacle Housing Parking Brake Switch

~~137~~ 137 A0005464340A 000 546 43 40 Pin Bushing Door Contact (4×)

~~137~~ 137 A0005464340A 000 546 43 40 Pin Bushing Parking Brake Switch (2×)

~~137~~ 137 A0005460845A 000 546 08 45 Insulating Sleeve To 000 546 43 40

~~143~~ 143 A0005468340A 000 546 83 40 Socket Clock

~~143~~ 143 A0005461145A 000 546 11 45 Insulating Sleeve To 000 546 83 40

~~146~~ 146 A1169970781A 116 997 07 81 Grommet Brake Fluid Control Branch-off

~~149~~ 149 A1109971281A 110 997 12 81 Rubber Grommet Branch-off To Windshield Wiper

~~152~~ 152 A0079979781A 007 997 97 81 Grommet Fire Wall,right

~~155~~ 155 A0005453319A 000 545 33 19 Lamp Holder Lamp Control

~~155~~ 155 A0008250382A 000 825 03 82 Socket Air Nozzle Lighting (3×)

~~155~~ 155 A0008250382A 000 825 03 82 Socket Lighting Of Rotary Light Switch Escutcheon

~~158~~ 158 A0008250094A 000 825 00 94 Bulb

~~158~~ 158 N000000001061N 000000 001061 Bulb Air Nozzle Lighting (3×)

~~158~~ 158 N000000001061N 000000 001061 Bulb Lighting Of Rotary Light Switch Escutcheon

~~158~~ 158 N072601012230N 072601 012230 Bulb Ashtray Lighting W5/1,2-12v 1,2w

~~161~~ 161 A0019881581A 001 988 15 81 Snap Fastener Main Cable Harness To Right Side Part (4×)

~~170~~ 170 N007981003203N 007981 003203 Tapping Screw Interior Lamp Ground Cable To Roof Rail

~~176~~ 176 N304017006016N 304017 006016 Hexagon Head Bolt Ground To Window Sill (3×)

~~179~~ 179 N000137006204N 000137 006204 Spring Washer Ground To Window Sill (3×)

~~182~~ 182 A0005464043A 000 546 40 43 Bracket Electric Cable To Heating Water Hose

~~209~~ 209 A2015400769A 201 540 07 69 Luster Terminal Bipole; Terminal 58d

~~212~~ 212 N007985004107N 007985 004107 Screw Cable Harness To Cable Connector

~~215~~ 215 N912004004102N 912004 004102 Spring Lock Washer Cable Harness To Cable Connector

~~224~~ 224 A1245403808A 124 540 38 08 Cable Harness Inboard Feeler Blower

~~227~~ 227 A0105451028A 010 545 10 28 Housing Lower Part Inboard Feeler Blower

~~227~~ 227 A0105450928A 010 545 09 28 Clutch To 010 545 10 28

~~229~~ 229 A0025459926A 002 545 99 26 Female Contact 2,5 Mm

~~232~~ 232 A1245439527A 124 543 95 27 Cable Harness Circulating Air

~~235~~ 235 A0105451028A 010 545 10 28 Housing Lower Part

~~235~~ 235 A0105450928A 010 545 09 28 Clutch To 010 545 10 28

~~238~~ 238 A0025459926A 002 545 99 26 Female Contact 2.5 Mm (2×)

~~241~~ 241 A0025453026A 002 545 30 26 Female Contact 4 Mm

525 Tail Lamp Cable Harness

5 5 A1245404407A 124 540 44 07 Cable Harness Tail Lamp Cable Harness

8 8 A0095455328A 009 545 53 28 Plug Housing Inboard Cable Harness Plug-connection

8 8 A0095452028A 009 545 20 28 Clutch To 009 545 53 28

10 10 A0015453826A 001 545 38 26 Contact Pin 4 Mm

11 11 A0065458028A 006 545 80 28 Contact Support 6-pole,tail Lamp (2×)

11 11 A0095453028A 009 545 30 28 Housing Upper Part To 006 545 80 28

13 13 A0155454928A 015 545 49 28 Pin Bushing Housing Fuel Gauge Sender Unit; 4-pole

13 13 A0145458528A 014 545 85 28 Pin Bushing Housing Fuel Gauge Sender Unit; 4-pole

15 15 A0085453728A 008 545 37 28 Clutch Tail Lamp Cable Harness Coupler

15 15 A0085453828A 008 545 38 28 Housing Upper Part To 008 545 37 28

17 17 A0035452626A 003 545 26 26 Female Contact 4 Mm

21 21 A0135451428A 013 545 14 28 Receptacle Housing Lamp Control

24 24 A0145454128A 014 545 41 28 Receptacle Housing Interior Rear Lamp Switch

24 24 A0135452528A 013 545 25 28 Receptacle Housing Interior Rear Lamp Switch

25 25 A0025459926A 002 545 99 26 Female Contact 2.5 Mm

27 27 A0005464340A 000 546 43 40 Pin Bushing Rear Door Contact (2×)

27 27 A0005464340A 000 546 43 40 Pin Bushing Radio Set

27 27 A0005464340A 000 546 43 40 Pin Bushing Interior Lighting (4×)

27 27 A0005464340A 000 546 43 40 Pin Bushing Rear Inside Lamp (2×)

27 27 A0005460845A 000 546 08 45 Insulating Sleeve To 000 546 43 40

36 36 N000933004030N 000933 004030 Screw Tail Lamp Ground Cable To Wheel Arch Panel (2×)

38 38 N912004004102N 912004 004102 Spring Lock Washer Tail Lamp Ground Cable To Wheel Arch Panel (2×)

41 41 N000934004006N 000934 004006 Nut Tail Lamp Ground Cable To Wheel Arch Panel (2×)

44 44 A0049885778A 004 988 57 78 Clamp Electric Cable To Wheel Arch (2×)

47 47 A1294710395A 129 471 03 95 Shim Cable Duct To Vehicle Floor

535 Fuel Pump Cable

5 5 A1244409508A 124 440 95 08 Cable Harness Fuel Pump & Speed Sensor Abs/asd

5 5 A1244400209A 124 440 02 09 Cable Harness Fuel Pump & Speed Sensor Abs/asr

8 8 A0085450828A 008 545 08 28 Receptacle Housing Rear Speed Sensor Plug Connection, Bipolar

8 8 A0085451028A 008 545 10 28 Clutch To 008 545 08 28

11 11 A0015454426A 001 545 44 26 Female Contact 4 Mm (2×)

14 14 A0115451028A 011 545 10 28 Plug Housing Front Fuel Pump

14 14 A0095451428A 009 545 14 28 Housing Upper Part To 011 545 10 28

17 17 A0115451228A 011 545 12 28 Plug Pin 4 Mm

20 20 A0065457828A 006 545 78 28 Plug Housing Rear Axle Sensor Plug-connection

20 20 A0095453528A 009 545 35 28 Clutch To 006 545 78 28

23 23 A0015453826A 001 545 38 26 Contact Pin 4 Mm

26 26 A0125458628A 012 545 86 28 Receptacle Housing Limited-slip Differential Control Valve

29 29 A0035450626A 003 545 06 26 Female Contact 2.5 Mm

32 32 A0175457628A 017 545 76 28 Receptacle Housing Rear Axle Transfer Case Plugconnection A

32 32 A0175458028A 017 545 80 28 Pin Bushing Housing Rear Axle Transfer Case Plugconnection D

32 32 A0175458128A 017 545 81 28 Receptacle Housing Rear Axle Transfer Case Plugconnection E

32 32 A0005454140A 000 545 41 40 Bracket To 017 545 76 28,80 28,81 28

35 35 A0035454826A 003 545 48 26 Round Socket 1 Mm

38 38 A1239971681A 123 997 16 81 Grommet Electric Cables To Fuel Pump

41 41 A1119971481A 111 997 14 81 Rubber Grommet Fuel Pump Branch-off To Luggage Compartment Floor

41 41 A0089970981A 008 997 09 81 Grommet Fuel Pump Branch-off To Luggage Compartment Floor

570 Electrical Parts Used For Rear Panel Door

5 5 A1245403707A 124 540 37 07 Line Rear Panel Door

8 8 A0155454928A 015 545 49 28 Pin Bushing Housing Door Locking Mechanism

8 8 A0145458528A 014 545 85 28 Pin Bushing Housing Door Locking Mechanism

12 12 A0065458028A 006 545 80 28 Contact Support Wiper Motor; 6-pole

12 12 A0095453028A 009 545 30 28 Housing Upper Part To 006 545 80 28

15 15 A0065458128A 006 545 81 28 Clutch Intermittent Action Switch

15 15 A0095452028A 009 545 20 28 Clutch To 006 543 81 28

17 17 A0035452626A 003 545 26 26 Female Contact 4 Mm

20 20 A0005468340A 000 546 83 40 Socket License Plate Lamp (4×)

21 21 A0005460445A 000 546 04 45 Insulating Sleeve To 000 546 83 40

30 30 A0049885778A 004 988 57 78 Clamp Electric Cable To Tailgate (2×)

30 30 A0039884578A 003 988 45 78 Clamp Electric Cable To Tailgate

33 33 A1245400469A 124 540 04 69 Multipoint Connector 12-pole

36 36 N914127004204N 914127 004204 Tapping Screw Cable Connector To Rear Pillar (2×)

585 Instrument Cluster

5 5 A1245420665A 124 542 06 65 Speedometer 260 Km

5 5 A1245420865A 124 542 08 65 Speedometer Only Used With Asd Or Asr 260 Km

8 8 A0005400528A 000 540 05 28 Printed Circuit Plate Day/night Switching

8 8 A0005400628A 000 540 06 28 Printed Circuit Board Day/night Switching

11 11 A0005453419A 000 545 34 19 Socket Lamp 12 V/1,2 W

14 14 A1245423701A 124 542 37 01 Instrument Cluster

17 17 A2015460025A 201 546 00 25 Fuse Link Instrument Cluster

23 23 A1245421016A 124 542 10 16 Rpm Counter With Clock

26 26 A0005420387A 000 542 03 87 Housing

29 29 A0005423825A 000 542 38 25 Potentiometer

32 32 A0005422389A 000 542 23 89 Knob (2×)

35 35 A0059936401A 005 993 64 01 Pressure Spring

38 38 N007981003207N 007981 003207 Tapping Screw (9×)

41 41 N009021004207N 009021 004207 Washer (2×)

44 44 A0015449094A 001 544 90 94 Socket Lamp Fuel Reserve Indication 12 V/1,2 W

44 44 A0005453419A 000 545 34 19 Socket Lamp Control Of Blinker Light,brake Lining Wear,parking Brake,bright Light 12 V/1,2 W (5×)

44 44 A0005453419A 000 545 34 19 Socket Lamp Oil Level Indication 12 V/1,2 W

44 44 A0005453419A 000 545 34 19 Socket Lamp Cooling Water Level Indicator 12 V/1,2 W

47 47 N072601012230N 072601 012230 Bulb Tell-tale Lamps W5/1,2-12v 1,2 (5×)

50 50 A0005454019A 000 545 40 19 Socket Charge Control,instrument Cluster Lighting (3×)

53 53 A0005446794A 000 544 67 94 Bulb

53 53 N072601012240N 072601 012240 Bulb Charge Control,instrument Cluster Lighting W3w 12v (3×)

56 56 A1245846921A 124 584 69 21 Symbol Panel Left

65 65 A1245843826A 124 584 38 26 Symbol Panel Right; Only Wi/anti-lock Braking System And Air Bag

68 68 A1245843326A 124 584 33 26 Symbol Panel Only Used With Abs,airbag & Asd, Right

74 74 A1245846926A 124 584 69 26 Symbol Panel Only Used W/abs,airbag And Asr, Right

600 Outboard Temperature Indicator

5 5 A0005427127A 000 542 71 27 Temperature Gauge (outboard Temperature Indicator)

6 6 A0015448594A 001 544 85 94 Bulb Outboard Temperature Indicator

8 8 N007981003207N 007981 003207 Tapping Screw Warning Indicator (2×)

11 11 A0015422618A 001 542 26 18 Sender Unit Outboard Temperature Feeler

14 14 A0125450428A 012 545 04 28 Female Connector, Eletr. Outboard Temperature Feeler

16 16 A0135457928A 013 545 79 28 Plug Pin 4 Mm

19 19 N000000000459N 000000 000459 Tapping Screw Temperature Sensor To Front Bumper

22 22 A1245409110A 124 540 91 10 Line Outboard Temperature Indicator

25 25 A0135453228A 013 545 32 28 Receptacle Housing Outboard Temperature Indicator

26 26 A0025459926A 002 545 99 26 Female Contact 2.5 Mm

29 29 A0125450428A 012 545 04 28 Female Connector, Eletr. Outboard Temperature Feeler

31 31 A0015454426A 001 545 44 26 Female Contact 4 Mm

630 Speed Sensor,speedometer Flexible Shaft

-- XXXXXXXXXXXXXX XXXXXXXXXXXX Part Name Missing Speed Transmitter

5 5 A1245400369A 124 540 03 69 Luster Terminal Speed Transmitter

8 8 A0115458528A 011 545 85 28 Female Connector, Eletr. Speed Transmitter;unipolar

9 9 A0035452626A 003 545 26 26 Female Contact 4 Mm

11 11 A1245455640A 124 545 56 40 Bracket Multiway Connector

17 17 N000934006007N 000934 006007 Nut Bracket To Fire Wall

23 23 A0075422917A 007 542 29 17 Sender Unit Speed Transmitter

26 26 A1245404409A 124 540 44 09 Line Hall Sender Unit

28 28 A0145450128A 014 545 01 28 Receptacle Housing Hall Sender Unit

29 29 A0025459926A 002 545 99 26 Female Contact 2.5 Mm

-- XXXXXXXXXXXXXX XXXXXXXXXXXX Part Name Missing Speedometer Cable

34 34 A1245401468A 124 540 14 68 Speedometer Shaft 1480 Mm

36 36 A2019975881A 201 997 58 81 Grommet Flexible Shaft Thru Fire Wall

37 37 N000933006194N 000933 006194 Screw Flexible Shaft To Transmission

39 39 N000137006204N 000137 006204 Spring Washer Flexible Shaft To Transmission

44 44 A2015420040A 201 542 00 40 Bracket Flexible Shaft To Transmission

65 65 A1245460185A 124 546 01 85 Protective Tube Speedometer Cable To Console

68 68 N914128004300N 914128 004300 Tapping Screw Protective Tube To Cab (2×)

640 Switch

5 5 A0005456204A 000 545 62 04 Switch Light Rotary Switch

8 8 A1075450072A 107 545 00 72 Nut Light Switch To Instrument Panel

11 11 A0025440194A 002 544 01 94 Bulb Rear Foglamp Control

14 14 A2025450081A 202 545 00 81 Knob Light Rotary Switch

17 17 A1245450114A 124 545 01 14 Buzzer Switch

23 23 A0015458714A 001 545 87 14 Switch Parking Brake

663 Brake Pad Wear Indicator And Speed Sensor Front Axle

5 5 A1245406107A 124 540 61 07 Line Front Brake Lining Wear Indicator (2×)

10 10 N000933006127N 000933 006127 Screw Coupler To Brake Caliper (2×)

15 15 N000137006204N 000137 006204 Spring Washer Coupler To Brake Caliper (2×)

20 20 A1245401617A 124 540 16 17 Sender Unit (speed Sensor),front Left

20 20 A1245401717A 124 540 17 17 Sender Unit (speed Sensor),front Right

25 25 A1249973481A 124 997 34 81 Grommet (2×)

30 30 N914125008533N 914125 008533 Cap Bolt Sensor To Steering Knuckle (4×)

35 35 A1245461443A 124 546 14 43 Bracket Additional Cable Harness To Left Wheelhouse Panel

35 35 A1245461543A 124 546 15 43 Bracket Additional Cable Harness To Right Wheelhouse Panel

40 40 A1245461643A 124 546 16 43 Bracket Electric Cable To Left Shock Absorber Leg Bracket

40 40 A1245461743A 124 546 17 43 Bracket Electric Cable To Right Shock Absorber Leg Bracket

674 Anti-lock Braking System (abs) And Automatic Locking Differential (asd)

5 5 A1244408308A 124 440 83 08 Cable Harness Anti-lock Braking System

5 5 A1244409008A 124 440 90 08 Line Anti-lock Braking System (abs) And Automatic Locking Differential (asd)

14 14 A0095452628A 009 545 26 28 Clutch Hydraulic Unit Abs

14 14 A0095452528A 009 545 25 28 Cap To 009 545 26 28

20 20 A0065458028A 006 545 80 28 Contact Support Rear Speed Sensor Asd

22 22 A0035452626A 003 545 26 26 Female Contact 4 Mm

25 25 A0155454928A 015 545 49 28 Pin Bushing Housing Speed Sensor Plug-connection,rear Axle,4-pole

25 25 A0145458528A 014 545 85 28 Pin Bushing Housing Speed Sensor Plug-connection,rear Axle,4-pole

25 25 A0125450428A 012 545 04 28 Female Connector, Eletr. Rear Speed Sensor Plug Connection, Bipolar

31 31 A0085452028A 008 545 20 28 Housing Lower Part From Plug Connection To Instrument Cluster Abs

31 31 A0095451428A 009 545 14 28 Housing Upper Part To 008 545 20 28

33 33 A0015454426A 001 545 44 26 Female Contact 4 Mm

36 36 A0155452928A 015 545 29 28 Receptacle Housing Overload Protector

37 37 A0035451026A 003 545 10 26 Female Contact 4 Mm

44 44 A0145456328A 014 545 63 28 Receptacle Housing Test Plug Eds

45 45 A0025453026A 002 545 30 26 Female Contact 4 Mm

48 48 A0125458328A 012 545 83 28 Receptacle Housing Tell-tale Lamp Abs-asd

51 51 A0035450626A 003 545 06 26 Female Contact 2.5 Mm

52 52 A0135458928A 013 545 89 28 Attachment Plug Stop Light Switch;bipolar

52 52 A0145450428A 014 545 04 28 Attachment Plug To 013 545 89 28

54 54 A0105455228A 010 545 52 28 Socket 4 Mm

57 57 A0145453328A 014 545 33 28 Pin Bushing Housing Control Unit Asd

60 60 A0145450128A 014 545 01 28 Receptacle Housing Stop Light Switch;bipolar

61 61 A0025459926A 002 545 99 26 Female Contact 2.5 Mm

64 64 A0069977448A 006 997 74 48 Seal Ring Coaxial Plug (2×)

67 67 A1109971281A 110 997 12 81 Rubber Grommet Sensor Branch-off

72 72 A1245408608A 124 540 86 08 Cable Harness Tell-tale Lamp Abs/asd

73 73 A0008210565A 000 821 05 65 Receptacle Housing Function Control Asd

75 75 A0025459926A 002 545 99 26 Female Contact 2.5 Mm

76 76 A0125458228A 012 545 82 28 Plug Housing Ads-asd

76 76 A0125458428A 012 545 84 28 Plug Housing Asd

77 77 A0115451628A 011 545 16 28 Plug Pin 2.5 Mm (to 012 545 82 28,84 28)

83 83 A0065457828A 006 545 78 28 Plug Housing From Plug Connection To Instrument Cluster

83 83 A0095453028A 009 545 30 28 Housing Upper Part To 006 545 78 28

85 85 A0015453826A 001 545 38 26 Contact Pin 4 Mm

86 86 A0025453026A 002 545 30 26 Female Contact Light Rotary Switch 4 Mm

89 89 A0005453319A 000 545 33 19 Lamp Holder Tell-tale Lamp Abs/asd/4-matic (2×)

95 95 A1245454840A 124 545 48 40 Bracket Plug Connection Asd

~~101~~ 101 N007976004205N 007976 004205 Tapping Screw Bracket Mounting

~~148~~ 148 A0009883478A 000 988 34 78 Clamp Electric Cable To Partition Panel (2×)

~~151~~ 151 A1265450840A 126 545 08 40 Bracket Abs Plug-connection (2×)

~~154~~ 154 A1405400731A 140 540 07 31 Neg. Cable Hydraulic Unit

~~157~~ 157 N304017006018N 304017 006018 Hexagon Head Bolt Ground Strap Mounting

~~160~~ 160 N912004006102N 912004 006102 Spring Lock Washer Ground Strap Mounting

~~163~~ 163 N910113005001N 910113 005001 Hexagon Nut Ground Strap Mounting

680 Rear Axle Wiring

5 5 A1245402017A 124 540 20 17 Sender Unit Rear Axle

10 10 A0125450428A 012 545 04 28 Female Connector, Eletr. Rear Speed Sensor Plug Connection, Bipolar

20 20 A0135457928A 013 545 79 28 Plug Pin 4 Mm

25 25 A0149979748A 014 997 97 48 Sealing Ring Used With Steel Version

25 25 A0069977348A 006 997 73 48 Sealing Ring Used With Plastic Version

30 30 A0019971481A 001 997 14 81 Rubber Grommet

35 35 A0009973181A 000 997 31 81 Feed-through Grommet

40 40 N914125006502N 914125 006502 Screw Speed Sensor To Rear Axle Housing

55 55 A1295460243A 129 546 02 43 Bracket Rear Axle Wiring

80 80 A1245402117A 124 540 21 17 Sender Unit (speed Sensor),rear Left

80 80 A1245402217A 124 540 22 17 Sender Unit (speed Sensor),rear Right

85 85 A0149979748A 014 997 97 48 Sealing Ring Used With Steel Version

90 90 N914125006502N 914125 006502 Screw Speed Sensor To Rear Axle Housing (2×)

95 95 A1245460430A 124 546 04 30 Insulating Hose Rear Speed Sensor

~~100~~ 100 A1245435726A 124 543 57 26 Line Rear Axle Brake Lining Wear Indicator, Left

~~100~~ 100 A1245435826A 124 543 58 26 Line Rear Axle Brake Lining Wear Indicator, Right

~~105~~ 105 N914005006009N 914005 006009 Screw-and-washer Assembly

~~105~~ 105 N304017006019N 304017 006019 Hexagon Head Bolt Rear Axle Brake Lining Wear Indicator, Right (2×)

~~110~~ 110 A1295462343A 129 546 23 43 Bracket Brake Lining Wear Indicator Cable To Rear Axle (2×)

~~115~~ 115 A1245461343A 124 546 13 43 Bracket Brake Lining Wear Indicator Cable To Rear Axle (2×)

~~120~~ 120 A1245402873A 124 540 28 73 Bracket Cable Holder To Rear Subframe

~~125~~ 125 A1245400618A 124 540 06 18 Rail On Rear Subframe

~~130~~ 130 A1245460781A 124 546 07 81 Cover On Rear Subframe

~~135~~ 135 N913023006001N 913023 006001 Nut Rail To Rear Subframe (3×)

~~135~~ 135 N913023006001N 913023 006001 Nut Rail To Bracket

~~140~~ 140 N007976004205N 007976 004205 Tapping Screw Cover To Rail (4×)

~~140~~ 140 N007976004205N 007976 004205 Tapping Screw Bracket To Rear Subframe (2×)

~~145~~ 145 A1245455047A 124 545 50 47 Bracket Cable Holder To Rear Subframe

~~150~~ 150 A1075462743A 107 546 27 43 Bracket Bracket To Bracket (2×)

~~155~~ 155 A1295452340A 129 545 23 40 Bracket Under Fuel Pump Package Bracket

~~160~~ 160 A0005453840A 000 545 38 40 Cap Rear Axle Transfer Case Plugconnection

~~165~~ 165 A0005402724A 000 540 27 24 Housing Rear Axle Transfer Case Plugconnection

~~170~~ 170 A0005453880A 000 545 38 80 Sealing Shim To 000 540 27 24;000 540 31 24

~~175~~ 175 N913023006001N 913023 006001 Nut Rear Axle Transfer Case Plugconnection (3×)

~~180~~ 180 A0005451246A 000 545 12 46 Cover Clipped Onto Rear Axle Plug Distributor

690 Acceleration Skid Control

5 5 A1244409708A 124 440 97 08 Cable Harness Anti-lock Braking System (abs) And Acceleration Skid Control (asr)

8 8 A0065458028A 006 545 80 28 Contact Support Tell-tale Lamp

8 8 A0065458028A 006 545 80 28 Contact Support Speed Sender Unit

8 8 A0095453028A 009 545 30 28 Housing Upper Part To 006 545 80 28

12 12 A0115457128A 011 545 71 28 Receptacle Housing Asr Charging Pump

13 13 A0035452626A 003 545 26 26 Female Contact 4 Mm

16 16 A1295451128A 129 545 11 28 Plug Housing Electronic Accelerator Control Unit Plug-connection

17 17 A0125457328A 012 545 73 28 Plug Pin 2.5 Mm

20 20 A0135458928A 013 545 89 28 Attachment Plug Stop Light Switch;bipolar

20 20 A0145450428A 014 545 04 28 Attachment Plug To 013 545 89 28

22 22 A0105455228A 010 545 52 28 Socket 4 Mm

25 25 A0005461375A 000 546 13 75 Clamp Electric Cable To Hydraulic Unit

28 28 A1245409735A 124 540 97 35 Electric Cable Tell-tale Lamp Abs,asr

31 31 A0065458128A 006 545 81 28 Clutch Electronic Accelerator Cable-harness Plug-connection

31 31 A0095452028A 009 545 20 28 Clutch To 006 545 81 28

35 35 A0065458028A 006 545 80 28 Contact Support Tempomat Switch

35 35 A0095453028A 009 545 30 28 Housing Upper Part To 006 545 80 28

37 37 A0035452626A 003 545 26 26 Female Contact 4 Mm

40 40 A0065457828A 006 545 78 28 Plug Housing Tell-tale Lamp Abs/asr

40 40 A0095452128A 009 545 21 28 Cap To 006 545 78 28

42 42 A0015453826A 001 545 38 26 Contact Pin 4 Mm

45 45 A0135458228A 013 545 82 28 Receptacle Housing Skid Threshold Switch

48 48 A0008210565A 000 821 05 65 Receptacle Housing Function Control

51 51 A0145450128A 014 545 01 28 Receptacle Housing Unipolar

52 52 A0025459926A 002 545 99 26 Female Contact 2.5 Mm

54 54 A0165450128A 016 545 01 28 Plug Housing Back-up Light Switch Plug Connection

55 55 A0165451428A 016 545 14 28 Contact Pin 2.5 Mm

56 56 A0135458928A 013 545 89 28 Attachment Plug Stop Light Switch;bipolar

56 56 A0145450428A 014 545 04 28 Attachment Plug To 013 545 89 28

58 58 A0105455228A 010 545 52 28 Socket 4 Mm

86 86 A1245457340A 124 545 73 40 Bracket Bracket To Unit Partition Panel

92 92 A1244400409A 124 440 04 09 Electrical Cable Electronic Accelerator Control

95 95 A0095455328A 009 545 53 28 Plug Housing Tell-tale Lamp

95 95 A0095452028A 009 545 20 28 Clutch To 009 545 53 28

97 97 A0015453826A 001 545 38 26 Contact Pin 4 Mm

99 99 A1295450128A 129 545 01 28 Receptacle Housing Electronic Accelerator Control Unit Plug-connection

~~100~~ 100 A0035450626A 003 545 06 26 Female Contact 2.5 Mm

~~120~~ 120 A0005451046A 000 545 10 46 Cover E-gas Final Control Element

~~162~~ 162 A1245402673A 124 540 26 73 Bracket Setting Motor Plug To Left Wheel Arch

~~165~~ 165 A1245402773A 124 540 27 73 Bracket Desired Value Sender-unit Plug To Left Wheel Arch

~~168~~ 168 N913017005000N 913017 005000 Nut Bracket To Wheel Arch Panel (2×)

~~174~~ 174 A1405400731A 140 540 07 31 Neg. Cable Hydraulic Unit

~~177~~ 177 N304017006018N 304017 006018 Hexagon Head Bolt Ground Strap Mounting

~~180~~ 180 N912004006102N 912004 006102 Spring Lock Washer Ground Strap Mounting

~~183~~ 183 N910113005001N 910113 005001 Hexagon Nut Ground Strap Mounting

705 4-matic

750 Tempomat (cruise Control)

~~138~~ 138 A1245455432A 124 545 54 32 Control Unit Cruise/idling Control

~~164~~ 164 A1244401909A 124 440 19 09 Electrical Cable Tempomat (cruise Control)

~~173~~ 173 A0165459728A 016 545 97 28 Receptacle Housing Stop Light Switch Asd/asr

~~173~~ 173 A0135458928A 013 545 89 28 Attachment Plug Stop Light Switch;bipolar

~~173~~ 173 A0145450428A 014 545 04 28 Attachment Plug To 013 545 89 28

~~179~~ 179 A0035450626A 003 545 06 26 Female Contact 2.5 Mm

~~179~~ 179 A0105455228A 010 545 52 28 Socket 4 Mm (to 013 545 89 28) (2×)

~~182~~ 182 A0065458028A 006 545 80 28 Contact Support Tempomat Switch; 6-pole

~~182~~ 182 A0095453028A 009 545 30 28 Housing Upper Part To 006 545 80 28

~~191~~ 191 A0035452626A 003 545 26 26 Female Contact 4 Mm

~~194~~ 194 A0125458428A 012 545 84 28 Plug Housing Speed Signal

~~197~~ 197 A0115451628A 011 545 16 28 Plug Pin 2.5 Mm

~~200~~ 200 A0095455228A 009 545 52 28 Plug Housing Speed Signal

~~200~~ 200 A0095452128A 009 545 21 28 Cap To 009 545 52 28

~~203~~ 203 A0095455328A 009 545 53 28 Plug Housing Engine Cable Harness Plug-connection

~~203~~ 203 A0095452028A 009 545 20 28 Clutch To 009 545 52 28

~~206~~ 206 A0015453826A 001 545 38 26 Contact Pin 4 Mm

~~209~~ 209 A1245460037A 124 546 00 37 Grommet

~~212~~ 212 A1245402408A 124 540 24 08 Line From Stop Light Switch To Plug Connection

~~212~~ 212 A1244409908A 124 440 99 08 Cable Harness From Stop Light Switch To Plug Connection Asd

~~215~~ 215 A0115457128A 011 545 71 28 Receptacle Housing From Stop Light Switch To Plug Connection

~~218~~ 218 A0035452626A 003 545 26 26 Female Contact 4 Mm (2×)

~~221~~ 221 A0135458928A 013 545 89 28 Attachment Plug Stop Light Switch 4 Mm (2×)

~~221~~ 221 A0145450428A 014 545 04 28 Attachment Plug To 013 545 89 28

~~224~~ 224 A0105455228A 010 545 52 28 Socket 4 Mm (2×)

54 Electrical Equipment And Instruments

065 Starter Cable Harness And Ground Harness,c-class

070 Starter Cable Harness And Ground Harness,e-class

5 5 A1245400031A 124 540 00 31 Line

5 5 A9015400741A 901 540 07 41 Ground Strap

15 15 A1245403530A 124 540 35 30 Positive Cable

15 15 A1245404230A 124 540 42 30 Positive Cable

50 50 A0145450728A 014 545 07 28 Receptacle Housing Oil Level Indication

55 55 A0035452626A 003 545 26 26 Female Contact

60 60 A0089970781A 008 997 07 81 Grommet

65 65 A0115458528A 011 545 85 28 Female Connector, Eletr. Oil Pressure Gauge Plug-connection

70 70 A0035452626A 003 545 26 26 Female Contact

85 85 A0135451228A 013 545 12 28 Plug Housing Starting Motor Cable Harness Plugconnection

90 90 A0015453826A 001 545 38 26 Contact Pin (3×)

~~200~~ 200 A0005461381A 000 546 13 81 Cover Cable To Starting Motor,terminal 30

~~205~~ 205 N000934006007N 000934 006007 Nut Cable To Starting Motor,terminal 50

~~205~~ 205 N304032008006N 304032 008006 Hexagon Nut Cable To Starting Motor,terminal 30

~~210~~ 210 N000137006204N 000137 006204 Spring Washer Cable To Starting Motor,terminal 50

~~210~~ 210 N000137008204N 000137 008204 Spring Washer

~~210~~ 210 N000137008212N 000137 008212 Spring Washer Cable To Starting Motor,terminal 30

~~215~~ 215 N000933006183N 000933 006183 Screw

~~215~~ 215 N304017006016N 304017 006016 Hexagon Head Bolt Cable Harness To Intake Manifold M6x16

075 Starter Cable Harness And Ground Harness,s-class

080 Starter Cable Harness And Ground Harness,sl-class

160 Engine Cable Harness,c-class

~~550~~ 550 A0015469941A 001 546 99 41 Cable Connector Green 0.7-2.4 Mm2

~~550~~ 550 A0025460041A 002 546 00 41 Cable Connector Red 2.0-4.0 Mm2

~~550~~ 550 A0025460141A 002 546 01 41 Cable Connector Blue 3.5-8.0 Mm2

~~550~~ 550 A0025461141A 002 546 11 41 Cable Connector Yellow 7.5-12.0 Mm2

~~560~~ 560 A0025461341A 002 546 13 41 Cable Connector 0.5 Mm2

~~560~~ 560 A0025461441A 002 546 14 41 Cable Connector 0.8 Mm2

~~560~~ 560 A0025461541A 002 546 15 41 Cable Connector 1.3 Mm2

~~560~~ 560 A0025461641A 002 546 16 41 Cable Connector 2.0 Mm2

190 Engine Cable Harness,e/cls-class

5 5 A1244405232A 124 440 52 32 Wiring Harness Engine Cable Harness

5 5 A1244404033A 124 440 40 33 Cable Harness

50 50 A0085450928A 008 545 09 28 Plug Housing Terminal: 87 Ug

55 55 A0085451128A 008 545 11 28 Cover

60 60 A0135457928A 013 545 79 28 Plug Pin (2×)

65 65 A1295402281A 129 540 22 81 Electrical Cable Crankshaft Position Sender Unit

65 65 A1295402281A 129 540 22 81 Electrical Cable Camshaft Position Sender Unit

65 65 A1295402281A 129 540 22 81 Electrical Cable Intake Air Temperature Sensor

70 70 A0145459328A 014 545 93 28 Plug Housing Knock Sensor (2×)

75 75 A0065458926A 006 545 89 26 Contact Spring

75 75 A0115458126A 011 545 81 26 Contact Spring (4×)

80 80 A2105402081A 210 540 20 81 Receptacle Housing Intake Air Temperature Sensor

85 85 A0085456326A 008 545 63 26 Female Contact

85 85 A0005402505A 000 540 25 05 Electrical Cable Repair Solution Contacting 0.5 Mm2 (2×)

95 95 A2025400181A 202 540 01 81 Receptacle Housing Water Ntc

~~100~~ 100 A0175450128A 017 545 01 28 Plug Housing Plug Connection Engine/body

~~105~~ 105 A0125457328A 012 545 73 28 Plug Pin (4×)

~~110~~ 110 A2105407481A 210 540 74 81 Fem. Connector Hous., El. Refrigerant Temperature Sensor

~~115~~ 115 A0085455326A 008 545 53 26 Contact Spring

~~115~~ 115 A0005406905A 000 540 69 05 Electrical Wiring Harness Repair Solution Contacting 0.75 Mm2 (4×)

~~125~~ 125 A0115457128A 011 545 71 28 Receptacle Housing Refrigerant Temperature Sensor

~~125~~ 125 A0115457128A 011 545 71 28 Receptacle Housing Valve,ram Induction Pipe

~~130~~ 130 A0035452626A 003 545 26 26 Female Contact (4×)

~~135~~ 135 A0115458528A 011 545 85 28 Female Connector, Eletr. Temperature Sensor Refrigerant Indicator

~~140~~ 140 A0035452626A 003 545 26 26 Female Contact

~~145~~ 145 A0125450428A 012 545 04 28 Female Connector, Eletr. Air Pump

~~145~~ 145 A0125450428A 012 545 04 28 Female Connector, Eletr. Air Pump Magnetic Coupling

~~145~~ 145 A0125450428A 012 545 04 28 Female Connector, Eletr. Magnetic Actuator, Camshaft Control

~~150~~ 150 A0015454426A 001 545 44 26 Female Contact (6×)

~~155~~ 155 A1405453528A 140 545 35 28 Receptacle Housing Injection Valve (6×)

~~172~~ 172 A1405400081A 140 540 00 81 Clutch Air Flow Sensor

~~160~~ 160 A0055456826A 005 545 68 26 Contact Spring

~~160~~ 160 A0115457726A 011 545 77 26 Contact Spring

~~160~~ 160 A0005402705A 000 540 27 05 Electrical Cable Repair Solution Contacting 1.0 Mm2 (12×)

~~165~~ 165 A0005452839A 000 545 28 39 Core Bundle Sealing (12×)

~~170~~ 170 A2025406081A 202 540 60 81 Fem. Connector Hous., El. Ignition Coil (3×)

~~175~~ 175 A0025459926A 002 545 99 26 Female Contact 2.5 Mm (3×)

~~180~~ 180 A0045450926A 004 545 09 26 Contact Sleeve 4.0 Mm (3×)

~~575~~ 575 A2025460980A 202 546 09 80 Wiring

~~580~~ 580 A1245460980A 124 546 09 80 Wiring

~~650~~ 650 A0015469941A 001 546 99 41 Cable Connector Green 0.7-2.4 Mm2

~~650~~ 650 A0025460041A 002 546 00 41 Cable Connector Red 2.0-4.0 Mm2

~~650~~ 650 A0025460141A 002 546 01 41 Cable Connector Blue 3.5-8.0 Mm2

~~650~~ 650 A0025461141A 002 546 11 41 Cable Connector Yellow 7.5-12.0 Mm2

~~660~~ 660 A0025461341A 002 546 13 41 Cable Connector 0.5 Mm2

~~660~~ 660 A0025461441A 002 546 14 41 Cable Connector 0.8 Mm2

~~660~~ 660 A0025461541A 002 546 15 41 Cable Connector 1.3 Mm2

~~660~~ 660 A0025461641A 002 546 16 41 Cable Connector 2.0 Mm2

~~700~~ 700 A0049971890A 004 997 18 90 Loom Tie 400 Mm

~~700~~ 700 A0019974390A 001 997 43 90 Loom Tie 250 Mm

~~705~~ 705 A0059976290A 005 997 62 90 Cable Strap 260x3.3mm (2×)

~~710~~ 710 A0009956044A 000 995 60 44 Clamp 8.6mm (2×)

~~715~~ 715 A2105462043A 210 546 20 43 Bracket Air Guide Duct

~~720~~ 720 A2025401473A 202 540 14 73 Bracket Rear Suspension Eye

~~725~~ 725 N000934006007N 000934 006007 Nut Rear Suspension Eye M 6

220 Engine Cable Harness,s-class
