VSA63801413044089 - Mercedes-Benz EPC Parts Catalog

01 Engine Housing

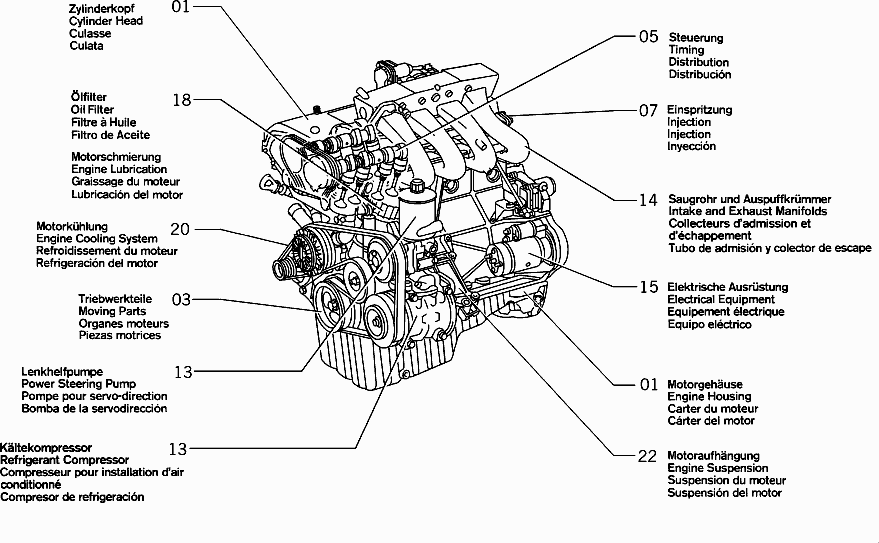

005 Design Group Orientation Table

-- Q000000000001Q 000000000001 Important Information

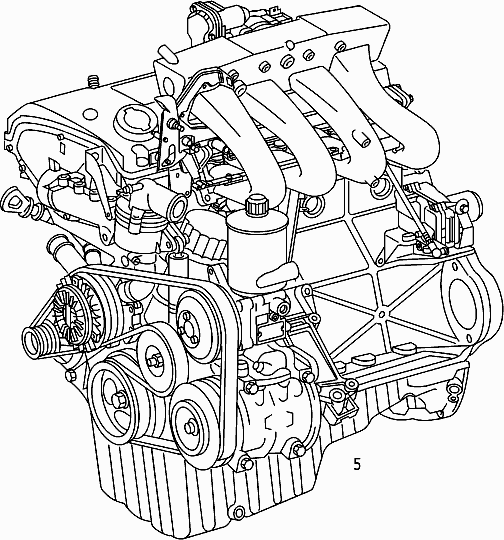

010 Engine

5 5 A1110106802A 111 010 68 02 Engine

5 5 A1110106944A 111 010 69 44 Engine

5 5 A1110105646A 111 010 56 46 Engine

5 5 A1110109544A 111 010 95 44 Engine

5 5 A1110101745A 111 010 17 45 Engine

5 5 A1110105046A 111 010 50 46 Engine

5 5 A1110105402A 111 010 54 02 Engine

5 5 A1110101645A 111 010 16 45 Engine

5 5 A1110105146A 111 010 51 46 Engine

5 5 A1110109644A 111 010 96 44 Engine

5 5 A1110101845A 111 010 18 45 Engine

5 5 A1110105246A 111 010 52 46 Engine

012 Basic Engine

3 3 A1110108745A 111 010 87 45 Longblock

5 5 A1110101350A 111 010 13 50 Short-block

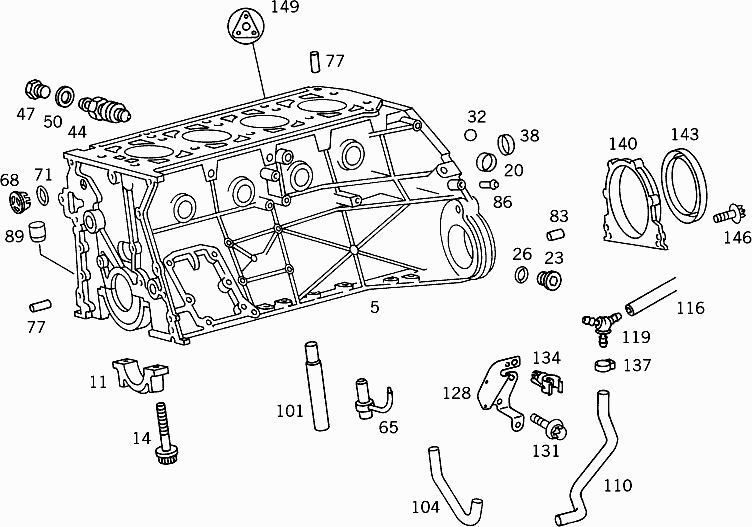

015 Cylinder Crankcase,cover,gasket Kit

5 5 A1110106208A 111 010 62 08 Crankcase

11 11 A1020110411A 102 011 04 11 Crankshaft Bearing Cap Nr. 1/2/4/5 (4×)

11 11 A1020110613A 102 011 06 13 Crankshaft Bearing Cap Lapped Bearing Nr. 3

14 14 A6010110371A 601 011 03 71 Screw Bearing Cap To Cylinder Crankcase (10×)

20 20 N000443034002N 000443 034002 Cap Core Hole (7×)

20 20 N000000004057N 000000 004057 Cap Core Hole (7×)

20 20 N000443012001N 000443 012001 Cap Core Hole

23 23 A1179970230A 117 997 02 30 Screw Plug Rear Core Hole

26 26 A0069977548A 006 997 75 48 Seal Ring Rear Core Hole

32 32 N005401515001N 005401 515001 Ball Oil Passage,rear

38 38 N000443020004N 000443 020004 Cap Oil Passage,rear

44 44 A6019970430A 601 997 04 30 Screw Plug Cooling Water Drain

47 47 N007604018109N 007604 018109 Screw Plug Cylinder Crankcase Water Drain; Repair Of Leaking Screw Plug: 601 997 04 30

50 50 N007603018100N 007603 018100 Sealing Ring Cylinder Crankcase Water Drain To 007604 018101

65 65 A1111800243A 111 180 02 43 Oil Nozzle Piston Cooling (4×)

68 68 A1041800432A 104 180 04 32 Valve Check Valve

71 71 A0179972248A 017 997 22 48 Seal Ring Check Valve

77 77 A6019920325A 601 992 03 25 Sleeve

77 77 N000007010126N 000007 010126 Cylinder Pin Cylinder Head And Timing Case Cover To Cylinder Crankcase (4×)

83 83 A6019920125A 601 992 01 25 Sleeve

83 83 N000007006121N 000007 006121 Cylinder Pin Rear Crankshaft Sealing Cover To Cylinder Crankcase (2×)

86 86 A1029900378A 102 990 03 78 Connector

89 89 A1169970335A 116 997 03 35 Plug

89 89 A0019975035A 001 997 50 35 Plug To Plug Bore Used For Oil Dipstick

~~104~~ 104 A1110140477A 111 014 04 77 Pipe Cylinder Crankcase,left

~~110~~ 110 A1110180382A 111 018 03 82 Hose Cylinder Crankcase Breathing

~~116~~ 116 A1110940082A 111 094 00 82 Hose

~~116~~ 116 A0020940182A 002 094 01 82 Hose Cylinder Crankcase Breathing 125 Mm (2×)

~~119~~ 119 A1110180009A 111 018 00 09 Connector Cylinder Crankcase Breathing

~~128~~ 128 A1111590140A 111 159 01 40 Bracket

~~128~~ 128 A1111592640A 111 159 26 40 Bracket Breather Line To Cylinder Crankcase

~~131~~ 131 N000933006183N 000933 006183 Screw

~~131~~ 131 N910143006001N 910143 006001 Hexalobular Bolt Breather Line To Cylinder Crankcase (2×)

~~134~~ 134 A1110180040A 111 018 00 40 Bracket Breather Line To Cylinder Crankcase

~~137~~ 137 A1269970690A 126 997 06 90 Loom Tie Breather Pipe To Connection Fitting

~~140~~ 140 A6040100014A 604 010 00 14 Cover

~~140~~ 140 A6010110108A 601 011 01 08 Cover Crankshaft Sealing,rear

~~143~~ 143 A0179977447A 017 997 74 47 Seal Ring Crankshaft Sealing,rear

~~146~~ 146 N910143006002N 910143 006002 Hexalobular Bolt Rear Crankshaft Sealing Cover To Cylinder Crankcase (6×)

~~149~~ 149 A1110103108A 111 010 31 08 Gasket Kit Cylinder Crankcase

030 Timing Case

5 5 A1110100817A 111 010 08 17 Cover

5 5 A1110101017A 111 010 10 17 Cover

5 5 A1110101217A 111 010 12 17 Cover Timing Case Cover

5 5 A1110100317A 111 010 03 17 Cover

5 5 A1110101317A 111 010 13 17 Cover Timing Case Cover

8 8 A1209970346A 120 997 03 46 Seal Ring Crankshaft,front

11 11 A1110180270A 111 018 02 70 Fitting Timing Case Cover (2×)

14 14 A0129975648A 012 997 56 48 Seal Ring Timing Case Cover (2×)

20 20 N000443020004N 000443 020004 Cap Oil Passage

23 23 N000908024004N 000908 024004 Screw Plug

23 23 A1159970032A 115 997 00 32 Screw Plug (2×)

26 26 N007604018109N 007604 018109 Screw Plug

29 29 N007603024105N 007603 024105 Sealing Ring (2×)

35 35 N910143008019N 910143 008019 Hexalobular Bolt Timing Case Cover To Cylinder Crankcase (3×)

35 35 N000931008251N 000931 008251 Screw

35 35 A0019905522A 001 990 55 22 Screw

35 35 N000000001810N 000000 001810 Hexalobular Bolt Timing Case Cover To Cylinder Crankcase (2×)

38 38 N000137008204N 000137 008204 Spring Washer

38 38 N000137008212N 000137 008212 Spring Washer Timing Case Cover To Cylinder Crankcase (5×)

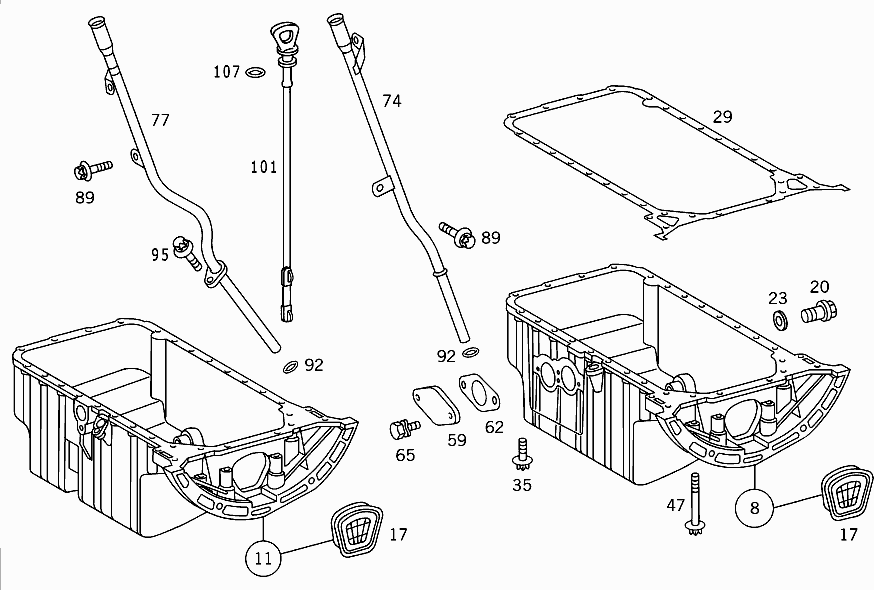

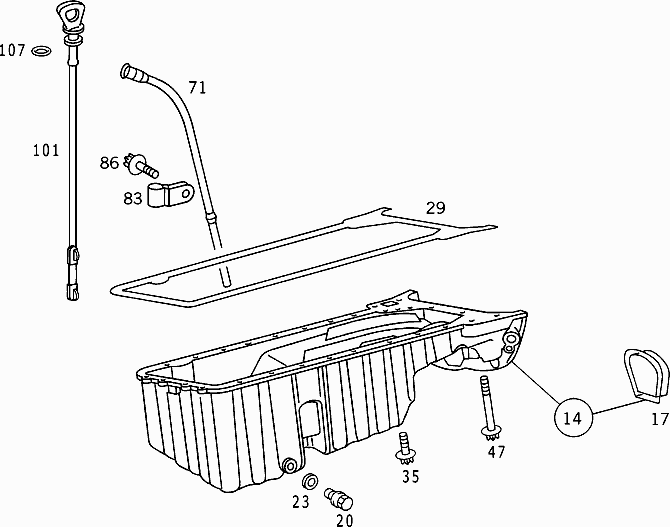

045 Oil Pan & Oil Level Display

8 8 A1110140702A 111 014 07 02 Oil Pan

8 8 A1110100513A 111 010 05 13 Oil Pan

11 11 A1110100713A 111 010 07 13 Oil Pan

17 17 A1020140033A 102 014 00 33 Cover

20 20 A6019970230A 601 997 02 30 Screw Plug

20 20 A1119970330A 111 997 03 30 Screw Plug, Filling Oil Drain M14x1.5

23 23 N007603014106N 007603 014106 Sealing Ring

29 29 A1110140122A 111 014 01 22 Gasket

29 29 A1110140222A 111 014 02 22 Gasket

29 29 A6110140222A 611 014 02 22 Gasket Oil Pan To Cylinder Crankcase

35 35 N910143006002N 910143 006002 Hexalobular Bolt

35 35 A0029908522A 002 990 85 22 Screw Oil Pan To Cylinder Crankcase (14×)

35 35 N910143006002N 910143 006002 Hexalobular Bolt

35 35 A0029908522A 002 990 85 22 Screw Oil Pan To Timing Case Cover (6×)

35 35 N910143006005N 910143 006005 Hexalobular Bolt

35 35 A0039900122A 003 990 01 22 Screw Oil Pan To Cylinder Crankcase (3×)

35 35 N000931006131N 000931 006131 Screw

35 35 A0019908622A 001 990 86 22 Screw

35 35 A0039900222A 003 990 02 22 Screw Oil Pan To Cylinder Crankcase (3×)

47 47 N914005008029N 914005 008029 Screw-and-washer Assembly

47 47 N910143008005N 910143 008005 Hexalobular Bolt Oil Pan To Cylinder Crankcase (4×)

59 59 A6010140533A 601 014 05 33 Cover To Plug Bore Used For Oil Level Sender Unit

62 62 A6010140180A 601 014 01 80 Gasket To Plug Bore Used For Oil Level Sender Unit

65 65 N914005006020N 914005 006020 Screw-and-washer Assembly To Plug Bore Used For Oil Level Sender Unit (2×)

74 74 A1110100466A 111 010 04 66 Guide Tube Oil Dipstick

89 89 N910143006000N 910143 006000 Hexalobular Bolt Guide Tube M 6x12

92 92 A0179971648A 017 997 16 48 Seal Ring

92 92 A0289979048A 028 997 90 48 Seal Ring Guide Tube

~~101~~ 101 A1110100472A 111 010 04 72 Oil Dipstick

~~107~~ 107 A0069972645A 006 997 26 45 Seal Ring

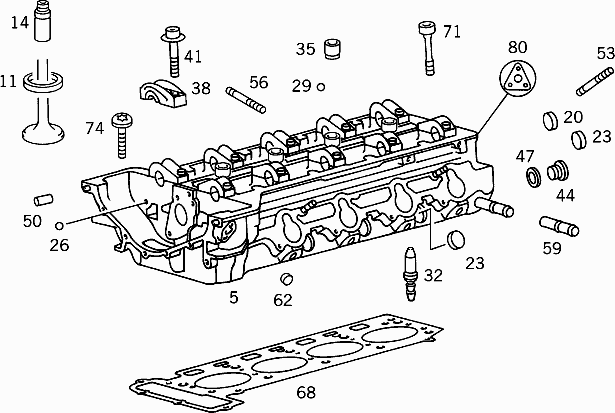

065 Cylinder Head & Gasket Kit

5 5 A1110104820A 111 010 48 20 Cylinder Head

11 11 A1040530231A 104 053 02 31 Valve Seat Ring Intake,repair Size 37.30 Mm (8×)

11 11 A1040530631A 104 053 06 31 Valve Seat Ring Intake,repair Size 37,30 Mm (8×)

11 11 A1040530132A 104 053 01 32 Valve Seat Ring Exhaust,repair Size 33,30 Mm (8×)

14 14 A1110531029A 111 053 10 29 Valve Guide Intake And Exhaust; Standard I 12,50 Mm Aussen, 7 Mm Innen,o.sprengr. (16×)

14 14 A1110531129A 111 053 11 29 Valve Guide Intake And Exhaust; Repair Size I 12,7 Mm Aussen, 7 Mm Innen,o.sprengr. (16×)

20 20 N000443020004N 000443 020004 Cap (2×)

23 23 N000443025003N 000443 025003 Cap

23 23 A4039970620A 403 997 06 20 Expansion Plug (7×)

26 26 N005401308000N 005401 308000 Ball To Plug Oil Passage, Front (2×)

29 29 N005401306000N 005401 306000 Ball To Lock Cooling Water Bores (4×)

32 32 A1110170012A 111 017 00 12 Nozzle Part-load Breathing (2×)

35 35 A1119900478A 111 990 04 78 Connector Sealing,spark Plug Recess (4×)

38 38 A1110510403A 111 051 04 03 Camshaft Bearing Cap Standard Nr. 2,4,5 (6×)

38 38 A1110510503A 111 051 05 03 Camshaft Bearing Cap Repair Size I Nr. 2,4,5 (6×)

38 38 A1110510603A 111 051 06 03 Camshaft Bearing Cap Standard; Central (2×)

38 38 A1110510803A 111 051 08 03 Camshaft Bearing Cap Front; Standard (2×)

38 38 A1110510903A 111 051 09 03 Camshaft Bearing Cap Front;repair Size I (2×)

41 41 A1209900221A 120 990 02 21 Screw Camshaft Bearing To Cylinder Head (20×)

44 44 N000908010004N 000908 010004 Screw Plug

44 44 N000000000648N 000000 000648 Screw Plug To Plug The Oil Passages (2×)

47 47 N007603010103N 007603 010103 Sealing Ring

47 47 N007603010110N 007603 010110 Sealing Ring To Plug The Oil Passages (2×)

50 50 A1029910341A 102 991 03 41 Fitting Sleeve (4×)

53 53 N000835008156N 000835 008156 Screw (2×)

56 56 A1119900405A 111 990 04 05 Stud Exhaust Manifold To Cylinder Head (11×)

59 59 A1119900778A 111 990 07 78 Connector Heating Feed

62 62 N000443018003N 000443 018003 Cap To Plug Bore Used For Position Pickup

62 62 N000000004055N 000000 004055 Cap To Plug Bore Used For Position Pickup

68 68 A1110161120A 111 016 11 20 Cylinder Head Gasket

68 68 A1110162620A 111 016 26 20 Cylinder Head Gasket

71 71 A1029900810A 102 990 08 10 Screw Cylinder Head To Cylinder Crankcase (10×)

74 74 A1409904501A 140 990 45 01 Screw Cylinder Head At Timing Case Over (4×)

80 80 A1110102820A 111 010 28 20 Gasket Kit Cylinder Head

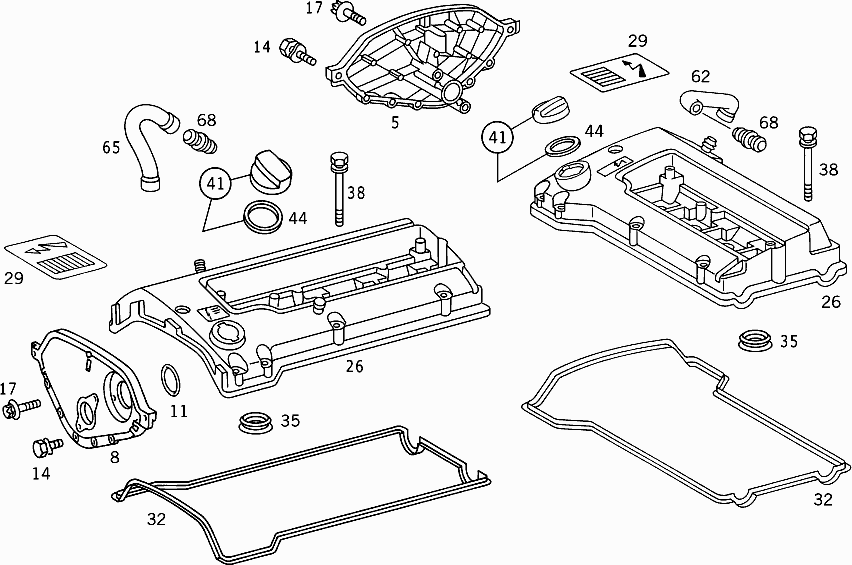

075 Cylinder Head Cover

5 5 A1110161006A 111 016 10 06 Cover Cylinder Head,front

11 11 A0179972148A 017 997 21 48 Seal Ring Front Cover

14 14 N914005006008N 914005 006008 Screw-and-washer Assembly

14 14 A0109900401A 010 990 04 01 Screw

14 14 N000933006123N 000933 006123 Screw Cylinder Head,front (6×)

17 17 N910143008004N 910143 008004 Hexalobular Bolt

17 17 N910105008014N 910105 008014 Hexagon Head Bolt Cylinder Head,front

-- N000137008204N 000137 008204 Spring Washer

-- N000137008212N 000137 008212 Spring Washer Cylinder Head,front

26 26 A1110101030A 111 010 10 30 Cylinder Head Cover

29 29 A2105840047A 210 584 00 47 Warning Sign "danger!high Tension!"; In German,english,and French

-- A1110100430A 111 010 04 30 Gasket Kit Cylinder Head Cover To Cylinder Head

32 32 A1110160221A 111 016 02 21 Gasket Cylinder Head Cover To Cylinder Head

32 32 A1110160921A 111 016 09 21 Gasket Cylinder Head Cover To Cylinder Head

35 35 A1110160721A 111 016 07 21 Elastomer-molded Seal Sealing,spark Plug Recess (4×)

38 38 N914011006019N 914011 006019 Screw-and-washer Assembly

38 38 N304017006027N 304017 006027 Hexagon Head Bolt Cylinder Head Cover To Cylinder Head (4×)

38 38 N914011006018N 914011 006018 Screw-and-washer Assembly

38 38 N304014006001N 304014 006001 Hexagon Head Bolt Cylinder Head Cover To Cylinder Head (6×)

41 41 A1110180302A 111 018 03 02 Filler Cap Filler Cap

44 44 A1110180080A 111 018 00 80 Gasket Filler Cap

62 62 A1110180782A 111 018 07 82 Hose Between Cylinder Head Cover And Intake Manifold

68 68 A1020941612A 102 094 16 12 Connector Deaerator Line To Intake Manifold

03 Moving Parts

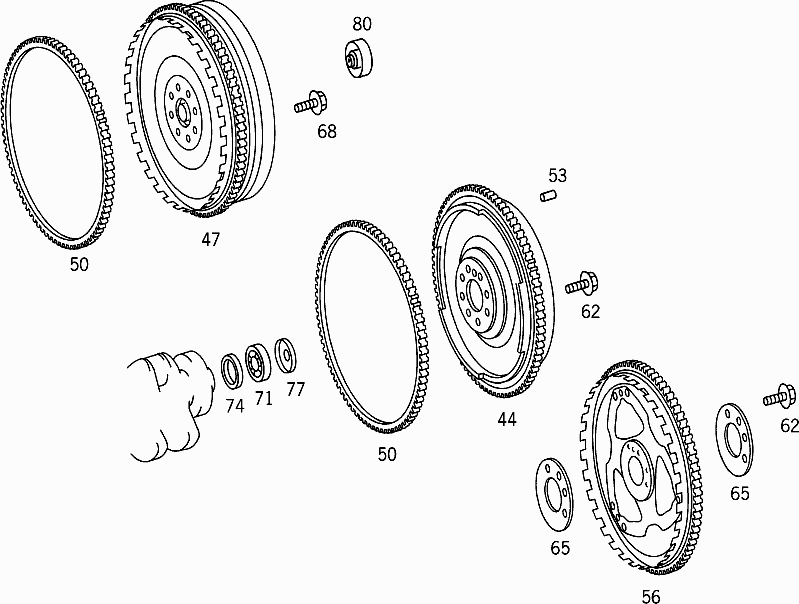

015 Crankshaft And Flywheel

5 5 A1110300301A 111 030 03 01 Crankshaft

5 5 A1110300201A 111 030 02 01 Crankshaft

5 5 A1110312001A 111 031 20 01 Crankshaft

8 8 A6019970410A 601 997 04 10 Pin

11 11 A1089910067A 108 991 00 67 Woodruff Key

11 11 A6049910168A 604 991 01 68 Key Crankshaft Gear And Hub On Crankshaft

20 20 A1040520903A 104 052 09 03 Crankshaft Gear

20 20 A1110520203A 111 052 02 03 Crankshaft Gear

20 20 A1110520503A 111 052 05 03 Crankshaft Gear

29 29 A1279930026A 127 993 00 26 Disc Spring (3×)

32 32 N000961018043N 000961 018043 Screw Vibration Absorber To Crankshaft

38 38 A1110300303A 111 030 03 03 Vibration Absorber

38 38 A1110300603A 111 030 06 03 Vibration Absorber Vibration Absorber

38 38 A1110300403A 111 030 04 03 Vibration Absorber

38 38 A1110300703A 111 030 07 03 Vibration Absorber Vibration Absorber

44 44 A1110303905A 111 030 39 05 Flywheel

47 47 A1110304405A 111 030 44 05 Flywheel (two-mass Flywheel)

50 50 A1020320205A 102 032 02 05 Ring Gear

50 50 A0000320005A 000 032 00 05 Ring Gear

53 53 N000007006105N 000007 006105 Cylinder Pin (3×)

56 56 A1110300112A 111 030 01 12 Ring Gear

-- A1020320505A 102 032 05 05 Ring Gear

62 62 A1119900312A 111 990 03 12 Screw

62 62 A0019909112A 001 990 91 12 Screw (8×)

65 65 A1110320176A 111 032 01 76 Washer (2×)

68 68 A6029900512A 602 990 05 12 Screw Two-mass Flywheel To Crankshaft (8×)

71 71 A1029810125A 102 981 01 25 Ball Bearing

71 71 A1159800115A 115 980 01 15 Grooved Ball Bearing

74 74 A1020310251A 102 031 02 51 Spacer Ring

74 74 A1110310251A 111 031 02 51 Spacer Ring

74 74 A6010310050A 601 031 00 50 Bushing

77 77 A1020310133A 102 031 01 33 Cover Ring

80 80 A0189812510A 018 981 25 10 Needle Bearing (two-mass Flywheel)

86 86 A6010300540A 601 030 05 40 Crankshaft Bearing Parts Kit,standard 58.00 Mm (5×)

86 86 A6010300640A 601 030 06 40 Crankshaft Bearing Parts Kit,repair Size I 57.75 Mm (5×)

86 86 A6010300740A 601 030 07 40 Crankshaft Bearing Parts Kit,repair Size Ii 57.50 Mm (5×)

86 86 A6010300840A 601 030 08 40 Crankshaft Bearing Parts Kit,repair Size Iii 57.25 Mm (5×)

86 86 A6010300940A 601 030 09 40 Crankshaft Bearing Parts Kit,repair Size Iv 57.00 Mm (5×)

87 87 A6010332202A 601 033 22 02 Crankshaft Bearing Half Lower;standard 58.00 Mm (5×)

89 89 A6010300062A 601 030 00 62 Guard Plate Parts Kit 2.15 Mm (2×)

89 89 A6010300162A 601 030 01 62 Guard Plate Parts Kit 2.20 Mm (2×)

89 89 A6010300262A 601 030 02 62 Guard Plate Parts Kit 2.25 Mm (2×)

89 89 A6010300362A 601 030 03 62 Guard Plate Parts Kit 2.35 Mm (2×)

89 89 A6010300462A 601 030 04 62 Guard Plate Parts Kit 2.40 Mm (2×)

030 Connecting Rod And Pistons

5 5 A1110300720A 111 030 07 20 Connecting Rod (4×)

8 8 A1110380150A 111 038 01 50 Piston Pin Bushing (4×)

11 11 A1029910341A 102 991 03 41 Fitting Sleeve (8×)

14 14 A1110380071A 111 038 00 71 Screw (8×)

23 23 A1110380910A 111 038 09 10 Connectg.rod Bearg.shell Standard 48.00 Mm (8×)

23 23 A1110381510A 111 038 15 10 Connectg.rod Bearg.shell Standard 48.00 Mm (8×)

23 23 A1110381010A 111 038 10 10 Connectg.rod Bearg.shell Repair Size I 47.75 Mm (8×)

23 23 A1110381610A 111 038 16 10 Connectg.rod Bearg.shell Repair Size I 47.75 Mm (8×)

23 23 A1110381110A 111 038 11 10 Connectg.rod Bearg.shell Repair Size Ii 47.50 Mm (8×)

23 23 A1110381710A 111 038 17 10 Connectg.rod Bearg.shell Repair Size Ii 47.50 Mm (8×)

23 23 A1020384710A 102 038 47 10 Connectg.rod Bearg.shell Repair Size Iii 47.25 Mm (8×)

23 23 A1020384810A 102 038 48 10 Connectg.rod Bearg.shell Repair Size Iv 47.00 Mm (8×)

26 26 A1110309817A 111 030 98 17 Piston

26 26 A1110303518A 111 030 35 18 Piston Standard; Version With Catalyst 89.90 Mm (4×)

26 26 A1110309917A 111 030 99 17 Piston

26 26 A1110303618A 111 030 36 18 Piston Repair Size I; Version With Catalyst 90.15 Mm (4×)

26 26 A1110300018A 111 030 00 18 Piston

26 26 A1110303718A 111 030 37 18 Piston Repair Size Ii; Version With Catalyst 90.40 Mm (4×)

29 29 A0020309324A 002 030 93 24 Piston Ring

29 29 A0030306524A 003 030 65 24 Piston Ring

29 29 A0030308424A 003 030 84 24 Piston Ring Parts Kit,standard (4×)

29 29 A0030303124A 003 030 31 24 Piston Ring

29 29 A0030306824A 003 030 68 24 Piston Ring

29 29 A0030309224A 003 030 92 24 Piston Ring Parts Kit,standard (4×)

29 29 A0020309424A 002 030 94 24 Piston Ring

29 29 A0030306624A 003 030 66 24 Piston Ring

29 29 A0030308524A 003 030 85 24 Piston Ring Parts Kit,repair Size I (4×)

29 29 A0030303224A 003 030 32 24 Piston Ring

29 29 A0030306924A 003 030 69 24 Piston Ring

29 29 A0030309324A 003 030 93 24 Piston Ring Parts Kit,repair Size I (4×)

29 29 A0020309524A 002 030 95 24 Piston Ring

29 29 A0030306724A 003 030 67 24 Piston Ring

29 29 A0030308624A 003 030 86 24 Piston Ring Parts Kit,repair Size Ii (4×)

29 29 A0030303324A 003 030 33 24 Piston Ring

29 29 A0030307024A 003 030 70 24 Piston Ring

29 29 A0030309424A 003 030 94 24 Piston Ring Parts Kit,repair Size Ii (4×)

32 32 A1029940135A 102 994 01 35 Snap Ring (8×)

05 Timing

030 Camshaft And Camshaft Adjuster

5 5 A1110501801A 111 050 18 01 Camshaft Intake;standard

8 8 A1110503101A 111 050 31 01 Camshaft Exhaust,standard

11 11 A6019970010A 601 997 00 10 Pin (2×)

14 14 N000443011001N 000443 011001 Cap (4×)

23 23 A1200520401A 120 052 04 01 Camshaft Gear (2×)

29 29 A1209900204A 120 990 02 04 Capscrew W Hexal. Drive Camshaft Gear To Camshaft (6×)

045 Chain Drive

5 5 A0039971794A 003 997 17 94 Roller Chain With Lock

5 5 A0029977994A 002 997 79 94 Roller Chain

5 5 A0029979994A 002 997 99 94 Roller Chain With Lock

8 8 A0009972298A 000 997 22 98 Chain Lock Link To 003 997 17 94

8 8 A0009971898A 000 997 18 98 Chain Lock Link

8 8 A0009972198A 000 997 21 98 Chain Lock Link To 002 997 79 94/ 99 94

11 11 A1110500916A 111 050 09 16 Sliding Rail

11 11 A1110501416A 111 050 14 16 Sliding Rail (clamping Rail)

14 14 A1110520283A 111 052 02 83 Rubber Lining

17 17 A1110521016A 111 052 10 16 Sliding Rail Sliding Rail To Cylinder Crankcase

20 20 A1110520174A 111 052 01 74 Pin

20 20 A6010520674A 601 052 06 74 Pin Sliding Rail To Cylinder Head

23 23 A1119970210A 111 997 02 10 Pin

23 23 A1119970410A 111 997 04 10 Pin Sliding Rail To Cylinder Crankcase (2×)

26 26 A1110501116A 111 050 11 16 Sliding Rail Sliding Rail To Cylinder Head

29 29 N914005006041N 914005 006041 Screw-and-washer Assembly

29 29 N000933006147N 000933 006147 Screw Sliding Rail To Cylinder Head (2×)

32 32 A1110500411A 111 050 04 11 Chain Tightener Range Of Delivery

-- A1110500311A 111 050 03 11 Chain Tightener Housing

38 38 A1030520193A 103 052 01 93 Spring Rasterfeder

41 41 N007603027101N 007603 027101 Sealing Ring Chain Tightener To Timing Case Cover

44 44 A6019910001A 601 991 00 01 Pin Fuellstift

47 47 A1049930601A 104 993 06 01 Spring End Piece To Chain Tightener

50 50 N007603020100N 007603 020100 Sealing Ring End Piece To Chain Tightener

53 53 A1040500166A 104 050 01 66 End Piece Chain Tightener

060 Valves

5 5 A1110531101A 111 053 11 01 Intake Valve (8×)

5 5 A1110532301A 111 053 23 01 Intake Valve (8×)

5 5 A1110532401A 111 053 24 01 Intake Valve (8×)

5 5 A1110532101A 111 053 21 01 Intake Valve (8×)

5 5 A1110501227A 111 050 12 27 Exhaust Valve (8×)

8 8 A6030530325A 603 053 03 25 Spring Retainer Top (16×)

11 11 A1110530020A 111 053 00 20 Valve Spring (16×)

17 17 A1110530625A 111 053 06 25 Spring Retainer Bottom (16×)

20 20 A1020530226A 102 053 02 26 Valve Collet (32×)

23 23 A1190500158A 119 050 01 58 Seal

23 23 A6120500058A 612 050 00 58 Seal Parts Kit,valve Stem Sealing (4×)

26 26 A1040501025A 104 050 10 25 Valve Tappet

26 26 A1040501225A 104 050 12 25 Valve Tappet (16×)

26 26 A1190500825A 119 050 08 25 Valve Tappet (16×)

07 Injection System

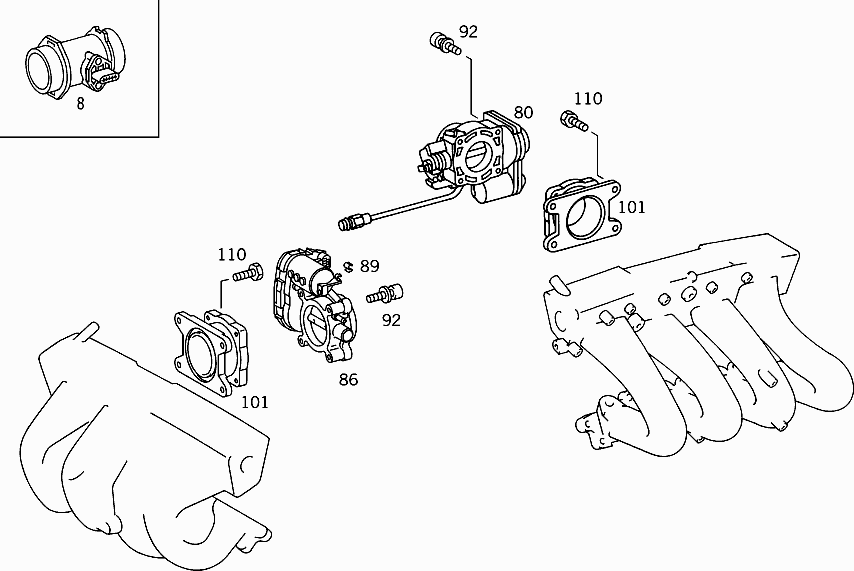

040 Air-mass Sensor,throttle Valve Actuator; Used With Motronic

80 80 A0001419925A 000 141 99 25 Slide

80 80 A0011410525A 001 141 05 25 Slide Idle Speed Actuator

92 92 N914021006009N 914021 006009 Screw-and-washer Assembly

92 92 N914021006026N 914021 006026 Screw-and-washer Assembly Idle Speed Actuator To Intermediate Flange (4×)

~~101~~ 101 A1111400144A 111 140 01 44 Flange At Intake Manifold

~~110~~ 110 N304017008034N 304017 008034 Hexagon Head Bolt Flange To Intake Manifold (4×)

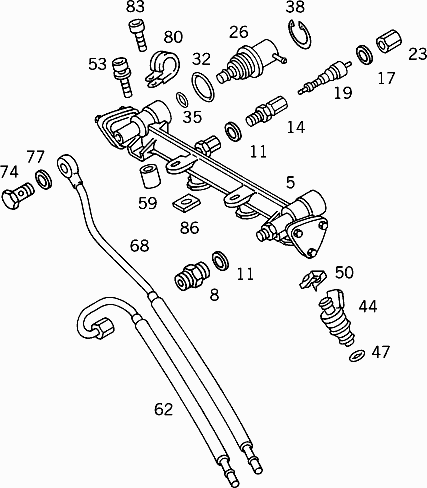

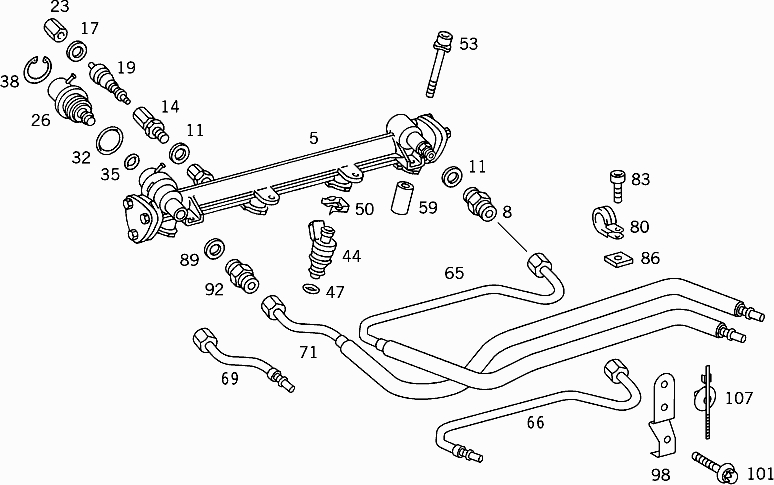

095 Injection Valves,fuel Distributor; Used With Motronic

5 5 A1110701395A 111 070 13 95 Fuel Distributor

8 8 A0000746086A 000 074 60 86 Fitting Feed

11 11 N007603012112N 007603 012112 Sealing Ring (2×)

14 14 A0000700195A 000 070 01 95 Intermediate Piece Fuel Pressure Test Connection

17 17 N007603012111N 007603 012111 Sealing Ring Fuel Pressure Test Connection

19 19 A0000784349A 000 078 43 49 Valve Fuel Pressure Test Connection

-- A0000746286A 000 074 62 86 Fitting Fuel Pressure Test Connection

23 23 A0000700195A 000 070 01 95 Intermediate Piece Fuel Pressure Test Connection

26 26 A0000781489A 000 078 14 89 Pressure Regulator

26 26 A0000781889A 000 078 18 89 Pressure Regulator Diaphragm Type Pressure Regulator

32 32 A0199971148A 019 997 11 48 Seal Ring Pressure Regulator D 20 Mm

35 35 A0199971248A 019 997 12 48 Seal Ring Pressure Regulator D 5 Mm

38 38 N000472036000N 000472 036000 Retaining Ring Pressure Regulator To Fuel Distributor

44 44 A0000787423A 000 078 74 23 Injection Nozzle Injection Valve (4×)

47 47 A0199971348A 019 997 13 48 O-ring Injection Valve (8×)

50 50 A1190780641A 119 078 06 41 Bracket Injection Valve To Fuel Distributor (4×)

53 53 N914035006007N 914035 006007 Screw-and-washer Assembly Fuel Distributor To Intake Manifold (2×)

59 59 A1111410053A 111 141 00 53 Spacer Tube Fuel Distributor To Intake Manifold (2×)

62 62 A1110700332A 111 070 03 32 Line

62 62 A1110701232A 111 070 12 32 Line Fuel Feed

68 68 A1110700432A 111 070 04 32 Line Fuel Return Hose

74 74 N915036008104N 915036 008104 Banjo Bolt At Fuel Distributor Line

77 77 N007603012405N 007603 012405 Sealing Ring At Fuel Distributor Line (2×)

80 80 N916016008200N 916016 008200 Clamp

80 80 N000000000319N 000000 000319 Clamp At Fuel Distributor Line (2×)

83 83 N000912006039N 000912 006039 Screw At Fuel Distributor Line (2×)

86 86 N000557006001N 000557 006001 Nut

86 86 N000557006002N 000557 006002 Nut At Fuel Distributor Line (2×)

86 86 N000000004429N 000000 004429 Nut At Fuel Distributor Line (2×)

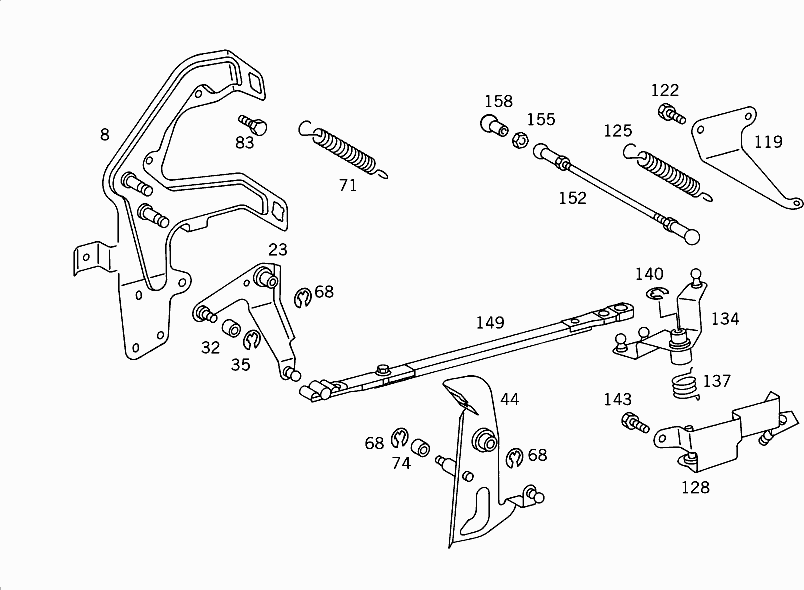

160 Motronic Control

8 8 A1110702324A 111 070 23 24 Bearing Bracket

23 23 A1110703721A 111 070 37 21 Lever

23 23 A1110704421A 111 070 44 21 Lever Control Lever

32 32 A1110720093A 111 072 00 93 Roller At Control Lever

35 35 N006799005009N 006799 005009 Circlip At Control Lever

44 44 A1110703821A 111 070 38 21 Lever Slotted Gate Lever

68 68 N006799005009N 006799 005009 Circlip Slotted Gate Lever & Control Lever To Bearing Bracket (3×)

71 71 A1109931710A 110 993 17 10 Spring Between Slotted Gate Lever And Bearing Bracket

74 74 A2103010011A 210 301 00 11 Roller Between Slotted Gate Lever And Bearing Bracket

83 83 N304017006000N 304017 006000 Hexagon Head Bolt

83 83 N304017006016N 304017 006016 Hexagon Head Bolt Bearing Bracket To Intake Manifold (2×)

~~119~~ 119 A1110720640A 111 072 06 40 Bracket

~~119~~ 119 A1110720940A 111 072 09 40 Bracket

~~119~~ 119 A1110721040A 111 072 10 40 Bracket

~~122~~ 122 N304017006000N 304017 006000 Hexagon Head Bolt

~~122~~ 122 N304017006016N 304017 006016 Hexagon Head Bolt Bracket To Intake Manifold (2×)

~~125~~ 125 A1049930310A 104 993 03 10 Spring

~~125~~ 125 A1119931810A 111 993 18 10 Spring Between Bracket And Throttle Valve Adjuster To 111 072 06 40

~~125~~ 125 A6019933710A 601 993 37 10 Spring Between Bracket And Throttle Valve Adjuster To 111 072 09 40

~~128~~ 128 A1110702724A 111 070 27 24 Bearing Bracket

~~134~~ 134 A1110704021A 111 070 40 21 Lever Reversing Lever

~~137~~ 137 A1039930020A 103 993 00 20 Spring Reversing Lever To Bearing Bracket

~~140~~ 140 N006799005009N 006799 005009 Circlip Reversing Lever To Bearing Bracket

~~143~~ 143 N304017006000N 304017 006000 Hexagon Head Bolt

~~143~~ 143 N304017006016N 304017 006016 Hexagon Head Bolt Bearing Bracket To Intake Manifold (2×)

~~149~~ 149 A0010709375A 001 070 93 75 Rod

~~149~~ 149 A0010709675A 001 070 96 75 Rod Between Accelerator Control Lever And Bell-crank Lever

~~152~~ 152 A1110701175A 111 070 11 75 Rod Between Bell-crank Lever And Throttle Valve Adjuster

~~155~~ 155 N304032005002N 304032 005002 Hexagon Nut

~~155~~ 155 N304032005005N 304032 005005 Hexagon Nut R.h. Thread (2×)

~~158~~ 158 A0009918922A 000 991 89 22 Ball Socket (2×)

~~158~~ 158 A0009930461A 000 993 04 61 Conical Cup (2×)

185 Tempomat Control

20 20 A1030700175A 103 070 01 75 Rod

23 23 N304032005002N 304032 005002 Hexagon Nut

23 23 N304032005005N 304032 005005 Hexagon Nut (2×)

26 26 A0009918922A 000 991 89 22 Ball Socket (2×)

26 26 A0009930461A 000 993 04 61 Conical Cup (2×)

35 35 A1110704221A 111 070 42 21 Lever Reversing Lever

53 53 A1110701375A 111 070 13 75 Rod

56 56 N900331005172N 900331 005172 Threaded Pin From Reversing Lever To Intermediate Lever M 5x45

59 59 N304032005005N 304032 005005 Hexagon Nut (2×)

62 62 A0009919722A 000 991 97 22 Ball Socket

62 62 A0009918922A 000 991 89 22 Ball Socket (2×)

62 62 A0009930461A 000 993 04 61 Conical Cup (2×)

13 Power Steerg.pump,refrig.compressor

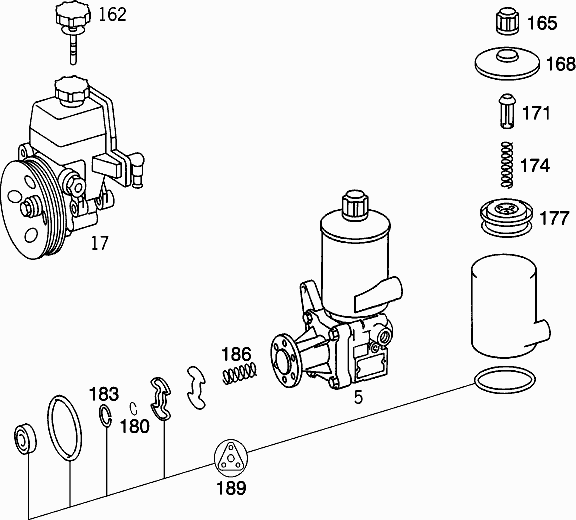

030 Tandem Pump And Power Steering Pump

17 17 A0024662501A 002 466 25 01 Hydraulic Pump Luk

17 17 A0024662701A 002 466 27 01 Hydraulic Pump Zf

17 17 A0024664801A 002 466 48 01 Hydraulic Pump Luk

17 17 A0024665101A 002 466 51 01 Hydraulic Pump Zf

~~162~~ 162 A0004660868A 000 466 08 68 Filler Cap With Inner Bayonet

~~162~~ 162 A0004660968A 000 466 09 68 Filler Cap With Outer Bayonet

~~162~~ 162 A0014662705A 001 466 27 05 Housing Cover With Outer Bayonet

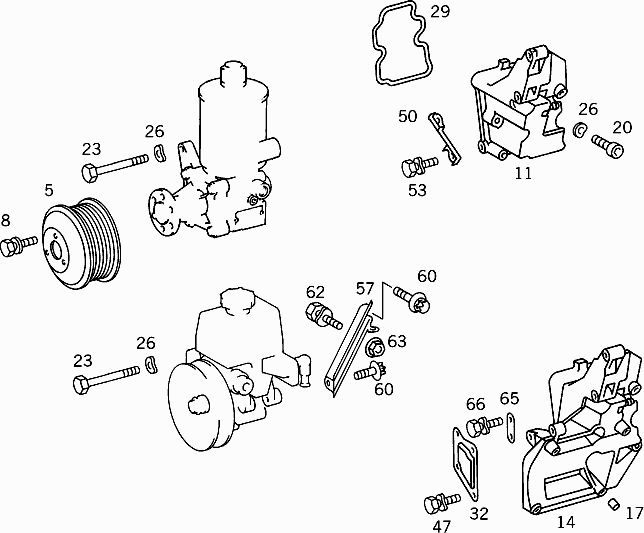

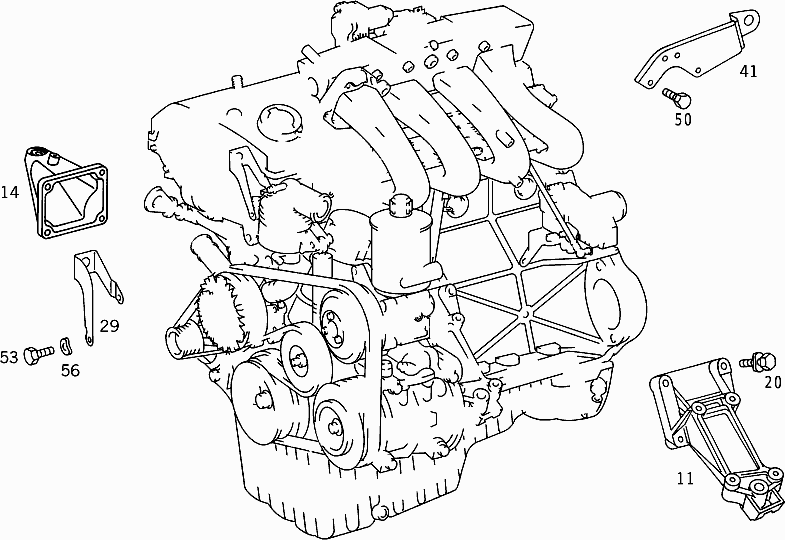

045 Power Steering Pump Attachment Parts

11 11 A1112300042A 111 230 00 42 Console

11 11 A1112300442A 111 230 04 42 Console

14 14 A1111300035A 111 130 00 35 Support

14 14 A1112300742A 111 230 07 42 Console Power Steering Pump And Refrigerant Compressor

14 14 A1112300542A 111 230 05 42 Console

17 17 A6019920425A 601 992 04 25 Sleeve (2×)

20 20 N000912008066N 000912 008066 Screw Support To Cylinder Crankcase M 8x80

20 20 N000912008130N 000912 008130 Cap Bolt Support To Cylinder Crankcase M 8x50 (5×)

23 23 N000931008220N 000931 008220 Screw

23 23 N304017008067N 304017 008067 Hexagon Head Bolt Power Steering Pump To Support M 8x110 (2×)

26 26 N000137008204N 000137 008204 Spring Washer

26 26 N000137008212N 000137 008212 Spring Washer Support To Cylinder Crankcase

26 26 N000137008204N 000137 008204 Spring Washer

26 26 N000137008212N 000137 008212 Spring Washer Power Steering Pump To Support (2×)

29 29 A1112360080A 111 236 00 80 Gasket Support To Cylinder Crankcase To A 111 230 10 42

29 29 A1112360180A 111 236 01 80 Gasket Support To Cylinder Crankcase To A 111 230 04 42

47 47 N000000000276N 000000 000276 Hexalobular Bolt Bracket To Refrigerant Compressor Support (2×)

50 50 A1112360295A 111 236 02 95 Stiffening Bracing To Timing Case Cover

53 53 N000000000276N 000000 000276 Hexalobular Bolt Stay To Power Steering Pump Support (2×)

57 57 A1112360795A 111 236 07 95 Stiffening At Intake Manifold

60 60 N000912008200N 000912 008200 Cap Bolt

60 60 N000912008219N 000912 008219 Cap Bolt Strut To Power Steering Pump

60 60 N304017008021N 304017 008021 Hexagon Head Bolt Stay To Intake Manifold

62 62 N914007006035N 914007 006035 Screw-and-washer Assembly Engine Wiring Harness On Power Steering Pump Strut (2×)

63 63 N913023006001N 913023 006001 Nut Engine Wiring Harness On Power Steering Pump Strut (2×)

65 65 A1111310241A 111 131 02 41 Bracket

66 66 N910143008001N 910143 008001 Hexalobular Bolt Bracket To Refrigerant Compressor Support M8x20 (2×)

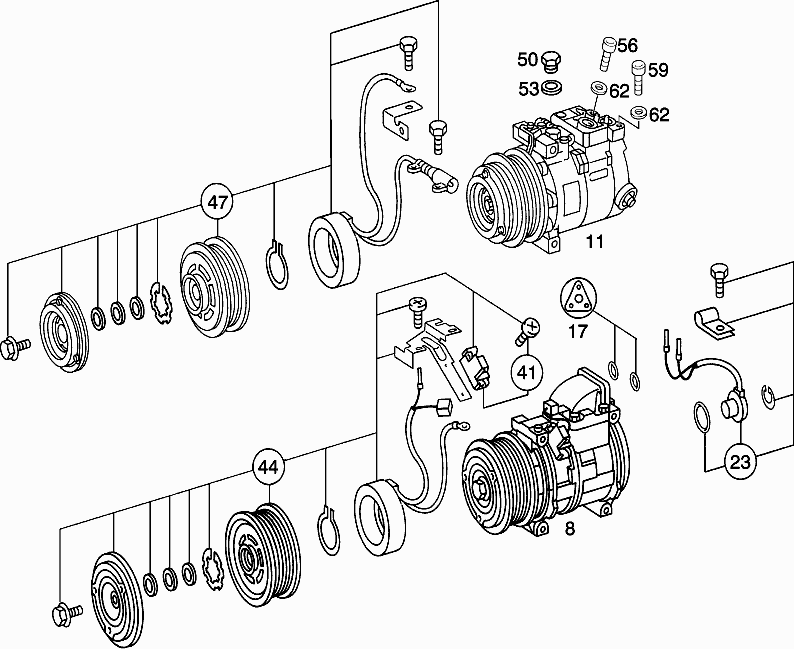

060 Refrigerant Compressor

8 8 A0002300611A 000 230 06 11 Compressor

17 17 A0002300056A 000 230 00 56 Gasket Kit (delivery And Suction Line) To 000 230 06 11,13 11

23 23 A0001500525A 000 150 05 25 Sender Unit Speed Sender Unit To 000 230 06 11

41 41 A0145452228A 014 545 22 28 Plug Range Of Delivery To 000 230 06 11

44 44 A0002300088A 000 230 00 88 Magnet

44 44 A0002300528A 000 230 05 28 Coupling

44 44 A0002300628A 000 230 06 28 Coupling

44 44 A0002301928A 000 230 19 28 Coupling Coupler With Solenoid To 000 230 06 11

44 44 A0002302728A 000 230 27 28 Coupling To 000 230 37 11

44 44 A0002302128A 000 230 21 28 Coupling Coupler With Solenoid To 000 230 20 11

47 47 A0002303528A 000 230 35 28 Coupling Coupler With Solenoid To 000 230 68 11

50 50 A0009972934A 000 997 29 34 Screw To 000 230 20 11

53 53 A0239974848A 023 997 48 48 Seal Ring To 000 230 20 11

56 56 N000912008134N 000912 008134 Screw Refrigerant Line To Compressor M 8x28

59 59 N007984008003N 007984 008003 Screw Refrigerant Line To Compressor M 8x18

62 62 N000125008443N 000125 008443 Washer (2×)

075 Refrigerant Compressor Attachment Parts

59 59 N910143008011N 910143 008011 Hexalobular Bolt Refrigerant Compressor To Support (4×)

135 V-belt

5 5 A0119972092A 011 997 20 92 V-belt 21.36x2100

5 5 A0119975592A 011 997 55 92 V-belt

14 Intake And Exhaust Manifolds

015 Collective Illustration Vacuum System Connecting Parts

5 5 A1232761630A 123 276 16 30 Line Black/red 4x1 Mm

5 5 A1232761930A 123 276 19 30 Line Black-green 4x1 Mm

5 5 A0002760030A 000 276 00 30 Line Withe 4x1 Mm

5 5 A0002760130A 000 276 01 30 Line Red 4x1 Mm

5 5 A0002760230A 000 276 02 30 Line Green 4x1 Mm

5 5 A0001581435A 000 158 14 35 Pipe Line Transparent 4x1 Mm

5 5 A0001589335A 000 158 93 35 Pipe Line Transparent/black 4x1 Mm

5 5 A0011580135A 001 158 01 35 Pipe Line Transparent/violet/black 4x1 Mm

8 8 A0019978152A 001 997 81 52 Hose Black 4x0.75 Mm

11 11 A0019973852A 001 997 38 52 Hose

11 11 A0089976082A 008 997 60 82 Hose

11 11 A0009872627A 000 987 26 27 Plastic Pipe Black 6x1 Mm

14 14 A0089979082A 008 997 90 82 Hose Black 8x1 Mm

17 17 A1179970982A 117 997 09 82 Hose 8x3.5 Mm

18 18 A0079976182A 007 997 61 82 Hose 9x3.5 Mm

19 19 N040621005200N 040621 005200 Insulating Tubing 5x0.6 Mm

19 19 N040621008200N 040621 008200 Insulating Tubing 8x0.7 Mm

20 20 A2019975082A 201 997 50 82 Hose

23 23 A1170780281A 117 078 02 81 Hose

23 23 A6170780981A 617 078 09 81 Hose

26 26 A1170780481A 117 078 04 81 Hose

29 29 A1078330197A 107 833 01 97 Hose

29 29 A1170780581A 117 078 05 81 Hose

32 32 A1170780681A 117 078 06 81 Hose

32 32 A1170780781A 117 078 07 81 Hose

35 35 A1170780881A 117 078 08 81 Hose

38 38 A1110780081A 111 078 00 81 Hose

41 41 A1200780181A 120 078 01 81 Hose

41 41 A1404761526A 140 476 15 26 Molded Hose

41 41 A1200780181A 120 078 01 81 Hose

44 44 A1110780181A 111 078 01 81 Hose

47 47 A6020780681A 602 078 06 81 Hose

50 50 A1200780381A 120 078 03 81 Hose

52 52 A6010780245A 601 078 02 45 Branch-off Fitting

54 54 A1162760929A 116 276 09 29 Hose Connection Fitting (connector),yellow 4 Mm/4 Mm

56 56 A0009871145A 000 987 11 45 Locking Cap

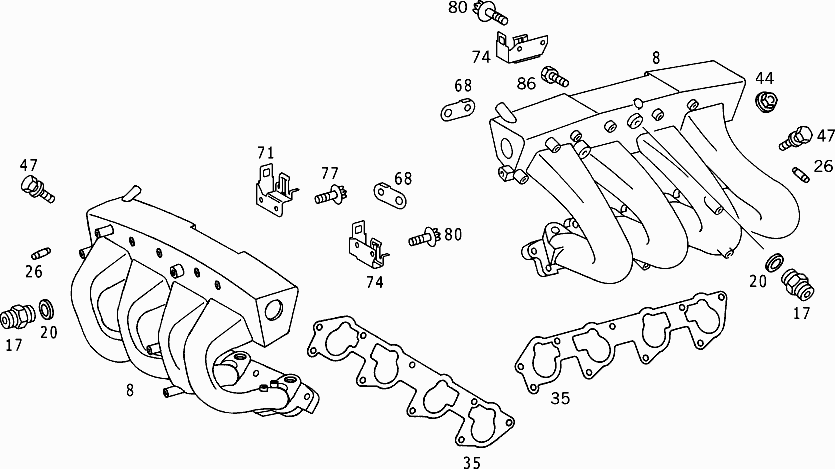

030 Intake Manifold

8 8 A1111401601A 111 140 16 01 Intake Manifold

17 17 N915023010001N 915023 010001 Fitting

17 17 N000000004846N 000000 004846 Fitting

20 20 N007603014104N 007603 014104 Sealing Ring

26 26 A1179900278A 117 990 02 78 Connector (5×)

35 35 A1111410780A 111 141 07 80 Gasket Intake Manifold To Cylinder Head

47 47 A1119901701A 111 990 17 01 Combination Bolt

47 47 N304017008018N 304017 008018 Hexagon Head Bolt Intake Manifold To Cylinder Head (9×)

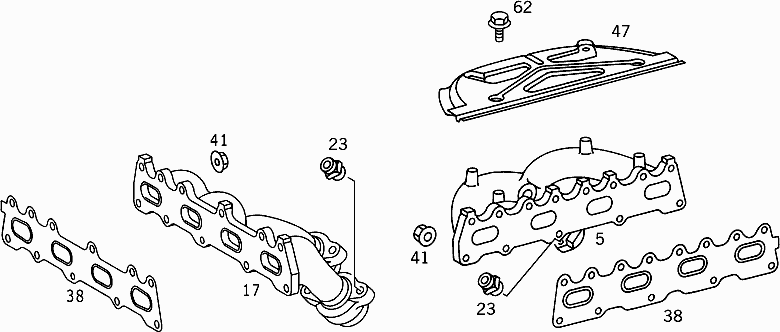

060 Exhaust Manifold

17 17 A1111402509A 111 140 25 09 Exhaust Manifold

23 23 A0009902552A 000 990 25 52 Nut (4×)

38 38 A1111420580A 111 142 05 80 Gasket

38 38 A1111420880A 111 142 08 80 Gasket Exhaust Manifold To Cylinder Head

41 41 A1201420072A 120 142 00 72 Hexagon Nut Exhaust Manifold To Cylinder Head (11×)

105 Air Pump

150 Vacuum System 638

8 8 A0089979082A 008 997 90 82 Hose From Idle Speed Actuator To Regeneration Valve 840 Mm

11 11 A0059974890A 005 997 48 90 Cable Strap

11 11 A0019978390A 001 997 83 90 Loom Tie Vacuum Line To Fuel Line

14 14 A1179970982A 117 997 09 82 Hose From Intake Manifold To Fuel Pressure Regulator 170 Mm

17 17 A1170780281A 117 078 02 81 Hose From Intake Manifold To Control Unit (2×)

20 20 A0019978152A 001 997 81 52 Line

20 20 A0001581435A 000 158 14 35 Pipe Line From Intake Manifold To Control Unit 690 Mm

23 23 A0009871145A 000 987 11 45 Locking Cap Intake Manifold

160 Vacuum System Sprinter

15 Electrical Equipment

015 Starting Motor

5 5 A0041516901A 004 151 69 01 Starting Motor Bosch

5 5 A0041518101A 004 151 81 01 Starting Motor Valeo

5 5 A0051510601A 005 151 06 01 Starting Motor Bosch

5 5 A0051513401A 005 151 34 01 Starting Motor Bosch

8 8 A0011522710A 001 152 27 10 Solenoid Switch To 004 151 69 01, 005 151 06 01/ 34 01

11 11 A0001516450A 000 151 64 50 Bushing Starter Pinion (2×)

14 14 A0129812810A 012 981 28 10 Needle Bearing

14 14 A0009812110A 000 981 21 10 Needle Bearing Drive End Bearing To 004 151 69 01

14 14 A0001510950A 000 151 09 50 Bushing Drive End Bearing To 005 151 06 01

14 14 A0001518750A 000 151 87 50 Bushing Drive End Bearing To 005 151 34 01

17 17 A0001516850A 000 151 68 50 Sintered Bush Commutator End Shield To 004 151 69 01, 005 151 06 01

20 20 A0011510014A 001 151 00 14 Carbon Brush Set

20 20 A0011513414A 001 151 34 14 Carbon Brush Set To 004 151 69 01, 005 151 06 01

20 20 A0011512414A 001 151 24 14 Carbon Brush Set

20 20 A0011514714A 001 151 47 14 Carbon Brush Set To 005 151 34 01

26 26 A0009907630A 000 990 76 30 Screw

26 26 A0049902712A 004 990 27 12 Screw Solenoid Switch To Housing To 004 151 69 01 (3×)

26 26 A0009909330A 000 990 93 30 Screw Solenoid Switch To Housing To 005 151 06 01 (3×)

26 26 A0049902712A 004 990 27 12 Screw Solenoid Switch To Housing To 005 151 34 01 (3×)

29 29 A0011511213A 001 151 12 13 Pinion To 004 151 69 01, 005 151 06 01

29 29 A0011513713A 001 151 37 13 Pinion To 005 151 34 01

32 32 A0069903401A 006 990 34 01 Screw Commutator End Shield To 004 151 46 01/ 64 01/ 69 01 (2×)

86 86 A0001513615A 000 151 36 15 Ts Armature (parts Kt),drive End Bearing Bosch, To 004 151 69 01/ 005 151 06 01

86 86 A0001517515A 000 151 75 15 Ts Armature (parts Kt),drive End Bearing To 005 151 34 01

~~300~~ 300 A0011522610A 001 152 26 10 Solenoid Switch To 004 151 81 01

~~310~~ 310 A0011512013A 001 151 20 13 Pinion To 004 151 81 01

~~330~~ 330 A0011510714A 001 151 07 14 Carbon Brush Set To 004 151 81 01

~~340~~ 340 A0001500324A 000 150 03 24 Timing Lever Parts Kit To 004 151 81 01

~~350~~ 350 A0001500549A 000 150 05 49 Bushing Parts Kit To 004 151 81 01

~~600~~ 600 N910105010044N 910105 010044 Hexagon Head Bolt Starting Motor To Crankcase M 10x90 (2×)

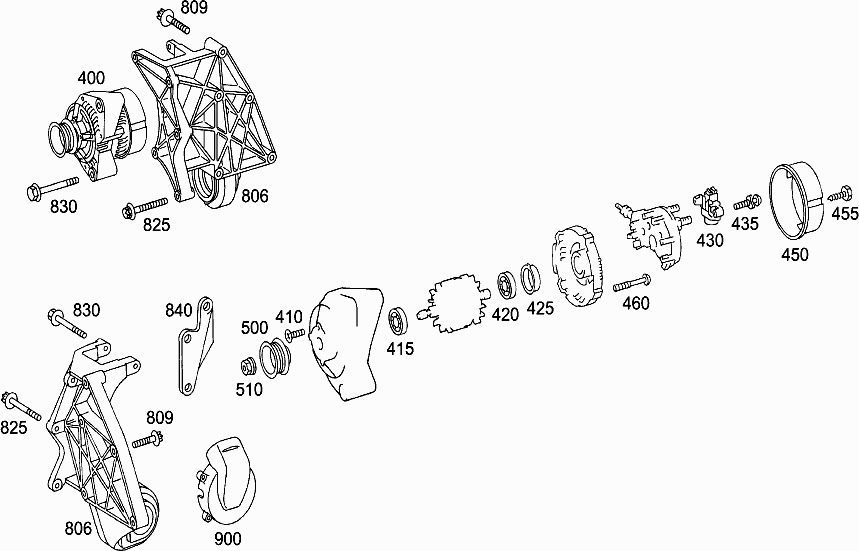

030 Alternator

~~400~~ 400 A0091542902A 009 154 29 02 Alternator 12v/90a

~~400~~ 400 A0111540302A 011 154 03 02 Alternator 12v/90a

~~400~~ 400 A0091546002A 009 154 60 02 Alternator 12v/115a

~~400~~ 400 A0101540202A 010 154 02 02 Alternator 12v/115a

~~400~~ 400 A0101547502A 010 154 75 02 Alternator 12v/115a

~~410~~ 410 A0019902920A 001 990 29 20 Screw Cover Plate To Drive Bearing (4×)

~~415~~ 415 A0079818925A 007 981 89 25 Ball Bearing Drive End Bearing

~~420~~ 420 A0079817325A 007 981 73 25 Annular Ball Bearing Slip Ring Side

~~425~~ 425 A0001540657A 000 154 06 57 Ring Slip Ring Side

~~430~~ 430 A0021549206A 002 154 92 06 Regulator And Cut-out

~~430~~ 430 A0021549206A 002 154 92 06 Regulator And Cut-out To 010 154 02 02

~~430~~ 430 A0031540706A 003 154 07 06 Regulator And Cut-out To 011 154 03 02,009 154 29 02

~~435~~ 435 N914026004105N 914026 004105 Screw-and-washer Assembly Regulator And Cut-out M 4x25 (2×)

~~450~~ 450 A0001542704A 000 154 27 04 Cover

~~450~~ 450 A0001543404A 000 154 34 04 Cover For Alternator: 70a/90a

~~450~~ 450 A0001542804A 000 154 28 04 Cover For Alternator: 110a/120a

~~450~~ 450 A0001542904A 000 154 29 04 Cover For Alternator: 115a/150a

~~450~~ 450 A0001543304A 000 154 33 04 Cover To 010 154 75 02/ 78 02

~~455~~ 455 A0069903201A 006 990 32 01 Screw Cover (3×)

~~460~~ 460 A0019901421A 001 990 14 21 Screw Housing (4×)

~~500~~ 500 A1191550215A 119 155 02 15 Pulley

~~510~~ 510 A0009902250A 000 990 22 50 Nut Pulley To Alternator

~~806~~ 806 A1111550435A 111 155 04 35 Support

~~806~~ 806 A1111550535A 111 155 05 35 Support

~~806~~ 806 A1111550635A 111 155 06 35 Support

~~806~~ 806 A1111550935A 111 155 09 35 Support Alternator

~~809~~ 809 N914005008029N 914005 008029 Screw-and-washer Assembly

~~809~~ 809 N910143008005N 910143 008005 Hexalobular Bolt Alternator Support To Cylinder Crankcase M8x40 (4×)

~~809~~ 809 N910143008008N 910143 008008 Hexalobular Bolt

~~809~~ 809 N910143008017N 910143 008017 Hexalobular Bolt Alternator Support To Cylinder Crankcase M 8x55

~~825~~ 825 N910143008011N 910143 008011 Hexalobular Bolt Alternator Support To Timing Case M8x90 (2×)

~~825~~ 825 N000931008189N 000931 008189 Screw

~~825~~ 825 A0029900722A 002 990 07 22 Screw Alternator Support To Timing Case M 8x85 (3×)

~~830~~ 830 N910105010044N 910105 010044 Hexagon Head Bolt Alternator To Support M10x90 (2×)

~~840~~ 840 A1111540045A 111 154 00 45 Bracket

~~840~~ 840 A1111540145A 111 154 01 45 Bracket Between Support And Timing Case Cover

~~900~~ 900 A6021540604A 602 154 06 04 Cover (air Intake Cover)

060 Ignition System

5 5 A1111500775A 111 150 07 75 Screening Plate

5 5 A1111501575A 111 150 15 75 Screening Plate Ignition Cable Covering

23 23 A1110180071A 111 018 00 71 Screw Ignition Cable Covering To Cylinder Head Cover (3×)

26 26 A1110100073A 111 010 00 73 Adapter Ignition Cable Covering To Cylinder Head Cover (3×)

35 35 A1110161021A 111 016 10 21 Gasket

35 35 A1110161321A 111 016 13 21 Gasket Ignition Cable Covering To Cylinder Head Cover

41 41 A0001587103A 000 158 71 03 Ignition Coil

41 41 A0001587003A 000 158 70 03 Ignition Coil (2×)

41 41 A0001587503A 000 158 75 03 Ignition Coil (2×)

59 59 N304017006019N 304017 006019 Hexagon Head Bolt Ignition Coil On Cylinder Head Cover M 6x25 (4×)

65 65 A1101591818A 110 159 18 18 Ignition Cable Cylinder Nos.1 And 3 350 Mm (2×)

71 71 A0001591438A 000 159 14 38 Cable Sleeve Ignition Cable (4×)

80 80 A0001593842A 000 159 38 42 Cable Plug Ignition Coil (2×)

83 83 A0001593542A 000 159 35 42 Cable Plug Cylinders Nos.: 2,4 (2×)

83 83 A0001593642A 000 159 36 42 Cable Plug Cylinders Nos.: 2,4 (2×)

89 89 A0001567110A 000 156 71 10 Suppressor Plug

89 89 A0001567510A 000 156 75 10 Suppressor Plug Spark Plug (2×)

89 89 A0001567210A 000 156 72 10 Spark Plug Connector (2×)

95 95 A1111590940A 111 159 09 40 Bracket Ignition Cable

95 95 A1111591640A 111 159 16 40 Bracket Ignition Cable

~~101~~ 101 A0031596503A 003 159 65 03 Spark Plug

~~101~~ 101 A0031597503A 003 159 75 03 Spark Plug Bosch F8 Ktcr (4×)

~~101~~ 101 A0031597603A 003 159 76 03 Spark Plug Beru 14 Fgh-8 Dturx 0 (4×)

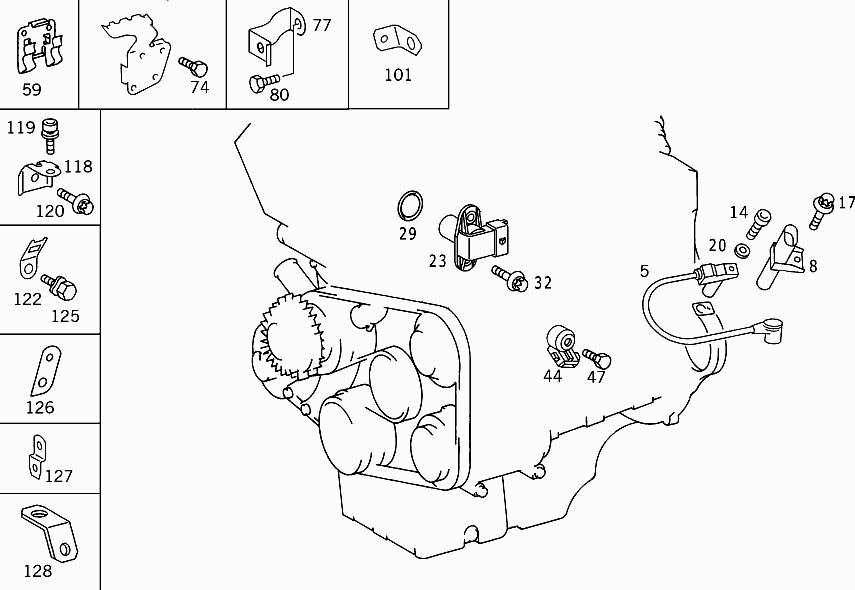

075 T.d.c. Sender Unit,position Sender Unit,knock Sensor,and Ground Strap

5 5 A0021539028A 002 153 90 28 Sender Unit Crankshaft Position Sender Unit

14 14 N000912006107N 000912 006107 Screw

14 14 N000912006066N 000912 006066 Screw Position Sender Unit To Cylinder Crankcase,rear M6x15

20 20 N000125006421N 000125 006421 Washer Position Sender Unit To Cylinder Crankcase,rear

20 20 N000125006449N 000125 006449 Washer Position Sender Unit To Cylinder Crankcase,rear

23 23 A0041530028A 004 153 00 28 Sender Unit Camshaft Position Sender Unit

29 29 A1049970148A 104 997 01 48 Seal Ring

32 32 N910142006001N 910142 006001 Hexalobular Bolt Camshaft Position Sender Unit To Cylinder Head Cover M6x16 (2×)

59 59 A1111590640A 111 159 06 40 Bracket Electric Cable To Cylinder Head Cover

74 74 N304017006000N 304017 006000 Hexagon Head Bolt

74 74 N304017006016N 304017 006016 Hexagon Head Bolt Cable Harness To Cylinder Head M6x16 (2×)

77 77 A1111591440A 111 159 14 40 Bracket At Suspension Eye

80 80 N000933006103N 000933 006103 Screw Bracket To Engine Suspension Eye M6x12 (2×)

~~101~~ 101 A2012710140A 201 271 01 40 Bracket Cable Harness To Alternator

~~122~~ 122 A1020781141A 102 078 11 41 Bracket Electric Cable To Intake Manifold Stay

~~125~~ 125 N914005008029N 914005 008029 Screw-and-washer Assembly

~~125~~ 125 N914005008049N 914005 008049 Screw-and-washer Assembly

~~125~~ 125 N910143008005N 910143 008005 Hexalobular Bolt Electric Cable To Stay M 8x40

~~126~~ 126 A6011591540A 601 159 15 40 Bracket

~~126~~ 126 A6011595140A 601 159 51 40 Bracket

~~127~~ 127 A6011594240A 601 159 42 40 Bracket

~~127~~ 127 A6011595240A 601 159 52 40 Bracket Thermostat Housing

120 Switches,sender Units,sensors

5 5 A0105425717A 010 542 57 17 Sender Unit Intake Air Temperature Sensor B17

11 11 A0055421017A 005 542 10 17 Sender Unit Cooling Water Temperature Gauge B13

11 11 A0055422617A 005 542 26 17 Sender Unit Cooling Water Temperature Gauge B13

23 23 A0115425117A 011 542 51 17 Sender Unit Motronic And Coolant Temperature Indicator B11/4

29 29 N007604014102N 007604 014102 Screw Plug

32 32 N007603014100N 007603 014100 Sealing Ring

41 41 A1245420017A 124 542 00 17 Sender Unit Oil Level Contactor S43

43 43 A0179975848A 017 997 58 48 Seal Ring

47 47 A0159973948A 015 997 39 48 Seal Ring Oil Level Contactor To Oil Pan

50 50 A6069900104A 606 990 01 04 Screw Oil Level Contactor To Oil Pan M6x25 (2×)

59 59 A0045452614A 004 545 26 14 Switch (oil-break Warning Switch) B5

62 62 N000908012009N 000908 012009 Screw Plug (oil-break Warning Switch) M12x1.5

65 65 N007603012113N 007603 012113 Sealing Ring (oil-break Warning Switch)

145 Final Control Element & Attachment Parts

5 5 A0005455165A 000 545 51 65 Motor Final Control Element

8 8 A0095455328A 009 545 53 28 Plug Housing Final Control Element; 8-pole

11 11 A0095453628A 009 545 36 28 Cover

14 14 A0015453826A 001 545 38 26 Contact Pin (7×)

18 18 A1110703921A 111 070 39 21 Lever

20 20 A0009940210A 000 994 02 10 Lock

20 20 A0009941310A 000 994 13 10 Lock Lever To Adjuster Link

23 23 N000439008213N 000439 008213 Nut Lever To Adjuster Link

26 26 A1110720140A 111 072 01 40 Bracket Final Control Element

29 29 N000933006194N 000933 006194 Screw Final Control Element To Bracket M6x28 (3×)

32 32 A1021500077A 102 150 00 77 Spacer Final Control Element To Bracket (3×)

35 35 A1029970081A 102 997 00 81 Grommet Final Control Element To Bracket (3×)

38 38 A1239903140A 123 990 31 40 Washer

38 38 A3859901140A 385 990 11 40 Washer Final Control Element To Bracket (3×)

41 41 N000933006103N 000933 006103 Screw Final Control Element Bracket To Crankcase M 6x12 (3×)

18 Engine Lubrication

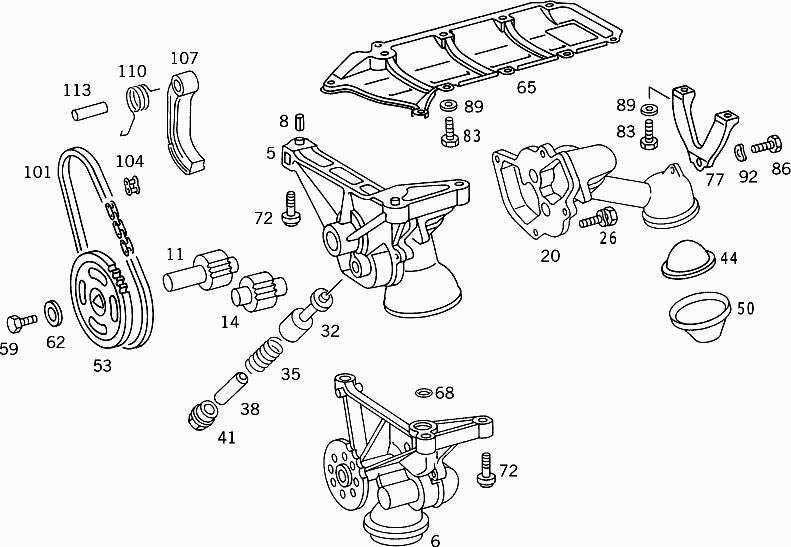

015 Oil Pump

5 5 A1111800501A 111 180 05 01 Oil Pump

6 6 A1111801401A 111 180 14 01 Oil Pump With Drive Gear

8 8 A6019920425A 601 992 04 25 Sleeve On Oil Pump Housing (2×)

11 11 A1111800007A 111 180 00 07 Drive Shaft

14 14 A1111800008A 111 180 00 08 Shaft

20 20 A6031810320A 603 181 03 20 Cover

20 20 A6031811320A 603 181 13 20 Cover Oil Pump

26 26 N914005006005N 914005 006005 Screw-and-washer Assembly

26 26 N914005006044N 914005 006044 Screw-and-washer Assembly

26 26 N304017006020N 304017 006020 Hexagon Head Bolt Oil Pump Cover To Oil Pump Housing M6x20 (4×)

32 32 A6011810042A 601 181 00 42 Piston Pressure Relief Valve To 6031810320

32 32 A6011810142A 601 181 01 42 Piston Pressure Relief Valve To 6031811320

35 35 A6019930801A 601 993 08 01 Spring Pressure Relief Valve

38 38 A6011810174A 601 181 01 74 Pin Pressure Relief Valve

41 41 A6011810056A 601 181 00 56 Screw Plug

41 41 A6031810056A 603 181 00 56 Screw Plug Pressure Relief Valve

44 44 A6011800155A 601 180 01 55 Strainer

50 50 A6021860101A 602 186 01 01 Suction Basket

53 53 A6031810012A 603 181 00 12 Drive Gear

53 53 A6031810112A 603 181 01 12 Drive Gear

59 59 N000933008148N 000933 008148 Screw Drive Gear To Drive Shaft M8x20

62 62 A6019900940A 601 990 09 40 Washer Drive Gear To Drive Shaft

68 68 A6069971645A 606 997 16 45 Seal Ring

68 68 A0199978048A 019 997 80 48 Seal Ring Oil Pump To Crankcase

72 72 N000912008098N 000912 008098 Cap Bolt

72 72 A1409904501A 140 990 45 01 Screw Oil Pump To Crankcase M 8x35 (3×)

72 72 A0019900414A 001 990 04 14 Screw Oil Pump To Crankcase (3×)

77 77 A6031860195A 603 186 01 95 Reinforcement

77 77 A1111860095A 111 186 00 95 Reinforcement Oil Suction Basket

83 83 A1669900722A 166 990 07 22 Screw Oil Suction Basket Bracing M 6x10 (2×)

86 86 N000933006183N 000933 006183 Screw

86 86 N304017006016N 304017 006016 Hexagon Head Bolt Oil Suction Basket Bracing M 6x16

86 86 A0019907922A 001 990 79 22 Screw Oil Suction Basket Bracing

92 92 N000137006204N 000137 006204 Spring Washer Oil Suction Basket Bracing

~~101~~ 101 A0039970094A 003 997 00 94 Roller Chain

~~101~~ 101 A0039977494A 003 997 74 94 Roller Chain Single

~~104~~ 104 A0009971498A 000 997 14 98 Chain Lock Link

~~104~~ 104 A0009973298A 000 997 32 98 Chain Lock Link

~~107~~ 107 A1111800071A 111 180 00 71 Clamping Bracket Oil Pump Chain Tightener

~~110~~ 110 A1049930020A 104 993 00 20 Spring Oil Pump Chain Tightener

~~113~~ 113 A1119970010A 111 997 00 10 Pin

~~113~~ 113 A1119970510A 111 997 05 10 Pin Oil Pump Clamping Bracket Bearing

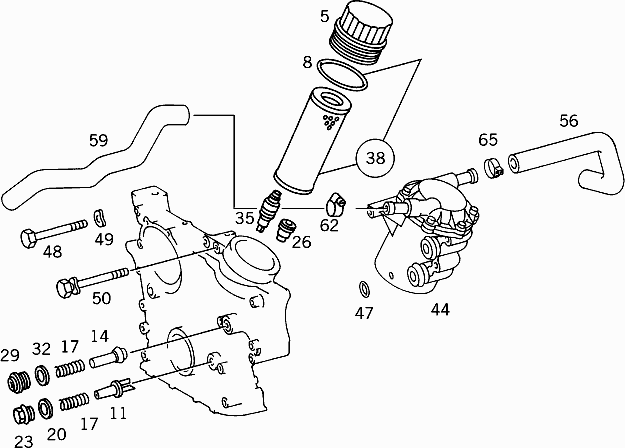

045 Oil Filter

5 5 A1041840608A 104 184 06 08 Cover Filter Housing,top

8 8 A0179973148A 017 997 31 48 Seal Ring

8 8 A0259976648A 025 997 66 48 Seal Ring Cover To Filter Housing

11 11 A1111840032A 111 184 00 32 Valve (non-return Valve)

14 14 A6011840132A 601 184 01 32 Valve Heat Exchanger Bypass Valve

17 17 A1119933201A 111 993 32 01 Spring Non-return Valve

17 17 A1119933201A 111 993 32 01 Spring Heat Exchanger Bypass Valve

20 20 N007603022100N 007603 022100 Sealing Ring Non-return Valve

23 23 A1119901401A 111 990 14 01 Screw Non-return Valve

26 26 A0001800432A 000 180 04 32 Valve (by-pass Valve)

29 29 A1119900112A 111 990 01 12 Screw By-pass Valve

32 32 N007603027101N 007603 027101 Sealing Ring By-pass Valve

35 35 A0001800532A 000 180 05 32 Valve Idling

38 38 A1041840425A 104 184 04 25 Filter Element

38 38 A1041800109A 104 180 01 09 Ts Oil Filter Element

44 44 A1111800065A 111 180 00 65 Oil Cooler

47 47 A0199977548A 019 997 75 48 Seal Ring

47 47 A0129975648A 012 997 56 48 Seal Ring (2×)

48 48 N000931008189N 000931 008189 Screw Heat Exchanger To Timing Case Cover M8x85

49 49 N000137008204N 000137 008204 Spring Washer

49 49 N000137008212N 000137 008212 Spring Washer Heat Exchanger To Timing Case Cover

50 50 N914005008027N 914005 008027 Screw-and-washer Assembly

50 50 N304017008053N 304017 008053 Hexagon Head Bolt Heat Exchanger To Timing Case Cover M8x60 (2×)

56 56 A1111870382A 111 187 03 82 Hose Heat Exchanger To Cylinder Crankase

59 59 A1111870282A 111 187 02 82 Hose

59 59 A1111870482A 111 187 04 82 Hose Heat Exchanger To Water Pump

62 62 N916026016001N 916026 016001 Clamp

62 62 A0059970190A 005 997 01 90 Hose Clamp (2×)

65 65 A0039973590A 003 997 35 90 Hose Clamp (2×)

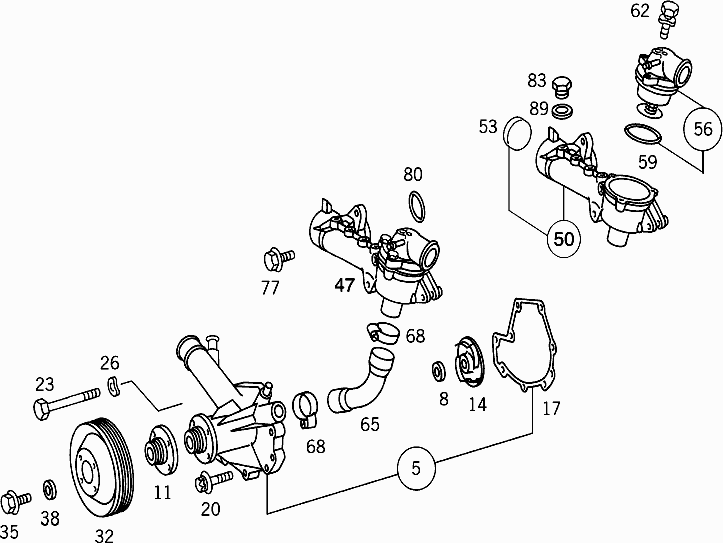

20 Engine Cooling System

015 Water Pump

5 5 A1112002101A 111 200 21 01 Water Pump

5 5 A1112003801A 111 200 38 01 Water Pump

5 5 A1112002401A 111 200 24 01 Water Pump

5 5 A1112003901A 111 200 39 01 Water Pump

8 8 A0002019819A 000 201 98 19 Seal

8 8 A0012010819A 001 201 08 19 Seal

14 14 A1032010007A 103 201 00 07 Impeller

14 14 A1112010007A 111 201 00 07 Impeller

17 17 A1112010080A 111 201 00 80 Gasket Water Pump To Timing Case Cover And To Crankcase,resp.

20 20 N910143006003N 910143 006003 Hexalobular Bolt Water Pump To Timing Case Cover And To Crankcase,resp. M6x25 (4×)

20 20 N910143006007N 910143 006007 Hexalobular Bolt Water Pump To Timing Case Cover And To Crankcase,resp. M6x45

20 20 N914005006038N 914005 006038 Screw-and-washer Assembly

20 20 A0029900622A 002 990 06 22 Screw Water Pump To Timing Case Cover And To Crankcase,resp. M6x95

23 23 N000931008189N 000931 008189 Screw Water Pump To Timing Case Cover And To Crankcase,resp. M8x85

23 23 N000931008207N 000931 008207 Screw

23 23 N910143008011N 910143 008011 Hexalobular Bolt Water Pump To Timing Case Cover And To Crankcase,resp. M8x90

26 26 N000137008204N 000137 008204 Spring Washer

26 26 N000137008212N 000137 008212 Spring Washer Water Pump To Timing Case Cover And To Crankcase,resp.

32 32 A6032050110A 603 205 01 10 Pulley Water Pump Drive

35 35 N910105006007N 910105 006007 Hexagon Head Bolt Pulley To Water Pump M6x12 (4×)

38 38 N000125006421N 000125 006421 Washer Pulley To Water Pump (4×)

38 38 N000125006449N 000125 006449 Washer Pulley To Water Pump (4×)

50 50 A1112001303A 111 200 13 03 Body Thermostat

53 53 N000443045002N 000443 045002 Cap

56 56 A1112000815A 111 200 08 15 Thermostat 87 Degrees;range Of Delivery

59 59 A0159972348A 015 997 23 48 Seal Ring Thermostat To Thermostat Housing

62 62 A0109900401A 010 990 04 01 Screw

62 62 N000933006123N 000933 006123 Screw Thermostat To Thermostat Housing (3×)

65 65 A1112030282A 111 203 02 82 Hose Thermostat To Cylinder Head And To Water Pump

68 68 A0069974290A 006 997 42 90 Clamp Thermostat To Cylinder Head And To Water Pump (2×)

77 77 N000931008251N 000931 008251 Screw

77 77 A0019905522A 001 990 55 22 Screw

77 77 N000000001810N 000000 001810 Hexalobular Bolt Thermostat To Cylinder Head And To Water Pump M8x75

77 77 N914005006038N 914005 006038 Screw-and-washer Assembly

77 77 A0029900622A 002 990 06 22 Screw Thermostat To Cylinder Head And To Water Pump M6x95 (2×)

80 80 A0219970748A 021 997 07 48 Seal Ring Thermostat To Cylinder Head And To Water Pump

83 83 N007604014110N 007604 014110 Screw Plug To Lock Thermostat Housing (2×)

83 83 N007604010102N 007604 010102 Screw Plug

83 83 N007604010108N 007604 010108 Screw Plug To Lock Thermostat Housing

89 89 N007603014100N 007603 014100 Sealing Ring To Lock Thermostat Housing (2×)

89 89 N007603010101N 007603 010101 Sealing Ring

89 89 N007603010100N 007603 010100 Sealing Ring To Lock Thermostat Housing

030 Fan

045 Belt Tightener

5 5 A1112000770A 111 200 07 70 Belt Tightener

5 5 A1112001270A 111 200 12 70 Belt Tightener

5 5 A1112000770A 111 200 07 70 Belt Tightener

14 14 N000931008251N 000931 008251 Screw

14 14 A0019905522A 001 990 55 22 Screw

14 14 N000000001810N 000000 001810 Hexalobular Bolt Belt Tightener To Timing Case Cover M8x75 (2×)

14 14 N910143008002N 910143 008002 Hexalobular Bolt Belt Tightener To Timing Case Cover M8x25

20 20 A1112000070A 111 200 00 70 Belt Tightener Pulley

23 23 A1119900053A 111 990 00 53 Nut Belt Tightener Pulley To Belt Tightener

23 23 A0039900750A 003 990 07 50 Nut Belt Tightener Pulley To Belt Tightener

26 26 A1112020122A 111 202 01 22 Cover Belt Tightener Pulley

29 29 A1112000214A 111 200 02 14 Shock Absorber

29 29 A1112000414A 111 200 04 14 Shock Absorber

32 32 N910105008004N 910105 008004 Hexagon Head Bolt

32 32 N910143008001N 910143 008001 Hexalobular Bolt Shock Absorber To Belt Tightener M8x20

35 35 N914126008055N 914126 008055 Screw

35 35 A0019904204A 001 990 42 04 Screw Shock Absorber To Thermostat M8x35

38 38 N000137008204N 000137 008204 Spring Washer

38 38 N000137008212N 000137 008212 Spring Washer Shock Absorber To Thermostat

22 Engine Suspension

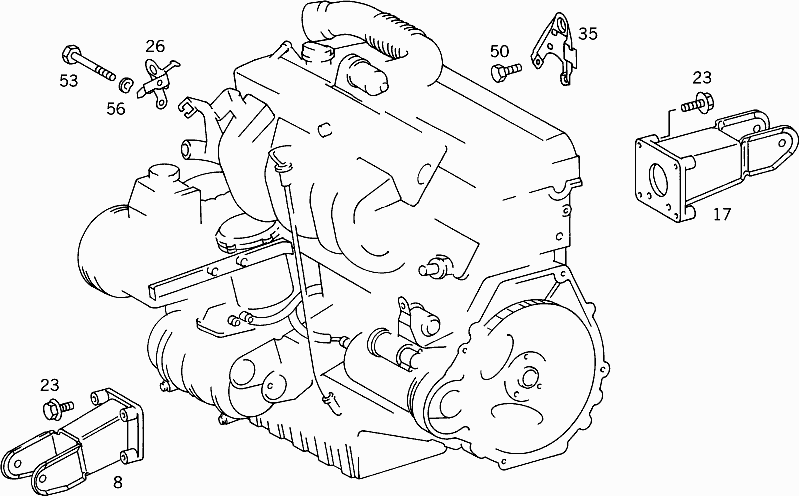

010 Engine Supports And Attachment Parts

8 8 A6012233704A 601 223 37 04 Engine Support

8 8 A6012200007A 601 220 00 07 Engine Support

8 8 A6012200207A 601 220 02 07 Engine Support Left

17 17 A6012233804A 601 223 38 04 Engine Support

17 17 A6012200107A 601 220 01 07 Engine Support

17 17 A6012200307A 601 220 03 07 Engine Support

17 17 A6012200407A 601 220 04 07 Engine Support Right

23 23 N910105008018N 910105 008018 Hexagon Head Bolt

23 23 N910143008018N 910143 008018 Hexalobular Bolt Engine Support To Cylinder Crankcase (8×)

26 26 A1112230741A 111 223 07 41 Suspension Eye

26 26 A1112231241A 111 223 12 41 Suspension Eye Front

35 35 A1112230341A 111 223 03 41 Suspension Eye

35 35 A1112230841A 111 223 08 41 Suspension Eye Rear

50 50 N000933008212N 000933 008212 Screw

50 50 N304017008016N 304017 008016 Hexagon Head Bolt Rear Suspension Eye To Cylinder Head (2×)

53 53 N910105008014N 910105 008014 Hexagon Head Bolt Front Suspension Eye To Cylinder Head M 8x35

53 53 N000931008251N 000931 008251 Screw

53 53 A0019905522A 001 990 55 22 Screw

53 53 N000000001810N 000000 001810 Hexalobular Bolt Front Suspension Eye To Cylinder Head M 8x75

56 56 N000137008204N 000137 008204 Spring Washer

56 56 N000137008212N 000137 008212 Spring Washer Front Suspension Eye To Cylinder Head

24 Engine Suspension

060 Engine Suspension

5 5 A6382400245A 638 240 02 45 Protective Plate

5 5 A6382400345A 638 240 03 45 Protective Plate

5 5 A6382400545A 638 240 05 45 Protective Plate Engine And Transmission To Carrier

11 11 N910105010044N 910105 010044 Hexagon Head Bolt Engine And Transmission To Carrier M 10x90 (2×)

14 14 N913023010002N 913023 010002 Nut Engine And Transmission To Carrier (2×)

20 20 A6382412002A 638 241 20 02 Support Transmission To Carrier

26 26 N304014010009N 304014 010009 Hexagon Head Bolt Transmission To Carrier M 10x90

29 29 N910113010001N 910113 010001 Hexagon Nut Transmission To Carrier

32 32 N304017008026N 304017 008026 Hexagon Head Bolt Transmission To Carrier M 8x16 (2×)

35 35 N910113008001N 910113 008001 Hexagon Nut Transmission To Carrier (2×)

~~110~~ 110 A6382411413A 638 241 14 13 Rubber Mounting Engine Suspension (2×)

~~113~~ 113 N910105008012N 910105 008012 Hexagon Head Bolt Rubber Mounting To Engine Support M 8x20 (4×)

~~119~~ 119 A6380940627A 638 094 06 27 Bracket At Muffler Filter

~~122~~ 122 A6389970045A 638 997 00 45 Seal Ring At Muffler Filter

25 Clutch

090 Clutch And Release

3 3 A0192506101A 019 250 61 01 Clutch Parts Kit

5 5 A0062505204A 006 250 52 04 Clutch Pressure Plate

8 8 A0152501603A 015 250 16 03 Clutch Disc "luk"

11 11 A0012507215A 001 250 72 15 Release Bearing

11 11 A0022500515A 002 250 05 15 Release Bearing

14 14 A6382900129A 638 290 01 29 Release Yoke

17 17 N000912008005N 000912 008005 Cap Bolt Clutch Pressure Plate To Flywheel M 8x18 (6×)

360 Hydraulic Control

5 5 A0002903212A 000 290 32 12 Cylinder Clutch Master Cylinder

8 8 A0002951173A 000 295 11 73 Lock

10 10 A6382930186A 638 293 01 86 Boot Clutch Master Cylinder

17 17 N910105006016N 910105 006016 Hexagon Head Bolt Clutch Master Cylinder To Pedal Bearing Bracket M 6x35 (2×)

20 20 N000125006420N 000125 006420 Washer Clutch Master Cylinder To Pedal Bearing Bracket (2×)

23 23 N006799006003N 006799 006003 Circlip Clutch Master Cylinder To Pedal Bearing Bracket

26 26 A6389970252A 638 997 02 52 Hydraulic Hose Line From Fluid Reservoir To Clutch Master Cylinder

26 26 A9069970052A 906 997 00 52 Hydraulic Hose Line From Fluid Reservoir To Clutch Master Cylinder

29 29 A6389971590A 638 997 15 90 Loom Tie Hose Fastening

44 44 N913023008002N 913023 008002 Nut Pedal Assembly To Fire Wall

47 47 A1262920074A 126 292 00 74 Pin Brake Pedal To Brake Booster

50 50 N912011008000N 912011 008000 Securing Brake Pedal To Brake Booster

56 56 A6382901013A 638 290 10 13 Line From Clutch Master Cylinder To Clutch Slave Cylinder

80 80 A2025463243A 202 546 32 43 Bracket

86 86 A0004280473A 000 428 04 73 Bracket

86 86 A6525040038A 652 504 00 38 Mounting Plate

92 92 A6389971081A 638 997 10 81 Grommet

95 95 A0039975390A 003 997 53 90 Loom Tie

~~104~~ 104 A0022950807A 002 295 08 07 Slave Cylinder

~~104~~ 104 A0022952207A 002 295 22 07 Slave Cylinder Clutch Slave Cylinder

~~107~~ 107 N910105008016N 910105 008016 Hexagon Head Bolt Slave Cylinder To Bell Housing M 8x30 (2×)

25 Clutch

015 Clutch

-- XXXXXXXXXXXXXX XXXXXXXXXXXX Part Name Missing See Chassis Standard Version

26 Transmission

005 Transmission Assembly

5 5 A6382600100A 638 260 01 00 Transmission Mechanical

015 Transmission Case And Cover

5 5 A0002501905A 000 250 19 05 Bell Housing Parts Kit

8 8 A0029817812A 002 981 78 12 Roller Assembly Output Shaft

9 9 A0002641473A 000 264 14 73 Lock Bearing To Drive Shaft

10 10 A0019819580A 001 981 95 80 Outer Race Bearing To Drive Shaft

11 11 A0002610343A 000 261 03 43 Guide Tube Clutch Pressure Plate

14 14 A0229979048A 022 997 90 48 Seal Ring In Bell Housing;for Release Shaft 63x2 Mm

14 14 A0259971848A 025 997 18 48 Seal Ring In Bell Housing;for Release Shaft 63x3 Mm

17 17 N000933006103N 000933 006103 Screw Guide To Bell Housing M 6x12 (4×)

20 20 A0099816301A 009 981 63 01 Cylindr. Roller Bearing Drive Shaft,front

23 23 A0009804515A 000 980 45 15 Grooved Ball Bearing Reverse Gear Shaft

24 24 A0002628162A 000 262 81 62 Thrust Washer Reverse Gear Shaft

26 26 A0029976586A 002 997 65 86 Plug

26 26 A0039971186A 003 997 11 86 Plug Reverse Gear Shaft

29 29 A0002613033A 000 261 30 33 Cover Reverse Gear Shaft

31 31 A0002601458A 000 260 14 58 Breather

32 32 A0002610282A 000 261 02 82 Cap Breathing

35 35 A0002630774A 000 263 07 74 Pin Reverse Speed

38 38 A0002641693A 000 264 16 93 Spring Reverse Speed

39 39 A0002651150A 000 265 11 50 Bushing Reverse Speed

41 41 A0009904177A 000 990 41 77 Screw Reverse Speed

44 44 A0002680065A 000 268 00 65 Ball Pin Release Lever

47 47 A0002601811A 000 260 18 11 Transmission Case Parts Kit

50 50 A0009975710A 000 997 57 10 Pin

53 53 A0002610450A 000 261 04 50 Bushing

56 56 A0199812610A 019 981 26 10 Needle Bearing

59 59 A0009975810A 000 997 58 10 Pin (2×)

62 62 A0002611983A 000 261 19 83 Oil Pipe

65 65 A0002611883A 000 261 18 83 Oil Pipe

68 68 N000137006204N 000137 006204 Spring Washer Oil Pipe To Transmission Case (2×)

71 71 N000933006103N 000933 006103 Screw Oil Pipe To Transmission Case (2×)

74 74 A0219975747A 021 997 57 47 Seal Ring

74 74 A0209972347A 020 997 23 47 Seal Ring

74 74 A0229979847A 022 997 98 47 Seal Ring Differential Gear 45x85,3x8

77 77 A0002612233A 000 261 22 33 Cover (2×)

80 80 A0002613333A 000 261 33 33 Cover

81 81 A0249976248A 024 997 62 48 Seal Ring Speedometer Drive

82 82 A1262710482A 126 271 04 82 Cup Speedometer Drive

83 83 A0002628262A 000 262 82 62 Thrust Washer Drive Shaft And Output Shaft (2×)

86 86 A0099816401A 009 981 64 01 Cylindr. Roller Bearing Drive Shaft And Output Shaft (2×)

89 89 A0029976686A 002 997 66 86 Plug

89 89 A0039971086A 003 997 10 86 Plug Drive Shaft And Output Shaft (2×)

92 92 A0002611783A 000 261 17 83 Oil Pipe Drive Shaft

95 95 A0002611683A 000 261 16 83 Oil Pipe Output Shaft

98 98 A0002611818A 000 261 18 18 Transmission Case Cover Transmission Case,front

~~101~~ 101 N000933008147N 000933 008147 Screw Transmission Case Cover To Transmission Case (8×)

~~104~~ 104 A0219975647A 021 997 56 47 Seal Ring Differential Gear

~~107~~ 107 A0002610335A 000 261 03 35 Screw Plug (2×)

~~110~~ 110 A0005458009A 000 545 80 09 Switch

~~110~~ 110 A0005459109A 000 545 91 09 Switch

~~110~~ 110 A0015451209A 001 545 12 09 Switch

~~110~~ 110 A0015452809A 001 545 28 09 Switch Back-up Light

~~113~~ 113 A0002771698A 000 277 16 98 Lifting Magnet

020 Transmission Shafts And Gears

5 5 A0002632230A 000 263 22 30 Reverse Idler Shaft

8 8 A0012620935A 001 262 09 35 Synchronizer Body Reverse Speed

11 11 A0012620323A 001 262 03 23 Sliding Collar Reverse Speed

12 12 A0029946435A 002 994 64 35 Snap Ring Reverse Speed

14 14 A0002633931A 000 263 39 31 Reverse Idler Gear

17 17 A0199812710A 019 981 27 10 Needle Bearing Reverse Speed Gear

20 20 A0002600192A 000 260 01 92 Shaft (drive Shaft) With Gear 3rd Speed

23 23 A0002600076A 000 260 00 76 Guide (parts Kit)fifth Gear

26 26 A0029816185A 002 981 61 85 Ball (parts Kit)fifth Gear

29 29 A0012620523A 001 262 05 23 Sliding Collar 5th Speed

32 32 A0002626334A 000 262 63 34 Synchronizer Ring 5th Speed

35 35 A0002625615A 000 262 56 15 Gear 5th Speed

38 38 A0199812910A 019 981 29 10 Needle Bearing 4th And 5th Speed Gear (2×)

41 41 A0002600252A 000 260 02 52 Washer (parts Kit);4th And 5th Speed

44 44 A0002626714A 000 262 67 14 Gear 4th Speed

47 47 A0012621135A 001 262 11 35 Synchronizer Body 3rd And 4th Speed

50 50 A0029816185A 002 981 61 85 Ball (parts Kit)third And Fourth Gear

53 53 A0002626334A 000 262 63 34 Synchronizer Ring 3rd And 4th Speed (2×)

56 56 A0012620523A 001 262 05 23 Sliding Collar 3rd And 4th Speed

59 59 A0059902040A 005 990 20 40 Washer 3rd Speed Gear

62 62 A0199813010A 019 981 30 10 Needle Bearing 3rd Speed Gear (2×)

65 65 A0002600092A 000 260 00 92 Shaft (output Shaft),parts Kit

68 68 A0002633615A 000 263 36 15 Gear 5th Speed

71 71 A0002633514A 000 263 35 14 Gear 4th Speed

74 74 A0002634213A 000 263 42 13 Gear 3rd Speed

77 77 A0002647050A 000 264 70 50 Bushing 2nd Speed Gear

80 80 A0199812810A 019 981 28 10 Needle Bearing 2nd Speed Gear

83 83 A0002629012A 000 262 90 12 Gear 2nd Speed

86 86 A0012621035A 001 262 10 35 Synchronizer Body 1st And 2nd Speed

89 89 A0029816085A 002 981 60 85 Ball (parts Kit) First And Second Gear

92 92 A0002600436A 000 260 04 36 Follower Ring (parts Kit) First And Second Gear (2×)

93 93 A0012620423A 001 262 04 23 Sliding Collar (parts Kit) First And Second Gear

95 95 A0029817712A 002 981 77 12 Roller Assembly (parts Kit);1st Speed

98 98 A0012621211A 001 262 12 11 Gear 1st Speed

~~101~~ 101 A0003350012A 000 335 00 12 Ring Gear

~~104~~ 104 A0069901504A 006 990 15 04 Screw Ring Gear To Differential Case (12×)

~~107~~ 107 A0002650614A 000 265 06 14 Housing (differential Case)

~~110~~ 110 A0003300026A 000 330 00 26 Drive Pinion Parts Kit

~~113~~ 113 A0029803202A 002 980 32 02 Tapered Roller Bearing Parts Kit (2×)

~~116~~ 116 A0002628062A 000 262 80 62 Thrust Washer Differential Gear

025 Shifting Rods And Shifting Forks

5 5 A0022653805A 002 265 38 05 Shifting Rod 1st And 2nd Speed

8 8 A0022653705A 002 265 37 05 Shifting Rod 3rd And 4th Speed

11 11 A0022653605A 002 265 36 05 Shifting Rod 5th Speed

14 14 A0029815985A 002 981 59 85 Ball Lower Shifting Rod (3×)

17 17 A0002620293A 000 262 02 93 Spring Lower Shifting Rod (3×)

20 20 A0002613133A 000 261 31 33 Cover Lower Shifting Rod

23 23 A0002610771A 000 261 07 71 Screw Cover To Transmission Case,bottom (4×)

26 26 A0022653505A 002 265 35 05 Shifting Rod Reverse Speed

29 29 A0029815985A 002 981 59 85 Ball Reverse Speed

32 32 A0002620293A 000 262 02 93 Spring Reverse Speed

35 35 A0002610671A 000 261 06 71 Screw Reverse Speed

090 Shift Lever And Shifting Parts

5 5 A0002600337A 000 260 03 37 Lever

5 5 A0002600437A 000 260 04 37 Lever (reversing Lever) Parts Kit

8 8 A0002651249A 000 265 12 49 Slide

11 11 A0002602739A 000 260 27 39 Shift Lever

11 11 A0002651621A 000 265 16 21 Shifting Shaft

17 17 A0002650357A 000 265 03 57 Boot Shifting Shaft

20 20 A0002652306A 000 265 23 06 Cover Shifting Shaft

23 23 A0129971246A 012 997 12 46 Seal Ring Shifting Shaft

26 26 A0002600195A 000 260 01 95 Metal Bearing Element Shifting Shaft

29 29 A0002640953A 000 264 09 53 Spacer Tube Shifting Shaft

32 32 A0029946335A 002 994 63 35 Snap Ring Parts Kit

35 35 A0002650162A 000 265 01 62 Thrust Washer Shifting Shaft,top

38 38 A0079931201A 007 993 12 01 Spring Shifting Shaft 20 Mm

41 41 A0079931101A 007 993 11 01 Spring Shifting Shaft 25 Mm

44 44 A0002650262A 000 265 02 62 Thrust Washer Shifting Shaft,bottom

47 47 A0002670330A 000 267 03 30 Lever Shifting Shaft

50 50 A0002600135A 000 260 01 35 Shifting Dog Parts Kit

53 53 N001481006027N 001481 006027 Roll Pin

56 56 A0002670041A 000 267 00 41 Stop Detent

59 59 N000933008153N 000933 008153 Screw Shifting Shaft To Transmission

62 62 A6382661685A 638 266 16 85 Rubber Buffer Transmission Mounting

65 65 A6382600062A 638 260 00 62 Bracket For Attachment Engine And Transmission

68 68 A6384760436A 638 476 04 36 Bracket For Attachment Engine And Transmission

71 71 N914007010063N 914007 010063 Screw-and-washer Assembly For Attachment Engine And Transmission M 10x40 (6×)

71 71 N304017010035N 304017 010035 Hexagon Head Bolt For Attachment Engine And Transmission M10x45

74 74 N304017010052N 304017 010052 Hexagon Head Bolt For Attachment Engine And Transmission M 10x90 (2×)

75 75 N000125010532N 000125 010532 Washer For Attachment Engine And Transmission (2×)

77 77 A6012010040A 601 201 00 40 Bracket Compressed Air Line To Air Reservoir And To T-fitting

83 83 A6382602309A 638 260 23 09 Shift Lever

83 83 A6382602609A 638 260 26 09 Shift Lever

83 83 A6382603309A 638 260 33 09 Gearshift Mechanism Manual Transmission

89 89 A0002612576A 000 261 25 76 Washer

92 92 A0002651349A 000 265 13 49 Slide

93 93 A0002611150A 000 261 11 50 Bushing

95 95 A0002680091A 000 268 00 91 Cable Selecting Push Pull Cable

98 98 A0002680191A 000 268 01 91 Cable

~~104~~ 104 A0002646318A 000 264 63 18 Shaft

~~107~~ 107 A0002610474A 000 261 04 74 Pin

~~110~~ 110 A0002620393A 000 262 03 93 Spring

~~111~~ 111 A0002690244A 000 269 02 44 Ball

~~113~~ 113 A0002610574A 000 261 05 74 Pin (2×)

~~116~~ 116 A0002610006A 000 261 00 06 Ball Head

~~128~~ 128 A0002643124A 000 264 31 24 Shift Lever

~~134~~ 134 A0002630340A 000 263 03 40 Follower

~~140~~ 140 N006799006005N 006799 006005 Circlip

~~143~~ 143 A0002620032A 000 262 00 32 Lever

~~146~~ 146 A0002640084A 000 264 00 84 Shim (4×)

~~149~~ 149 A0002610950A 000 261 09 50 Bushing (4×)

~~152~~ 152 A6382620039A 638 262 00 39 Retaining Ring (2×)

~~155~~ 155 A6382680397A 638 268 03 97 Bellows Leather

~~156~~ 156 A0002680075A 000 268 00 75 Threaded Sleeve

~~158~~ 158 N910106008007N 910106 008007 Hexagon Head Bolt M 8x25 (4×)

~~161~~ 161 N009021008107N 009021 008107 Washer (4×)

~~164~~ 164 N304017008021N 304017 008021 Hexagon Head Bolt Gearshift To Transmission M 8x20 (3×)

~~167~~ 167 A6382610140A 638 261 01 40 Bracket

~~170~~ 170 A6382620039A 638 262 00 39 Retaining Ring Operating Rod To Bracket (2×)

27 Automatic Transmission

012 Shift Lever

86 86 A0002600740A 000 260 07 40 Handle

015 Transmission Assembly

-- XXXXXXXXXXXXXX XXXXXXXXXXXX Part Name Missing Automatic Transmission Vr6 Siehe Tu 760

025 Transmission Case,gearshift Mechanism

040 Interior Transmission Parts

-- XXXXXXXXXXXXXX XXXXXXXXXXXX Part Name Missing Drive

20 20 A0002576476A 000 257 64 76 Washer

-- XXXXXXXXXXXXXX XXXXXXXXXXXX Part Name Missing P.t.o.

-- XXXXXXXXXXXXXX XXXXXXXXXXXX Part Name Missing Planetary Gear Cluster

-- XXXXXXXXXXXXXX XXXXXXXXXXXX Part Name Missing Clutch C+d

-- XXXXXXXXXXXXXX XXXXXXXXXXXX Part Name Missing Clutch F

110 Torque Converter,converter Housing, Oil Pump

41 41 A0002701497A 000 270 14 97 Oil Pump

130 Valve Body Assembly,oil Pan,gasket Kit

160 Differential Gear

750 Transmission Attachment Parts

760 Automatic Transmission For V6

765 Transmission Case For V6

770 Oil Pump For V6

775 Valve Body Assembly, Oil Strainer For V6

8 8 A0002773180A 000 277 31 80 Gasket

780 Final Drive For V6

785 Transmission Attachment Parts For V6

17 17 A6389901117A 638 990 11 17 Screw M 10x55

29 Pedal Assembly

090 Clutch And Brake Pedal Assembly

5 5 A6382900519A 638 290 05 19 Bearing Bracket Pedal Assembly

16 16 A6382940705A 638 294 07 05 Shaft Pedal To Bearing Bracket

18 18 A6382940605A 638 294 06 05 Shaft Pedal To Bearing Bracket

20 20 A9012900518A 901 290 05 18 Brake Pedal

20 20 A9012900918A 901 290 09 18 Pedal (brake Pedal)

20 20 A6382900318A 638 290 03 18 Pedal

20 20 A6382900518A 638 290 05 18 Pedal

23 23 A1102910550A 110 291 05 50 Bushing (2×)

29 29 A6382900316A 638 290 03 16 Pedal

29 29 A9012901916A 901 290 19 16 Clutch Pedal (clutch Pedal)

29 29 A6382900416A 638 290 04 16 Pedal

35 35 A6389930410A 638 993 04 10 Spring Pedal Return Spring To 638 290 02 18,03 18,901 290 05 18

38 38 A6382920082A 638 292 00 82 Pad Brake Pedal To 638 290 03 18, 05 18, 901 290 05 18

38 38 A2012920082A 201 292 00 82 Pad Brake Pedal To 638 290 06 18

38 38 A3192920082A 319 292 00 82 Pad Clutch Pedal To 638 290 03 16,00 16

38 38 A2012910282A 201 291 02 82 Pad Clutch Pedal To 638 290 04 16

41 41 A6382900032A 638 290 00 32 Stop Clutch Pedal

44 44 A2019880178A 201 988 01 78 Clip

44 44 A2109880978A 210 988 09 78 Clip Over-center Acting Spring

47 47 A2012910633A 201 291 06 33 Rod Over-center Acting Spring

50 50 A1249932401A 124 993 24 01 Spring (over-center Acting Spring)

53 53 A1232910491A 123 291 04 91 Spring Retainer Over-center Acting Spring

56 56 N006799006003N 006799 006003 Circlip Push Rod To Clutch Pedal

59 59 N912002016001N 912002 016001 Securing Clutch And Brake Pedals To Bearing Bracket (2×)

30 Control

060 Accelerator Pedal Control

5 5 A9013000304A 901 300 03 04 Accelerator Pedal

5 5 A6383000004A 638 300 00 04 Accelerator Pedal

5 5 A6383000104A 638 300 01 04 Accelerator Pedal

8 8 A9013010002A 901 301 00 02 Pedal Plate To 901 300 03 04

8 8 A6383010002A 638 301 00 02 Pedal Plate To 638 300 00 04

11 11 A9019931020A 901 993 10 20 Spring

14 14 A9019930110A 901 993 01 10 Spring

14 14 A1299930910A 129 993 09 10 Spring

17 17 N006799008002N 006799 008002 Circlip

17 17 N006799008005N 006799 008005 Circlip

20 20 A9013010774A 901 301 07 74 Pin

23 23 A1263010141A 126 301 01 41 Stop

26 26 A6383000630A 638 300 06 30 Wire Cable Control On Gasoline Vehicles

32 32 A9019880178A 901 988 01 78 Clip Wire Cable To Accelerator Pedal

35 35 A9013010674A 901 301 06 74 Pin Wire Cable To Accelerator Pedal

41 41 A0019978390A 001 997 83 90 Loom Tie Wire Cable To Vacuum Hose 280 Mm

89 89 A2013010285A 201 301 02 85 Rubber Buffer Wire Cable To Fire Wall

31 Frame

150 Front Frame Area

5 5 A6383100826A 638 310 08 26 Engine Cross Member No.1;front

8 8 A6386100443A 638 610 04 43 Stay At Left Side Member

11 11 A6386100643A 638 610 06 43 Stay At Right Side Member

14 14 N910105008025N 910105 008025 Hexagon Head Bolt

14 14 N910105008016N 910105 008016 Hexagon Head Bolt Cross Member To Side Members M 8x30 (12×)

17 17 A6383100208A 638 310 02 08 Tow Hook

17 17 A6383100308A 638 310 03 08 Tow Hook

20 20 N914007008095N 914007 008095 Screw-and-washer Assembly At Cross Member M 8x16 (3×)

20 20 N914007008095N 914007 008095 Screw-and-washer Assembly Tow Hook To Side Member M 8x16

20 20 N914007008075N 914007 008075 Screw-and-washer Assembly At Cross Member M 8x30

29 29 A6383101910A 638 310 19 10 Auxiliary Frame Used With Manual Transmission

-- A6383101610A 638 310 16 10 Auxiliary Frame

32 32 A6383131006A 638 313 10 06 Console Front Left

32 32 A6383131106A 638 313 11 06 Console Front Right

-- A6383123360A 638 312 33 60 Reinforcement Front (2×)

35 35 A6385010821A 638 501 08 21 Console Radiator (2×)

38 38 A6385010921A 638 501 09 21 Console Charging Air Intercooler

44 44 A6385280139A 638 528 01 39 Support Front

47 47 A6385240040A 638 524 00 40 Bracket Bumper At Torsion Bar

53 53 A6388850114A 638 885 01 14 Bracket Bumper At Torsion Bar (2×)

56 56 A6384600135A 638 460 01 35 Bracket

56 56 A6384601935A 638 460 19 35 Bracket Oil Line Left

56 56 A6384600235A 638 460 02 35 Bracket

56 56 A6384602035A 638 460 20 35 Bracket Oil Line Right

59 59 A6383170212A 638 317 02 12 Rubber Buffer Front (2×)

62 62 A6383170312A 638 317 03 12 Rubber Buffer

62 62 A6383170912A 638 317 09 12 Rubber Buffer Rear (2×)

71 71 N910105014014N 910105 014014 Hexagon Head Bolt Axle/engine Carrier To Vehicle M 14x1.5x140 (2×)

74 74 N910105014004N 910105 014004 Hexagon Head Bolt Axle/engine Carrier To Vehicle M 14x1.5x160 (2×)

77 77 A6383170035A 638 317 00 35 Buffer Plate (2×)

80 80 A6383101609A 638 310 16 09 Bracket (2×)

83 83 A6383170036A 638 317 00 36 Stop Front (2×)

86 86 A6383170136A 638 317 01 36 Stop Rear (2×)

92 92 N910105014007N 910105 014007 Hexagon Head Bolt Axle/engine Carrier To Vehicle M 14x1.5x25 (2×)

95 95 A6383120266A 638 312 02 66 Shackle Left

98 98 A6383120366A 638 312 03 66 Shackle Right

~~101~~ 101 N910105012003N 910105 012003 Hexagon Head Bolt Axle/engine Carrier To Vehicle M 12x1.5x20 (4×)

~~104~~ 104 N000961014050N 000961 014050 Screw

~~104~~ 104 N308676014008N 308676 014008 Hexagon Head Bolt Axle/engine Carrier To Vehicle M 14x1.5x35 (2×)

420 Trailer Coupling

-- XXXXXXXXXXXXXX XXXXXXXXXXXX Part Name Missing Subsequent Installation See Group 99

32 Springs And Suspension

160 Front Axle Torsion Bar & Shock Absorbers

5 5 A6383230165A 638 323 01 65 Torsion Bar Front

8 8 A6383230285A 638 323 02 85 Rubber Mounting Torsion Bar To Front Axle (2×)

8 8 A9063260981A 906 326 09 81 Stabilizer Bar Mount Torsion Bar To Front Axle (2×)

11 11 A6389950010A 638 995 00 10 Clamp Torsion Bar To Front Axle (2×)

14 14 N304017008023N 304017 008023 Hexagon Head Bolt M 8x20 (4×)

17 17 A6383230268A 638 323 02 68 Joint Torsion Bar,left

20 20 A6383230368A 638 323 03 68 Joint Torsion Bar,right

23 23 N913023010002N 913023 010002 Nut Torsion Bar (4×)

29 29 A6383200713A 638 320 07 13 Hydropn. Spring Leg (2×)

-- A6383200313A 638 320 03 13 Hydropn. Spring Leg

-- A6383200913A 638 320 09 13 Hydropn. Spring Leg (2×)

35 35 A6383210204A 638 321 02 04 Front Spring (2×)

35 35 A6383210404A 638 321 04 04 Front Spring (2×)

38 38 A6383210506A 638 321 05 06 Helper Spring (2×)

41 41 A6383230198A 638 323 01 98 Protective Tube (2×)

44 44 A6389810120A 638 981 01 20 Ball Bearing (2×)

47 47 A6383230036A 638 323 00 36 Cover (2×)

50 50 A6383230420A 638 323 04 20 Bearing (2×)

53 53 A6383230136A 638 323 01 36 Cover (2×)

56 56 N308675014002N 308675 014002 Hexagon Nut (2×)

62 62 A6383210071A 638 321 00 71 Screw Hydropneumatic Spring Leg Mounting To 638 320 03 13/06 13 (2×)

62 62 A6383210171A 638 321 01 71 Screw Hydropneumatic Spring Leg Mounting To 638 320 09 13/10 13/11 13 (2×)

65 65 N910105014009N 910105 014009 Hexagon Head Bolt Hydropneumatic Spring Leg Mounting M 14x1.5x70 (2×)

68 68 N913023014003N 913023 014003 Nut Hydropneumatic Spring Leg Mounting (4×)

71 71 A6383200029A 638 320 00 29 Stop Spring Strut To Body (2×)

74 74 N910113014000N 910113 014000 Hexagon Nut Spring Strut To Body (2×)

322 Steel Springs & Suspension On Rear Axle

5 5 A6383240604A 638 324 06 04 Rear Spring (2×)

8 8 A6383240084A 638 324 00 84 Shim Rear Spring (4×)

8 8 A6383240784A 638 324 07 84 Shim Rear Spring (4×)

11 11 A6383240584A 638 324 05 84 Shim Rear Spring (2×)

14 14 A6383240684A 638 324 06 84 Shim

14 14 A6383240884A 638 324 08 84 Shim (2×)

17 17 N914125008535N 914125 008535 Screw (6×)

20 20 A6383260700A 638 326 07 00 Shock Absorber (2×)

23 23 A0003264681A 000 326 46 81 Rubber Mounting Top (2×)

26 26 A0003264581A 000 326 45 81 Rubber Mounting Bottom (2×)

32 32 N910106014002N 910106 014002 Hexagon Head Bolt Shock Absorber To Frame M 14x1.5x60 (4×)

35 35 N000125015021N 000125 015021 Washer Shock Absorber To Frame (2×)

570 Air Suspension, Rear Axle With Selflevelling Suspension

17 17 N910106014002N 910106 014002 Hexagon Head Bolt Shock Absorber Mounting M 14x1.5x60 (4×)

33 Front Axle

031 Steering Knuckle And Control Arm

8 8 A6383300010A 638 330 00 10 Triangular Control Arm Left

8 8 A6383300110A 638 330 01 10 Triangular Control Arm Right

9 9 A6383330014A 638 333 00 14 Bearing (2×)

17 17 A6389840129A 638 984 01 29 Screw Control Arm To Frame (2×)

26 26 A6389840329A 638 984 03 29 Screw Control Arm To Frame,rear (2×)

29 29 N913023014003N 913023 014003 Nut Control Arm To Frame,rear (2×)

32 32 A6383330071A 638 333 00 71 Screw Lower Control Arm To Steering Knuckle (2×)

35 35 N913023014003N 913023 014003 Nut Lower Control Arm To Steering Knuckle (2×)

38 38 A6383300232A 638 330 02 32 Steering Knuckle Left

38 38 A6383300332A 638 330 03 32 Steering Knuckle Right

41 41 A6389810027A 638 981 00 27 Angular Contact Bearing (2×)

44 44 A2019941641A 201 994 16 41 Lock (2×)

56 56 A6383320027A 638 332 00 27 Screening Plate Steering Knuckle (2×)

59 59 N304017006018N 304017 006018 Hexagon Head Bolt Steering Knuckle M 6x12 (2×)

62 62 A6383340101A 638 334 01 01 Wheel Hub Steering Knuckle (2×)

080 Front Axle Drive

5 5 A6384100805A 638 410 08 05 Intermediate Shaft

5 5 A6384102105A 638 410 21 05 Intermediate Shaft Right

8 8 A0069814725A 006 981 47 25 Ball Bearing

11 11 A6389940035A 638 994 00 35 Snap Ring To A 638 410 08 05

17 17 A6384100845A 638 410 08 45 Flange

17 17 A6384101445A 638 410 14 45 Flange Left

20 20 A6389940035A 638 994 00 35 Snap Ring To A 638 410 08 45

20 20 A6389940735A 638 994 07 35 Snap Ring To A 638 410 14 45

26 26 A6384110166A 638 411 01 66 Oil Ring

29 29 N001481005017N 001481 005017 Roll Pin Intermediate Shaft

32 32 A0129974048A 012 997 40 48 Seal Ring Intermediate Shaft 72x3 Mm

090 Front Axle Shaft

5 5 A6383340634A 638 334 06 34 Shaft

5 5 A6383341734A 638 334 17 34 Shaft (drive Shaft) (2×)

14 14 A0003301585A 000 330 15 85 Boot (parts Kit),follower (2×)

17 17 A0003301485A 000 330 14 85 Boot (parts Set) Transmission End (2×)

-- A0009950098A 000 995 00 98 Retaining Strap To A 000 330 14 85 (2×)

26 26 A0003301685A 000 330 16 85 Boot (parts Set) Wheel End (2×)

-- A0003300036A 000 330 00 36 Follower To 638 334 06 34 (2×)

-- A0003370292A 000 337 02 92 Strap To 638 334 05 34, 06 34 (2×)

-- A0003370085A 000 337 00 85 Boot (2×)

-- A0003370185A 000 337 01 85 Boot To 638 334 05 34, 06 34 (2×)

59 59 N000912010222N 000912 010222 Cap Bolt Drive Shaft M 10x50 (12×)

62 62 A6383340076A 638 334 00 76 Washer (6×)

68 68 A6383340072A 638 334 00 72 Nut Drive Shaft To Front Wheel Hub (2×)

35 Rear Axle

001 Rear Axle

-- XXXXXXXXXXXXXX XXXXXXXXXXXX Part Name Missing Transverse Control Arm & Wheel Bearing

5 5 A6383503405A 638 350 34 05 Control Arm Left

5 5 A6383503405A 638 350 34 05 Control Arm Left "v6"

5 5 A6383503505A 638 350 35 05 Control Arm Right

5 5 A6383503505A 638 350 35 05 Control Arm Right "v6"

8 8 A6383520250A 638 352 02 50 Bushing To 638 350 20 05, 21 05, 26 05, 27 05 (2×)

11 11 A6383520450A 638 352 04 50 Bushing To 638 350 20 05, 21 05, 26 05, 27 05 (2×)

11 11 A6383520650A 638 352 06 50 Bushing To 638 350 34 05, 35 05 (4×)

14 14 A6389810027A 638 981 00 27 Angular Contact Bearing (2×)

17 17 A2019941641A 201 994 16 41 Lock (2×)

20 20 A6384230020A 638 423 00 20 Protective Plate

20 20 A6384230320A 638 423 03 20 Protective Plate Left And Right (2×)

23 23 N910105006002N 910105 006002 Hexagon Head Bolt M6x12 (6×)

26 26 A6383560001A 638 356 00 01 Wheel Hub Left And Right (2×)

32 32 A6383500167A 638 350 01 67 Thrust Washer (2×)

35 35 A6383560071A 638 356 00 71 Screw Rear Wheel Hub (2×)

38 38 A6383340072A 638 334 00 72 Nut Rear Wheel Hub (2×)

41 41 A6389840229A 638 984 02 29 Screw

41 41 A6389840529A 638 984 05 29 Screw Transverse Control Arm To Subframe (2×)

44 44 A6383520071A 638 352 00 71 Screw Transverse Control Arm To Subframe (2×)

47 47 A1153330477A 115 333 04 77 Indexing Plate Transverse Control Arm To Subframe (2×)

50 50 N913023014003N 913023 014003 Nut Transverse Control Arm To Subframe (4×)

53 53 A6389970001A 638 997 00 01 Plug Transverse Control Arm,rear (10×)

40 Wheels

090 Disc Wheels And Spare Wheel Carrier

5 5 A6384011601A 638 401 16 01 Disc Wheel Steel Disc Wheel 6 J X 15 (5×)

8 8 A6314000013A 631 400 00 13 Valve

8 8 A0004000213A 000 400 02 13 Tire Valve (5×)

11 11 N007757008600N 007757 008600 Valve Cap

23 23 A6384010071A 638 401 00 71 Wheel Mounting Bolt

23 23 A6384010271A 638 401 02 71 Wheel Mounting Bolt Steel Disc Wheel (20×)

32 32 A6384000025A 638 400 00 25 Hub Cap

32 32 A6384000125A 638 400 01 25 Hub Cap Steel Disc Wheel To 638 401 16 01, 6 J X 15" (4×)

38 38 A6384000942A 638 400 09 42 Connecting Rail

38 38 A6384001142A 638 400 11 42 Connecting Rail Left

41 41 A6384001042A 638 400 10 42 Connecting Rail

41 41 A6384001242A 638 400 12 42 Connecting Rail Right

44 44 N304017008032N 304017 008032 Hexagon Head Bolt Rail To Substructure M 8x16 (8×)

47 47 A6384000739A 638 400 07 39 Bracket Spare Wheel Carrier

53 53 A6384000044A 638 400 00 44 Intermediate Piece Spare Wheel Carrier

57 57 A6389870039A 638 987 00 39 Rubber Buffer

57 57 A6389870239A 638 987 02 39 Rubber Buffer Rail To Substructure (2×)

58 58 A6389910340A 638 991 03 40 Spacer Tube Spare Wheel Carrier (2×)

62 62 N001587008002N 001587 008002 Nut Spare Wheel Carrier (2×)

65 65 A6388900172A 638 890 01 72 Handle Spare Wheel Mounting

71 71 A6384000035A 638 400 00 35 Bracket

71 71 A6384000135A 638 400 01 35 Bracket

80 80 A6384030371A 638 403 03 71 Screw

80 80 A6384030571A 638 403 05 71 Screw Spare Wheel Carrier To Substructure

83 83 A6384030471A 638 403 04 71 Screw Spare Wheel Carrier To Substructure

86 86 A9014010294A 901 401 02 94 Balancing Weight

86 86 A0024014694A 002 401 46 94 Balancing Weight

86 86 A6394010594A 639 401 05 94 Balancing Weight Steel Disc Wheel 20 G

86 86 A6394010694A 639 401 06 94 Balancing Weight Steel Disc Wheel 25 G

86 86 A9014010394A 901 401 03 94 Balancing Weight

86 86 A0024014894A 002 401 48 94 Balancing Weight

86 86 A6394010794A 639 401 07 94 Balancing Weight Steel Disc Wheel 30 G

86 86 A6394010894A 639 401 08 94 Balancing Weight Steel Disc Wheel 35 G

86 86 A9014010494A 901 401 04 94 Balancing Weight

86 86 A0024015094A 002 401 50 94 Balancing Weight

86 86 A6394010994A 639 401 09 94 Balancing Weight Steel Disc Wheel 40 G

86 86 A6394011094A 639 401 10 94 Balancing Weight Steel Disc Wheel 45 G

86 86 A9014010594A 901 401 05 94 Balancing Weight

86 86 A0024015294A 002 401 52 94 Balancing Weight

86 86 A6394011194A 639 401 11 94 Balancing Weight Steel Disc Wheel 50 G

86 86 A6394011294A 639 401 12 94 Balancing Weight Steel Disc Wheel 55 G

86 86 A9014010694A 901 401 06 94 Balancing Weight

86 86 A0024015494A 002 401 54 94 Balancing Weight

86 86 A6394011394A 639 401 13 94 Balancing Weight Steel Disc Wheel 60 G

86 86 A9014010794A 901 401 07 94 Balancing Weight Steel Disc Wheel 70 G

86 86 A9014010894A 901 401 08 94 Balancing Weight Steel Disc Wheel 80 G

42 Brakes

002 Front Wheel Brake

5 5 A6384210112A 638 421 01 12 Brake Disc 22 Mm (2×)

11 11 N000965008051N 000965 008051 Screw Brake Disc To Wheel Hub M 8x20 (2×)

17 17 A9014201801A 901 420 18 01 Caliper

17 17 A9014202201A 901 420 22 01 Caliper

17 17 A9014202001A 901 420 20 01 Caliper

17 17 A9014204001A 901 420 40 01 Front Wheel Brake

17 17 A9014204201A 901 420 42 01 Caliper Left,with Lining "itt"

17 17 A9014202701A 901 420 27 01 Caliper Left,with Lining "bosch"

17 17 A9014204701A 901 420 47 01 Caliper Left,with Lining "itt"

17 17 A9014201701A 901 420 17 01 Caliper

17 17 A9014202101A 901 420 21 01 Caliper

17 17 A9014201901A 901 420 19 01 Caliper

17 17 A9014203901A 901 420 39 01 Front Wheel Brake

17 17 A9014204101A 901 420 41 01 Caliper Right,with Lining "itt"

17 17 A9014202601A 901 420 26 01 Caliper Right,with Lining "bosch"

17 17 A9014204601A 901 420 46 01 Caliper Right,with Lining "itt"

20 20 A0014206383A 001 420 63 83 Brake Caliper Left,less Lining "bosch"

20 20 A0014206283A 001 420 62 83 Brake Caliper Right,less Lining "bosch"

22 22 A0004211348A 000 421 13 48 Dust Cap Parts Kit "bosch"

25 25 A0004210806A 000 421 08 06 Brake Anchor Left And Right "bosch" (2×)

27 27 A0004203555A 000 420 35 55 Bleeder Valve "itt" (2×)

27 27 A0004205155A 000 420 51 55 Bleeder Valve "itt" (2×)

27 27 A0004207855A 000 420 78 55 Bleeder Valve "bosch" (2×)

29 29 A0004217187A 000 421 71 87 Protective Cap

29 29 A0004210887A 000 421 08 87 Protective Cap "itt" (2×)

29 29 A0004212748A 000 421 27 48 Dust Cap "bosch" (2×)

35 35 A0004215991A 000 421 59 91 Spring "itt - Teves" (2×)

38 38 A0004217091A 000 421 70 91 Spring "bosch"

41 41 A0004200076A 000 420 00 76 Ts Sleeve Set To 901 420 19 01,20 01 (2×)

44 44 A0009904010A 000 990 40 10 Ts Hexagon Head Bolt Parts Kit "bosch"

47 47 A0004210818A 000 421 08 18 Pivot Pin "itt - Teves" (4×)

50 50 A0004210406A 000 421 04 06 Brake Anchor Caliper,h.d.version "itt" (2×)

53 53 A0014202383A 001 420 23 83 Ds Brake Caliper Caliper "itt - Teves" (2×)

59 59 A0024203920A 002 420 39 20 Ts Brake Pad Parts Kit "jurid/ate" To A 901 420 19 01, 20 01

61 61 A0024209920A 002 420 99 20 Ts Brake Pad Parts Kit "galfer/itt" To A 901 420 41 01, 42 01

61 61 A0024209920A 002 420 99 20 Ts Brake Pad Parts Kit "galfer/itt" To A 901 420 46 01, 47 01

63 63 A6384210010A 638 421 00 10 Brake Pad Parts Kit "ferodo/bosch"

64 64 A0004214110A 000 421 41 10 Ts Brake Pad Parts Kit "ferodo/bosch"

64 64 A0034200120A 003 420 01 20 Ts Brake Pad

64 64 A0004214110A 000 421 41 10 Ts Brake Pad Parts Kit "jurid/bosch"

65 65 N910105014005N 910105 014005 Hexagon Head Bolt Caliper To Steering Knuckle M 14x1.5x40 (4×)

71 71 N914125006307N 914125 006307 Screw Wear Indicator M 6x25 (2×)

77 77 A9015400017A 901 540 00 17 Sender Unit Wear Indicator (2×)

77 77 A9015400117A 901 540 01 17 Brake Wear Sensor Wear Indicator (2×)

003 Rear Wheel Brake

5 5 A6384230112A 638 423 01 12 Brake Disk Left And Right (2×)

11 11 N000965008051N 000965 008051 Screw Brake Disc To Wheel Hub M 8x20 (2×)

17 17 A6384230598A 638 423 05 98 Caliper

17 17 A6384231498A 638 423 14 98 Caliper

17 17 A6384230198A 638 423 01 98 Caliper

17 17 A6384230398A 638 423 03 98 Caliper

17 17 A6384231698A 638 423 16 98 Caliper Left,with Lining "bosch"

17 17 A6384231098A 638 423 10 98 Caliper Left,with Lining "bosch"

17 17 A6384230298A 638 423 02 98 Caliper

17 17 A6384230498A 638 423 04 98 Caliper

17 17 A6384230698A 638 423 06 98 Caliper

17 17 A6384231598A 638 423 15 98 Caliper

17 17 A6384231798A 638 423 17 98 Caliper Right,with Lining "bosch"

17 17 A6384231198A 638 423 11 98 Caliper Right,with Lining "bosch"

17 17 A0014206483A 001 420 64 83 Caliper Left,less Lining "bosch"

17 17 A0014206583A 001 420 65 83 Caliper Right,less Lining "bosch"

20 20 A0004211148A 000 421 11 48 Dust Cap "bosch" (2×)

23 23 A0024204820A 002 420 48 20 Ts Brake Pad

23 23 A0034200020A 003 420 00 20 Ts Brake Pad Parts Kit "itt"

26 26 A0034200220A 003 420 02 20 Ts Brake Pad Parts Kit "bosch"

26 26 A0004214210A 000 421 42 10 Ts Brake Pad Parts Kit "bosch"

29 29 A0014204983A 001 420 49 83 Gasket Kit Caliper "itt" (2×)

35 35 A0004200582A 000 420 05 82 Pin Parts Kit "itt" (2×)

41 41 A0004200376A 000 420 03 76 End Piece Parts Kit "itt" (2×)

47 47 A0004212865A 000 421 28 65 Bleeder Valve "itt" (2×)

50 50 A0004207855A 000 420 78 55 Bleeder Valve "bosch" (2×)

52 52 A0004212748A 000 421 27 48 Dust Cap "bosch" (2×)

56 56 A0004213490A 000 421 34 90 Spring Parts Kit "itt" (2×)

59 59 A0004200402A 000 420 04 02 Spring Parts Kit "bosch"

62 62 N910106010011N 910106 010011 Hexagon Head Bolt Caliper To Transverse Control Arm M 10x90 (2×)

65 65 N914125008530N 914125 008530 Screw Caliper To Transverse Control Arm M 8x60 (2×)

-- XXXXXXXXXXXXXX XXXXXXXXXXXX Part Name Missing Parking Brake

71 71 A0024204720A 002 420 47 20 Brake Shoe

71 71 A0034207020A 003 420 70 20 Brake Shoe Parts Kit

77 77 A6384200020A 638 420 00 20 Brake Shoe

77 77 A6384200120A 638 420 01 20 Brake Shoe (4×)

83 83 A2014230592A 201 423 05 92 Extension Spring Brake Shoes To Cover Plates (4×)

89 89 A2014230692A 201 423 06 92 Spring (2×)

95 95 A2014230492A 201 423 04 92 Spring

95 95 A2104230092A 210 423 00 92 Extension Spring (2×)

~~101~~ 101 A2014200589A 201 420 05 89 Shackle (2×)

~~107~~ 107 A2014200373A 201 420 03 73 Screw (2×)

~~113~~ 113 A1244230050A 124 423 00 50 Supporting Bush (2×)

115 Brake Lines

23 23 A6384280235A 638 428 02 35 Brake Hose

23 23 A6384280835A 638 428 08 35 Brake Hose Front Axle

26 26 A0004280673A 000 428 06 73 Retaining Spring Hose Attachment (2×)

68 68 A0004280673A 000 428 06 73 Retaining Spring Hose Attachment (2×)

117 Brake Lines Used With Abs

5 5 A6384202428A 638 420 24 28 Line

5 5 A1234209328A 123 420 93 28 Line From Brake Booster Assembly To Hydraulic Unit

8 8 A6384202528A 638 420 25 28 Line

8 8 A1234206328A 123 420 63 28 Line From Brake Booster Assembly To Hydraulic Unit

17 17 A6384202628A 638 420 26 28 Line

17 17 A1234207628A 123 420 76 28 Line From Hydraulic Unit To Right Front Wheel

20 20 A6384202728A 638 420 27 28 Line

20 20 A1234206328A 123 420 63 28 Line From Hydraulic Unit To Left Front Wheel

23 23 A6384280235A 638 428 02 35 Brake Hose

23 23 A6384280835A 638 428 08 35 Brake Hose Front Axle (2×)

26 26 A0004280673A 000 428 06 73 Retaining Spring Hose Attachment (2×)

30 30 A6384203028A 638 420 30 28 Brake Line From Hydraulic Unit To Brake Power Regulator

30 30 A6684201328A 668 420 13 28 Line From Hydraulic Unit To Brake Power Regulator

33 33 A6384203128A 638 420 31 28 Line

33 33 A6684201328A 668 420 13 28 Line From Hydraulic Unit To Brake Power Regulator

59 59 A6384202228A 638 420 22 28 Line

59 59 A1234206628A 123 420 66 28 Line From Brake Power Regulator To Rear Axle Brake Hose,right

62 62 A6384202328A 638 420 23 28 Line

62 62 A1234206828A 123 420 68 28 Line From Brake Power Regulator To Rear Axle Brake Hose,left

65 65 A6384281035A 638 428 10 35 Brake Hose Rear Axle (2×)

68 68 A0004280673A 000 428 06 73 Retaining Spring Hose Attachment (2×)

74 74 A0009954265A 000 995 42 65 Clamp Brake Line To Brake Booster Assembly

77 77 A0009954365A 000 995 43 65 Clamp Hydraulic Unit

80 80 A1263280084A 126 328 00 84 Shim

80 80 A2023280084A 202 328 00 84 Shim Brake Line Mounting

83 83 A6389950068A 638 995 00 68 Clamp Brake Line Mounting

86 86 A6389950268A 638 995 02 68 Clamp Brake Line Mounting

89 89 A6319972990A 631 997 29 90 Loom Tie

89 89 A0039975690A 003 997 56 90 Clamp Brake Line Mounting

92 92 A6314310843A 631 431 08 43 Clamp Brake Line Mounting

95 95 A6389840860A 638 984 08 60 Clip

95 95 A6389842060A 638 984 20 60 Clip Brake Line Mounting

98 98 A0004291140A 000 429 11 40 Bracket Brake Line Mounting

390 Brake Power Regulator

5 5 A6384310412A 638 431 04 12 Brake Pressure Regulator

8 8 A6384310140A 638 431 01 40 Bracket Brake Power Regulator

11 11 N910106008014N 910106 008014 Hexagon Head Bolt Brake Power Regulator To Cross Member M 8x16 (4×)

14 14 N000125008417N 000125 008417 Washer Brake Power Regulator To Cross Member (4×)

17 17 A6384310192A 638 431 01 92 Rod

20 20 A6384310050A 638 431 00 50 Bushing (2×)

23 23 N006799007001N 006799 007001 Circlip (2×)

26 26 A6384310089A 638 431 00 89 Spring Retainer

450 Parking Brake

26 26 A6384200785A 638 420 07 85 Brake Cable

29 29 A1244270092A 124 427 00 92 Clamping Piece (2×)

36 36 N072571001025N 072571 001025 Clamp Brake Cable (4×)

37 37 A0039900251A 003 990 02 51 Screwed Insert Brake Cable To Substructure (4×)

-- XXXXXXXXXXXXXX XXXXXXXXXXXX Part Name Missing Foot Operated Parking Brake

65 65 A6384200084A 638 420 00 84 Parking Brake

68 68 A1249930510A 124 993 05 10 Spring

71 71 A6384270086A 638 427 00 86 Damping Ring

74 74 A1244270276A 124 427 02 76 Washer

77 77 A6384270051A 638 427 00 51 Spacer Ring

80 80 N304017006018N 304017 006018 Hexagon Head Bolt M 6x12

83 83 N006799006003N 006799 006003 Circlip (2×)

86 86 A1244270382A 124 427 03 82 Pad Pedal

89 89 N912007016001N 912007 016001 Clip

92 92 N304017008032N 304017 008032 Hexagon Head Bolt Parking Brake To Cab M 8x16

~~101~~ 101 A6384200685A 638 420 06 85 Brake Cable

~~104~~ 104 A1249881278A 124 988 12 78 Clip

~~107~~ 107 A6384270120A 638 427 01 20 Handle

~~110~~ 110 A1244200777A 124 420 07 77 Guide

~~113~~ 113 N914151005008N 914151 005008 Screw Foot Operated Parking Brake Release Handle To Instrument Panel (3×)

-- XXXXXXXXXXXXXX XXXXXXXXXXXX Part Name Missing Cable Guide

~~122~~ 122 A6384200386A 638 420 03 86 Bracket Clamp

~~125~~ 125 N910105008008N 910105 008008 Hexagon Head Bolt Bracket To Substructure M 8x16 (2×)

~~128~~ 128 A2014200689A 201 420 06 89 Shackle Brake Cables

~~131~~ 131 A8339970581A 833 997 05 81 Grommet (2×)

~~134~~ 134 A6384030119A 638 403 01 19 Base Block

~~134~~ 134 A6384030419A 638 403 04 19 Base Block

~~137~~ 137 A2014270071A 201 427 00 71 Screw Brake Cable To Clamp

~~140~~ 140 A1269930210A 126 993 02 10 Spring Brake Cable To Clamp

~~143~~ 143 A6384270338A 638 427 03 38 Brake Cable At Rear Axle (2×)

~~146~~ 146 A1084270074A 108 427 00 74 Cylinder Pin (2×)

~~149~~ 149 A6384270641A 638 427 06 41 Bracket Left Brake Cable

~~149~~ 149 A6384270841A 638 427 08 41 Bracket Right Brake Cable

~~152~~ 152 A2019972281A 201 997 22 81 Grommet Brake Cable

570 Abs And Asr

5 5 A6384460214A 638 446 02 14 Hydraulic Unit

5 5 A6384460314A 638 446 03 14 Hydraulic Unit

5 5 A0054319212A 005 431 92 12 Brake Pressure Regulator

8 8 A0015403845A 001 540 38 45 Control Unit

8 8 A0015405145A 001 540 51 45 Control Unit Parts Kit

11 11 A9015460181A 901 546 01 81 Covering Control Unit

14 14 A1239870039A 123 987 00 39 Rubber Buffer (3×)

17 17 A2029870145A 202 987 01 45 Locking Cap (3×)

20 20 N913023006001N 913023 006001 Nut Ground Cable Connection

23 23 N910113005001N 910113 005001 Hexagon Nut Ground Cable To Hydraulic Unit

620 Brake Booster Assembly And Vacuum Lines

5 5 A0004310827A 000 431 08 27 Brake Booster

5 5 A0004311127A 000 431 11 27 Brake Booster

8 8 A0004306308A 000 430 63 08 Repair Kit Brake Booster To 000 431 08 27

11 11 A0229973348A 022 997 33 48 Seal Ring Tandem Brake Master Cylinder To Brake Booster To 000 431 08 27

14 14 A0004315901A 000 431 59 01 Brake Master Cylinder

20 20 A0004311935A 000 431 19 35 Connector (2×)

23 23 A0229973348A 022 997 33 48 Seal Ring Tandem Brake Master Cylinder To Brake Booster

26 26 A0024312802A 002 431 28 02 Reservoir

29 29 A0004317433A 000 431 74 33 Filler Cap

29 29 A0014314487A 001 431 44 87 Protective Cap

32 32 A0004317134A 000 431 71 34 Strainer

33 33 A6384310080A 638 431 00 80 Gasket Between Brake Unit And Firewall

-- A6384300229A 638 430 02 29 Line (vacuum Line) To Brake Booster

56 56 A0004316407A 000 431 64 07 Valve (check Valve)

74 74 A6384350582A 638 435 05 82 Hose (vacuum Line) To Brake Booster

77 77 A0219978882A 021 997 88 82 Hose (protective Hose)

83 83 A1154350325A 115 435 03 25 Connector Vacuum Line

86 86 A0009907454A 000 990 74 54 Nut Line Connection

92 92 A0019978290A 001 997 82 90 Loom Tie Vacuum Line Mounting 172 Mm

46 Steering

040 Power Steering

5 5 A6384602100A 638 460 21 00 Steering Box Assembly

5 5 A6384602900A 638 460 29 00 Steering Box Assembly

6 6 A6384600205A 638 460 02 05 Drag Link (2×)

12 12 A9014605500A 901 460 55 00 Rs Steering Tu 638 460 21 00, 22 00 (2×)

14 14 A9014620396A 901 462 03 96 Boot (2×)

17 17 A9014630517A 901 463 05 17 Clamping Piece Inside (2×)

20 20 A0059970190A 005 997 01 90 Hose Clamp Outside (2×)

29 29 N304017010053N 304017 010053 Hexagon Head Bolt Power Steering Mounting Parts M 10 X 50 (4×)

32 32 N009021010209N 009021 010209 Washer Power Steering Mounting Parts (4×)

35 35 N910113010001N 910113 010001 Hexagon Nut Power Steering Mounting Parts (4×)

38 38 N913002014002N 913002 014002 Nut Steering Arm To Steering Knuckle (2×)

090 Oil Tank And Hydraulic Lines

5 5 A6384600083A 638 460 00 83 Oil Tank Power Steering

8 8 A0014661405A 001 466 14 05 Cover

11 11 A0229978548A 022 997 85 48 Seal Ring

14 14 A6389970990A 638 997 09 90 Loom Tie

14 14 N916017090000N 916017 090000 Clamp Oil Tank To Bracket

17 17 A6384600835A 638 460 08 35 Bracket Oil Tank

26 26 N910105008008N 910105 008008 Hexagon Head Bolt Clamp Mounting M 8x16 (2×)

29 29 A0059970190A 005 997 01 90 Hose Clamp From Cooling Pipe To Pump

29 29 N916033015101N 916033 015101 Clamp

29 29 A0059972790A 005 997 27 90 Hose Clamp From Cooling Pipe To Pump

29 29 A6389971290A 638 997 12 90 Clamp From Cooling Pipe To Pump

35 35 A6389972590A 638 997 25 90 Clamp 22.5 Mm

35 35 A0059974990A 005 997 49 90 Hose Clamp 16.5mm

-- A6384661040A 638 466 10 40 Bracket Hose To Oil Dipstick Guide Tube

44 44 A6674290340A 667 429 03 40 Bracket Hose To Oil Dipstick Guide Tube

47 47 N304017006031N 304017 006031 Hexagon Head Bolt Hose To Oil Dipstick Guide Tube M 6x20

50 50 N916016020201N 916016 020201 Clamp Hose To Support 20/15

50 50 N000000000325N 000000 000325 Clamp Hose To Support 20/15

-- A6384660981A 638 466 09 81 Hose

-- A6384661081A 638 466 10 81 Hose

59 59 A6384661381A 638 466 13 81 Hose (high Pressure Hose)

63 63 A0259976348A 025 997 63 48 Seal Ring

65 65 A6384660924A 638 466 09 24 Line High Pressure Line To Steering

71 71 N916016010211N 916016 010211 Clamp Line Mounting 10/15 Mm

77 77 N913004006001N 913004 006001 Nut Line Mounting

80 80 A6384661324A 638 466 13 24 Line

86 86 A6555451153A 655 545 11 53 Spacer Tube Line Mounting

89 89 N916016012200N 916016 012200 Clamp Line Mounting 12/15 Mm (5×)

92 92 N916016010211N 916016 010211 Clamp Line Mounting 10/15 Mm (2×)

95 95 N007984006031N 007984 006031 Screw Line Mounting M 6x16 (2×)

98 98 A6389973482A 638 997 34 82 Hose

99 99 A6389973182A 638 997 31 82 Hose

99 99 A6384661481A 638 466 14 81 Hose Return Line

~~104~~ 104 A1233288981A 123 328 89 81 Buffer Return Line

~~105~~ 105 A6679950065A 667 995 00 65 Clamp Pipe Line To Bracket

~~106~~ 106 A1109950165A 110 995 01 65 Clamp Pipe Line To Bracket

~~122~~ 122 A6384660581A 638 466 05 81 Hose Return Line

~~125~~ 125 A6384660024A 638 466 00 24 Line

~~125~~ 125 A6384662024A 638 466 20 24 Line Cooling Pipe

~~131~~ 131 A6389900168A 638 990 01 68 Fitting Delivery Line To Steering

~~134~~ 134 N007603014102N 007603 014102 Sealing Ring Delivery Line To Steering 14x18

~~137~~ 137 A6389900268A 638 990 02 68 Fitting Delivery Line To Steering

~~140~~ 140 N007603016105N 007603 016105 Sealing Ring Delivery Line To Steering 16x20

~~143~~ 143 A6384600635A 638 460 06 35 Bracket Left

~~146~~ 146 A6384600735A 638 460 07 35 Bracket Right

~~149~~ 149 N914140006006N 914140 006006 Screw Bracket To Substructure M 6x12 (4×)

~~152~~ 152 N913004006001N 913004 006001 Nut Clamp To Support

~~164~~ 164 N913004006001N 913004 006001 Nut Pipe Line To Bracket (2×)

~~167~~ 167 N916016026201N 916016 026201 Clamp

~~167~~ 167 N916016025201N 916016 025201 Clamp Pipe Line To Bracket (2×)

300 Steering Wheel And Steering Column

8 8 A6384600303A 638 460 03 03 Steering Wheel Leather,in Conjunction With Airbag

14 14 A6384600098A 638 460 00 98 Air Bag

14 14 A6384600198A 638 460 01 98 Air Bag

17 17 A6384600049A 638 460 00 49 Contact Piece

26 26 A1269900312A 126 990 03 12 Screw W Hexagon Socket Steering Mounting

29 29 A6384602611A 638 460 26 11 Steerg. Worm Sector Shaft

29 29 A6384603411A 638 460 34 11 Steerg. Worm Sector Shaft

29 29 A6384604011A 638 460 40 11 Steerg. Worm Sector Shaft Rigid

33 33 A0004610675A 000 461 06 75 Supporting Ring Blinker Switch Reset

34 34 A0004610062A 000 461 00 62 Thrust Washer

35 35 A0004610351A 000 461 03 51 Spacer Ring (2×)

36 36 A6384620075A 638 462 00 75 Washer

38 38 N913025008000N 913025 008000 Nut Steering Worm Sector Shaft (2×)

41 41 N910106008012N 910106 008012 Hexagon Head Bolt Steering Worm Sector Shaft (2×)

44 44 A1159905940A 115 990 59 40 Washer Steering Worm Sector Shaft (4×)

47 47 A2029902101A 202 990 21 01 Screw Steering Worm Sector Shaft To Steering Gear

50 50 A9014600504A 901 460 05 04 Steering Lock Manual Transmission

53 53 A0005458808A 000 545 88 08 Switch

59 59 A0205457432A 020 545 74 32 Transponder Immobilizer

62 62 A9014620939A 901 462 09 39 Bracket

65 65 A6734620071A 673 462 00 71 Screw Steering Lock (2×)

68 68 A9014620023A 901 462 00 23 Cover Steering Lock

69 69 A9424620057A 942 462 00 57 Protective Cap With Transponder

71 71 A9014620279A 901 462 02 79 Tumbler Less Key

73 73 A9014620179A 901 462 01 79 Tumbler

73 73 A9014620379A 901 462 03 79 Tumbler Workshop Version,with Key; Any Lock

-- XXXXXXXXXXXXXX XXXXXXXXXXXX Part Name Missing For Master Key,see Group 72

46 Steering

100 Power Steering

5 5 A6384600600A 638 460 06 00 Steering Box Assembly

5 5 A6384602100A 638 460 21 00 Steering Box Assembly

5 5 A6384602900A 638 460 29 00 Steering Box Assembly

5 5 A6384603000A 638 460 30 00 Steering Box Assembly

5 5 A6384602500A 638 460 25 00 Steering Box Assembly

8 8 A6384600205A 638 460 02 05 Drag Link (2×)

11 11 A6384600048A 638 460 00 48 Drag Link End

11 11 A6384600205A 638 460 02 05 Drag Link (2×)

14 14 A9014620026A 901 462 00 26 Nut (2×)

14 14 N308675016001N 308675 016001 Nut (2×)

20 20 A9014620096A 901 462 00 96 Boot

20 20 A9014620396A 901 462 03 96 Boot

23 23 A9014630017A 901 463 00 17 Clamping Piece Inside 61.8 - 65.0 Mm (2×)

23 23 A9014630317A 901 463 03 17 Clamping Piece Inside 58.8 - 62.0 Mm (2×)

23 23 A9014630517A 901 463 05 17 Clamping Piece Inside 60.3 - 63.5 Mm (2×)

26 26 A9014630217A 901 463 02 17 Clamping Piece Outside 17.8 - 21.0 Mm (2×)

26 26 A9014630417A 901 463 04 17 Clamping Piece Outside 14.8 - 18.0 Mm (2×)

26 26 A9709950005A 970 995 00 05 Clamp

26 26 A0059970190A 005 997 01 90 Hose Clamp Outside 14-24 (2×)

32 32 A6384630066A 638 463 00 66 Rubber Mounting (4×)

35 35 A6384600324A 638 460 03 24 Line Short

38 38 A6384600524A 638 460 05 24 Line Long

41 41 N000931010337N 000931 010337 Screw

41 41 N304017010051N 304017 010051 Screw Steering Mounting M 10x60 (4×)

47 47 N913025010001N 913025 010001 Nut Steering Mounting M10 (4×)

50 50 N910113016002N 910113 016002 Nut Tie Rod To Steering Arm (2×)

53 53 A0009909450A 000 990 94 50 Nut Tie Rod To Steering Arm 4,6 T (2×)

47 Fuel System

090 Fuel Lines,fuel Filter,and Bracket

5 5 A0089979082A 008 997 90 82 Hose 6x8 Mm

8 8 N916030000527N 916030 000527 Hose Fuel Line To Filter 13.5x7.5 Mm

14 14 A0019978668A 001 997 86 68 Connector Fuel Line 8 Mm

17 17 A0019978768A 001 997 87 68 Connector Fuel Line

17 17 A0019978568A 001 997 85 68 Connector Fuel Return Line 8 Mm

20 20 N915062006000N 915062 006000 Sleeve

23 23 A0049971990A 004 997 19 90 Loom Tie Line Mounting

26 26 A6389970882A 638 997 08 82 Hose

29 29 A6380780081A 638 078 00 81 Hose Gasoline Vehicles

47 47 A6384030119A 638 403 01 19 Base Block

47 47 A6384030419A 638 403 04 19 Base Block (5×)

50 50 A6384701564A 638 470 15 64 Line With Valves

61 61 Q000000000001Q 000000000001 Important Information For Parts,see: 47/180

62 62 A6384701464A 638 470 14 64 Line Fuel Tank Breathing

65 65 A6384701264A 638 470 12 64 Line Auxiliary Heater

66 66 A0049973090A 004 997 30 90 Clamp Line Mounting 8 Mm

71 71 A6384700364A 638 470 03 64 Line

71 71 A6384703064A 638 470 30 64 Line Fuel Return

77 77 A6384700164A 638 470 01 64 Line Fuel Feed

81 81 A0069971890A 006 997 18 90 Hose Clamp Line Mounting 13.0-14.5

82 82 A0069971890A 006 997 18 90 Hose Clamp Line Mounting 13.0-14.5

89 89 A2024700093A 202 470 00 93 Regeneration Valve Regeneration Valve

90 90 A0004700164A 000 470 01 64 O-ring Gasket Kit

~~101~~ 101 A0024772701A 002 477 27 01 Fuel Filter Gasoline Vehicles

~~101~~ 101 A0024772801A 002 477 28 01 Fuel Filter Gasoline Vehicles

~~104~~ 104 A6384700059A 638 470 00 59 Activated Charcoal Filter

~~104~~ 104 A6384700159A 638 470 01 59 Activated Charcoal Filter

~~104~~ 104 A6384700259A 638 470 02 59 Activated Charcoal Filter

~~110~~ 110 A6389840860A 638 984 08 60 Clip

~~110~~ 110 A6389842060A 638 984 20 60 Clip Fuel Line To Substructure (6×)

~~113~~ 113 A6389841160A 638 984 11 60 Clip Fuel Line To Substructure (7×)

~~116~~ 116 A6524761136A 652 476 11 36 Bracket Fuel Line To Substructure

~~116~~ 116 A4639940348A 463 994 03 48 Lock Fuel Line To Substructure

~~119~~ 119 A6384700181A 638 470 01 81 Bracket Fuel Line To Substructure

~~122~~ 122 N913004006001N 913004 006001 Nut Fuel Line To Substructure

180 Fuel Tank

5 5 A6384710801A 638 471 08 01 Fuel Tank Gasoline Vehicles

8 8 A6384700394A 638 470 03 94 Gauge Sender Unit

11 11 A6384710179A 638 471 01 79 Seal Ring Fuel Gauge Sender Unit To Fuel Tank

11 11 A6384710479A 638 471 04 79 Seal Ring Fuel Gauge Sender Unit To Fuel Tank

14 14 A9019900054A 901 990 00 54 Nut Fuel Gauge Sender Unit To Fuel Tank

17 17 A6384700440A 638 470 04 40 Strap Fuel Tank Mounting (3×)

20 20 N910106008011N 910106 008011 Hexagon Head Bolt Fuel Tank Mounting M 8x30 (6×)

23 23 A6384750353A 638 475 03 53 Spacer Tube

23 23 A6384750453A 638 475 04 53 Spacer Tube Fuel Tank Mounting (4×)

26 26 A6384700120A 638 470 01 20 Filler Neck With Load Compartment Sliding Door, Rh

32 32 A6384730180A 638 473 01 80 Gasket

35 35 A0004768026A 000 476 80 26 Hose To 638 470 00 20, 01 20

41 41 A6384760050A 638 476 00 50 Bushing Filler Neck To Fuel Tank

44 44 A6389971490A 638 997 14 90 Loom Tie

44 44 A0069972690A 006 997 26 90 Clamp W Drive A Washer Filler Neck To Fuel Tank

47 47 A6384710515A 638 471 05 15 Breather Pipe

50 50 A0059970090A 005 997 00 90 Loom Tie Breather Line To Tank Vent Pipe (2×)

51 51 A0049972490A 004 997 24 90 Loom Tie

51 51 A0069971890A 006 997 18 90 Hose Clamp With Load Compartment Sliding Door, Lh 13.0-14.5

53 53 A0019978390A 001 997 83 90 Loom Tie To Mount Fuel Lines 280 Mm

56 56 A6389840660A 638 984 06 60 Clip

65 65 A6386390094A 638 639 00 94 Hose

65 65 A2106390194A 210 639 01 94 Hose

68 68 A0009972881A 000 997 28 81 Grommet

71 71 N910105005002N 910105 005002 Hexagon Head Bolt Filler Neck To Body M 5x16 (2×)

74 74 A6384700047A 638 470 00 47 Covering

74 74 A6384700147A 638 470 01 47 Covering Flame Protector Filling Pipe

77 77 A6384760146A 638 476 01 46 Protective Plate Flame Protector Filling Pipe

80 80 N910143006012N 910143 006012 Hexalobular Bolt Heat Shield Mounting M 6x12 (2×)

83 83 N913023006001N 913023 006001 Nut Heat Shield Mounting (2×)

86 86 A6384030119A 638 403 01 19 Base Block

86 86 A6384030419A 638 403 04 19 Base Block

95 95 A6389970081A 638 997 00 81 Grommet Filler Neck To Side Panel

98 98 A1169971581A 116 997 15 81 Rubber Ring

-- XXXXXXXXXXXXXX XXXXXXXXXXXX Part Name Missing For Master Key,see Group 72

~~101~~ 101 A0004700730A 000 470 07 30 Fuel Filler Cap Used With Central Locking Mechanism

49 Exhaust System

060 Exhaust System On Gasoline Vehicles

-- A6384901219A 638 490 12 19 Exhaust Pipe Front

5 5 A6384901719A 638 490 17 19 Exhaust Pipe

8 8 N910105008009N 910105 008009 Hexagon Head Bolt Exhaust Pipe To Exhaust Manifold (4×)

11 11 A6384900022A 638 490 00 22 Exhaust Pipe

11 11 A6384900722A 638 490 07 22 Exhaust Pipe Central

14 14 A9014900004A 901 490 00 04 Throttle Housing

14 14 A9014900104A 901 490 01 04 Throttle Housing Front Exhaust Pipe

17 17 A9014920092A 901 492 00 92 Power Cylinder

17 17 A9014920192A 901 492 01 92 Power Cylinder

20 20 N304017008040N 304017 008040 Hexagon Head Bolt Exhaust Pipe To Exhaust Pipe M 8x40 (2×)

23 23 N910113008002N 910113 008002 Hexagon Nut Exhaust Pipe To Exhaust Pipe (2×)

26 26 A9014920080A 901 492 00 80 Flange Gasket

26 26 A6384920180A 638 492 01 80 Flange Gasket Between Exhaust Pipe Front And Exhaust Pipe Centre (2×)

29 29 N304014008001N 304014 008001 Hexagon Head Bolt Front Exhaust Pipe To Central Exhaust Pipe M 8x70 (4×)

32 32 N910113008002N 910113 008002 Hexagon Nut Front Exhaust Pipe To Central Exhaust Pipe (4×)

34 34 A0025401497A 002 540 14 97 Valve

44 44 A0011406660A 001 140 66 60 Valve

47 47 A2024760936A 202 476 09 36 Bracket

47 47 A2024761036A 202 476 10 36 Bracket

50 50 A6384920063A 638 492 00 63 Pipe Line

53 53 A1170780281A 117 078 02 81 Hose 3.5x8x60x21 Mm

56 56 A0001581435A 000 158 14 35 Pipe Line Plastic Tube 4x1 Mm

59 59 A1179970982A 117 997 09 82 Hose 3.5x8 Mm

62 62 A6020781181A 602 078 11 81 Hose 5.5 Mm

65 65 A1170780581A 117 078 05 81 Hose

68 68 A6389970982A 638 997 09 82 Hose

71 71 A6389971082A 638 997 10 82 Hose

74 74 A1170780981A 117 078 09 81 Sieve Insert

75 75 A1869970681A 186 997 06 81 Grommet

77 77 N916016006201N 916016 006201 Clamp (2×)

80 80 A0039977290A 003 997 72 90 Clamp

83 83 N304032006004N 304032 006004 Hexagon Nut (2×)

84 84 A0019978390A 001 997 83 90 Loom Tie 280 Mm

86 86 A6384901115A 638 490 11 15 Exhaust Muffler With Pipe Rear

95 95 A2014920281A 201 492 02 81 Seal Ring

95 95 A2024920281A 202 492 02 81 Seal Ring Exhaust Pipe To Muffler

98 98 N910105008019N 910105 008019 Hexagon Head Bolt Exhaust Pipe To Muffler M 8x50 (2×)

~~101~~ 101 N913004008007N 913004 008007 Nut

~~101~~ 101 A1201420072A 120 142 00 72 Hexagon Nut Exhaust Pipe To Muffler (2×)

~~104~~ 104 A6384910430A 638 491 04 30 Protective Plate Between Exhaust Muffler And Reservoir

~~107~~ 107 A6384910530A 638 491 05 30 Protective Plate Catalyst

~~110~~ 110 N007976006203N 007976 006203 Tapping Screw Screening Plate To Substructure B 6.3x13 (5×)

~~116~~ 116 N009021006203N 009021 006203 Washer Screening Plate To Substructure (5×)

~~119~~ 119 N910104006000N 910104 006000 Nut-and-washer Assembly Screening Plate (8×)

~~119~~ 119 N910104006000N 910104 006000 Nut-and-washer Assembly Screening Plate (3×)

~~122~~ 122 A0019886181A 001 988 61 81 Fastener Button Screening Plate To Substructure

~~122~~ 122 A6389880481A 638 988 04 81 Fastener Button

~~122~~ 122 A0019881581A 001 988 15 81 Fastener Button Screening Plate To Substructure

~~125~~ 125 A6384901940A 638 490 19 40 Bracket At Cross Member (2×)

~~128~~ 128 A6384902640A 638 490 26 40 Bracket At Cross Member

~~134~~ 134 A6384902540A 638 490 25 40 Bracket At Cross Member

~~137~~ 137 A6384901740A 638 490 17 40 Bracket At Side Member (2×)

~~143~~ 143 N304017006016N 304017 006016 Hexagon Head Bolt Bracket To Substructure M 6x16

~~146~~ 146 A2024920444A 202 492 04 44 Suspension Ring

~~146~~ 146 A2024920344A 202 492 03 44 Suspension Ring Exhaust Pipe To Substructure

~~146~~ 146 A6384920144A 638 492 01 44 Suspension Ring Exhaust Pipe To Substructure

~~152~~ 152 A0005406517A 000 540 65 17 Sender Unit Lambda Probe

~~155~~ 155 A0039900251A 003 990 02 51 Screwed Insert Plug

~~158~~ 158 A0039977290A 003 997 72 90 Clamp Lambda Probe

~~161~~ 161 A0029976890A 002 997 68 90 Loom Tie

~~161~~ 161 A0019978390A 001 997 83 90 Loom Tie Heat Shield Mounting 280 Mm

090 Exhaust System On Diesel Vehicles

35 35 A6384910530A 638 491 05 30 Protective Plate Catalyst

38 38 N007976006203N 007976 006203 Tapping Screw Screening Plate To Substructure B 6.3x13 (5×)

41 41 A0019886181A 001 988 61 81 Fastener Button Screening Plate To Substructure

41 41 A6389880481A 638 988 04 81 Fastener Button

41 41 A0019881581A 001 988 15 81 Fastener Button Screening Plate To Substructure

47 47 N009021006208N 009021 006208 Washer Screening Plate To Substructure

50 50 N910104006000N 910104 006000 Nut-and-washer Assembly Screening Plate To Substructure (8×)

50 50 N910104006000N 910104 006000 Nut-and-washer Assembly Screening Plate To Substructure (3×)

50 Radiator

120 Radiator And Cooling Water Lines

5 5 A6385011601A 638 501 16 01 Radiator Less Cover

8 8 A0005000185A 000 500 01 85 Drain Screw Cooling Water Drain

11 11 A0005010571A 000 501 05 71 Screw

14 14 A0005010176A 000 501 01 76 Spacer Disk

17 17 A0039974548A 003 997 45 48 Seal Ring (2×)

20 20 A1245000206A 124 500 02 06 Filler Cap

20 20 A1245000406A 124 500 04 06 Closing Cover

23 23 A0015403045A 001 540 30 45 Switch Step Switch 95-105 Grad

23 23 A0015403145A 001 540 31 45 Switch Overheating 115 Grad

29 29 A1295450224A 129 545 02 24 Switch,automatic Cooling Water Level Sender Unit

29 29 A6385450224A 638 545 02 24 Switch,automatic Cooling Water Level Sender Unit

32 32 N000000000700N 000000 000700 Fuse Element Cable Harness E 35 To 000 540 00 09, 01 09, 02 09

32 32 N000000000696N 000000 000696 Fuse Link Cable Harness E 40 To 000 540 07 09

53 53 A0045451205A 004 545 12 05 Relay 30 A

55 55 A6385000693A 638 500 06 93 Blower Complete

57 57 A6385001093A 638 500 10 93 Blower

59 59 A0005050955A 000 505 09 55 Fan Shroud For Electrical Line Without Resistance

61 61 A0005400009A 000 540 00 09 Cable Harness

61 61 A0005400709A 000 540 07 09 Cable Harness

62 62 A0015456028A 001 545 60 28 Plug Housing 6-pole

63 63 A0355458128A 035 545 81 28 Flat Plug With Detent 0.5-1.0 Mm2

63 63 A0315453328A 031 545 33 28 Flat Plug With Detent 1.0-2.5 Mm2

63 63 A0285455328A 028 545 53 28 Flat Plug With Detent 4-6 Mm2

64 64 A0275450328A 027 545 03 28 Pin Bushing Housing Bipolar

65 65 A0285455428A 028 545 54 28 Flat Plug Less Detent 4-6 Mm2

98 98 A6385040212A 638 504 02 12 Rubber Mounting Radiator Bottom (2×)

~~101~~ 101 A6385040112A 638 504 01 12 Rubber Mounting On Radiator,top (2×)

~~104~~ 104 A6385050488A 638 505 04 88 Covering Right

~~107~~ 107 A0019949345A 001 994 93 45 Lock

~~107~~ 107 A6389941145A 638 994 11 45 Lock

-- XXXXXXXXXXXXXX XXXXXXXXXXXX Part Name Missing Cooling Water Hoses V6 Motor

~~108~~ 108 A0219977682A 021 997 76 82 Hose Overflow 6,5 X 3,5 Mm

-- XXXXXXXXXXXXXX XXXXXXXXXXXX Part Name Missing Cooling Water Hoses Om 601

-- XXXXXXXXXXXXXX XXXXXXXXXXXX Part Name Missing Cooling Water Hoses M 111

~~155~~ 155 A6385010982A 638 501 09 82 Hose Cooling Water Feed Line

~~158~~ 158 A6385011082A 638 501 10 82 Hose Cooling Water Feed Line

~~161~~ 161 A6385010882A 638 501 08 82 Hose Cooling Water Return Line

~~164~~ 164 A6385000172A 638 500 01 72 Line Return

~~167~~ 167 A6385011182A 638 501 11 82 Hose

~~182~~ 182 A6389970390A 638 997 03 90 Loom Tie

~~182~~ 182 A0069974390A 006 997 43 90 Hose Clamp Hose Fastening 40-50 Mm

~~188~~ 188 A0069970690A 006 997 06 90 Hose Clamp Hose Fastening 45-55 Mm (3×)

~~191~~ 191 A1409950036A 140 995 00 36 Clamp Hose Fastening 14/16 Mm

~~194~~ 194 N916016037200N 916016 037200 Clamp Hose Fastening

~~197~~ 197 N304017008024N 304017 008024 Hexagon Head Bolt Clamp Mounting M 8x25

480 Charge Air Intercooling

52 Sheet Metal / Air Intake

160 Air Intake And Air Cleaner

5 5 A6380901301A 638 090 13 01 Air Cleaner Less Maintenance Indicator

14 14 A0000941120A 000 094 11 20 Screening

17 17 A0000940456A 000 094 04 56 Screw Plug (4×)

20 20 A0000940785A 000 094 07 85 Rubber Buffer (2×)

23 23 A0000940885A 000 094 08 85 Rubber Buffer

29 29 A0000944355A 000 094 43 55 Fastener (3×)

44 44 A0010948006A 001 094 80 06 Cover

53 53 A6380900151A 638 090 01 51 Filter Element

80 80 A6380940311A 638 094 03 11 Scoop

80 80 A6380940511A 638 094 05 11 Scoop Air Intake

86 86 A6380940582A 638 094 05 82 Hose Air Intake

~~107~~ 107 A0069976090A 006 997 60 90 Clamp W Drive A Washer Hose To Air Cleaner 70/90 Mm

~~110~~ 110 A0069972790A 006 997 27 90 Clamp W Drive A Washer Hose To Engine 60/80 Mm

~~143~~ 143 A0005422818A 000 542 28 18 Temperature Sensor On Mixing Chamber

~~146~~ 146 A6040940012A 604 094 00 12 Connector Air Intake Hose

~~150~~ 150 A6389970045A 638 997 00 45 Seal Ring At Muffler Filter

~~155~~ 155 A6380940627A 638 094 06 27 Bracket At Muffler Filter

335 Sound Insulation

5 5 A6385241425A 638 524 14 25 Antinoise Capsule Right

8 8 A0009973181A 000 997 31 81 Grommet Attachment Noise Encapsulation

11 11 A6385241325A 638 524 13 25 Antinoise Capsule Left

14 14 A6385241725A 638 524 17 25 Antinoise Capsule Lower Part

17 17 A2019900536A 201 990 05 36 Sheet Metal Screw Attachment Noise Encapsulation

20 20 A6389880478A 638 988 04 78 Clip Attachment Noise Encapsulation

26 26 A6382400040A 638 240 00 40 Bracket Air Duct

29 29 A6385050061A 638 505 00 61 Air Duct

32 32 N910106006004N 910106 006004 Hexagon Head Bolt Air Duct To Apparatus Support M6x16

35 35 N910105008011N 910105 008011 Hexagon Head Bolt Air Duct To Apparatus Support M 8x20

-- XXXXXXXXXXXXXX XXXXXXXXXXXX Part Name Missing Engine Covering

54 Electrical Equipment And Instruments

060 Fuse Box, Relay And Control Units

5 5 A0005400650A 000 540 06 50 Fuse Box Two Turn Signals On Each Vehicle Side

8 8 A4070720182A 407 072 01 82 Threaded Union At Steering Column

14 14 N000000000698N 000000 000698 Fuse Link 60 A

14 14 N000000004217N 000000 004217 Fuse Link 60 A

14 14 N000000000697N 000000 000697 Fuse Link 50 A

14 14 N000000000696N 000000 000696 Fuse Link 40 A

14 14 A0025451634A 002 545 16 34 Fuse 30 A

14 14 N000000000694N 000000 000694 Fuse Link 20 A

14 14 N072581000308N 072581 000308 Fuse Link 30 A

14 14 N072581000307N 072581 000307 Fuse Link 25 A

14 14 N072581000306N 072581 000306 Fuse Link 20 A

14 14 N000000004206N 000000 004206 Fuse Link 20 A

14 14 N072581000305N 072581 000305 Fuse Link 15 A

14 14 N072581000304N 072581 000304 Fuse Link 10 A

14 14 N072581000302N 072581 000302 Fuse Link 5 A

32 32 A0045450405A 004 545 04 05 Relay

32 32 A0025421419A 002 542 14 19 Relay

32 32 A0025427419A 002 542 74 19 Relay Fuel Pump

32 32 A0025427419A 002 542 74 19 Relay Alternator K26

32 32 A0035458605A 003 545 86 05 Relay Fuel Pump

38 38 A9015450340A 901 545 03 40 Bracket Fuse To Seat Box

41 41 A9015450240A 901 545 02 40 Bracket Fuse To Seat Box

47 47 A0025421419A 002 542 14 19 Relay Taxi Emergency Warning System (3×)

47 47 A0025420219A 002 542 02 19 Relay

47 47 A0025422619A 002 542 26 19 Relay Heating,ventilation & Cooling

47 47 A0025422619A 002 542 26 19 Relay Declutching Start Unit

47 47 A0025422619A 002 542 26 19 Relay Starter

47 47 A0025422619A 002 542 26 19 Relay Heating,ventilation & Cooling

53 53 A6385400082A 638 540 00 82 Bracket Relay

56 56 N007985005144N 007985 005144 Screw Bracket To Seat Box M 5x10 (2×)

~~104~~ 104 A0165456932A 016 545 69 32 Control Unit

~~104~~ 104 A0215454232A 021 545 42 32 Relay Windshield Wiper

~~125~~ 125 A6385450440A 638 545 04 40 Bracket Control Units

~~128~~ 128 A6385401340A 638 540 13 40 Bracket Control Units

~~131~~ 131 A6385453840A 638 545 38 40 Bracket Control Unit To Fire Wall

~~134~~ 134 A0089882378A 008 988 23 78 Spring Clamp (3×)

~~137~~ 137 N910104006000N 910104 006000 Nut-and-washer Assembly Bracket To Fire Wall

~~149~~ 149 A0215453932A 021 545 39 32 Control Unit

~~149~~ 149 A0245450132A 024 545 01 32 Control Unit

~~149~~ 149 A0275454932A 027 545 49 32 Control Unit In Case Of Immobiliser M 111 E 20 D3

~~176~~ 176 A0005461281A 000 546 12 81 Covering Motronic Control Unit

~~179~~ 179 A0019978390A 001 997 83 90 Loom Tie Control Unit Fixture 280 Mm

~~182~~ 182 A0245450628A 024 545 06 28 Trimmer Plug Motronic Control Unit

~~188~~ 188 N913023006001N 913023 006001 Nut Motronic Control Unit (4×)

~~227~~ 227 A0165452432A 016 545 24 32 Control Unit Heated Rear Window Pane

~~227~~ 227 A0335453232A 033 545 32 32 Control Unit Heated Rear Window Pane

~~245~~ 245 A6385450740A 638 545 07 40 Bracket Relay

~~245~~ 245 A6385450740A 638 545 07 40 Bracket Only For Taxi (2×)

~~248~~ 248 N000000000521N 000000 000521 Tapping Screw (2×)

~~248~~ 248 N007981004318N 007981 004318 Tapping Screw

~~260~~ 260 A6385450119A 638 545 01 19 Socket Control Units

~~299~~ 299 A0165459232A 016 545 92 32 Control Unit Central Locking Mechanism

~~302~~ 302 N007981004322N 007981 004322 Tapping Screw Control Unit To Bracket (2×)

070 Battery,mounting,and Battery Cables

5 5 A0045414601A 004 541 46 01 Battery 12 V / 100 Ah Varta

5 5 A0009823308A 000 982 33 08 Battery 12 V / 100 Ah Varta

5 5 A0055410901A 005 541 09 01 Battery Vlies; 90 Ah / 580 Ah Hoppecke

5 5 A0055411001A 005 541 10 01 Battery Vlies; 90 Ah / 580 Ah Hoppecke

8 8 A0009891415A 000 989 14 15 Battery Electrolyte Set 100 Ah

11 11 A0009903872A 000 990 38 72 Distributor Battery Venting

14 14 A0009973181A 000 997 31 81 Grommet Battery Venting 17/7/11 Mm

17 17 A0019974352A 001 997 43 52 Hose Battery Venting

20 20 N072311012015N 072311 012015 Protective Cover F Tml. Battery Pole Covering

23 23 A6388950170A 638 895 01 70 Rail Battery Mounting (2×)

26 26 N304017008010N 304017 008010 Hexagon Head Bolt Battery Mounting M 8x25 (2×)

29 29 A6385400430A 638 540 04 30 Positive Cable From Battery Pos. Pole To Separation Point

32 32 A6385400330A 638 540 03 30 Positive Cable From Separation Point To Starting Motor

35 35 A6385400540A 638 540 05 40 Bracket Starting Cable

38 38 N910112008000N 910112 008000 Hexagon Nut Battery Cable To Starting Motor

41 41 A0005469330A 000 546 93 30 Insulating Hose

41 41 A0025468430A 002 546 84 30 Insulating Hose

41 41 A0035461330A 003 546 13 30 Insulating Hose

50 50 A1265400531A 126 540 05 31 Neg. Cable

50 50 A6385400131A 638 540 01 31 Neg. Cable

53 53 N922002035000N 922002 035000 Line 35 Mm2

56 56 N072332009200N 072332 009200 Soldering Terminal

59 59 A0015465740A 001 546 57 40 Cable Shoe

62 62 N304032008005N 304032 008005 Hexagon Nut Ground Connection

65 65 N912004008102N 912004 008102 Spring Lock Washer Ground Connection

68 68 A6389880681A 638 988 06 81 Fastener Button Ground Connection M8-sw

71 71 N913023006001N 913023 006001 Nut Battery Cable To Starting Motor

71 71 N913023006001N 913023 006001 Nut Pos. Pole

72 72 A6389880581A 638 988 05 81 Fastener Button Pos. Pole M6-sw

74 74 A0005467435A 000 546 74 35 Boot Battery Cable To Starting Motor 10 Mm

74 74 A0005467235A 000 546 72 35 Protective Cap Connector

74 74 N913018013201N 913018 013201 Protective Cap

74 74 A0008310929A 000 831 09 29 Cap Battery Cable To Starting Motor 13 Mm

77 77 A6015420081A 601 542 00 81 Grommet Battery Cable To Starting Motor

83 83 A0029978590A 002 997 85 90 Clip Line Mounting

86 86 A0019974390A 001 997 43 90 Loom Tie Line Mounting 250 Mm

89 89 A9019970190A 901 997 01 90 Cable Strap Line Mounting 190x4.6mm (3×)

95 95 A2022710240A 202 271 02 40 Bracket Battery Cable To Transmission

98 98 A6385400440A 638 540 04 40 Bracket Battery Cable To Clutch Bell

~~104~~ 104 A0019957601A 001 995 76 01 Clamp

~~104~~ 104 A0019957901A 001 995 79 01 Clamp

~~104~~ 104 N916016015202N 916016 015202 Clamp At Bracket

~~107~~ 107 N913023006001N 913023 006001 Nut Clamp To Bracket

~~110~~ 110 N913025008000N 913025 008000 Nut Battery Cable To Starting Motor

~~122~~ 122 A1245400131A 124 540 01 31 Neg. Cable From Engine To Frame

~~125~~ 125 N922002025000N 922002 025000 Line 25 Mm2

~~128~~ 128 N046234008004N 046234 008004 Cable Lug A 8-35

~~131~~ 131 N046234010002N 046234 010002 Cable Lug A 10-35

~~140~~ 140 N304032008005N 304032 008005 Hexagon Nut Ground Connection (2×)

~~143~~ 143 N912004008102N 912004 008102 Spring Lock Washer Ground Connection (2×)

~~146~~ 146 A6389971890A 638 997 18 90 Loom Tie Battery Cable Mounting (5×)

~~149~~ 149 A0019978390A 001 997 83 90 Cable Tie Battery Cable Mounting 280 Mm

105 Horn

5 5 A6315420120A 631 542 01 20 Horn

5 5 A6385420020A 638 542 00 20 Horn

8 8 N914007008000N 914007 008000 Screw-and-washer Assembly Horn M 8x20

14 14 A0019978390A 001 997 83 90 Loom Tie At Bracket 280 Mm

116 Engine Cable Harness Diesel Vehicles

10 10 A1245400218A 124 540 02 18 Rail Cable Harness

31 31 A2025407181A 202 540 71 81 Pin Bushing Housing Unipolar

35 35 A2105403681A 210 540 36 81 Clutch 6-pole

39 39 A0105422217A 010 542 22 17 Sender Unit Rpm Sensor

52 52 A0025453101A 002 545 31 01 Fuse Box

52 52 A0025455901A 002 545 59 01 Fuse Box Double L2/8-9

52 52 A0025455801A 002 545 58 01 Fuse Box Double L8/16-17

73 73 A0015453726A 001 545 37 26 Pin Bushing 4.0 Mm

74 74 A0015454426A 001 545 44 26 Female Contact 4 Mm2

80 80 A0025459926A 002 545 99 26 Female Contact 2.5 Mm2

92 92 A0035452626A 003 545 26 26 Female Contact Less Detent 4 Mm2

~~143~~ 143 A0065450026A 006 545 00 26 Relay-socket Bipolar

~~176~~ 176 A0065455026A 006 545 50 26 Pin Bushing Less Detent 4-6 Mm2/9.5 Mm

~~220~~ 220 A0075458226A 007 545 82 26 Socket

~~221~~ 221 A0075458426A 007 545 84 26 Socket With Detent And With Catch For Housing 1.0-2.5 Mm2

~~239~~ 239 A0085455526A 008 545 55 26 Contact Bushing 0.75 Mm2

~~288~~ 288 A0095451926A 009 545 19 26 Round Pin Bushing 2.5-4.0 Mm2

~~288~~ 288 A0095452026A 009 545 20 26 Round Pin Bushing 1.0-2.5 Mm2

~~288~~ 288 A0095452126A 009 545 21 26 Female Contact 0.5-1.0 Mm2

~~407~~ 407 A0015456028A 001 545 60 28 Plug Housing 6-pole

~~409~~ 409 A0015457928A 001 545 79 28 Plug Housing Bipolar

~~416~~ 416 A0015458328A 001 545 83 28 Pin Bushing Housing 8-pole

~~419~~ 419 A0015458428A 001 545 84 28 Plug Housing 4-pole

~~423~~ 423 A0025450628A 002 545 06 28 Contact Spring 2.5 Mm2

~~446~~ 446 A0075450528A 007 545 05 28 Pin Bushing Housing 6-pole

~~462~~ 462 A0115458528A 011 545 85 28 Female Connector, Eletr. Unipolar

~~464~~ 464 A0125450428A 012 545 04 28 Female Connector, Eletr. Bipolar

~~465~~ 465 A0125450728A 012 545 07 28 Pin Bushing Housing Bipolar

~~466~~ 466 A0125451028A 012 545 10 28 Pin Bushing Housing 4-pole

~~468~~ 468 A0125452428A 012 545 24 28 Female Connector, Eletr. 3-pole

~~471~~ 471 A0135454028A 013 545 40 28 Pin Bushing Housing Unipolar

~~472~~ 472 A0145450728A 014 545 07 28 Pin Bushing Housing Single

~~474~~ 474 A0145452528A 014 545 25 28 Pin Bushing Housing 3-pole

~~509~~ 509 A0215456028A 021 545 60 28 Flat Plug With Detent 1.0-2.5 Mm2

~~582~~ 582 A0345451428A 034 545 14 28 Contact Spring 0.8-1.0 Mm2

~~583~~ 583 A0345453528A 034 545 35 28 Plug 8-pole

~~598~~ 598 A2015454628A 201 545 46 28 Pin Bushing Housing 6-pole

~~644~~ 644 A6555451328A 655 545 13 28 Clutch Housing 22-pole

~~707~~ 707 A0005456873A 000 545 68 73 Lock

~~725~~ 725 A0005456880A 000 545 68 80 Gasket Yellow 0.9-1.4 Mm

~~725~~ 725 A0005456980A 000 545 69 80 Gasket Green 1.4-1.9 Mm

~~733~~ 733 A0005457280A 000 545 72 80 Core Bundle Sealing Grey 1.2-2.0 Mm

~~733~~ 733 A0005457380A 000 545 73 80 Core Bundle Sealing Yellow 1.0-2.5 Mm2

~~733~~ 733 A0005459280A 000 545 92 80 Gasket Green 3.0-3.7 Mm

~~733~~ 733 A0015450180A 001 545 01 80 Gasket Green 3.4-4.3 Mm

~~746~~ 746 A0005458780A 000 545 87 80 Blind Plug Blue 4.1 Mm

~~822~~ 822 A0005464340A 000 546 43 40 Pin Bushing 1.0-2.5 Mm2

~~823~~ 823 A0015465840A 001 546 58 40 Cable Shoe

~~825~~ 825 A0015468540A 001 546 85 40 Cable Shoe

~~826~~ 826 A0005460845A 000 546 08 45 Insulating Sleeve

~~848~~ 848 A0009970181A 000 997 01 81 Grommet 1.75 Mm

~~848~~ 848 A0009970381A 000 997 03 81 Grommet 3.0 Mm

~~848~~ 848 A0009970581A 000 997 05 81 Grommet 5.0 Mm

~~858~~ 858 A0089970781A 008 997 07 81 Grommet

~~890~~ 890 N046225005200N 046225 005200 Cable Lug B 5-2.5

~~890~~ 890 N046225006100N 046225 006100 Cable Lug A 6-6

~~900~~ 900 N046234008000N 046234 008000 Cable Lug 8-16

~~900~~ 900 N046234008004N 046234 008004 Cable Lug 8-35

~~900~~ 900 N046234008005N 046234 008005 Cable Lug 8-25

117 Engine Cable Harness Gasoline Vehicles

3 3 A6385401309A 638 540 13 09 Cable Harness In Case Of Immobiliser M 111

9 9 A1110161321A 111 016 13 21 Gasket Ignition Cable

28 28 A1405403481A 140 540 34 81 Plug Socket

30 30 A2025406081A 202 540 60 81 Fem. Connector Hous., El. Bipolar

31 31 A2025407181A 202 540 71 81 Pin Bushing Housing Unipolar

32 32 A2105402081A 210 540 20 81 Pin Bushing Housing Bipolar

36 36 A2105407481A 210 540 74 81 Fem. Connector Hous., El. 4-pole

73 73 A0015453726A 001 545 37 26 Pin Bushing 4.0 Mm

92 92 A0035452626A 003 545 26 26 Female Contact Less Detent 4 Mm2

~~184~~ 184 A0075451626A 007 545 16 26 Connector Housing Bipolar

~~220~~ 220 A0075458226A 007 545 82 26 Socket

~~238~~ 238 A0085455326A 008 545 53 26 Contact Spring

~~286~~ 286 A0095451926A 009 545 19 26 Round Pin Bushing 2.5-4.0 Mm2

~~286~~ 286 A0095452026A 009 545 20 26 Round Pin Bushing 1.0-2.5 Mm2

~~286~~ 286 A0095452126A 009 545 21 26 Female Contact 0.5-1.0 Mm2

~~329~~ 329 A0115457626A 011 545 76 26 Contact Spring Less Detent,but With Catch For Housing 1.5-2.5 Mm2

~~329~~ 329 A0115457726A 011 545 77 26 Contact Spring Less Detent,but With Catch For Housing 0.5-1.0 Mm2

~~329~~ 329 A0115458026A 011 545 80 26 Contact Spring Less Detent,but With Catch For Housing 1.5-2.5 Mm2

~~329~~ 329 A0115458126A 011 545 81 26 Contact Spring Less Detent,but With Catch For Housing 0.5-1.0 Mm2

~~376~~ 376 A0135454626A 013 545 46 26 Female Contact

~~407~~ 407 A0015456028A 001 545 60 28 Plug Housing 6-pole

~~413~~ 413 A0015458228A 001 545 82 28 Plug Housing 8-pole

~~416~~ 416 A0015458328A 001 545 83 28 Pin Bushing Housing 8-pole

~~419~~ 419 A0015458428A 001 545 84 28 Plug Housing 4-pole

~~423~~ 423 A0025450628A 002 545 06 28 Contact Spring

~~428~~ 428 A0025451328A 002 545 13 28 Plug Housing Unipolar

~~461~~ 461 A0115457128A 011 545 71 28 Pin Bushing Housing Bipolar

~~468~~ 468 A0125452428A 012 545 24 28 Female Connector, Eletr. 3-pole

~~471~~ 471 A0135454028A 013 545 40 28 Pin Bushing Housing

~~472~~ 472 A0145450728A 014 545 07 28 Pin Bushing Housing Single

~~495~~ 495 A0175456328A 017 545 63 28 Plug Pin 0.5-1.0 Mm2

~~567~~ 567 A0335458328A 033 545 83 28 Plug Housing Unipolar

~~568~~ 568 A0335458428A 033 545 84 28 Plug Housing 3-pole

~~597~~ 597 A1405454428A 140 545 44 28 Pin Bushing Housing Bipolar

~~599~~ 599 A1405453528A 140 545 35 28 Pin Bushing Housing Bipolar

~~674~~ 674 A0005452839A 000 545 28 39 Core Bundle Sealing Light Blue 5.4 Mm

~~674~~ 674 A0005452939A 000 545 29 39 Core Bundle Sealing Withe 5.4 Mm

~~715~~ 715 A0005454680A 000 545 46 80 Gasket Light Blue 8.0 Mm

~~715~~ 715 A0005454780A 000 545 47 80 Gasket Withe 8.0 Mm

~~722~~ 722 A0005456080A 000 545 60 80 Gasket Black 8.2 Mm

~~722~~ 722 A0005456280A 000 545 62 80 Gasket Natural-colored 6.3 Mm

~~725~~ 725 A0005456880A 000 545 68 80 Gasket Yellow 0,9-1.4 Mm

~~725~~ 725 A0005456980A 000 545 69 80 Gasket Green 1,4-1.9 Mm

~~732~~ 732 A0005457280A 000 545 72 80 Core Bundle Sealing Grey 1,2-2.0 Mm

~~732~~ 732 A0005457380A 000 545 73 80 Core Bundle Sealing Yellow 1.0-2.5 Mm2

~~732~~ 732 A0005458280A 000 545 82 80 Gasket Grey

~~732~~ 732 A0005458380A 000 545 83 80 Gasket Black

~~732~~ 732 A0005458980A 000 545 89 80 Gasket Withe

~~732~~ 732 A0005459280A 000 545 92 80 Gasket Green 3.0-3.7 Mm

~~732~~ 732 A0015450180A 001 545 01 80 Gasket Green 3.4-4.3 Mm

~~777~~ 777 A0005457481A 000 545 74 81 Pin Bushing Housing Parts Kit

~~822~~ 822 A0005464340A 000 546 43 40 Pin Bushing 1.0-2.5 Mm2

~~826~~ 826 A0005460845A 000 546 08 45 Insulating Sleeve

~~858~~ 858 A0089970781A 008 997 07 81 Grommet

136 Front End Main Cable Harness

2 2 A6380004199A 638 000 41 99 Cable Harness

2 2 A6380006999A 638 000 69 99 Cable Harness Main Cable Harness

20 20 A0015402481A 001 540 24 81 Plug Housing 4-pole

23 23 A0015408681A 001 540 86 81 Plug Socket 16-pole

26 26 A0025404381A 002 540 43 81 Parts Kit Three Pin Jack Connector

29 29 A1685400181A 168 540 01 81 Clutch Double

29 29 A2105402081A 210 540 20 81 Pin Bushing Housing Bipolar

35 35 A2105403681A 210 540 36 81 Clutch 6-pole

41 41 A0125423117A 012 542 31 17 Sender Unit To Tachograph

71 71 A0085450426A 008 545 04 26 Pin Bushing With Detent And With Catch For Housing 0.5-1.0 Mm2

71 71 A0065454426A 006 545 44 26 Pin Bushing With Detent;less Catch For Housing 1.0-2.5 Mm2

71 71 A0075458426A 007 545 84 26 Socket With Detent And With Catch For Housing 1.0-2.5 Mm2

71 71 A0015453126A 001 545 31 26 Pin Bushing Less Detent 4.0-6.0 Mm2

74 74 A0015454426A 001 545 44 26 Female Contact 4 Mm2

80 80 A0025459926A 002 545 99 26 Female Contact 2.5 Mm2

92 92 A0035452626A 003 545 26 26 Female Contact 4 Mm2

98 98 A0045450026A 004 545 00 26 Female Contact 4 Mm2

98 98 A0045455226A 004 545 52 26 Contact Spring Less Detent,but With Catch For Housing 1.5-2.5 Mm2

98 98 A0065450826A 006 545 08 26 Contact Spring Less Detent,but With Catch For Housing 2.5-4.0 Mm2

98 98 A0065454526A 006 545 45 26 Contact Spring Less Detent,but With Catch For Housing 4.0-6.0 Mm2

~~125~~ 125 A0055455426A 005 545 54 26 Pin Bushing Housing Bipolar

~~128~~ 128 A0055456826A 005 545 68 26 Contact Spring Less Detent,but With Catch For Housing 0.5-1.0 Mm2

~~131~~ 131 A0055458526A 005 545 85 26 Contact Spring Less Detent,but With Catch For Housing 0.2-0.35 Mm2

~~143~~ 143 A0065450026A 006 545 00 26 Relay-socket Bipolar

~~176~~ 176 A0065455026A 006 545 50 26 Pin Bushing Less Detent 4-6 Mm2/9.5 Mm

~~185~~ 185 A0075454526A 007 545 45 26 Pin Bushing Housing 4-pole

~~188~~ 188 A0075454726A 007 545 47 26 Single-wire Seal 10-pole

~~197~~ 197 A0075455026A 007 545 50 26 Pin Bushing 1.0-1.5 Mm2

~~197~~ 197 A0075455126A 007 545 51 26 Pin Bushing 0.5-1.0 Mm2

~~209~~ 209 A0075455626A 007 545 56 26 Pin Bushing Housing Bipolar

~~248~~ 248 A0085456326A 008 545 63 26 Female Contact 0.75 Mm2

~~251~~ 251 A0085457726A 008 545 77 26 Round Pin Bushing Less Detent,but With Catch For Housing 0.5-1.0 Mm2

~~287~~ 287 A0095451126A 009 545 11 26 Round Pin Bushing 4 Mm

~~302~~ 302 A0095458926A 009 545 89 26 Contact Spring

~~302~~ 302 A0155457426A 015 545 74 26 Contact Spring With Detent 0.5-1.0 Mm2

~~302~~ 302 A0135455026A 013 545 50 26 Contact Spring 1.0 Mm2

~~305~~ 305 A0105454026A 010 545 40 26 Pin Bushing Housing 8-pole

~~308~~ 308 A0105456826A 010 545 68 26 Pin Bushing 0.35-0.5 Mm2

~~308~~ 308 A0105457326A 010 545 73 26 Pin Bushing 0.75-1.0 Mm2

~~308~~ 308 A0105457526A 010 545 75 26 Pin Bushing 1.0-2.0 Mm2

~~329~~ 329 A0115457626A 011 545 76 26 Contact Spring Less Detent,but With Catch For Housing 1.5-2.5 Mm2

~~329~~ 329 A0115457726A 011 545 77 26 Contact Spring Less Detent,but With Catch For Housing 0.5-1.0 Mm2

~~329~~ 329 A0115458026A 011 545 80 26 Contact Spring Less Detent,but With Catch For Housing 1.5-2.5 Mm2

~~329~~ 329 A0115458126A 011 545 81 26 Contact Spring Less Detent,but With Catch For Housing 0.5-1.0 Mm2

~~347~~ 347 A0115459726A 011 545 97 26 Pin Bushing Housing 23-pole

~~389~~ 389 A0095453628A 009 545 36 28 Cover

~~398~~ 398 A3805450226A 380 545 02 26 Plug Socket M 27x1

~~407~~ 407 A0015456028A 001 545 60 28 Plug Housing 6-pole

~~410~~ 410 A0015458128A 001 545 81 28 Pin Bushing Housing

~~413~~ 413 A0015458228A 001 545 82 28 Plug Housing 8-pole

~~416~~ 416 A0015458328A 001 545 83 28 Pin Bushing Housing 8-pole

~~422~~ 422 A0015458728A 001 545 87 28 Pin Bushing Housing Bipolar

~~425~~ 425 A0025451128A 002 545 11 28 Pin Bushing Housing Unipolar

~~440~~ 440 A0065458128A 006 545 81 28 Pin Bushing Housing 8-pole

~~446~~ 446 A0075450528A 007 545 05 28 Pin Bushing Housing 6-pole

~~449~~ 449 A0075457528A 007 545 75 28 Pin Bushing Housing 3-pole

~~452~~ 452 A0085453728A 008 545 37 28 Clutch Bipolar

~~455~~ 455 A0085453828A 008 545 38 28 Housing Upper Part

~~464~~ 464 A0125450428A 012 545 04 28 Female Connector, Eletr. Bipolar

~~479~~ 479 A0155459628A 015 545 96 28 Pin Bushing Housing 6-pole

~~512~~ 512 A0225454128A 022 545 41 28 Pin Bushing Housing 4-pole

~~527~~ 527 A0285455328A 028 545 53 28 Flat Plug With Detent 4-6 Mm2

~~527~~ 527 A0355458128A 035 545 81 28 Flat Plug With Detent 0.5-1.0 Mm2

~~527~~ 527 A0315453328A 031 545 33 28 Flat Plug With Detent 1.0-2.5 Mm2

~~557~~ 557 A0325455428A 032 545 54 28 Plug Pin 0.5-1.0 Mm2

~~566~~ 566 A0335458228A 033 545 82 28 Plug Housing 7-pole

~~569~~ 569 A0335458628A 033 545 86 28 Plug Housing 28-pole

~~572~~ 572 A0335458828A 033 545 88 28 Plug Housing 3-pole

~~575~~ 575 A0335458928A 033 545 89 28 Plug Air Flow Sensor

~~578~~ 578 A0335459028A 033 545 90 28 Plug Housing 10-pole

~~599~~ 599 A1405453528A 140 545 35 28 Pin Bushing Housing Bipolar

~~671~~ 671 A0005450539A 000 545 05 39 Rubber Ring "pms"

~~674~~ 674 A0005452839A 000 545 28 39 Core Bundle Sealing Light Blue 5.4 Mm

~~674~~ 674 A0005452939A 000 545 29 39 Core Bundle Sealing Withe 5.4 Mm

~~683~~ 683 A0005458040A 000 545 80 40 Bracket "pms"

~~698~~ 698 A1295450147A 129 545 01 47 Bracket Plug

~~701~~ 701 A0005450471A 000 545 04 71 Screw "pms"

~~707~~ 707 A0005456873A 000 545 68 73 Lock

~~710~~ 710 A0005459373A 000 545 93 73 Lock 5-pole

~~713~~ 713 A0005459473A 000 545 94 73 Lock 13-pole

~~722~~ 722 A0005456280A 000 545 62 80 Gasket Natural-colored 6.3 Mm

~~725~~ 725 A0005456880A 000 545 68 80 Gasket Yellow 0.9-1.4 Mm

~~725~~ 725 A0005456980A 000 545 69 80 Gasket Green 1.4-1.9 Mm

~~731~~ 731 A0005457180A 000 545 71 80 Gasket 1.2-2.0 Mm

~~731~~ 731 A0005457680A 000 545 76 80 Gasket 2.1-2.9 Mm

~~737~~ 737 A0005457780A 000 545 77 80 Gasket "pms"

~~740~~ 740 A0005457980A 000 545 79 80 Blind Plug Withe Elb 4

~~740~~ 740 A0005458480A 000 545 84 80 Gasket Grey 4.4-4.7 Mm

~~746~~ 746 A0005458780A 000 545 87 80 Gasket Blue 4.1 Mm

~~752~~ 752 A0005459480A 000 545 94 80 Gasket Red/brown 5.75 Mm

~~758~~ 758 A0005459780A 000 545 97 80 Gasket Blue 5.75 Mm

~~758~~ 758 A6655457480A 665 545 74 80 Gasket Red/brown 5.75 Mm

~~776~~ 776 A0005457381A 000 545 73 81 Shell Type Handle "pms"

~~785~~ 785 A0005458583A 000 545 85 83 Cap

~~797~~ 797 A0015452183A 001 545 21 83 Cap

~~800~~ 800 A0015452383A 001 545 23 83 Cap

~~809~~ 809 A0015452783A 001 545 27 83 Cap

~~812~~ 812 A0015461330A 001 546 13 30 Shrink Hose

~~815~~ 815 A0005466035A 000 546 60 35 Boot

~~821~~ 821 A6015460335A 601 546 03 35 Boot

~~833~~ 833 A3809900140A 380 990 01 40 Washer

~~836~~ 836 A0009903654A 000 990 36 54 Nut

~~839~~ 839 A0039977549A 003 997 75 49 Single-wire Seal Grey 3.9 Mm

~~839~~ 839 A0039977649A 003 997 76 49 Single-wire Seal Yellow 3.9 Mm

~~839~~ 839 A0039977749A 003 997 77 49 Gasket Black 3.9 Mm

~~839~~ 839 A0029976086A 002 997 60 86 Plug Withe 3.9 Mm

~~869~~ 869 A6389971481A 638 997 14 81 Grommet Front End Main Cable Harness

~~887~~ 887 N046225005100N 046225 005100 Cable Lug A 5-1

~~899~~ 899 N046234006005N 046234 006005 Cable Lug 6-35

137 Central Main Cable Harness

2 2 A6380004199A 638 000 41 99 Cable Harness

2 2 A6380006999A 638 000 69 99 Cable Harness Main Cable Harness

12 12 A6010780245A 601 078 02 45 Branch-off Fitting

56 56 A0005459603A 000 545 96 03 Cap

59 59 A0015458914A 001 545 89 14 Switch

62 62 A0005453319A 000 545 33 19 Socket Tell-tale Lamp

71 71 A0085450426A 008 545 04 26 Pin Bushing With Detent And With Catch For Housing 0.5-1.0 Mm2

71 71 A0075458426A 007 545 84 26 Socket With Detent And With Catch For Housing 1.0-2.5 Mm2

71 71 A0065454426A 006 545 44 26 Pin Bushing With Detent;less Catch For Housing 1.0-2.5 Mm2

71 71 A0015453126A 001 545 31 26 Pin Bushing Less Detent 4.0-6.0 Mm2

71 71 A0065455026A 006 545 50 26 Pin Bushing Less Detent 4-6 Mm2/9.5 Mm

74 74 A0015454426A 001 545 44 26 Female Contact 4 Mm2

80 80 A0025459926A 002 545 99 26 Female Contact 2.5 Mm2

83 83 A0035450226A 003 545 02 26 Contact Spring

86 86 A0035450626A 003 545 06 26 Female Contact 2.5 Mm2

92 92 A0035452626A 003 545 26 26 Female Contact Less Detent 4 Mm2

98 98 A0045450026A 004 545 00 26 Female Contact 4 Mm2

98 98 A0115458426A 011 545 84 26 Contact Spring Less Detent,but With Catch For Housing 0.5-1.0 Mm2

98 98 A0045455226A 004 545 52 26 Contact Spring Less Detent,but With Catch For Housing 1.5-2.5 Mm2

98 98 A0045459526A 004 545 95 26 Contact Spring Less Detent,but With Catch For Housing 6 Mm2

~~140~~ 140 A0055459426A 005 545 94 26 Pin Bushing Housing 12-pole

~~143~~ 143 A0065450026A 006 545 00 26 Relay-socket Bipolar

~~149~~ 149 A0065450226A 006 545 02 26 Pin Bushing Housing 5-pole

~~152~~ 152 A0065450326A 006 545 03 26 Pin Bushing Housing 6-pole

~~158~~ 158 A0065453126A 006 545 31 26 Pin Bushing Housing 21-pole

~~236~~ 236 A0085450726A 008 545 07 26 Contact Spring 0.35-0.75 Mm2
